A3LSMT217TPortable Multi-band UMTS/LTE Tablet with WiFi and Bluetooth

ANDROID TABLET User Manual Please read this manual before operating your device and keep it for future reference. Intellectual Property All Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to the SAMSUNG Galaxy Tab, including but not limited to, accessories, parts, or software relating there to (the “Galaxy Tab System”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers. Open Source Software Some software components of this product incorporate source code covered under GNU General Public License (GPL), GNU Lesser General Public License (LGPL), OpenSSL License, BSD License and other open source licenses. To obtain the source code covered under the open source licenses, please visit: http://opensource.samsung.com. Disclaimer of Warranties; Exclusion of Liability EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS. Modification of Software SAMSUNG IS NOT LIABLE FOR PERFORMANCE ISSUES OR INCOMPATIBILITIES CAUSED BY YOUR EDITING OF REGISTRY SETTINGS, OR YOUR MODIFICATION OF OPERATING SYSTEM SOFTWARE. USING CUSTOM OPERATING SYSTEM SOFTWARE MAY CAUSE YOUR DEVICE AND APPLICATIONS TO WORK IMPROPERLY. YOUR CARRIER MAY NOT PERMIT USERS TO DOWNLOAD CERTAIN SOFTWARE, SUCH AS CUSTOM OS. SAFE™ (Samsung Approved For Enterprise) SAFE™: "SAFE™" (Samsung for Enterprise) is a mark for a Samsung device which has been tested against Samsung's own internal criteria for interoperability with certain third party security-related solutions for MDM and VPN. The testing includes field testing with local network connection and menu tree testing which tests functionality of the solutions in conjunction with the Samsung device. During the testing, the device is tested with the security solutions to see if the solutions work with the device as described by the third party security solution providers. The testing, for example, includes field testing with local network connection and menu tree testing which tests functionality of the solutions in conjunction with the Samsung device. For more information about Samsung's SAFE™ program, please refer to www.samsung.com/us/safe. Disclaimer of Warranties: EXCEPT AS OTHERWISE PROVIDED IN THEIR STANDARD END USER LICENSE AND WARRANTY, TO THE FULL EXTENT PERMITTED BY LAW SAMSUNG ELECTRONICS CO., LTD., SAMSUNG TELECOMMUNICATIONS AMERICA, LLC, AND THEIR AFFILIATES (COLLECTIVELY REFERRED TO HEREIN AS THE "SAMSUNG ENTITIES") EXPRESSLY DISCLAIM ANY AND ALL WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, INTEROPERABILITY OR NON-INFRINGEMENT, WITH RESPECT TO INFORMATION TECHNOLOGY SECURITY PROTECTION, SAFE™ DEVICES AND APPLICATIONS TESTED WITH SAFE™ DEVICES. IN NO EVENT SHALL THE SAMSUNG ENTITIES BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, PUNITIVE, OR CONSEQUENTIAL DAMAGES OF ANY KIND WHATSOEVER WITH RESPECT TO INFORMATION TECHNOLOGY SECURITY PROTECTION, SAFE™ DEVICES OR APPLICATIONS TESTED WITH SAFE™ DEVICES. In addition, information technology security protection will be affected by features or functionality associated with, among other things the e-mail platform, master data management, and virtual private network solutions selected by the software provider, solution provider or user. Choice of an e-mail, master data management, and virtual private network solution is at the sole discretion of the software provider, solution provider or user and any associated effect on information technology security protection is solely the responsibility of the software provider, solution provider or user. For complete statement of limited warranty, please refer to www.samsung.com/us/safe, available on the web and where Samsung smartphone and Galaxy Tab™ devices are sold. [101212] Samsung Telecommunications America (STA), LLC Headquarters: 1301 E. Lookout Drive Richardson, TX 75082 Customer Care Center: 1000 Klein Rd. Plano, TX 75074 Toll Free Tel: 1.888.987.HELP (4357) © 2013 Samsung Electronics America, Inc. All rights reserved. Do you have questions about your Samsung Mobile Device? For 24 hour information and assistance, we offer a new FAQ/ARS System (Automated Response System) at: www.samsung.com/us/support Nuance ® , VSuite™, T9 ® Text In…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: Nov. 5, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSMT217T To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST ExhibitDescription 1 Block Diagram 2 Operational Description 3 Schematics PERMANENT 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 Users Manual The Applicant understands that purs uant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronic s America INC.

Nov. 04, 2013 SAM SUNG EL ECTRO NICS CO., LTD 129,Samsung-ro,Yeongtong-gu Suw on- si,Gyeong gi-do, 443-742 Korea Federal Communicatio ns Commission 7435 Oakland Mills R oaad Columbia, MD 21046 SU BJECT : La bel Statement FCC ID : A3 LSMT217T Gentl emen: We hereby provide the label statement letter for the above-mentioned device by a new label statement p olicy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID shown in the FCC ID label page will be readily visible at the time of purchase. The label is permanently engraved by laser on the rear bottom of the device. This st atement could not be included in the label. So we inf orm you of it through this le tter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunicati on Netw ork Business Mobile Communicati on Division Regulatory Compliance Group.

Label and Location Model: SM-T217T FCC ID: A3LSMT217T Label: Location: Top Back of device Bottom FCC ID is printed on the rear bottom of the device Label

FCC ID: A3LSMT217T SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 63 0Y1310172043.A3L 06/12/13 - 06/17/13; 10/16/13-10/21/13 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 06/12/13 - 06/17/13; 10/16/13-10/21/13 129, Samsung-ro, Maetan Dong Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Republic of Korea Document Serial No.: 0Y1310172043.A3L FCC ID: A3L SMT217T APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Tablet Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): SM-T217T SAR 1g Body (W/kg) PCBUMTS 850826.40 - 846.60 MHz23.160.57 PCBUMTS 17501712.4 - 1752.5 MHz22.870.74 PCBUMTS 19001852.4 - 1907.6 MHz22.660.66 PCBLTE Band 17706.5 - 713.5 MHz24.960.19 PCBLTE Band 5 (Cell)825.5 - 847.5 MHz24.660.37 PCBLTE Band 4 (AWS)1712.5 - 1752.5 MHz23.190.75 PCBLTE Band 2 (PCS)1851.5 - 1908.5 MHz23.300.69 DTS2.4 GHz WLAN2412 - 2462 MHz14.950.38 DTSBluetooth LE2402 - 2480 MHz3.19N/A DTS5.8 GHz WLAN5745 - 5825 MHz7.880.74 NII5.2 GHz WLAN5180 - 5240 MHz8.190.64 NII5.3 GHz WLAN5260 - 5320 MHz8.400.67 NII5.5 GHz WLAN5500 - 5700 MHz8.450.87 DSSBluetooth2402 - 2480 MHz10.49 1.27 Band & ModeTx Frequency Measured Conducted Power [dBm] Simultaneous SAR per KDB 690783 D01v01r02: Equipment Class <0.1 Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all configurations for each mode. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.7 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Tes t results reported herein relate only to the item(s) tested. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1. 410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: A3LSMT217T SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 63 0Y1310172043.A3L 06/12/13 - 06/17/13; 10/16/13-10/21/13 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 TABLE OF CONTENTS 1 DEVICE UNDER TEST ....................................................................................................................3 2 LTE INFORMATION .........................................................................................................................8 3 INTRODUCTION ..............................................................................................................................9 4 DOSIMETRIC ASSESSMENT ...................................................................................................... 10 5 RF EXPOSURE LIMITS ................................................................................................................ 11 6 SAR TESTING PROCEDURES .................................................................................................... 12 7 FCC MEASUREMENT PROCEDURES ........................................................................................ 13 8 RF CONDUCTED POWERS ......................................................................................................... 17 9 SYSTEM VERIFICATION .............................................................................................................. 43 10 SAR DATA SUMMARY ................................................................................................................. 45 11 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 50 12 SAR MEASUREMENT VARIABILITY ........................................................................................... 56 13 EQUIPMENT LIST ......................................................................................................................... 57 14 MEASUREMENT UNCERTAINTIES ............................................................................................ 59 15 CONCLUSION ............................................................................................................................... 61 16 REFERENCES .............................................................................................................................. 62 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS APPENDIX G: SENSOR TRIGGERING INFORMATION FCC ID: A3LSMT217T SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 63 0Y1310172043.A3L 06/12/13 - 06/17/13; 10/16/13-10/21/13 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 1 DEVICE UNDER TEST 1.1 Device Overview UMTS 850Data826.40 - 846.60 MHz UMTS 1750Data1712.4 - 1752.5 MHz UMTS 1900Data1852.4 - 1907.6 MHz LTE Band 17Data706.5 - 713.5 MHz LTE Band 5 (Cell)Data825.5 - 847.5 MHz LTE Band 4 (AWS)Data1712.5 - 1752.5 MHz LTE Band 2 (PCS)Data1851.5 - 1908.5 MHz 2.4 GHz WLANData2412 - 2462 MHz Bluetooth LEData2402 - 2480 MHz 5.8 GHz WLANData5745 - 5825 MHz 5.2 GHz WLANData5180 - 5240 MHz 5.3 GHz WLANData5260 - 5320 MHz 5.5 GHz WLANData5500 - 5700 MHz BluetoothData2402 - 2480 MHz Band & ModeTx Frequency Operating Modes…

Text truncated - open the document above for the full version.

FCC ID: A3LSMT217T FCC Pt. 15.247 BLUETOOTH TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 46 0Y1310172050.A3L 10/18-10/29/2013 Portable Tablet Computer © 2013 PCTEST Engineering Laboratory, Inc. V 3.3 06/10/2013 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 10/18-10/29/2013 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab. Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1310172050.A3L FCC ID: A3LSMT217T APPLICANT: Samsung Electronics, Co. Ltd. Application Type: Certification Model(s): SM-T217T EUT Type: Portable Tablet Computer Max. RF Output Power: 15.596 mW (11.93dBm) Conducted Frequency Range: 2402 – 2480MHz (Bluetooth for US) Type of Modulation: GFSK, /4-DQPSK, 8DPSK FCC Classification: FCC Part 15 Spread Spectrum Transmitter (DSS) FCC Rule Part(s): Part 15 Subpart C (15.247) Test Procedure(s): ANSI C63.10-2009, DA 00-705 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2009 and DA 00-705. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 Bluetooth FCC ID: A3LSMT217T FCC Pt. 15.247 BLUETOOTH TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 46 0Y1310172050.A3L 10/18-10/29/2013 Portable Tablet Computer © 2013 PCTEST Engineering Laboratory, Inc. V 3.3 06/10/2013 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT .................................................................................................. 3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 SCOPE ........................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION ............................................................................................................................ 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION......................................................................................................................... 5 2.2 DEVICE CAPABILITIES ................................................................................................................................. 5 2.3 TEST CONFIGURATION ............................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ...................................................................................... 5 2.5 LABELING REQUIREMENTS ........................................................................................................................ 5 3.0 DESCRIPTION OF TEST ........................................................................................................................ 6 3.1 EVALUATION PROCEDURE ......................................................................................................................... 6 3.2 AC LINE CONDUCTED EMISSIONS ............................................................................................................. 6 3.3 RADIATED EMISSIONS ................................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS .................................................................................................................. 8 5.0 TEST EQUIPMENT CALIBRATION DATA .............................................................................................. 9 6.0 TEST RESULTS .................................................................................................................................... 10 6.1 SUMMARY ................................................................................................................................................... 10 6.2 20DB BANDWIDTH MEASUREMENT ......................................................................................................... 11 6.3 OUTPUT POWER MEASUREMENT ........................................................................................................... 17 6.4 BAND EDGE COMPLIANCE ....................................................................................................................... 27 6.5 CARRIER FREQUENCY SEPARATION ...................................................................................................... 30 6.6 TIME OF OCCUPANCY ............................................................................................................................... 31 6.7 NUMBER OF HOPPING CHANNELS .......................................................................................................... 32 6.8 CONDUCTED SPURIOUS EMISSIONS ...................................................................................................... 34 6.9 RADIATED SPURIOUS EMISSION MEASUREMENTS .............................................................................. 38 6.10 RADIATED RESTRICTED BAND EDGE MEASUREMENTS .................................................................. 42 6.11…

Text truncated - open the document above for the full version.

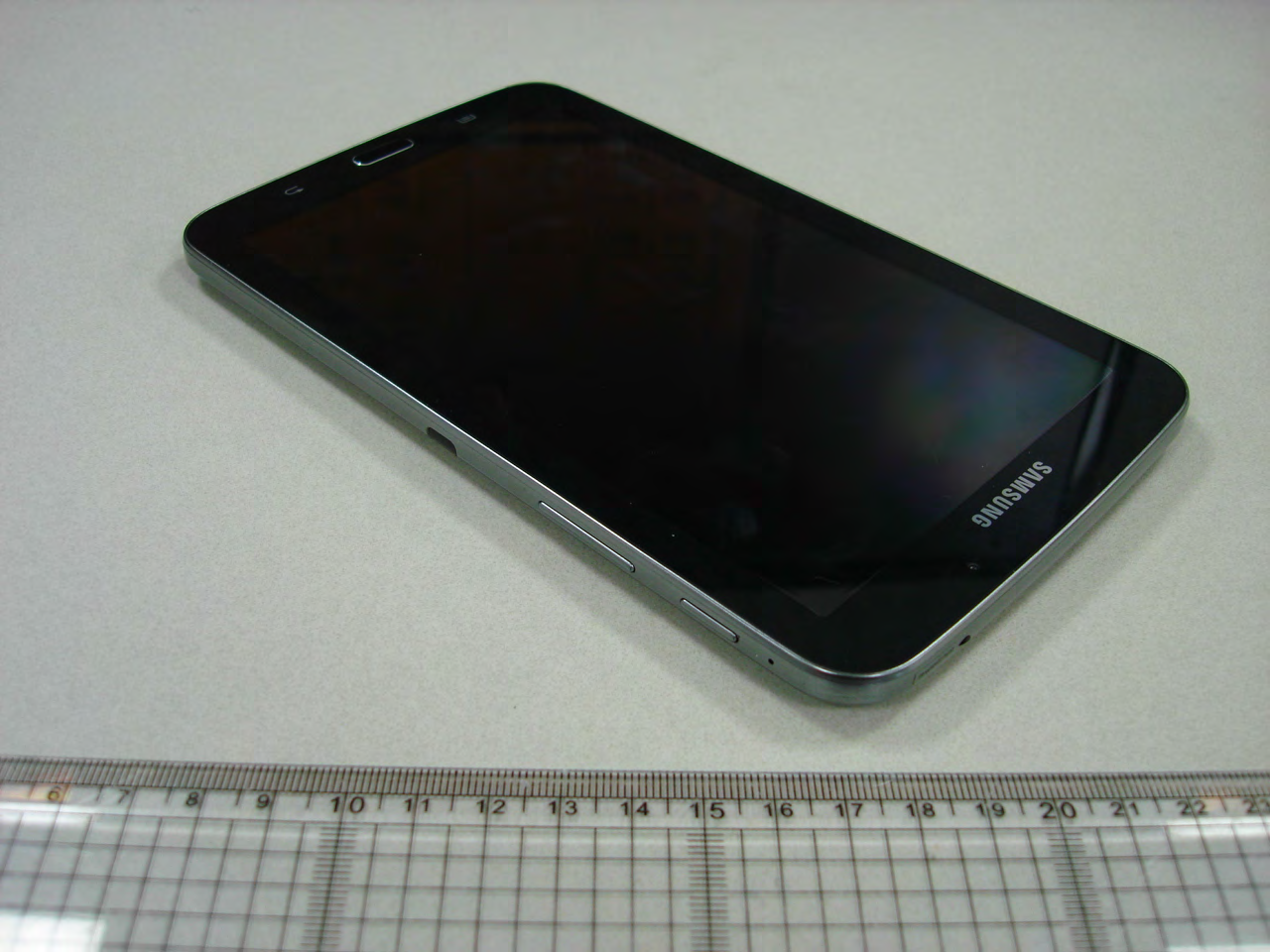

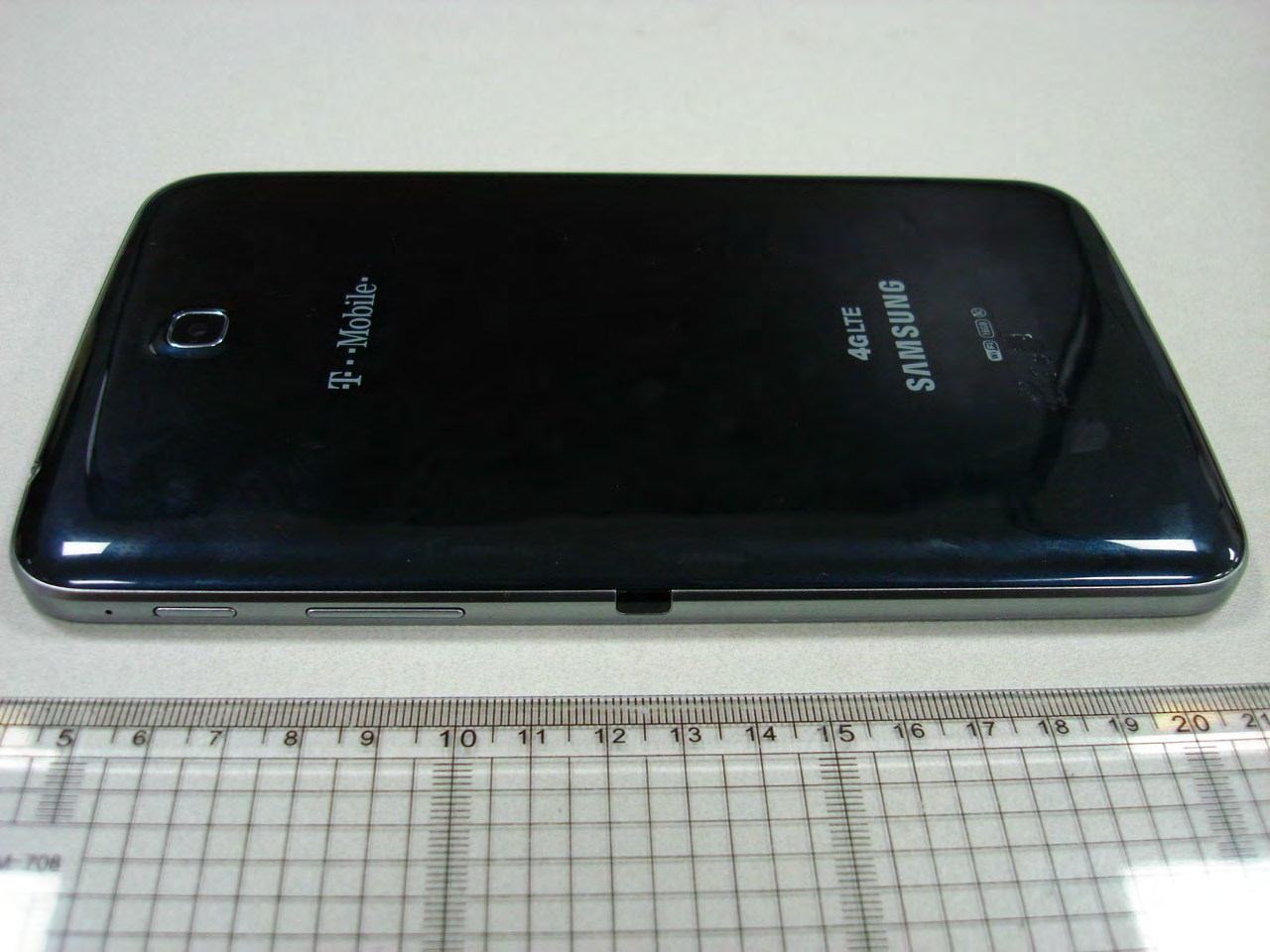

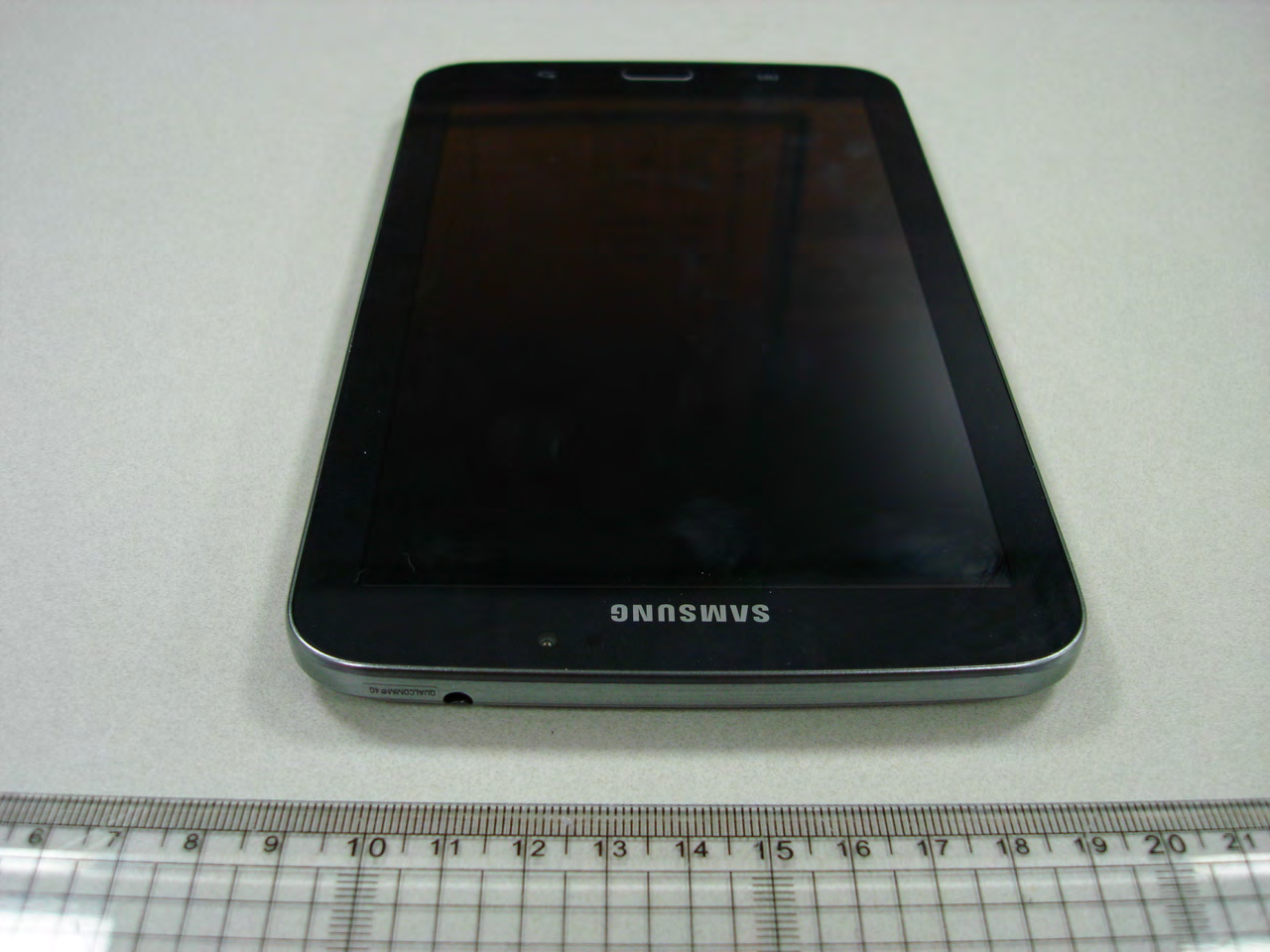

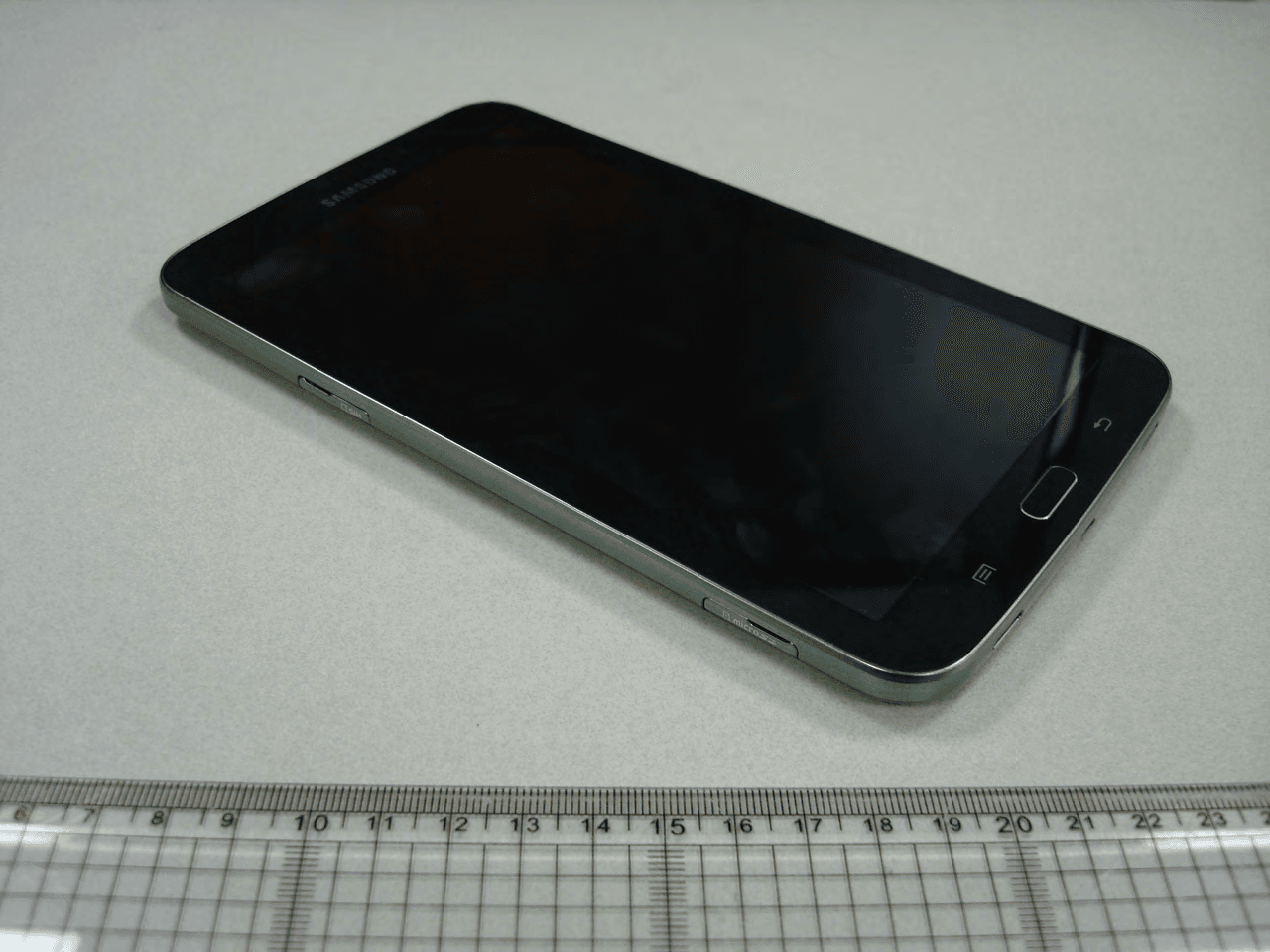

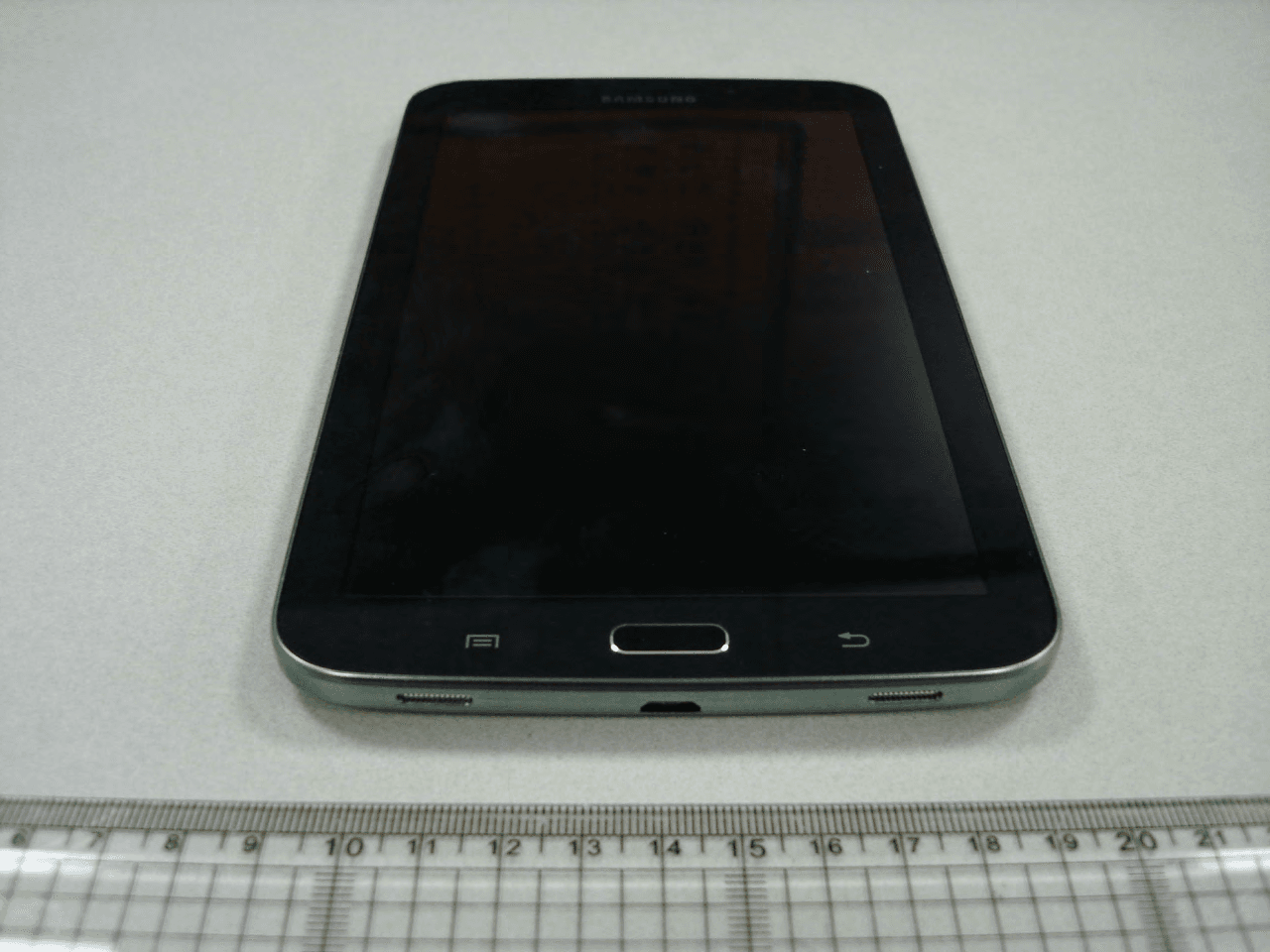

Samsung FCC ID: A3LSMT217T Model: SM-T217T Test Set-Up Photos EUT Type: Portable Tablet Computer Page 1 of 3 © 2013 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS Samsung FCC ID: A3LSMT217T Model: SM-T217T Test Set-Up Photos EUT Type: Portable Tablet Computer Page 2 of 3 © 2013 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSMT217T Model: SM-T217T Test Set-Up Photos EUT Type: Portable Tablet Computer Page 3 of 3 © 2013 PCTEST Engineering Laboratory Inc.

FCC ID A3LSMT217T SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 1 of 5 06/12/13 – 06/17/13; 10/16/13-10/21/13 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 APPENDIX F: S AR TEST SETUP PHOTOGRAPHS FCC ID A3LSMT217T SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 2 of 5 06/12/13 – 06/17/13; 10/16/13-10/21/13 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 SAR Test Setup Photo 1: Back at 0.0 cm SAR Test Setup Photo 2: Back at 1.4 cm FCC ID A3LSMT217T SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 3 of 5 06/12/13 – 06/17/13; 10/16/13-10/21/13 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 SAR Test Setup Photo 3: Top at 0.0 cm SAR Test Setup Photo 4: Top at 1.4 cm FCC ID A3LSMT217T SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 4 of 5 06/12/13 – 06/17/13; 10/16/13-10/21/13 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 SAR Test Setup Photo 5: Bottom at 0.0 cm SAR Test Setup Photo 6: Left at 0.0 cm FCC ID A3LSMT217T SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 5 of 5 06/12/13 – 06/17/13; 10/16/13-10/21/13 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 SAR Test Setup Photo 7: Left at 0.4 cm
