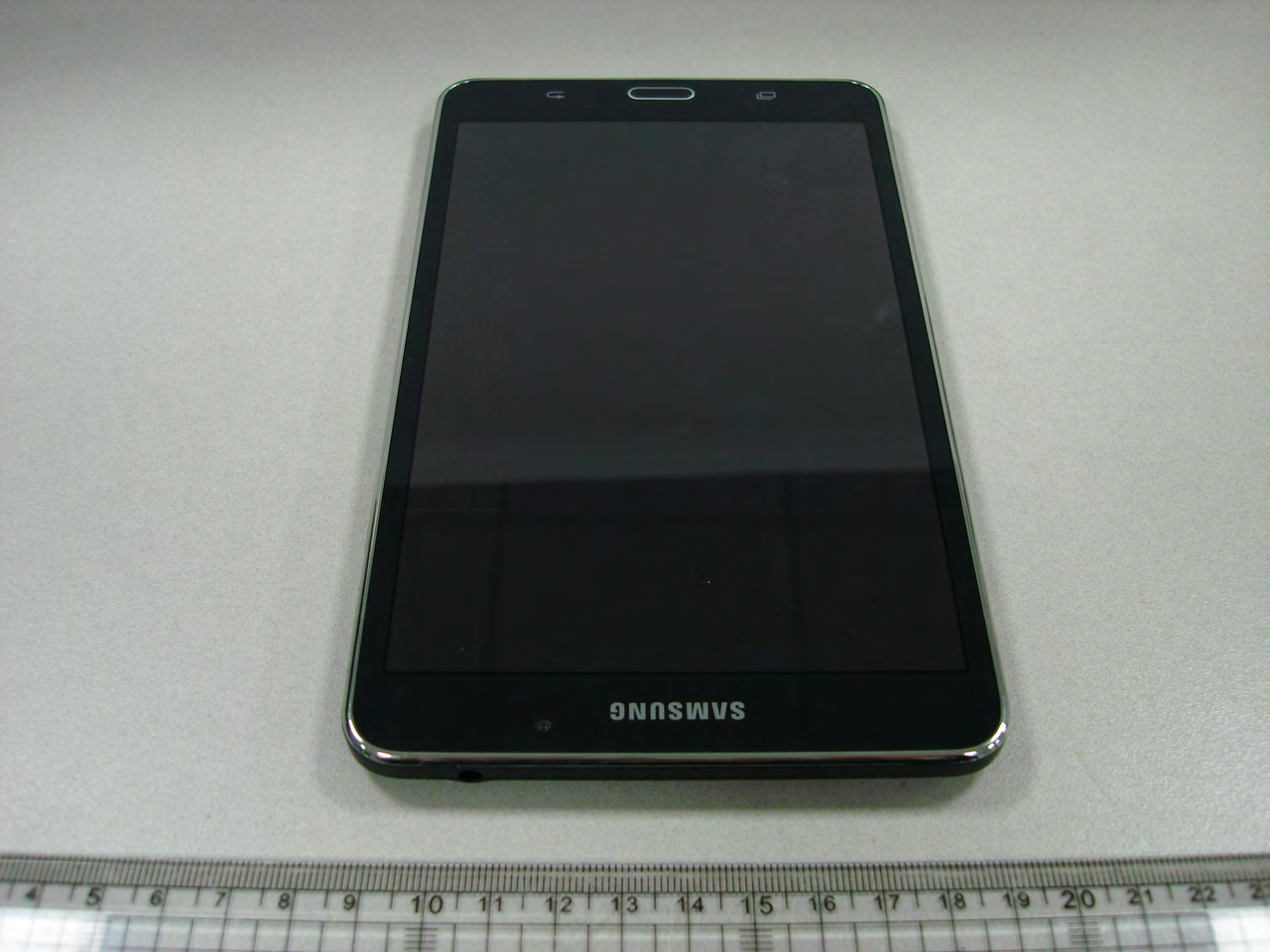

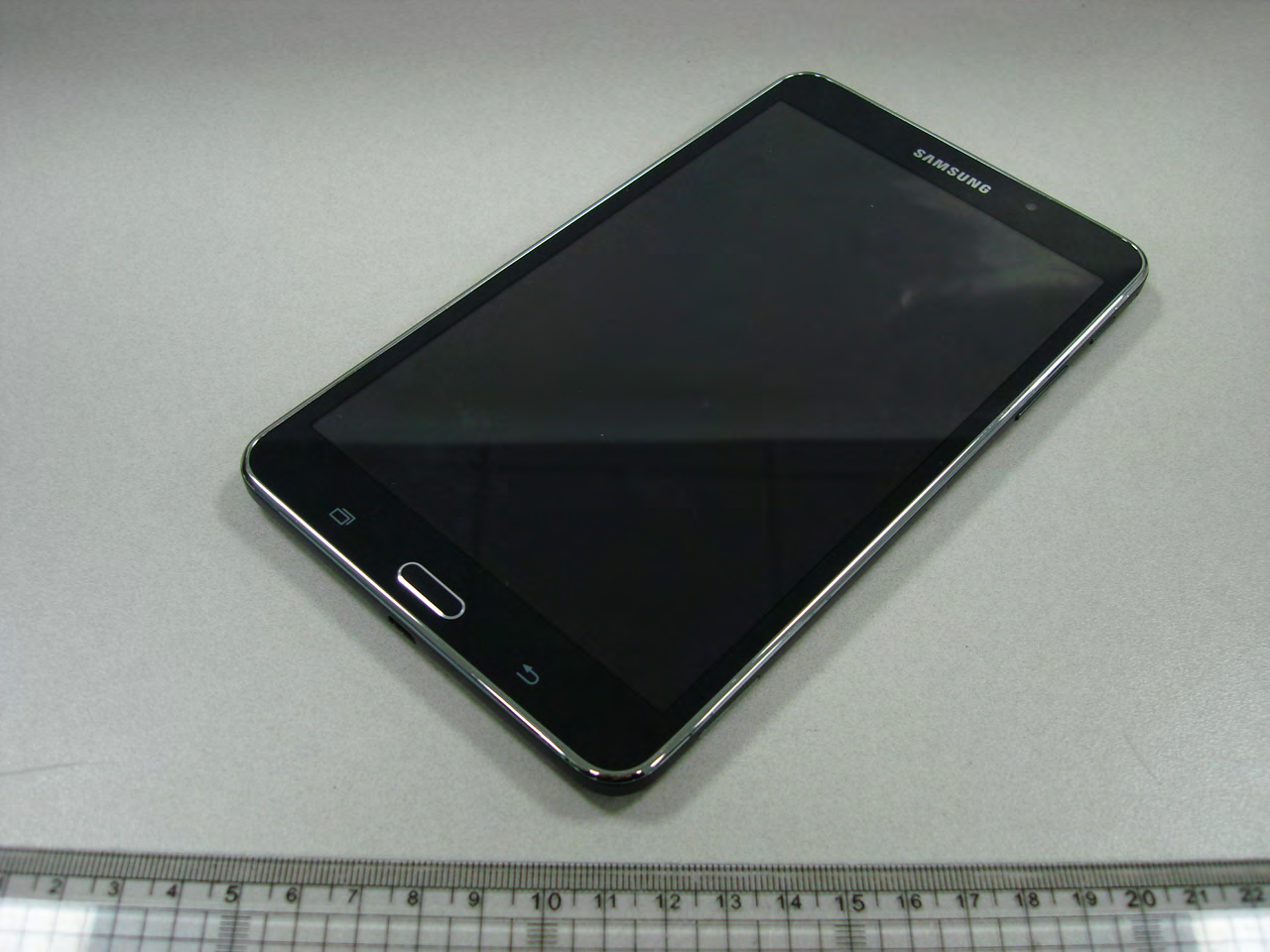

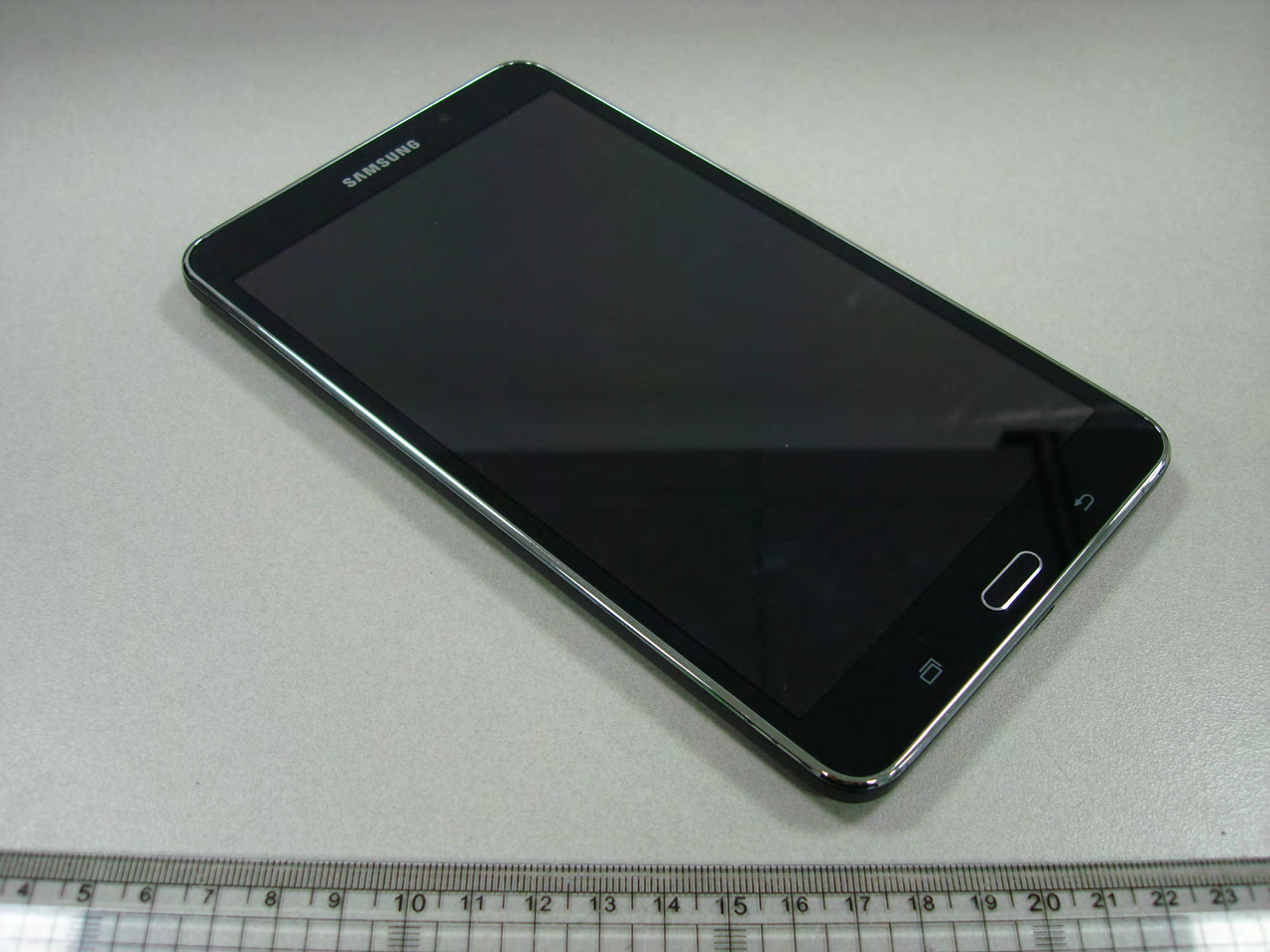

A3LSMT235Multi-band GSM/EDGE/UMTS/LTE Tablet with WLAN and Bluetooth

2 About this manual This device provides high quality mobile communication and entertainment using Samsung’s high standards and technological expertise. This user manual is specially designed to detail the device’s functions and features. • Please read this manual before using the device to ensure safe and proper use. • Descriptions are based on the device’s default settings. • Images and screenshots may differ in appearance from the actual product. • Content may differ from the final product, or from software provided by service providers or carriers, and is subject to change without prior notice. For the latest version of the manual, refer to the Samsung website, www.samsung.com. • Content (high quality content) that requires high CPU and RAM usage will affect the overall performance of the device. Applications related to the content may not work properly depending on the device’s specifications and the environment that it is used in. • Available features and additional services may vary by device, software, or service provider. • Applications and their functions may vary by country, region, or hardware specifications. Samsung is not liable for performance issues caused by applications from any provider other than Samsung. • Samsung is not liable for performance issues or incompatibilities caused by edited registry settings or modified operating system software. Attempting to customise the operating system may cause the device or applications to work improperly. • Software, sound sources, wallpapers, images, and other media provided with this device are licensed for limited use. Extracting and using these materials for commercial or other purposes is an infringement of copyright laws. Users are entirely responsible for illegal use of media. • You may incur additional charges for data services, such as messaging, uploading and downloading, auto-syncing, or using location services. To avoid additional charges, select an appropriate data tariff plan. For details, contact your service provider. About this manual 3 • Default applications that come with the device are subject to updates and may no longer be supported without prior notice. If you have questions about an application provided with the device, contact a Samsung Service Centre. For user-installed applications, contact service providers. • Modifying the device’s operating system or installing softwares from unofficial sources may result in device malfunctions and data corruption or loss. These actions are violations of your Samsung licence agreement and will void your warranty. Instructional icons Warning: situations that could cause injury to yourself or others Caution: situations that could cause damage to your device or other equipment Note: notes, usage tips, or additional information Copyright Copyright © 2014 Samsung Electronics This guide is protected under international copyright laws. No part of this guide may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Samsung Electronics. About this manual 4 Trademarks • SAMSUNG and the SAMSUNG logo are registered trademarks of Samsung Electronics. • Bluetooth ® is a registered trademark of Bluetooth SIG, Inc. worldwide. • Wi-Fi ® , Wi-Fi Protected Setup ™ , Wi-Fi Direct ™ , Wi-Fi CERTIFIED ™ , and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance. • All other trademarks and copyrights are the property of their respective owners. 5 Table of Contents Getting started 7 Device layout 8 Buttons 9 Package contents 10 Installing the SIM or USIM card 11 Char ging the battery 14 I nserting a memory card 16 Turning the device on and off 16 Holding the device 17 L ocking and unlocking the device 17 Adjusting the volume 17 S witching to silent mode Basics 18 Indicator icons 19 Using the touch screen 23 Control motions 24 Palm motions 25 Using Multi Window 29 Notifications 30 Home screen 32 A pplications screen 33 U sing applications 34 Help 34 En tering text 37 Connecting to a Wi-Fi network 38 Setting up accounts 39 T ransferring files 40 Securing the device 41 Upg rading the device Communication 42 Phone 48 Contacts 52 Messages 53 Email 56 Google Mail 58 Hangouts 58 Google+ 59 Photos Web & network 60 Internet 61 Chrome 62 Bluetooth Media 64 Music 66 Camera 71 Gallery 75 Video 76 YouTube Table of Contents 6 Settings 96 About Settings 96 Connections 100 Device 107 Controls 110 General 114 G oogle Settings Troubleshooting Application & media stores 77 Play Store 78 Samsung Apps 78 P lay Books 79 Play Movies & TV 79 Play Music 79 P lay Games 79 Play Newsstand Utilities 80 Memo 81 S P lanner 83 Dropbox 84 Cloud 85 Drive 85 Hancom Viewer 88 Alarm 89 W orld Clock 89 Calculator 90 S V oice 91 Google 92 V oice Search 92 M y Files Travel & local 95 Maps 7 Getting started Device layout Recent apps button Home button Touch screen Front camera Back button Multipurpose jack Volume button Memory card slot Microphone Power button Earpiece SIM card slot Main antenna Speaker GPS antenna Headset jack Rear camera Microphone Getting started 8 The microphone at the top of the device is active only when you use the speakerphone or take videos. • Do not cover the antenna area with your hands or other objects. This may cause connectivity problems or drain the battery. • Do not use a screen protector. This causes sensor malfunctions. • Do not allow water to contact the touch screen. The touch screen may malfunction in humid conditions or when exposed to water. Buttons ButtonFunction Power • Press and hold to turn the device on or off. • Press and hold for 8 seconds to reset the device if it has fatal errors or hang-ups, or freezes. • Press to lock or unlock the device. The device goes into lock mode when the touch screen turns off. Recent apps • Tap to open the list of recent applications. Home • Press to return…

Text truncated - open the document above for the full version.

64 Media Music Use this application to listen to music. Tap Music on the Applications screen. Playing music Select a music category, and then select a song to play. Tap the album image at the bottom of the screen to open the music player screen. Skip to the next song. Tap and hold to move forwards quickly. Pause and resume playback. Adjust the volume. Access additional options. Change the repeat mode. Restart the currently-playing song or skip to the previous song. Tap and hold to move backwards quickly. Turn on shuffle. Open the playlist. Search for other devices to play the file. Set the file as your favourite song. CONFIDENTIAL Media 65 To listen to songs at equal volume levels, tap → Settings → Player → Smart Volume. When Smart Volume is activated, the volume may end up louder than the device volume level. Use caution to avoid long-term exposure to loud sounds to prevent damage to your hearing. Smart Volume may not be activated for some files. To set a personalised sound while listening to songs with a headset, tap → Settings → Player → Adapt Sound → On. When you turn the volume up to level 14 or higher, the adapt sound option is not applied to music playback. If you turn the volume down to level 13 or lower, the option is reapplied. Setting a song as ringtone To use the currently-playing song as ringtone, tap → Set as → Phone ringtone → Done. Creating playlists Make an own selection of songs. Tap Playlists, and then tap → Create playlist. Enter a title and tap OK. Tap Add tracks, select songs to include, and then tap Done. To add the currently-playing song to a playlist, tap → Add to playlist. Playing music by mood Play music grouped by mood. The playlist is automatically created by the device. Tap → Music square, and select a cell of mood. Or select multiple cells by dragging your finger. CONFIDENTIAL Media 66 Camera Use this application to take photos or videos. Use Gallery to view photos and videos taken with the device’s camera. (p. 71) Tap Camera on the Applications screen. • The camera automatically shuts off when unused. • Make sure that the lens is clean. Otherwise, the device may not work properly in some modes that require high resolutions. Camera etiquette • Do not take photos or videos of other people without their permission. • Do not take photos or videos where legally prohibited. • Do not take photos or videos in places where you may violate other people’s privacy. Taking photos Taking a photo Tap to take a photo. Display current mode. Change the shooting mode. Change the camera settings. Switch between the front and rear camera. Select among various effects that are available. View more options. Switch between still and video mode. View photos and videos you have taken. CONFIDENTIAL Media 67 Shooting mode Several photo effects are available. Tap MODE, and then scroll up or down the screen at the right side of the screen. • Auto: Use this to allow the camera to evaluate the surroundings and determine the ideal mode for the photo. • Beauty face: Take a photo with lightened faces for gentler images. • Sound & shot: Use this to take a photo with sound. Tap to take a photo. The device records a few seconds of audio after taking a photo. While taking photos in this mode, sound is recorded by the internal microphone. • Panorama: Take a photo composed of many photos strung together. To get the best shot, follow these tips. – Move the camera slowly in one direction. – Keep the camera’s viewfinder within the guide frame. – Avoid taking photos of a subject in front of unrecognisable backgrounds, such as empty skies or plain walls. • Sports: Use this setting for fast-moving subjects. • Night: Use this setting for images taken in darker conditions. Panoramic photos A panoramic photo is a wide landscape image consisting of multiple shots. Tap MODE → Panorama. Tap and move the camera in one direction. When two panorama guide frames are aligned, the camera automatically takes another shot in a panoramic sequence. To stop shooting, tap . If the viewfinder is out of the direction, the device stops shooting. CONFIDENTIAL Media 68 Applying filter effects Use the filter effects to take unique photos or videos. Tap and select a filter effect. The available options vary by mode. Taking videos Taking a video Slide the still-video switch to the video icon, and then tap to take a video. To pause recording, tap . To stop recording, tap . Manual focus is not available in video mode. Recording mode Switch between the front and rear camera. View photos and videos you have taken. Select among various effects that are available. Change the camera settings. View more options. Display current mode. Switch between still and video mode. CONFIDENTIAL Media 69 Zooming in and out Use one of the following methods: • Use the Volume button to zoom in or out. • Spread two fingers apart on the screen to zoom in, and pinch to zoom out. The zoom in/out effect is available when using the zoom feature while shooting video. Share shot Tap → , and then select one of the following: • Share shot: Send a photo directly to another device via Wi-Fi Direct. • Buddy photo share: Set the device to recognise a person’s face that you have tagged in a photo and send it to that person. CONFIDENTIAL Media 70 Configuring settings for Camera Tap to configure settings for Camera. Not all of the following options are available in both still camera and video camera modes. The available options vary depending on the mode used. • Photo size / Video size: Select a resolution. Use higher resolution for higher quality. But it takes up more memory. • Metering modes: Select a metering method. This determines how light values are calculated. Centre-weighted measures background light in the centre of the scene. Spot measures the light value at a specific location. Matrix averages the entire scene. • Location tag: Attach a GPS location tag to the photo. • To improve GPS signals, avoid shooting in locations where the signal may be obstructed, s…

Text truncated - open the document above for the full version.

Samsung Electronics America, Inc 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: May 8, 2014 FCC ID: A3LSMT235 To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to any application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 862. Sincerely, Signature Sang Kyung (Peter), Ra General Manager Samsung Electronics America, Inc

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: May 8, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSMT235 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics SHORT-TERM 4 External Photos 5 Internal Photos 6 Test-Setup Photos 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea May 7, 2014 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LSMT235 To Whom it may concern: We hereby provide the label statement letter for the above-mentioned device by a label statement policy of KDB 784748 D01. The label statement is as follows: The FCC ID label is located on the rear of the device. At this time the FCC ID is readily visible to the user. The label is permanently engraved by laser and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, Please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

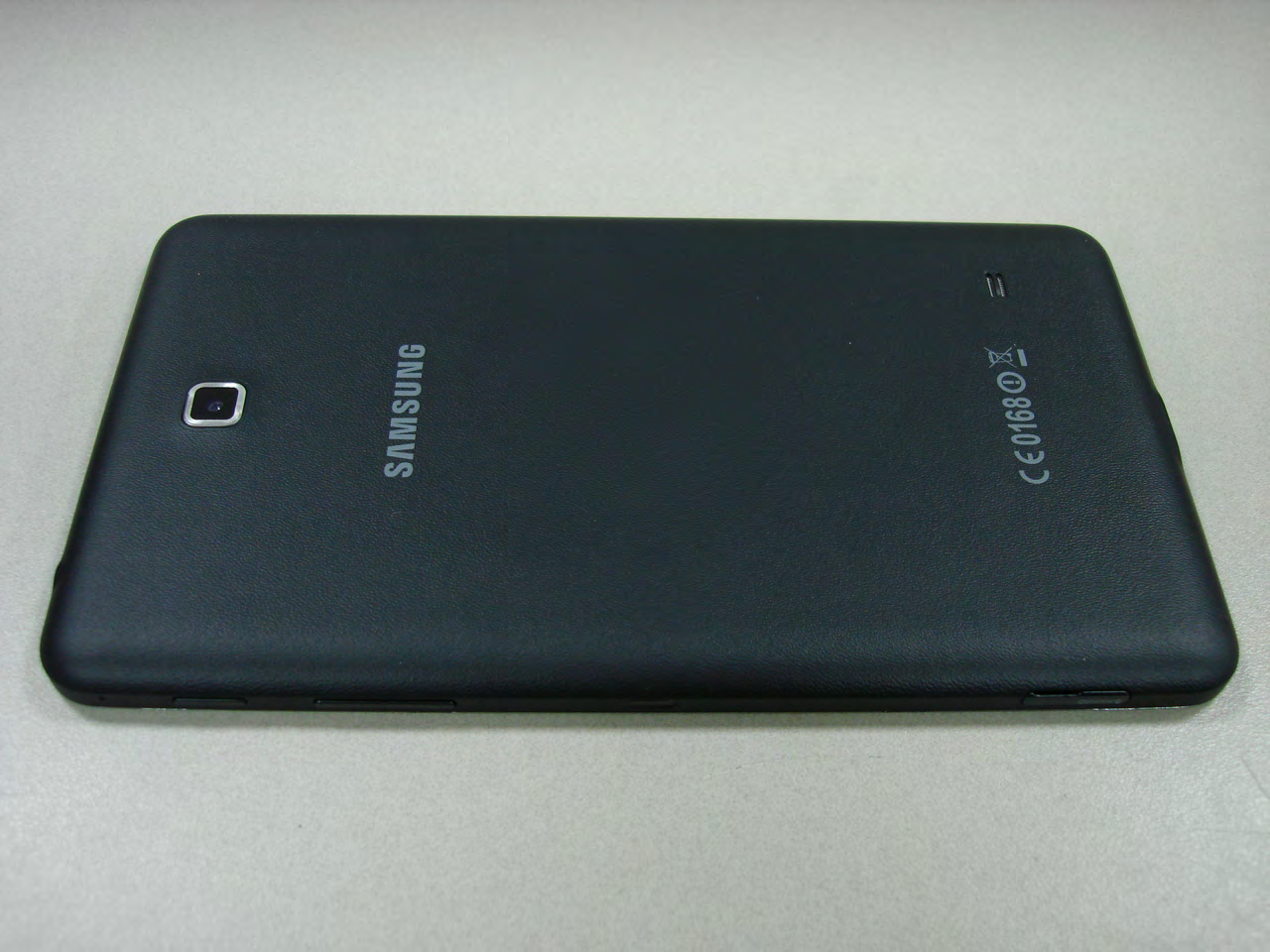

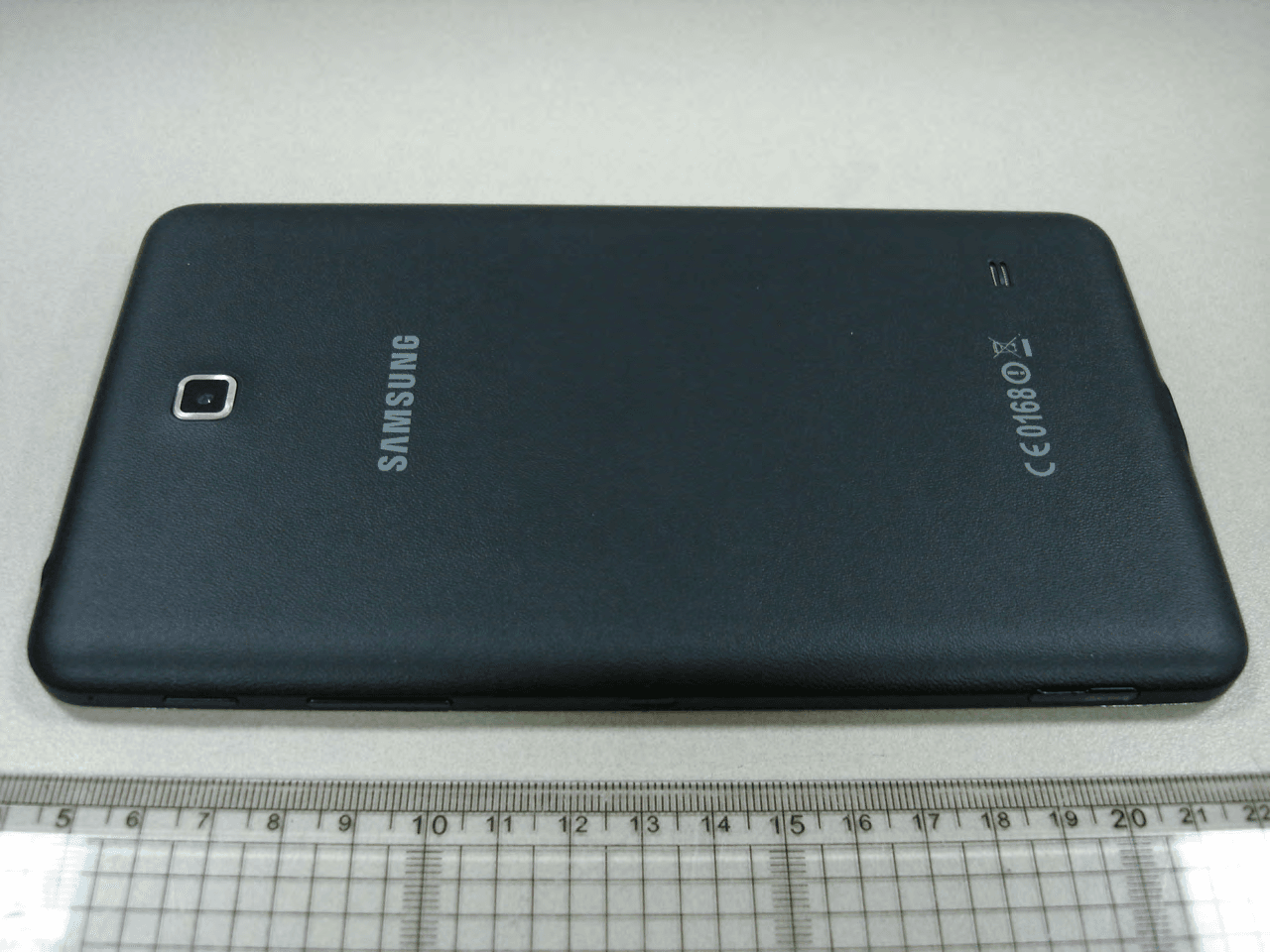

Label and Location Model: SM-T235 FCC ID: A3LSMT235 Label: Location: Top Back of device Bottom Tablet : FCC ID is printed on bottom of the device

FCC ID: A3LSMT235 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 63 0Y1404170792-R1.A3L 04/17/14-05/08/14 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 13.0 M 12/04/2013 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 04/17/14- 05/08/14 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Document Serial No.: 0Y1404170792-R1.A3L FCC ID: A3LSMT235 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Tablet Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): SM-T235 1 gm Head (W/kg) 1 gm Body (W/kg) PCBGSM/GPRS/EDGE 850824.20 - 848.80 MHz0.380.53 PCBGSM/GPRS/EDGE 19001850.20 - 1909.80 MHz0.191.02 PCBUMTS 850826.40 - 846.60 MHz0.421.01 PCBUMTS 19001852.4 - 1907.6 MHz0.280.92 PCBLTE Band 5 (Cell)824.7 - 848.3 MHz0.440.89 DTS2.4 GHz WLAN2412 - 2462 MHz< 0.11.06 DTSBluetooth LE2402 - 2480 MHz DTS5.8 GHz WLAN5745 - 5825 MHz< 0.1< 0.1 NII5.2 GHz WLAN5180 - 5240 MHz< 0.10.13 NII5.3 GHz WLAN5260 - 5320 MHz< 0.10.14 NII5.5 GHz WLAN5500 - 5700 MHz< 0.10.10 DSSBluetooth2402 - 2480 MHzN/A0.44 0.441.59 N/A SAR Band & ModeTx Frequency Simultaneous SAR per KDB 690783 D01v01r02: Equipment Class This revised Test Report (S/N: 0Y1404170792-R1.A3L) supersedes and replaces the previously issued test report on the same subject device for the same type of testing as indicated. Please discard or destroy the previously issued test report(s) and dispose of it accordingly This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.7 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: A3LSMT235 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 63 0Y1404170792-R1.A3L 04/17/14-05/08/14 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 13.0 M 12/04/2013 TABLE OF CONTENTS 1 DEVICE UNDER TEST ................................................................................................................... 3 2 LTE INFORMATION ........................................................................................................................ 9 3 INTRODUCTION ........................................................................................................................... 10 4 DOSIMETRIC ASSESSMENT ...................................................................................................... 11 5 DEFINITION OF REFERENCE POINTS ...................................................................................... 12 6 TEST CONFIGURATION POSITIONS FOR HANDSETS ............................................................ 13 7 RF EXPOSURE LIMITS ................................................................................................................ 15 8 FCC MEASUREMENT PROCEDURES ........................................................................................ 16 9 RF CONDUCTED POWERS ......................................................................................................... 21 10 SYSTEM VERIFICATION .............................................................................................................. 36 11 SAR DATA SUMMARY ................................................................................................................. 38 12 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 45 13 SAR MEASUREMENT VARIABILITY ........................................................................................... 57 14 EQUIPMENT LIST ......................................................................................................................... 58 15 MEASUREMENT UNCERTAINTIES ............................................................................................ 59 16 CONCLUSION ............................................................................................................................... 61 17 REFERENCES .............................................................................................................................. 62 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS APPENDIX G: SAR SENSOR TRIGGERING DOCUMENT FCC ID: A3LSMT235 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 63 0Y1404170792-R1.A3L 04/17/14-05/08/14 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 13.0 M 12/04/2013 1 DEVICE UNDER TEST 1.1 Device Overview GSM/GPRS/EDGE 850Voice/Data824.20 - 848.80 MHz GSM/GPRS/EDGE 1900Voice/Data1850.20 - 1909.80 MHz UMTS 850Voice/Data826.40 - 846.60 MHz UMTS 1900Voice/Data1852.4 - 1907.6 MHz LTE Band 5 (Cell)Data824.7 - 848.3 MHz 2.4 GHz WLANData2412 - 2462 MHz 5.8 GHz WLANData5745 - 5825 MHz 5.2 GHz WLANData5180 - 5240 MHz 5.3 GHz WLANData5260 - 5320 MHz 5.5 GHz WLANData5500 - 5700 MHz BluetoothData2402 - 2480 MHz Band & ModeTx Frequency Operating Modes 1.2 Power Reduction for SAR This device uses pr…

Text truncated - open the document above for the full version.

FCC ID: A3LSMT235 FCC Pt. 15.407 802.11a/n UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 79 0Y1404170796.A3L 4/17 - 5/12/2014 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V 5.0 01/13/2014 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 4/17 - 5/12/2014 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1404170796.A3L FCC ID: A3LSMT235 APPLICANT: Samsung Electronics, Co. Ltd. Application Type: Certification Model(s): SM-T235 EUT Type: Portable Tablet FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407 Test Procedure(s): KDB 789033 v01r03, KDB 644545 v01r02 1205180 - 52408.4339.26 802.11a2A205260 - 53208.0359.05 2C205500 - 57007.7278.88 1205180 - 52407.0638.49 802.11n2A205260 - 53207.0158.46 2C205500 - 57007.0318.47 1405190 - 52306.2097.93 802.11n2A405270 - 53106.2097.93 2C405510 - 56707.0158.46 Channel Bandwidth (MHz) Conducted Power Tx Frequency (MHz) Max. Power (mW ) Max. Power (dBm) ModeUNII Band This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 789033 v01r03 and KDB 644545 v01r02. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 15.407 UNII 802.11a/n FCC ID: A3LSMT235 FCC Pt. 15.407 802.11a/n UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 79 0Y1404170796.A3L 4/17 - 5/12/2014 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V 5.0 01/13/2014 TABLE OF CONTENTS FCC PART 15.407 MEASUREMENT REPORT .................................................................................................. 3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 SCOPE ........................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION ............................................................................................................................ 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION......................................................................................................................... 5 2.2 DEVICE CAPABILITIES ................................................................................................................................. 5 2.3 TEST CONFIGURATION ............................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ...................................................................................... 5 2.5 LABELING REQUIREMENTS ........................................................................................................................ 5 3.0 DESCRIPTION OF TEST ........................................................................................................................ 6 3.1 EVALUATION PROCEDURE ......................................................................................................................... 6 3.2 AC LINE CONDUCTED EMISSIONS ............................................................................................................. 6 3.3 RADIATED EMISSIONS ................................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS .................................................................................................................. 8 5.0 TEST EQUIPMENT CALIBRATION DATA .............................................................................................. 9 6.0 TEST RESULTS .................................................................................................................................... 10 6.1 SUMMARY ................................................................................................................................................... 10 6.2 26DB BANDWIDTH MEASUREMENT – 802.11A/N .................................................................................... 11 6.3 UNII OUTPUT POWER MEASUREMENT – 802.11A/N .............................................................................. 28 6.4 PEAK POWER SPECTRAL DENSITY – 802.11A/N .................................................................................... 31 6.5 PEAK EXCURSION RATIO – 802.11A/N ..................................................................................................... 46 6.6 FREQUENCY STABILITY ............................................................................................................................ 49 6.7 RADIATED SPURIOUS EMISSION MEASUREMENTS .............................................................................. 52 6.8 RADIATED BAND EDGE MEASUREMENTS (20MHZ BW) ........................................................................ 59 6.9 RADIATED BAND EDGE MEASUREMENTS (40MHZ BW) .......................................................…

Text truncated - open the document above for the full version.

FCC ID: A3LSMT235 FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 16 0Y1404170797.A3L 4/17/2014 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V 5.0 01/13/2014 Company Name: Date of Testing: Samsung Electronics, Co. Ltd. 4/17/2014 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab. Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1404170797.A3L FCC ID: A3LSMT235 COMPANY: Samsung Electronics, Co. Ltd. Model(s): SM-T235 EUT Type: Portable Tablet Type of Device: Client Only Device, No Radar Detection Capability Frequency Range: 5260 – 5320 MHz (UNII-2A Band) 5500 – 5700 MHz (UNII-2C Band) Output Power: 8.035 mW (9.05 dBm) Conducted (802.11a UNII Band 2A) 7.727 mW (8.88 dBm) Conducted (802.11a UNII Band 2C) FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407(UNII) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in FCC 06-96 Appendix B Compliance Measurement Procedures for Unlicensed-National Information Infrastructure Devices Operating in the 5.25 – 5.35 GHz and 5.47 – 5.725 GHz Bands Incorporating Dynamic Frequency Selection. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.407 DFS FCC ID: A3LSMT235 FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 16 0Y1404170797.A3L 4/17/2014 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V 5.0 01/13/2014 TABLE OF CONTENTS FCC PART 15.407 MEASUREMENT REPORT .................................................................................................. 3 1.0 INTRODUCTION ........................................................................…
