A3LSMT239GSM/WCDMA/LTE Tablet with Bluetooth, DTS/UNII a/b/g/n

User manual SM-T239 using this manual This user manual has been specially designed to guide you through the functions and features of your mobile phone. To get started quickly, refer to “introducing your mobile phone, Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your phone or other equipment Note —notes, usage tips, or additional information Refer to— (represents “see page 12”) Õ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages Õ Create new message (represents Messages, followed by Create new message) [ ] Square brackets—phone keys; for example: [](represents the Power/ Menu exit key) < > Angled brackets— softkeys that control different functions at each screen; for example: <OK> (represents the OK softkey) Copyright information Rights to all technologies and products that comprise this device are the property of their respective owners:  Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide  Java™ is a trademark of Sun Microsystems, Inc.  Windows Media Player ® is a registered trademark of Microsoft Corporation. contents safety and usage information Safety warnings Safety precautions Important usage information introducing your mobile phone Unpack .. Phone layout Keys Display Icons assembling and preparing your mobile phone Install the SIM card and battery Charge the battery using basic functions Turn your phone on and off Access menus Customise your phone Use basic call functions Send and view messages Add and find contacts troubleshooting safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone. Safety warnings Keep your phone away from small children and pets Keep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Protect your hearing Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music. Install mobile phones and equipment with caution Ensure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care  Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone.  Never dispose of batteries or phones in a fire. Follow all local regulations when disposing used batteries or phones.  Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.  Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance. Turn off the phone in potentially explosive environments Do not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks. Safety precautions Drive safely at all times Avoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile phone in a certain area. Use only Samsung-approved accessories Using incompatible accessories may damage your phone or cause injury. Turn off the phone near medical equipment Your phone can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Turn off the phone or disable the wireless functions when in an aircraft Your phone can cause interference with aircraft equipment. Follow all airline regulations and turn off your phone or switch to a mode that disables the wireless functions when directed by airline personnel. Protect batteries and chargers from damage Avoid exposing batteries to very cold or very hot temperatures (below 0° C/32° F or above 45° C/ 113° F). Extreme temperatures can reduce the charging capacity and life of your batteries. Prevent batteries from contacting metal objects, as this can create a connection between the + and - terminals of your batteries and lead to temporary or permanent battery damage. Never use a damaged charger or battery. Handle your phone carefully a…

Text truncated - open the document above for the full version.

February 16 , 2015 Federal Commun icati ons Commission 7435 Oaklan d Mills R oad Columbia MD 21046 Subject: Attestation Letter to respond to TCB Questions FCC ID: A3LSMT239 TCB QUESTIONS: The following from KDB 848637 for client devices operating in the 5GHz bands were not included: a. A Cover Letter Attachment stating that the client software and associated drivers will not initia te any transmission on DFS frequencies without initiation by a master. This includes restrictio n on transmissions for beacons and support for ad‐hoc peer‐to‐peer modes. b. A channel/frequency plan for the device showing the channels that have active scanning or passive scanning. c. A description that discusses how the software and / or hardware is implemented to ensure th at proper operations modes cannot be modified by an end user or an installer. d. An attestation that the device complies with the requirements for software configuration contr ol as discussed in KDB # 594280. RESPONSE FROM THE APPLICANT: This is to attest that the device complies with the requirements of KDB 848637 for client device operating in the 5GHz NII\LELAN band, including the software configuration controls as described in KDB# 594280. The end user has no access to features/controls that would allow them to operate the 802.11 transceiver on channels or in modes other than those described below. There are no user-selectable country code or regulatory domain settings that would permit the user to configure the device to operate at power levels or on channels not described in this application. The device operates in passive or active scanning modes for each channel as described in the following section. The system does not support ad-hoc mode (including WiFi Direct modes) except where identified. Mode Channel Frequency (MHz) Scanning method (Passive/Active) Ad-Hoc support or AP mode 802.11bgn 1-11 2412-2462 Active Yes (AP support as wireless hot spot when configured with WWAN module) 802.11bgn 12, 13 2467-2472 802.11an 36-48 5180-5240 Active Only Wi-Fi Direct and P2P 52-64 5260-5320 Passive Not supported 100-140 5500-5700 Passive Not supported 149-165 5745-5825 Active Only Wi-Fi Direct and P2P Best Regards CHANHO, YOUN General Manager Samsung Electronics CO. LTD TEL: +1-973-808-6362 E-mail: [email protected]

Date: July 23, 2014 UL Verification Services Inc. 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our representative, we still recognize that we are responsible to: comply with the relevant provisions of the certification program; a) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; b) make claims regarding certification only in respect of the scope for which certification has been granted; c) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; d) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; e) use certification only to indicate the products are certified as being in conformity with specified standards; f) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; g) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; h) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; i) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; j) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, CHANHO, YOUN General Manager Samsung Electronics CO. LTD TEL: +1-973-808-6362 E-mail: [email protected]

KDB 594280 D02 U-NII Device Security v01r01 Information Page 1 of 3 Samsung Electronics Co., LTD. 129, Samsung-ro, Yeongtong-gu Suwon-City, Gyeonggi-do, 443-742, Korea Date: February 16. 2015 Subject: U-NII device Security FCC ID: A3LSMT239 To Whom it May Concern We attest the following regarding KDB 594280 D02 U-NII device Security. The information within this section of the Operational Description is to show compliance against the Software Security Requirements laid out within KDB 594280 D02 U-NII Security. The information below describes how we maintain the overall security measures and systems so that only: 1. Authenticated software is loaded and operating on the device 2. The device is not easily modified to operate with RF parameters outside of the authorization General Description 1. Describe how any software /firmware update will be obtained, downloaded, and installed. Software/Firmware is pushed from the Samsung’s authorized servers by means of encryption by OTA or PC tool via USB. But update packages are encrypted and digitally signed by proprietary key. Therefore, user cannot obtain unauthorized software/firmware. 2. Describe all the radio frequency parameters that are modified by any software/firmware without any hardware changes. Are these parameters in some way limited, such that, it will not exceed the authorized parameters? Radio frequency parameters are embedded at the time of production in the factory per FCC approved. These parameters are therefore fixed at the factory such that they will not exceed the authorized values. 3. Are there any authentication protocols in place to ensure that the source of the software/ firmware is legitimate? If so, describe in details; if not, explain how the software is secured from modification Yes, software/firmware are digitally signed and encrypted using proprietary handshaking, authorization and provisioning protocols. Secure Sockets Layer is used as a protocol for encrypting information over the internet. Therefore, Samsung ensure that the source of the software/firmware is legitimate. 4. Are there any verification protocols in place to ensure that the software/firmware is legitimate? If so, describe in details Software/Firmware release is pushed from the Samsung’s authorized servers by means of proprietary encryption. And, update packages are encrypted and digitally signed. Secure Socket Layer is used as a protocol for encrypting information over the internet. 5. Describe, if any, encryption methods used? Yes, by means of proprietary public key encryption. General Description 6. For a device that can be configured as a master and client (with active or passive scanning), explain how the device ensures compliance for each mode? In particular if the device acts as master in some band of operation and client in another; how is compliance ensured in each band of operation? The device will be able as master only ISM band and UNII 1 and 3 bands. For DFS bands, device can not be master device with DFS detection. For compliance, device will transmit under approved power. And user can’t access to change Master/client feature per band. 3 rd Party Access Control 1. How is any unauthorized software/firmware change prevented? Samsung releases the firmware/software directly from Samsung’s servers through proprietary encryption protocol. Samsung can ensure its server because the signature of downloaded binary is checked before u pdating software/firmware. 2. Is it possible for third parties to load device drivers that could modify the RF parameters, country of operation or other parameters which impact device compliance? If so, describe procedures to ensure that only approved drivers are loaded. No. As mentioned above, RF parameters or other parameters which impact device compliance are fixed at time of production in the factory. 3. Explain if any third parties have the capability to operate a US sold device on any other regulatory domain, frequencies, or in any manner that is in violation of the certification No, third parties don't have capability to access and change radio parameters. 4. What prevents third parties from loading non-US versions of the software/firmware on the device? Samsung proprietary hardware platform and software tool chain including boot-loader are not available to 3rd parties. 5. For modular devices, describe how authentication is achieved when used with different hosts. Not a modular device SOFTWARE CONFIGURATION DESCRIPTION GUIDE – USER CONFIGURATION GUIDE 1 1. To whom is the UI accessible? (Professional installer, end user, other.) The UI is accessible to anyone using the device. But the UI never gives access for specific operation parameters which are frequency of operation, power settings, antenna types, DFS settings, receiver thresholds, or country code settings. a) What parameters are viewable to the professional installer/end-user? 2 Nothing to control the radio operation parameter for professional installer/end-user b) What parameters are accessible or modifiable to the professional installer? This device is not subject to professional installation 1 This section is required for devices which have a “User Interfaces” (UI) to configure the device in a manner that may impact the operational parameter. Supporting information is required in the operational description. The operational description must address if the device supports any of the country code configurations or peer-peer mode communications discussed in KDB 594280 Publication D01. 2 The specific parameters of interest for this purpose are those that may impact the compliance of the device. These typically include frequency of operation, power settings, antenna types, DFS settings, receiver thresholds, or country code settings which indirectly programs the operational parameters. KDB 594280 D02 U-NII Device Security v01r01 Information Page 3 of 3 SOFTWARE CONFIGURATION DESCRIPTION GUIDE – USER CONFIGURATION GUIDE 1 i) Are the parameters in some way limited…

Text truncated - open the document above for the full version.

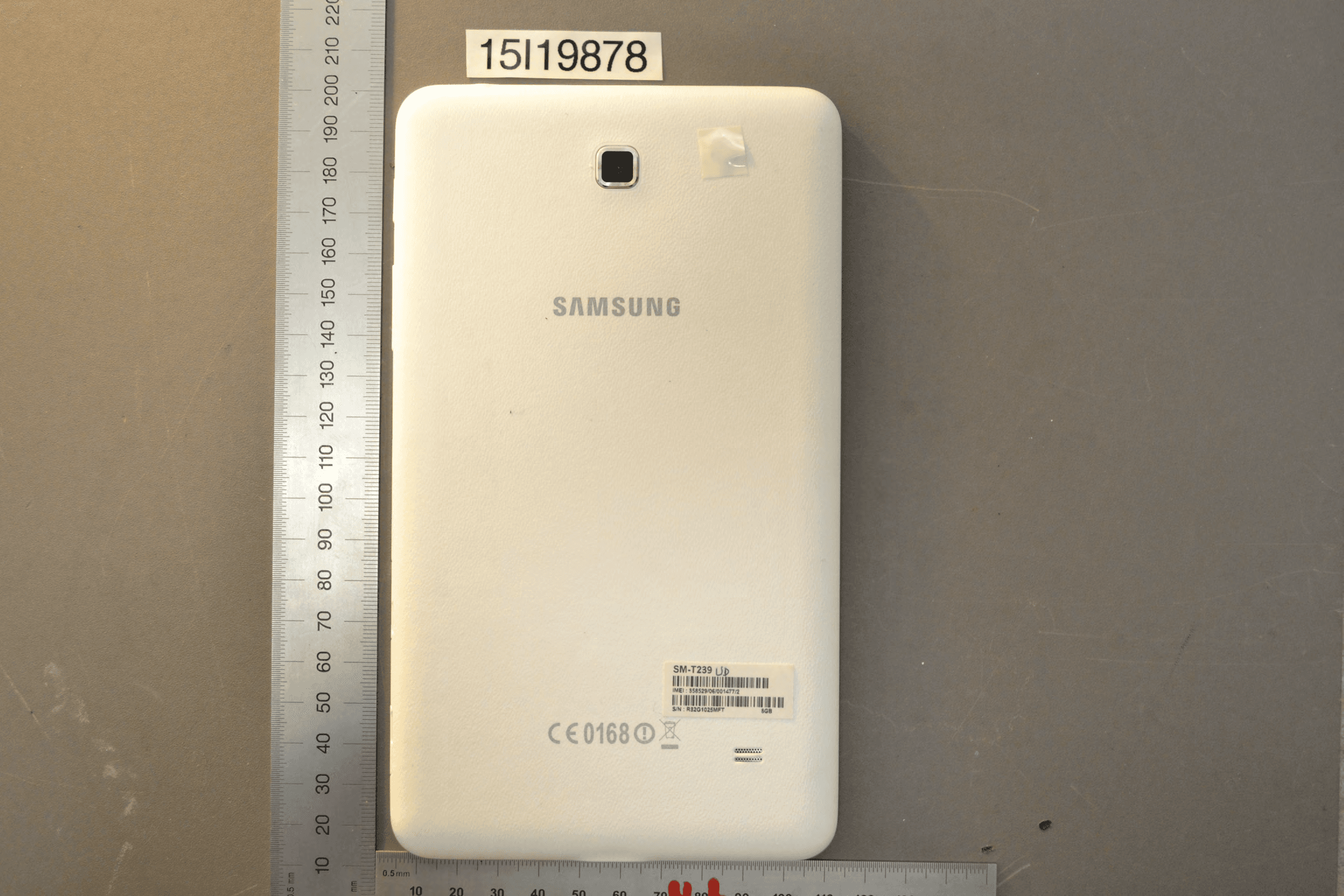

Label and Location Model:SM-T239 FCC ID:A3LSMT239 Label: Location: Top Back of device Bottom FCC ID is printed on rear of the device

Plot No. 1 Test Laboratory: UL Verification Services Inc. SAR Lab F Date/Time: 2/4/2015 9:51:19 PM 20150204_SystemPerformanceCheck-D5GHzV2 SN 1138 Frequency: 5800 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 25.0°C; Liquid Temperature: 24.0°C Medium parameters used: f = 5800 MHz; σ = 5.287 S/m; ε r = 35.252; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1239; Calibrated: 4/15/2014 - Probe: EX3DV4 - SN3936; ConvF(4.44, 4.44, 4.44); Calibrated: 7/24/2014; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (B); Type: QDOVA001BB; Serial: 1118 Head/5.8 GHz, Pin=100mW/Area Scan (7x7x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 20.1 W/kg Head/5.8 GHz, Pin=100mW/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 54.355 V/m; Power Drift = -0.00 dB Peak SAR (extrapolated) = 35.6 W/kg SAR(1 g) = 8.35 W/kg; SAR(10 g) = 2.39 W/kg Maximum value of SAR (measured) = 20.0 W/kg 0 dB = 20.0 W/kg = 13.01 dBW/kg Plot No. 2 Test Laboratory: UL Verification Services Inc. SAR Lab F Date/Time: 2/4/2015 10:15:22 PM 20150204_SystemPerformanceCheck-D5GHzV2 SN 1138 Frequency: 5800 MHz; Duty Cycle: 1:1 Head/5.8 GHz, Pin=100mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 13.9 W/kg Plot No. 3 Test Laboratory: UL Verification Services Inc. SAR Lab F Date/Time: 2/10/2015 11:21:08 AM 20150210_SystemPerformanceCheck-D835V2 SN 4d117 Frequency: 835 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 835 MHz; σ = 0.899 S/m; ε r = 42.366; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1239; Calibrated: 4/15/2014 - Probe: EX3DV4 - SN3936; ConvF(9.29, 9.29, 9.29); Calibrated: 7/24/2014; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM with CRP; Type: QD000P40CA; Serial: 1185 Head/Pin=100 mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.18 W/kg Head/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 34.705 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 1.47 W/kg SAR(1 g) = 0.975 W/kg; SAR(10 g) = 0.636 W/kg Maximum value of SAR (measured) = 1.19 W/kg 0 dB = 1.19 W/kg = 0.76 dBW/kg Plot No. 4 Test Laboratory: UL Verification Services Inc. SAR Lab F Date/Time: 2/10/2015 11:40:30 AM 20150210_SystemPerformanceCheck-D835V2 SN 4d117 Frequency: 835 MHz; Duty Cycle: 1:1 Head/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 1.18 W/kg Plot No. 5 Test Laboratory: UL Verification Services Inc. SAR Lab G Date/Time: 2/11/2015 2:40:55 PM 20150211_SystemPerformanceCheck-D1900V2 SN 5d043 Frequency: 1900 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 1900 MHz; σ = 1.568 S/m; ε r = 52.139; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1434; Calibrated: 4/14/2014 - Probe: EX3DV4 - SN3990; ConvF(7.88, 7.88, 7.88); Calibrated: 4/15/2014; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 B; Type: QDOVA002AA; Serial: 1248 Body/Pin=100 mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 5.26 W/kg Body/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 58.402 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 7.28 W/kg SAR(1 g) = 4.06 W/kg; SAR(10 g) = 2.14 W/kg Maximum value of SAR (measured) = 5.47 W/kg 0 dB = 5.47 W/kg = 7.38 dBW/kg Plot No. 6 Test Laboratory: UL Verification Services Inc. SAR Lab G Date/Time: 2/11/2015 2:58:35 PM 20150211_SystemPerformanceCheck-D1900V2 SN 5d043 Frequency: 1900 MHz; Duty Cycle: 1:1 Body/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 5.30 W/kg Plot No. 7 Test Laboratory: UL Verification Services Inc. SAR Lab H Date/Time: 2/5/2015 4:26:39 PM 20150205_SystemPerformanceCheck-D2450V2 SN 706 Frequency: 2450 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 2450 MHz; σ = 1.933 S/m; ε r = 51.928; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1258; Calibrated: 5/15/2014 - Probe: EX3DV4 - SN3686; ConvF(6.79, 6.79, 6.79); Calibrated: 3/18/2014; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 A; Type: SM 000 T01 DA; Serial: TP:1247 Body/Pin=100 mW/Area Scan (8x8x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 5.48 W/kg Body/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 58.001 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 9.90 W/kg SAR(1 g) = 4.8 W/kg; SAR(10 g) = 2.22 W/kg Maximum value of SAR (measured) = 6.81 W/kg 0 dB = 6.81 W/kg = 8.33 dBW/kg Plot No. 8 Test Laboratory: UL Verification Services Inc. SAR Lab H Date/Time: 2/5/2015 4:46:25 PM 20150205_SystemPerformanceCheck-D2450V2 SN 706 Frequency: 2450 MHz; Duty Cycle: 1:1 Body/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 6.39 W/kg Plot No. 9 Test Laboratory: UL Verification Services Inc. SAR Lab H Date/Time: 2/8/2015 4:19:18 PM 20150208_SystemPerformanceCheck-D1900V2 SN 5d140 Frequency: 1900 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 1900 MHz; σ = 1.397 S/m; ε r = 39.656; ρ = 1000 kg/m 3 DASY5 Configuration: - Ar…

Text truncated - open the document above for the full version.

Head Tissue Simulating Liquids Head Tissue Parameters according to IEEE Std 1528-2013 / IEC 62209 / FCC KDB 865664 D01 Narrow- Band Solutions (±5% tolerance) Product HSL300V2 HSL450V2 HSL750V2 HSL900V2 HSL1450V2 HSL1750V2 HSL1800V2 HSL1900V2 HSL1950V2 HSL2450V2 Test Frequency (MHz) 300 450 750 835, 900 1450, 1500, 1640 1750 1800, 1900 1900 1950, 2000 2450, 2600 Main Ingredients Water, Sugar Water, Sugar Water, Sugar Water, Sugar Water, DGBE Water, DGBE Water, DGBE Water, DGBE Water, DGBE Water, DGBE Broad- Band Solutions (±5% tolerance) Product HBBL30-250V3 HBBL1350-1850V3 HBBL1550-1950V3 HBBL1900-3800V3 HBBL3500-5800V5 Test Frequency (MHz) 30-250 1400-1800 1750-1900 1950-3000 3500-5800 Main Ingredients Water, Tween Water, Tween Water, Tween Water, Tween Water, Oil Body Tissue Simulating Liquids Body Tissue (Muscle) Parameters according to FCC KDB 865664 D01 Narrow- Band Solutions (±5% tolerance) Product MSL300V2 MSL450V2 MSL750V2 MSL900V2 MSL1450V2 MSL1750V2 MSL1800V2 MSL1900V2 MSL1950V2 MSL2450V2 Test Frequency (MHz) 300 400, 450 750 835, 900 1450, 1500, 1640 1750 1800, 1900 1900 1950, 2100 2450, 2600 Main Ingredients Water, Sugar Water, Sugar Water, Sugar Water, Sugar Water, DGBE Water, DGBE Water, DGBE Water, DGBE Water, DGBE Water, DGBE Broad- Band Solutions (±5% tolerance) Product MBBL130-250V3 MBBL1350-1850V3 MBBL1550-1950V3 MBBL1900-3800V3 MBBL3500-5800V5 Test Frequency (MHz) 130-250 1350-1800 1550-1850 1950-3800 3500-5800 Main Ingredients Water, Tween Water, Tween Water, Tween Water, Tween Water, Oil

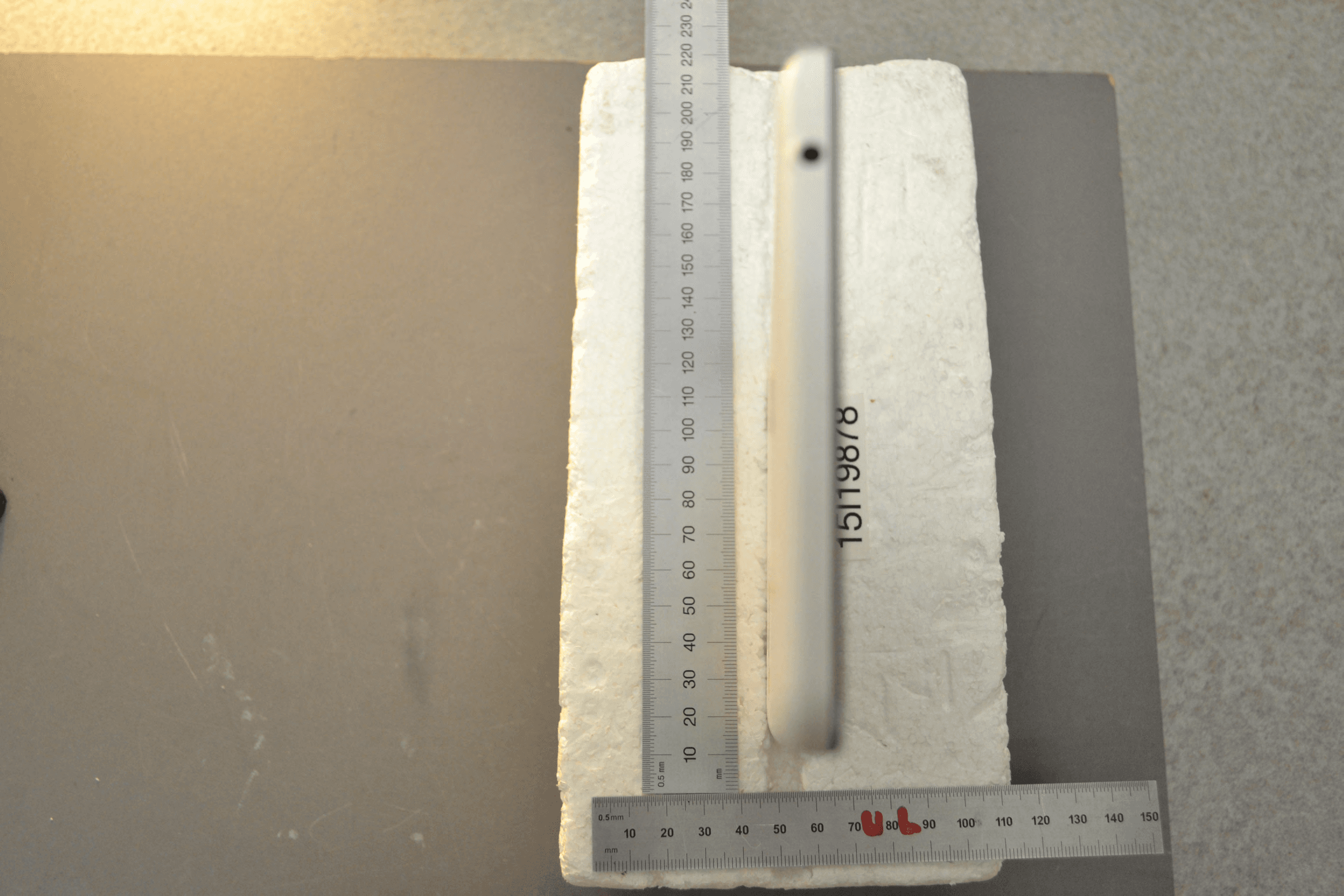

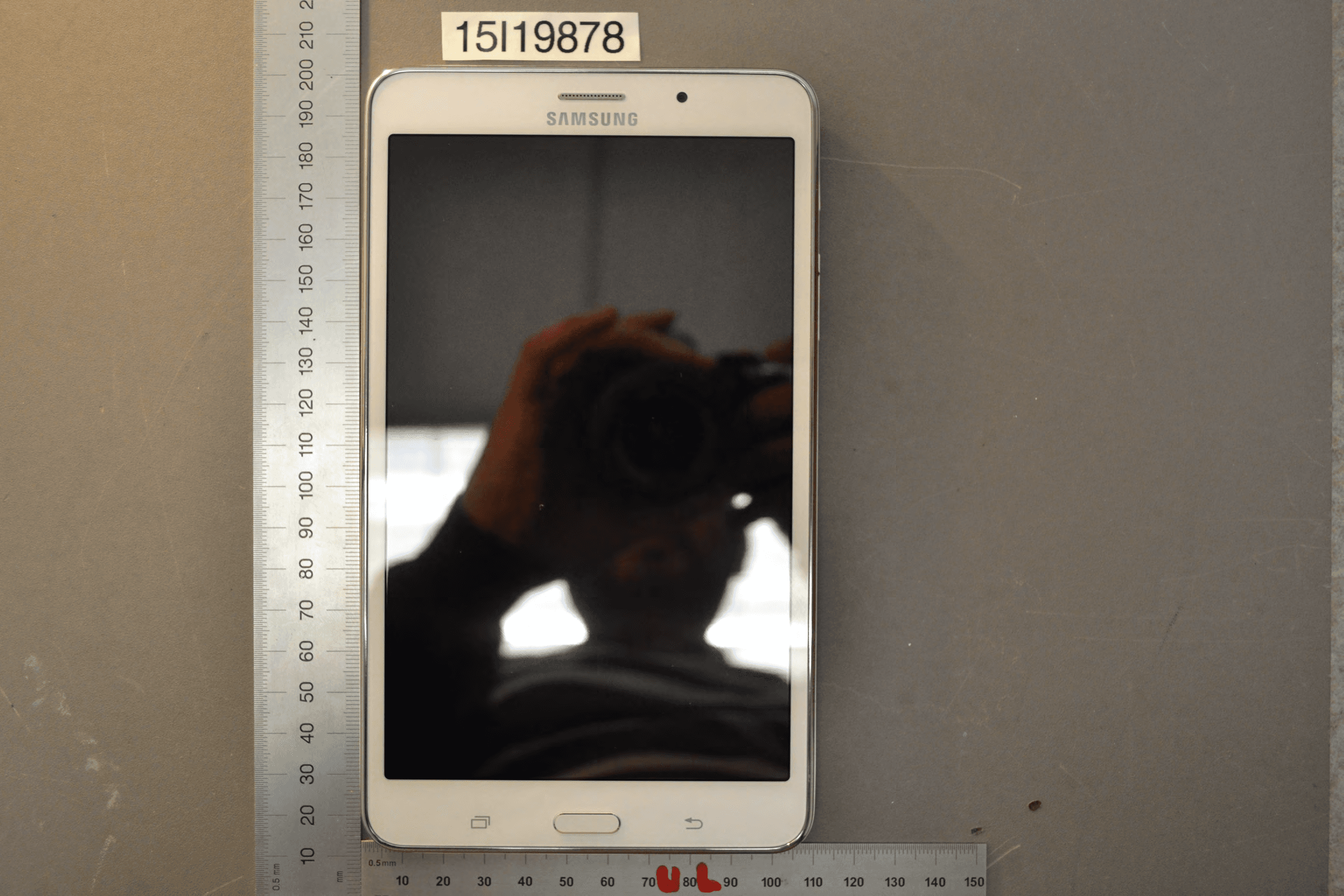

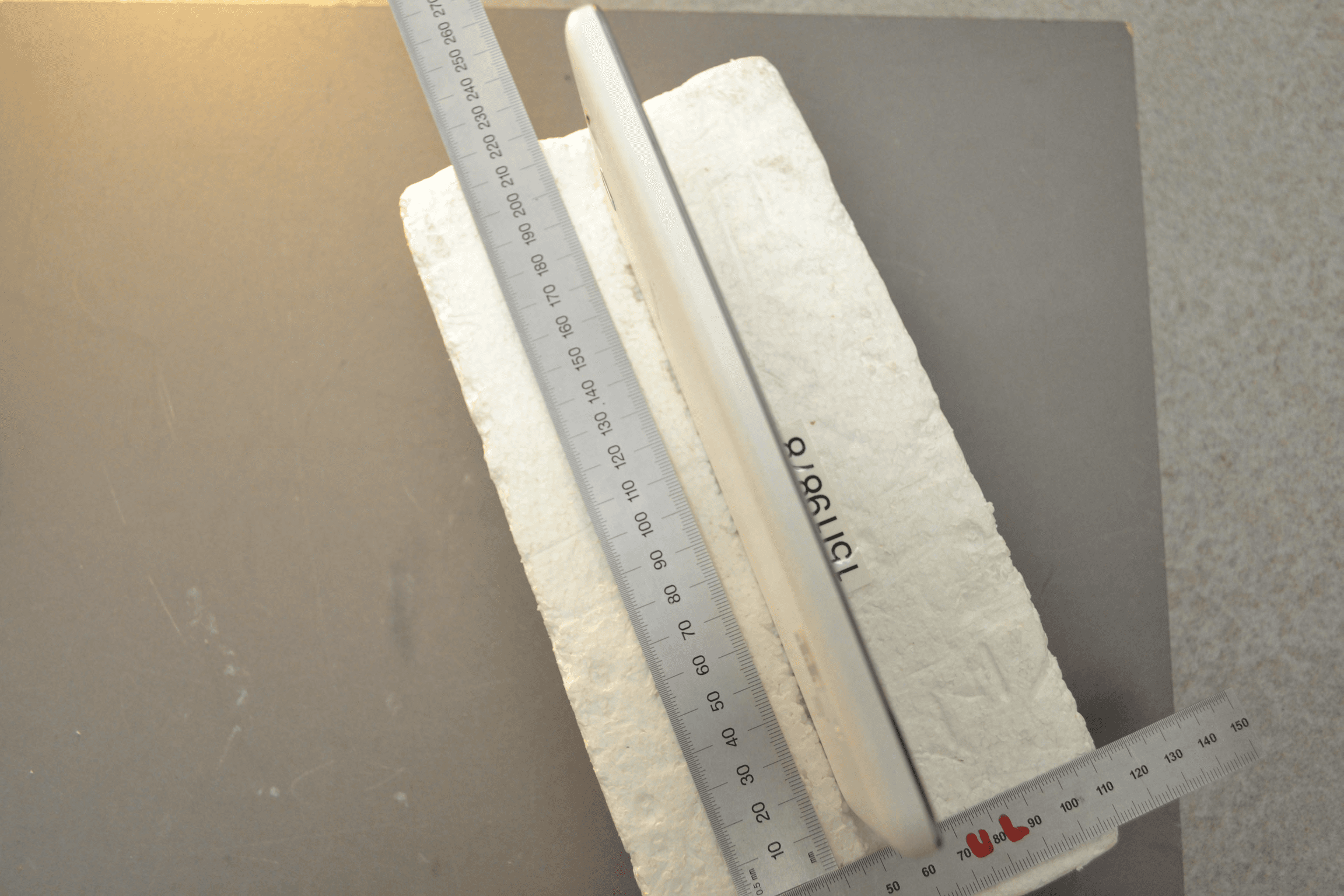

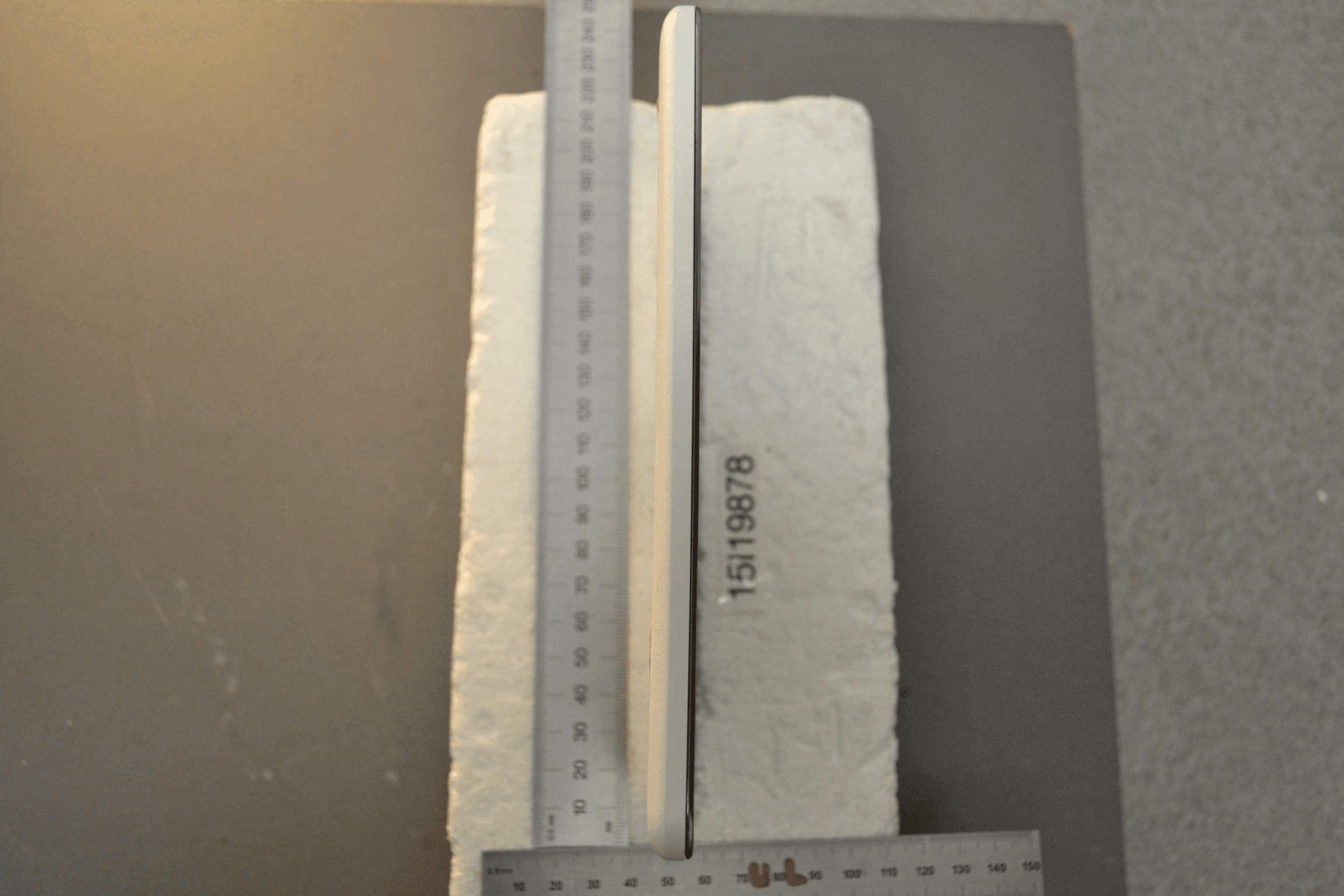

NVLAP LAB CODE 200065-0 SAR EVALUATION REPORT FCC 47 CFR § 2.1093 IEEE Std 1528-2013 For GSM/WCDMA/LTE Tablet + Bluetooth, DTS/UNII a/b/g/n & ANT+ FCC ID: A3LSMT239 Model Name: SM-T239 Report Number: 15I19878-S1B Issue Date: 3/6/2015 Prepared for SAMSUNG ELECTRONICS CO., LTD. 129 SAMSUNG-RO, YEONGTONG-GU, SUWON CITY, GYEONGGI-DO, KOREA 443-742 Prepared by UL VERIFICATION SERVICES INC. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 Report No.: 15I19878-S1B Issue Date: 3/6/2015 Page 2 of 78 UL Verification Services Inc. Doc. No.: 1.0 This report shall not be reproduced without the written approval of UL Verification Services Inc. Revision History Rev. Date Revisions Revised By -- 2/25/2015 Initial Issue -- 2/26/2015 Updated Appendix A Yu Chen 3/6/2015 Updated LTE Band 5 reduce power to new tune up limit of 18.0dBm. Fixed typo on section 10.6 Yu Chen Report No.: 15I19878-S1B Issue Date: 3/6/2015 Page 3 of 78 UL Verification Services Inc. Doc. No.: 1.0 This report shall not be reproduced without the written approval of UL Verification Services Inc. Table of Contents 1. Attestation of Test Results ......................................................................................................... 5 2. Test Specification, Methods and Procedures ............................................................................ 6 3. Facilities and Accreditation ........................................................................................................ 6 4. SAR Measurement System & Test Equipment .......................................................................... 7 4.1. SAR Measurement System ........................................................................................................ 7 4.2. SAR Scan Procedures ............................................................................................................... 8 4.3. Test Equipment ........................................................................................................................ 10 5. Measurement Uncertainty ......................................................................................................... 11 6. Device Under Test (DUT) Information ...................................................................................... 12 6.1. DUT Description ...................................................................................................................... 12 6.2. Wireless Technologies ............................................................................................................. 13 6.3. Nominal and Maximum Output Power ...................................................................................... 14 6.4. General LTE SAR Test and Reporting Considerations ............................................................. 16 6.5. Power Reduction by Proximity Sensing ................................................................................... 17 6.5.1. Proximity Sensor Triggering Distance (KDB 616217 §6.2) ................................................ 17 6.5.2. Proximity Sensor Triggering Distance Measurement Results ............................................ 18 6.5.3. Proximity Sensor Coverage (KDB 616217 §6.3) ............................................................... 30 6.5.4. Proximity Sensor Tilt Angle Assessment (KDB 616217 §6.4) ............................................ 30 7. RF Exposure Conditions (Test Configurations) ...................................................................... 31 7.1. Head Exposure Conditions ...................................................................................................... 31 7.2. Standalone SAR Test Exclusion Considerations ...................................................................... 32 7.3. Required Test Configurations .................................................................................................. 34 8. Dielectric Property Measurements & System Check .............................................................. 35 8.1. Dielectric Property Measurements ........................................................................................... 35 8.2. System Check.......................................................................................................................... 38 9. Conducted Output Power Measurements ................................................................................ 41 9.1. GSM ........................................................................................................................................ 41 9.2. W-CDMA ................................................................................................................................. 43 9.3. LTE .......................................................................................................................................... 47 9.4. Wi-Fi 2.4GHz ........................................................................................................................... 52 9.5. Wi-Fi 5GHz .............................................................................................................................. 53 9.6. Bluetooth .........................................................…

Text truncated - open the document above for the full version.
