A3LSMT311Cellular/PCS GSM/EDGE/WCDMA Tablet with WLAN and Bluetooth

www.samsung.com User Manual SM-T311 2 About this manual This device provides high quality mobile communication and entertainment using Samsung’s high standards and technological expertise. This user manual is specially designed to detail the device’s functions and features. • Please read this manual before using the device to ensure safe and proper use. • Descriptions are based on the device’s default settings. • Images and screenshots may differ in appearance from the actual product. • Content may differ from the final product, or from software provided by service providers or carriers, and is subject to change without prior notice. For the latest version of the manual, refer to the Samsung website, www.samsung.com. • Content (high quality content) that requires high CPU and RAM usage will affect the overall performance of the device. Applications related to the content may not work properly depending on the device’s specifications and the environment that it is used in. • Available features and additional services may vary by device, software, or service provider. • Applications and their functions may vary by country, region, or hardware specifications. Samsung is not liable for performance issues caused by applications from any provider other than Samsung. • Samsung is not liable for performance issues or incompatibilities caused by edited registry settings or modified operating system software. Attempting to customise the operating system may cause the device or applications to work improperly. • Software, sound sources, wallpapers, images, and other media provided with this device are licensed for limited use. Extracting and using these materials for commercial or other purposes is an infringement of copyright laws. Users are entirely responsible for illegal use of media. • You may incur additional charges for data services, such as messaging, uploading and downloading, auto-syncing, or using location services. To avoid additional charges, select an appropriate data tariff plan. For details, contact your service provider. About this manual 3 • Default applications that come with the device are subject to updates and may no longer be supported without prior notice. If you have questions about an application provided with the device, contact a Samsung Service Centre. For user-installed applications, contact service providers. • Modifying the device’s operating system or installing softwares from unofficial sources may result in device malfunctions and data corruption or loss. These actions are violations of your Samsung licence agreement and will void your warranty. Instructional icons Warning: situations that could cause injury to yourself or others Caution: situations that could cause damage to your device or other equipment Note: notes, usage tips, or additional information Copyright Copyright © 2013 Samsung Electronics This guide is protected under international copyright laws. No part of this guide may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Samsung Electronics. About this manual 4 Trademarks • SAMSUNG and the SAMSUNG logo are registered trademarks of Samsung Electronics. • The Android logo, Google ™ , Google Maps ™ , Google Mail ™ , YouTube ™ , Google Play ™ Store, and Google Talk ™ are trademarks of Google, Inc. • Bluetooth ® is a registered trademark of Bluetooth SIG, Inc. worldwide. • Wi-Fi ® , Wi-Fi Protected Setup ™ , Wi-Fi Direct ™ , Wi-Fi CERTIFIED ™ , and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance. • All other trademarks and copyrights are the property of their respective owners. DivX ® , DivX Certified ® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under licence. ABOUT DIVX VIDEO DivX ® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified ® device that has passed rigorous testing to verify that it plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX videos. ABOUT DIVX VIDEO-ON-DEMAND This DivX Certified ® device must be registered in order to play purchased DivX Video-on- Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration. DivX Certified ® to play DivX ® video up to HD 720p, including premium content. Manufactured under licence from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. 5 Table of Contents Getting started 8 Device layout 9 Butt ons 10 Package contents 11 Installing the SIM or USIM card 12 Charg ing the battery 14 Inser ting a memory card 16 Turning the device on and off 16 Holding the device 17 Lock ing and unlocking the device 17 Adjusting the volume 17 Swit ching to silent mode Basics 18 Indicator icons 19 Using the touch screen 22 Control motions 24 Activating Multi Window 25 Notifications 25 Quick setting panel 26 Home screen 29 Locked scr een 30 Using applica tions 30 Applications screen 31 Help 32 Entering text 34 Connec ting to a Wi-Fi network 35 Setting up accounts 35 Tr ansferring files 37 Securing the device 38 Upgrading the device Communication 40 Phone 46 Contacts 49 Messaging 51 Email 52 Google M ail 54 Talk 55 Google+ 55 Messenger 55 ChatON Web & network 56 Internet 57 Chr ome 58 Bluetooth 59 Scr een Mirroring 60 Samsung Link 61 Group P lay 62 W atchON Table of Contents 6 92 S Voice 93 Google 94 Voic e Search 94 My Files 95 Downloads 95 T ripAdvisor Travel & local 96 Maps 97 L ocal 98 Navigation Settings 99 About Settings 99 Wi-Fi 100 Bluetooth 100 Data usage 101 More settings 102 Blocking mode 102 Sound 103 Display 104 Storage 105 Power saving mode 105 Battery 105 Application manager 105 Lo…

Text truncated - open the document above for the full version.

Label and Location Samsung EUT Model: SM-T311 FCC ID: A3LSMT311 Label: Location: Top Back of EUT Bottom

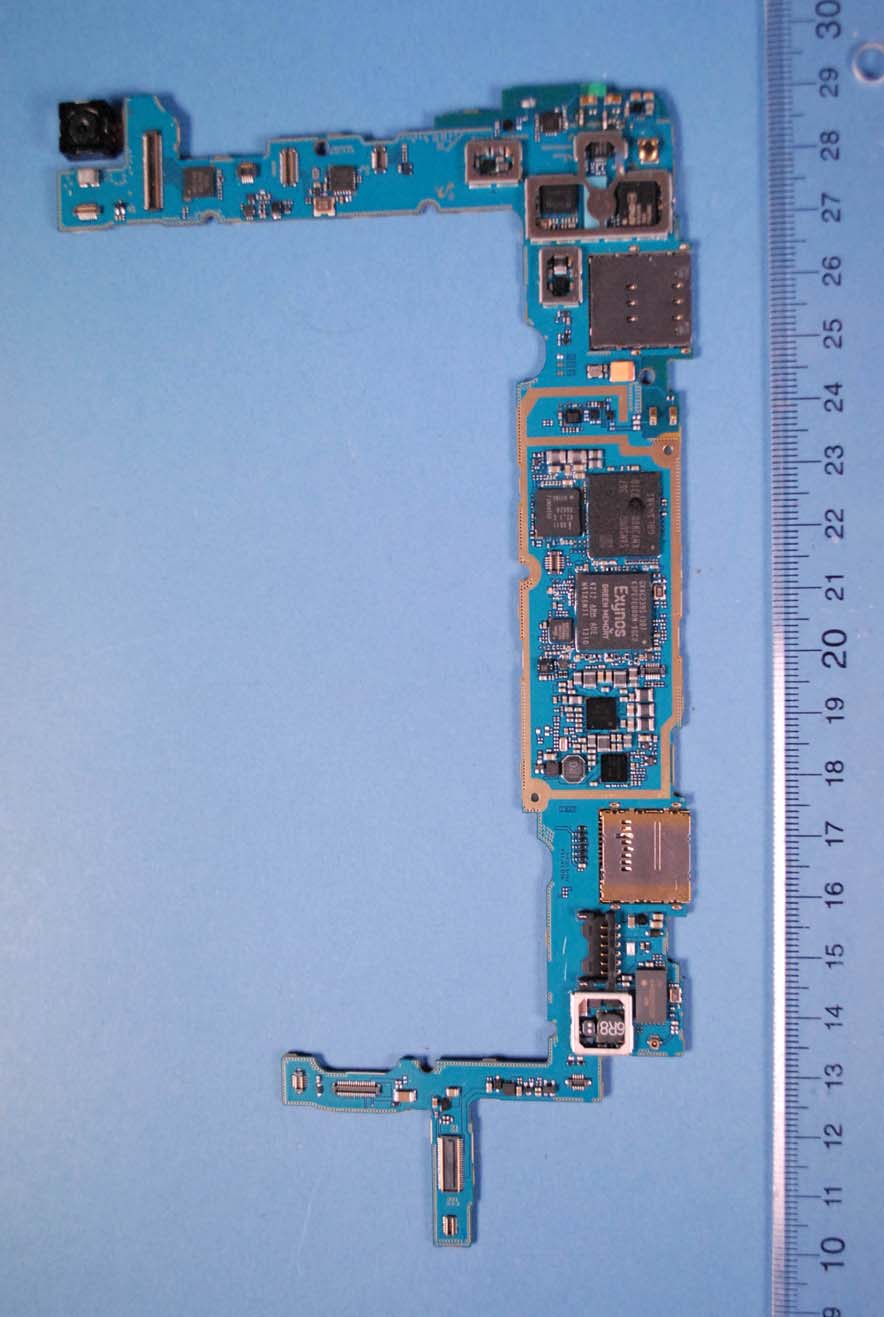

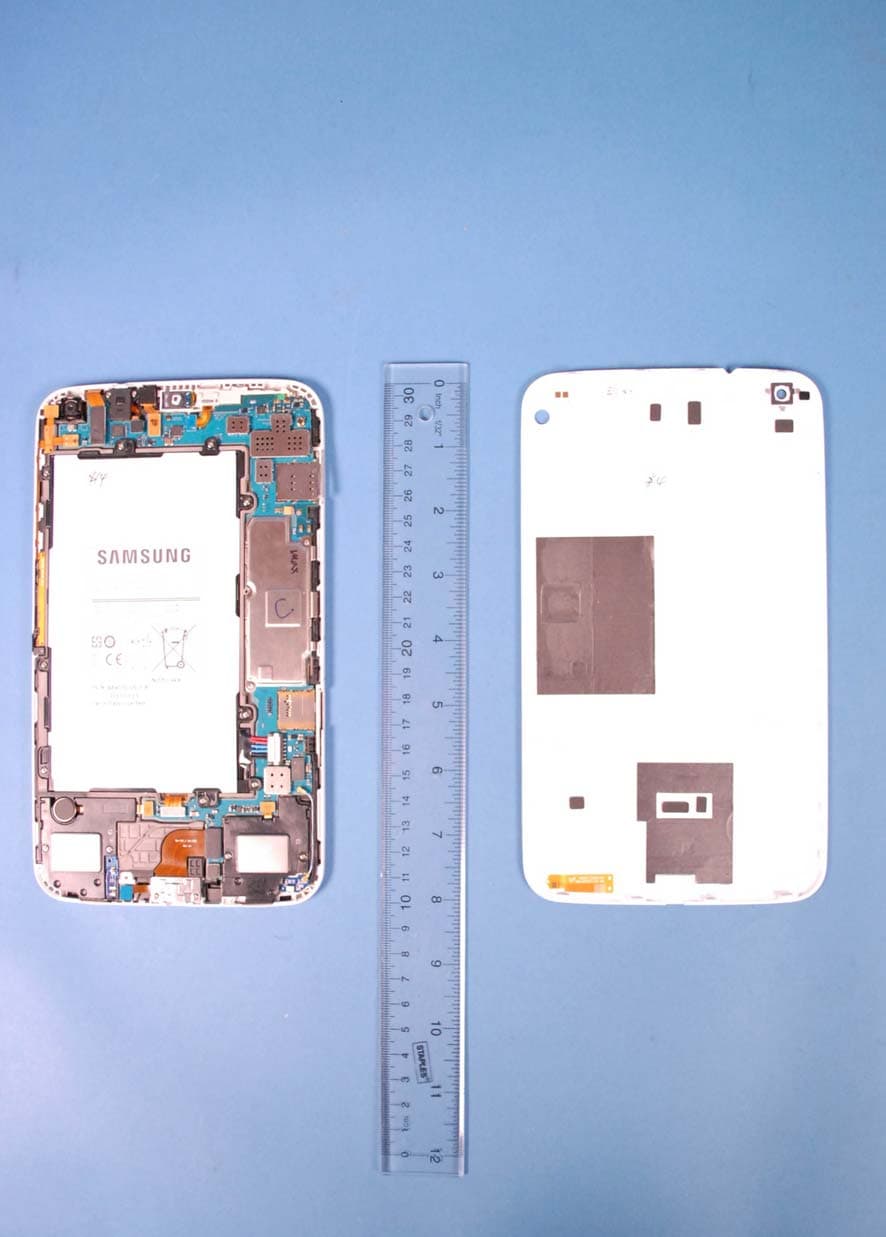

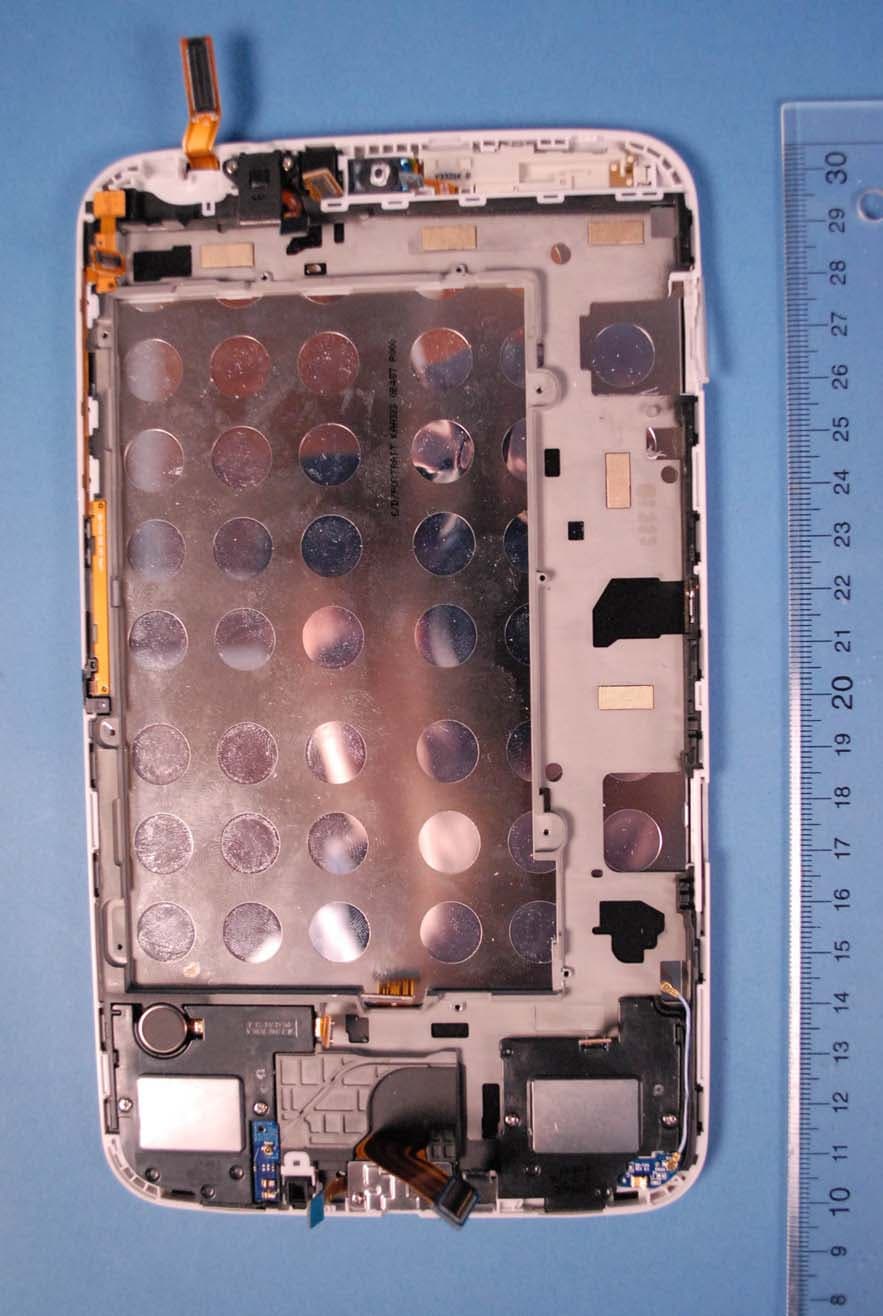

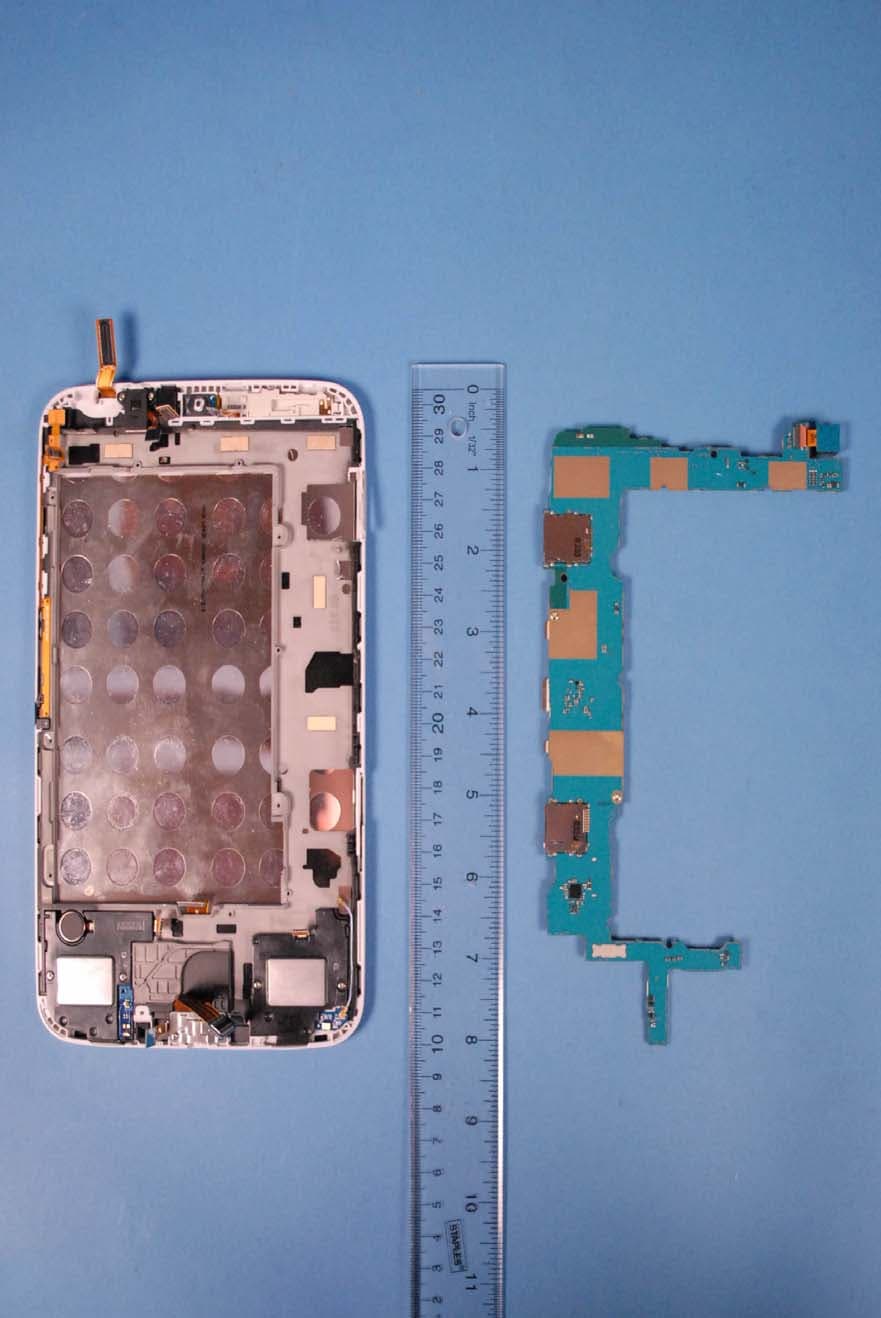

Samsung Electronics Co. Ltd. FCC ID: A3LSMT311 Model: SM-T311 Internal Photos EUT Type: Portable Handset Page 1 of 6 © 2013 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS Samsung Electronics Co. Ltd. FCC ID: A3LSMT311 Model: SM-T311 Internal Photos EUT Type: Portable Handset Page 2 of 6 © 2013 PCTEST Engineering Laboratory Inc. Samsung Electronics Co. Ltd. FCC ID: A3LSMT311 Model: SM-T311 Internal Photos EUT Type: Portable Handset Page 3 of 6 © 2013 PCTEST Engineering Laboratory Inc. Samsung Electronics Co. Ltd. FCC ID: A3LSMT311 Model: SM-T311 Internal Photos EUT Type: Portable Handset Page 4 of 6 © 2013 PCTEST Engineering Laboratory Inc. Samsung Electronics Co. Ltd. FCC ID: A3LSMT311 Model: SM-T311 Internal Photos EUT Type: Portable Handset Page 5 of 6 © 2013 PCTEST Engineering Laboratory Inc. Samsung Electronics Co. Ltd. FCC ID: A3LSMT311 Model: SM-T311 Internal Photos EUT Type: Portable Handset Page 6 of 6 © 2013 PCTEST Engineering Laboratory Inc.

FCC ID: A3LSMT311 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 53 0Y1304050595-R1.A3L 04/15/13 - 06/03/13 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 04/15/13 - 06/03/13 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Document Serial No.: 0Y1304050595-R1.A3L FCC ID: A3LSMT311 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Tablet Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): SM-T311 1 gm Head (W /kg) 1 gm Body (W /kg) PCEGSM/GPRS/EDGE 850824.20 - 848.80 MHz30.820.330.99 PCEUMTS 850826.40 - 846.60 MHz22.440.330.46 PCEGSM/GPRS/EDGE 19001850.20 - 1909.80 MHz27.540.340.72 PCEUMTS 19001852.4 - 1907.6 MHz22.720.411.02 DTS2.4 GHz WLAN2412 - 2462 MHz15.28< 0.11.09 DTSBluetooth LE2402 - 2480 MHz6.21 DTS5.8 GHz WLAN5745 - 5825 MHz6.96< 0.10.27 NII5.2 GHz WLAN5180 - 5240 MHz7.01< 0.11.02 NII5.3 GHz WLAN5260 - 5320 MHz6.54< 0.11.00 NII5.5 GHz WLAN5500 - 5700 MHz6.78< 0.10.49 DSSBluetooth2402 - 2480 MHz9.53N/A0.35 0.421.55 SAR Band & ModeTx Frequency Measured Conducted Power [dBm] Simultaneous SAR per KDB 690783 D01v01r02: Equipment Class N/A Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all configurations for each mode. Note: This revised test report (S/N: 0Y1304050595-R1.A3L) supersedes and replaces the previously issued test report on the same subject DUT for the same type of testing indicated. Please discard or destroy the previously issued tests report(s) and dispose of accordingly. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.7 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: A3LSMT311 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 53 0Y1304050595-R1.A3L 04/15/13 - 06/03/13 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 TABLE OF CONTENTS 1 DEVICE UNDER TEST ....................................................................................................................3 2 INTRODUCTION ..............................................................................................................................8 3 DOSIMETRIC ASSESSMENT .........................................................................................................9 4 DEFINITION OF REFERENCE POINTS ...................................................................................... 10 5 TEST CONFIGURATION POSITIONS FOR HANDSETS ............................................................ 11 6 RF EXPOSURE LIMITS ................................................................................................................ 13 7 FCC MEASUREMENT PROCEDURES ........................................................................................ 14 8 RF CONDUCTED POWERS ......................................................................................................... 17 9 SYSTEM VERIFICATION .............................................................................................................. 24 10 SAR DATA SUMMARY ................................................................................................................. 26 11 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 32 12 SAR MEASUREMENT VARIABILITY ........................................................................................... 47 13 EQUIPMENT LIST ......................................................................................................................... 48 14 MEASUREMENT UNCERTAINTIES ............................................................................................ 49 15 CONCLUSION ............................................................................................................................... 51 16 REFERENCES .............................................................................................................................. 52 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS FCC ID: A3LSMT311 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 53 0Y1304050595-R1.A3L 04/15/13 - 06/03/13 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 1 DEVICE UNDER TEST 1.1 Device Overview GSM/GPRS/EDGE 850Voice/Data824.20 - 848.80 MHz UMTS 850Voice/Data826.40 - 846.60 MHz GSM/GPRS/EDGE 1900Voice/Data1850.20 - 1909.80 MHz UMTS 1900Voice/Data1852.4 - 1907.6 MHz 2.4 GHz WLANData2412 - 2462 MHz Bluetooth LEData2402 - 2480 MHz 5.8 GHz WLAN Data5745 - 5825 MHz 5.2 GHz WLANData5180 - 5240 MHz 5.3 GHz WLANData5260 - 5320 MHz 5.5 GHz WLANData5500 - 5700 MHz BluetoothData2402 - 2480 MHz Band & ModeTx FrequencyOperating Modes 1.2 Power Reduction fo…

Text truncated - open the document above for the full version.

© 2012 PCTEST Engineering Laboratory, Inc. APPENDIX C: PROBE CALIBRATION

FCC ID: A3LSMT311 FCC Pt. 15.247 802.11a/b/g/n MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 65 0Y1304050597.A3L 4/12 - 6/5/2013 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. V 3.8 04/10/2013 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 4/12 - 6/5/2013 129, Samsung-ro, Yeongtong-gu Test Site/Location: Suwon-city, Gyeonggi-do, 443-742 PCTEST Lab, Columbia, MD, USA Republic of Korea Test Report Serial No.: 0Y1304050597.A3L FCC ID: A3LSMT311 APPLICANT: Samsung Electronics Co., Ltd. Application Type: Certification Model(s): SM-T311 EUT Type: Portable Tablet FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 IC Specification(s): RSS-210 Issue 8 Test Procedure(s): KDB 558074 v03 Max. Power (mW ) Max. Power (dBm) Max. Power (mW ) Max. Power (dBm) 802.11b 2412 - 246235.48115.5065.61518.17 802.11g 2412 - 246223.06713.63131.82621.20 802.11n 2412 - 246214.12511.5084.72319.28 802.11a 5745 - 58255.0357.0234.83415.42 802.11n (20MHz) 5745 - 58255.0937.0734.11915.33 802.11n (40MHz) 5755 - 58155.0237.0134.35615.36 Avg Conducted Mode Tx Frequency (MHz) Peak Conducted This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 558074. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 / IC RSS-210 WLAN 802.11a/b/g/n FCC ID: A3LSMT311 FCC Pt. 15.247 802.11a/b/g/n MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 65 0Y1304050597.A3L 4/12 - 6/5/2013 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. V 3.8 04/10/2013 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 SCOPE ........................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION ............................................................................................................................ 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION......................................................................................................................... 5 2.2 DEVICE CAPABILITIES ................................................................................................................................. 5 2.3 TEST CONFIGURATION ............................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ...................................................................................... 5 2.5 LABELING REQUIREMENTS ........................................................................................................................ 5 3.0 DESCRIPTION OF TEST ........................................................................................................................ 6 3.1 EVALUATION PROCEDURE ......................................................................................................................... 6 3.2 AC LINE CONDUCTED EMISSIONS ............................................................................................................. 6 3.3 RADIATED EMISSIONS ................................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS .................................................................................................................. 8 5.0 TEST EQUIPMENT CALIBRATION DATA .............................................................................................. 9 6.0 TEST RESULTS .................................................................................................................................... 10 6.1 SUMMARY ................................................................................................................................................... 10 6.2 6DB BANDWIDTH MEASUREMENT – 802.11A/B/G/N ............................................................................... 11 6.3 OUTPUT POWER MEASUREMENT – 802.11B/G/N (2.4GHZ) ................................................................... 22 6.4 OUTPUT POWER MEASUREMENT – 802.11A/N/AC (5GHZ) ................................................................... 24 6.5 POWER SPECTRAL DENSITY (802.11A/B/G/N) ........................................................................................ 25 6.6 CONDUCTED EMISSIONS AT THE BAND EDGE ...................................................................................... 36 6.7 CONDUCTED SPURIOUS EMISSIONS ...................................................................................................... 43 6.8 RADIATED SPURIOUS EMISSION MEASUREMENTS .............................................................................. 51 6.9 RADIATED RESTRICTED BAND EDGE MEASUREMENTS ...................................................................... 57 6.10 LINE-COND…

Text truncated - open the document above for the full version.

FCC ID: A3LSMT311 FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 38 0Y1304050600.A3L April 12 - 18, 2013 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. V 2.5 04/10/2013 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. April 12 - 18, 2013 129, Samsung-ro, Yeongtong-gu Test Site/Location: Suwon-city, Gyeonggi-do, 443-742 PCTEST Lab, Columbia, MD, USA Republic of Korea Test Report Serial No.: 0Y1304050600.A3L FCC ID: A3LSMT311 APPLICANT: Samsung Electronics Co., Ltd. Application Type: Certification Model: SM-T311 EUT Type: Portable Tablet Max. RF Output Power: 4.182 mW (6.214 dBm) Peak Conducted Frequency Range: 2402 - 2480 MHz FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 IC Specification(s): RSS-210 Issue 8 Test Procedure(s): KDB 558074 v03r01 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 558074 v03r01. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 / IC RSS-210 Bluetooth (Low Energy) FCC ID: A3LSMT311 FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 38 0Y1304050600.A3L April 12 - 18, 2013 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. V 2.5 04/10/2013 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT .................................................................................................. 3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 SCOPE ........................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION ............................................................................................................................ 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION......................................................................................................................... 5 2.2 DEVICE CAPABILITIES ................................................................................................................................. 5 2.3 TEST CONFIGURATION ............................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ...................................................................................... 5 2.5 LABELING REQUIREMENTS ........................................................................................................................ 5 3.0 DESCRIPTION OF TEST ........................................................................................................................ 6 3.1 EVALUATION PROCEDURE ......................................................................................................................... 6 3.2 CONDUCTED EMISSIONS ........................................................................................................................... 6 3.3 RADIATED EMISSIONS ................................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS .................................................................................................................. 8 5.0 TEST EQUIPMENT CALIBRATION DATA .............................................................................................. 9 6.0 TEST RESULTS .................................................................................................................................... 10 6.1 SUMMARY ................................................................................................................................................... 10 6.2 6DB BANDWIDTH MEASUREMENT – BLUETOOTH (LE) ......................................................................... 11 6.3 OUTPUT POWER MEASUREMENT – BLUETOOTH (LE) .......................................................................... 14 6.4 POWER SPECTRAL DENSITY – BLUETOOTH (LE) .................................................................................. 17 6.5 CONDUCTED EMISSIONS AT THE BAND EDGE ...................................................................................... 20 6.6 CONDUCTED SPURIOUS EMISSIONS ...................................................................................................... 22 6.7 RADIATED SPURIOUS EMISSION MEASUREMENTS .............................................................................. 27 6.8 RADIATED RESTRICTED BAND EDGE MEASUREMENTS ...................................................................... 32 6.9 LINE-CONDUCTED TEST DATA ................................................................................................................. 36 7.0 CONCLUSION ....................................................................................................................................... 38 FCC ID: A3LSMT311 FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager…

Text truncated - open the document above for the full version.

Samsung Electronics Co. Ltd. FCC ID: A3LSMT311 Model: SM-T311 Test Set-Up Photos EUT Type: PORTABLE TABLET Page 1 of 3 © 2013 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS Samsung Electronics Co. Ltd. FCC ID: A3LSMT311 Model: SM-T311 Test Set-Up Photos EUT Type: PORTABLE TABLET Page 2 of 3 © 2013 PCTEST Engineering Laboratory Inc. Samsung Electronics Co. Ltd. FCC ID: A3LSMT311 Model: SM-T311 Test Set-Up Photos EUT Type: PORTABLE TABLET Page 3 of 3 © 2013 PCTEST Engineering Laboratory Inc.

FCC ID: A3LSMT311 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 1 of 7 04/15/13 - 06/03/13 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 APPENDIX F: S AR TEST SETUP PHOTOGRAPHS FCC ID: A3LSMT311 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 2 of 7 04/15/13 - 06/03/13 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 SAR Test Setup Photo 1 - Right Cheek SAR Test Setup Photo 2 - Right Tilt FCC ID: A3LSMT311 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 3 of 7 04/15/13 - 06/03/13 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 SAR Test Setup Photo 3 - Left Cheek SAR Test Setup Photo 4 - Left Tilt FCC ID: A3LSMT311 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 4 of 7 04/15/13 - 06/03/13 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 SAR Test Setup Photo 5 - Back Side at 0.0 cm SAR Test Setup Photo 6 - Back Side at 1.0 cm FCC ID: A3LSMT311 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 5 of 7 04/15/13 - 06/03/13 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 SAR Test Setup Photo 7 - Top Edge at 0.0 cm SAR Test Setup Photo 8 - Top Edge at 0.7 cm FCC ID: A3LSMT311 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 6 of 7 04/15/13 - 06/03/13 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 SAR Test Setup 9 - Bottom Edge at 0.0 cm SAR Test Setup Photo 10 - Left Edge at 0.0 cm FCC ID: A3LSMT311 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 7 of 7 04/15/13 - 06/03/13 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 Horizontal Reference Vertical Reference SAR Test Setup Photo 11 - DUT Reference Lines
