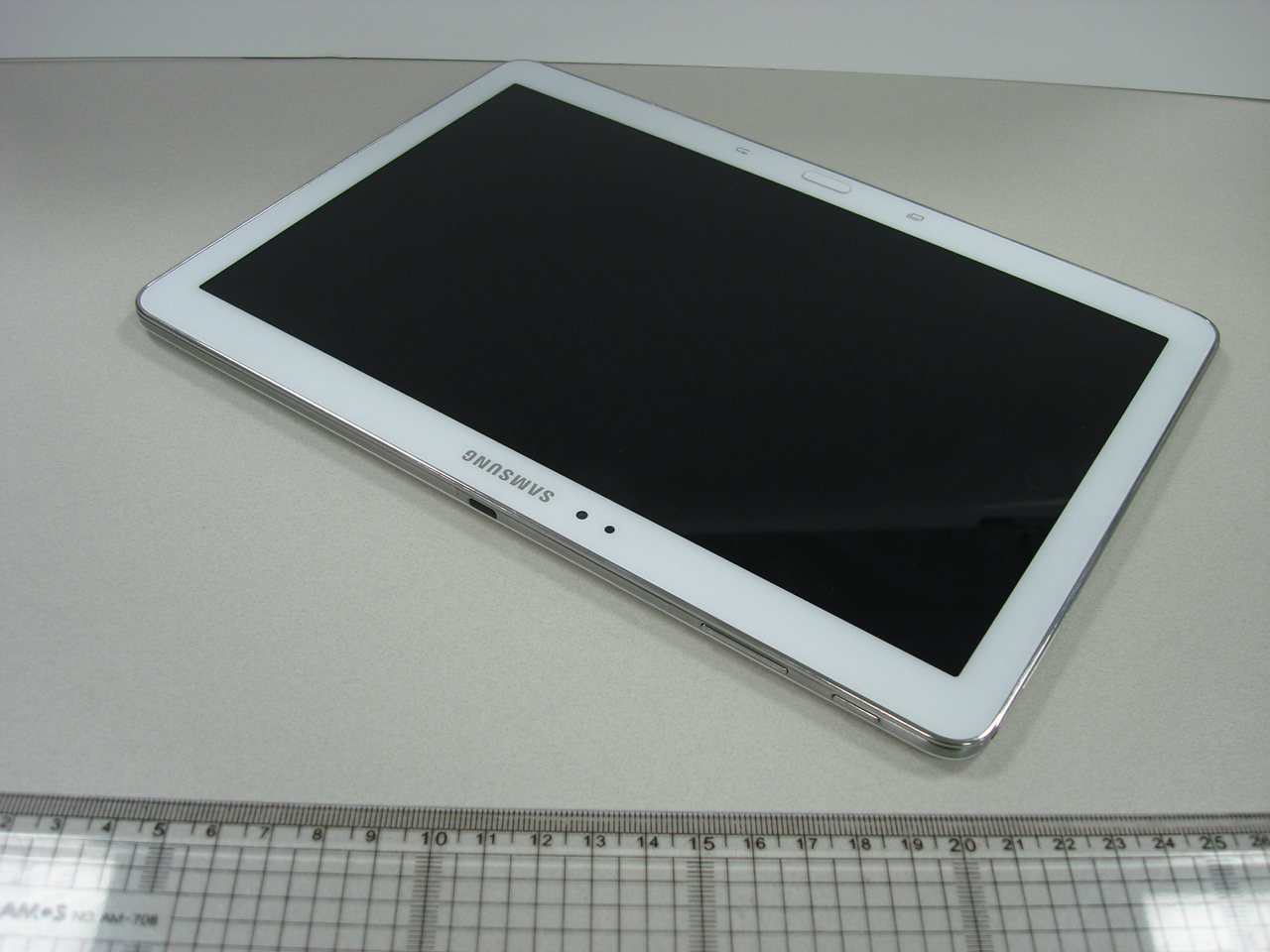

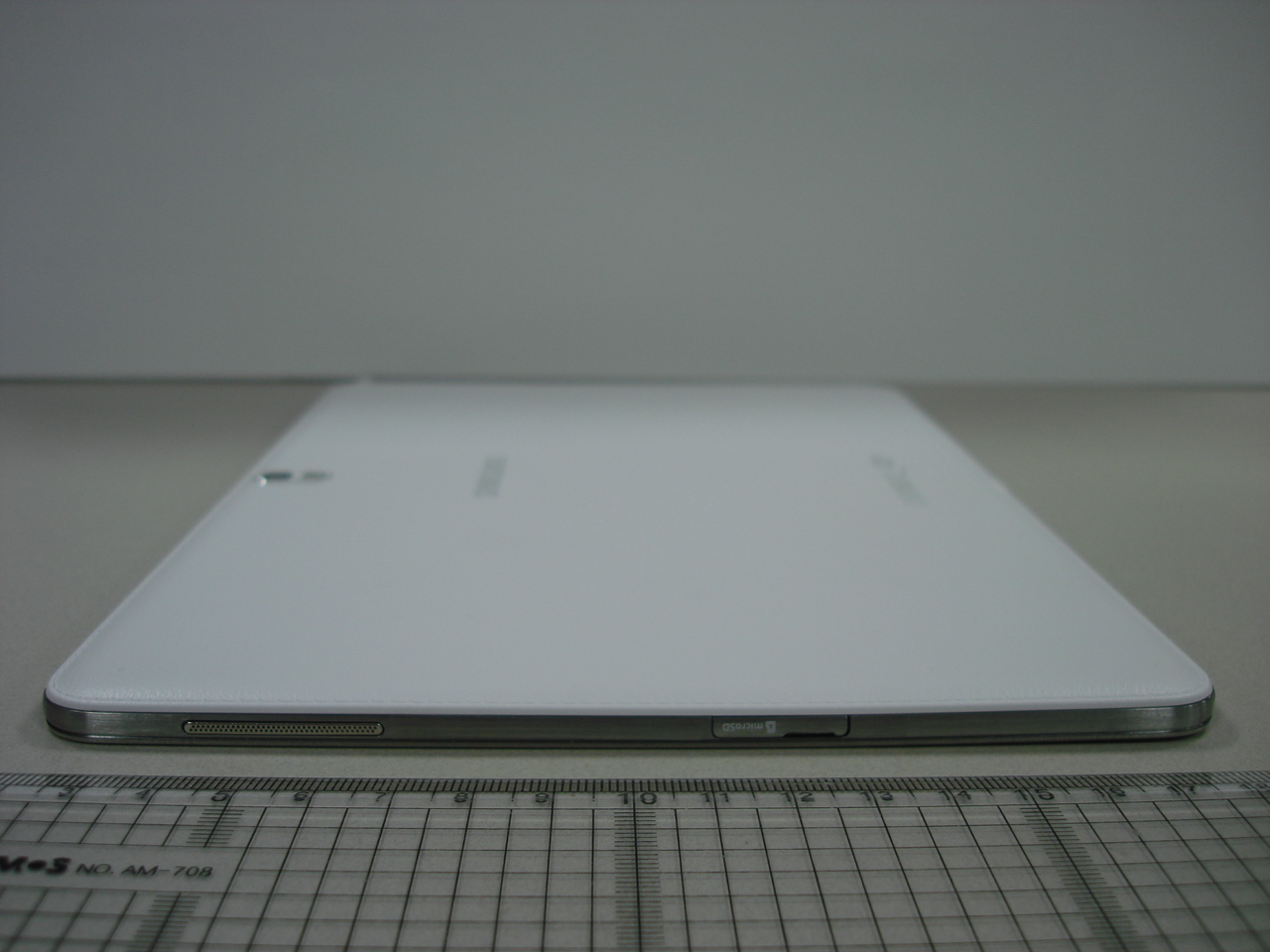

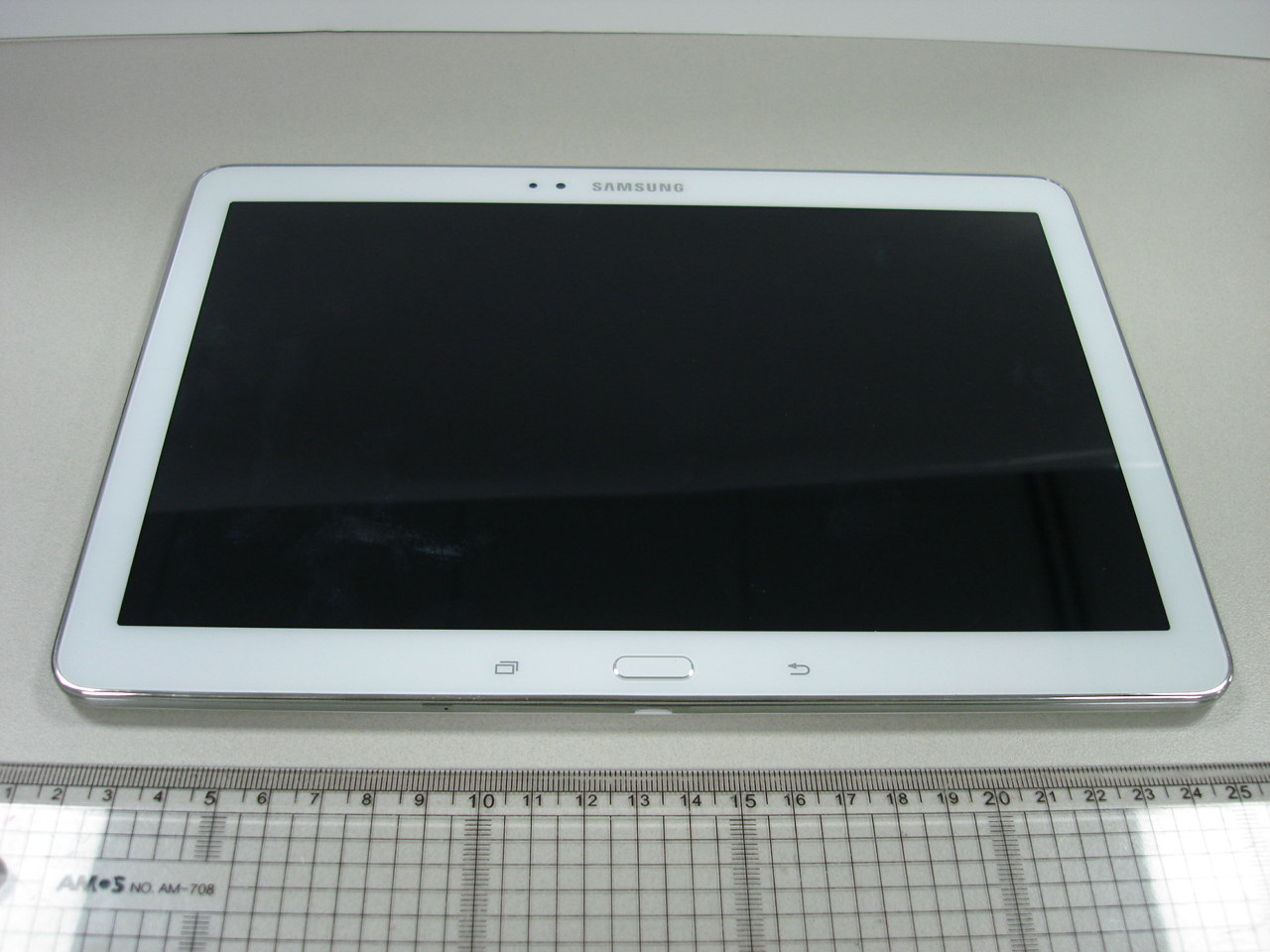

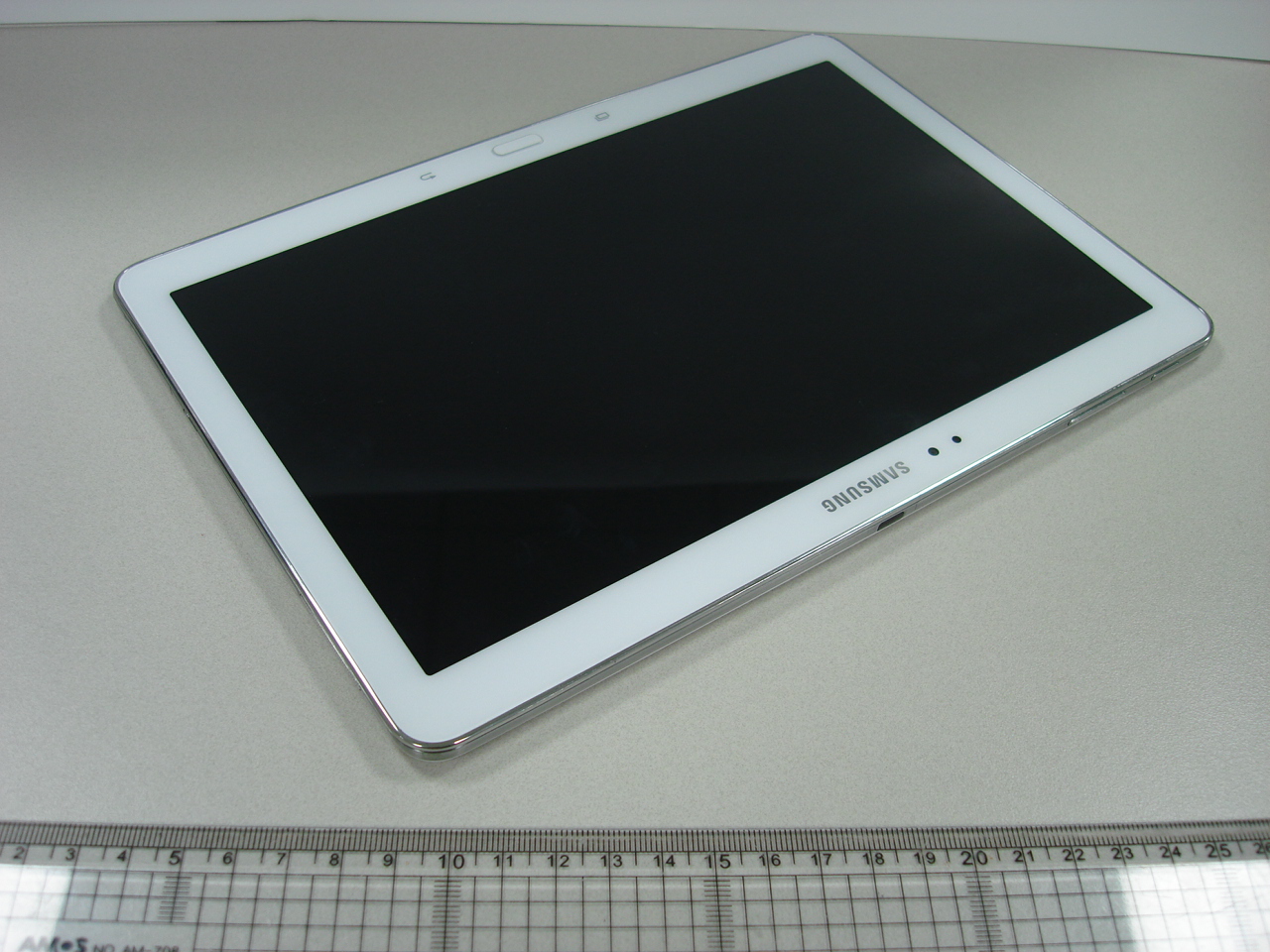

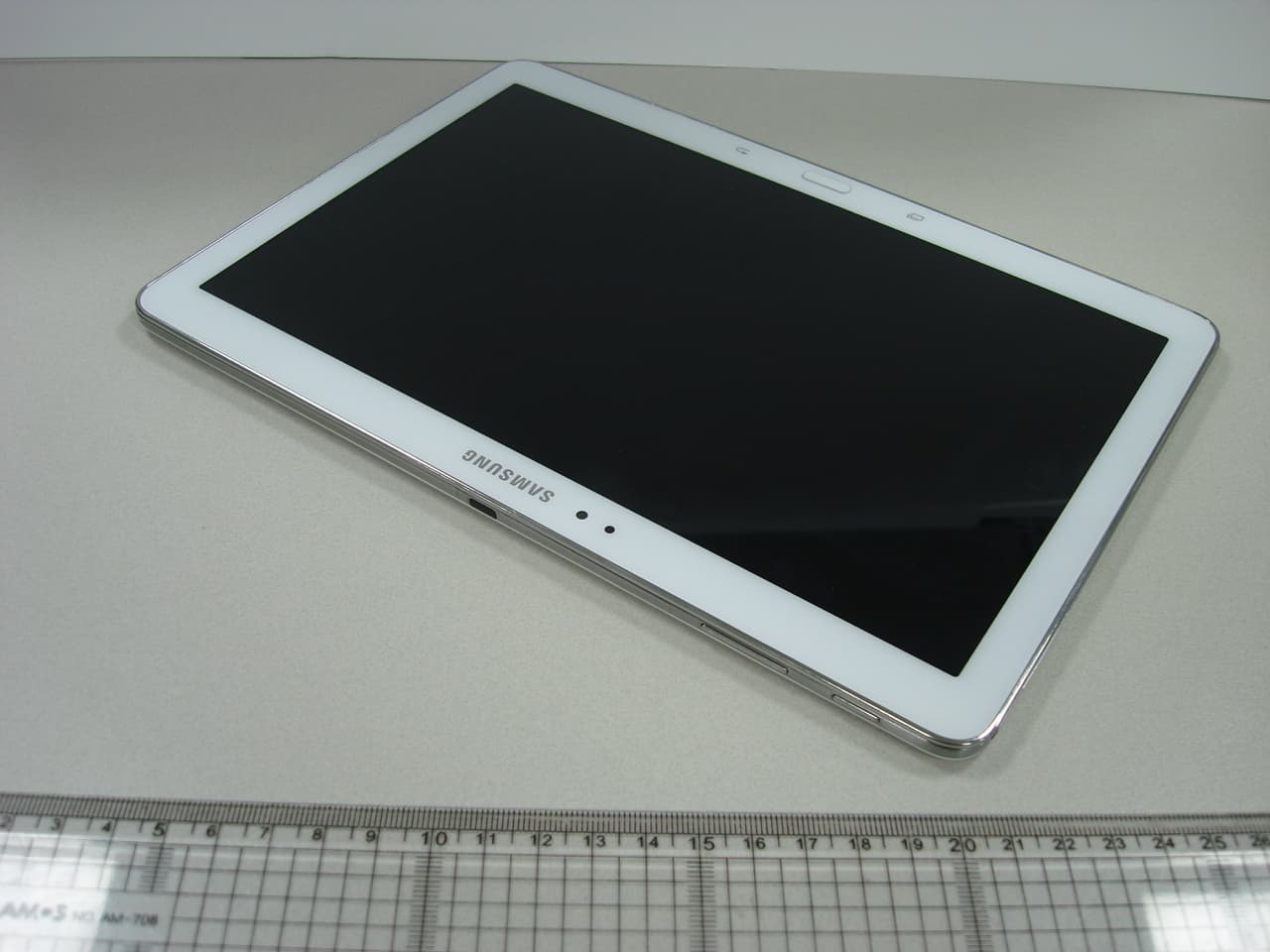

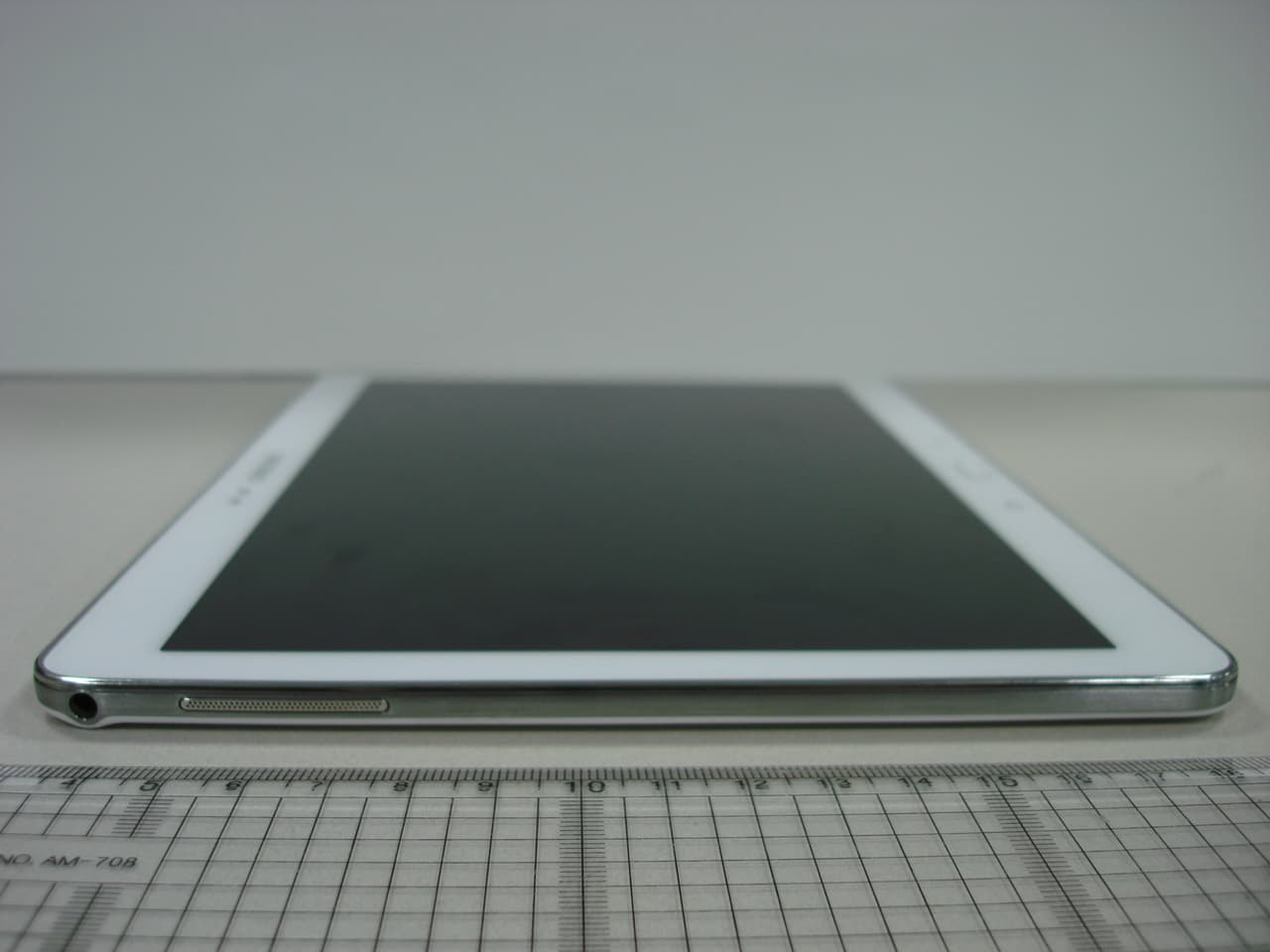

A3LSMT520Portable WiFi Tablet with Bluetooth and ANT+

Printed in Korea GH68-XXXXXA English (EU). 08/2013. Rev. 1.0 Some content may differ from your device dependin g on the region, service provider, or software version, and is subject to change without prior notice. About the Samsung Kies Samsung Kies is a computer application that manages media contents and personal in formation with Samsung devices. Download the latest Samsung Kies from the Samsun g website (www.samsung.com/kies) and install it on your computer. www.samsung.com SM-T520 You can access the full user manual for more in for mation. To learn to access the user manual, see “Viewing the user manual” in this quick start guide. Quick Start Guide 3 •The items supplied with the device an d any available accessories may vary depending on the region or service provi der. •The supplied items are designed only for t his device and may not be compatible wi th other devices. •You can purchase additional accessories from your local Samsung retailer. Make sure t hey are compatible with the device be fore purchase. •Other accessories may not be compatible wit h your device. • Samsung is not liable for performance issues or incompatibilities caused by edited registry settings or modi fied operating system software. Attempting to customise the operating system may cause the device or applications to wor k improperly . 4 Instructional icons Warning: situations that could cause injury to yourself or others Caution: situations that could cause damage to your device or other e quipment Note: notes, usage tips, or additional informatio n Copyright Copyright © 2013 Samsung Electronics This guide is protected under international copyright laws . No part of this guide may be reproduced, distributed , translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in an y information storage and retrieval s ystem, without the prior written permission of Samsung Electronics. 5 Trademarks •SAMSUNG and the SAMSUNG logo are registered trademarks o f Samsung E lectronics. •The Android logo, Google ™ , Google Maps ™ , Google Mail ™ , Yo uTube ™ , Goog le Play ™ Store, and Google Talk ™ are trademarks o f Google, Inc. •Bluetooth ® is a registered trademark of B luetooth SIG, Inc. worldwide. •Wi-Fi ® , Wi-Fi Protected Setup ™ , Wi-Fi Direct ™ , Wi-Fi CERTIFIED ™ , and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance . Your device uses a non-harmonised frequency and is intended for use in all European countries. T he WLAN can be operated in the EU without restriction in doors, but cannot be operated outdoors. • All other trademarks and cop yrights are the property o f their respective owners. 6 Getting started Device layout Back button Home button Speaker Light sensor Menu button Multipurpose jack Touch screen Front camera Power button Volume button Microphone GPS Antenna Rear camera Memory card slot Speaker Headset jack Flash 7 Getting started Do not cover the antenna area with your hands or other objects. This may cause connectivity problems or drain the batter y. Charging the battery Before using the device for the first time or when the battery has been unused for extended periods, you must charge the battery . Use only Samsung-approved c hargers, batteries, and cables. Unapproved chargers or cables can cause the battery to explode or damage the device. 8 Getting started Connect the USB cable to the USB power adaptor and then plug the end o f the USB ca ble into the multipurpose jack. Connecting the charger improperly may cause serious damage to the device. Any damage caused b y misuse is not covered by the warran ty. 9 Getting started After fully charging, disconnect the device from the charger. First unplug the charger from the device, and then unplug it from the electric socket. To save energy, unplug the charger w hen not in use. The charger does not have a power switch, so you must unplug the charger from the electric socket when not in use to avoid wasting power. The device should remain close to the electric socket while char ging. 10 Getting started Checking the battery charge status When you charge the battery while the device is o ff, the following icons will show the current battery charge status: ChargingFully charged Turning the device on and off When turning on the device for the first time, follow the on-screen instructions to set up your device. 11 Getting started Press and hold the Power button for a few seconds to turn the device on and off. Viewing the user manual The user manual provides complete in formation about operating your device. You may incur additional charges for accessing the Internet or downloadin g media files. For details, contact your service provider. 12 Getting started From your device 1 Open the Internet application. 2 Tap to open the bookmarks list. 3 Select the bookmark for the user manual. To access the user manual more easily, place a shortcut or widget for the user manual on the Home screen. The user manual may not be available depending on the web browser or service provider. From your computer Access www.samsung.com and then searchm for the user manual by the model name of your device . 13 Safety information This safety information contains content for mobile devices. Some content may be not applicable to your device. To prevent injury to yourself and others or damage to your device, read the safety information about your device before using the device. Warning Failure to comply with safety warnings an d regulations can cause serious injury or death Do not use damaged power cords or plugs, or loose e lectrical sockets Unsecured connections can cause electric shock or fire. Do not touch the power cord with wet hands or disconnect the charger by pulling the cord Doing so may result in electrocution. Do not bend or dama ge the power cord Doing so may cause electric shock or fire. 14 Safety information Do not use your device while it is charging or touch your device with wet hands Doing s…

Text truncated - open the document above for the full version.

Samsung Electronics America, Inc 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: December 17 th , 2013 To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to any application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 862. Sincerely, Signature Sang Kyung (Peter), Ra General Manager Samsung Electronics America, Inc

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea December 9, 2013 Federal Communications Commissio n 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LSMT520 Gentlemen: We hereby pr ov id e the label statement letter for the above-mentioned device by a new label statement policy of KDB 784748 D01.. The label st atement is as follows: The FCC ID label is l ocated on th e rear of the device with the battery installed. At this time the FCC ID is re adily visible to the user. The label is permanently engraved by la ser and not easily removed from the device. This statement could not be included in the label. So we inform you of it through th is le tter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung H o P ark Se nior Mana ge r SAMSUNG E LECTRONIC S C O.,L TD Telecommunication Network Busin ess Mobile Communicatio n Division Re gu lat ory Complianc e Gr ou p.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: December 17, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSMT520 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters mi ght be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics SHORT-TERM 4 External Photos 5 Internal Photos 6 Test-Setup Photos 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

Label and Loc at ion Samsung P hone Model: FCC ID: A3LSMT520 Label: Loc at ion: Top Back of device Bottom FCC ID is pr inted on bottom of the device SM-T520

FCC ID:A3LSMT520 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 24 0Y1312022294.A3L 12/02/13 - 12/09/13 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 13.0 M 12/04/2013 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 12/02/13 - 12/09/13 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Document Serial No.: 0Y1312022294.A3L FCC ID: A3LSMT520 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Tablet Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): SM-T520 1 gm Body (W/kg) DTS2.4 GHz W LAN2412 - 2462 MHz12.810.64 DTS5.8 GHz W LAN5745 - 5825 MHz8.020.45 NII5.2 GHz W LAN5180 - 5240 MHz8.120.72 NII5.3 GHz W LAN5260 - 5320 MHz7.920.66 NII5.5 GHz W LAN5500 - 5700 MHz7.950.80 DSS/DTSBluetooth2402 - 2480 MHz7.87 SAR N/A Band & ModeTx Frequency Measured Conducted Power [dBm] Equipment Class Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all configurations for each mode. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.7 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID:A3LSMT520 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 24 0Y1312022294.A3L 12/02/13 - 12/09/13 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 13.0 M 12/04/2013 TABLE OF CONTENTS 1 DEVICE UNDER TEST ................................................................................................................... 3 2 INTRODUCTION ............................................................................................................................. 6 3 DOSIMETRIC ASSESSMENT ........................................................................................................ 7 4 RF EXPOSURE LIMITS .................................................................................................................. 8 5 FCC MEASUREMENT PROCEDURES .......................................................................................... 9 6 RF CONDUCTED POWERS ......................................................................................................... 11 7 SYSTEM VERIFICATION .............................................................................................................. 14 8 SAR DATA SUMMARY ................................................................................................................. 16 9 SAR MEASUREMENT VARIABILITY ........................................................................................... 18 10 EQUIPMENT LIST ......................................................................................................................... 19 11 MEASUREMENT UNCERTAINTIES ............................................................................................ 20 12 CONCLUSION ............................................................................................................................... 22 13 REFERENCES .............................................................................................................................. 23 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS FCC ID:A3LSMT520 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 24 0Y1312022294.A3L 12/02/13 - 12/09/13 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 13.0 M 12/04/2013 1 DEVICE UNDER TEST 1.1 Device Overview 2.4 GHz WLANData2412 - 2462 MHz 5.8 GHz WLANData5745 - 5825 MHz 5.2 GHz WLANData5180 - 5240 MHz 5.3 GHz WLANData5260 - 5320 MHz 5.5 GHz WLANData5500 - 5700 MHz BluetoothData2402 - 2480 MHz ANT+Data2402 - 2480 MHz Band & ModeTx FrequencyOperating Modes 1.2 Nominal and Maximum Output Power Specifications This device operates using the following maximum and nominal output power specifications. SAR values were scaled to the maximum allowed power to determine compliance per KDB Publication 447498 D01v05. Maximum Nominal Maximum Nominal Maximum Nominal Maximum Nominal Maximum Nominal Maximum Nominal Maximum Nominal Maximum Nominal IEEE 802.11n (5 GHz) 8.5 Bluetooth 8.0 IEEE 802.11a (5 GHz) 8.5 13.0 12.0 11.0 8.0 8.0 7.5 12.5 IEEE 802.11ac (5 GHz) IEEE 802.11n (2.4 GHz) 11.5 Modulated Average (dBm) IEEE 802.11b (2.4 GHz) 13.5 IEEE 802.11g (2.4 GHz) Mode / Band 7.5 7.0 Bluetooth LE 5.5 5.0 FCC ID:A3LSMT520 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 4 of 24 0Y1312022294.A3L 12/02/13 - 12/09/13 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 13.0 M 12/04/2013 1.3 DUT Antenna Locations Note: Exact antenna dimensions and separation distances are shown in the Technical Descriptions in the FCC Filing. Figure 1-1 DUT Antenna Locations Table 1-1 Sides for SAR Testing ModeBackTopBottomRightLeft 2.4 GHz WLANYesNoNoYesNo 5 GHz W LANYesNoNoYesN…

Text truncated - open the document above for the full version.

FCC ID: A3LSMT520 FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 20 0Y1312022297.A3L 12/9/2013 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. v2.0 6/17/2013 Company Name: Date of Testing: Samsung Electronics, Co. Ltd. 12/9/2013 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab. Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1312022297.A3L FCC ID: A3LSMT520 COMPANY: Samsung Electronics, Co. Ltd. Model(s): SM-T520 EUT Type: Portable Tablet Type of Device: Client Only Device, No Radar Detection Capability Frequency Range: 5260 – 5320 MHz (UNII-2A Band) 5500 – 5700 MHz (UNII-2C Band) Output Power: 6.353 mW (8.03 dBm) Conducted (802.11n UNII Band 2A) 6.266 mW (7.97dBm) Conducted (802.11a UNII Band 2C) FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407(UNII) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in FCC 06-96 Appendix B Compliance Measurement Procedures for Unlicensed-National Information Infrastructure Devices Operating in the 5.25 – 5.35 GHz and 5.47 – 5.725 GHz Bands Incorporating Dynamic Frequency Selection. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.407 / IC RSS-210 DFS FCC ID: A3LSMT520 FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 20 0Y1312022297.A3L 12/9/2013 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. v2.0 6/17/2013 TABLE OF CONTENTS FCC PART 15.407 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 SCOPE ........................................................................................................................................................... 4 1.2 EVALUATION PROCEDURE ......................................................................................................................... 4 1.3 SUMMARY OF TEST RESULTS ................................................................................................................... 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION......................................................................................................................... 5 2.2 EUT CAPABILITIES ....................................................................................................................................... 5 2.3 MODIFICATIONS ........................................................................................................................................... 5 3.0 DESCRIPTION OF DYNAMIC FREQUENCY SELECTION TEST ......................................................... 6 3.1 APPLICABILITY ............................................................................................................................................. 6 3.2 REQUIREMENTS .......................................................................................................................................... 6 3.3 DFS DETECTION THRESHOLD VALUES .................................................................................................... 8 3.4 PARAMETERS OF DFS TEST SIGNALS ...................................................................................................... 8 3.5 PROCEDURE ................................................................................................................................................ 9 4.0 TEST EQUIPMENT ................................................................................................................................ 11 4.1 ADDITIONAL EQUIPMENT ......................................................................................................................... 11 5.0 TEST PLOTS AND DATA - UNII BAND 2A ........................................................................................... 12 6.0 TEST PLOTS AND DATA - UNII BAND 2C ........................................................................................... 16 7.0 CONCLUSION ....................................................................................................................................... 20 FCC ID: A3LSMT520 FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 3 of 20 0Y1312022297.A3L 12/9/2013 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. v2.0 6/17/2013 DFS MEASUREMENT REPORT FCC Part 15.407 § 2.1033 General Information APPLICANT: Samsung Electronics, Co. Ltd. APPLICANT ADDRESS: 129, Samsung-ro, Maetan dong, Yeongtong-gu, Suwon-si, Gyeonggi-do 443-742, Korea TEST SITE: PCTEST ENGINEERING LABORATORY, INC. TEST SITE ADDRESS: 7185 Oakland Mills Road, Columbia, MD 21046 USA FCC RULE PART(S): Part 15.407(h) BASE MODEL: SM-T520 FCC ID: A3LSMT520 Test Device Serial No.: FCC#4 Production Pre-Production Engineering DEVICE CLASSIFICATION: Client Only, No Radar Detection DATE(S) OF TEST: 12/9/2013 TEST REPORT S/N: 0Y1312022297.A3L Tes…

Text truncated - open the document above for the full version.

FCC ID: A3LSMT520 FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 89 0Y1312022296.A3L 12/4 - 12/10/2013 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. V 2.3 05/07/2013 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 12/4 - 12/10/2013 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1312022296.A3L FCC ID: A3LSMT520 APPLICANT: Samsung Electronics, Co. Ltd. Application Type: Certification Model(s): SM-T520 EUT Type: Portable Tablet FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407 Test Procedure(s): KDB 789033 v01r03, KDB 644545 v01r01 Max. Power (mW) Max. Power (dBm) 1205180 - 52406.5618.17 2A205260 - 53206.1947.92 2C205500 - 57006.2667.97 1205180 - 52406.4278.08 2A205260 - 53206.3538.03 2C205500 - 57005.9987.78 1405190 - 52305.5087.41 2A405270 - 53105.9437.74 2C405510 - 56705.9297.73 18052105.5727.46 2A8052905.5857.47 2C8055305.4587.37 802.11ac 802.11n Channel Bandwidth (MHz) 802.11a 802.11n Conducted Power Mode Tx Frequency (MHz) UNII Band This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 789033 v01r03 and KDB 644545 v01r01. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.407 (UNII) FCC ID: A3LSMT520 FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 89 0Y1312022296.A3L 12/4 - 12/10/2013 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. V 2.3 05/07/2013 TABLE OF CONTENTS FCC PART 15.407 MEASUREMENT REPORT .................................................................................................. 3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 SCOPE ........................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION ............................................................................................................................ 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION......................................................................................................................... 5 2.2 DEVICE CAPABILITIES ................................................................................................................................. 5 2.3 TEST CONFIGURATION ............................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ...................................................................................... 5 2.5 LABELING REQUIREMENTS ........................................................................................................................ 5 3.0 DESCRIPTION OF TEST ........................................................................................................................ 6 3.1 EVALUATION PROCEDURE ......................................................................................................................... 6 3.2 AC LINE CONDUCTED EMISSIONS ............................................................................................................. 6 3.3 RADIATED EMISSIONS ................................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS .................................................................................................................. 8 5.0 TEST EQUIPMENT CALIBRATION DATA .............................................................................................. 9 6.0 TEST RESULTS .................................................................................................................................... 10 6.1 SUMMARY ................................................................................................................................................... 10 6.2 26DB BANDWIDTH MEASUREMENT – 802.11A/N/AC .............................................................................. 11 6.3 UNII OUTPUT POWER MEASUREMENT – 802.11A/N/AC ........................................................................ 29 6.4 PEAK POWER SPECTRAL DENSITY – 802.11A/N/AC .............................................................................. 32 6.5 PEAK EXCURSION RATIO – 802.11A/N/AC ............................................................................................... 48 6.6 FREQUENCY STABILITY ............................................................................................................................ 52 6.7 RADIATED SPURIOUS EMISSION MEASUREMENTS .............................................................................. 55 6.8 RADIATED BAND EDGE MEASUREMENTS (20MHZ BW) ........................................................................ 63 6.9 RADIATED BAND EDGE MEASUREMENTS (40MHZ BW) .…

Text truncated - open the document above for the full version.

FCC IDA3LSMT520 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 1 of 2 12/02/13 - 12/09/13 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 13.0 M 12/04/2013 APPENDIX F: SAR TEST SETUP PHOTOGRAPHS FCC IDA3LSMT520 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 2 of 2 12/02/13 - 12/09/13 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 13.0 M 12/04/2013 SAR Test Setup Photo 1: Back Side at 0.0 cm SAR Test Setup Photo 2: Right Edge at 0.0 cm

Samsung FCC ID: A3LSMT520 Model: SM-T520 Test Set-Up Photos EUT Type: Portable Tablet Page 1 of 3 © 2013 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS Samsung FCC ID: A3LSMT520 Model: SM-T520 Test Set-Up Photos EUT Type: Portable Tablet Page 2 of 3 © 2013 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSMT520 Model: SM-T520 Test Set-Up Photos EUT Type: Portable Tablet Page 3 of 3 © 2013 PCTEST Engineering Laboratory Inc.
