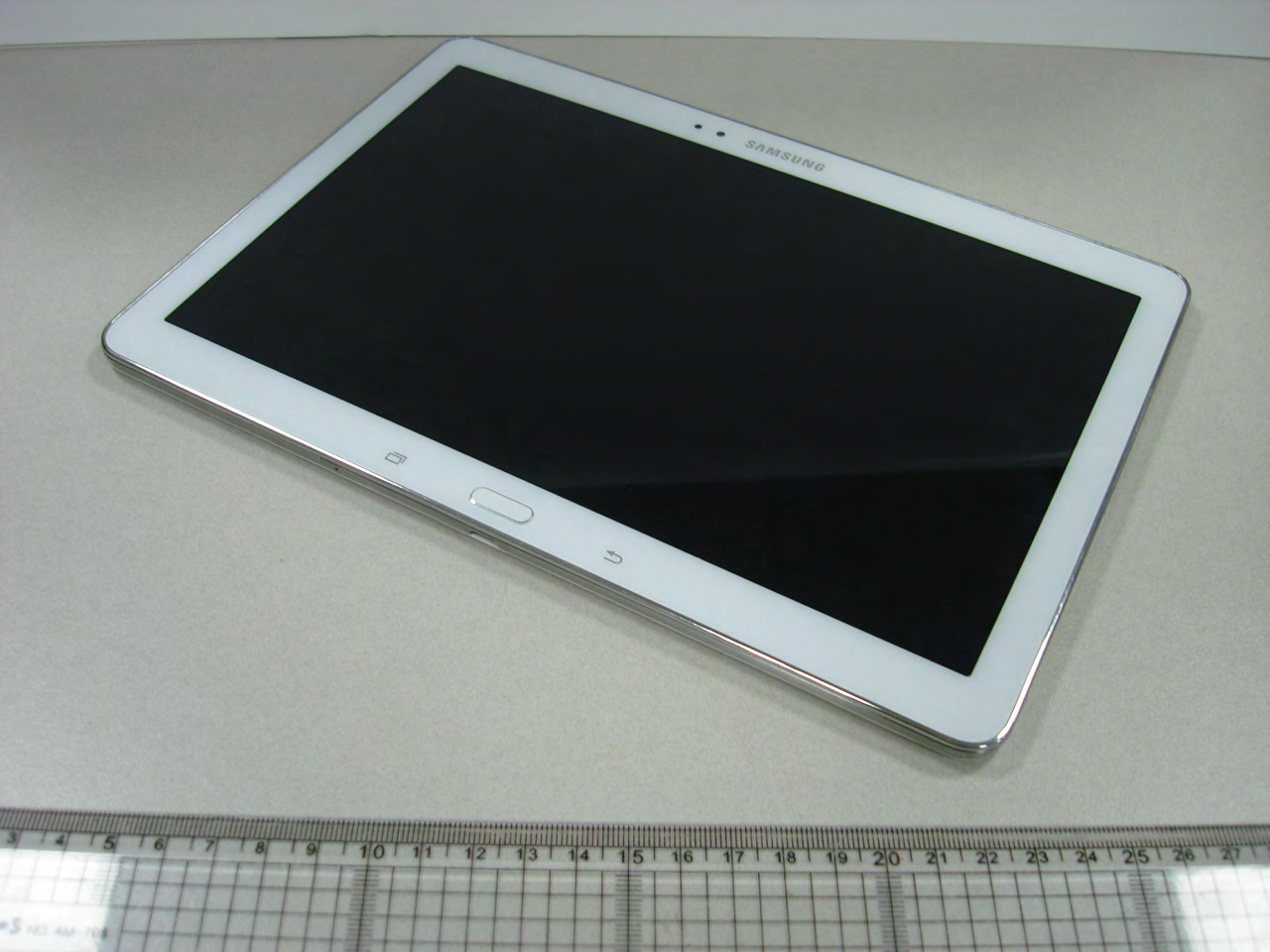

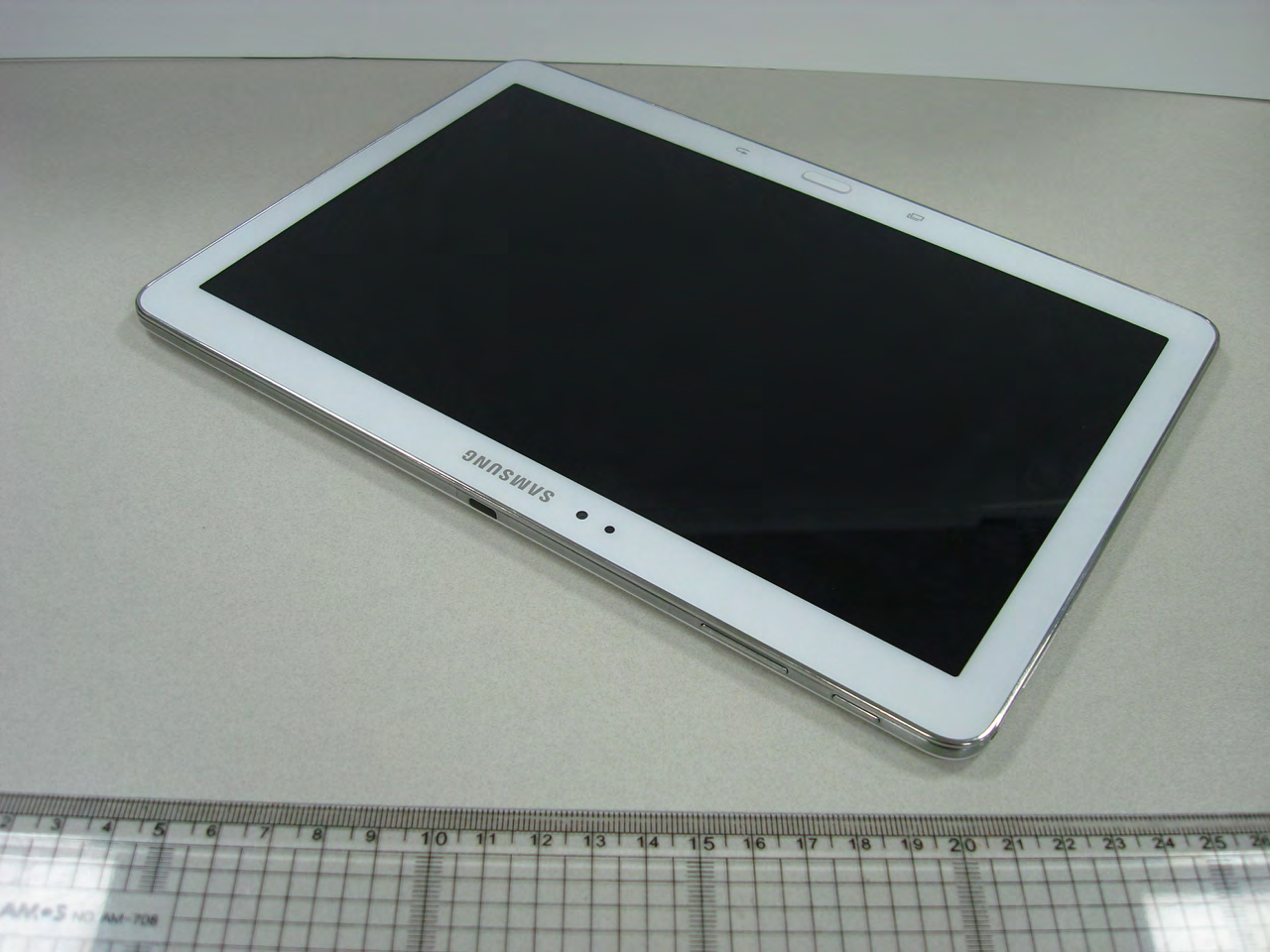

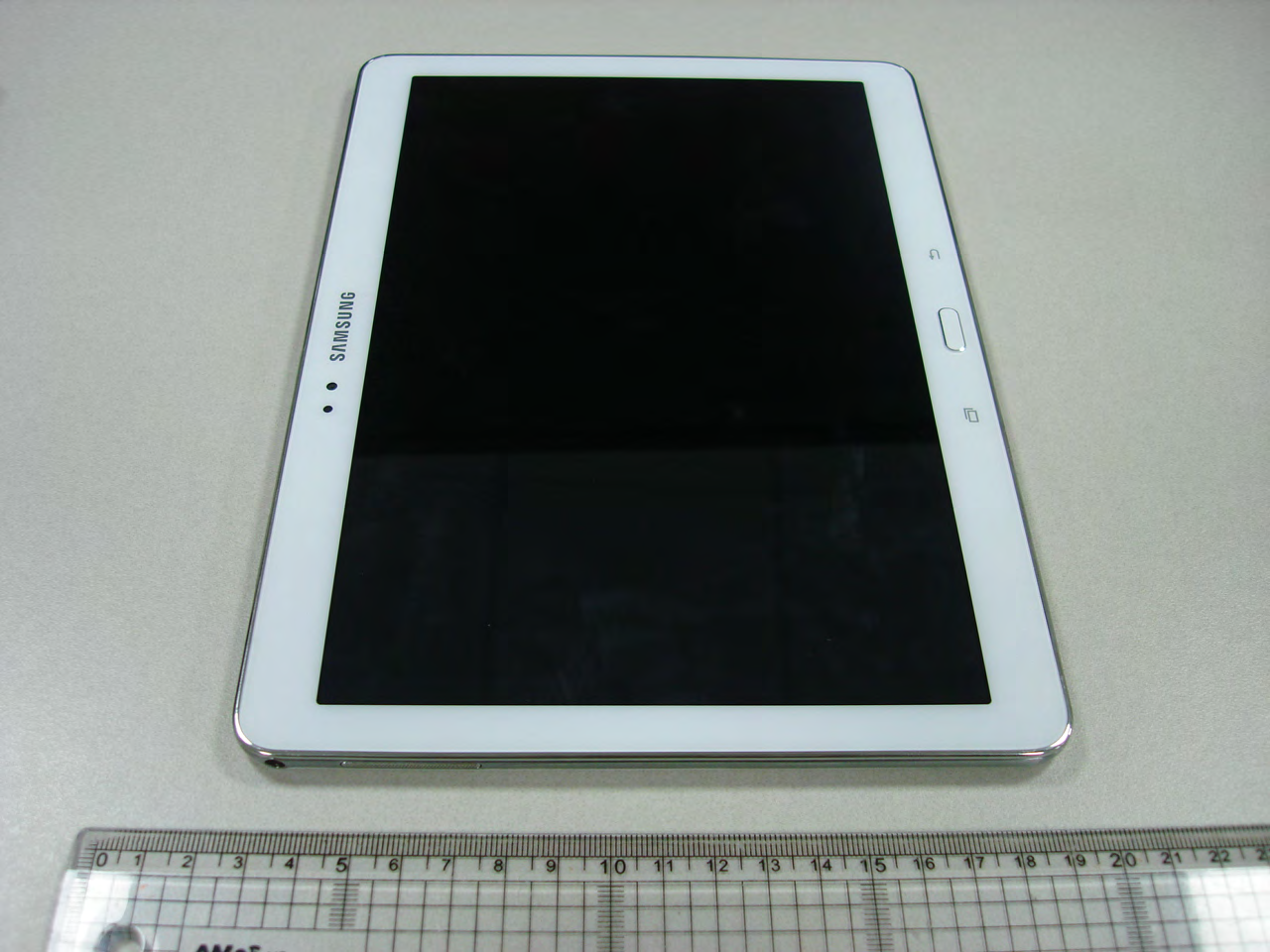

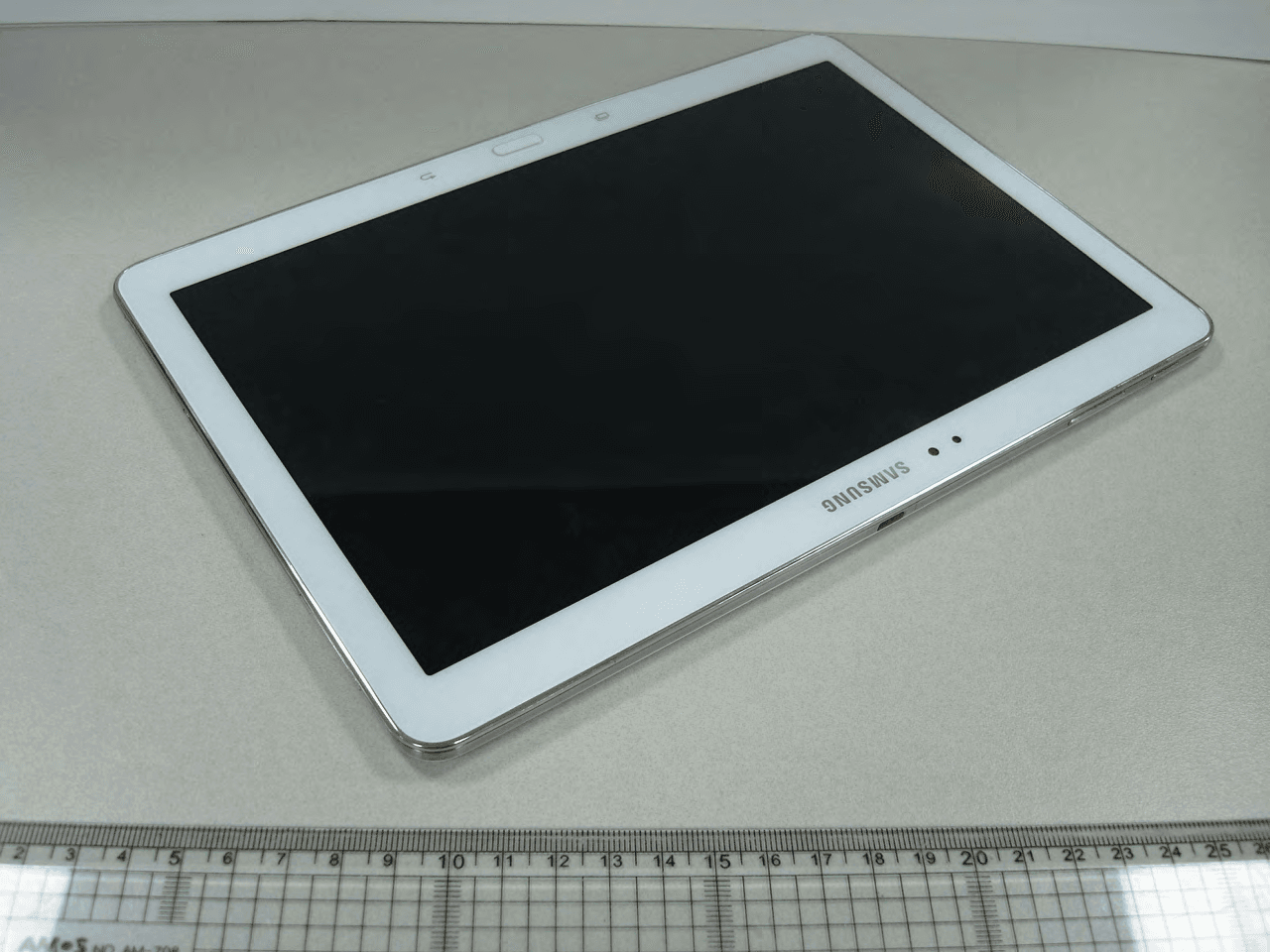

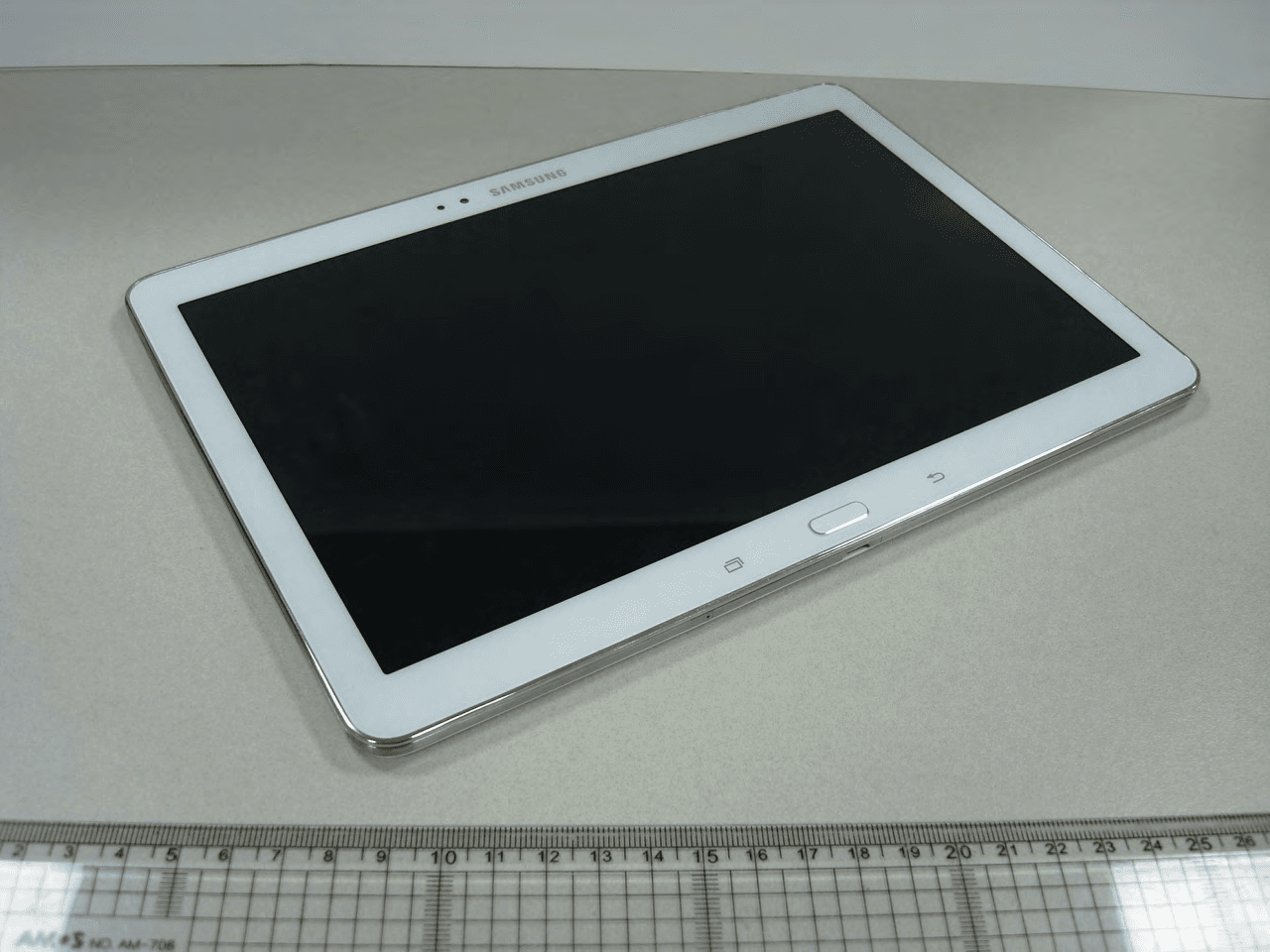

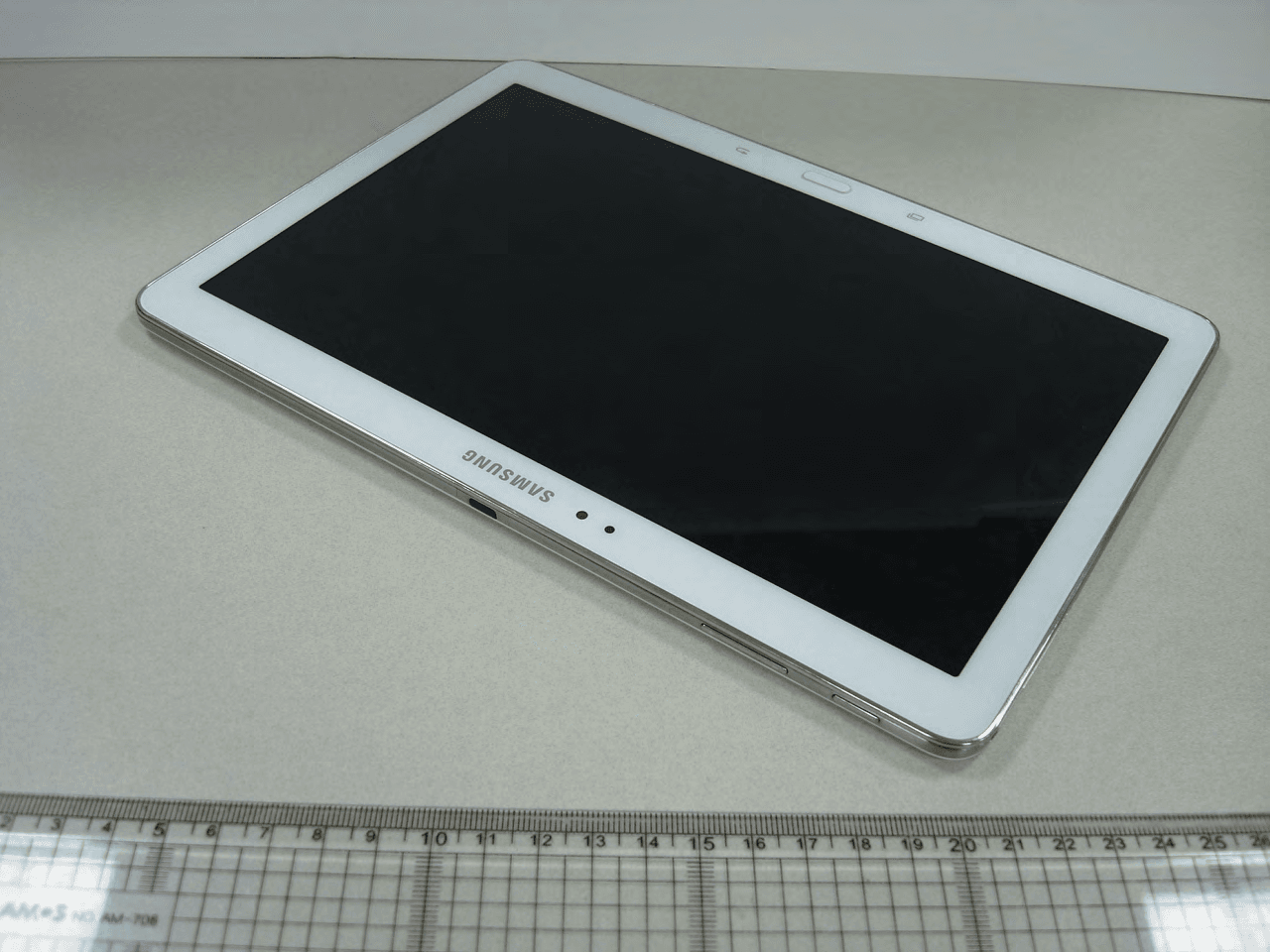

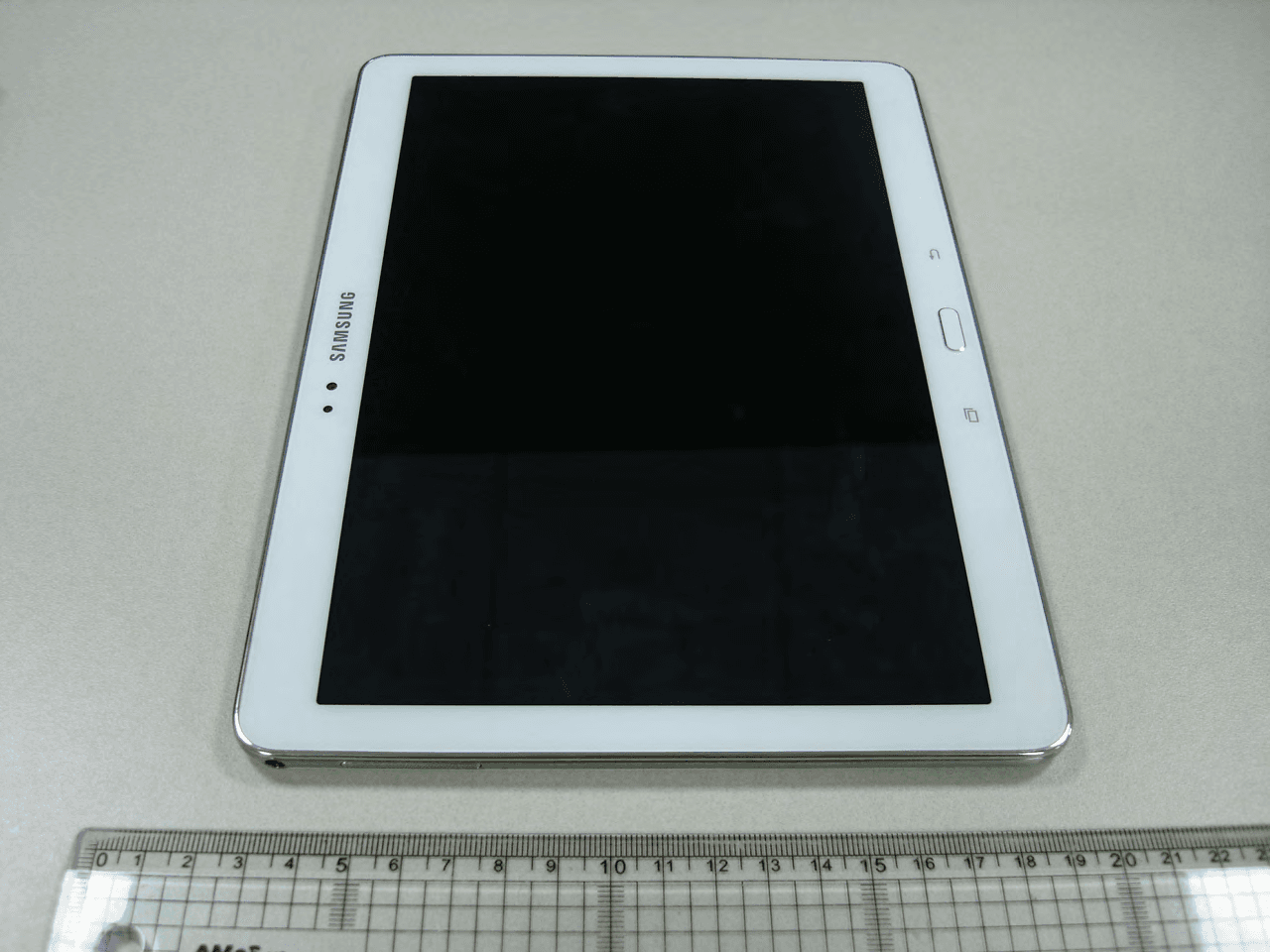

A3LSMT525Multi-band GSM/EDGE/UMTS/LTE Tablet Computer with WLAN, Bluetooth and ANT+

www.samsung.com SM-T525 You can access the full user manual for more in for mation. To learn to access the user manual, see “Viewing the user manual” in this quick start guide. Quick Start Guide 4 Instructional icons Warning: situations that could cause injury to yourself or others Caution: situations that could cause damage to your device or other e quipment Note: notes, usage tips, or additional informatio n Copyright Copyright © 2013 Samsung Electronics This guide is protected under international copyright laws . No part of this guide may be reproduced, distributed , translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in an y information storage and retrieval s ystem, without the prior written permission of Samsung Electronics. 5 Trademarks •SAMSUNG and the SAMSUNG logo are registered trademarks o f Samsung E lectronics. •The Android logo, Google ™ , Google Maps ™ , Google Mail ™ , Yo uTube ™ , Goog le Play ™ Store, and Google Talk ™ are trademarks o f Google, Inc. •Bluetooth ® is a registered trademark of B luetooth SIG, Inc. worldwide. •Wi-Fi ® , Wi-Fi Protected Setup ™ , Wi-Fi Direct ™ , Wi-Fi CERTIFIED ™ , and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance . Your device uses a non-harmonised frequency and is intended for use in all European countries. T he WLAN can be operated in the EU without restriction in doors, but cannot be operated outdoors. • All other trademarks and cop yrights are the property o f their respective owners. 6 Getting started Device layout Back button Home button Speaker Light sensor Menu button Multipurpose jack Touch screen Front camera Power button Volume button Microphone SIM card slot Rear camera Memory card slot Speaker Main antenna Headset jack Fl ash GPS antenna 7 Getting started Do not cover the antenna area with your hands or other objects. This may cause connectivity problems or drain the batter y. Installing the SIM or USIM card Insert the SIM or USIM card provided by the mobile telephone service provider. • Only microSIM cards work with the device. • Some LTE services may not be avai lable depending on the service provider. For details about service availabilit y, contact your service provider. 8 Getting started 1 Insert the SIM or USIM card with the gold- coloured contacts facing downwards. Do not insert a memory card into the SIM card slot. I f a memory card happens to be lodged in the SIM card s lot, take the device to a Samsung Service Centre to remove the memory car d. 2 Push the SIM or USIM card into the slot until it lock in place. 9 Getting started Charging the battery Before using the device for the first time or when the batter y has been unused for exten ded periods, you must charge the batter y. Use only Samsung-approved c hargers, batteries, and cables. Unapproved char gers or cables can cause the battery to explode or dama ge the device. Connect the USB cable to the USB power adaptor and then plug the end o f the USB cable into the multipurpose jack . 10 Getting started Connecting the charger improperly may cause serious damage to the device. An y damage caused b y misuse is not covered by the warran ty. After fully charging, disconnect the device from the charger. First unplug the charger from the device, and then unplug it from the electric socket. To save energy, unplug the charger when not in use. The char ger does not have a power switch, so you must unplug the charger from the electric socket when not in use to avoid wasting power. The charger should remain close to the electric socket and easily accessible while charging. 11 Getting started Checking the battery charge status When you charge the battery while the device is o ff, the following icons will show the current battery charge status: ChargingFully charged Turning the device on and off When turning on the device for the first time, follow the on-screen instructions to set up your device. 12 Getting started Press and hold the Power button for a few seconds to turn the device on and off. Viewing the user manual The user manual provides complete in formation about operating your device. You may incur additional charges for accessing the Internet or downloading media files. For details, contact your service provider. 13 Getting started From your device 1 Open the Internet application. 2 Tap to open the bookmarks list. 3 Select the bookmark for the user manual. To access the user manual more easily, place a shortcut or widget for the user manual on the Home screen. The user manual may not be available depending on the web browser or service provider. From your computer Access www.samsung.com and then searchm for the user manual by the model name of your device . 14 Safety information This safety information contains content for mobile devices. Some content may be not applicable to your device. To prevent injury to yourself and others or damage to your device, read the safety in formation about your device before using the device. Warning Failure to comply with safety warnings an d regulations can cause serious injury or death Do not use damaged power cords or plugs, or loose e lectrical sockets Unsecured connections can cause electric shock or fire. Do not touch the power cord with wet hands or disconnect the charger by pulling the cord Doing so may result in electrocution. Do not bend or dama ge the power cord Doing so may cause electric shock or fire. 15 Safety information Do not use your device while it is charging or touch your device with wet hands Doing so ma y cause electric shock. Do not s hort-circuit the charger or the device Doing so may cause electric shock or fire, or the battery ma y malfunction or explode. Do not use your device outdoor during a thunderstorm Doing so may resu lt in electric shock or device mal function. Use manufacturer-approved batteries, chargers, accessories, and su pplies • Using generic batteries or chargers may shorten the life of your device o…

Text truncated - open the document above for the full version.

Samsung Electronics America, Inc 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: January 03, 2014 FCC ID: A3LSMT525 To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to any application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 862. Sincerely, Signature Sang Kyung (Peter), Ra General Manager Samsung Electronics America, Inc

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: January 03, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSMT525 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics SHORT-TERM 4 External Photos 5 Internal Photos 6 Test-Setup Photos 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

Label and Loc at ion Samsung P hone Model: FCC ID: A3LSMT525 Label: Loc at ion: Top Back of device Bottom FCC ID is pr inted on bottom of the device SM-T525

FCC ID:A3LSMT525 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 54 0Y1312032334.A3L 12/02/13 - 12/26/13 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 12/02/13 - 12/26/13 129, Samsung-ro Maetan Dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Document Serial No.: 0Y1312032334.A3L FCC ID: A3LSMT525 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Tablet Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): SM-T525 SAR 1 gm Body (W/kg) PCBGSM/GPRS/EDGE 850824.20 - 848.80 MHz28.631.08 PCBGSM/GPRS/EDGE 19001850.20 - 1909.80 MHz25.300.64 PCBUMTS 850826.40 - 846.60 MHz22.391.04 PCBUMTS 19001852.4 - 1907.6 MHz22.970.73 PCBLTE Band 5 (Cell)824.7 - 848.3 MHz22.631.07 DTS2.4 GHz WLAN2412 - 2462 MHz13.410.37 DTS5.8 GHz WLAN5745 - 5825 MHz7.790.69 DTSBluetooth LE2402 - 2480 MHz4.73N/A NII5.2 GHz WLAN5180 - 5240 MHz7.530.94 NII5.3 GHz WLAN5260 - 5320 MHz7.620.84 NII5.5 GHz WLAN5500 - 5700 MHz7.760.96 DSSBluetooth2402 - 2480 MHz9.660.10 1.6 Band & ModeTx Frequency Measured Conducted Power [dBm] Simultaneous SAR per KDB 690783 D01v01r02: Equipment Class Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all configurations for each mode. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.7 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID:A3LSMT525 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 54 0Y1312032334.A3L 12/02/13 - 12/26/13 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 TABLE OF CONTENTS 1 DEVICE UNDER TEST ................................................................................................................... 3 2 LTE INFORMATION ........................................................................................................................ 8 3 INTRODUCTION ............................................................................................................................. 9 4 DOSIMETRIC ASSESSMENT ...................................................................................................... 10 5 SAR TESTING PROCEDURES .................................................................................................... 11 6 RF EXPOSURE LIMITS ................................................................................................................ 12 7 FCC MEASUREMENT PROCEDURES ........................................................................................ 13 8 RF CONDUCTED POWERS ......................................................................................................... 17 9 SYSTEM VERIFICATION .............................................................................................................. 32 10 SAR DATA SUMMARY ................................................................................................................. 34 11 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 38 12 SAR MEASUREMENT VARIABILITY ........................................................................................... 48 13 EQUIPMENT LIST ......................................................................................................................... 49 14 MEASUREMENT UNCERTAINTIES ............................................................................................ 50 15 CONCLUSION ............................................................................................................................... 52 16 REFERENCES .............................................................................................................................. 53 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS APPENDIX G: SENSOR TRIGGERING DATA SUMMARY FCC ID:A3LSMT525 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 54 0Y1312032334.A3L 12/02/13 - 12/26/13 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 1 DEVICE UNDER TEST 1.1 Device Overview GSM/GPRS/EDGE 850Voice/Data824.20 - 848.80 MHz GSM/GPRS/EDGE 1900Voice/Data1850.20 - 1909.80 MHz UMTS 850Voice/Data826.40 - 846.60 MHz UMTS 1900Voice/Data1852.4 - 1907.6 MHz LTE Band 5 (Cell)Data824.7 - 848.3 MHz 2.4 GHz WLANData2412 - 2462 MHz 5.8 GHz WLANData5745 - 5825 MHz 5.2 GHz WLANData5180 - 5240 MHz 5.3 GHz WLANData5260 - 5320 MHz 5.5 GHz WLANData5500 - 5700 MHz BluetoothData2402 - 2480 MHz Bluetooth LEData2402 - 2480 MHz ANT + Data2402 - 2480 MHz Band & ModeTx FrequencyOperating Modes 1.2 Power Reduction for SAR This device uses a proximity sensor for SAR compliance. The capacitive proximity sensor is activated when used in close proximity to the user’s body. The capac…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LSMT525 FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1312032338.A3L Dec 04, 2013 - Jan 08, 2014 Portable Tablet Computer Page 1 of 79 © 2014 PCTEST Engineering Laboratory, Inc. V 2.3 05/07/2013 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. Dec 04, 2013 - Jan 08, 2014 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1312032338.A3L FCC ID: A3LSMT525 APPLICANT: Samsung Electronics, Co. Ltd. Application Type: Certification Model(s): SM-T525 EUT Type: Portable Tablet Computer FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407 Test Procedure(s): KDB 789033 v01r03, KDB 644545 v01r01 Max. Power (mW) Max. Power (dBm) 1205180 - 52405.6897.55 2A205260 - 53206.0267.80 2C205500 - 57005.9707.76 1205180 - 52405.3097.25 2A205260 - 53205.1647.13 2C205500 - 57005.5467.44 1405190 - 52305.5467.44 2A405270 - 53105.2007.16 2C405510 - 56705.6897.55 18052105.0827.06 2A8052905.2367.19 2C8055305.2487.20 802.11ac 802.11n Channel Bandwidth (MHz) 802.11a 802.11n Conducted Power Mode Tx Frequency (MHz) UNII Band This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 789033 v01r03 and KDB 644545 v01r01. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.407 (UNII) Reviewed by: FCC ID: A3LSMT525 FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1312032338.A3L Dec 04, 2013 - Jan 08, 2014 Portable Tablet Computer Page 2 of 79 © 2014 PCTEST Engineering Laboratory, Inc. V 2.3 05/07/2013 TABLE OF CONTENTS FCC PART 15.407 MEASUREMENT REPORT .................................................................................................. 3 1.0 INTRODUCTION......................................................................................................................................4 1.1 SCOPE....................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION........................................................................................................................ 4 2.0 PRODUCT INFORMATION .....................................................................................................................5 2.1 EQUIPMENT DESCRIPTION..................................................................................................................... 5 2.2 DEVICE CAPABILITIES ............................................................................................................................. 5 2.3 TEST CONFIGURATION ........................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS.................................................................................. 5 2.5 LABELING REQUIREMENTS .................................................................................................................... 5 3.0 DESCRIPTION OF TEST ........................................................................................................................6 3.1 EVALUATION PROCEDURE..................................................................................................................... 6 3.2 AC LINE CONDUCTED EMISSIONS......................................................................................................... 6 3.3 RADIATED EMISSIONS ............................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS ..................................................................................................................8 5.0 TEST EQUIPMENT CALIBRATION DATA..............................................................................................9 6.0 TEST RESULTS ....................................................................................................................................10 6.1 SUMMARY ............................................................................................................................................... 10 6.2 26DB BANDWIDTH MEASUREMENT – 802.11A/N/AC .......................................................................... 11 6.3 UNII OUTPUT POWER MEASUREMENT – 802.11A/N/AC.................................................................... 31 6.4 PEAK POWER SPECTRAL DENSITY – 802.11A/N/AC .......................................................................... 33 6.5 PEAK EXCURSION RATIO – 802.11A/N/AC........................................................................................... 49 6.6 FREQUENCY STABILITY ........................................................................................................................ 53 6.7 RADIATED SPURIOUS EMISSION MEASUREMENTS.......................................................................... 56 6.8 RADIATED BAND EDGE MEASUREMENTS (20MHZ BW) .................................................................... 64 6.9 RADIATED BAND EDGE MEASUREMENTS (40MHZ BW) .....................................…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LSMT525 FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1312032339.A3L December 04 - 13, 2013 Portable Tablet Computer Page 1 of 21 © 2013 PCTEST Engineering Laboratory, Inc. v2.0 6/17/2013 Company Name: Date of Testing: Samsung Electronics, Co. Ltd. December 04 - 13, 2013 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab. Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1312032339.A3L FCC ID: A3LSMT525 COMPANY: Samsung Electronics, Co. Ltd. Model(s): SM-T525 EUT Type: Portable Tablet Computer Type of Device: Client Only Device, No Radar Detection Capability Frequency Range: 5260 – 5320 MHz (UNII-IIA Band) 5500 – 5700 MHz (UNII-IIC Band) Output Power: 5.998 mW (7.78 dBm) Conducted (802.11a UNII Band IIA) 5.970 mW (7.76 dBm) Conducted (802.11a UNII Band IIC) FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407(UNII) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in FCC 06-96 Appendix B Compliance Measurement Procedures for Unlicensed-National Information Infrastructure Devices Operating in the 5.25 – 5.35 GHz and 5.47 – 5.725 GHz Bands Incorporating Dynamic Frequency Selection. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.407 / IC RSS-210 DFS Reviewed by: FCC ID: A3LSMT525 FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1312032339.A3L December 04 - 13, 2013 Portable Tablet Computer Page 2 of 21 © 2013 PCTEST Engineering Laboratory, Inc. v2.0 6/17/2013 TABLE OF CONTENTS FCC PART 15.407 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION......................................................................................................................................4 1.1 SCOPE....................................................................................................................................................... 4 1.2 EVALUATION PROCEDURE..................................................................................................................... 4 1.3 SUMMARY OF TEST RESULTS ............................................................................................................... 4 2.0 PRODUCT INFORMATION .....................................................................................................................5 2.1 EQUIPMENT DESCRIPTION..................................................................................................................... 5 2.2 EUT CAPABILITIES ................................................................................................................................... 5 2.3 MODIFICATIONS....................................................................................................................................... 5 3.0 DESCRIPTION OF DYNAMIC FREQUENCY SELECTION TEST .........................................................6 3.1 APPLICABILITY ......................................................................................................................................... 6 3.2 REQUIREMENTS ...................................................................................................................................... 6 3.3 DFS DETECTION THRESHOLD VALUES ................................................................................................ 8 3.4 PARAMETERS OF DFS TEST SIGNALS ..................................................................................................8 3.5 PROCEDURE ............................................................................................................................................ 9 4.0 TEST EQUIPMENT................................................................................................................................11 4.1 ADDITIONAL EQUIPMENT ..................................................................................................................... 11 5.0 TEST PLOTS AND DATA - UNII BAND IIA ...........................................................................................12 6.0 TEST PLOTS AND DATA - UNII BAND IIC...........................................................................................17 7.0 CONCLUSION .......................................................................................................................................21 Reviewed by: FCC ID: A3LSMT525 FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1312032339.A3L December 04 - 13, 2013 Portable Tablet Computer Page 3 of 21 © 2013 PCTEST Engineering Laboratory, Inc. v2.0 6/17/2013 DFS MEASUREMENT REPORT FCC Part 15.407 § 2.1033 General Information APPLICANT: Samsung Electronics, Co. Ltd. APPLICANT ADDRESS: 129, Samsung-ro, Maetan dong, Yeongtong-gu, Suwon-si, Gyeonggi-do 443-742, Korea TEST SITE: PCTEST ENGINEERING LABORATORY, INC. TEST SITE ADDRESS: 7185 Oakland Mills Road, Columbia, MD 21046 USA FCC RULE PART(S): Part 15.407(h) BASE MODEL: SM-T525 FCC ID: A3LSMT525 Test Device Serial No.: 29NOV-5 Production Pre-Production Engineering DEVICE CLASSIFICATION: Client Only, No Radar Detection DATE(S) OF TEST: December 04 …

Text truncated - open the document above for the full version.

Samsung Electronics Co., Ltd. FCC ID: A3LSMT525 Model: SM-T525 Test Set-Up Photos EUT Type: Portable Tablet Computer Page 1 of 3 © 2013 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS Samsung Electronics Co., Ltd. FCC ID: A3LSMT525 Model: SM-T525 Test Set-Up Photos EUT Type: Portable Tablet Computer Page 2 of 3 © 2013 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSMT525 Model: SM-T525 Test Set-Up Photos EUT Type: Portable Tablet Computer Page 3 of 3 © 2013 PCTEST Engineering Laboratory Inc.

FCC ID: A3LSMT525 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 1 of 4 12/02/13 - 12/26/13 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 APPENDIX F: S AR TEST SETUP PHOTOGRAPHS FCC ID: A3LSMT525 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 2 of 4 12/02/13 - 12/26/13 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 SAR Test Setup Photo 1: Back at 0.0 mm SAR Test Setup Photo 2: Back at 12 mm FCC ID: A3LSMT525 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 3 of 4 12/02/13 - 12/26/13 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 SAR Test Setup Photo 3: Bottom at 0.0 mm SAR Test Setup Photo 4: Right at 0.0 mm FCC ID: A3LSMT525 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 4 of 4 12/02/13 - 12/26/13 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 SAR Test Setup Photo 5: Left Edge at 0.0 mm SAR Test Setup Photo 5: Left at 15 mm
