A3LSMT677VMulti-band LTE Tablet with Bluetooth, WLAN and ANT+

www.samsung.com User Manual English (EU). 01/2015. Rev.1.0 'UaIW 0anXaO 7KH 0anXaO LV SUHOLPLnaU\ and VRPH IHaWXUHV dLVFXVVHd Pa\ nRW EH aSSOLFaEOH RU FRPSOHWH and aUH nRW ILnaO LH 0RdHO 1aPHV and ,WHPV VXFK aV EaWWHU\ 6,0 &aUd 6RIWNH\ dLVFXVVLRn HWF SM-T677V DRAFT, Not FINAL 2 Table of Contents Basics 4 Read me first 5 Package c ontents 6 Device layout 9 Battery 12 SIM or USIM card (mobile netw ork- enabled models) 14 Memory car d 16 Turning the device on and off 16 Touchscreen 19 Home screen 24 Lock screen 25 Notification panel 28 Entering text 30 Screen captur e 30 Opening apps 31 Multi window 36 Device and data management 40 Connecting to a TV Applications 42 Installing or uninstalling apps 44 Video 45 Music 46 Internet 47 My Files 47 Family Square 49 Camera 52 Galler y 53 Email 54 Contacts 56 Smart Manager 58 S Planner 60 SideSync 68 Memo 69 Clock 71 Calcula tor 71 Google apps Settings 73 Introduction 73 Wi-F i 75 Bluetooth 77 Flight mode 77 Mobile hotspot and tethering (mobile network-enabled models) 78 Data usage 78 Data usage (mobile netw ork-enabled models) 79 Mobile networks (mobile network- enabled models) 79 More connection settings 81 Sounds and notifications 82 Display 82 Applica tions Table of Contents 3 82 Users 84 Wallpaper 85 Lock screen and secur ity 85 Privacy 86 Accessibility 86 Ac counts 87 Backup and reset 88 Language and input 89 Batt ery 89 Storage 90 Date and time 90 User manual 90 About device Appendix 91 Troubleshooting 96 Removing the ba ttery 4 Basics Read me first Please read this manual before using the device to ensure safe and proper use. • Descriptions are based on the device’s default settings. • Some content may differ from your device depending on the region, service provider, model specifications, or device’s software. • Content (high quality content) that requires high CPU and RAM usage will affect the overall performance of the device. Apps related to the content may not work properly depending on the device’s specifications and the environment that it is used in. • Samsung is not liable for performance issues caused by apps supplied by providers other than Samsung. • Samsung is not liable for performance issues or incompatibilities caused by edited registry settings or modified operating system software. Attempting to customise the operating system may cause the device or apps to work improperly. • Software, sound sources, wallpapers, images, and other media provided with this device are licensed for limited use. Extracting and using these materials for commercial or other purposes is an infringement of copyright laws. Users are entirely responsible for illegal use of media. • You may incur additional charges for data services, such as messaging, uploading and downloading, auto-syncing, or using location services depending on your data plan. For large data transfers, it is recommended to use the Wi-Fi feature. • Default apps that come with the device are subject to updates and may no longer be supported without prior notice. If you have questions about an app provided with the device, contact a Samsung Service Centre. For user-installed apps, contact service providers. • Modifying the device’s operating system or installing softwares from unofficial sources may result in device malfunctions and data corruption or loss. These actions are violations of your Samsung licence agreement and will void your warranty. Basics 5 • Depending on the region or model, some devices are required to receive approval from the Federal Communications Commission (FCC). If your device is approved by the FCC, you can view the FCC ID of the device. To view the FCC ID, tap Apps → Settings → About device. Instructional icons Warning: situations that could cause injury to yourself or others Caution: situations that could cause damage to your device or other equipment Notice: notes, usage tips, or additional information Package contents Check the product box for the following items: • Device • Quick start guide • The items supplied with the device and any available accessories may vary depending on the region or service provider. • The supplied items are designed only for this device and may not be compatible with other devices. • Appearances and specifications are subject to change without prior notice. • You can purchase additional accessories from your local Samsung retailer. Make sure they are compatible with the device before purchase. • Use only Samsung-approved accessories. Using unapproved accessories may cause the performance problems and malfunctions that are not covered by the warranty. • Availability of all accessories is subject to change depending entirely on manufacturing companies. For more information about available accessories, refer to the Samsung website. Basics 6 Device layout Device Touchscreen Volume key Power key Camera Light sensor Loud speaker Microphone Microphone Loud speaker Card slot cover Main antenna (mobile network-enabled models) GPS antenna Headset jack USB port DC jack • Do not cover the antenna area with your hands or other objects. This may cause connectivity problems or drain the battery. • Using a Samsung-approved screen protector is recommended. Unapproved screen protectors may cause the sensors to malfunction. • Do not allow water to contact the touchscreen. The touchscreen may malfunction in humid conditions or when exposed to water. Basics 7 Keys KeyFunction Power • Press and hold to turn the device on or off. • Press to turn on or lock the screen. Volume • Press to adjust the device volume. Stand Use you device as a monitor for watching TV or movies, or for sharing content. You can also use the handle on the stand to carry the device. Always leave the stand attached to the device. Using the stand When you stand the device up, always ensure that the upper part of the stand and the device are connected. Also, place the device on a flat surface. If you do not, the device may fall and be damaged. Basics 8 Carrying the device Y…

Text truncated - open the document above for the full version.

Samsung Electronics America, Inc 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: December 10, 2015 FCC ID: A3LSMT677V To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to any application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 862. Sincerely, CHANHO, YOUN General Manager Samsung Electronics CO. LTD TEL: +1-973-808-6362 E-mail: [email protected]

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: December 10, 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSMT677V To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics SHORT-TERM 4 External Photos 5 Internal Photos 6 Test-Setup Photos 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, CHANHO, YOUN General Manager American QA Lab SAMSUNG Electronics America INC.

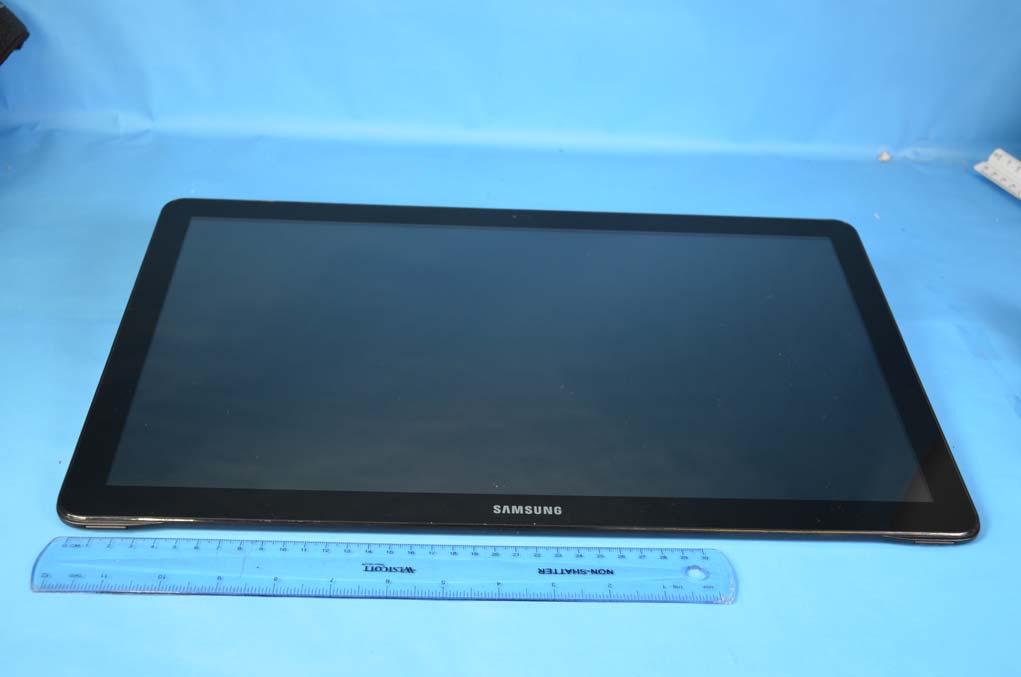

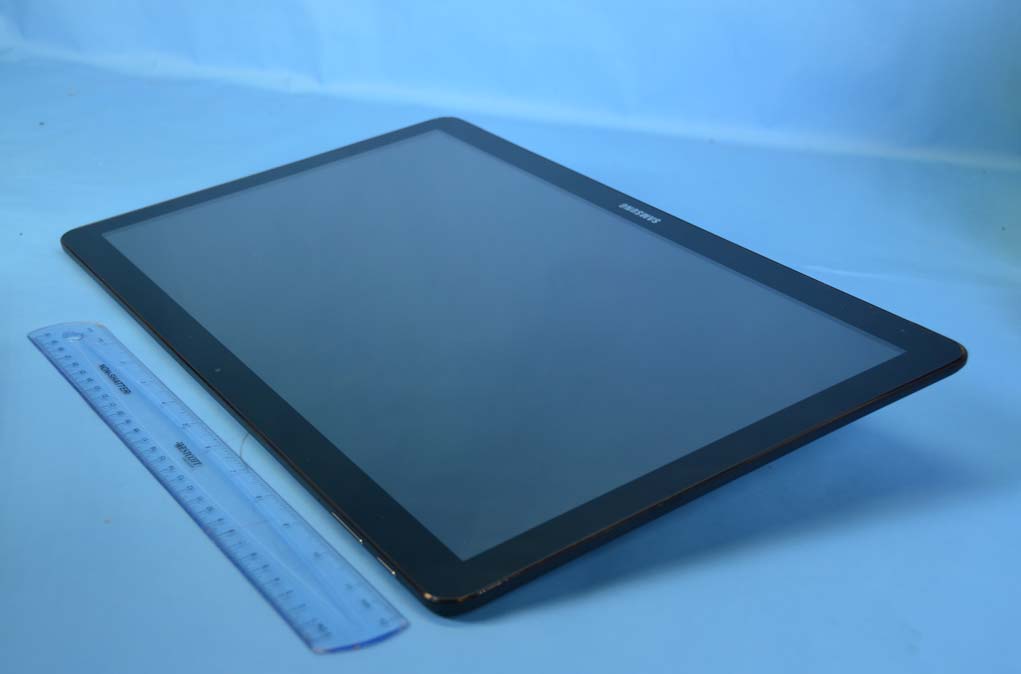

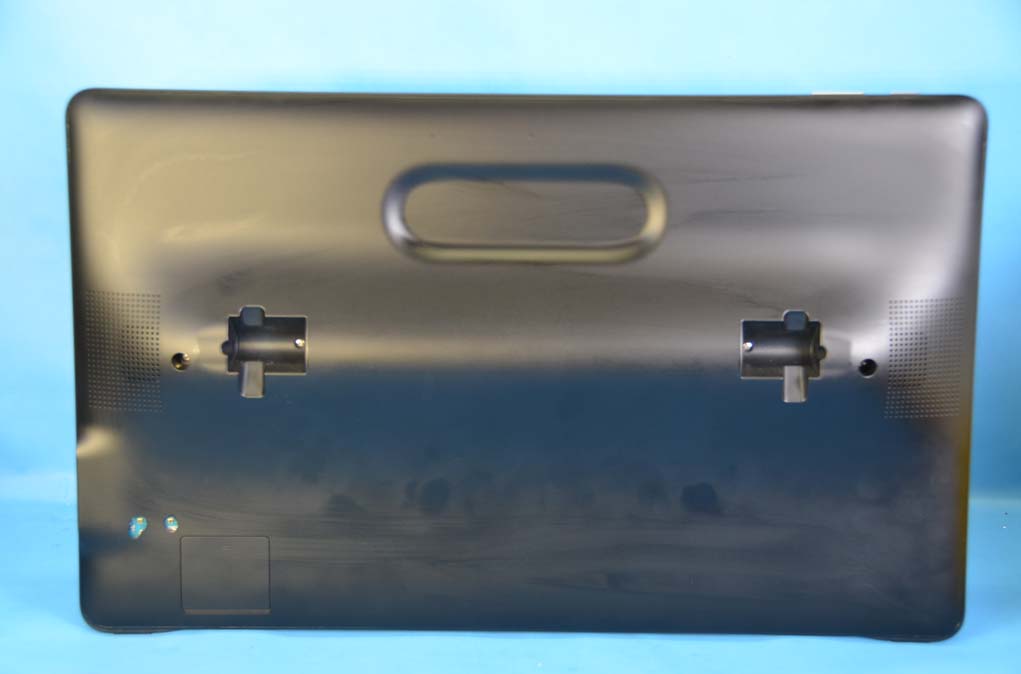

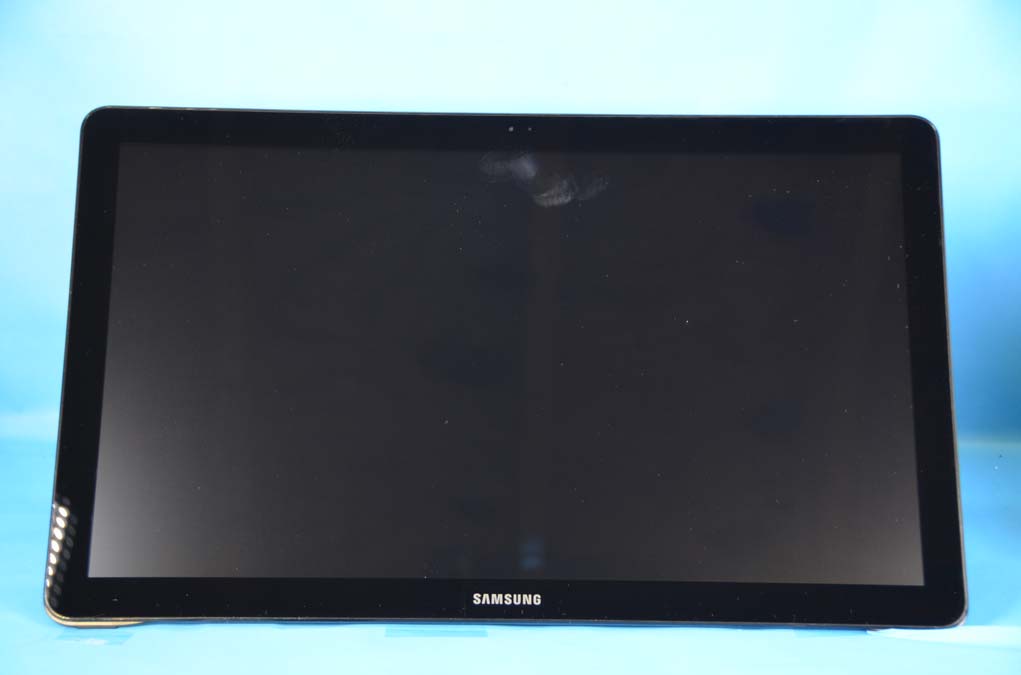

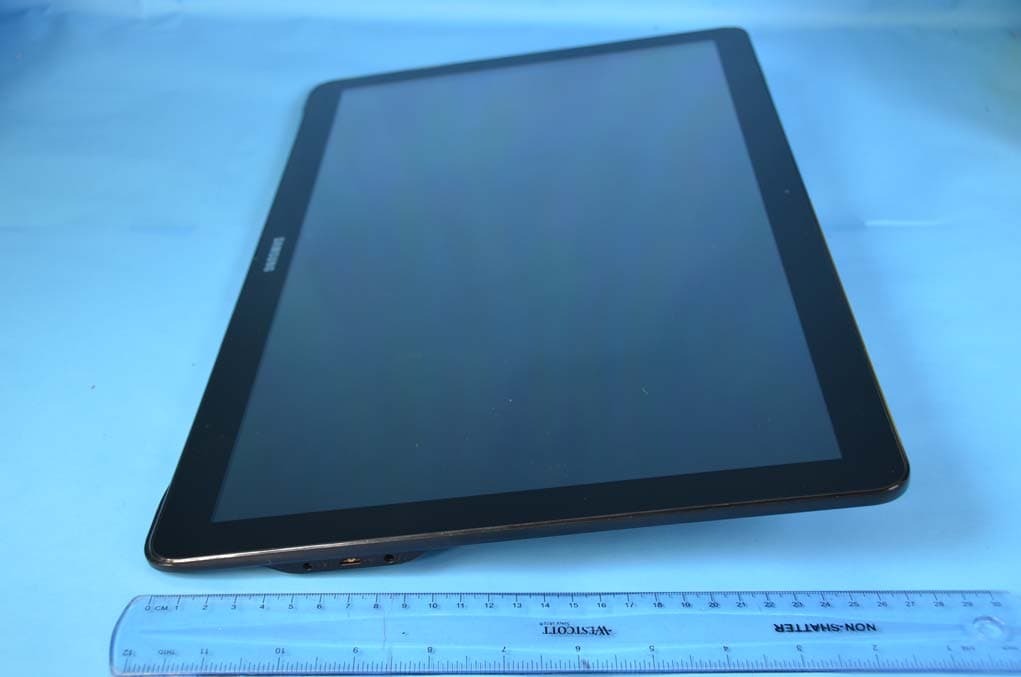

Samsung Electronics Co., Ltd. FCC ID: A3LSMT677V Model: SM-T677V External Photos EUT Type: Portable Tablet Page 1 of 5 © 2015 PCTEST Engineering Laboratory, Inc. V 3.2 10/30/2015 EXTERNAL PHOTOGRAPHS Samsung Electronics Co., Ltd. FCC ID: A3LSMT677V Model: SM-T677V External Photos EUT Type: Portable Tablet Page 2 of 5 © 2015 PCTEST Engineering Laboratory, Inc. V 3.2 10/30/2015 Samsung Electronics Co., Ltd. FCC ID: A3LSMT677V Model: SM-T677V External Photos EUT Type: Portable Tablet Page 3 of 5 © 2015 PCTEST Engineering Laboratory, Inc. V 3.2 10/30/2015 Samsung Electronics Co., Ltd. FCC ID: A3LSMT677V Model: SM-T677V External Photos EUT Type: Portable Tablet Page 4 of 5 © 2015 PCTEST Engineering Laboratory, Inc. V 3.2 10/30/2015 Samsung Electronics Co., Ltd. FCC ID: A3LSMT677V Model: SM-T677V External Photos EUT Type: Portable Tablet Page 5 of 5 © 2015 PCTEST Engineering Laboratory, Inc. V 3.2 10/30/2015

Label: Location: Top Back of EUT Bottom Tablet : FCC ID is printed on bottom of the device The FCC ID label is located in the back cover. At this time the FCC ID is readily visible to the user. The label is permanently engraved by laser and not easily removed from the device.

Samsung Electronics Co., Ltd. FCC ID: A3LSMT677V Model: SM-T677V Internal Photos EUT Type: Portable Tablet Page 1 of 7 © 2015 PCTEST Engineering Laboratory, Inc. V 3.2 10/30/2015 INTERNAL PHOTOGRAPHS Samsung Electronics Co., Ltd. FCC ID: A3LSMT677V Model: SM-T677V Internal Photos EUT Type: Portable Tablet Page 2 of 7 © 2015 PCTEST Engineering Laboratory, Inc. V 3.2 10/30/2015 Samsung Electronics Co., Ltd. FCC ID: A3LSMT677V Model: SM-T677V Internal Photos EUT Type: Portable Tablet Page 3 of 7 © 2015 PCTEST Engineering Laboratory, Inc. V 3.2 10/30/2015 Samsung Electronics Co., Ltd. FCC ID: A3LSMT677V Model: SM-T677V Internal Photos EUT Type: Portable Tablet Page 4 of 7 © 2015 PCTEST Engineering Laboratory, Inc. V 3.2 10/30/2015 Samsung Electronics Co., Ltd. FCC ID: A3LSMT677V Model: SM-T677V Internal Photos EUT Type: Portable Tablet Page 5 of 7 © 2015 PCTEST Engineering Laboratory, Inc. V 3.2 10/30/2015 Samsung Electronics Co., Ltd. FCC ID: A3LSMT677V Model: SM-T677V Internal Photos EUT Type: Portable Tablet Page 6 of 7 © 2015 PCTEST Engineering Laboratory, Inc. V 3.2 10/30/2015 Samsung Electronics Co., Ltd. FCC ID: A3LSMT677V Model: SM-T677V Internal Photos EUT Type: Portable Tablet Page 7 of 7 © 2015 PCTEST Engineering Laboratory, Inc. V 3.2 10/30/2015

FCC ID:A3LSMT677V SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 51 0Y1511131941-R2.A3L 11/19/15 - 12/08/15 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. REV 16.8 M 10/16/2015 © 2015 PCTEST Engineering Laboratory, Inc. All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 11/19/15 - 12/08/15 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do, 16677, Korea Document Serial No.: 0Y1511131941-R2.A3L FCC ID: A3LSMT677V APPLICANT: SAMSUNG ELECTRONICS CO., LTD. DUT Type: Portable Tablet Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): SM-T677V Note: This revised Test Report (S/N: 0Y1511131941-R2.A3L) supersedes and replaces the previously issued test report on the same subject device for the same type of testing as indicated. Please discard or destroy the previously issued test report(s) and dispose of it accordingly. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.7 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. The SAR Tick is an initiative of the Mobile Manufacturers Forum (MMF). While a product may be considered eligible, use of the SAR Tick logo requires an agreement with the MMF. Further details can be obtained by emailing: [email protected]. 1 gm Body W/kg PCBLTE Band 13779.5 - 784.5 MHz0.58 PCBLTE Band 5 (Cell)824.7 - 848.3 MHz0.68 PCBLTE Band 4 (AWS)1710.7 - 1754.3 MHz1.00 PCBLTE Band 2 (PCS)1850.7 - 1909.3 MHz0.69 DTS2.4 GHz WLAN2412 - 2462 MHz0.54 NIIU-NII-15180 - 5240 MHz-1.00 NIIU-NII-2A5260 - 5320 MHz1.09 NIIU-NII-2C5500 - 5720 MHz0.78 NIIU-NII-35745 - 5825 MHz0.68 DSS/DTSBluetooth2402 - 2480 MHz 1.57 Simultaneous SAR per KDB 690783 D01v01r03: Band & ModeTx Frequency Equipment Class < 0.1 SAR PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID:A3LSMT677V SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 51 0Y1511131941-R2.A3L 11/19/15 - 12/08/15 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. REV 16.8 M 10/16/2015 © 2015 PCTEST Engineering Laboratory, Inc. All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. TABLE OF CONTENTS 1 DEVICE UNDER TEST .................................................................................................................... 3 2 LTE INFORMATION ........................................................................................................................ 7 3 INTRODUCTION .............................................................................................................................. 8 4 DOSIMETRIC ASSESSMENT ......................................................................................................... 9 5 SAR TESTING PROCEDURES ..................................................................................................... 10 6 RF EXPOSURE LIMITS ................................................................................................................. 11 7 FCC MEASUREMENT PROCEDURES ........................................................................................ 12 8 RF CONDUCTED POWERS ......................................................................................................... 16 9 SYSTEM VERIFICATION .............................................................................................................. 37 10 SAR DATA SUMMARY .................................................................................................................. 39 11 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 43 12 SAR MEASUREMENT VARIABILITY ............................................................................................ 46 13 EQUIPMENT LIST ......................................................................................................................... 47 14 MEASUREMENT UNCERTAINTIES ............................................................................................. 48 15 CONCLUSION ............................................................................................................................... 49 16 REFERENCES ............................................................................................................................... 50 APPENDIX A: SAR…

Text truncated - open the document above for the full version.

FCC ID: A3LSMT677V SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX D: Page 1 of 2 11/19/15 - 12/08/15 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. REV 16.8 M 10/16/2015 APPENDIX D: SAR TISSUE SPECIFICATIONS Measurement Procedure for Tissue verification: 1) The network analyzer and probe system was configured and calibrated. 2) The probe was immersed in the tissue. The tissue was placed in a nonmetallic container. Trapped air bubbles beneath the flange were minimized by placing the probe at a slight angle. 3) The complex admittance with respect to the probe aperture was measured 4) The complex relative permittivity ε ’ can be calculated from the below equation (Pournaropoulos and Misra): ( ) [] [] ∫ ∫ ∫ ′′ − ′ = b a b a rr ddd r rj ab j Y π ρρφ εεμω φ εωε 0 2/1 0 ' 0 2 0 )(exp cos ln 2 where Y is the admittance of the probe in contact with the sample, the primed and unprimed coordinates refer to source and observation points, respectively, φρρρρ ′′ − ′ +=cos2 222 r , ω is the angular frequency, and 1−=j . Table D-I Composition of the Tissue Equivalent Matter Frequency (MHz)7508351750190024505200-5800 Tissue BodyBodyBodyBodyBodyBody Ingredients (% by weight) Bactericide0.1 D GBE 3129.4426.7 HEC 1 NaCl 0.940.20.390.1 Sucrose 44.9 Polysorbate (Tween) 80 20 Water 53.0668.870.1773.280 See page 2 FCC ID: A3LSMT677V SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX D: Page 2 of 2 11/19/15 - 12/08/15 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. REV 16.8 M 10/16/2015 Figure D-1 Composition of 750 MHz Body Tissue Equivalent Matter Note: 750MHz liquid recipes are proprietary SPEAG. Since the composition is approximate to the actual liquids utilized, the manufacturer tissue-equivalent liquid data sheets are provided below. Figure D-2 750MHz Body Tissue Equivalent Matter FCC ID:A3LSMT677V SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX E: Page 1 of 1 11/19/15 - 12/08/15 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. REV 16.8 M 10/16/2015 APPENDIX E: SAR SYSTEM VALIDATION Per FCC KDB 865664 D02v01, SAR system validation status should be documented to confirm measurement accuracy. The SAR systems (including SAR probes, system components and software versions) used for this device were validated against its performance specifications prior to the SAR measurements. Reference dipoles were used with the required tissue- equivalent media for system validation, according to the procedures outlined in FCC KDB 865664 D01v01r04 and IEEE 1528-2013. Since SAR probe calibrations are frequency dependent, each probe calibration point was validated at a frequency within the valid frequency range of the probe calibration point, using the system that normally operates with the probe for routine SAR measurements and according to the required tissue-equivalent media. A tabulated summary of the system validation status including the validation date(s), measurement frequencies, SAR probes and tissue dielectric parameters has been included. Table E-I SAR System Validation Summary NOTE: While the probes have been calibrated for both CW and modulated signals, all measurements were performed using communication systems calibrated for CW signals only. Modulations in the table above represent test configurations for which the measurement system has been validated per FCC KDB Publication 865664 D01v01r04 for scenarios when CW probe calibrations are used with other signal types. SAR systems were validated for modulated signals with a periodic duty cycle, such as GMSK, or with a high peak to average ratio (>5 dB), such as OFDM according to FCC KDB Publication 865664 D01v01r04. COND. PERM. (σ)(εr) SENSITIVITY PROBE LINEARIT Y PROBE ISOTROP Y MOD. TYPE DUTY FACTOR PAR G7504/28/2015 3318ES3DV3750Body0.96353.510PASSPASSPASSN/AN/AN/A G8355/26/2015 3318ES3DV3835Body1.01853.930PASSPASSPASSGMSKPASSN/A G1750 11/28/2015 3334ES3DV31750Body1.50851.635PASSPASSPASSN/AN/AN/A G19006/1/20153318ES3DV31900Body1.55952.358PASSPASSPASSGMSKPASSN/A G245012/4/2015 3334ES3DV32450Body1.99751.699PASSPASSPASS OFDM/TDD PASSPASS D530011/9/2015 7357EX3DV45300Body5.56847.186PASSPASSPASSOFDMN/APASS D550011/9/2015 7357EX3DV45500Body5.82446.816PASSPASSPASSOFDMN/APASS D580011/9/2015 7357EX3DV45800Body6.25746.285PASSPASSPASSOFDMN/APASS PROBE CAL. POINT CW VALIDATIONMOD. VALIDATIONSAR SYSTEM # FREQ. [MHz] DATE PROBE SN PROBE TYPE FCC ID: A3LSMT677V SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX G: Page 1 of 2 11/19/2015 – 12/08/2015 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. REV 16.6 M 09/17/2015 A3LSMT677V Sensor Triggering Data Summary Per FCC KDB Publication 616217 D04v01r02, this device was tested by the manufacturer to determine the proximity sensor triggering distances for all applicable sides and edges of the device. The measured output power within ± 5 mm of the triggering points (or until touching the phantom) is included for back side and each applicable edge per Step i) in Section 6.2 of the KDB. The technical descriptions in the filing contain the complete set of triggering data required by Section 6 of FCC KDB Publication 616217 D04v01r02. To ensure all production units are compliant, it is necessary to test SAR at a distance 1 mm less than the smallest distance between the device and SAR phantom (determined from the sensor triggering tests according to FCC KDB 616217 D04v01r02) with the device at the maximum output power (without power reduction). These SAR tests are included in addition to the SAR tests for the device touching the SAR phantom (at the reduced output power level). The operational description contains information explaining how this device remains compliant in the event of a sensor malfunction. APPENDIX G: SENSOR TRIGGERING DATA SUMMARY FCC ID: A3LSMT677V SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX G: Page 2 of 2 11/1…

Text truncated - open the document above for the full version.

FCC ID: A3LSMT677V FCC Pt. 15.247 BLUETOOTH TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 60 0Y1511131947.A3L 11/16-11/25/2015 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. V 3.2 10/30/2015 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 11/16-11/25/2015 129, Samsung-ro, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab. Columbia, MD, USA Gyeonggi-do, 16677, Korea Test Report Serial No.: 0Y1511131947.A3L FCC ID: A3LSMT677V APPLICANT: Samsung Electronics Co., Ltd. Application Type: Certification Model(s): SM-T677V EUT Type: Portable Tablet Max. RF Output Power: 11.028 mW (10.43 dBm) Peak Conducted Frequency Range: 2402 – 2480MHz (Bluetooth for US) Type of Modulation: GFSK, /4-DQPSK, 8DPSK FCC Classification: FCC Part 15 Spread Spectrum Transmitter (DSS) FCC Rule Part(s): Part 15 Subpart C (15.247) Test Procedure(s): ANSI C63.10-2013 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2013. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 Bluetooth FCC ID: A3LSMT677V FCC Pt. 15.247 BLUETOOTH TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 60 0Y1511131947.A3L 11/16-11/25/2015 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. V 3.2 10/30/2015 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT .................................................................................................. 3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 Scope ............................................................................................................................................................. 4 1.2 PCTEST Test Location ................................................................................................................................... 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 Equipment Description ................................................................................................................................... 5 2.2 Device Capabilities ......................................................................................................................................... 5 2.3 Test Configuration .......................................................................................................................................... 5 2.4 EMI Suppression Device(s)/Modifications ...................................................................................................... 5 3.0 DESCRIPTION OF TESTS ...................................................................................................................... 6 3.1 Evaluation Procedure ..................................................................................................................................... 6 3.2 AC Line Conducted Emissions ....................................................................................................................... 6 3.3 Radiated Emissions ........................................................................................................................................ 7 3.4 Environmental Conditions .............................................................................................................................. 7 4.0 ANTENNA REQUIREMENTS .................................................................................................................. 8 5.0 MEASUREMENT UNCERTAINTY .......................................................................................................... 9 6.0 TEST EQUIPMENT CALIBRATION DATA ............................................................................................ 10 7.0 TEST RESULTS .................................................................................................................................... 11 7.1 Summary ...................................................................................................................................................... 11 7.2 20dB Bandwidth Measurement .................................................................................................................... 12 7.3 Output Power Measurement ........................................................................................................................ 18 7.4 Band Edge Compliance ................................................................................................................................ 29 7.5 Carrier Frequency Separation ...................................................................................................................... 32 7.6 Time of Occupancy ...................................................................................................................................... 34 7.7 Number of Hopping Channels ...................................................................................................................... 36 7.8 Conducted Spurious Emissions...................................................................................................................…

Text truncated - open the document above for the full version.

Samsung Electronics Co., Ltd. FCC ID: A3LSMT677V Model: SM-T677V Test Set-Up Photos EUT Type: Portable Tablet Page 1 of 3 © 2015 PCTEST Engineering Laboratory, Inc. V 3.2 10/30/2015 TEST SETUP PHOTOGRAPHS Samsung Electronics Co., Ltd. FCC ID: A3LSMT677V Model: SM-T677V Test Set-Up Photos EUT Type: Portable Tablet Page 2 of 3 © 2015 PCTEST Engineering Laboratory, Inc. V 3.2 10/30/2015 Samsung Electronics Co., Ltd. FCC ID: A3LSMT677V Model: SM-T677V Test Set-Up Photos EUT Type: Portable Tablet Page 3 of 3 © 2015 PCTEST Engineering Laboratory, Inc. V 3.2 10/30/2015

FCC ID A3LSMT677V SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 1 of 7 11/19/15 - 12/08/15 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. REV 16.8 M 10/16/2015 APPENDIX F: DUT ANTENNA DIAGRAM & S AR TEST SETUP PHOTOGRAPHS FCC ID A3LSMT677V SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 2 of 7 11/19/15 - 12/08/15 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. REV 16…

Text truncated - open the document above for the full version.
