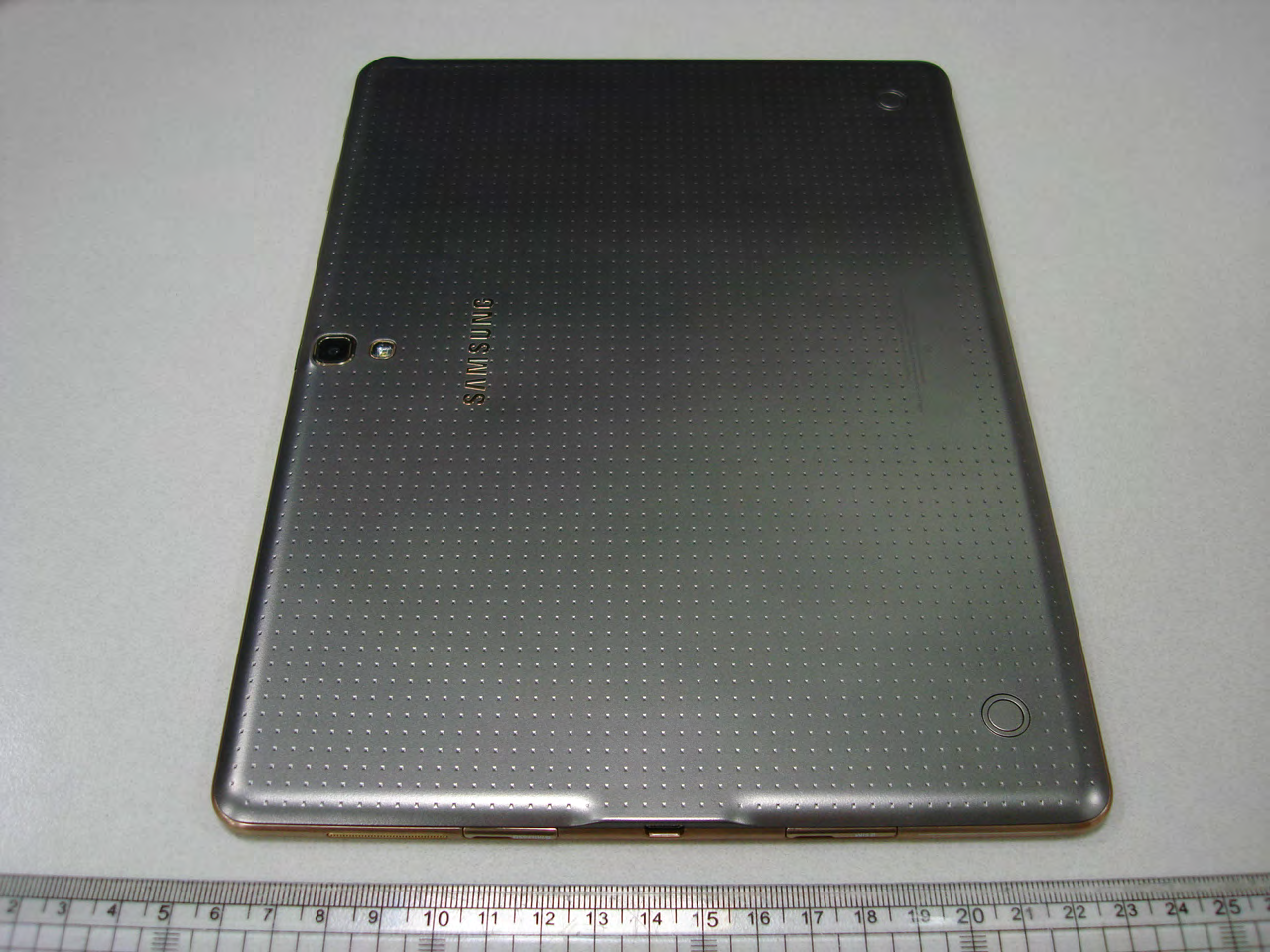

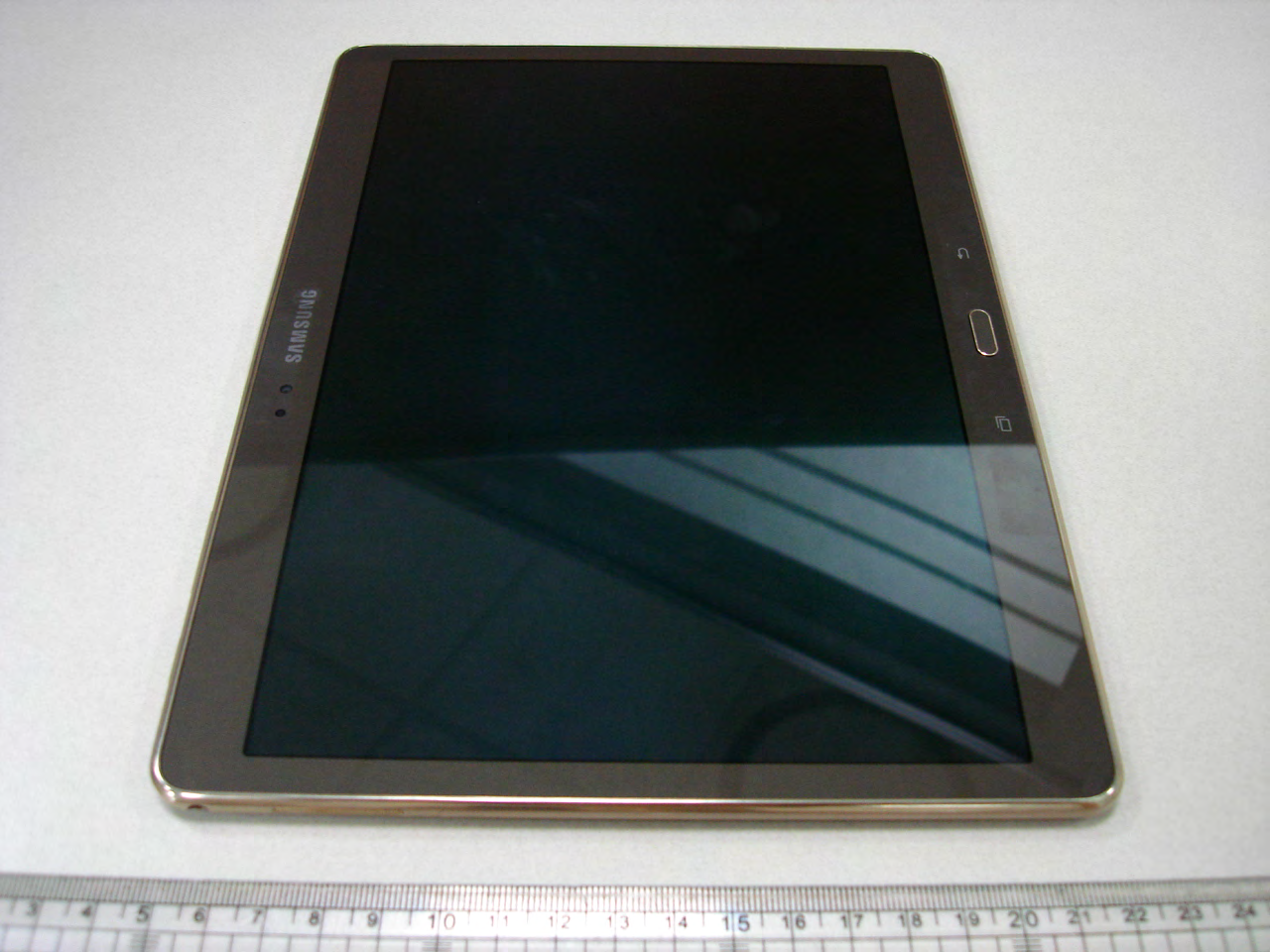

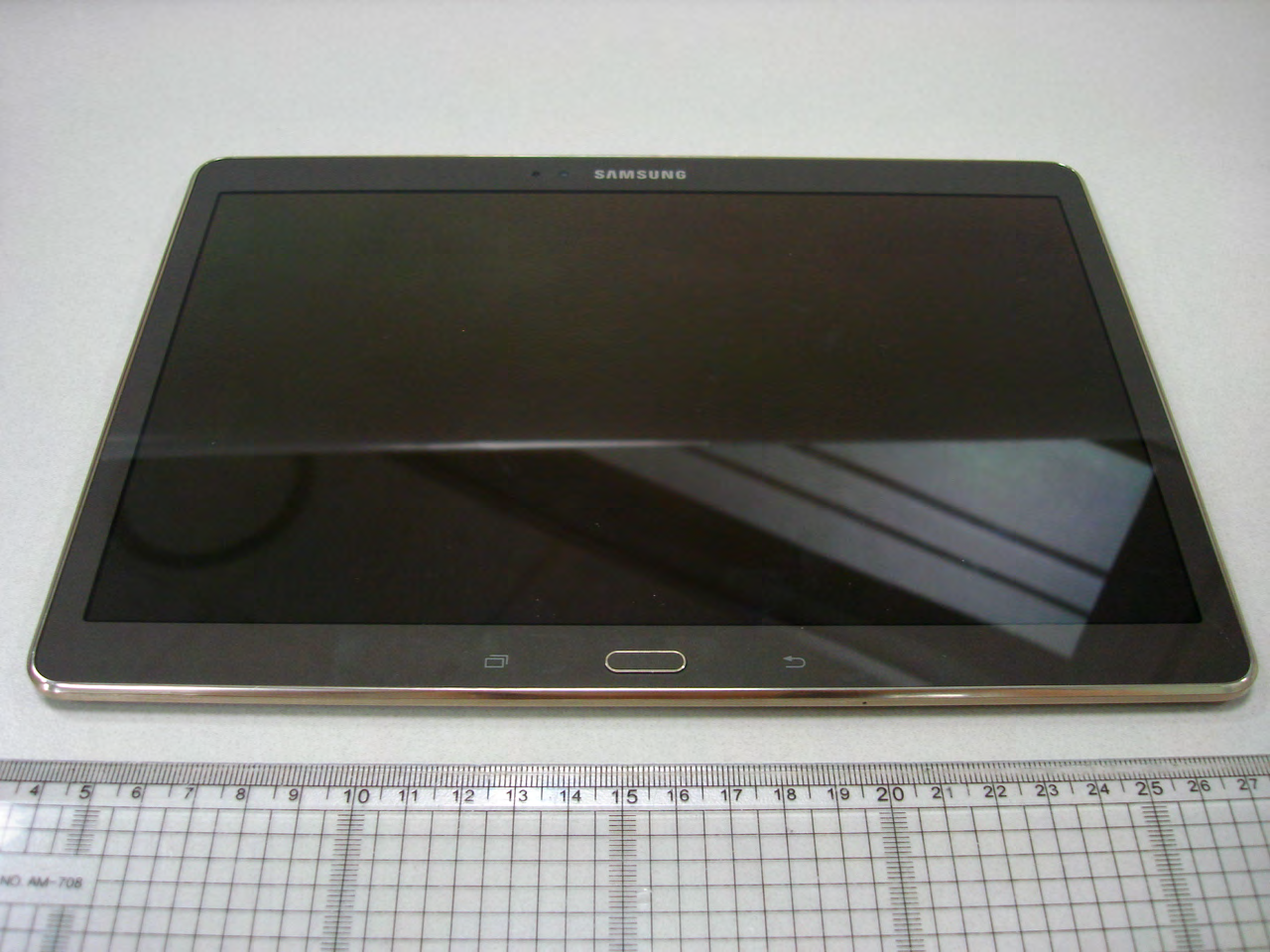

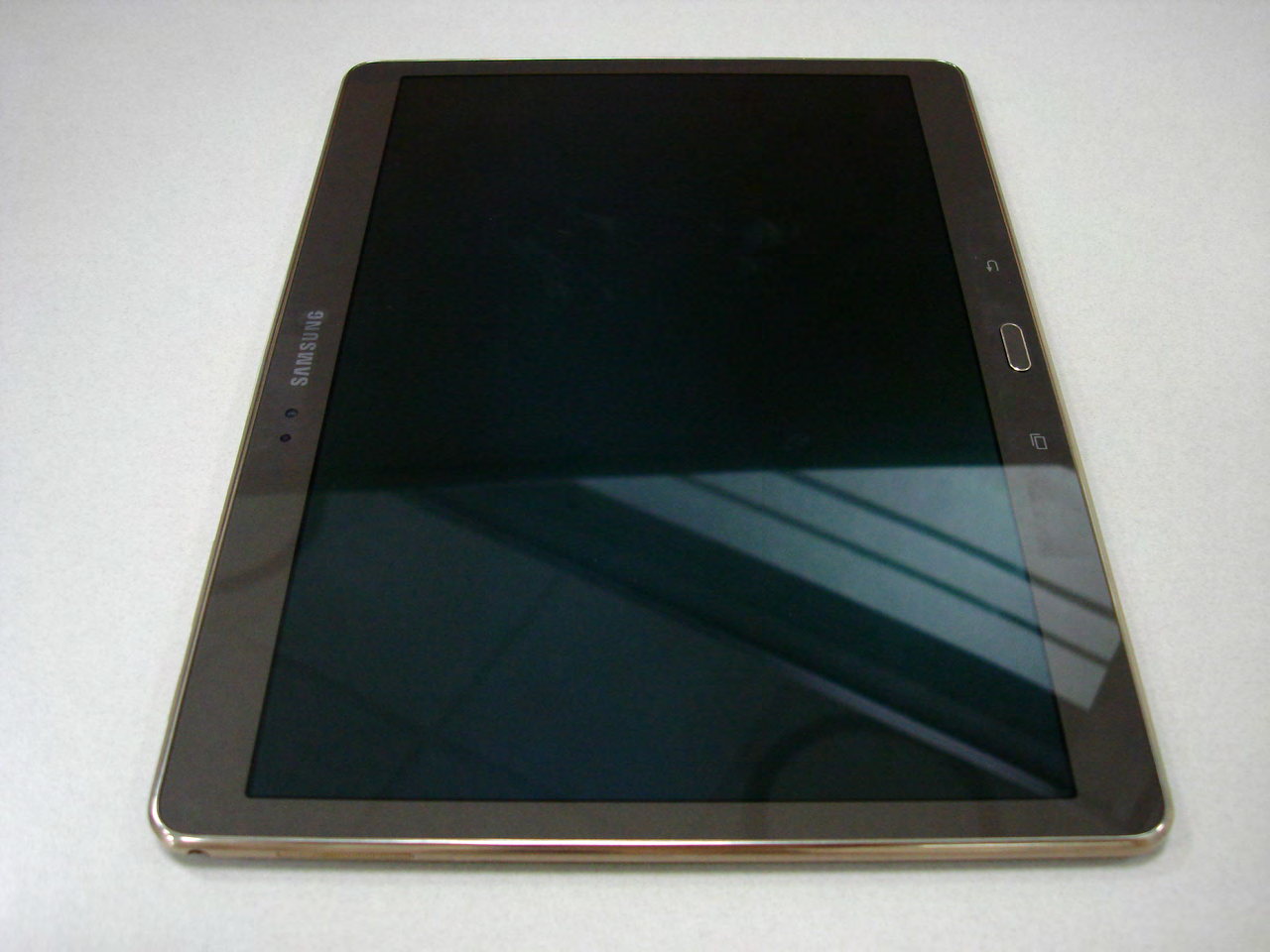

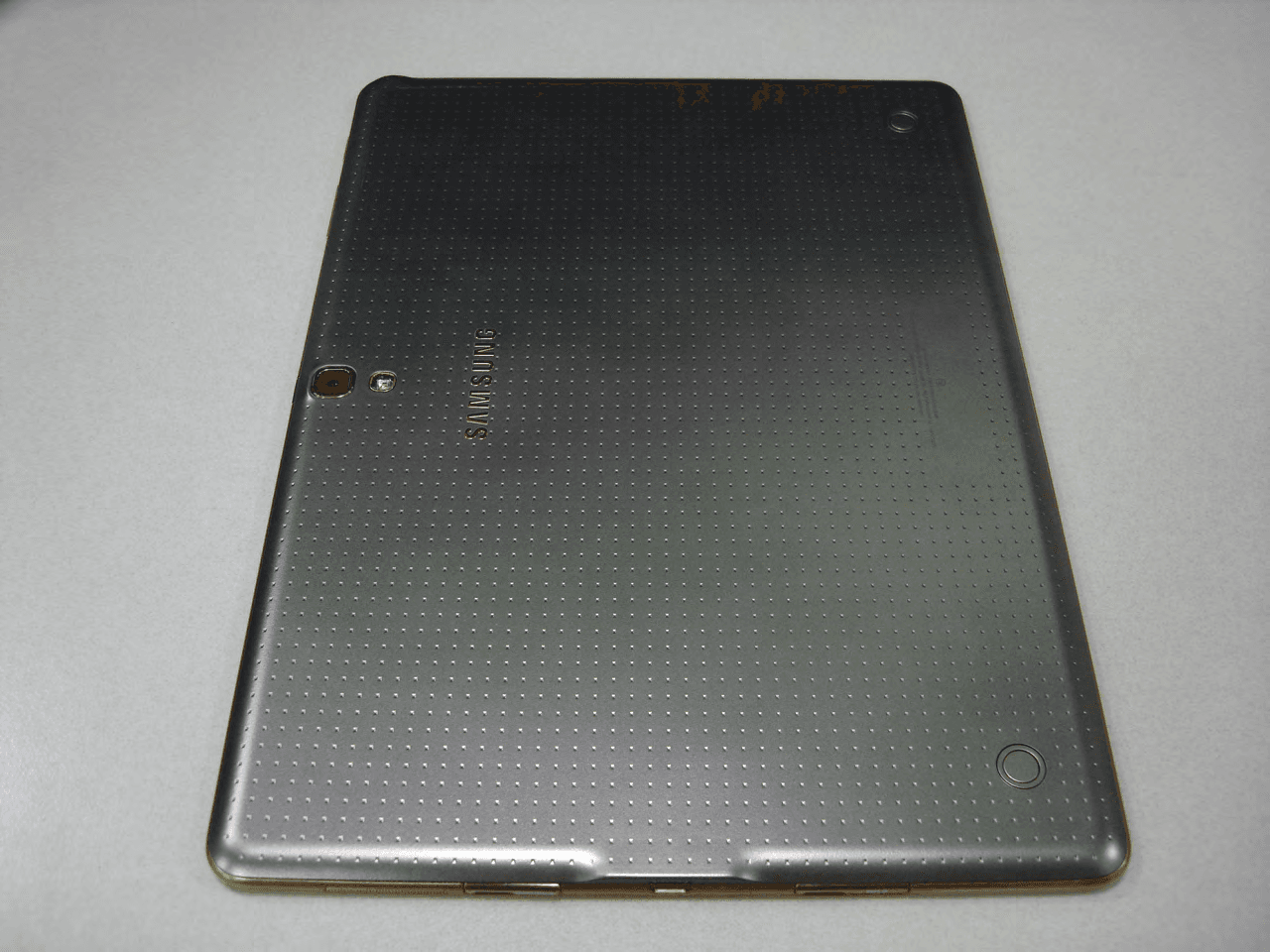

A3LSMT807TMulti-Band UMTS/ LTE Tablet with WLAN, Bluetooth and ANT+

DRAFT For Internal Use Only Warning! This product contains chemicals known to the State of California to cause cancer and reproductive toxicity. Intellectual Property All Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating there to (the “Phone System”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers. Open Source Software Some software components of this product, including but not limited to 'PowerTOP' and 'e2fsprogs', incorporate source code covered under GNU General Public License (GPL), GNU Lesser General Public License (LGPL), OpenSSL License, BSD License and other open source licenses. To obtain the source code covered under the open source licenses, please visit: http://opensource.samsung.com. Disclaimer of Warranties; Exclusion of Liability EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR DRAFT For Internal Use Only ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS. Modification of Software SAMSUNG IS NOT LIABLE FOR PERFORMANCE ISSUES OR INCOMPATIBILITIES CAUSED BY YOUR EDITING OF REGISTRY SETTINGS, OR YOUR MODIFICATION OF OPERATING SYSTEM SOFTWARE. USING CUSTOM OPERATING SYSTEM SOFTWARE MAY CAUSE YOUR DEVICE AND APPLICATIONS TO WORK IMPROPERLY. YOUR CARRIER MAY NOT PERMIT USERS TO DOWNLOAD CERTAIN SOFTWARE, SUCH AS CUSTOM OS. IF YOUR CARRIER PROHIBITS THIS, IF YOU ATTEMPT TO DOWNLOAD SOFTWARE ONTO THE DEVICE WITHOUT AUTHORIZATION, YOU WILL BE NOTIFIED ON THE SCREEN THAT THE PHONE WILL NO LONGER OPERATE AND BE INSTRUCTED TO POWER DOWN THE DEVICE. YOU MUST THEN CONTACT YOUR CARRIER TO RESTORE THE DEVICE TO THE CARRIER AUTHORIZED SETTINGS. SAFE™ (Samsung Approved For Enterprise) SAFE™: "SAFE™" (Samsung for Enterprise) is a mark for a Samsung device which has been tested against Samsung's own internal criteria for interoperability with certain third party security-related solutions for MDM and VPN. The testing includes field testing with local network connection and menu tree testing which tests functionality of the solutions in conjunction with the Samsung device. During the testing, the device is tested with the security solutions to see if the solutions work with the device as described by the third party security solution providers. The testing, for example, includes field testing with local network DRAFT For Internal Use Only connection and menu tree testing which tests functionality of the solutions in conjunction with the Samsung device. For more information about Samsung's SAFE™ program, please refer to www.samsung.com/us/safe. Disclaimer of Warranties: EXCEPT AS OTHERWISE PROVIDED IN THEIR STANDARD END USER LICENSE AND WARRANTY, TO THE FULL EXTENT PERMITTED BY LAW SAMSUNG ELECTRONICS CO., LTD., SAMSUNG TELECOMMUNICATIONS AMERICA, LLC, AND THEIR AFFILIATES (COLLECTIVELY REFERRED TO HEREIN AS THE "SAMSUNG ENTITIES") EXPRESSLY DISCLAIM ANY AND ALL WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, INTEROPERABILITY OR NON-INFRINGEMENT, WITH RESPECT TO INFORMATION TECHNOLOGY SECURITY PROTECTION, SAFE™ DEVICES AND APPLICATIONS TESTED WITH SAFE™ DEVICES. IN NO EVENT SHALL THE SAMSUNG ENTITIES BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, PUNITIVE, OR CONSEQUENTIAL DAMAGES OF ANY KIND WHATSOEVER WITH RESPECT TO INFORMATION TECHNOLOGY SECURITY PROTECTION, SAFE™ DEVICES OR APPLICATIONS TESTED WITH SAFE™ DEVICES. In addition, information technology security protection will be affected by features or functionality associated with, among other things the e-mail platform, master data management, and virtual private network solutions selected by the software provider, solution provider or user. Choice of an e-mail, master data management, and virtual private network solution is at the sole discretion of the software provider, solution provider or user and any associated effect on information technology security protection is solely the responsibility of the software provider, solution provider or user. For complete statement of limited warranty, please refer to www.samsung.com/us/safe, available on the web and where Samsung smartphone and Galaxy Tab™ devices are sold. [101212] Samsung Telecommunic…

Text truncated - open the document above for the full version.

112 Scrapbook Use this application to create your own digital scrapbook with content from webpages, videos and more.  To u c h Scrapbook. Creating Categories  To u c h Categories ➔ Create category, select a layout from the list, enter a name, and then touch OK. Collecting Items  While viewing webpages, or videos, with the S Pen button pressed, draw a line around an area to select it. Touch Scrapbook from the list of applications that appears at the bottom of the screen, and then select a category to add the selected area.  Alternatively, press the S Pen button while hovering over the screen, touch Scrap booker on the general air commands, draw a line around an area, and then touch. Viewing Items  Select a category, and then select an item. While viewing an item, touch Link to go to the source it was collected from. Screen Saver When your tablet screen automatically times out, instead of a blank screen, enable the Galaxy Note Screen Saver, which is actually an action-packed video tour of all the fantastic features that you will find on your Galaxy Tab. 1.To u c h Screen Saver. The Galaxy Note 10.1 Screen Saver Settings screen displays. 2.Follow the on-screen instructions to set up Screen Saver. Tip: To u c h Back to stop the Screen Saver video even if Enable Touch To Stop is enabled. DRAFT For Internal Use Only Applications 113 Settings Configure your device to your preferences.  To u c h Settings. For more information, refer to “Settings” on page 116. SketchBook for Galaxy Use this application to create a quick concept or sketch out your idea for a project. Note: The SketchBook app must be installed before you can use it. Touch OK on the pop-up and follow the on-screen instructions. 1.From a Home screen, touch Apps ➔ Galaxy Plus folder ➔ SketchBook for Galaxy. 2.Use artistic tools to draw and paint your digital art. The image is saved in Gallery. 1.Create and save a sketchbook. 2.Display SketchBook information and settings. 3.Undo the last action. 4.Redo the last action. 5.Use SketchBook tools. 6.Change the brush types and settings. 7.Change a brush color. 8.Add or delete layers. 9.Register the frequently-used tools. 1 2 3 4 5 6 7 9 8 DRAFT For Internal Use Only 114 Story Album Use Story Album to create a digital album of your story in media.  To u c h Samsung folder ➔ Story Album. For more information, refer to “Story Album” on page 82. TripAdvisor Use this application to get travel information such as destination or hotel. You can also book for a room and share your reviews with others.  To u c h Galaxy Plus folder ➔ TripAdvisor. Twitter Get real-time stories, pictures, videos, conversations, ideas, and inspiration all in your timeline. Follow people and your interests to get unfiltered access and unique behind-the- scenes perspectives. Express yourself with photos, videos and comments.  To u c h Tw i t t e r. Video Use this application to play video files.  To u c h Video. For more information, refer to “Video” on page 80. Video Editor Use this application to edit your videos.  To uc h Samsung folder ➔ Video Editor. Voice Search Use this application to search webpages by speaking. 1.To u c h Google folder ➔ Voice Search. 2.Speak a keyword or phrase when Speak now appears on the screen. WatchON Enjoy all of your favorite movies and TV shows with WatchON. • Before beginning your initial WatchON application setup, make sure that your TV is turned off. • Sign into your Samsung account before using WatchON. For more information, refer to “Your Samsung Account” on page 47. DRAFT For Internal Use Only Applications 115 Initial Configuration 1.From a Home screen, touch Apps ➔ WatchON. The Privacy policy displays. 2.Read the Privacy policy, check the I have read and accept the terms of the above privacy policy box, and touch Confirm. The Set up WatchON screen displays. 3.Touch Set up WatchON. 4.Follow the on-screen instructions. WatchON Menu 1.From a Home screen, touch Apps ➔ WatchON. 2.Touch Menu for the following options. • Sign in: Sign in to your Samsung account to improve your WatchON experience. •Settings: Configure Samsung WatchON settings. Follow the on-screen instructions. •Help: Displays Samsung WatchON help information and a Contact us telephone number. World Clock Use this application to check the time of many major cities in the world.  To u c h Samsung folder ➔ World Clock. Creating Clocks  To u c h , Add city and then enter a city name or select a city from the cities list or globe, and then touch Save.  To apply summer time, touch and hold a clock, and then touch DST settings. Deleting Clocks  Touch and hold the clock, and then touch Delete. YouTube Use this application to watch videos from the YouTube website.  To u c h YouTube. For more information, refer to “YouTube” on page 82. DRAFT For Internal Use Only 116 Section 9: Settings About Settings Use this application to configure the device, set application options, and add accounts. To accessing Settings:  From a Home screen, touch Apps ➔ Settings. – or – From any screen, touch the top of the screen and swipe downward, to display the Quick Settings, and then touch Settings. For more information, refer to “Notifications Panel” on page 36. Settings Tabs The Settings are divided into four main groups. When the Settings screen displays, the tabs are located at the top of the screen. Connections Control your device’s wireless connections. Wi-Fi Wi-Fi is a wireless networking technology that provides access to local area networks. Your device supports Wi-Fi 802.11 a/b/g/n/ac. For more information about using your device’s Wi-Fi features, see “Wi-Fi” on page 83. Wi-Fi Direct Settings Wi-Fi Direct allows device-to-device connections so you can transfer large amounts of data over a Wi-Fi connection. for more information about using Wi-Fi Direct, see “Wi-Fi Direct” on page 86. Bluetooth Bluetooth is a short-range wireless communications technology for exchanging information over a distance of about 30 feet. You do not n…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea August 11, 2014 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LSMT807T Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy of KDB 784748 D01.. The label statement is as follows: The FCC ID label is located on the rear of the device with the battery installed. At this time the FCC ID is readily visible to the user. The label is permanently engraved by laser and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

Samsung Electronics America, Inc 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: August 14, 2014 FCC ID: A3LSMT807T To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to any application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 862. Sincerely, CHANHO, YOUN General Manager Samsung Electronics CO. LTD TEL: +1-973-808-6362 E-mail: [email protected]

Date: July 2 5, 2014 PCTEST TCB/CB Div. of PCTEST Engineering Lab., Inc. 6660-B Dobbin Road Columbia, MD 21045 Samsung Electronics Co., LTD. 129, Samsung-ro, Yeongtong-gu Suwon-City , Gyeonggi-do, 443-742, Korea Subject: Samsung Electronics Co., Ltd. FCC ID: A3LSMT807T To Whom it May Concern We attest the following regarding FCC ID: A3LSMT807T 1. MPR is permanently implemented for all channel BWs, modulations, frequency bands and RB sizes. Supported channel BWs, modulations, frequency bands: a. LTE Band 2 (Channel BW 1.4, 3, 5, 10, 15 & 20 MHz)/QPSK & 16QAM b. LTE Band 4 (Channel BW 1.4, 3, 5, 10, 15 & 20 MHz)/QPSK & 16QAM c. LTE Band 5 (Channel BW 1.4, 3, 5 & 10 MHz)/QPSK & 16QAM d. LTE Band 12 (Channel BW 1.4, 3, 5 & 10 MHz)/QPSK & 16QAM 2. A-MPR was disabled for all SAR test samples for SAR testing purposes only. 3. We confi rm the specifi c MPR targets and tol erances shown in the SAR Report. 4. LTE Rel 10 implementation is limited. The uplink does not support carrier aggregation nor enhanced SC- FDMA. Features such as CoMP, HetNet, Relay, SON, cross carrier scheduling, eICIC, enhanced downlink MIMO, MBMS, M2M/D2 are also not supported. Should you have any questions or comments concerning the above, please contact the undersi gned. Si ncerely, Engineer Wonsub Lee Samsung Electronics CO. LTD TEL:+82-10-5110-6959 E-mail: [email protected]

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: August 14, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSMT807T To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics 4 Parts List & Tune-Up Procedure SHORT-TERM 5 External Photos 6 Internal Photos 7 Test-Setup Photos 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, CHANHO, YOUN General Manager American QA Lab SAMSUNG Electronics America INC.

Label and Location Model: SM-T807T FCC ID: A3LSMT807T Label: Location: Top Back of device Bottom Tablet : FCC ID is printed on bottom of the device At this time the FCC ID is readily visible to the user. The label is permanently attached by acrylic glue and not easily removed from the device.” Label

FCC ID: A3LSMT807T SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 121 0Y1407301582.A3L 06/16/14 – 08/01/14 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 13.5 M 04/28/2014 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 06/16/14 – 08/01/14 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Document Serial No.: 0Y1407301582.A3L FCC ID: A3LSMT807T APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Tablet Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): SM-T807T 1 gm Body (W/kg) PCBUMTS 850826.40 - 846.60 MHz1.00 PCBUMTS 17501712.4 - 1752.5 MHz0.80 PCBUMTS 19001852.4 - 1907.6 MHz0.79 PCBLTE Band 12699.7 - 715.3 MHz0.60 PCBLTE Band 5 (Cell)824.7 - 848.3 MHz0.82 PCBLTE Band 4 (AW S)1710.7 - 1754.3 MHz0.76 PCBLTE Band 2 (PCS)1850.7 - 1909.3 MHz0.71 DTS2.4 GHz W LAN2412 - 2462 MHz1.09 DTS5.8 GHz W LAN5745 - 5825 MHz1.07 NII5.2 GHz W LAN5180 - 5240 MHz0.90 NII5.3 GHz W LAN5260 - 5320 MHz0.80 NII5.5 GHz W LAN5500 - 5700 MHz0.98 DSS/DTSBluetooth2402 - 2480 MHz 1.59 Simultaneous SAR per KDB 690783 D01v01r02: Equipment Class N/A SAR Band & ModeTx Frequency This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.7 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: A3LSMT807T SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 121 0Y1407301582.A3L 06/16/14 – 08/01/14 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 13.5 M 04/28/2014 TABLE OF CONTENTS 1 DEVICE UNDER TEST ................................................................................................................... 3 2 LTE INFORMATION ........................................................................................................................ 9 3 INTRODUCTION ........................................................................................................................... 10 4 DOSIMETRIC ASSESSMENT ...................................................................................................... 11 5 SAR TESTING PROCEDURES .................................................................................................... 12 6 RF EXPOSURE LIMITS ................................................................................................................ 13 7 FCC MEASUREMENT PROCEDURES ........................................................................................ 14 8 RF CONDUCTED POWERS ......................................................................................................... 19 9 SYSTEM VERIFICATION .............................................................................................................. 65 10 SAR DATA SUMMARY ................................................................................................................. 67 11 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 73 12 SAR MEASUREMENT VARIABILITY ......................................................................................... 115 13 EQUIPMENT LIST ....................................................................................................................... 116 14 MEASUREMENT UNCERTAINTIES .......................................................................................... 117 15 CONCLUSION ............................................................................................................................. 119 16 REFERENCES ............................................................................................................................ 120 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS APPENDIX G: SENSOR TRIGGERING INFORMATION FCC ID: A3LSMT807T SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 121 0Y1407301582.A3L 06/16/14 – 08/01/14 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 13.5 M 04/28/2014 1 DEVICE UNDER TEST 1.1 Device Overview UMTS 850Data826.40 - 846.60 MHz UMTS 1750Data1712.4 - 1752.5 MHz UMTS 1900Data1852.4 - 1907.6 MHz LTE Band 12Data699.7 - 715.3 MHz LTE Band 5 (Cell)Data824.7 - 848.3 MHz LTE Band 4 (AWS)Data1710.7 - 1754.3 MHz LTE Band 2 (PCS)Data1850.7 - 1909.3 MHz 2.4 GHz WLANData2412 - 2462 MHz 5.8 GHz WLANData5745 - 5825 MHz 5.2 GHz WLANData5180 - 5240 MHz 5.3 GHz WLANData5260 - 5320 MHz 5.5 GHz WLANData5500 - 5700 MHz BluetoothData2402 - 2480 MHz ANT+Data2402 - 2480 MHz Band & ModeTx FrequencyOperating Modes 1.2 Power Reduction for SAR This device uses a sensor for SAR compliance. The sensor is activated when used in close proximity to the user’s body. The sensor triggers power reduction for data modes for main antenna and is only applicable for tablet operations. There is no power reduction mechanism for WIFI/BT modes for SAR purposes. Since this device is a full tablet size, Body SAR was evalu…

Text truncated - open the document above for the full version.

© 2014 PCTEST Engineering Laboratory, Inc. APPENDIX C: PROBE CALIBRATION

FCC ID: A3LSMT807T FCC Pt. 22, 24 & 27 WCDMA MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 49 0Y1407301583.A3L 06/17 - 08/5/2014 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V 1.18 8/14/2014 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 06/17 - 08/5/2014 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab., Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1407301583.A3L FCC ID: A3LSMT807T APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. Application Type: Certification Model(s): SM-T807T EUT Type: Portable Tablet FCC Classification: PCS Licensed Transmitter (PCB) FCC Rule Part(s): §2 §22(H) §24(E) §27(L) Test Procedure(s): ANSI/TIA-603-C-2004, KDB 971168 v02r01 Test Device Serial No.: identical prototype [S/N: R32F5014PQM, FCC MAX] WCDMA850 826.4 - 846.6 4M08F9W 0.03215.01 WCDMA1700 1712.4 - 1752.5 4M07F9W 0.16522.19 WCDMA1900 1852.4 - 1907.6 4M07F9W 0.23423.70 Emission Designator Tx Frequency (MHz) Mode ERP/EIRP Max. Power (W) Max. Power (dBm) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22, 24 & 27 FCC ID: A3LSMT807T FCC Pt. 22, 24 & 27 WCDMA MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 49 0Y1407301583.A3L 06/17 - 08/5/2014 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V 1.18 8/14/2014 TABLE OF CONTENTS FCC PART 22, 24, & 27 MEASUREMENT REPORT ................................................................................... 3 1.0 INTRODUCTION .............................................................................................................................. 4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY ............................................................................................................................. 4 2.0 PRODUCT INFORMATION .............................................................................................................. 5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 DEVICE CAPABILITIES....................................................................................................................... 5 2.3 TEST CONFIGURATION ..................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 3.0 DESCRIPTION OF TESTS .............................................................................................................. 6 3.1 EVALUATION PROCEDURE .............................................................................................................. 6 3.2 CELLULAR - BASE FREQUENCY BLOCKS ....................................................................................... 6 3.3 CELLULAR - MOBILE FREQUENCY BLOCKS ................................................................................... 6 3.4 PCS - BASE FREQUENCY BLOCKS .................................................................................................. 6 3.5 PCS - MOBILE FREQUENCY BLOCKS .............................................................................................. 7 3.6 AWS - BASE FREQUENCY BLOCKS ................................................................................................. 7 3.7 AWS - MOBILE FREQUENCY BLOCKS ............................................................................................. 7 3.8 RADIATED MEASUREMENTS ............................................................................................................ 8 4.0 TEST EQUIPMENT CALIBRATION DATA ...................................................................................... 9 5.0 SAMPLE CALCULATIONS ............................................................................................................ 10 6.0 TEST RESULTS ............................................................................................................................. 11 6.1 SUMMARY ......................................................................................................................................... 11 6.2 OCCUPIED BANDWIDTH ................................................................................................................. 12 6.3 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL ............................................ 15 6.4 BAND EDGE EMISSIONS AT ANTENNA TERMINAL ...................................................................... 25 6.5 PEAK-AVERAGE RATIO ................................................................................................................... 31 6.6 RADIATED POWER (ERP/EIRP) ...................................................................................................... 33 6.7 RADIATED SPURIOUS EMISSIONS MEASUREMENTS ................................................................. 36 6.8 FREQUENCY STABILITY / TEMPERATURE VARIATION ..........…

Text truncated - open the document above for the full version.

FCC ID: A3LSMT807T FCC Pt. 22, 24, & 27 LTE MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 46 of 115 0Y1407301584.A3L 6/17 – 8/18/2014 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V 1.18 8/14/2014 6.4 Band Edge Emissions at Antenna Terminal §2.1051 §22.917(a) §24.238(a) §27.53(g) §27.53(h) Test Overview All out of band emissions are measured with a spectrum analyzer connected to the antenna terminal of the EUT while the EUT is operating at its maximum duty cycle, at maximum power, and at the appropriate frequencies. All data rates were investigated to determine the worst case configuration. All modes of operation were investigated and the worst case configuration results…

Text truncated - open the document above for the full version.
