A3LSMT970Tablet

www.samsung.com USER MANUAL English. 07/2020. Rev.1.0 SM-T870 SM-T875 SM-T970 SM-T975 SM-T976B 2 Table of Contents Basics 4 Read me first 6 Device overhea ting situations and solutions 9 Device layout and functions 16 Battery 18 SIM or USIM card (nano-SIM card) (SM-T875, SM-T975, SM-T976B) 20 Memory card (microSD card) 22 Turning the device on and off 23 Initial setup 24 Samsung account 25 Transferring da ta from your previous device (Smart Switch) 27 Understanding the screen 38 Notification panel 40 Screen capture and screen record 42 Entering text Apps and features 45 Installing or uninstalling apps 47 S Pen features 62 Bixby 66 Bixby Vision 68 Bixby Routines 71 Phone 76 Contacts 80 Messages 83 Internet 85 Camera 99 Gallery 105 AR Zone 113 Multi window 115 Samsung Daily 116 Samsung Members 116 Samsung Notes 121 PENUP 125 Calendar 126 Reminder 128 Samsung Flow 129 Voice Recorder 131 My Files 131 Clock 133 Calculator 133 Game Launcher 134 Game Booster 136 Samsung Kids 137 SmartThings 141 Sharing content 144 Music Share 145 Daily Board 148 Samsung DeX 154 Google apps Table of Contents 3 188 Privacy 189 Location 189 Accounts and backup 190 Users 192 Samsung Cloud 193 Google 194 Advanced features 195 Motions and gestures 196 Digital Wellbeing and parental controls 196 Digital Wellbeing 197 Device care 197 Optimising your device 198 Battery 199 Storage 199 Memory 199 Security 199 Apps 200 General management 201 Accessibility 201 Software upda te 202 Tips and user manual 202 About tablet Appendix 203 Troubleshooting 209 Removing the battery Settings 156 Introduction 156 Connections 157 Wi-Fi 159 Bluetooth 160 Data saver (SM-T875, SM-T975, SM-T976B) 161 Mobile data only apps (SM-T875, SM-T975, SM-T976B) 161 Mobile Hotspot and Tethering (SM-T875, SM-T975, SM-T976B) 163 More connection settings 164 Sounds and vibration 165 Dolby Atmos (surround sound) 165 Separate app sound 165 Notifications 166 App icon badges 166 Display 167 Dark mode settings 168 Motion smoothness 168 Blue light filter (SM-T970, SM-T976B) 168 Changing the screen mode or adjusting the display colour 170 Font size and style 170 Screensaver 170 Wallpaper 171 Lock screen 171 Smart Lock 172 Biometrics and security 173 Face recognition 176 Fingerprint recognition 180 Samsung Pass 183 Secure Folder 187 Secure Wi-Fi (SM-T870, SM-T875, SM-T970, SM-T976B) 4 Basics Read me first Please read this manual before using the device to ensure safe and proper use. • Descriptions are based on the device’s default settings. • Some content may differ from your device depending on the region, service provider, model specifications, or device’s software. • Content (high quality content) that requires high CPU and RAM usage will affect the overall performance of the device. Apps related to the content may not work properly depending on the device’s specifications and the environment that it is used in. • Samsung is not liable for performance issues caused by apps supplied by providers other than Samsung. • Samsung is not liable for performance issues or incompatibilities caused by edited registry settings or modified operating system software. Attempting to customise the operating system may cause the device or apps to work improperly. • Software, sound sources, wallpapers, images, and other media provided with this device are licensed for limited use. Extracting and using these materials for commercial or other purposes is an infringement of copyright laws. Users are entirely responsible for illegal use of media. • You may incur additional charges for data services, such as messaging, uploading and downloading, auto-syncing, or using location services depending on your data plan. For large data transfers, it is recommended to use the Wi-Fi feature. (SM-T875, SM-T975, SM-T976B) • Default apps that come with the device are subject to updates and may no longer be supported without prior notice. If you have questions about an app provided with the device, contact a Samsung Service Centre. For user-installed apps, contact service providers. • Modifying the device’s operating system or installing softwares from unofficial sources may result in device malfunctions and data corruption or loss. These actions are violations of your Samsung licence agreement and will void your warranty. Basics 5 • Depending on the region or service provider, a screen protector is attached for protection during production and distribution. Damage to the attached screen protector is not covered by the warranty. • You can see the touchscreen clearly even in strong outdoor sunlight by automatically adjusting the contrast range based on the surrounding environment. Due to the nature of the product, displaying fixed graphics for extended periods may result in afterimages (screen burn-in) or ghosting. – It is recommended not to use fixed graphics on part or all of the touchscreen for extended periods and turn off the touchscreen when not using the device. – You can set the touchscreen to turn off automatically when you are not using it. Launch the Settings app, tap Display → Screen timeout, and then select the length of time you want the device to wait before turning off the touchscreen. – To set the touchscreen to automatically adjust its brightness based on the surrounding environment, launch the Settings app, tap Display, and then tap the Adaptive brightness switch to activate it. • Depending on the region or model, some devices are required to receive approval from the Federal Communications Commission (FCC). If your device is approved by the FCC, you can view the FCC ID of the device. To view the FCC ID, launch the Settings app and tap About tablet → Status. If your device does not have an FCC ID, it means that the device has not been authorised for sale in the U.S. or its territories and may only be brought to the U.S. for the owner’s personal use. • Depending on the region, you can view the regulatory information on the device. To view the information, launch the Settings app …

Text truncated - open the document above for the full version.

Apps and features 101 3 Double-tap or spread two fingers apart on the area you want to save and tap . The cropped area will be saved as a file. Saved image thumbnail Viewing videos 1 Launch the Gallery app and tap Pictures. 2 Select a video to play. 3 Tap Play video to play the video. Lock the playback screen. Skip to the previous video. Tap and hold to rewind. Switch to the pop-up video player. Capture the current screen. Rewind or fast-forward by dragging the bar. Create an animated GIF. Access additional options. Rotate the screen. Skip to the next video. Tap and hold to fast-forward. Pause and resume playback. Display your videos. Change the screen ratio. Drag your finger up or down on the left side of the playback screen to adjust the brightness, or drag your finger up or down on the right side of the playback screen to adjust the volume. To rewind or fast-forward, swipe to the left or right on the playback screen. Apps and features 102 Viewing albums You can view your images and videos sorted by folders or albums. Launch the Gallery app, tap Albums, and then select an album. Creating albums You can add albums and sort files. 1 Launch the Gallery app and tap Albums. 2 Tap → Create album. 3 Enter a title for the album and tap Create. Moving photos and videos to albums 1 Launch the Gallery app and tap Albums. 2 Select an album and tap Add items. 3 Tap Pictures, or tap Albums and select an album with the images or videos you want. 4 Tick files and tap Done. 5 Tap Move. The files will be deleted from the original folder and moved to the album. To copy the files, tap Copy. Deleting albums 1 Launch the Gallery app and tap Albums. 2 Tap and hold an album to delete, and tap Delete. Apps and features 103 Creating album groups You can add groups and sort albums. 1 Launch the Gallery app and tap Albums. 2 Tap → Create group. 3 Enter a title for the group and tap Create. 4 Select the group, tap Add albums, tick albums, and then tap Add. The albums will be moved to the group. Viewing stories When you capture or save images and videos, the device will read their date and location tags, sort the images and videos, and then create stories. To create stories automatically, you must capture or save multiple images and videos. Launch the Gallery app, tap Stories, and then select a story. Editing stories • To add images or videos to a story, select a story and tap Story album → → Add. • To remove images or videos from a story, select a story, tap Story album → → Edit, tick images or videos to remove, and then tap Remove from story. Deleting stories 1 Launch the Gallery app and tap Stories. 2 Tap and hold a story to delete, and tap Delete. Apps and features 104 Syncing images and videos When you sync your Gallery app with the cloud, photos and videos you take will also be saved in the cloud. You can view images and videos saved in the cloud in your Gallery app and from other devices. Launch the Gallery app, tap → Settings → Cloud sync, and then follow the on-screen instructions to complete the sync. The Gallery app and the cloud will be synced. When you connect your Samsung account and Microsoft account, you can set the cloud storage as Microsoft OneDrive. Deleting images or videos 1 Launch the Gallery app. 2 Select an image or a video to delete. To delete multiple files, tap and hold a file to delete on the list and tick more files to delete. 3 Tap or Delete. Using the recycle bin feature You can keep the deleted images and videos in the recycle bin. The files will be deleted after a certain period. Launch the Gallery app, tap → Settings, and then tap the Recycle bin switch to activate it. To view files in the recycle bin, launch the Gallery app and tap → Recycle bin. Apps and features 105 AR Zone Introduction AR Zone provides you AR related features. Choose a feature and capture fun photos or videos. Launching AR Zone Use the following methods to launch AR Zone: • Launch the AR Zone app. • Launch the Camera app and tap MORE → AR ZONE. Available features may vary depending on the region, service provider, or model. • AR Emoji Camera: Create an emoji that looks just like you, and take photos and record videos using your emojis or character emojis. • AR Doodle: Record fun videos with virtual handwriting or drawings on faces or anywhere else. • AR Emoji Studio: Edit or decorate your emoji and create clothes with custom patterns and colours for your emoji. • AR Emoji Stickers: Create your own stickers with your emoji’s expressions and actions. • Deco Pic: Capture photos or videos with various stickers. Apps and features 106 Creating AR Emoji Create an emoji that looks just like you, and take photos and record videos using your emojis or character emojis. You can customise your emoji’s features, such as the face shape or hairstyle, and decorate your emoji with various accessories. You can also express yourself in fun ways using your emoji stickers during a conversation. Your emojiCharacter emoji Creating an emoji Make an emoji that looks like you. Emoji stickers with various expressions will be automatically generated. 1 Launch the AR Zone app and tap AR Emoji Camera → . 2 Align your face on the screen and tap to take a photo. 3 Select your emoji type and tap Next. 4 Decorate your emoji and tap Next. Apps and features 107 5 Tap All done. Your emoji and its emoji stickers are now created. Refer to AR Emoji Stickers for more information about emoji stickers. You can use the AR Emoji Camera feature in both the front and rear cameras. To switch between cameras, swipe upwards or downwards on the preview screen. Deleting an emoji Launch the AR Zone app and tap AR Emoji Camera. Tap → Manage emojis, tick the emoji you want to delete, and then tap Delete. The emoji and its emoji stickers will be deleted. AR Emoji Camera Capturing photos or videos with your emojis Create fun photos or videos with your emoji using various shooting modes. MIRRORMASKSCENEPLAY Apps and features 108 1 Launch the AR Zone app and tap AR Emo…

Text truncated - open the document above for the full version.

Samsung Electronics Co., Ltd. 129, Samsung-ro, Yeongtong-gu Suwon-si, Gyeonggi-do, 16677, Korea Federal Communicatio ns Commission E-label Attestation Letter - FCC ID : A3LSMT970 - Model : SM-T970 To Whom It May Conc ern We hereby provide the following attestations according to CFR 2.935 and FCC KDB 784748 D02: At the time of purchase, the FCC ID is readily and physically visible to the purchaser on the exterior package per CFR 2.935(f). The FCC ID will be readily legible without the aid of magnification according to CFR 2.935(d). The literature in the package describes how to access the electronic display to find FCC ID per CFR 2.935(b) and FCC KDB 784748. Per CFR 2.935(c), the user will be able to access this information within a maximum of 3 steps. The user will be able to access this information without a SIM card, special accessories or supplemental plug-ins. Per CFR 2.935(e), We, Samsung Electronics Co., Ltd., have programmed the e-label and it is not able to be modified by any third party. Per CFR 2.935(f), the FCC ID will be able to survive normal shipping and handling so it is visible for inspection at the time of import. Should you have an y questions or comments concerning the above, please contact the undersigned. Sincerely, Jenni Chun General Manager Samsung Electronics CO. LTD TEL: +1-9 73-8 08-6 375 FAX: 1-973-808 -6361 E-mail: [email protected]

July 1, 2020 Federal Comm unications Commission Subject: FCC ID: Request for Confidentiality A3LSMT970 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0. 457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematics Block Diagram Operational Description Antenna Specification Parts List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marke ting regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and such information will be available for public review once the grant of equipment authorization is issued. Best Regards Ms. Jenni Chun General Manager Regulatory & Environmental Affairs Samsung Elec tronics CO. LTD TEL: +1-973-808-6375 E-mail: [email protected]

Samsung Electronics Co., LTD. 129, Samsu ng -ro , Yeongtong-gu Suwon-City, Gyeonggi-do, 16677, Korea Date: July 1, 2020 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. UL Verification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA FCC ID: A3LSMT970 To whom it may concern: I, the undersigned, hereby authoriz Andrea Hsia / Supervisor of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan) of Taiwan to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Andrea Hsia / Supervisor of BV CPS Taoyuan on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing BV CPS Taoyuan as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Jenni Chun, General Manager Regulatory & Environmental Affairs Samsung Electronics America, Inc

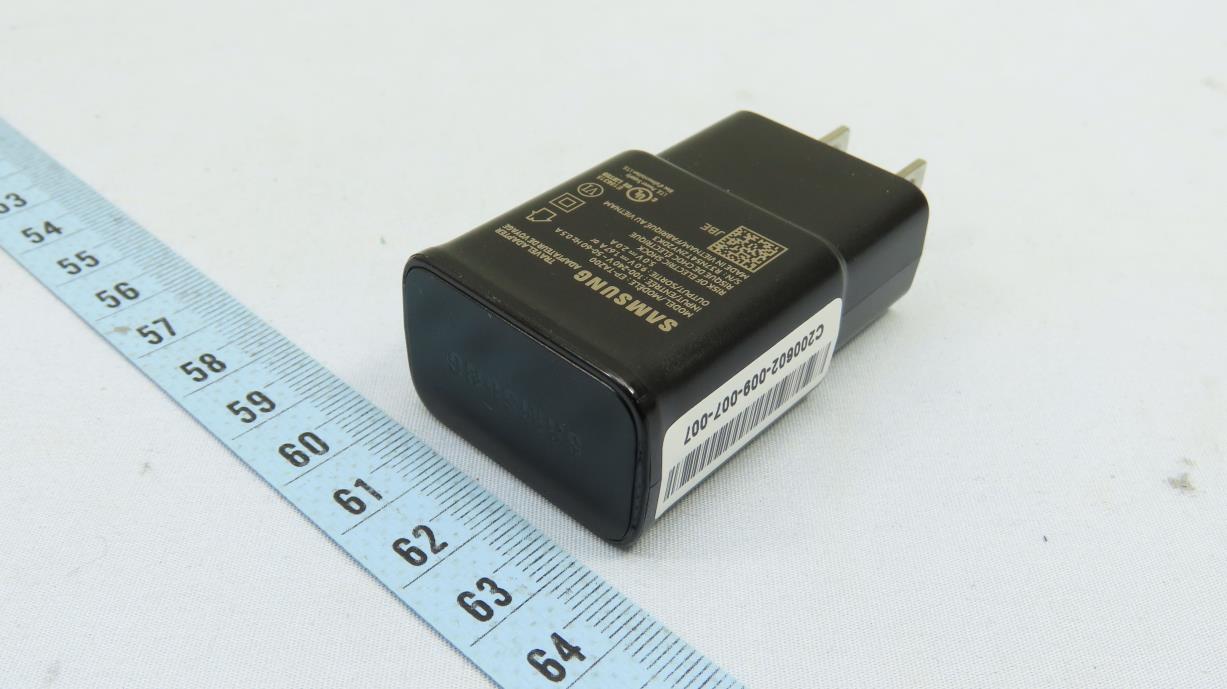

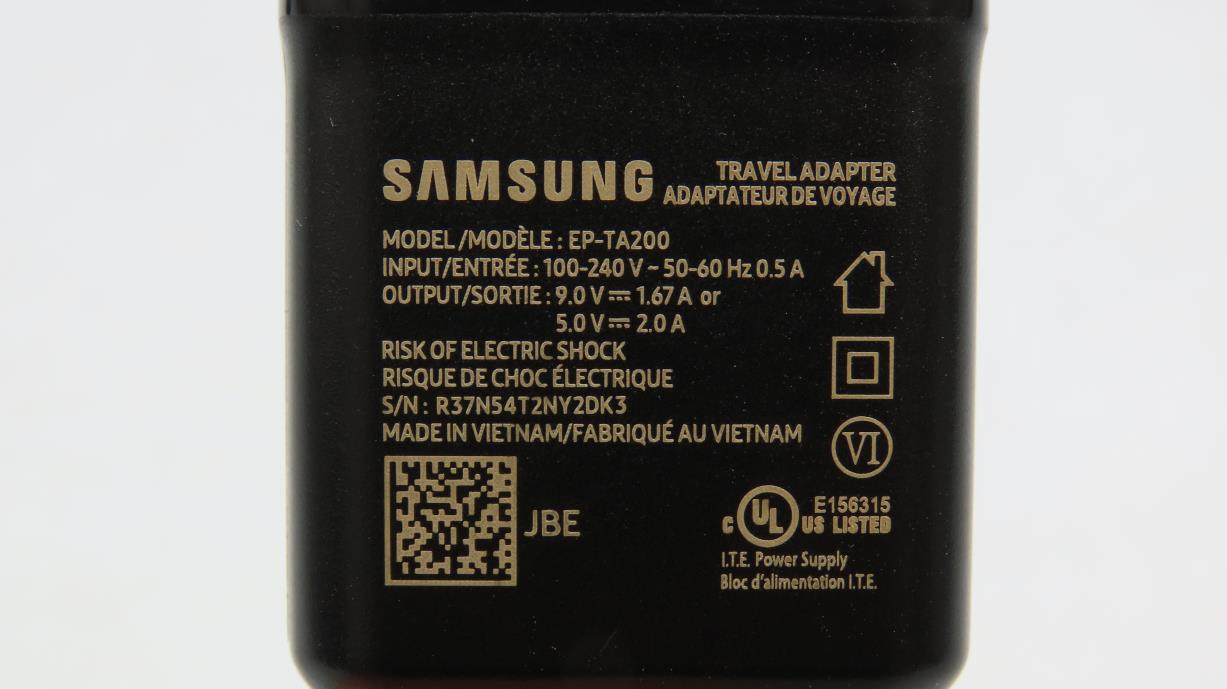

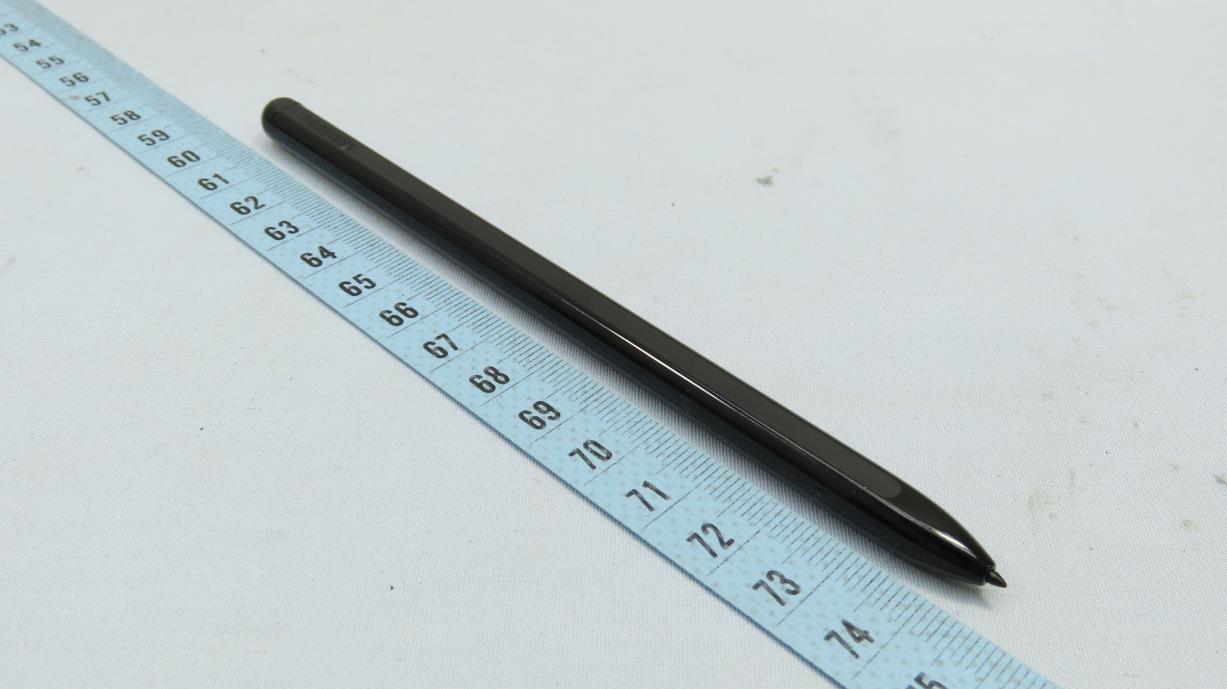

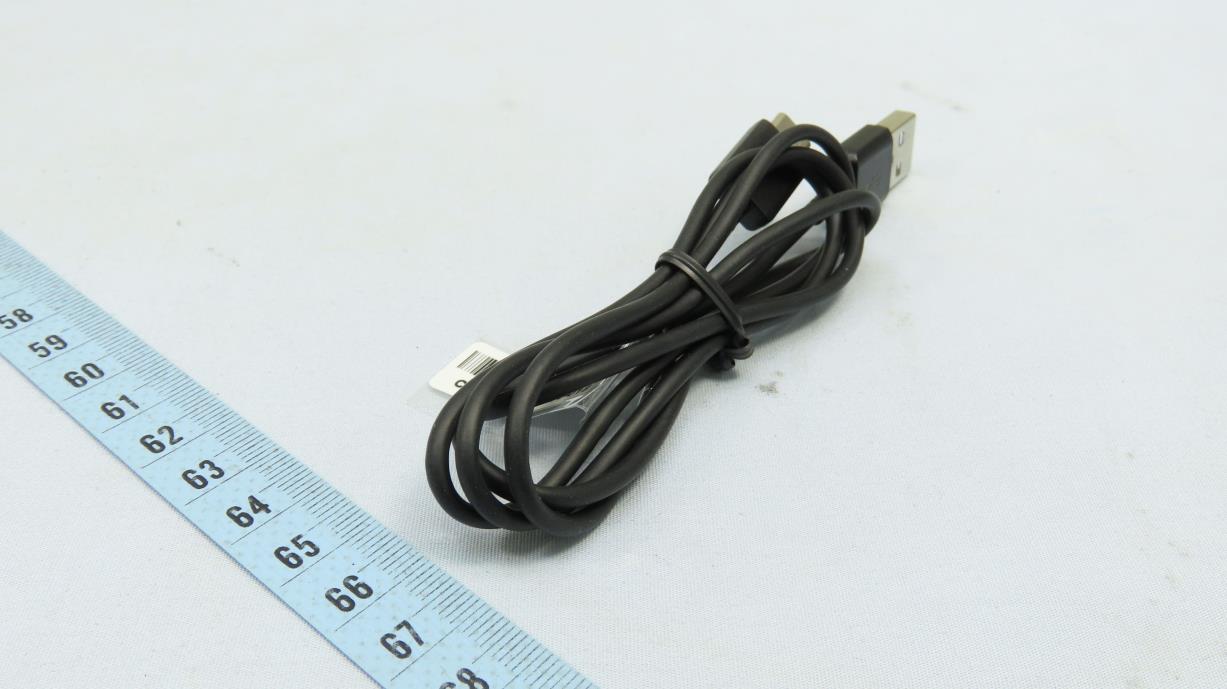

Report No.: 200609C06 : 1 of 9 CONSTRUCTION PHOTOS OF EUT Brand: Samsung / Model: SM-T970 Report No.: 200609C06 : 2 of 9 Report No.: 200609C06 : 3 of 9 Report No.: 200609C06 : 4 of 9 Report No.: 200609C06 : 5 of 9 Report No.: 200609C06 : 6 of 9 Report No.: 200609C06 : 7 of 9 Report No.: 200609C06 : 8 of 9 Report No.: 200609C06 : 9 of 9

SM-T970 Internal Photos -FCC ID : A3LSMT970 -IC : 649E-SMT970 WIFI1/BT/GPS WIFI2/BT This is PCB attached to LCD to drive LCD. It is not related to RF.

SAR Test Report Report Format Version 5.0.0 Page No. : 1 of 45 Report No. : SF200609C06 Issued Date : Jul. 01, 2020 SAR Test Report Report No. : SF200609C06 Applicant : SAMSUNG ELECTRONICS CO. LTD. Address : 129 Samsung-ro, Yeongtong-gu, Suwon-Si Gyeonggi-do 16677 Korea (Republic Of) Product : Tablet FCC ID : A3LSMT970 Brand : Samsung Model No. : SM-T970 Standards : FCC 47 CFR Part 2 (2.1093), IEEE C95.1:1992, IEEE Std 1528:2013 KDB 865664 D01 v01r04, KDB 865664 D02 v01r02 KDB 248227 D01 v02r02 , KDB 447498 D01 v06, KDB 616217 D04 v01r02 Sample Received Date : Jun. 09, 2020 Date of Testing : Jun. 10, 2020 ~ Jul. 01, 2020 Lab Address : No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan Test Location : No. 19, Hwa Ya 2nd Rd., Wen Hwa Vil., Kwei Shan Dist., Taoyuan City, Taiwan CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch–Lin Kou Laboratories, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. Prepared By : Vera Huang / Specialist Approved By : Gordon Lin / Manager IC Site Registration No. : 7450F This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. SAR Test Report Report Format Version 5.0.0 Page No. : 2 of 45 Report No. : SF200609C06 Issued Date : Jul. 01, 2020 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Summary of Maximum SAR Value ....................................................................................................................................... 4 2. Description of Equipment Under Test ................................................................................................................................. 5 3. SAR Measurement System ................................................................................................................................................... 6 3.1 Definition of Specific Absorption Rate (SAR) ............................................................................................................... 6 3.2 SPEAG DASY6 System ............................................................................................................................................... 6 3.2.1 Robot.................................................................................................................................................................. 7 3.2.2 Probes ................................................................................................................................................................ 8 3.2.3 Data Acquisition Electronics (DAE) .................................................................................................................... 8 3.2.4 Phantoms ........................................................................................................................................................... 8 3.2.5 Device Holder ..................................................................................................................................................... 9 3.2.6 System Validation Dipoles ................................................................................................................................ 10 3.2.7 Power Source ................................................................................................................................................... 10 3.2.8 Tissue Simulating Liquids ................................................................................................................................. 11 3.3 SAR System Verification ............................................................................................................................................ 13 3.4 SAR Measurement Procedure ................................................................................................................................... 14 3 .4.1 Area Scan and Zoom Scan Procedure ............................................................................................................. 14 3.4.2 Volume Scan Procedure.......................................................................................................................…

Text truncated - open the document above for the full version.

Report No.: RF200511K004‐6 R2 Page: 2 of 477 Report Format Version: BV‐FRFTF‐01‐002 RELEASE CONTROL RECORD REPORT NO. REASON FOR CHANGE DATE ISSUED RF200511K004‐6 Original release 2020.07.01 RF200511K004‐6 R1 Corrected the regarding distance extrapolation factor and added statement regarding the worst case of band edge 2020.07.15 RF200511K004‐6 R2 Added data converted to magnetic field strength 2020.07.16 Report No.: RF200511K004‐6 R2 Page: 3 of 477 Report Format Version: BV‐FRFTF‐01‐002 Table of Contents RELEASE CONTROL RECORD .......................................................................................................................................... 2 1 SUMMARY OF TEST RESULTS ................................................................................................................................... 5 1.1 I NTRODUCTION OF TEST DATA REUSE ................................................................................................................................................ 6 1.2 D IFFERENCE ............................................................................................................................................................................................ 6 1.3 S POT CHECK VERIFICATION RESULTS .................................................................................................................................................. 6 1.4 R EFERENCE DETAILS .............................................................................................................................................................................. 7 1.5 M EASUREMENT UNCERTAINTY ............................................................................................................................................................ 7 2 GENERAL INFORMATION .......................................................................................................................................... 8 2.1 G ENERAL DESCRIPTION OF EUT ......................................................................................................................................................... 8 2.2 D ESCRIPTION OF TEST MODE .......................................................................................................................................................... 12 2.2.1 Test Mode Applicability and Tested Channel Details ........................................................................................... 13 2.3 M AXIMUM OUTPUT POWER ............................................................................................................................................................. 16 2.4 D UTY CYCLE OF TEST SIGNAL .......................................................................................................................................................... 17 2.5 26 DB AND 99 % BANDWIDTH ....................................................................................................................................................... 24 2.6 G ENERAL DESCRIPTION OF APPLIED STANDARDS .......................................................................................................................... 75 2.7 T EST EQUIPMENT ............................................................................................................................................................................... 76 3 TEST RESULTS ............................................................................................................................................................ 77 3.1 A NTENNA REQUIREMENT .................................................................................................................................................................. 77 3.2 6 DB BANDWIDTH ............................................................................................................................................................................. 78 3.2.1 Regulation ............................................................................................................................................................................... 78 3.2.2 Test Procedure ...................................................................................................................................................................... 78 3.2.3 Deviation from Test Standard ......................................................................................................................................... 78 3.2.4 Test Setup ............................................................................................................................................................................... 78 3.2.5 Test Result ............................................................................................................................................................................... 79 3.3 M AXIMUM CONDUCTED OUTPUT POWER ..................................................................................................................................... 84 3.3.1 Regulation ............................................................................................................................................................................... 84 3.3.2 Test Procedure ...........…

Text truncated - open the document above for the full version.
