A3LSONYKAISERDVD Player/ Video Cassette Recorder

filename[GB01COV-US.fm] model name1[SLV-D550P] model name2 [SLV-D350P] [3-091-712-11 (1) US] filename[C:\3091712111SLVD550PUS\GB01COV-US.fm] 3-091-712-11 (1) US DVD Player/ Video Cassette Recorder Operating Instructions For customers in the USA If you have any questions about your Sony DVD-VCR, you may call Sony Customer Information Services Company at 1-800-VHS-SONY (847-7669). For all other Sony product questions, please call Sony Customer Information Services Company at 1-800-222-SONY (7669). Or write to: Sony Customer Information Services Company 12451 Gateway Boulevard Ft. Myers, FL 33913 For Customers in Canada If this product is not working properly, please call 1-877-602-2008 for Peace of Mind Warranty Replacement service. For other product related questions please contact our Customer Information Service Center at 1-877-899-7669 or write to us at: Customer Information Service 115 Gordon Baker Road, Toronto, Ontario, M2H 3R6 SLV-D550P SLV-D350P © 2004 Sony Corporation GB03COV-US.book Page 1 Wednesday, January 14, 2004 10:27 AM filename[GB02WAR-US.fm] model name1[SLV-D550P] model name2 [SLV-D350P] [3-091-712-11 (1) US] 2 WARNING filename[C:\3091712111SLVD550PUS\GB02WAR-US.fm] WARNING To prevent fire or shock hazard, do not expose the unit to rain or moisture. To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus. CAUTION The use of optical instruments with this product will increase eye hazard. As the laser beam used in this DVD player is harmful to eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personnel only. USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. CAUTION TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. For customers in the U.S.A Owner’s Record The model and serial numbers are located at the rear of the unit. Record the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product. Model No. ______________ Serial No.______________ CAUTION You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. Note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. Welcome! Thank you for purchasing this Sony DVD Player/Video Cassette Recorder. Before operating this player, please read this manual thoroughly and retain it for future reference. General Precautions • Operate the unit only on 120 V AC, 60 Hz. • This unit is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the unit itself has been turned off. • Unplug the unit from the wall outlet if you do not intend to use it for an extended period of time. To disconnect the cord, pull it out by the plug, never by the cord. • If the unit is brought directly from a cold to a warm location, moisture may condense inside the unit and cause damage to the video head and tape. When you first install the unit, or when you move it from a cold to a warm location, wait for about three hours before operating the unit. • Do not install the unit in a confined space such as a book or similar unit. • Do not install the unit in an inclined position. It is designed to be operated in a horizontal position only. • Keep the unit and cassettes away from equipment with strong magnets, such as microwave ovens or large loudspeakers. • Do not place heavy objects on the unit. GB03COV-US.book Page 2 Wednesday, January 14, 2004 10:27 AM 3 Important Safety Instructions filename[GB02WAR-US.fm] model name1[SLV-D550P] model name2 [SLV-D350P] [3-091-712-11 (1) US] filename[C:\3091712111SLVD550PUS\GB02WAR-US.fm] Important Safety Instructions 1 Read these instructions. 2 Keep these instructions. 3 Heed all warnings. 4 Follow all instructions. 5 Do not use this apparatus near water. 6 Clean only with dry cloth. 7 Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8 Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9 Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the…

Text truncated - open the document above for the full version.

65 Audio Setup DVD Settings and Adjustments filename[GB08SET-US.fm] model name1[SLV-D550P] model name2 [SLV-D350P] [3-091-712-11 (1) US] filename[C:\3091712111SLVD550PUS\GB08SET-US.fm] DVD Settings and Adjustments Audio Setup “Audio Setup” allows you to set the sound according to the playback and connection conditions. 1 Press SET UP when the DVD player is in stop mode, then press V/v/B/b to select (DVD), then press ENTER. 2 Press V/v to select “Audio Setup,” then press ENTER. 3 Press V/v to select the setup item from the displayed list: “Dolby Digital,” “DTS” or “Audio DRC.” V/v/B/b ENTER SET UP Language Setup Screen Setup Parental Setup: Audio Setup RETURN DVD SETUP SET UP ENTER V v Dolby Digital DTS Audio DRC RETURN AUDIO SETUP SET UP v V b B [ Off ] [ Wide RANGE ] [ D-PCM ] continued GB03COV-US.book Page 65 Wednesday, January 14, 2004 10:27 AM 66 Audio Setup filename[GB08SET-US.fm] model name1[SLV-D550P] model name2 [SLV-D350P] [3-091-712-11 (1) US] filename[C:\3091712111SLVD550PUS\GB08SET-US.fm] Menu choices • Dolby Digital Selects the type of Dolby Digital signal. The default setting is indicated in bold print. •DTS Selects whether or not to output DTS signals. The default setting is indicated in bold print. • Audio DRC (Dynamic Range Control) Makes the sound clear when the volume is turned down when playing a DVD that conforms to “Audio DRC.” This affects the output from the following jacks: – LINE OUT AUDIO L/R jacks – DIGITAL AUDIO OUT (OPTICAL or COAXIAL) jack only when “Dolby Digital” is set to “D-PCM”. The default setting is indicated in bold print. Notes • If you select the surround setting while playing a DVD, the player does not output Dolby Digital signals from the DIGITAL AUDIO OUT (OPTICAL or COAXIAL) jack (when you set “Dolby Digital” to “D-PCM” in “AUDIO SETUP” menu). • If you connect a component that does not conform to the selected audio signal, a loud noise (or no sound) will come out from the speakers, affecting your ears or causing the speakers to be damaged. 4 Press B/b to select an item. 5 Press SET UP to exit the menu. D-PCMSelect this when the player is connected to an audio component lacking a built-in Dolby Digital decoder. Dolby DigitalSelect this when the player is connected to an audio component with a built-in Dolby Digital decoder. OffSelect this when the player is connected to an audio component lacking a built-in DTS decoder. OnSelect this when the player is connected to an audio component with a built-in DTS decoder. Wide RANGEGives you the feeling of being at alive performance. TV ModeMakes the low sounds clear even if you turn the volume down. GB03COV-US.book Page 66 Wednesday, January 14, 2004 10:27 AM 67 Screen Setup DVD Settings and Adjustments filename[GB08SET-US.fm] model name1[SLV-D550P] model name2 [SLV-D350P] [3-091-712-11 (1) US] filename[C:\3091712111SLVD550PUS\GB08SET-US.fm] Screen Setup “Screen Setup” allows you to set the screen according to the playback and connection conditions. 1 Press SET UP when the DVD player is in stop mode, then press V/v/B/b to select (DVD), then press ENTER. 2 Press V/v to select “Screen Setup,” then press ENTER. 3 Press V/v to select the setup item from the displayed list: “TV Type,” or “Black Level.” To set the “Progressive” setting, see page 69. V/v/B/b ENTER SET UP O RETURN Language Setup Screen Setup Parental Setup: Audio Setup RETURN DVD SETUP SET UP ENTER V v Black Level TV Type Progressive RETURN SCREEN SETUP SET UP v V b B [ Off ] [ Off ] [ 4:3 Letter Box ] continued GB03COV-US.book Page 67 Wednesday, January 14, 2004 10:27 AM 68 Screen Setup filename[GB08SET-US.fm] model name1[SLV-D550P] model name2 [SLV-D350P] [3-091-712-11 (1) US] filename[C:\3091712111SLVD550PUS\GB08SET-US.fm] Menu choices • TV Type Selects the aspect ratio of the connected TV (4:3 standard or wide). The default setting is indicated in bold print. •Black Level You can enhance the black level by increasing the brightness and contrast when viewing DVDs with the PROGRESSIVE indicator turned off. The default setting is indicated in bold print. Notes • Playback settings stored in the disc take priority over the “DVD SETUP” menu settings and not all the functions described may work. • Depending on the DVD, “4:3 Letter Box” may be selected automatically instead of “4:3 Pan Scan” or vice versa. 4 Press B/b to select an item. 5 Press SET UP to exit the menu. 4:3 Letter BoxSelect this when you connect a 4:3 screen TV. Displays a wide picture with bands on the upper and lower portions of the screen. 4:3 Pan ScanSelect this when you connect a 4:3 screen TV. Automatically displays the wide picture on the entire screen and cuts off the portions that do not fit. 16:9Select this when you connect a wide-screen TV or a TV with a wide mode function. OffStops the increase of the contrast. OnIncreases the contrast. 4:3 Pan Scan4:3 Letter Box16:9 GB03COV-US.book Page 68 Wednesday, January 14, 2004 10:27 AM 69 Screen Setup DVD Settings and Adjustments filename[GB08SET-US.fm] model name1[SLV-D550P] model name2 [SLV-D350P] [3-091-712-11 (1) US] filename[C:\3091712111SLVD550PUS\GB08SET-US.fm] To set the “Progressive” setting If your TV accepts progressive (525p) format signals, you will enjoy accurate color reproduction and high quality image. 1 Follow step 1 and 2 on page 67, then press V/v to select “Progressive.” 2 Press B/b to select “On,” then press ENTER. 3 Follow the instructions appearing on the screen. 1Ensure your TV is (525p) Progressive Scan capable. 2Connect with Component Video Output jacks (red/green/blue connections). See “Use this hookup if your TV has component video input jacks” on page 64. 3Press B/b to select [OK] to test your video signal. 4 If video signal appears OK, video connection is complete. Press ENTER. The PROGRESSIVE indicator on the unit lights up in orange. If picture is distorted, press O RETURN. Check the connection (page 64). 5 Press SET UP to exit the menu. Black Level TV Type Progressive RETURN SCREEN SETUP SET UP v…

Text truncated - open the document above for the full version.

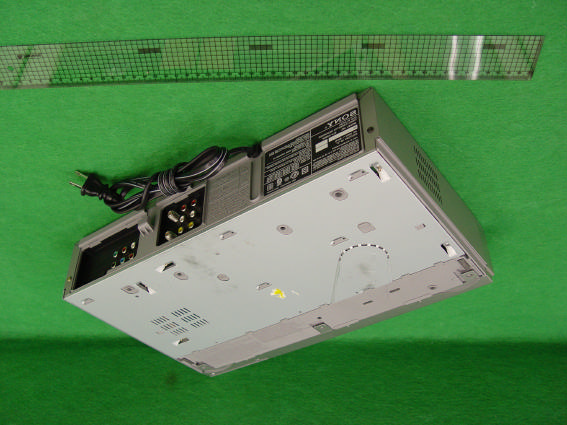

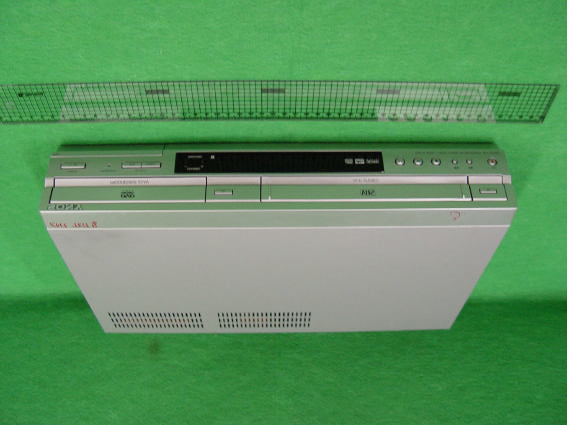

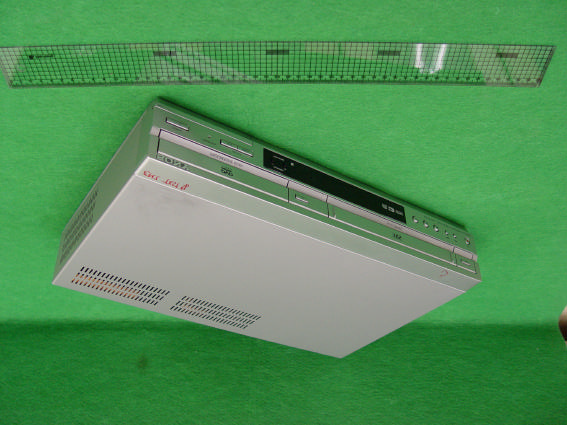

Photograph of SLV-D550P - FCC ID : A3LSONYKAISER [Front View] [Rear View] [Top View] [Bottom View] [Top/Front/Side View] [Bottom/Rear/Side View]

Location of Rating Label Zoom In

[Front View – Front/Top cover open] [Top View – Top cover open] [Top of PCB View] [Bottom of PCB View] Photograph of TM-BLOCK - Type name : VHA35ASE [Top View] [Bottom View]

“” “” ““ ’

Page : 1 of 44 Samsung EMC Testing and Certification LaboratoryProject No. : LBE040217 Applicant FCC ID Product Name Model Name Manufacturer Brand Name Variant Model Name/Position Kyung Chul, Min Test Engineer No Cheon, Park Manager of EMC Lab Kyu Baek, Chung Chief of EMC Lab. Address Telephone No. Fax No. This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory 416 Maetan-3 Dong, Yeongtong-Ku, Suwon City, Kyungki-Do,Korea, 442-742 82-31-200-2135 82-31-200-2189 1. This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. 2. This test report is to certify that the tested device properly complies with the requirements of FCC Rules and Regulations Part 15 Subpart B Unintentional Radiators.All tests necessary to show compliance to the requirements were and these results met the specifications requirement. This laboratory is registered by the NIST/NVLAP, U.S.A. The test reported herein have been performed in accordance with its terms of registration. SAMSUNG ELECTRONICS Co., Ltd. SUWON EMC Test Lab. Reviewed by Authorized by Result Passed The equipment under test has found to be compliant with the applied standards. Signature Tested by See Page 2 Issued Date 9-Feb-04 Applied StandardsFCC Part 15 Subpart B Date of Tests February 06 ~ 09 , 2004 Samsung Electronics Co.Ltd 416 Maetan-3 Dong, Yeongtong-Ku, Suwon City, Gyeonggi-Do, Korea, 442-742 A3LSONYKAISER DVD COMBO SLV-D550P SAMSUNG SONY EMC Test Report Project No. LBE040217 Equipment under Test NVLAP LAB CODE Page : 2 of 44 Samsung EMC Testing and Certification Laboratory 1. General Information 1.1 Basic Information related Product 1.2 Power Input Ports DescriptionVoltage(V)Frequency(Hz)No of phases Mains Cable120V60Hz1 1.3 EUT & Support Equipment MarkItemModel No.Serial No.ManufacturerRemark ADVD COMBOSLV-D550P-SAMSUNGEUT BRemote Controller--SAMSUNGEUT This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory Used EUT and Peripherals Manufacturer SAMSUNG Variant Models SLV-D350P, SLV-D251P Type of RF Output Connector Type "F" Connector 75 ohm(Unbalanced) FCC ID Number CH. 3 Operating (RF Modulator) Frequency Model name SLV-D550P Brand Name SONY Applicant SAMSUNG Product name DVD COMBO A3LSONYKAISER Visual Carrier : 61.25 MHz Aural Carrier : 65.75 MHz CH. 4 Visual Carrier : 67.25 MHz Aural Carrier : 71.75 MHz Page : 3 of 44 Samsung EMC Testing and Certification Laboratory This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory Page : 4 of 44 Samsung EMC Testing and Certification Laboratory Project No. : LBE040217 1.4 Operating Mode and Conditions The EUT was tested in the following operating modes(at both channel 3 and 4) for the tests mention in this report : 1) Recording ( NTSC Signal ) A NTSC signal(Color bar) was supplied at ch.5(77.25MHz) through the ant. Input connector for recording. 2) Recording ( 1V VITS Signal ) A 1V peak-to-peak VITS signal was supplied through the video input connector for recording. 3) Recording ( 5V VITS Signal ) A 5V peak-to-peak VITS signal was supplied through the video input connector for recording. 4) VCR Play In this test mode, a video tape recorded with VITS signal was played on the EUT. 5) Play mode [ DVD Play] Note: The NTSC TV signal input record mode is not applicable to the antenna transfer switch test. 1.5 Block Diagram This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory A B Page : 5 of 44 Samsung EMC Testing and Certification Laboratory Project No. : LBE040217 1.6 Test Facility The EMI/EMS measurement facilities used to collect the tested data are located at 416 Maetan 3 Dong, Yeongtong-Ku, Suwon City, Gyeonggi-Do, Korea. This sites are constructed in conformance with the requirements of ANSI C63.4 and CISPR 16-1 & 16-2. SAMSUNG Electronics Co.,Ltd is accredited by Korea Laboratory Accreditation scheme(KOLAS) which . signed the International Laboratory Accreditation Cooperation(ILAC) Mutual Recognition Arrangement (MRA) for the above test item(s) and test method(S) This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory General Information Accreditation and Listing LAB CODE 200623-0 R-1221,C-1095 No.195 Reg. No.98856 Reg. No. KR0004 App. No.001 H9354285 Reg. No. 124 Page : 6 of 44 Samsung EMC Testing and Certification Laboratory Project No. : LBE040217 1.7 Applied Standards List This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory - - FCC Rule Part(s)Test Procedure(s) FCC Part 15 Subpart BANSI C63.4-2001 Page : 7 of 44 Samsung EMC Testing and Certification Laboratory Project No. : LBE040217 2. Summary of Test Results Result : Pass The equipment under test(EUT) has been found to comply with the applied standards Test MethodApplied StandardResult AC Powerline Conducted Emission MeasurementFCC Part 15 Subpart BComplied Radiated Emission MeasurementFCC Part 15 Subpart BComplied Output Signal Level MeasurementFCC Part 15 Subpart BComplied Output Terminal Conducted Spurious Emission Measurement FCC Part 15 Subpart BComplied Antenna Transfer Switch MeasurementFCC Part 15 Subpart BComplied * N/A : Test not applicable This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory Page : 8 of 44 Samsung EMC Testing and Certification Laboratory Project No. : LBE040217 3. Description of Individual Tests 3.1 AC Powerline Conducted Emission Measurement Test Information Test Engineer Test Date Climate Condition Test Place Test Equipments EquipmentModel NameManufacturerSerial No.Next Cal. Date TEST RECEIVERESCS30R & S839809/00225-Jul-04 Spectrum AnalyzerE7405AAgilentUS4111027212-Jul-04 RF MatrixPSUR & S861206/024- LISNESH3-Z5R & S847265/02816-Jul-04 LISNESH3-Z5R & S10026116-Jul-04 Test SoftwareEP5/CETOYOVersion …

Text truncated - open the document above for the full version.

Page : 41 of 44 Samsung EMC Testing and Certification Laboratory Project No. : LBE040217 Test Setup Photos This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory AC Powerline Conducted Emission [Front] Radiated Emission [Front] Page : 42 of 44 Samsung EMC Testing and Certification Laboratory Project No. : LBE040217 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory Radiated Emission [Rear] RF Output Signal Level & Output Terminal Conducted Spurious Emission Page : 43 of 44 Samsung EMC Testing and Certification Laboratory Project No. : LBE040217 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory Antenna Transfer Switch
