A3LSPHA570Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA)

Samsung Electronics Co Ltd

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Jul 14, 2002
Application Purpose: Original Equipment
Date of Application: Jul 14, 2002
Equipment Note: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA)
Frequency Range: 1851.25000000 - 1908.75000000
Company: Samsung Electronics Co Ltd
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Attestation Statements

May 20, 2002 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Samsung Electronics Co., Ltd. FCC ID.: A3LSPHA570 Request for Confidentiality To Whom It May Concern: In accordance with 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests confidentiality for the Block Diagram, Schematics, Parts list, Tune-up Procedure, Operational and Circuit Description of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product, which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market.

Attestation Statements

February 4, 2002 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act as agent on behalf of all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.862. Sincerely, Wallace Oh Engineering Manager Samsun Electronics America May 20, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC E911 REQUIREMENTS PER §22.921 Gentlemen: Samsung Electronics Co., Ltd. hereby certifies that the analog cellular telephone (FCC ID: A3LSPHA570), using the Automatic A/B Roaming — Intelligent Retry method, meets the E911 requirements specified in Section 22.921 of the FCC Rules. This procedure recognizes when a “9-1-1” call is made and, at such time, will override any programming in the mobile unit that determines the handling of a non-911 call and permit the call to be handled by other analog carriers. Should you have any questions or comments concerning the above, please contact the undersigned. AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the Portable Cellular Telephone (FCC ID: A3LSPHA570) is so designed that it complies with all the requirements for ESN protection specified in Sec.22.919 of the FCC Rules. a) The transmitter in service has a unique ESN. b) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. c) The ESN is factory set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. May 20, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:Samsung Electronics Co., Ltd. FCC ID: A3LSPHA570 Users Manual RF Exposure Warning Statement Gentlemen: Samsung Electronics Co., Ltd., hereby confirms that the attached RF exposure warning page will be readily visible to the user, and will be placed at a prominent location in the users manual. If you have any further questions regarding this matter, please do not hesitate to contact me or PCTEST Lab at (410) 290-6652.

Cover Letter(s)

July 12, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SAMSUNG Electronics Co., Ltd. FCC ID: A3LSPHA570 Part 24/22 Certification Gentlemen: Submitted herewith, on behalf of SAMSUNG Electronics Co., Ltd., is an application for Part 24/22 Certification of the Tri-Mode Dual-Band Analog/PCS Phone. Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, E911 compliance statement, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: SAMSUNG Electronics Co., Ltd.

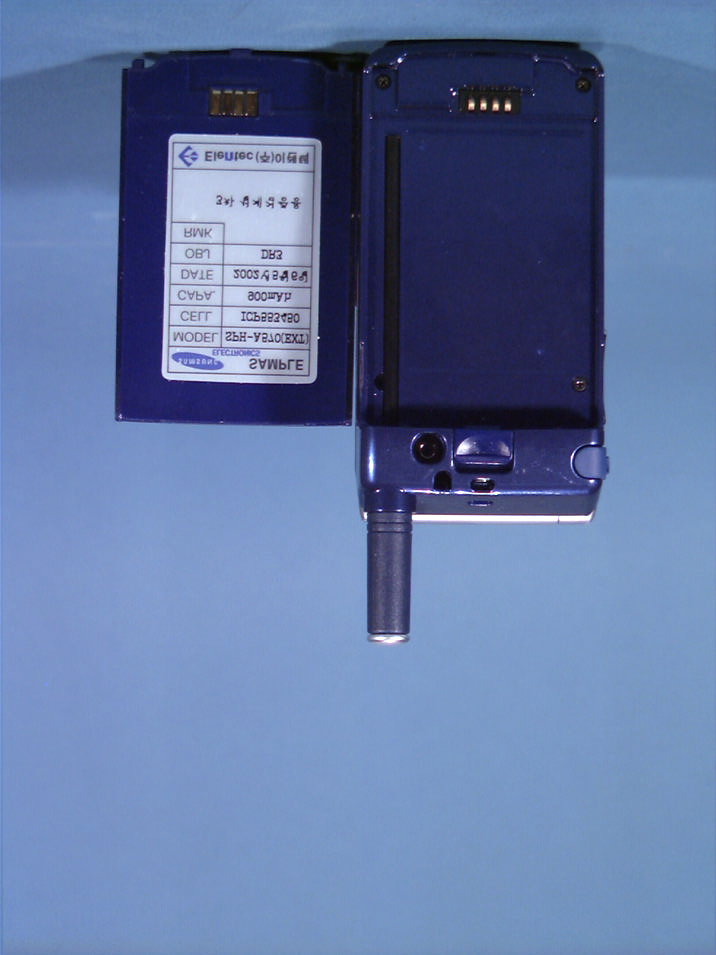

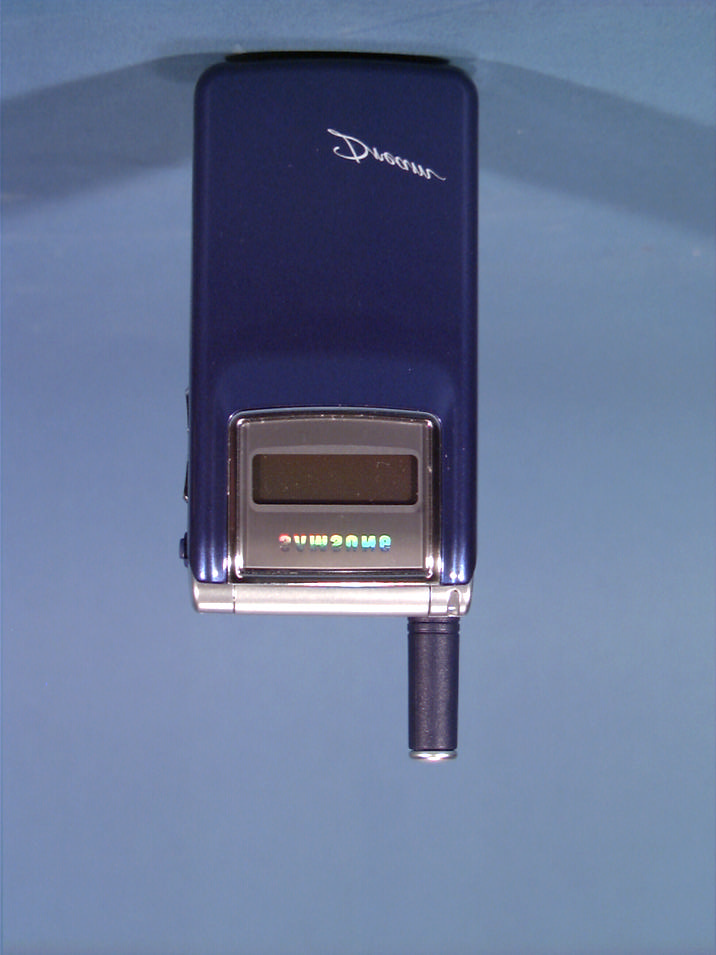

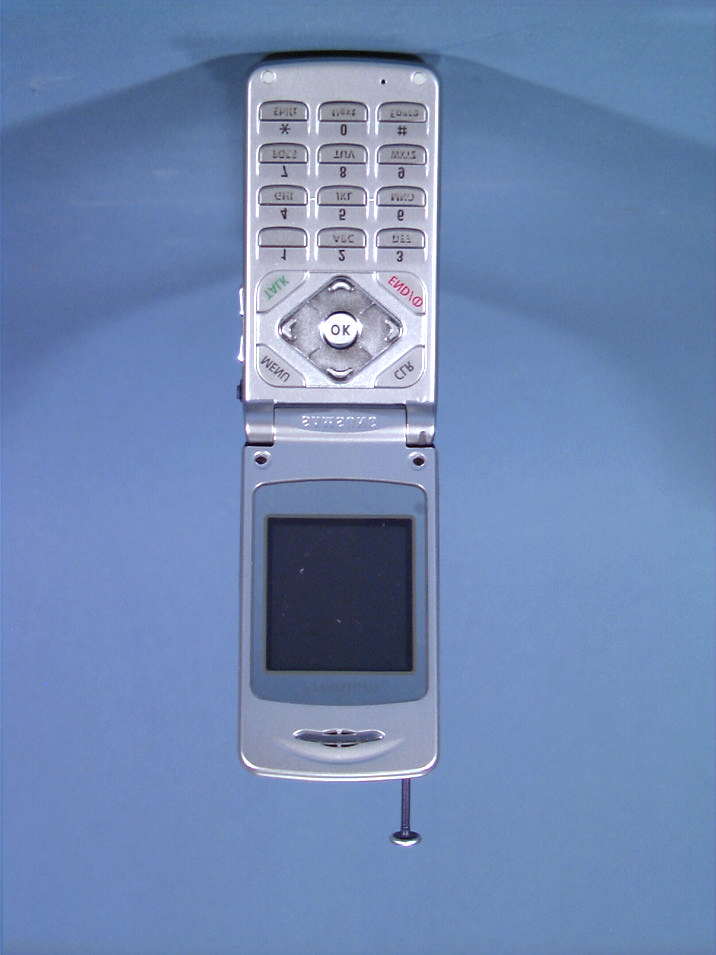

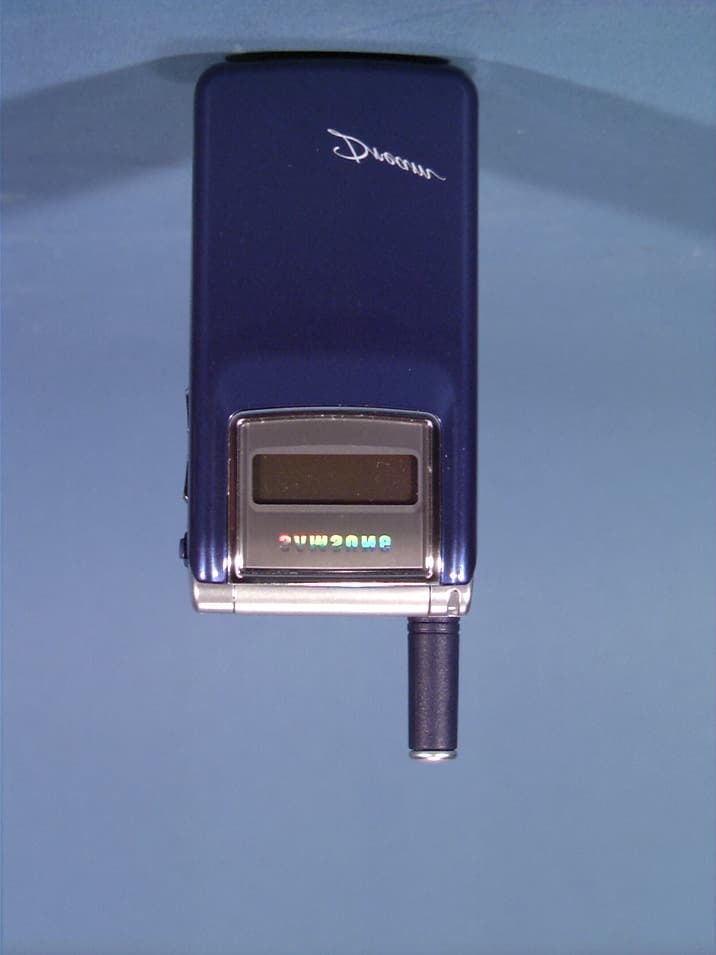

External Photos

ID Label/Location Info

© 2002PCTEST Lab SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) SAMSUNG ELECTRONICS CO., LTD. MODEL NO: SPH-A570 FCC ID: A3LSPHA570 MADE IN KOREA SAMSUNG ELECTRONICS CO., LTD

Internal Photos

© 2002 PCTEST Lab SAMSUNG FCC ID: A3LSPHA570 (Model: SPH-A570) Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSPHA570 (Model: SPH-A570) Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSPHA570 (Model: SPH-A570) Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSPHA570 (Model: SPH-A570) Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSPHA570 (Model: SPH-A570) Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSPHA570 (Model: SPH-A570) Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSPHA570 (Model: SPH-A570) Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSPHA570 (Model: SPH-A570) Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSPHA570 (Model: SPH-A570) Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSPHA570 (Model: SPH-A570) Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA)

RF Exposure Info

File: 02-04-2002.cal Date: 04-Feb-02 01:20:16 pm Probe Name: PCT002 Frequency:835 MHz Comment:PCTEST TEM CAL Amp 1 Setting: 20.000 Amp 2 Setting: 20.000 Amp 3 Setting: 20.000 0.0 0.2 0.4 0.6 0.8 1.0 1.2 050100150200250300350 Ch 0 Ch 1 Ch 2 Sum Degrees (x10) Voltage (in mV) File: 02-04-2002.cal2 Date: 04-Feb-02 03:18 :09 pm Probe Name: PCT002 Frequency:1900 MHz Comment:PCTEST TEM CAL Amp 1 Setting:20.000 Amp 2 Setting:20.000 Amp 3 Setting:20.000 0.0 0.2 0.4 0.6 0.8 1.0 1.2 050100150200250300350 Ch 0 Ch 1 Ch 2 Sum Degrees (x10) Voltage (in mV) Conversion Factor Assessment for IDX SAR Measurement System S/N: PCT002 835 MHz Brain ε r = 40.7 ± 5% σ = 0.89 ± 5% mho/m Conversion Factor = 5.8 ± 7% (k=2) 1900 MHz Brain ε r = 40.2 ± 5% σ = 1.41 ± 5% mho/m Conversion Factor = 4.7 ± 7% (k=2) Probe calibration 1900 MHz Brain (WG 1900) 0 1 2 3 4 5 6 7 8 0510152025303540 z in mm SAR in mW/cm^3 / W Analytical Measurements Probe Calibration 835 MHz Brain (WG 835) 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 0510152025303540 z in mm SAR in (mW/cm^3)/W Analytical Measurements

RF Exposure Info

PCTEST ENGINEERING LABORATORY, INC. 6660 — B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR TEST REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.220520253.A3L Test Dates: May 20 - 21, 2002 Phone Type: Tri-Mode Dual-Band FCC ID: A3LSPHA570 Page 1 of 33 © 2002 PCTEST Engineering Laboratory, Inc. APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: SAMSUNG ELECTRONICS CO., LTD. Dates of Tests: May 20 - 21, 2002 416 Maetan-3 Dong, Paldal-Ku Test Report S/N: SAR.220520253.A3L Suwon City Kyungki-Do 441-742, KOREA Test Site: PCTEST Lab, Columbia MD Attn: Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) FCC ID: A3LSPHA570 APPLICANT: SAMSUNG ELECTRONICS CO., LTD. EUT Type: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) Tx Frequency: 824.04 — 848.97 MHz (AMPS) / 824.70 — 848.31 MHz (CDMA) 1851.25 — 1908.75 MHz (PCS CDMA) Rx Frequency: 869.04 — 893.97 MHz (AMPS) / 869.70 — 893.31 MHz (CDMA) 1931.25 — 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.280 W ERP AMPS (24.473 dBm) / 26.5 dBm Conducted 0.208 W ERP CDMA (23.183 dBm) / 25.0 dBm Conducted 0.331 W EIRP PCS CDMA (25.201 dBm) / 25.0 dBm Conducted Max. SAR Measurement: 1.21W/kg AMPS Head SAR; 0.73W/kg AMPS Body SAR; 0.50W/kg CDMA Head SAR; 0.51W/kg CDMA Body SAR; 1.36W/kg PCS CDMA Head SAR; 0.38W/kg PCS CDMA Body SAR Trade Name/Model(s): SPH-A570 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: Identical prototype This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.4, July 2001). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 220520253.A3L PCTEST SAR TEST REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.220520253.A3L Test Dates: May 20 - 21, 2002 Phone Type: Tri-Mode Dual-Band FCC ID: A3LSPHA570 Page 2 of 33 © 2002 PCTEST Engineering Laboratory, Inc. 1. INTRODUCTION ................................................................................................... 3 SAR DEFINITION.................................................................................................... 3 2. SAR MEASUREMENT SETUP .................................................................................. 4 Robotic System ....................................................................................................... 4 System Hardware .................................................................................................... 4 System Electronics................................................................................................... 4 3. DASY3 E-FIELD PROBE SYSTEM............................................................................. 5 Probe Measurement System .................................................................................... 5 Probe Specifications................................................................................................ 5 4. Probe Calibration Process ....................................................................................... 6 Dosimetric Assessment Procedure........................................................................... 6 Free Space Assessment............................................................................................ 6 Temperature Assessment ......................................................................................... 6 5. PHANTOM & EQUIVALENT TISSUES .................................................................... 7 SAM Phantom ......................................................................................................... 7 Brain & Muscle Simulating Mixture Characterization .............................................. 7 Device Holder ........................................................................................................ 7 6. TEST SYSTEM SPECIFICATIONS ............................................................................. 8 Automated Test System Specifications..................................................................... 8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS .................................................. 9 Measurement Procedure ......................................................................................... 9 Specific Anthropomorphic Mannequin (SAM) Specifications .................................. 9 8. DEFINITION OF REFERENCE POINTS .................................................................. 10 EAR Reference Point ............................................................................................. 10 Handset Reference Points ..................................................................................... 10 9. TEST CONFIGURATION POSITIONS ................................................................... 11 Positioning for Cheek/Touch ................................................................................. 11 Positioning for Ear / 15° Tilt................................................................................... 12 Body Holster /Belt Clip Configurations.…

Text truncated - open the document above for the full version.

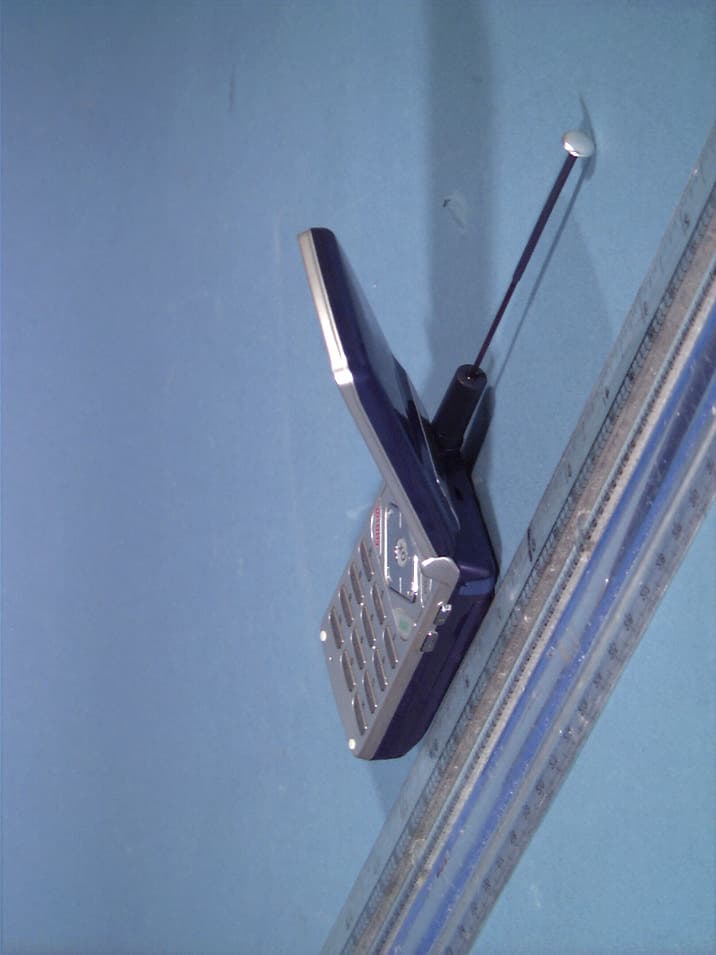

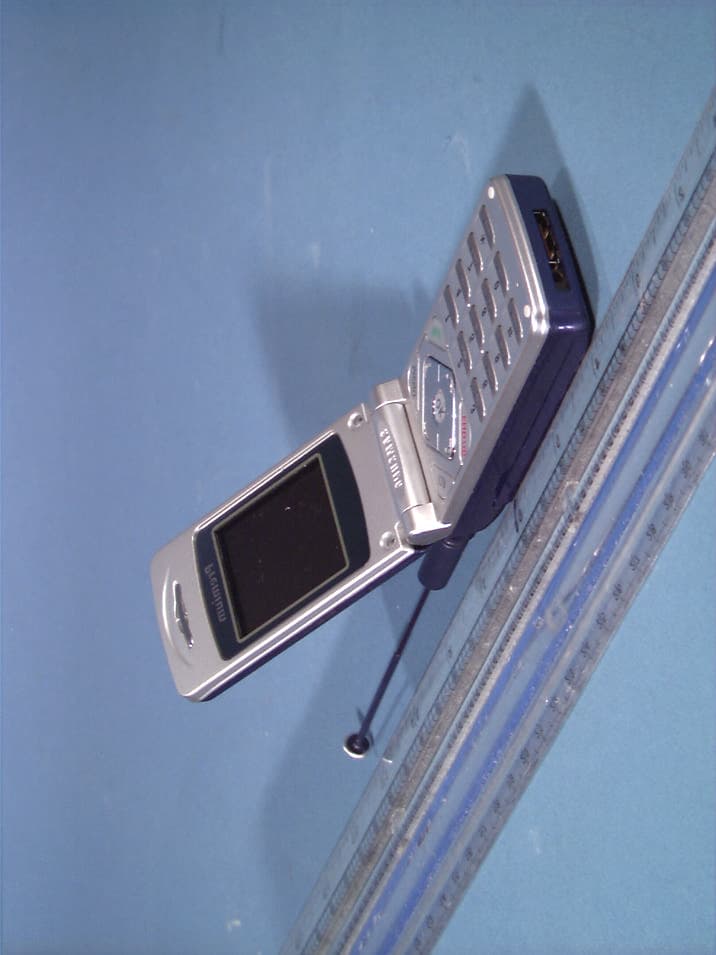

RF Exposure Info

SAR Data Report 02052042 Start : 20-May-02 04:53:00 pm End : 20-May-02 04:59:23 pm Code Version : 4.08 Robot Version: 4.08 Product Data: Type : SAMSUNG Model Number : SPH-A570 Serial Number : 3 Frequency : 824.04 MHz Transmit Pwr : 0.450 W Antenna Type : Helical Antenna Posn. : Out Measurement Data: Phantom Name : SAM-R Phantom Type : Right Ear Tissue Type : Brain Tissue Dielectric : 40.600 Tissue Conductivity : 0.910 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 835 MHz Tissue Type : Brain Calibrated Dielectric : 40.700 Calibrated Conductivity : 0.890 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 5.800 Probe Sensitivity : 3.597 3.474 3.049 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: AMPS MODE CH-991 CHEEK CF=1; Amb. Temp= 21.1 'C; Liq. Temp=20.9 'C Area Scan - Max Peak SAR Value at x=73.0 y=12.0 = 1.21 W/kg Zoom Scan - Max Peak SAR Value at x=71.0 y=12.0 z=0.0 = 1.77 W/kg Max 1g SAR at x=72.0 y=12.0 z=0.0 = 1.21 W/kg Max 10g SAR at x=74.0 y=12.0 z=0.0 = 0.75 W/kg 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:71.0 y:12.0 1g SAR Values 1.207 1.144 1.081 1.018 0.955 0.892 0.829 0.766 0.703 0.640 0.577 SAR Data Report 02052030 Start : 20-May-02 02:19:04 pm End : 20-May-02 02:28:47 pm Code Version : 4.08 Robot Version: 4.08 Product Data: Type : SAMSUNG Model Number : SPH-A570 Serial Number : 3 Frequency : 824.04 MHz Transmit Pwr : 0.450 W Antenna Type : Helical Antenna Posn. : Out Measurement Data: Phantom Name : SAM-L Phantom Type : Left Ear Tissue Type : Brain Tissue Dielectric : 40.600 Tissue Conductivity : 0.910 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 835 MHz Tissue Type : Brain Calibrated Dielectric : 40.700 Calibrated Conductivity : 0.890 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 5.800 Probe Sensitivity : 3.597 3.474 3.049 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: AMPS MODE CH-991 CHEEK CF=1; Amb. Temp= 21.1 'C; Liq. Temp=20.9 'C Area Scan - Max Peak SAR Value at x=73.0 y=5.0 = 1.09 W/kg Zoom Scan - Max Peak SAR Value at x=69.0 y=6.0 z=0.0 = 1.60 W/kg Max 1g SAR at x=73.0 y=6.0 z=0.0 = 1.13 W/kg Max 10g SAR at x=74.0 y=5.0 z=0.0 = 0.74 W/kg 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:69.0 y:6.0 1g SAR Values 1.127 1.068 1.010 0.952 0.894 0.835 0.777 0.719 0.661 0.602 0.544 SAR Data Report 02052049 Start : 20-May-02 05:58:18 pm End : 20-May-02 06:04:46 pm Code Version : 4.08 Robot Version: 4.08 Product Data: Type : SAMSUNG Model Number : SPH-A570 Serial Number : 3 Frequency : 824.04 MHz Transmit Pwr : 0.450 W Antenna Type : Helical Antenna Posn. : Out Measurement Data: Phantom Name : SAM-R Phantom Type : Right Ear Tissue Type : Brain Tissue Dielectric : 40.600 Tissue Conductivity : 0.910 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 835 MHz Tissue Type : Brain Calibrated Dielectric : 40.700 Calibrated Conductivity : 0.890 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 5.800 Probe Sensitivity : 3.597 3.474 3.049 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: AMPS MODE CH-991 TILT CF=1; Amb. Temp= 21.1 'C; Liq. Temp=20.9 'C Area Scan - Max Peak SAR Value at x=61.0 y=7.0 = 0.26 W/kg Zoom Scan - Max Peak SAR Value at x=69.0 y=7.0 z=0.0 = 0.38 W/kg Max 1g SAR at x=66.0 y=8.0 z=0.0 = 0.27 W/kg Max 10g SAR at x=62.0 y=8.0 z=0.0 = 0.20 W/kg 0.0 0.1 0.2 0.3 0.4 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:69.0 y:7.0 1g SAR Values 0.2723 0.2657 0.2590 0.2523 0.2456 0.2389 0.2322 0.2255 0.2188 0.2121 0.2054 SAR Data Report 02052037 Start : 20-May-02 03:49:24 pm End : 20-May-02 03:55:54 pm Code Version : 4.08 Robot Version: 4.08 Product Data: Type : SAMSUNG Model Number : SPH-A570 Serial Number : 3 Frequency : 824.04 MHz Transmit Pwr : 0.450 W Antenna Type : Helical Antenna Posn. : Out Measurement Data: Phantom Name : SAM-L Phantom Type : Left Ear Tissue Type : Brain Tissue Dielectric : 40.600 Tissue Conductivity : 0.910 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 835 MHz Tissue Type : Brain Calibrated Dielectric : 40.700 Calibrated Conductivity : 0.890 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 5.800 Probe Sensitivity : 3.597 3.474 3.049 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: AMPS MODE CH-991 TILT CF=1; Amb. Temp= 21.1 'C; Liq. Temp=20.9 'C Area Scan - Max Peak SAR Value at x=45.0 y=9.0 = 0.12 W/kg Zoom Scan - Max Peak SAR Value at x=36.0 y=11.0 z=0.0 = 0.21 W/kg Max 1g SAR at x=37.0 y=12.0 z=0.0 = 0.12 W/kg Max 10g SAR at x=45.0 y=11.0 z=0.0 = 0.09 W/kg 0.02 0.04 0.06 0.08 0.10 0.12 0.14 0.16 0.18 0.20 0.22 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:36.0 y:11.0 1g SAR Values 0.1237 0.1190 0.1142 0.1095 0.1048 0.1000 0.0953 0.0906 0.0858 0.0811 0.0764 SAR Data Report 02052041 Start : 20-May-02 04:44:10 pm End : 20-May-02 04:50:34 pm Code Version : 4.08 Robot Version: 4.08 Product Data: Type : SAMSUNG Model Number : SPH-A570 Serial Number : 3 Frequency : 824.70 MHz Transmit Pwr : 0.320 W Antenna Type : Helical Antenna Posn. : Out Measurement Data: Phantom Name : SAM-R Phantom Type : Right Ear Tissue Type : Brain Tissue Dielectric : 40.600 Tissue Conductivity : 0.910 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 835 MHz Tissue Type : Brain Calibrated Dielectric : 40.700 Calibrated Conductivity : 0.890 Calibrate…

Text truncated - open the document above for the full version.

RF Exposure Info

SAR Data Report 02041109 Start : 20-May-0 2 10:09:19 am End : 20-May-02 10 :20:57 am Code Version : 4.08 Robot Version: 4.08 Product Data: Type : Validation Frequency : 835 MHz Transmit Pwr : 0.250 W Antenna Type : Dipole Measurement Data: Phantom Name : SAM-FLAT Phantom Type : Uniphantom Tissue Type : Brain Tissue Dielectric : 40.600 Tissue Conductivity : 0.910 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 835 MHz Tissue Type : Brain Calibrated Dielectric : 40.700 Calibrated Conductivity : 0.890 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 5.800 Probe Sensitivity : 3.597 3.474 3.049 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: 835 MHz Validation CF=1; Amb. Temp= 21.3 'C; Liq. Temp=21.0 'C Area Scan - Max Peak SAR Value at x=4.0 y=-1.0 = 2.34 W/kg Zoom Scan - Max Peak SAR Value at x=4.0 y=-4.0 z=0.0 = 3.65 W/kg Max 1g SAR at x=4.0 y=-2.0 z=0.0 = 2.44 W/kg Max 10g SAR at x=4.0 y=-1.0 z=0.0 = 1.53 W/kg Validation Results at 0.25 W: Peak Nominal = 3.5, Error: 4.37 % 1g Nominal = 2.4, Error: 2.94 % 10g Nominal = 1.6, Error: -1.25 % 0 1 2 3 4 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:4.0 y:-4.0 1g SAR Values 2.44 2.30 2.15 2.00 1.85 1.70 1.55 1.40 1.25 1.10 0.95 SAR Data Report 02031519 Start : 20-May-02 09:51:38 am End : 20-May-02 10:02:17 am Code Version : 4.08 Robot Version: 4.08 Product Data: Type : Validation Frequency : 1900 MHz Transmit Pwr : 0.250 W Antenna Type : Dipole Measurement Data: Phantom Name : SAM-FLAT Phantom Type : Uniphantom Tissue Type : Brain Tissue Dielectric : 40.200 Tissue Conductivity : 1.390 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 1900 MHz Tissue Type : Brain Calibrated Dielectric : 40.200 Calibrated Conductivity : 1.410 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 4.700 Probe Sensitivity : 3.000 2.995 2.653 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: 1900 MHz Validation Amb. Temp= 22.5 'C; Liq. Temp=21.4 'C Area Scan - Max Peak SAR Value at x=1.0 y=-2.0 = 9.58 W/kg Zoom Scan - Max Peak SAR Value at x=1.0 y=-2.0 z=0.0 = 17.37 W/kg Max 1g SAR at x=1.0 y=-1.0 z=0.0 = 10.29 W/kg Max 10g SAR at x=1.0 y=-1.0 z=0.0 = 5.39 W/kg Validation Results at 0.25 W: Peak Nominal = 18.0, Error: -3.64 % 1g Nominal = 9.9, Error: 3.67 % 10g Nominal = 5.1, Error: 5.15 % 0 2 4 6 8 10 12 14 16 18 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:1.0 y:-2.0 1g SAR Values 10.29 9.37 8.44 7.52 6.60 5.67 4.75 3.83 2.90 1.98 1.06

Test Report

PCTEST Engineering Lab., Inc. SUBJECT:Modulation CharacteristicsTest Report No.:22/24.220520252.A3L FCC Part 24/22Test Date:05.20.2002 EUT:SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) Model:SPH-A570 FCC ID:A3LSPHA570 REFERENCE:1 kHz = 0 dB Modulation Limiting 0 2000 4000 6000 8000 10000 12000 14000 -35-30-25-20-15-10-50 Audio Input Level (dBV) Deviation (Hz) SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) FCC ID: A3LSPHA570 PCTEST Engineering Lab., Inc. SUBJECT:Modulation CharacteristicsTest Report No.:22/24.220520252.A3L FCC Part 24/22Test Date:05.20.2002 EUT:SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) Model:SPH-A570 FCC ID:A3LSPHA57 0 REFERENCE:1 kHz = 0 dB Frequency Response of Audio Low Pass Filter -90.0 -80.0 -70.0 -60.0 -50.0 -40.0 -30.0 -20.0 -10.0 0.0 10.0 FREQUENCY (Hz) LEVEL (dB) Relative to 1kHz 10k1k 100k SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) FCC ID: A3LSPHA570 PCTEST Engineering Lab., Inc. SUBJECT:Modulation CharacteristicsTest Report No.:22/24.220520252.A3L FCC Part 24/22Test Date:05.20.2002 EUT:SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) Model:SPH-A570 FCC ID:A3LSPHA57 0 REFERENCE:1 kHz = 0 dB Transmitter Audio Frequency Response -60.00 -50.00 -40.00 -30.00 -20.00 -10.00 0.00 10.00 20.00 FREQUENCY (Hz) LEVEL (dB) Relative to 1kHz 100 1k 10k 100k SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) FCC ID: A3LSPHA570

Test Report

PCTEST PT. 22/24 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22/24.220520252.A3L Test Dates: May 20-21, 2002 EUT Type: Tri-Mode Dual-Band Phone FCC ID: A3LSPHA570 Page 1 of 30 © 2002 PCTEST ENGINEERING LABORATORY, INC. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 & 22 Certification SAMSUNG ELECTRONICS CO., LTD. Dates of Tests: May 20-21, 2002 416 Maetan-3 Dong, Paldal-Ku Test Report S/N: 22/24.220520252.A3L Suwon City Kyungki-Do 441-742, KOREA Test Site: PCTEST Lab, Columbia MD Attn: Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) FCC ID A3LSPHA570 APPLICANT SAMSUNG ELECTRONICS CO., LTD. Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §24(E), §22(H), §22.901(d); §2 EUT Type: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) Model: SPH-A570 Tx Frequency Range: 824.04MHz — 848.97MHz (AMPS) / 824.70 — 848.31MHz (CDMA) 1851.25MHz — 1908.75MHz (PCS CDMA) Rx Frequency Range: 869.04MHz — 893.97MHz (AMPS) / 869.70 — 893.31MHz (CDMA) 1931.25MHz — 1988.75MHz (PCS CDMA) Max. RF Output Power: 0.280 W ERP AMPS (24.473 dBm) / 0.208 W ERP CDMA (23.183 dBm) 0.331 W EIRP PCS CDMA (25.201 dBm) Max. SAR Measurement: 1.210W/kg AMPS Head SAR; 0.730W/kg AMPS Body SAR; 0.500W/kg CDMA Head SAR; 0.510W/kg CDMA Body SAR; 1.360W/kg PCS CDMA Head SAR; 0.380W/kg PCS CDMA Body SAR Emission Designator(s): 40K0F8W / 40K0F1D (AMPS), 1M25F9W (CDMA) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 220520252.A3L PCTEST PT. 22/24 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22/24.220520252.A3L Test Dates: May 20-21, 2002 EUT Type: Tri-Mode Dual-Band Phone FCC ID: A3LSPHA570 Page 2 of 30 © 2002 PCTEST ENGINEERING LABORATORY, INC. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 3 2.1 INTRODUCTION 4 3.1 INSERTS 5 4.1 DESCRIPTION OF TESTS 6-10 5.1 EFFECTIVE RADIATED POWER OUTPUT 11-12 6.1 EQUIVALENT ISOTROPIC RADIATED POWER 13 7.1 RADIATED MEASUREMENTS 14-22 8.1 FREQUENCY STABILITY 23-26 9.1 PLOTS OF EMISSIONS 27 10.1 LIST OF TEST EQUIPMENT 28 11.1 SAMPLE CALCULATIONS 29 12.1 CONCLUSION 30 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: OPERATIONAL / CIRCUIT DESCRIPTION ATTACHMENT L: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT DATA ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS ATTACHMENT Q: DIPOLE VALIDATION ATTACHMENT R: PROBE CALIBRATION PCTEST PT. 22/24 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22/24.220520252.A3L Test Dates: May 20-21, 2002 EUT Type: Tri-Mode Dual-Band Phone FCC ID: A3LSPHA570 Page 3 of 30 © 2002 PCTEST ENGINEERING LABORATORY, INC. MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information Applicant Name: SAMSUNG ELECTRONICS CO., LTD. Address: 416 Maetan-3 Dong, Paldal-Ku Suwon City Kyungki-Do 441-742, KOREA Attention: Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) • FCC ID: A3LSPHA570 • Quantity: Quantity production is planned • Emission Designators: 40K0F8W / 40K0F1D (AMPS), 1M25F9W (CDMA) • Tx F…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Jenni Chun(General Manager)

[email protected]973-808-6375Fax: 973-808-6361

Technical Contact

PCTEST Engineering Lab., Inc.Randy Ortanez

[email protected]410-290-6652

6660-B Dobbin Road · Columbia, Maryland · United States

Non-Technical Contact

PCTEST Engineering Lab., Inc.Randy Ortanez

[email protected]410-290-6652

Test Firm

PCTEST Engineering Laboratory, Inc.Randy Ortanez

[email protected]410-290-6652Fax: 410-290-6654

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
4	24E	1.85 GHz - 1.91 GHz	331.00 mW	1M25F9W	2.5 ppm

Confidentiality

Long Term

Grant Notes

Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body- worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. The highest reported SAR values under this FCC ID: are AMPS/CDMA modes (Part 22) � Head: 1.21 W/kg; Body-worn: 0.73 W/kg, PCS mode (Part 24) � Head: 1.36 W/kg; Body-worn: 0.38 W/kg
