A3LSPHI700Tri-Mode Dual-Band Analog/PCS PDA Phone AMPS/CDMA

Samsung Electronics Co Ltd

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Aug 25, 2002
Application Purpose: Original Equipment
Date of Application: Aug 25, 2002
Equipment Note: Tri-Mode Dual-Band Analog/PCS PDA Phone AMPS/CDMA
Frequency Range: 1851.25000000 - 1908.75000000
Company: Samsung Electronics Co Ltd
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

SPH-i700 User's Manual Please read this manual before operating the phone, and keep it for future reference. 2 Contents Safety Precautions..................................................3 Introduction to SPH-I700...........................................5 Layout....................................................................6 Tapping and Typing ................................................7 How To use Application...........................................8 Phone Application.................................................11 Another Applications..............................................12 Setting Preferences for Tour Phone...........................13 Installing ActiveSync...............................................14 For More Information..............................................15 For more information about RF exposure, please visit the FCC website at www.fcc.gov FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept 1.5 cm. from the body. To maintain compliance with FCC RF exposure requirements, use only belt-clips, holsters or similar accessories that maintain a 1.5 cm. separation distance between the user’s body and the back of the phone, including the antenna. The use of belt-clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. WARNING! Read this information before using your phone 3 Safety Precautions Compliance with Safety Standards The Samsung Cellular phone meets all standards and recommendations for the protection of the public from exposure to radio frequency(RF) electromagnetic energy established by governmental bodies and other qualified organizations. To reduce the risk of fire, electric shock, serious personal injury, or property damage, please follow these guidelines: Driving Using a wireless phone while driving is illegal in some states and countries. Know the laws and regulations for your area, and pull off the road and park if you need to make a call. If you must use the phone while driving, purchase and install the optional Hands- Free Car Kit. Electronic Devices Your wireless telephone is a radio transmitter and receiver. When the power is on, the phone receives and sends out RF energy. Most modern electronic equipment, such as equipment and cars, contains an RF signal shield. RF energy may affect some inadequately shielded electronic equipment. Turn off tour phone in health care facilities, and always request pacemakers and hearing aids, to determine if they are shielded adequately from external RF signals. Note if there are any regulations posted in area regarding the operation of wireless phones, and learn where you can use them safely within facility. Aircraft Turn off your phone before boarding any aircraft. The Federal Aviation Administration (FAA) requires that you have prior permission from the crew to use your phone while the plane is on the ground. FCC regulations prohibit using your phone is in the air. Do not use your phone at any time while traveling on board a plane. Blasting Areas Construction crews often use remote-control RF devices to set off explosives. To avoid interfering with blasting operation , turn off your phone when you are in a blasting area 4 or in any area with signs posted that read "Turn off two-way radio." Other Dangerous Areas Turn off your phone in any area with a potentially explosive atmosphere. It is rare, but your phone or its accessories could generate sparks, which could explosion or fire. * Fueling areas, such as gas stations * Below deck on boats * Furl or chemical transfer or storage facilities * Areas where the air contain chemicals or particles such as grain, dust, or metal powders * Any other area where you would normally be advised to turn off your vehicle engine Do not transport or store flammable gas, liquid, or explosives in the compartment of a vehicle containing your or accessories. FCC/IC Notice This device compiles with part 15 of the FCC rules. Operation is subject to the following two condition: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 5 Introduction to SPH-I700 The following features provide a range of user options that make the phone both fun and easy to use. Phone features : You can use advanced phone capabilities. PDA features : calander, contacts, Inbox, Internet Explorer, Notes, Tasks etc. Messaging feature : You can receive three kinds of messages - voicemail, text, e-mail. Data Capability : ActiveSync  technology to synchronize your phone and PC. Touch Screen Writing Recognition and On-Screen keyboard and PC input method 6 Layout The following picture shows the main elements of SPH-I700. Vo l u m e K eys Camera jog Camera Navigation buttons Touch Screen Record button Earphone jack Accessory connector IR Port Short : PDA Power On/Off Long : Radio Power On/Off Short : Backli…

Text truncated - open the document above for the full version.

Attestation Statements

July 18, 2002 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Samsung Electronics Co., Ltd. FCC ID.: A3LSPHI700 Request for Confidentiality To Whom It May Concern: In accordance with 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests confidentiality for the Block Diagram, Schematics, Parts list, Tune-up Procedure, Operational and Circuit Description of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product, which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market.

Attestation Statements

February 4, 2002 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act as agent on behalf of all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.862. Sincerely, Wallace Oh Engineering Manager Samsun Electronics America July 18, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC E911 REQUIREMENTS PER §22.921 Gentlemen: Samsung Electronics Co., Ltd. hereby certifies that the analog cellular telephone (FCC ID: A3LSPHI700), using the Automatic A/B Roaming — Intelligent Retry method, meets the E911 requirements specified in Section 22.921 of the FCC Rules. This procedure recognizes when a “9-1-1” call is made and, at such time, will override any programming in the mobile unit that determines the handling of a non-911 call and permit the call to be handled by other analog carriers. Should you have any questions or comments concerning the above, please contact the undersigned. AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the Portable Cellular Telephone (FCC ID: A3LSPHI700) is so designed that it complies with all the requirements for ESN protection specified in Sec.22.919 of the FCC Rules. a) The transmitter in service has a unique ESN. b) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. c) The ESN is factory set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. July 18, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:Samsung Electronics Co., Ltd. FCC ID: A3LSPHI700 Users Manual RF Exposure Warning Statement Gentlemen: Samsung Electronics Co., Ltd., hereby confirms that the attached RF exposure warning page will be readily visible to the user, and will be placed at a prominent location in the users manual. If you have any further questions regarding this matter, please do not hesitate to contact me or PCTEST Lab at (410) 290-6652.

Cover Letter(s)

August 19, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SAMSUNG Electronics Co., Ltd. FCC ID: A3LSPHI700 Part 24/22 Certification Gentlemen: Submitted herewith, on behalf of SAMSUNG Electronics Co., Ltd., is an application for Part 24/22 Certification of the Tri-Mode Dual-Band Analog/PCS PDA Phone. Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, E911 compliance statement, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: SAMSUNG Electronics Co., Ltd.

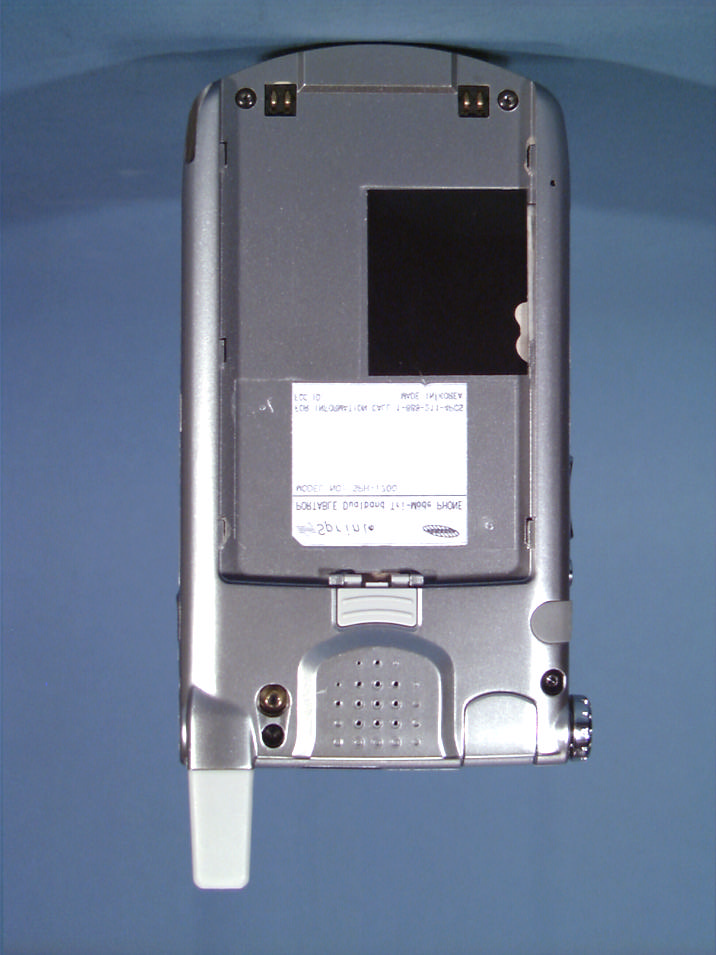

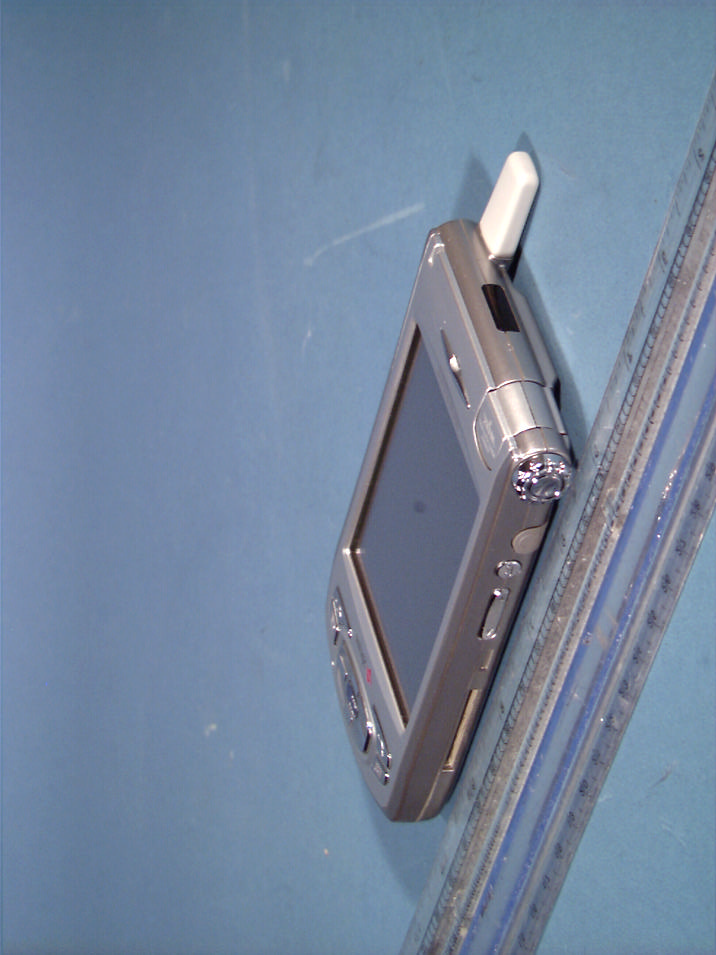

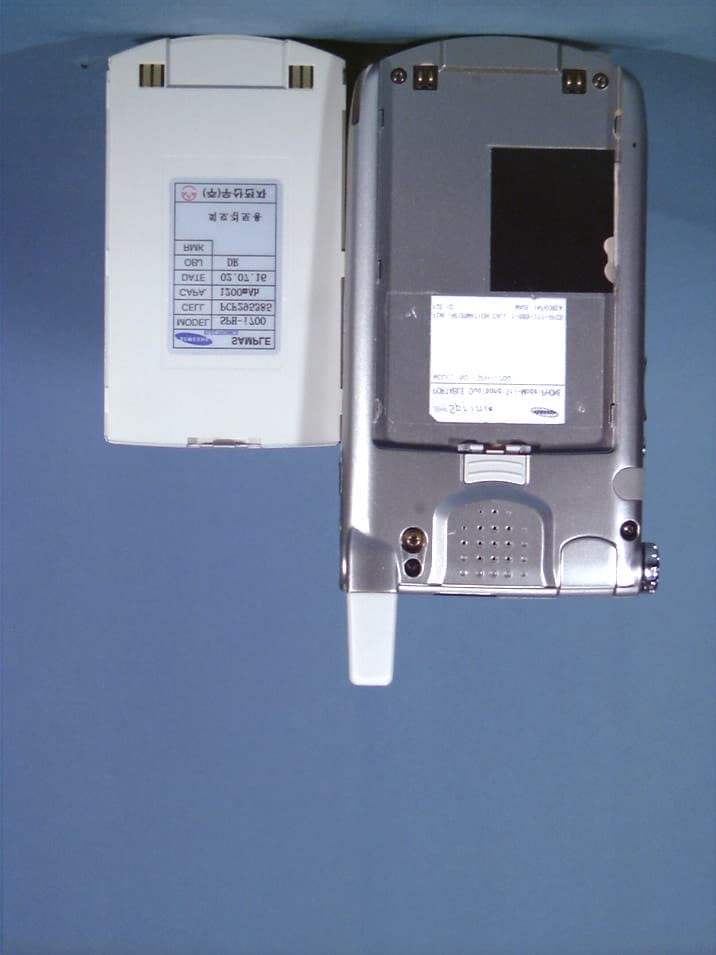

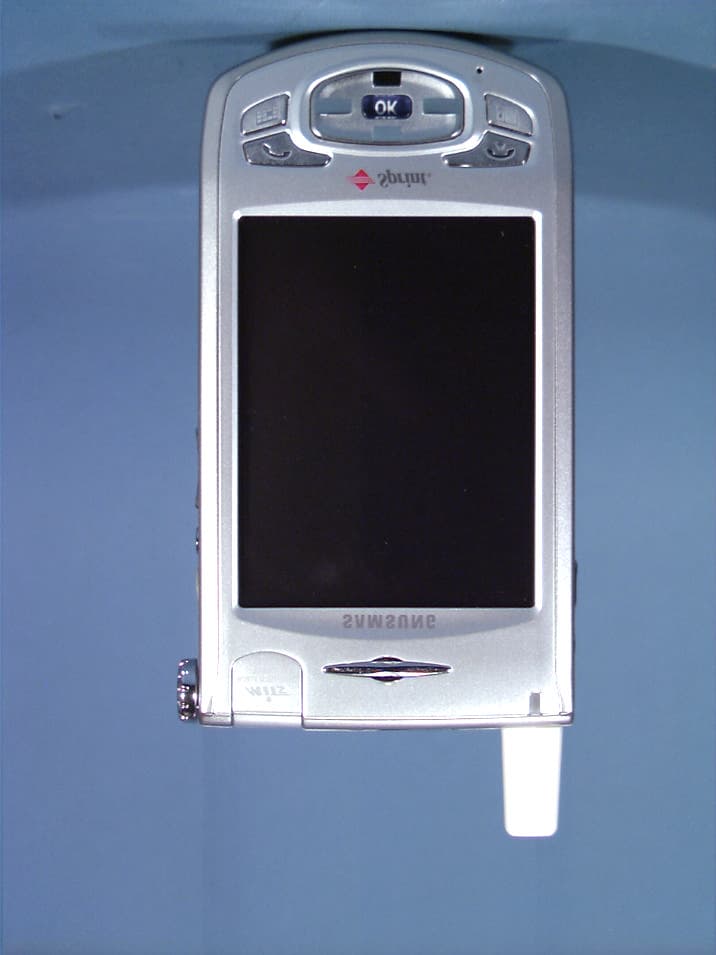

External Photos

ID Label/Location Info

© 2002 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) SAMSUNG ELECTRONICS CO., LTD. MODEL NO: SPH-I700 FCC ID: A3LSPHI700 MADE IN KOREA SAMSUNG ELECTRONICS CO., LTD

Internal Photos

© 2002 PCTEST Lab SAMSUNG FCC ID: A3LSPHI700 (Model: SPH-i700) Tri-Mode Dual-Band Analog/PCS PDA Phone (AMPS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSPHI700 (Model: SPH-i700) Tri-Mode Dual-Band Analog/PCS PDA Phone (AMPS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSPHI700 (Model: SPH-i700) Tri-Mode Dual-Band Analog/PCS PDA Phone (AMPS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSPHI700 (Model: SPH-i700) Tri-Mode Dual-Band Analog/PCS PDA Phone (AMPS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSPHI700 (Model: SPH-i700) Tri-Mode Dual-Band Analog/PCS PDA Phone (AMPS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSPHI700 (Model: SPH-i700) Tri-Mode Dual-Band Analog/PCS PDA Phone (AMPS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSPHI700 (Model: SPH-i700) Tri-Mode Dual-Band Analog/PCS PDA Phone (AMPS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSPHI700 (Model: SPH-i700) Tri-Mode Dual-Band Analog/PCS PDA Phone (AMPS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSPHI700 (Model: SPH-i700) Tri-Mode Dual-Band Analog/PCS PDA Phone (AMPS/CDMA)

RF Exposure Info

PCTEST ENGINEERING LABORATORY, INC. 6660 — B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR TEST REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.220718372.A3L Test Dates: July 18-22, 2002 Phone Type: Tri-Mode Dual-Band PDA FCC ID: A3LSPHI700 Page 1 of 35 © 2002 PCTEST Engineering Laboratory, Inc. APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: SAMSUNG ELECTRONICS CO., LTD. Dates of Tests: July 18-22, 2002 416 Maetan-3 Dong, Paldal-Ku Test Report S/N: SAR.220718372.A3L Suwon City Kyungki-Do 441-742, KOREA Test Site: PCTEST Lab, Columbia MD Attn: Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) FCC ID: A3LSPHI700 APPLICANT: SAMSUNG ELECTRONICS CO., LTD. EUT Type: Tri-Mode Dual-Band Analog/PCS PDA Phone (AMPS/CDMA) Tx Frequency: 824.04 — 848.97 MHz (AMPS) / 824.70 — 848.31 MHz (CDMA) 1851.25 — 1908.75 MHz (PCS CDMA) Rx Frequency: 869.04 — 893.97 MHz (AMPS) / 869.70 — 893.31 MHz (CDMA) 1931.25 — 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.370 W ERP AMPS (25.683 dBm) / 26.5 dBm Conducted 0.366 W ERP CDMA (25.633 dBm) / 26.0 dBm Conducted 0.419 W EIRP PCS CDMA (26.221 dBm) / 24.5 dBm Conducted Max. SAR Measurement: 1.27W/kg AMPS Head SAR; 1.13W/kg AMPS Body SAR; 1.23W/kg CDMA Head SAR; 1.21W/kg CDMA Body SAR; 1.36W/kg PCS CDMA Head SAR; 0.52W/kg PCS CDMA Body SAR Trade Name/Model(s): SPH-i700 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: Identical prototype This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.4, July 2001). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 220718372.A3L PCTEST SAR TEST REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.220718372.A3L Test Dates: July 18-22, 2002 Phone Type: Tri-Mode Dual-Band PDA FCC ID: A3LSPHI700 Page 2 of 35 © 2002 PCTEST Engineering Laboratory, Inc. TABLE OF CONTENTS 1. INTRODUCTION ................................................................................................... 3 SAR DEFINITION.................................................................................................... 3 2. SAR MEASUREMENT SETUP .................................................................................. 4 Robotic System ....................................................................................................... 4 System Hardware .................................................................................................... 4 System Electronics................................................................................................... 4 3. DASY3 E-FIELD PROBE SYSTEM............................................................................. 5 Probe Measurement System .................................................................................... 5 Probe Specifications................................................................................................ 5 4. Probe Calibration Process ....................................................................................... 6 Dosimetric Assessment Procedure........................................................................... 6 Free Space Assessment............................................................................................ 6 Temperature Assessment ......................................................................................... 6 5. PHANTOM & EQUIVALENT TISSUES .................................................................... 7 SAM Phantom ......................................................................................................... 7 Brain & Muscle Simulating Mixture Characterization .............................................. 7 Device Holder ........................................................................................................ 7 6. TEST SYSTEM SPECIFICATIONS ............................................................................. 8 Automated Test System Specifications..................................................................... 8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS .................................................. 9 Measurement Procedure ......................................................................................... 9 Specific Anthropomorphic Mannequin (SAM) Specifications .................................. 9 8. DEFINITION OF REFERENCE POINTS .................................................................. 10 EAR Reference Point ............................................................................................. 10 Handset Reference Points ..................................................................................... 10 9. TEST CONFIGURATION POSITIONS ................................................................... 11 Positioning for Cheek/Touch ................................................................................. 11 Positioning for Ear / 15° Tilt................................................................................... 12 Body Holster…

Text truncated - open the document above for the full version.

RF Exposure Info

SAR Data Report 02071812 Start : 18-Jul-02 12:37:48 pm End : 18-Jul-02 12:44:37 pm Code Version : 4.08 Robot Version: 4.08 Product Data: Type : SAMSUNG Model Number : SPH-i700 Serial Number : F1BE9344 Frequency : 836.49 MHz Transmit Pwr : 0.450 W Antenna Type : Helical Antenna Posn. : Fixed Measurement Data: Phantom Name : SAM-R Phantom Type : Right Ear Tissue Type : Brain Tissue Dielectric : 40.560 Tissue Conductivity : 0.910 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 835 MHz Tissue Type : Brain Calibrated Dielectric : 40.700 Calibrated Conductivity : 0.890 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 5.800 Probe Sensitivity : 3.597 3.474 3.049 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: AMPS Mode CH-383 Cheek CF=1; Amb. Temp= 22.4 'C; Liq. Temp=22.1 'C Area Scan - Max Peak SAR Value at x=23.0 y=-2.0 = 0.88 W/kg Zoom Scan - Max Peak SAR Value at x=7.0 y=6.0 z=0.0 = 1.15 W/kg Max 1g SAR at x=20.0 y=-1.0 z=0.0 = 0.90 W/kg Max 10g SAR at x=23.0 y=-2.0 z=0.0 = 0.67 W/kg 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:7.0 y:6.0 1g SAR Values 0.895 0.880 0.865 0.850 0.836 0.821 0.806 0.791 0.776 0.761 0.746 SAR Data Report 02071815 Start : 18-Jul-02 01:12:01 pm End : 18-Jul-02 01:18:44 pm Code Version : 4.08 Robot Version: 4.08 Product Data: Type : SAMSUNG Model Number : SPH-i700 Serial Number : F1BE9344 Frequency : 836.49 MHz Transmit Pwr : 0.450 W Antenna Type : Helical Antenna Posn. : Fixed Measurement Data: Phantom Name : SAM-R Phantom Type : Right Ear Tissue Type : Brain Tissue Dielectric : 40.560 Tissue Conductivity : 0.910 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 835 MHz Tissue Type : Brain Calibrated Dielectric : 40.700 Calibrated Conductivity : 0.890 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 5.800 Probe Sensitivity : 3.597 3.474 3.049 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: AMPS Mode CH-383 Tilt CF=1; Amb. Temp= 22.4 'C; Liq. Temp=22.1 'C Area Scan - Max Peak SAR Value at x=0.0 y=5.0 = 0.79 W/kg Zoom Scan - Max Peak SAR Value at x=-1.0 y=3.0 z=0.0 = 1.12 W/kg Max 1g SAR at x=1.0 y=4.0 z=0.0 = 0.82 W/kg Max 10g SAR at x=5.0 y=3.0 z=0.0 = 0.56 W/kg 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:-1.0 y:3.0 1g SAR Values 0.816 0.792 0.767 0.743 0.719 0.694 0.670 0.646 0.621 0.597 0.572 SAR Data Report 02071804 Start : 18-Jul-02 10:41:13 am End : 18-Jul-02 10:49:03 am Code Version : 4.08 Robot Version: 4.08 Product Data: Type : SAMSUNG Model Number : SPH-i700 Serial Number : F1BE9344 Frequency : 836.49 MHz Transmit Pwr : 0.450 W Antenna Type : Helical Antenna Posn. : Fixed Measurement Data: Phantom Name : SAM-L Phantom Type : Left Ear Tissue Type : Brain Tissue Dielectric : 40.560 Tissue Conductivity : 0.880 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 835 MHz Tissue Type : Brain Calibrated Dielectric : 40.700 Calibrated Conductivity : 0.890 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 5.800 Probe Sensitivity : 3.597 3.474 3.049 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: AMPS Mode CH-383 Cheek CF=1; Amb. Temp= 22.4 'C; Liq. Temp=22.1 'C Area Scan - Max Peak SAR Value at x=9.0 y=21.0 = 1.12 W/kg Zoom Scan - Max Peak SAR Value at x=6.0 y=24.0 z=0.0 = 1.65 W/kg Max 1g SAR at x=9.0 y=23.0 z=0.0 = 1.14 W/kg Max 10g SAR at x=13.0 y=19.0 z=0.0 = 0.76 W/kg 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:6.0 y:24.0 1g SAR Values 1.142 1.115 1.088 1.061 1.034 1.007 0.979 0.952 0.925 0.898 0.871 SAR Data Report 02071809 Start : 18-Jul-02 11:45:31 am End : 18-Jul-02 11:52:12 am Code Version : 4.08 Robot Version: 4.08 Product Data: Type : SAMSUNG Model Number : SPH-i700 Serial Number : F1BE9344 Frequency : 836.49 MHz Transmit Pwr : 0.450 W Antenna Type : Helical Antenna Posn. : Fixed Measurement Data: Phantom Name : SAM-L Phantom Type : Left Ear Tissue Type : Brain Tissue Dielectric : 40.560 Tissue Conductivity : 0.910 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 835 MHz Tissue Type : Brain Calibrated Dielectric : 40.700 Calibrated Conductivity : 0.890 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 5.800 Probe Sensitivity : 3.597 3.474 3.049 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: AMPS Mode CH-383 Tilt CF=1; Amb. Temp= 22.4 'C; Liq. Temp=22.1 'C Area Scan - Max Peak SAR Value at x=-5.0 y=21.0 = 1.20 W/kg Zoom Scan - Max Peak SAR Value at x=-7.0 y=22.0 z=0.0 = 1.95 W/kg Max 1g SAR at x=-5.0 y=22.0 z=0.0 = 1.27 W/kg Max 10g SAR at x=-2.0 y=21.0 z=0.0 = 0.80 W/kg 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:-7.0 y:22.0 1g SAR Values 1.274 1.230 1.185 1.140 1.095 1.050 1.006 0.961 0.916 0.871 0.826 SAR Data Report 02071817 Start : 18-Jul-02 02:27:53 pm End : 18-Jul-02 02:34:37 pm Code Version : 4.08 Robot Version: 4.08 Product Data: Type : SAMSUNG Model Number : SPH-i700 Serial Number : F1BE9344 Frequency : 835.89 MHz Transmit Pwr : 0.400 W Antenna Type : Helical Antenna Posn. : Fixed Measurement Data: Phantom Name : SAM-R Phantom Type : Right Ear Tissue Type : Brain Tissue Dielectric : 40.560 Tissue Conductivity : 0.910 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 835 MHz Tissue Type : Brain Calibrated Dielectric…

Text truncated - open the document above for the full version.

RF Exposure Info

File: 02-04-2002.cal Date: 04-Feb-02 01:20:16 pm Probe Name: PCT002 Frequency:835 MHz Comment:PCTEST TEM CAL Amp 1 Setting: 20.000 Amp 2 Setting: 20.000 Amp 3 Setting: 20.000 0.0 0.2 0.4 0.6 0.8 1.0 1.2 050100150200250300350 Ch 0 Ch 1 Ch 2 Sum Degrees (x10) Voltage (in mV) File: 02-04-2002.cal2 Date: 04-Feb-02 03:18 :09 pm Probe Name: PCT002 Frequency:1900 MHz Comment:PCTEST TEM CAL Amp 1 Setting:20.000 Amp 2 Setting:20.000 Amp 3 Setting:20.000 0.0 0.2 0.4 0.6 0.8 1.0 1.2 050100150200250300350 Ch 0 Ch 1 Ch 2 Sum Degrees (x10) Voltage (in mV) Conversion Factor Assessment for IDX SAR Measurement System S/N: PCT002 835 MHz Brain ε r = 40.7 ± 5% σ = 0.89 ± 5% mho/m Conversion Factor = 5.8 ± 7% (k=2) 1900 MHz Brain ε r = 40.2 ± 5% σ = 1.41 ± 5% mho/m Conversion Factor = 4.7 ± 7% (k=2) Probe calibration 1900 MHz Brain (WG 1900) 0 1 2 3 4 5 6 7 8 0510152025303540 z in mm SAR in mW/cm^3 / W Analytical Measurements Probe Calibration 835 MHz Brain (WG 835) 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 0510152025303540 z in mm SAR in (mW/cm^3)/W Analytical Measurements

RF Exposure Info

SAR Data Report 02071801 Start : 18-Jul-02 08:49:41 am End : 18-Jul-02 08:55:39 am Code Version : 4.08 Robot Version: 4.08 Product Data: Type : Validation Frequency : 835 MHz Transmit Pwr : 0.250 W Antenna Type : Dipole Measurement Data: Phantom Name : SAM-FLAT Phantom Type : Uniphantom Tissue Type : Brain Tissue Dielectric : 40.560 Tissue Conductivity : 0.910 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 835 MHz Tissue Type : Brain Calibrated Dielectric : 40.700 Calibrated Conductivity : 0.890 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 5.800 Probe Sensitivity : 3.597 3.474 3.049 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: 835 MHz Validation CF=1; Amb. Temp= 22.4 'C; Liq. Temp=22.1 'C Area Scan - Max Peak SAR Value at x=0.0 y=-3.0 = 2.24 W/kg Zoom Scan - Max Peak SAR Value at x=1.0 y=-1.0 z=0.0 = 3.47 W/kg Max 1g SAR at x=1.0 y=-3.0 z=0.0 = 2.37 W/kg Max 10g SAR at x=1.0 y=-3.0 z=0.0 = 1.49 W/kg Validation Results at 0.25 W: Peak Nominal = 3.5, Error: -1.67 % 1g Nominal = 2.4, Error: -0.38 % 10g Nominal = 1.6, Error: -3.72 % 0 1 2 3 4 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:1.0 y:-1.0 1g SAR Values 2.366 2.287 2.207 2.128 2.048 1.969 1.890 1.810 1.731 1.651 1.572 SAR Data Report 02071901 Start : 19-Jul-02 8:20:30 am End : 19-Jul-02 8:26:10 am Code Version : 4.08 Robot Version: 4.08 Product Data: Type : Validation Frequency : 1900 MHz Transmit Pwr : 0.250 W Antenna Type : Dipole Measurement Data: Phantom Name : SAM-FLAT Phantom Type : Uniphantom Tissue Type : Brain Tissue Dielectric : 41.110 Tissue Conductivity : 1.420 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 1900 MHz Tissue Type : Brain Calibrated Dielectric : 40.200 Calibrated Conductivity : 1.410 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 4.700 Probe Sensitivity : 3.000 2.995 2.653 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: 1900 MHz Validation CF=1; Amb. Temp= 22.4 'C; Liq. Temp=22.1 'C Area Scan - Max Peak SAR Value at x=2.0 y=-3.0 = 9.10 W/kg Zoom Scan - Max Peak SAR Value at x=2.0 y=-3.0 z=0.0 = 16.81 W/kg Max 1g SAR at x=2.0 y=-3.0 z=0.0 = 9.76 W/kg Max 10g SAR at x=2.0 y=-2.0 z=0.0 = 5.09 W/kg Validation Results at 0.25 W: Peak Nominal = 18.0, Error: -6.75 % 1g Nominal = 9.9, Error: -1.68 % 10g Nominal = 5.1, Error: -0.59 % 0 2 4 6 8 10 12 14 16 18 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:2.0 y:-3.0 1g SAR Values 9.76 9.22 8.69 8.15 7.61 7.08 6.54 6.01 5.47 4.93 4.40

RF Exposure Info

Text truncated - open the document above for the full version.

Contact Information

Applicant

Jenni Chun(General Manager)

[email protected]973-808-6375Fax: 973-808-6361

Technical Contact

PCTEST Engineering Lab., Inc.Randy Ortanez

[email protected]410-290-6652

6660-B Dobbin Road · Columbia, Maryland · United States

Non-Technical Contact

PCTEST Engineering Lab., Inc.Randy Ortanez

[email protected]410-290-6652

Test Firm

PCTEST Engineering Laboratory, Inc.Randy Ortanez

[email protected]410-290-6652Fax: 410-290-6654

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
4	24E	1.85 GHz - 1.91 GHz	419.00 mW	1M25F9W	2.5 ppm

Confidentiality

Long Term

Grant Notes

Power output listed are ERP for Part 22 and EIRP for Part 24. SAR compliance for body- worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. The highest reported SAR values under this FCC ID: are AMPS/CDMA modes (Part 22) � Head: 1.27 W/kg; Body-worn: 1.21 W/kg, PCS mode (Part 24) � Head: 1.36 W/kg; Body-worn: 0.52 W/kg
