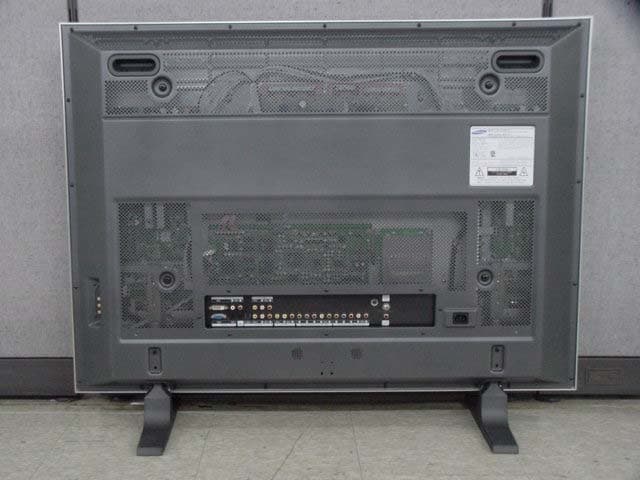

A3LSPP425142-inch PDP TV Monitor

Owner’s Instructions SPP4251 1-800-SAMSUNG (1-800-726-7864)Samsung Electronics America Service Division400 Valley Road, Suite 201Mount Arlington, NJ 07856www.samsungusa.comSamsung Electronics Canada Inc. Samsung Customer Care 7037 Financial Drive Mississauga, Ontario L5N 6R3www.samsung.ca Wa rning! Important Safety Instructions 2 CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USERSERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol indicates high voltage is present inside. It is dangerous to make any kind of contactwith any inside part of this product. This symbol alerts you that important literature concerning operation and maintenance has beenincluded with this product. Note to CATV system installer: This reminder is provided to call CATV system installer's attention to Arti- cle 820-40 of the National Electrical Code (Section 54 of Canadian Electrical Code, Part I), that providesguidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to thegrounding system of the building as close to the point of cable entry as practical.Caution: FCC/CSA regulations state that any unauthorized changes or modifications to this equipment may void the user's authority to operate it.Caution: To prevent electric shock, match the wide blade of plug to the wide slot, and fully insert the plug. Attention: pour eviter les chocs electriques, introduire la lame le plus large de la fiche dans la borne corre- spondante de la prise et pousser jusqu'au fond.Important: One Federal Court has held that unauthorized recording of copyrighted TV programs is an infringement of U.S. copyright laws.Certain Canadian programs may also be copyrighted and any unauthorized recording in whole or in partmay be in violation of these rights. TO PREVENT DAMAGE WHICH MAY RESULT IN FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THISAPPLIANCE TO RAIN OR MOISTURE. 3 1) Read these instructions.2) Keep these instructions.3) Heed all warnings.4) Follow all instructions.5) Do not use this apparatus near water.6) Clean only with dry cloth.7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8) Do not install near any heat source such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11) Only use attachments/accessories specified by the manufacturer. 12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart isused, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13) Unplug this apparatus during lightning storms or when unused for long periods of time.14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. Important Safety Instructions •P rotect the power cord. Power supply cords should be routed so that they won’t be walked on or pinched by objects placed on or against them. Pay particular attention to cords at plugs, convenience recepta-cles, and the point where they exit from the unit. • Unplug the PDP from the wall outlet and disconnect the antenna or cable system during a lightning storm or when left unattended and unused for long periods of time. This will prevent damage to the unit due tolightning and power-line surges. •A void overhead power lines. An outside antenna system should not be placed in the vicinity of overhead power lines or other electric light or power circuits or where it can fall into such power lines or circuits.When installing an outside antenna system, be extremely careful to keep from touching the power linesor circuits. Contact with such lines can be fatal. • Do not overload the wall outlet or extension cords. Overloading can result in fire or electric shock.• Do not insert anything through the openings in the unit, where they can touch dangerous voltage points or damage parts. Never spill liquid of any kind on the PDP. •G round outdoor antennas. If an outside antenna or cable system is connected to the PDP, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code, ANSI/NFPA No.70-1984, provides infor-mation about proper grounding of the mast and supporting structure, grounding of the lead-in wire to anantenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection togrounding electrodes, and requirements for the grounding electrode. • Do not attempt to service the PDP yourself. Refer all servicing to qualified service personnel. Unplug the unit from the wall outlet and refer servicing to qualified service personnel under the following conditions:- when the power-supply cord or plug is damaged- if liquid has been spilled on the unit or if objects have fallen into the unit- if the PDP has been exposed to rain or water- if the PDP does not operate normally by following the operating instructions- if the PDP has been dropped or the cabinet has been damaged- when the PDP exhibits a distinct change in performance • If you make adjustments your…

Text truncated - open the document above for the full version.

5 Select the correct signal source (Air, STD, HRD andIRC), then press the ENTER button. 6 To start the search, press the ENTER button. 7 Press the œ or √ button to move to the Hour, Minute, or am/pm.Set the Hour, Minute, or am/pm by pressing the ▲ or ▼ button. 8 When it has finished, the message Enjoy YourWatching is displayed, and then the channel which has been stored will be activated. 31 30 Plug & Play FeatureWhen the television is initially powered ON, several basic customer settings proceed automatically and subsequently. The following settings are available. 1 If the television is in Standby mode, press thePOWER button on the remote control. 2 Select the appropriate language by pressing the ▲ or ▼ button. 3 Press the ENTER button to confirm your choice. 4 Press the ENTER button. ➤ ➤ The message Plug & Play is displayed. It flickers for a little while, and then the Language menu is automatically displayed. ➤ ➤ The message Antenna input check is displayed. ➤ ➤ The search will end automatically. Channels are sorted and stored inan order which reflects their position in the frequency range (withlowest first and highest last).When it has finished, the Clock Set menu is displayed. ➤ ➤ To stop the search before it has finished or return to normalviewing, press the MENU button. Press ENTER to start Plug & Play Start Plug & Play Enter Exit Language Move Enter Skip English French Spanish Air/CATV Air STD HRD IRC Clock Enter Skip Plug & Play Enter Skip Ant. Input Check Auto Program Enter Skip Press ENTER to start channel store. Start Auto Program Enter Skip Channel store in process. Air 30 Stop Move Enter Skip Hour Min am/pm - - - - am Enjoy your watching. 33 32 Plug & Play Feature (continued) If you want to reset this feature... 1 Press the MENU button. Press the ▲ or ▼ button to select “Setup”, then press the ENTER button. 2 Press the ▲ or ▼ button to select “Miscellaneous”, then press the ENTER button. 3 Press the ▲ or ▼ button to select “Plug & Play”. Press the ENTER button. 4 For further details on how to set, refer to the previous page. Language : English √ Time √ Caption √ Digital NR : On √ V-Chip √ Miscellaneous √ PC √ Setup TV Move Enter Return Melody : On √ Plug & Play √ Blue Screen : On √ Miscellaneous TV Move Enter Return Selecting the Video Signal-sourceBefore your television can begin memorizing the available channels, you must specify the type of signalsource that is connected to the PDP (i.e., an antenna or a cable system). 1 Press the MENU button. Press the ▲ or ▼ button to select “Channel”, then press the ENTER button. 2 Press the ENTER button to select “Air/CATV”. 3 Press the ▲ or ▼ button to select “Air”, “STD”, “HRC” or “IRC”. • If you are connected to an antenna, leave “Air” displayed. If you connected cable, press the ▲ or ▼ button to the display the type of cable system: “STD”, “HRC” or “IRC”.(If you are not sure which type of cable system you have, contact your cable company). 4 Press the MENU button to exit. Note• STD, HRC and IRC identify various types of cable TV systems. Contact your local cable company to identify the type of cable system that exists in your particular area. At this point the signal sourcehas been selected. Proceed to “Storing Channels in Memory” (Next page). Memorizing the ChannelsYour PDP can memorize and store all of the available channels for both “off-air”(antenna) and cable channels. After the available channels are memorized, use theCH and CH buttons to scan through the channels. This eliminates the need to change channels by entering the channel digits. There are three steps for memorizingchannels: selecting a broadcast source, memorizing the channels (automatic) andadding and deleting channels (manual). Air/CATV : Air √ Auto Program √ Add/Delete √ Fine Tune √ LNA : Off √ Channel Scan √ Channel TV Move Enter Return Air/CATV : Air Auto ProgramAdd/DeleteFine TuneLNA : On Channel Scan Channel TV Move Enter Return Air STD HRC IRC Air/CATV : Air Auto ProgramAdd/DeleteFine TuneLNA : On Channel Scan Channel TV Move Enter Return Air STD HRC IRC Press ENTER to start Plug & Play Start Plug & Play Enter Exit 34 Storing Channels in Memory (Automatic Method) 1 First, select the correct signal source (Air, STD, HRC and IRC). See steps on previous page. Press the MENU button. Press the ▲ or ▼ button to select “Channel”, then press the ENTER button. 2 Press the ▲ or ▼ button to select “Auto Program”, then press the ENTER button. 3 The PDP will begin memorizing all of the available channels. After all the available channels are stored, the Autoprogram menu reappears. Press the ENTER button tostop. Note• The PDP automatically cycles through all of the available channels and stores them in memory.This takes about one to two minutes. ➤ ➤ Quick way to access the Automatic Channel Setting: Just press the“AUTO PROG.” button on the remote control. Adding and Erasing Channels (Manual Method) 1 Use the number buttons to directly select the channelthat will be added or erased. Ex) Channel “4” 2 Press the ADD/DEL button, then press the ENTER button. Repeatedly pressing this button will alternate between “Add” and “Erase”. 3 Press the MENU button to exit. Note•Y ou can view any channel (including an erased channel) by using the number buttons on the remote control. Air/CATV : Air √ Auto Program √ Add/Delete √ Fine Tune √ LNA : Off √ Channel Scan √ Channel TV Move Enter Return Air/CATV : Air √ Auto Program √ Add/Delete √ Fine Tune √ LNA : Off √ Channel Scan √ Channel TV Move Enter Return Auto Program Enter Return Press ENTER to start channel store. Start Add/Delete Enter Exit Air 4 Erased Add Air 4 Move 36 37 To View Memorized Channel (PIP Mode) 1 Press the MENU button. Press the ▲ or ▼ button to select “Channel”, then press the ENTER button. 2 Press the ▲ or ▼ button to select “Channel Scan”, then press the ENTER button. Only the memorized channels are chosen. 3 Press the MENU button to stop. Changing Channels Using the Channel ButtonsPress the CH or CH button to ch…

Text truncated - open the document above for the full version.

EUT Photographs [Label and Label position]

Project No. : LBE031817 Page 1 of 15 Project No. : LBE031817 Product : PDP TV Monitor Model No. : MZ42S4 (* Variant Model : SPP4251X/XAA) Date of test :August 20 ~ 21, 2003 Issued Date :August 22, 2003 Tested by: Kyung Chul, MIN / Test Engineer Reviewed by: No Cheon, PARK / Manager of EMC Lab. Authorized by: Kyu Baek, CHUNG / Chief of EMC Lab. SAMSUNG ELECTRONICS Co., Ltd. EMC Test Laborator y 416 Maetan-3 Dong, Paldal-Ku, Suwon City, Kyungki-Do, Korea,442-742 Tel. : 81-31-200-2185 Fax. : 81-31-200-2189 This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. EMC TEST REPORT Project No. : LBE031817 Page 2 of 15 Table of Contents 1. Introduction & Summary 1.1 Description of the EUT 1.2 Test facility 1.3 Test equipment 2. Test Set-up 2.1 Test mode 2.2 Justification 2.3 Test equipment setup 2.4 Tested System Details 2.5 System Block Diagram of Test Configuration 2.6 Test rule and Procedure 2.7 Test Summary 3. Test Results 3.1 AC POWERLINE CONDUCTED EMISSION MEASUREMENT 3.2 RADIATED EMISSION MEASUREMENT This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Project No. : LBE031817 Page 3 of 15 1. Introduction & Summary 1.1 Description of the EUT Applicant Project Number Equipment Under Test Trade Name Model Number Variant Model Operating Frequency FCC ID Number Mains input 1.2 Test facility The EMI/EMS measurement facilities used to collect the tested data are located at 416 Maetan 3 Dong, Paldal-Ku, Suwon City, Kyungki Do, Korea. The sites are constructed in conformance with the requirements of ANSI C63.4 and CISPR 16-1 & 16-2. SAMSUNG Electronics Co.,Ltd is accredited by Korea Laboratory Accreditation Scheme(KOLAS) which signed the International Laboratory Accreditation Cooperation (ILAC) Mutual Recognition Arrangement (MRA) for the above test item(s) and test method(s). Measured in Semi-anechoic chamber #1 that is FCC Registration Number 98856. This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. MZ42S4 SAMSUNG SAMSUNG ELECTRONICS Co., Ltd. LBE031817 PDP TV Monitor 60Hz A3LSPP4251 120V SPP4251 Project No. : LBE031817 Page 4 of 15 1.3 Test equipment DescriptionModelManufacturerSerial No.Applied TEST RECEIVERESI26R & S100067o RF RELAIS MATRIXPSUR & S861206/024o 10dB ATTENUATOR8491BAgilent58226o LISNESH3-Z5R & S847265/028o TEST SOFTWAREEP5CETOYO-o TEST RECEIVERESCS30R & S100104o SPECTRUM ANALYZERE7405AAgilentUS41110272o BI-LOG ANTENNACBL6112BSCHAFFNER2766o RF SELECTORNS4900TOYO0303-015o MAST CONTROLLERHD2000HD HD2000090202 7 o TEST SOFTWAREEP5RETOYO-o Turn TableDS412HD-N/A Antenna MastMA240HD240/620N/A Preamplifier310 SONOMA Instrument 185821o This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Project No. : LBE031817 Page 5 of 15 2. Test Set-up 2.1 Test mode The EUT was tested in the following operating modes for the tests mention in this report: Description of Testing operating mode & Tested Resolution Measured each about 2 input(PC VIDEO INPUT mode & Digital Video Interface)of EUT. Further details of cabling and configuration are shown in the test system configuration. The EUT exercise program used during radiated and conducted testing was designed to exercise the various system components in a manner similar to typical use. 2.2 Justification The system was configured for testing in typical fashion use. Cable were attached to each of the available I/O Ports. The mode of operation utilized for testing was selected to best simulate typical EUT use. 2.3 Test equipment setup The explanation of measuring equipment setup when respective function is used in any frequency band is as following: DetectorResolutionVideo functionBandwidthBandwidth Quasi-Peak9kHz- Peak100kHz1MHz Quasi-Peak120kHz- Peak1MHz1MHz This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Operating ModeResolutionsRefresh ratesColors "H" Pattern display1280x102432bits Frequency Band [MHz] Equipment Horizontal F.:63.98kHz Vertical F. : 60.02Hz EMI Test receiverAbove 1000 0.15 to 30EMI Test receiver Spectrum analyzer EMI Test receiver 30 to 1000 Project No. : LBE031817 Page 6 of 15 2.4 Tested System Details 1) Configuration of EUT and peripherals MarkItemModel No.Serial No.Manufacturer A PDP TV Monitor MZ42S4 - Samsung BPersonal ComputerM6200450092DN101415Samsung CPrinterK10158CLG001000275Canon D PS/2 KeyboardSEM-DC8LDT003859Samsung EPS/2 MouseM-S48aLZA00153252Samsung FAC Adapter(Printer)K30088CLG001000275Canon * DOC : FCC Declaration of Conformity 2) Used Cable Description No.ItemLength[m]Shielded(Y/N) 1PS/2 Mouse Cable1.8N 2 PS/2 Keyboard Cable 1.6N 3Video Cable(Analog)1.5Y 4Video Cable(Digital)1.5Y 5 AC Power Cable(Monitor) 1.8N 6AC Power Cable(PC)1.8N 7 AC Power Cable(Printer) 1.8N 8Printer Cable1.5Y 9A/V In Cable1.2N 10 S-Video In Cable1.2N 11 BNC Cable1.2N This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Remark Project No. : LBE031817 Page 7 of 15 2.5 System Block Diagram of Test Configuration 2.6 Test rule and Procedure FCC Rule Part 15, Subpart B : Unintentional Radiators Test Procedure : ANSI C63.4-1992 2.7 Test Summary Result Pass Pass * N/A : Test not applicable This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. RADIATED EMISSIONANSI C63.4-1992 Test itemTest Procedure AC POWERLINE CONDUCTED EMISSION ANSI C63.4-1992 ED A B C 1 2 3 4 5 6 7 8 9 10 11 Project No. : LBE031817 Page 8 of 15 3. Test Results 3.1 AC POWERLINE CONDUCTED EMISSION MEASUREMENT 3.1.1 Test Procedure Configurate the EUT System in accordance with ANSI C63.4-1992 section 7 and 12.2. Connect the EUT's AC line cord to the EUT port of LISN. All input terminals are terminated in the proper impedance. The output ports are connected to the cable pro…

Text truncated - open the document above for the full version.

Test Set up Photographs [AC POWERLINE CONDUCTED EMISSION MEASUREMENT] Test Set up Photographs [RADIATED EMISSION MEASUREMENT]
