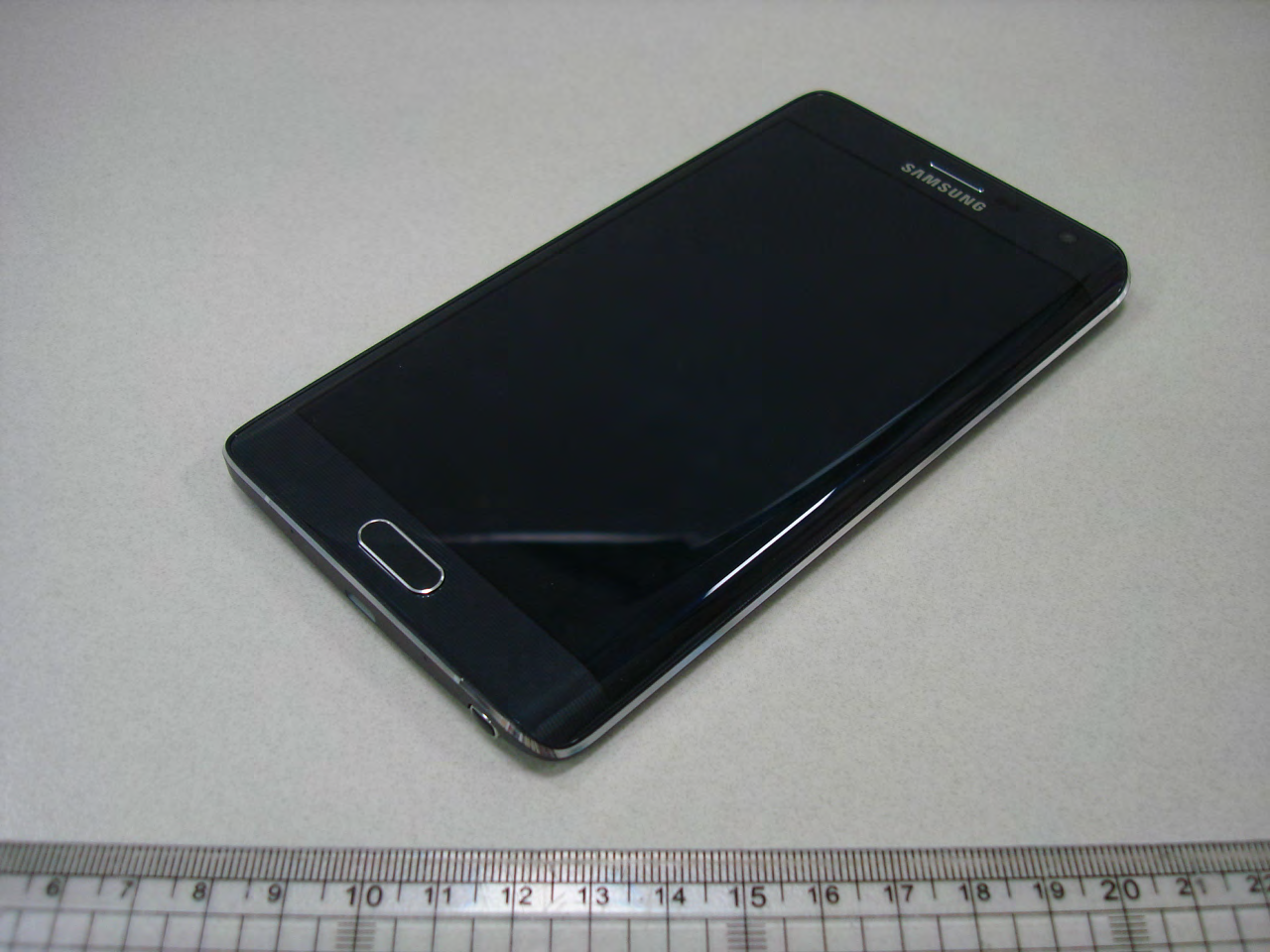

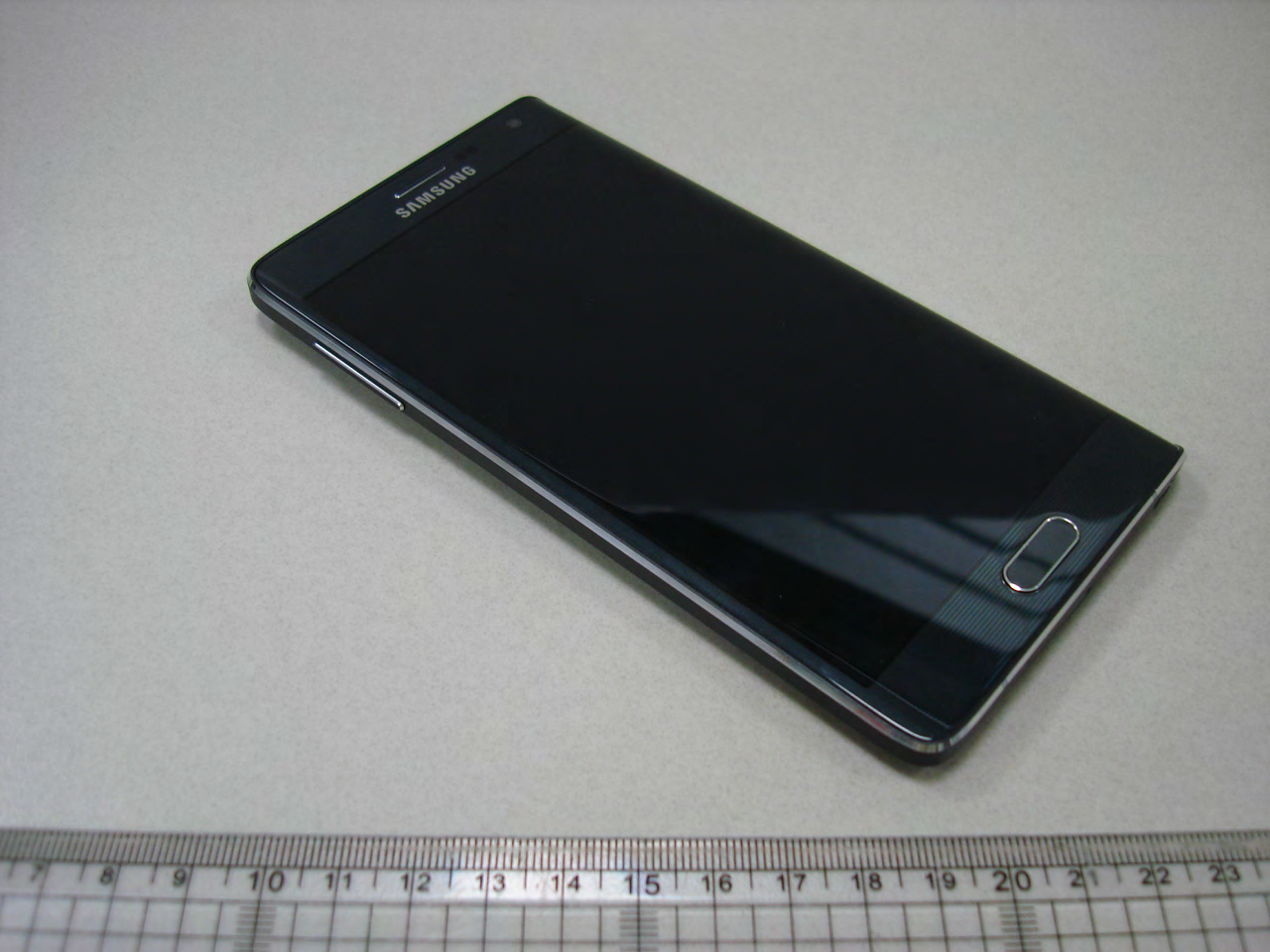

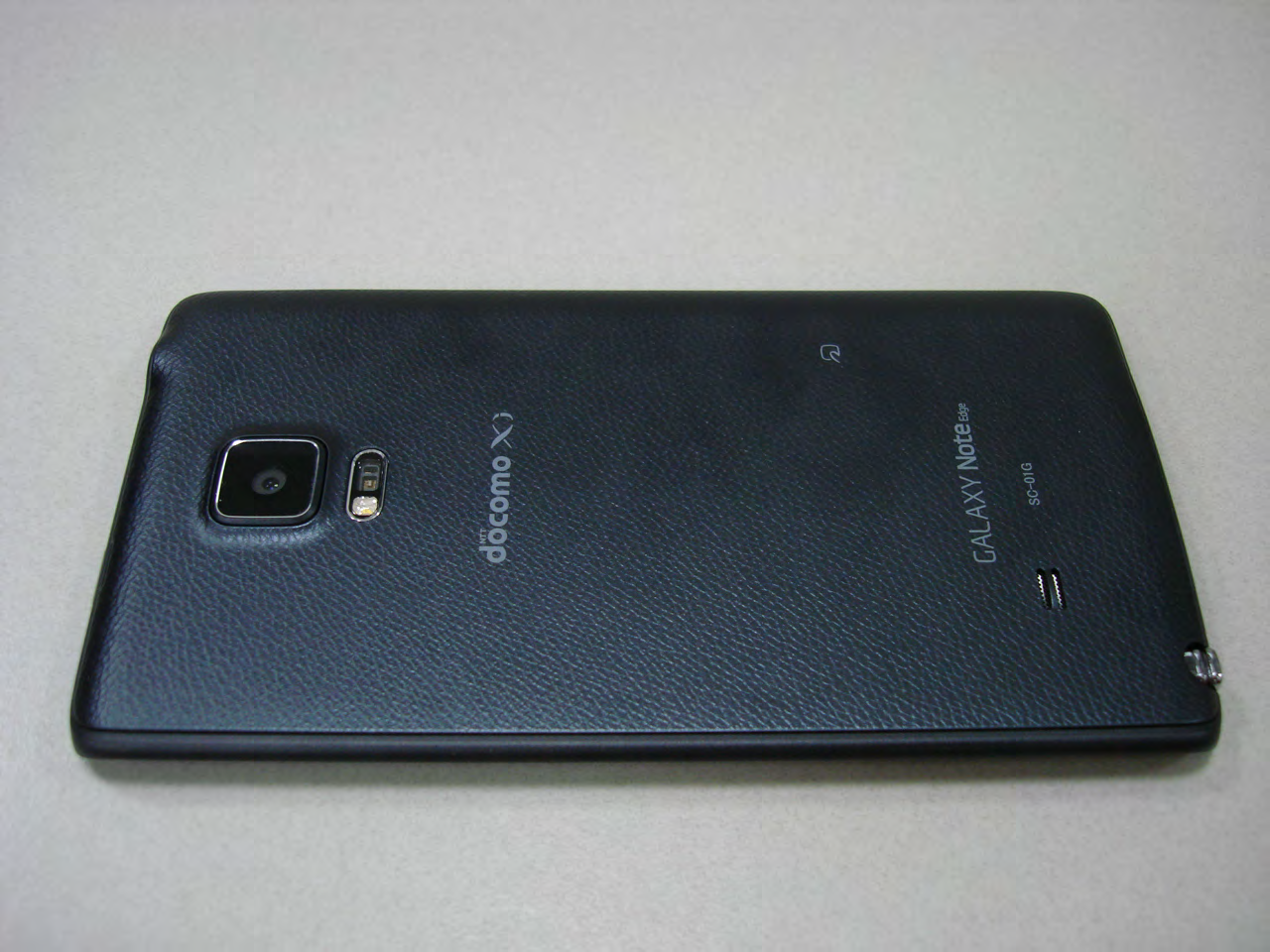

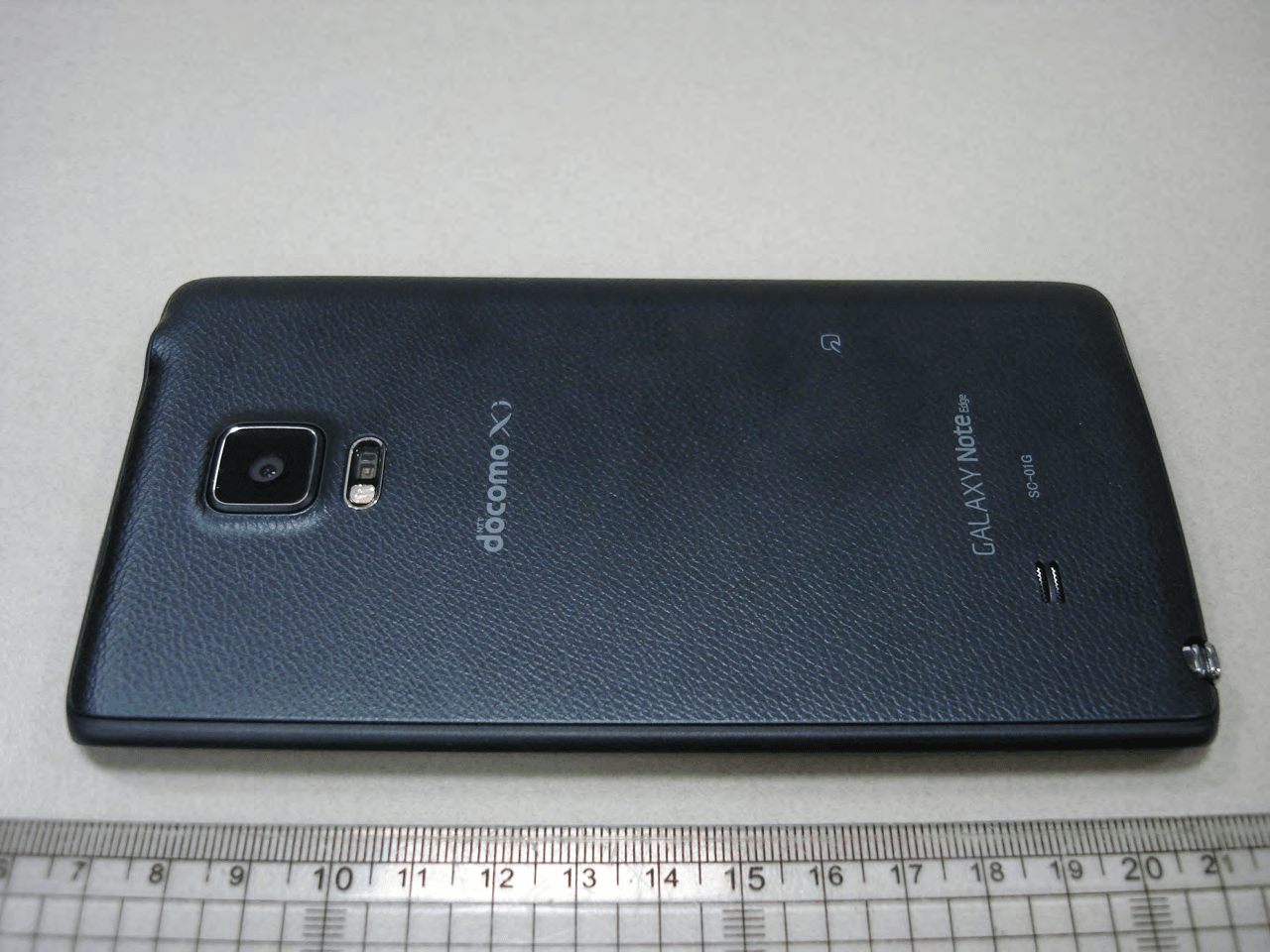

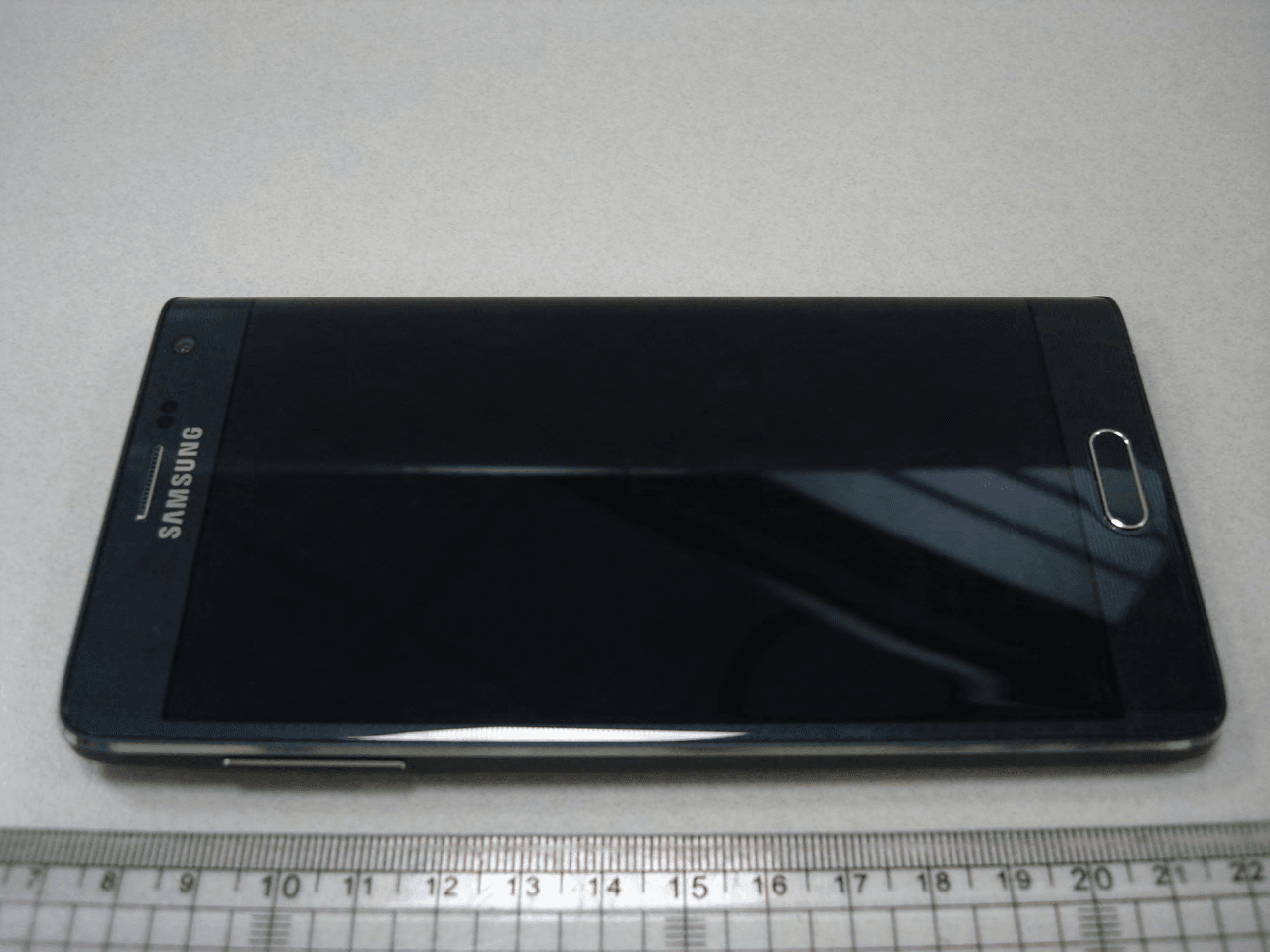

A3LSWDSC01GMulti-band GSM/EDGE/WCDMA/LTE Phone with WLAN, Bluetooth, RFID, and ANT+

User manual SC-01G This device is capable of operating in Wi-Fi mode in the 2.4 and 5 GHz bands. The FCC requires that devices operating within 5.15-5.25 GHz may only be used indoors, not outside, in order to avoid interference with MobileSatellite Services (MSS). Therefore, do not use this device outside as a Wi-Fi hotspot or in Wi-Fi Direct mode outside when using the 5.15- 5.25 GHz frequencies. Draft 6.1 2014-08-25 Only for Approval using this manual This user manual has been specially designed to guide you through the functions and features of your mobile phone. To get started quickly, refer to “introducing your mobile phone, Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your phone or other equipment Note—notes, usage tips, or additional information  Refer to—pages with related information; for example: p. 12  (represents “see page 12”) Õ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages Õ Create new message (represents Messages, followed by Create new message) [ ] Square brackets—phone keys; for example: [ ](represents the Power/ Menu exit key) < > Angled brackets—softkeys that control different functions at each screen; for example: <OK> (represents the OK softkey) Copyright information Rights to all technologies and products that comprise this device are the property of their respective owners:  Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide  Java™ is a trademark of Sun Microsystems, Inc.  Windows Media Player ® is a registered trademark of Microsoft Corporation. contents safety and usage information Safety warnings Safety precautions Important usage information introducing your mobile phone Unpack .. Phone layout Keys Display Icons assembling and preparing your mobile phone Install the SIM card and battery Charge the battery using basic functions Turn your phone on and off Access menus Customise your phone Use basic call functions Send and view messages Add and find contacts troubleshooting safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone. Safety warnings Keep your phone away from small children and pets Keep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Protect your hearing Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music. Install mobile phones and equipment with caution Ensure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care  Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone.  Never dispose of batteries or phones in a fire. Follow all local regulations when disposing used batteries or phones.  Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.  Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance. Turn off the phone in potentially explosive environments Do not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks. Safety precautions Drive safely at all times Avoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile phone in a certain area. Use only Samsung-approved accessories Using incompatible accessories may damage your phone or cause injury. Turn off the phone near medical equipment Your phone can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Turn off the phone or disable the wireless functions when in an aircraft Your phone can cause interference with aircraft equipment. Follow all airline regulations and turn off your phone or switch to a mode that disables the wireless functions when directed by airline personnel. Protect…

Text truncated - open the document above for the full version.

Samsung Electronics America, Inc 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: September 10, 2014 FCC ID: A3LSWDSC01G To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to any application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 862. Sincerely, CHANHO, YOUN General Manager Samsung Electronics CO. LTD TEL: +1-973-808-6362 E-mail: [email protected]

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea September 10 th , 2014 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LSWDSC01G To whom it may concern: The device is compliant in accordance to the FCC rules about identification of equipment, stated in 47 CFR Part 2.925(d). The label statement is as follows: The FCC ID label is located in the battery compartment. While the battery cover is installed when the unit is shipped from the factory, the battery is never installed prior to sale, so the user must remove the cover in order to install the battery and operate the device. At this time the FCC ID is readily visible to the user. The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: September 10, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSWDSC01G To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics SHORT-TERM 4 External Photos 5 Internal Photos 6 Test-Setup Photos 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, CHANHO, YOUN General Manager American QA Lab SAMSUNG Electronics America INC.

Label and Location Model: SC-01G FCC ID: A3LSWDSC01G Label: Location: Top Back of device Bottom Phone: Label is placed inside of the battery compartment. Label

FCC ID: A3LSWDSC01G SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 54 0Y1408271784.A3L 08/25/14 - 09/05/14 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. REV 14.0 M 07/21/2014 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 08/25/14 - 09/05/14 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Document Serial No.: 0Y1408271784.A3L FCC ID: A3LSWDSC01G APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): SC-01G 1 gm Head (W/kg) 1 gm Body- Worn (W/kg) 1 gm Hotspot (W/kg) 10 gm Extremity (W/kg) PCEGSM/GPRS/EDGE 850824.20 - 848.80 MHz0.170.400.49< 0.1 PCEUMTS 850826.40 - 846.60 MHz0.130.360.47< 0.1 PCEGSM/GPRS/EDGE 19001850.20 - 1909.80 MHz< 0.10.370.77< 0.1 PCELTE Band 17706.5 - 713.5 MHz< 0.10.100.11< 0.1 DTS2.4 GHz WLAN2412 - 2462 MHz0.39< 0.1< 0.1< 0.1 DTS5.8 GHz WLAN5745 - 5825 MHz0.19< 0.1-1.000.29 NII5.2 GHz WLAN5180 - 5240 MHz0.190.12-1.000.39 NII5.3 GHz WLAN5260 - 5320 MHz0.210.14-1.000.40 NII5.5 GHz WLAN5500 - 5700 MHz0.240.11-1.000.37 DSS/DTSBluetooth2402 - 2480 MHzN/A 0.560.610.770.47 N/A Band & ModeTx Frequency Equipment Class Simultaneous SAR per KDB 690783 D01v01r03: SAR This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.8 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. The SAR Tick is an initiative of the Mobile Manufacturers Forum (MMF). While a product may be considered eligible, use of the SAR Tick logo requires an agreement with the MMF. Further details can be obtained by emailing: [email protected]. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1. 410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: A3LSWDSC01G SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 54 0Y1408271784.A3L 08/25/14 - 09/05/14 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. REV 14.0 M 07/21/2014 TABLE OF CONTENTS 1 DEVICE UNDER TEST ....................................................................................................................3 2 LTE INFORMATION .........................................................................................................................9 3 INTRODUCTION ........................................................................................................................... 10 4 DOSIMETRIC ASSESSMENT ...................................................................................................... 11 5 DEFINITION OF REFERENCE POINTS ...................................................................................... 12 6 TEST CONFIGURATION POSITIONS FOR HANDSETS ............................................................ 13 7 RF EXPOSURE LIMITS ................................................................................................................ 16 8 FCC MEASUREMENT PROCEDURES ........................................................................................ 17 9 RF CONDUCTED POWERS ......................................................................................................... 21 10 SYSTEM VERIFICATION .............................................................................................................. 30 11 SAR DATA SUMMARY ................................................................................................................. 32 12 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 41 13 SAR MEASUREMENT VARIABILITY ........................................................................................... 48 14 EQUIPMENT LIST ......................................................................................................................... 49 15 MEASUREMENT UNCERTAINTIES ............................................................................................ 50 16 CONCLUSION ............................................................................................................................... 52 17 REFERENCES .............................................................................................................................. 53 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS FCC ID: A3LSWDSC01G SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 54 0Y1408271784.A3L 08/25/14 - 09/05/14 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. REV 14.0 M 07/21/2014 1 DEVICE UNDER TEST 1.1 Device Overview GSM 850Voice/Data824.20 - 848.80 MHz UMTS 850Voice/Data826.40 - 846.60 MHz GSM 1900Voice/Data1850.20 - 1909.80 MHz LTE Band 17Data706.5 - 713.5 MHz 2.4 GHz WLANData2412 - 2462 MHz 5.8 GHz WLANData5745 - 5825 MHz 5.2 GHz WLANData5180 - 5240 MHz 5.3 GHz WLANData5260 - 5320 MHz 5.5 GHz WLANData5500 - 5700 MHz BluetoothData2402 - 2480 MHz NFCData13.56 MHz ANT+Data2402 - 2480 MHz Band & ModeTx FrequencyOperating Modes 1.2 N ominal and Maximum Output Power Specifications This device operates using …

Text truncated - open the document above for the full version.

FCC ID: A3LSWDSC01G FCC Pt. 15.247 802.11a/b/g/n/ac MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 121 0Y1408271787.A3L 8/27 - 9/4/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 1.19 08/26/2014 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 8/27 - 9/4/2014 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1408271787.A3L FCC ID: A3LSWDSC01G APPLICANT: Samsung Electronics, Co. Ltd. Application Type: Certification Model(s): SC-01G EUT Type: Portable Handset FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 Test Procedure(s): KDB 558074 v03r02, KDB 662911 v02r01 802.11b2412 - 246255.84717.47130.91821.1752.96617.24114.28820.58 802.11g2412 - 246220.41713.10135.20721.3122.18213.4692.25719.65 802.11n2412 - 246216.98212.30101.15820.0517.74212.4984.72319.2830.16914.80103.65820.16 802.11a5745 - 582514.09311.4962.37317.9513.33511.2559.70417.76 802.11n (20MHz)5745 - 582514.09311.4972.11118.5813.39711.2762.80617.9825.35414.0490.86919.58 802.11n (40MHz)5755 - 57955.0477.0326.48514.235.4307.3522.90913.607.9168.9930.81414.89 802.11ac (80MHz)57754.5196.5520.74913.175.4707.3837.11915.707.1028.5121.38513.30 Avg ConductedPeak ConductedAvg ConductedPeak ConductedAvg ConductedPeak Conducted Max. Power (mW) Max. Power (dBm) Max. Power (mW) Max. Power (dBm) Mode Tx Frequency (MHz) Max. Power (mW) Max. Power (dBm) Max. Power (mW) Max. Power (dBm) Max. Power (mW) ANT1ANT2MIMO N/ A N/ A Max. Power (dBm) Max. Power (mW) Max. Power (dBm) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 558074 v03r02. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 15.247 WLAN 802.11a/b/g/n/ac FCC ID: A3LSWDSC01G FCC Pt. 15.247 802.11a/b/g/n/ac MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 121 0Y1408271787.A3L 8/27 - 9/4/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 1.19 08/26/2014 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT .................................................................................................. 3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 SCOPE ........................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION ............................................................................................................................ 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION......................................................................................................................... 5 2.2 DEVICE CAPABILITIES ................................................................................................................................. 5 2.3 TEST CONFIGURATION ............................................................................................................................... 6 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ...................................................................................... 6 2.5 LABELING REQUIREMENTS ........................................................................................................................ 6 3.0 DESCRIPTION OF TEST ........................................................................................................................ 7 3.1 EVALUATION PROCEDURE ......................................................................................................................... 7 3.2 AC LINE CONDUCTED EMISSIONS ............................................................................................................. 7 3.3 RADIATED EMISSIONS ................................................................................................................................ 8 4.0 ANTENNA REQUIREMENTS .................................................................................................................. 9 5.0 TEST EQUIPMENT CALIBRATION DATA ............................................................................................ 10 6.0 TEST RESULTS .................................................................................................................................... 11 6.1 SUMMARY ................................................................................................................................................... 11 6.2 6DB BANDWIDTH MEASUREMENT ........................................................................................................... 12 6.3 OUTPUT POWER MEASUREMENT ........................................................................................................... 33 6.4 POWER SPECTRAL DENSITY ................................................................................................................... 42 6.5 CONDUCTED EMISSIONS AT THE BAND EDGE ..........................................................................…

Text truncated - open the document above for the full version.

FCC ID: A3LSWDSC01G FCC Pt. 15.247 802.11a/b/g/n/ac MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 42 of 121 0Y1408271787.A3L 8/27 - 9/4/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 1.19 08/26/2014 6.4 Power Spectral Density §15.247(e) Test Overview and Limit The peak power density is measured with a spectrum analyzer connected to the antenna terminal of the EUT while the EUT is operating at its maximum duty cycle (>98%), at maximum power, and at the appropriate frequencies. All data rates were investigated and the worst case configuration results are reported in this section. The maximum permissible power spectral density is 8 dBm in any 3 kHz band. Test Procedure Used KDB 558074 v03r02 – Section 10.2 Method PKPSD KDB 662911 v02r01 – Section E)2) Measure-and-Sum Technique Test Settings 1. Analyzer was set to the center frequency of the DTS channel under investigation 2. Span = 1.5 times the DTS channel bandwidth 3. RBW = 10kHz 4. VBW = 1MHz 5. Detector = peak 6. Sweep time = auto couple 7. Trace mode = max hold 8. Trace was allowed to stabilize Test Setup The EUT and measurement equipment were set up as shown in the diagram below. Figure 6-3. Test Instrument & Measurement Setup Test Notes None FCC ID: A3LSWDSC01G FCC Pt. 15.247 802.11a/b/g/n/ac MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 43 of 121 0Y1408271787.A3L 8/27 - 9/4/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 1.19 08/26/2014 Antenna-1 Power Spectral Density Measurements 24121b10.958.00-7.05Pass 24376b11.408.00-6.60Pass 246211b11.688.00-6.32Pass 24121g6-7.048.00-15.04Pass 24376g6-6.458.00-14.45Pass 246211g6-6.828.00-14.82Pass 24121n 6.5/7.2 (MCS0) -7.618.00-15.61Pass 24376n 6.5/7.2 (MCS0) -7.278.00-15.27Pass 246211n 6.5/7.2 (MCS0) -7.158.00-15.15Pass 5745149a6-7.888.00-15.88Pass 5785157a6-8.438.00-16.43Pass 5825165a6-8.468.00-16.46Pass 5745149 n (20MHz) 6.5/7.2 (MCS0) -7.128.00-15.12Pass 5785157 n (20MHz) 6.5/7.2 (MCS0) -7.358.00-15.35Pass 5825165 n (20MHz) 6.5/7.2 (MCS0) -7.298.00-15.29Pass 5755151 n (40MHz) 13.5/15 (MCS0) -11.498.00-19.49Pass 5795159 n (40MHz) 13.5/15 (MCS0) -11.898.00-19.89Pass 5775155 ac (80MHz) 29.3/32.5 (MCS0) -14.848.00-22.84Pass Data Rate [Mbps] Pass / Fail Mar gin [dB] Maximum Permissible Power Density [dBm / 3kHz] Channel No. 802.11 Mode Frequency [MHz] Measur ed Power Spectral Density [dBm] Table 6-28. Conducted Power Density Measurements FCC ID: A3LSWDSC01G FCC Pt. 15.247 802.11a/b/g/n/ac MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 44 of 121 0Y1408271787.A3L 8/27 - 9/4/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 1.19 08/26/2014 Plot 6-37. Power Spectral Density Plot (802.11b – Ch. 1) Plot 6-38. Power Spectral Density Plot (802.11b – Ch. 6) FCC ID: A3LSWDSC01G FCC Pt. 15.247 802.11a/b/g/n/ac MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 45 of 121 0Y1408271787.A3L 8/27 - 9/4/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 1.19 08/26/2014 Plot 6-39. Power Spectral Density Plot (802.11b – Ch. 11) Plot 6-40. Power Spectral Density Plot (802.11g – Ch. 1) FCC ID: A3LSWDSC01G FCC Pt. 15.247 802.11a/b/g/n/ac MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 46 of 121 0Y1408271787.A3L 8/27 - 9/4/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 1.19 08/26/2014 Plot 6-41. Power Spectral Density Plot (802.11g – Ch. 6) Plot 6-42. Power Spectral Density Plot (802.11g – Ch. 11) FCC ID: A3LSWDSC01G FCC Pt. 15.247 802.11a/b/g/n/ac MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 47 of 121 0Y1408271787.A3L 8/27 - 9/4/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 1.19 08/26/2014 Plot 6-43. Power Spectral Density Plot (802.11n (2.4GHz) – Ch. 1) Plot 6-44. Power Spectral Density Plot (802.11n (2.4GHz) – Ch. 6) FCC ID: A3LSWDSC01G FCC Pt. 15.247 802.11a/b/g/n/ac MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 48 of 121 0Y1408271787.A3L 8/27 - 9/4/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 1.19 08/26/2014 Plot 6-45. Power Spectral Density Plot (802.11n (2.4GHz) – Ch. 11) Plot 6-46. Power Spectral Density Plot (802.11a – Ch. 149) FCC ID: A3LSWDSC01G FCC Pt. 15.247 802.11a/b/g/n/ac MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 49 of 121 0Y1408271787.A3L 8/27 - 9/4/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 1.19 08/26/2014 Plot 6-47. Power Spectral Density Plot (802.11a – Ch. 157) Plot 6-48. Power Spectral Density Plot (802.11a – Ch. 165) FCC ID: A3LSWDSC01G FCC Pt. 15.247 802.11a/b/g/n/ac MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 50 of 121 0Y1408271787.A3L 8/27 - 9/4/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 1.19 08/26/2014 Plot 6-49. Power Spectral Density Plot (20MHz BW 802.11n (5.8GHz) – Ch. 149) Plot 6-50. Power Spectral Density Plot (20MHz BW 802.11n (5.8GHz) – Ch. 157) FCC ID: A3LSWDSC01G FCC Pt. 15.247 802.11a/b/g/n/ac MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 51 of 121 0Y1408271787.A3L 8/27 - 9/4/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 1.19 08/26/2014 Plot 6-51. Power Spectral Density Plot (20MHz BW 802.11n (5.8GHz) – Ch. 165) Plot 6-52. Power Spectral Density Plot (40MHz BW 802.11n (5.8GHz) – Ch. 151) FCC ID: A3LSWDSC01G FCC Pt. 15.247 802.11a/b/g/n/ac MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 52 of 121 0Y1408271787.A3L …

Text truncated - open the document above for the full version.

FCC ID: A3LSWDSC01G FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 36 0Y1408271790.A3L 8/27 - 9/4/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 1.19 08/26/2014 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 8/27 - 9/4/2014 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1408271790.A3L FCC ID: A3LSWDSC01G APPLICANT: Samsung Electronics, Co. Ltd. Application Type: Certification Model: SC-01G EUT Type: Portable Handset Max. RF Output Power: 3.578 mW (5.54 dBm) Peak Conducted Frequency Range: 2402 - 2480 MHz FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 Test Procedure(s): KDB 558074 v03r02 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 558074 v03r02. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 Bluetooth (Low Energy) FCC ID: A3LSWDSC01G FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 36 0Y1408271790.A3L 8/27 - 9/4/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 1.19 08/26/2014 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT .................................................................................................. 3 1.0 INTRODUCTION .................................…

Text truncated - open the document above for the full version.
