A4MLP-RF24DS-01LP-RF24DS-01

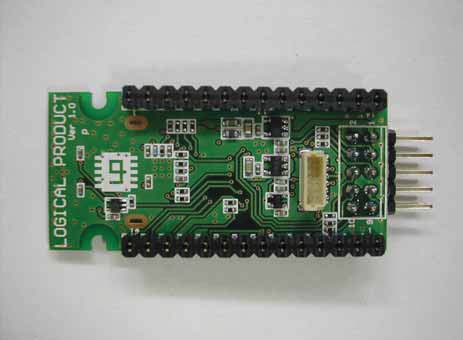

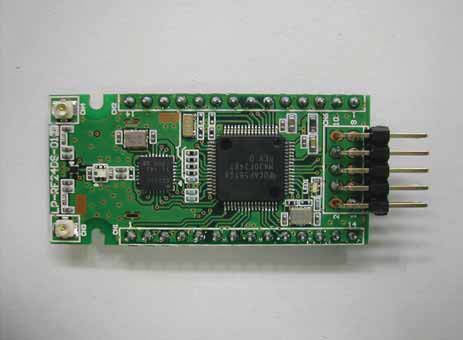

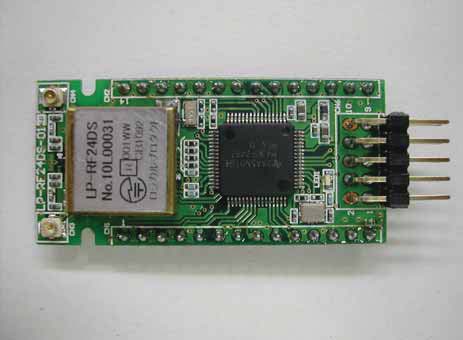

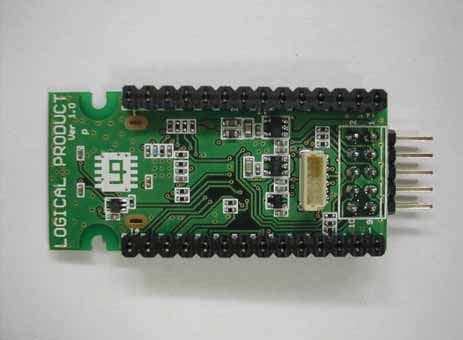

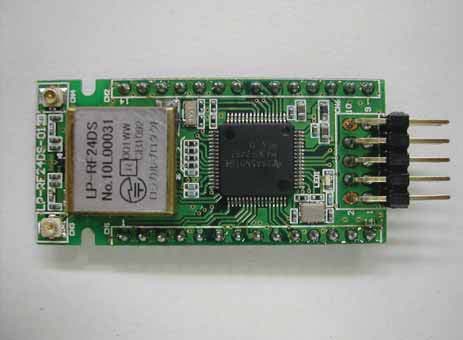

㻸㻼㻙㻾㻲㻞㻠㻰㻿㻙㻜㻝㻌㻵㻺㼀㻱㻾㻺㻭㻸㻌㻼㻴㻻㼀㻻㻿 㻲㻾㻻㻺㼀 㻮㻭㻯㻷 㻸㻼㻙㻾㻲㻞㻠㻰㻿㻙㻜㻝㻌㻵㻺㼀㻱㻾㻺㻭㻸㻌㻼㻴㻻㼀㻻㻿㻝㻛㻟 㻲㻾㻻㻺㼀 㻮㻭㻯㻷 㻸㻼㻙㻾㻲㻞㻠㻰㻿㻙㻜㻝㻌㻵㻺㼀㻱㻾㻺㻭㻸㻌㻼㻴㻻㼀㻻㻿㻞㻛㻟 㻭㻺㼀㻱㻺㻺㻭㻌㻼㻴㻻㼀㻻 㻸㻼㻙㻾㻲㻞㻠㻰㻿㻙㻜㻝㻌㻵㻺㼀㻱㻾㻺㻭㻸㻌㻼㻴㻻㼀㻻㻿㻟㻛㻟

㻸㻼㻙㻾㻲㻞㻠㻰㻿㻙㻜㻝㻌㻯㻱㻾㼀㻵㻲㻵㻯㻭㼀㻵㻻㻺㻌㻸㻭㻮㻱㻸 㻲㻯㻯㻌㻵㻰䠖㻌㻭㻠㻹㻸㻼㻙㻾㻲㻞㻠㻰㻿㻙㻜㻝 㻸㻼㻙㻾㻲㻞㻠㻰㻿㻙㻜㻝㻌㻯㻱㻾㼀㻵㻲㻵㻯㻭㼀㻵㻻㻺㻌㻸㻭㻮㻱㻸㻝㻛㻞

㻸㻼㻙㻾㻲㻞㻠㻰㻿㻙㻜㻝㻌㻵㻺㼀㻱㻾㻺㻭㻸㻌㻼㻴㻻㼀㻻㻿 㻲㻾㻻㻺㼀 㻮㻭㻯㻷 㻸㻼㻙㻾㻲㻞㻠㻰㻿㻙㻜㻝㻌㻵㻺㼀㻱㻾㻺㻭㻸㻌㻼㻴㻻㼀㻻㻿㻝㻛㻟 㻲㻾㻻㻺㼀 㻮㻭㻯㻷 㻸㻼㻙㻾㻲㻞㻠㻰㻿㻙㻜㻝㻌㻵㻺㼀㻱㻾㻺㻭㻸㻌㻼㻴㻻㼀㻻㻿㻞㻛㻟 㻭㻺㼀㻱㻺㻺㻭㻌㻼㻴㻻㼀㻻 㻸㻼㻙㻾㻲㻞㻠㻰㻿㻙㻜㻝㻌㻵㻺㼀㻱㻾㻺㻭㻸㻌㻼㻴㻻㼀㻻㻿㻟㻛㻟

UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Applicant: LOGICAL PRODUCT CORPORATION T ype of Equipment : LP-RF24DS-01 Model No. : LP-RF24DS-01 FCC ID: A4MLP-RF24DS-01 LOGICAL PRODUCT CORPORATION declares that Model : LP-RF24DS-01 ⇒ complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091 (for mobile). RF Ex posure Calculations: ← The following information provides the minimum separation distance for the highest gain antenna provided with the “LP-RF24DS-01“ as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 2.34 mW (Maximum peak output power) G = 2.09 Numerical Antenna gain; equal to3.20dBi r =20.0 cm For: LP-RF24DS-01S =0.00097 mW/cm 2 No. : 32DE0080-HO-01 RF Exposure / MPE Calculation

Test report No. : 32DE0080-HO-01-A-R2 Page : 2 of 39 Issued date : January 27, 2012 Revised date : February 9, 2012 FCC ID : A4MLP-RF24DS-01 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ......................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ........................................................................................... 3 SECTION 3: Test specification, procedures & results ............................................................................ 4 SECTION 4: Operation of E.U.T. during testing .................................................................................... 7 SECTION 5: Conducted Emission .......................................................................................................... 10 SECTION 6: Radiated Spurious Emission ............................................................................................ 11 SECTION 7: Antenna Terminal Conducted Tests ................................................................................ 12 APPENDIX 1: Data of EMI test .............................................................................................................. 13 Conducted Emission ......................................................................................................................... 13 6dB Bandwidth ................................................................................................................................. 16 Maximum Peak Output Power .......................................................................................................... 18 Radiated Spurious Emission ............................................................................................................. 19 Conducted Spurious Emission .......................................................................................................... 25 Conducted Emission Band Edge compliance ................................................................................... 32 Power Density ................................................................................................................................... 33 99%Occupied Bandwidth ................................................................................................................. 35 APPENDIX 2: Test instruments ............................................................................................................. 36 APPENDIX 3: Photographs of test setup ............................................................................................... 37 Conducted Emission ......................................................................................................................... 37 Radiated Spurious Emission ............................................................................................................. 38 Worst Case Position .......................................................................................................................... 39 Test report No. : 32DE0080-HO-01-A-R2 Page : 3 of 39 Issued date : January 27, 2012 Revised date : February 9, 2012 FCC ID : A4MLP-RF24DS-01 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : LOGICAL PRODUCT CORPORATION Address : NAKAHARA BLDG.2F 2-25-5 MATOBA MINAMI-KU 811-1314 FUKUOKA JAPAN Telephone Number : +81-92-405-7603 Facsimile Number : +81-92-405-7604 Contact Person : YUICHIRO TANAKA SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : LP-RF24DS-01 Model No. : LP-RF24DS-01 Serial No. : Refer to Section 4, Clause 4.2 Rating : DC5.0V / AC120V Receipt Date of Sample : January 6, 2012 Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description General Specification Clock frequency(ies) in the system : RF IC: 32MHz, CPU: 16MHz, 32.768kHz Radio Specification Radio Type : Transceiver Frequency of Operation : 2405-2478MHz Modulation : O-QPSK Power Supply (radio part input) : DC 3.3V Antenna type : ANT 1: 1/4 Wave Dipole Antenna ANT 2: 1/4 Wave Dipole Antenna Antenna Gain : ANT 1: 3.2dBi ANT 2: 3.2dBi Antenna Connector type : U. FL Test report No. : 32DE0080-HO-01-A-R2 Page : 4 of 39 Issued date : January 27, 2012 Revised date : February 9, 2012 FCC ID : A4MLP-RF24DS-01 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2012, final revised on February 1, 2012 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz *The revision on February 1, 2012 does not affect the test specification applied to the EUT. 3.2 Procedures and results Item Test Procedure Specification Worst margin Results Remarks Conducted Emission FCC: ANSI C63.4:2003 7. AC powerline Conducted Emission measurements FCC: Section 15.207 QP 5.8dB, 0.21216MHz, L AV 5.5dB, 0.21212MHz, N Complied - IC: RSS-Gen 7.2.4 IC: RSS-Gen 7.2.4 6dB Bandwidth FCC: "Guidance on Measurement of Digital Transmission Systems Operating under Section15.247" FCC: Section 15.247(a)(2) See data. Complied Conducted IC: RSS-Gen 4.6.2 IC: RSS-210 A8.2(a) Maximum Peak Output Power FCC: "Guidance on Measurement of Digital Transmission Systems Operating under Section15.247" FCC: Section 15.247(b)(3) Complied Conducted IC: RSS-Ge…

Text truncated - open the document above for the full version.

Test report No. : 32DE0080-HO-01-A-R2 Page : 37 of 39 Issued date : January 27, 2012 Revised date : February 9, 2012 FCC ID : A4MLP-RF24DS-01 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Conducted Emission Photo 1 Photo 2 Test report No. : 32DE0080-HO-01-A-R2 Page : 38 of 39 Issued date : January 27, 2012 Revised date : February 9, 2012 FCC ID : A4MLP-RF24DS-01 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Spurious Emission Photo 1 Photo 2 Test report No. : 32DE0080-HO-01-A-R2 Page : 39 of 39 Issued date : January 27, 2012 Revised date : February 9, 2012 FCC ID : A4MLP-RF24DS-01 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position Module (Horizontal: X-axis/ Vertical:X-axis) Antenna (Horizontal: X-axis/ Vertical:Y-axis) X-axis X-axis Y-axis Y-axis Z-axis Z-axis
