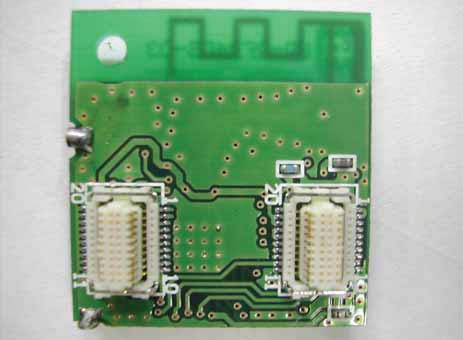

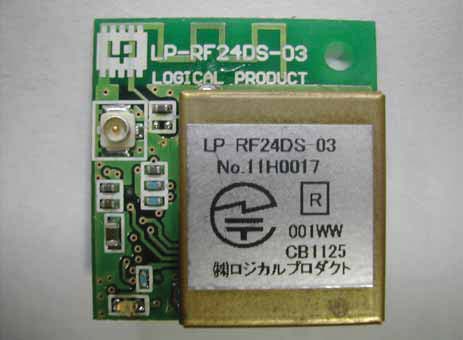

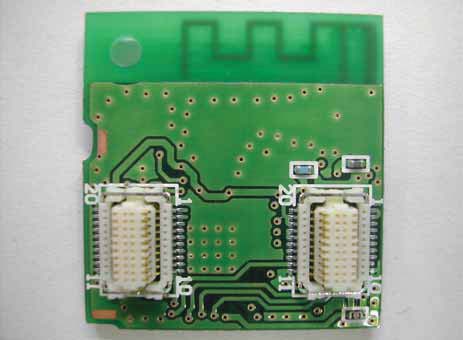

㻸㻼㻙㻾㻲㻞㻠㻰㻿㻙㻜㻟㻌㻵㻺㼀㻱㻾㻺㻭㻸㻌㻼㻴㻻㼀㻻㻿 㻲㻾㻻㻺㼀 㻮㻭㻯㻷 㻸㻼㻙㻾㻲㻞㻠㻰㻿㻙㻜㻟㻌㻵㻺㼀㻱㻾㻺㻭㻸㻌㻼㻴㻻㼀㻻㻿㻝㻛㻟 㻲㻾㻻㻺㼀 㻮㻭㻯㻷 㻸㻼㻙㻾㻲㻞㻠㻰㻿㻙㻜㻟㻌㻵㻺㼀㻱㻾㻺㻭㻸㻌㻼㻴㻻㼀㻻㻿㻞㻛㻟

㻸㻼㻙㻾㻲㻞㻠㻰㻿㻙㻜㻟㻌㻯㻱㻾㼀㻵㻲㻵㻯㻭㼀㻵㻻㻺㻌㻸㻭㻮㻱㻸 㻲㻯㻯㻌㻵㻰䠖㻌㻭㻠㻹㻸㻼㻙㻾㻲㻞㻠㻰㻿㻙㻜㻟 㻯㻭㻿㻱㻌㻰㻵㻹㻱㻺㻿㻵㻻㻺㻿㻌䠖䚷㻟㻜㽢㻠㻜㽢㻞㻜䚷㼙㼙 㻌㻯㼛㼚㼠㼍㼕㼚㼟㻌㻲㻯㻯㻌㻵㻰䠖㻌㻭㻠㻹㻸㻼㻙㻾㻲㻞㻠㻰㻿㻙㻜㻟 㻸㻼㻙㻾㻲㻞㻠㻰㻿㻙㻜㻟㻌㻯㻱㻾㼀㻵㻲㻵㻯㻭㼀㻵㻻㻺㻌㻸㻭㻮㻱㻸㻝㻛㻝

㻸㻼㻙㻾㻲㻞㻠㻰㻿㻙㻜㻟㻌㻵㻺㼀㻱㻾㻺㻭㻸㻌㻼㻴㻻㼀㻻㻿 㻲㻾㻻㻺㼀 㻮㻭㻯㻷 㻸㻼㻙㻾㻲㻞㻠㻰㻿㻙㻜㻟㻌㻵㻺㼀㻱㻾㻺㻭㻸㻌㻼㻴㻻㼀㻻㻿㻝㻛㻟 㻲㻾㻻㻺㼀 㻮㻭㻯㻷 㻸㻼㻙㻾㻲㻞㻠㻰㻿㻙㻜㻟㻌㻵㻺㼀㻱㻾㻺㻭㻸㻌㻼㻴㻻㼀㻻㻿㻞㻛㻟

UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Applicant: LOGICAL PRODUCT CORPORATION Type of Equipment : LP-RF24DS-03 Model No. : LP-RF24DS-03 FCC ID: A4MLP-RF24DS-03 LOGICAL PRODUCT CORPORATION declares that Model : LP-RF24DS-03 ⇒ complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091 (for mobile). RF Exposure Calculations: ← The following information provides the minimum separation distance for the highest gain antenna provided with the “LP-RF24DS-03“ as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 2.99 mW (Maximum peak output power) G = 2.09 Numerical Antenna gain; equal to3.20 dBi r =20.0 c m For: LP-RF24DS-03S =0.00124 mW/cm 2 No. : 32DE0080-HO-01 RF Exposure / MPE Calculation

Test report No. : 32DE0080-HO-01-C-R1 Page : 2 of 41 Issued date : January 30, 2012 Revised date : February 1, 2012 FCC ID : A4MLP-RF24DS-03 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ......................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ........................................................................................... 3 SECTION 3: Test specification, procedures & results ............................................................................ 4 SECTION 4: Operation of E.U.T. during testing .................................................................................... 7 SECTION 5: Radiated Spurious Emission .............................................................................................. 9 SECTION 6: Antenna Terminal Conducted Tests ................................................................................ 10 APPENDIX 1: Data of EMI test .............................................................................................................. 11 6dB Bandwidth ................................................................................................................................. 11 Maximum Peak Output Power .......................................................................................................... 13 Radiated Spurious Emission ............................................................................................................. 14 Conducted Spurious Emission .......................................................................................................... 26 Conducted Emission Band Edge compliance ................................................................................... 33 Power Density ................................................................................................................................... 34 99%Occupied Bandwidth ................................................................................................................. 36 APPENDIX 2: Test instruments ............................................................................................................. 37 APPENDIX 3: Photographs of test setup ............................................................................................... 38 Radiated Spurious Emission ............................................................................................................. 38 Worst Case Position .......................................................................................................................... 40 Test report No. : 32DE0080-HO-01-C-R1 Page : 3 of 41 Issued date : January 30, 2012 Revised date : February 1, 2012 FCC ID : A4MLP-RF24DS-03 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : LOGICAL PRODUCT CORPORATION Address : NAKAHARA BLDG.2F 2-25-5 MATOBA MINAMI-KU 811-1314 FUKUOKA JAPAN Telephone Number : +81-92-405-7603 Facsimile Number : +81-92-405-7604 Contact Person : YUICHIRO TANAKA SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : LP-RF24DS-03 Model No. : LP-RF24DS-03 Serial No. : Refer to Section 4, Clause 4.2 Rating : DC3.3V Receipt Date of Sample : January 6, 2012 Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description General Specification Clock frequency(ies) in the system : RF IC (CPU): 32MHz Radio Specification Radio Type : Transceiver Frequency of Operation : 2405-2479MHz Modulation : O-QPSK Power Supply (radio part input) : DC 3.3V Antenna type : ANT 1: Inverted F Antenna ANT 2: 1/4 Wave Dipole Antenna Antenna Gain : ANT 1: 2.0dBi ANT 2: 3.2dBi Antenna Connector type : ANT 1: - ANT 2: U. FL Test report No. : 32DE0080-HO-01-C-R1 Page : 4 of 41 Issued date : January 30, 2012 Revised date : February 1, 2012 FCC ID : A4MLP-RF24DS-03 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2011, final revised on November 21, 2011 and effective December 21, 2011 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz 3.2 Procedures and results Item Test Procedure Specification Worst margin Results Remarks Conducted Emission FCC: ANSI C63.4:2003 7. AC powerline Conducted Emission measurements FCC: Section 15.207 N/A N/A*1) - IC: RSS-Gen 7.2.4 IC: RSS-Gen 7.2.4 6dB Bandwidth FCC: "Guidance on Measurement of Digital Transmission Systems Operating under Section15.247" FCC: Section 15.247(a)(2) See data. Complied Conducted IC: RSS-Gen 4.6.2 IC: RSS-210 A8.2(a) Maximum Peak Output Power FCC: "Guidance on Measurement of Digital Transmission Systems Operating under Section15.247" FCC: Section 15.247(b)(3) Complied Conducted IC: RSS-Gen 4.8 IC: RSS-210 A8.4(4) Power Density FCC: "Guidance on Measurement of Digital Transmission Systems Operating under Section15.247" FCC: Section 15.247 (e) Complied Conducted IC: - IC: RSS-210 A8.2(b) Spurious Emission Restricted Band Edges FCC: "Guidance on Measurement of Digital Transmission Systems Operating under Section15.247" FCC: Section15.247(d) 0.9dB 7326.000MHz, AV, Vert. ANT 1 Complied Conducted/ Radiated IC: RSS-Gen 4.9 IC: RSS-210 A8.5 RSS-Gen 7.2.3 Note: UL Japan, Inc.’s EMI Work Procedures No. 13-EM-W0420 and 13-EM-W0422. *1) …

Text truncated - open the document above for the full version.

Test report No. : 32DE0080-HO-01-C-R1 Page : 38 of 41 Issued date : January 30, 2012 Revised date : February 1, 2012 FCC ID : A4MLP-RF24DS-03 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Radiated Spurious Emission ANT 1 Photo 1 Photo 2 Test report No. : 32DE0080-HO-01-C-R1 Page : 39 of 41 Issued date : January 30, 2012 Revised date : February 1, 2012 FCC ID : A4MLP-RF24DS-03 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Spurious Emission ANT 2 Photo 1 Photo 2 Test report No. : 32DE0080-HO-01-C-R1 Page : 40 of 41 Issued date : January 30, 2012 Revised date : February 1, 2012 FCC ID : A4MLP-RF24DS-03 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position Module and ANT 1 (Horizontal: X-axis/ Vertical:Y-axis) Module for ANT 2 (Horizontal: X-axis/ Vertical:X-axis) X-axis Y-axis Z-axis Test report No. : 32DE0080-HO-01-C-R1 Page : 41 of 41 Issued date : January 30, 2012 Revised date : February 1, 2012 FCC ID : A4MLP-RF24DS-03 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position ANT 2 (Horizontal: X-axis / Vertical: Y-axis) X-axis Y-axis Z-axis
