A5LRL-UM02RTL8188CTV WIFI module

http://www.rf-link.net RL-UM02 Product Specifications WLAN 11b/g/n USB module (1T1R) Version: 1.0 http://www.rf-link.net Overview UM02 is a WLAN 11n USB module, which fully supports the features and functional compliance of IEEE 802.11n,e and i standards. It supports up to 150Mbps high-speed wireless network connections. It is designed to provide excellent performance with low power Consumption and enhance the advantages of robust system and cost-effective. It is targeted at competitive superior performance, better power Management applications. Features * Operates in 2.4 GHz frequency bands * Data rates: up to 150Mbps * 802.11e-compatible bursting and I standards * BPSK, QPSK, 16 QAM, 64 QAM modulation schemes * WEP, TKIP, and AES, WPA, WPA2 hardware encryption schemes http://www.rf-link.net General Specification Model RL-UM02 Product Name WLAN 11n USB module Major Chipset Realtek RTL8188CTV Standard 802.11b/g/n, 802.3, 802.3u Data Transfer Rate 1,2,5.5,6,11,12,18,22,24,30,36,48,54,60,90,120 and maximum of 150Mbps Modulation Method BPSK/ QPSK/ 16-QAM/ 64-QAM Frequency Band 2.4~2.4835 GHz ISM Band Spread Spectrum IEEE 802.11b: DSSS (Direct Sequence Spread Spectrum) IEEE 802.11g/n:OFDM (Orthogonal Frequency Division Multiplexing) RF Output Power < 13dBm@11n,< 18dBm@11b,< 14dBm@11g Operation Mode Ad hoc, Infrastructure Receiver Sensitivity 11B 11Mbps -86dBm@8%, 5.5Mbps -88dBm@8%, 2Mbps -90dBm@8% 1Mbps -91dBm@8% 11G 54Mbps -73dBm@10%, 48Mbps -73dBm@10% 36Mbps -76dBm@10% 24Mbps -79dBm@10% 18Mbps -82dBm@10% 12Mbps -85dBm@10% 9Mbps -87dBm@10% 6Mbps -88dBm@10% 11N HT20 MCS0 -88dBm@10% MCS1 -85dBm@10% MCS2 -82dBm@10% MCS3 -79dBm@10% MCS4 -76dBm@10% MCS5 -73dBm@10% MCS6 -70dBm@10% MCS7 -68dBm@10% 11N HT40 MCS0 -86dBm@10% http://www.rf-link.net MCS1 -84dBm@10% MCS2 -81dBm@10% MCS3 -78dBm@10% MCS4 -75dBm@10% MCS5 -72dBm@10% MCS6 -69dBm@10% MCS7 -66dBm@10% Operation Range Up to 180 meters in open space LED OS Support Windows 2000,XP32-64,Vista 32/64,Win7 32/64,Linux,Mac, Android, WIN CE Security WEP, TKIP, AES, WPA, WPA2 Interface USB 2.0 Power Consumption DC3.3V Normal Internet maximum power dissipation in 120MA Operating Temperature -20 ~ +60° C ambient temperature Storage Temperature -10 ~ 70°C ambient temperature Humidity 5 to 90 % maximum (non-condensing) Dimension 30.4x 15.4 x 14mm (LxWxH) +-0.2MM http://www.rf-link.net Dimensions: The PCB tolerances within + / -0.2 or so PINDefinition http://www.rf-link.net TOP BOT http://www.rf-link.net ᥦ䩜㾘Ḑ http://www.rf-link.net DC Characteristics SymbolParameter MinimumTypicalMaximumUnits VD3.3A, VD3.3D 3.3V I/O Supply Voltage 3.1 3.3 3.5 V VD15A, VD15D 1.5V Supply Voltage 1.4 1.5 1.6 V IDD3.3V 3.3V Rating Current - - 500 mA http://www.rf-link.net Power Consumption Parameters Sym Conditions Min Typ Max Unit 3.3V Supply Voltage Vc33 3.1 3.3 3.5 V 1.5V Supply Voltage Vc15 1.4 1.5 1.6 V Receiving Tests the biggest receive 3.3V Current Consumption Icc33rx H40MCS7 113 MA 3.3V Current Consumption Icc33rx OFDM 54M 125 MA Transmission Biggest transmission test 3.3V Current Consumption Icc33tx H40 MCS7 138 MA 3.3V Current Consumption Icc33tx OFDM 54M 152 MA The depth waits for an opportunity Icc33tx/rx2 MA Deep sleep Ic33tx/rx 2 MA http://www.rf-link.net USB interface electrical characteristics Regulatory Information The devices must be installed and used in strict accordance with the manufacturer's instructions as described in the user documentation that comes with the product. If the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: A5LRL-UM02 When the module is installed inside another device, the user manual of this device must contain below warning statements; 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This modular could be installed in the fix or mobile devices only, installed in the portable device, like USB dongle like transmitters is forbidden. This modular complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This modular must be installed and operated with a minimum distance of 20 cm between the radiator and user body. The devices must be installed and used in strict accordance with the manufacturer's instructions as described in the user documentation that comes with the product. Modular could be only used in mobile or fix device, and could not be used in any portable device. FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

RF-LINK INTERNATIONAL LIMITED Bldg 56A 3/F,Baotian Rd3,Xixiang Town,Bao’an District, Shenzhen, China DATE :2012-06-18 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Hans Hu of Global United Technology Services Co., Ltd. 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District Shenzhen Guangdong to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with RF-LINK INTERNATIONAL LIMITED and Bldg 56A 3/F,Baotian Rd3,Xixiang Town,Bao’an District, Shenzhen, China Dated this / Day of 06/18/2012 / Agency agreement expiration date: 06/18/2013 By: Fang XiangLong Signature Printed Title: General Manager On behalf of : RF-LINK INTERNATIONAL LIMITED Telephone: 0755-83703679

Differences Declaration To whom concern, We company RF-LINK INTERNATIONAL LIMITED hereby declares: The product model(s) RL-UM02BS, RL-UM02BL, RL-UM02B, RL-UM02L, RL-UM02TT, RL-UM02BT are identical in the same PCB layout, interior structure and electrical circuits with the model RL-UM02 which tested in Global United Technology Services Co., Ltd., the only differences are the model name for commercial purpose. Authorized signature: Position: General Manager Date: 2012-06-18

RF-LINK INTERNATIONAL LIMITED Bldg 56A 3/F,Baotian Rd3,Xixiang Town,Bao’an District, Shenzhen, China 2012-06-18 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: A5LRL-UM02 Product Name: WIFI module Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Operational Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 06/18/2012 By: Fang XiangLong Signature Printed Title: General Manager On behalf of : RF-LINK INTERNATIONAL LIMITED Telephone: 0755-83703679

RF‐LINK INTERNATIONAL LIMITED FCC ID: A5LRL-UM02 Module Characteristics Item Modular approval requirement EUT description Yes or No 1 The modular transmitter must have its own RF shielding. The modular do not equip with own RF shielding. No 2 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over‐modulation. Data inputs to the module are buffered through log or microcontroller connections. Yes 3 The modular transmitter must have its own power supply regulation. RF Voltage regulation is handled on the module. Yes 4 The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). This antenna is permanently attached on the modular Yes 5 The modular transmitter must be tested in a stand‐alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Please refer to test setup photo, The distance between the EUT and host is greater than 10cm. Yes 6 The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: A5LRL‐UM02” or “Contains FCC ID: A5LRL‐UM02.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this Please refer to FCC ID label format and location and user manual file. Yes RF‐LINK INTERNATIONAL LIMITED requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. 7 The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. Refer to modular installation manual. Yes 8 The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. Transmitter meets MPE calculation of 47 CFR 1.107(b)(1).Please refer to the test report. A minimum separation distance of 20 cm is always maintained between the modular and any human being nearby. Yes RF‐LINK INTERNATIONAL LIMITED Dated this 2012-06-18 By: Fang XiangLong Signature Printed Title: General Manager On behalf of : RF-LINK INTERNATIONAL LIMITED Telephone: 0755-83703679

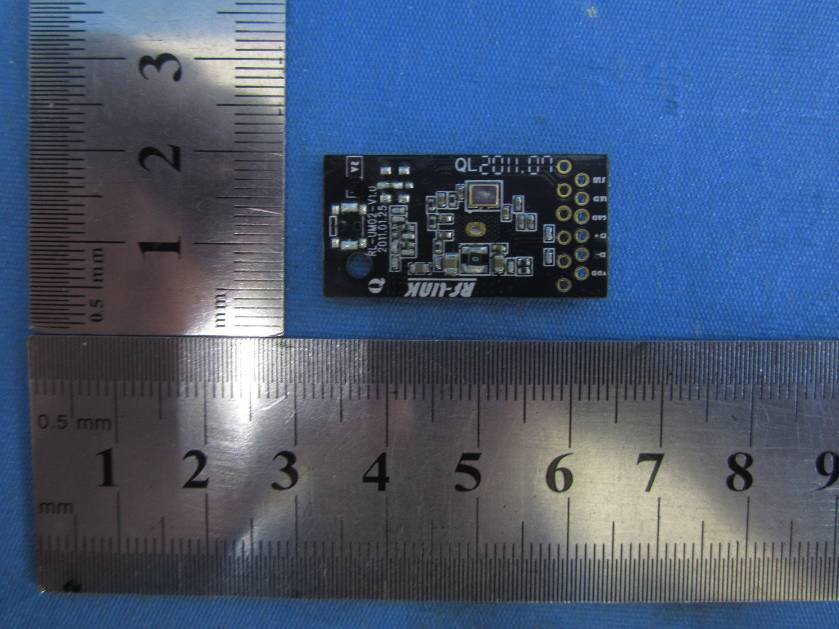

6mm (Length)* 2mm (Width) FCC ID: A5LRL-UM02

Label location

Global United Technology Services Co., Ltd. Report No: GTSE12060064001 Authorized Signature: Robinson Lo Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the GTS product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of GTS International Electrical Approvals or testing done by GTS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by GTS International Electrical Approvals in writing. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover Page FCC REPORT Applicant: RF-LINK INTERNATIONAL LIMITED Address of Applicant: Bldg 56A 3/F,Baotian Rd3,Xixiang Town,Bao’an District, Shenzhen, China Equipment Under Test (EUT) Product Name: RTL8188CTV WIFI module Model No.: RL-UM02, RL-UM02BS, RL-UM02BL, RL-UM02B, RL-UM02L, RL-UM02TT, RL-UM02BT FCC ID: A5LRL-UM02 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247:2010 Date of sample receipt: June 15, 2012 Date of Test: June 18-19, 2012 Date of report issued: June 19, 2012 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No: GTSE12060064001 Global United Technology Services Co., Ltd. Project No.: GTSE120600640RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 60 2 Version Version No. Date Description 00 June 19, 2012 Original Prepared By: Date: June 19, 2012 Project Engineer Check By: Date: June 19, 2012 Reviewer Report No: GTSE12060064001 Global United Technology Services Co., Ltd. Project No.: GTSE120600640RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 60 3 Contents Page 1 COVER PAGE..............................................................................................................................................................1 2 VERSION.......................................................................................................................................................................2 3 CONTENTS...................................................................................................................................................................3 4 TEST SUMMARY.........................................................................................................................................................4 5 GENERAL INFORMATION........................................................................................................................................5 5.1 CLIENT INFORMATION............................................................................................................................................5 5.2 GENERAL DESCRIPTION OF E.U.T........................................................................................................................5 5.3 TEST MODE............................................................................................................................................................7 5.4 TEST FACILITY.......................................................................................................................................................7 5.5 TEST LOCATION.....................................................................................................................................................7 5.6 OTHER INFORMATION REQUESTED BY THE CUSTOMER.......................................................................................7 5.7 DESCRIPTION OF SUPPORT UNITS........................................................................................................................7 5.8 TEST INSTRUMENTS LIST.......................................................................................................................................8 6 TEST RESULTS AND MEASUREMENT DATA.....................................................................................................9 6.1 ANTENNA REQUIREMENT:......................................................................................................................................9 6.2 CONDUCTED EMISSIONS.....................................................................................................................................10 6.3 CONDUCTED PEAK OUTPUT POWER..................................................................................................................13 6.4 EMISSION BANDWIDTH........................................................................................................................................18 6.5 POWER SPECTRAL DENSITY...............................................................................................................................23 6.6 BAND EDGES........................................................................................................................................................28 6.6.1 Conducted Emission M…
