A5M-MD80Lenovo Wireless Transmitter

Lenovo Wireless Transmitter MD80 【Instructions for Use】 Please read this user guide carefully before using the product and keep it properly Declaration Key Ring light 1 Type-C interface 3 2 Product introduction I.Pair with the big screen When using the Wireless Transmitter for the first time, you need to pair the projector with the large screen. The pairing steps are as follows: 【Method 1】 Turn on the big screen。 1 Insert the Type-C plug of the projector into the Type-C connector of the large screen. 2 Wait for the large screen to automatically pair. 3 Pairing is successful. The large screen displays "Lenovo Wireless Transmitter Pairing Successfully".。 4 Type-C interposition Wireless Transmitter Type-c interface （as shown in Picture a） Large screen Type-C interface Product Instructions II. Projection Plug the Wireless Transmitter's Type-C port into the corresponding Type-C port on your laptop, the red light goes on, and the device starts working. 1 Press the middle button to project the laptop's screen to the large screen. At this point, the indicator light will turn white and steady on. 3 Press the button again to terminate the screen projection. The indicator blinks white. 4 After the Wireless Transmitter is successfully connected to the large screen,the light on the Wireless Transmitter will turn into a white flashing state. 2 Type-C （as shown in Picture c） Product Specification IEEE 802.11a/b/g/n/ ac/ax 4K Lenovo MD80 Interface Picture a Picture c Note: The same large screen only needs to be paired once without changing the large screen hotspot.If the large screen hotspot changes, it needs to be paired again. The Bluetooth pairing feature only supports one-to-one pairing. 【Method 2】 Insert the Lenovo Wireless Transmitter into the computer to be projected, press and hold the Wireless Transmitter button for 5s, the red light flashes rapidly, and the projection enters the pairing waiting state. (as shown in Picture b) 1 Open the large screen and enter Settings Application-Network Settings-Turn on the Bluetooth switch; Turn on Lenovo Projector-Pair Bluetooth, and the large screen will automatically pair with the Wireless Transmitter. 2 The indicator light of the projector to be displayed is always on white, and the Wireless Transmitter is successfully paired. 3 Computer Type-C interface Picture b Press and hold the projection button for 5S, the red light will flash, and the projector will start Bluetooth pairing state Welcome to the Lenovo Wireless Transmitter MD80.Before installing and using this product for the first time,please be sure to carefully read all the information supplied with this product,which will help you to better use this product. Data may be lost due to failure to operate according to the instructions, unauthorized maintenance, product water ingress,product falling or other accidents, and may not be restored, or cause otherlosses. Please keep the equipment and instructions properly and operate in strict accordance with the instructions. If you do not operate this product according to the requirements of this instruction manual, or misoperate this product due to misunderstanding or other reasons, it will cause data loss or other losses. Please keep the product and instruction manual properly, and operate in strict accordance with the instruction manual. Before operating in accordance with the instruction manual, back up the data in time. Lenovo(Beijing)Co., Ltd.has strictly and carefully collated and checked this instruction manual. But we can not make the instructions completely free from errors and omissions. This manual and pictures are for reference only. If there is any discrepancy between individual pictures and the actual display of the product, please refer to the actual product. Lenovo (Beijing) Co., Ltd. reserves the right to improve and/or modify the product and software programs described in this manual and the contents of this manual at any time without prior notice. 2022Lenovo(Beijing) Co., Ltd. The contents of this User Manual are protected by copyright laws and regulations. Without the prior written authorization of Lenovo (Beijing) Co., Ltd., you may not copy or copy this User Manual in any way, or transmit this User Manual inany form in any wired or wireless network, or translate this User Manual into any language. "Lenovo" are registered trademarks or trademarks of Lenovo(Beijing) Co., Ltd. If you find any inconsistency between the actual situation of this product and this instructionmanual, or you want to get the latest information, or you have any questions or ideas, please consult or login: Tel: ***-***-**** Lenovo Website: http://www.lenovo.com Lenovo wireless Transmitter MD80 is a device that can wirelessly send the screen of a computer, mobile phone, etc. toanother screen. It can be delivered to the screen of the receiver in a copy, expanded mode, or displayed only on the screen of the receiver. It is characterized by no need to install any driver and software, plug and play; Touchback control computer; support Type-C(including display signal) interface; multi-channel connection, free switching. Wireless Transmitter appearance interposition Computer Type-C interface interposition Type-C interface Product name Lenovo Wireless Transmitter Product model Support system Transmission resolution Frame rate Touch return Wireless protocol Encipher Authentication protocol support Product name:Lenovo Wireless Transmitter Product model:Lenovo MD80 Manufacturer:LENOVO(BEIJING)LIMITED Address:201-H2-6, Floor 2 Building 2, No.6 Shangdi West Road,Haidian District, Beijing China Zip code:100085 Lenovo Website: http://www.lenovo.com Made in China WIFI FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Any Changes or modification…

Text truncated - open the document above for the full version.

Lenovo (Beijing) Limited Covered Equipment Certification Attestation Letter 8/4/2023 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: A5M-MD80 Lenovo (Beijing) Limited (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Lenovo (Beijing) Limited (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Signed: Printed name: Yang Liu Title: Compliance Engineer Company Name: Lenovo (Beijing) Limited Date: 8/4/2023

Lenovo (Beijing) Limited Date: Aug. 4, 2023 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:__A5M-MD80 ____ Product Name:___Lenovo Wireless Transmitter ____ Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block Diagram • Operation Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Signature: Name: Yang Liu Company: Lenovo (Beijing) Limited Address: 201-H2-6, Floor 2, Building 2, No.6 Shangdi West Road, Haidian District, Beijing China Phone: (86)10-58867473 Fax: (86)10-55866630 Email: [email protected]

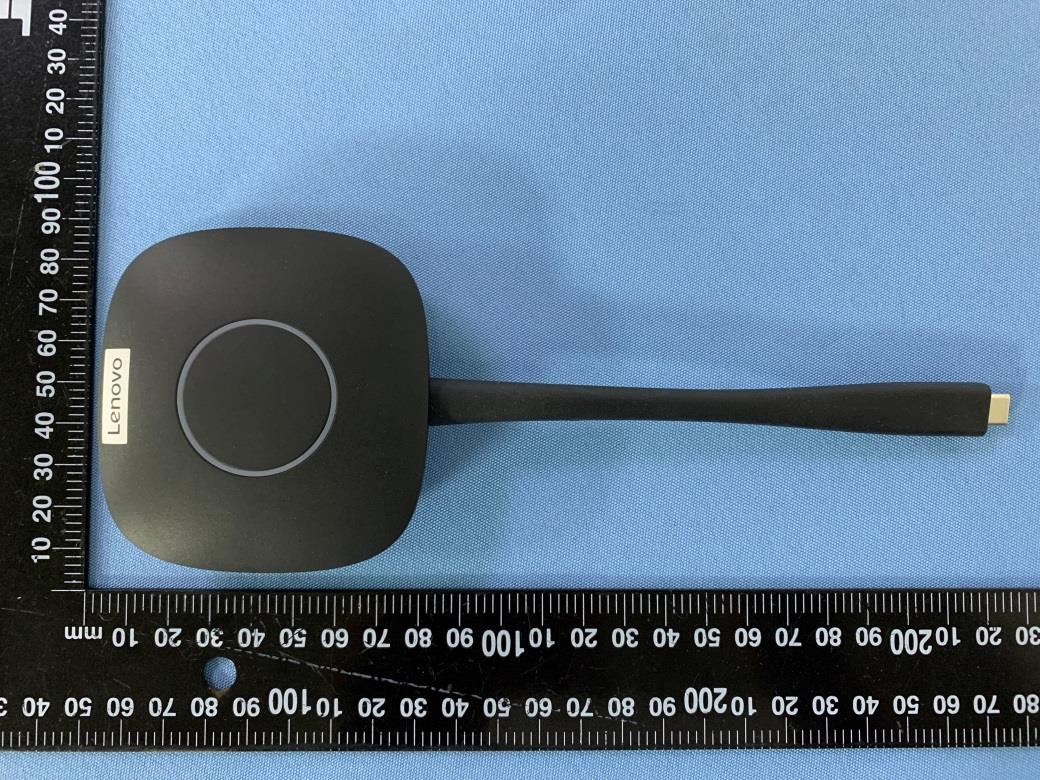

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755-27521059 Fax: +86-755-27521011 Http://www.sz-ctc.org.cn Page 1 of 3 External Photos Page 2 of 3 Page 3 of 3

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755-27521059 Fax: +86-755-27521011 http://www.sz-ctc.org.cn Page 1 of 1 Label Label Location 1.

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755-27521059 Fax: +86-755-27521011 Http://www.sz-ctc.org.cn Page 1 of 4 Internal Photos Page 2 of 4 Page 3 of 4 BT Antenna WIFI Antenna 2 Page 4 of 4 WIFI Antenna 1

CTC Laboratories, Inc. 2/F., Building 1 and 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Longhua District, Shenzhen, Guangdong, China Tel: +86-755-27521059 Fax: +86-755-27521011 http://www.sz-ctc.org.cn CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn Maximum Permissible Exposure Evaluation FCC ID: A5M-MD80 According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) Radiation as specified in §1.1307(b). EUT Specification Product Name: Lenovo Wireless Transmitter Trade Mark: Lenovo Model/Type Reference: Lenovo MD80 Listed Model(s): / Model Differences: / Frequency Band (Operating) BT: 2402MHz ~ 2480MHz WLAN: 2412MHz ~ 2462MHz U-NII-1: 5180MHz ~ 5240MHz U-NII-2A: 5260MHz ~ 5320MHz U-NII-2C: 5500MHz ~ 5700MHz U-NII-3: 5745MHz ~ 5825MHz Device Category Portable (<5mm separation) Mobile (>20cm separation) Fixed (>20cm separation) Others ___ Exposure Classification Occupational/Controlled exposure (S=5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Antenna Gain (Max) BT: 1.58dBi WLAN: ANT1: 5.75dBi ANT2: 1.39dBi Directional Gain: 6.85dBi RLAN: ANT1: 3.86dBi ANT2: 1.57dBi Directional Gain: 5.80dBi Evaluation Applied MPE Evaluation SAR Evaluation Page 2 of 2 Report No.: CTC20231447E14 CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) (A) Limits for Occupational/Controlled Exposure 300-1500 -- -- F/300 <6 1500-100000 -- -- 5 <6 (B) Limits for General Population/Uncontrolled Exposure 300-1500 -- -- F/1500 <30 1500-100000 -- -- 1 <30 Calculation Method Friis transmission formula: Pd=(P out *G)/(4*Pi*R 2 ) Where: Pd= Power density in mW/cm 2 P out = output power to antenna in mW G= gain of antenna in linear scale Pi= 3.1416 R= distance between observation point and center of the radiator in cm Pd limit of MPE is 1mW/cm 2 . If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Measurement Result Mode Frequency (MHz) Antenna Gain (dBi) Maximum Power (dBm) Tune Up Tolerance (dB) Max. Tune Up Power (dBm) Power Density at 20cm (mW/cm 2 ) Limit (mW/cm 2 ) GFSK (BLE) 2440 1.58 4.717 ±1 5.50 0.0010 1 8DPSK (EDR) 2402 1.58 8.861 ±1 9.50 0.0026 1 WLAN 802.11b 2412 1.39 17.91 ±1 19.00 0.0218 1 RLAN U-NII-3 802.11a 5785 1.57 15.830 ±1 16.50 0.0128 1 The BT and WiFi can transmit simultaneously. BT Power density at 20cm (mW/cm 2 ) WLAN Power density at 20cm (mW/cm 2 ) RLAN Power density at 20cm (mW/cm 2 ) Total Power density at 20cm (mW/cm 2 ) Power density Limit (mW/cm 2 ) 0.0026 0.0218 0.0128 0.0372 1 Note: 1. Calculate in the worst-case mode. 2. Max. Tune Up Power is declared by manufacturer, and used to calculate. 3. For a more detailed features description, please refer to the RF Test Report. **********************THE END**********************

CTC Laboratories, Inc. 2/F., Building 1 and 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Longhua District, Shenzhen, Guangdong, China Tel: +86-755-27521059 Fax: +86-755-27521011 http://www.sz-ctc.org.cn TEST REPORT Report No. .................................... : CTC20231447E10 FCC ID ........................................... : A5M-MD80 Applicant ...................................... : Lenovo (Beijing) Limited Address .......................................... : 201-H2-6, Floor 2, Building 2, No.6 Shangdi West Road, Haidian District, Beijing China Manufacturer..................................: Lenovo (Beijing) Limited Address..........................................: 201-H2-6, Floor 2, Building 2, No.6 Shangdi West Road, Haidian District, Beijing China Product Name .............................. : Lenovo Wireless Transmitter Trade Mark .................................... : Lenovo Model/Type reference .................... : Lenovo MD80 Listed Model(s) .............................. : / Standard ....................................... : FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of receipt of test sample........: Jun. 29, 2023 Date of testing..............................: Jun. 29, 2023 to Aug. 4, 2023 Date of issue................................: Aug. 5, 2023 Result............................................: PASS Compiled by: (Printed name+signature) Jim Jiang Supervised by: (Printed name+signature) Eric Zhang Approved by: (Printed name+signature) Totti Zhao $英文检测章$ $Totti$ This test report may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CTC. The Test Result in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CTC within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. The test report merely corresponds to the test sample. Page 2 of 39 Report No.: CTC20231447E10 CTC Laboratories, Inc. 2/F., Building 1 and 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : http://yz.cnca.cn Table of Contents Page 1. TEST SUMMARY ....................................................................................................................................................... 3 1.1. TEST STANDARDS .......................................................................................................................................................... 3 1.2. REPORT VERSION ......................................................................................................................................................... 3 1.3. TEST DESCRIPTION ........................................................................................................................................................ 3 1.4. TEST FACILITY .............................................................................................................................................................. 4 1.5. MEASUREMENT UNCERTAINTY ........................................................................................................................................ 5 1.6. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 5 2. GENERAL INFORMATION .......................................................................................................................................... 6 2.1. CLIENT INFORMATION ................................................................................................................................................... 6 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 6 2.3. ACCESSORY EQUIPMENT INFORMATION ............................................................................................................................ 7 2.4. OPERATION STATE ........................................................................................................................................................ 8 2.5. MEASUREMENT INSTRUMENTS LIST ................................................................................................................................. 9 3. TEST ITEM AND RESULTS ........................................................................................................................................ 10 3.1. CONDUCTED EMISSION................................................................................................................................................ 10 3.2. RADIATED EMISSION ................................................................................................................................................... 13 3.3. BAND EDGE EMISSIONS (RADIATED) .............................................................................................................................. 21 3.4. BAND EDGE AND SPURIOUS EMISSIONS (CONDUCTED) ...................................................................................................... 26 3.5. DTS BANDWIDTH ....................................................................................................................................................... 29 3.6. PEAK OUTPUT POWER ..........................................................................................................................…

Text truncated - open the document above for the full version.

Page 57 of 91 Report No.: CTC20231447E12 CTC Laboratories, Inc. 2/F., Building 1 and 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : http://yz.cnca.cn In-Band Reference Level IEEE 802.11n_Channel 3_40MHz_Antenna 1 Out Of Band Emission IEEE 802.11n_Channel 3_40MHz_Antenna 1 Spurious Emission IEEE 802.11n_Channel 3_40MHz_Antenna 1 In-Band Reference Level IEEE 802.11n_Channel 3_40MHz_Antenna 2 Out Of Band Emission IEEE 802.11n_Channel 3_40MHz_Antenna 2 Spurious Emission IEEE 802.11n_Channel 3_40MHz_Antenna 2 Page 58 of 91 Report No.: CTC20231447E12 CTC Laboratories, Inc. 2/F., Building 1 and 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : http://yz.cnca.cn In-Band Reference Level IEEE 802.11n_Channel 6_40MHz_Antenna 1 Spurious Emissions IEEE 802.11n_Channel 6_40MHz_Antenna 1 In-Band Reference Level IEEE 802.11n_Channel 6_40MHz_Antenna 2 Spurious Emissions IEEE 802.11n_Channel 6_40MHz_Antenna 2 In-Band Reference Level IEEE 802.11n_Channel 9_40MHz_Antenna 1 Out Of Band Emission IEEE 802.11n_Channel 9_40MHz_Antenna 1 Page 59 of 91 Report No.: CTC20231447E12 CTC Laboratories, Inc. 2/F., Building 1 and 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : http://yz.cnca.cn Spurious Emission IEEE 802.11n_Channel 9_40MHz_Antenna 1 In-Band Reference Level IEEE 802.11n_Channel 9_40MHz_Antenna 2 Out Of Band Emission IEEE 802.11n_Channel 9_40MHz_Antenna 2 Spurious Emission IEEE 802.11n_Channel 9_40MHz_Antenna 2 Page 60 of 91 Report No.: CTC20231447E12 CTC Laboratories, Inc. 2/F., Building 1 and 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : http://yz.cnca.cn 3.5. DTS Bandwidth Limit FCC CFR Title 47 Part 15 Subpart C Section 15.247 (a)(2) / RSS-247 5.2 a Test Item Limit Frequency Range (MHz) DTS Bandwidth ≥500 kHz (6dB bandwidth) 2400~2483.5 Test Configuration Test Procedure 1. The EUT was directly connected to the spectrum analyzer and antenna output port as show in the block diagram above. 2. DTS Spectrum Setting: (1) Set RBW = 100 kHz. (2) Set the video bandwidth (VBW) ≥ 3 RBW. (3) Detector = Peak. (4) Trace mode = Max hold. (5) Sweep = Auto couple. OCB Spectrum Setting: (1) Set RBW = 1% ~ 5% occupied bandwidth. (2) Set the video bandwidth (VBW) ≥ 3 RBW. (3) Detector = Peak. (4) Trace mode = Max hold. (5) Sweep = Auto couple. NOTE: The EUT was set to continuously transmitting in each mode and low, Middle and high channel for the test. Test Mode Please refer to the clause 2.4. Page 61 of 91 Report No.: CTC20231447E12 CTC Laboratories, Inc. 2/F., Building 1 and 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : http://yz.cnca.cn Test Result Mode Channel Ant. 99% Bandwidth (MHz) 6 dB Bandwidth (MHz) Limit (MHz) Result IEEE 802.11b 1 1 14.913 10.12 0.5 PASS 2 14.904 10.10 PASS 6 1 14.948 10.12 PASS 2 14.953 10.11 PASS 11 1 14.947 10.12 PASS 2 14.937 11.07 PASS IEEE 802.11g 1 1 16.423 16.32 PASS 2 16.433 16.30 PASS 6 1 16.426 16.31 PASS 2 16.437 16.31 PASS 11 1 16.424 16.32 PASS 2 16.418 16.31 PASS IEEE 802.11n_20 1 1 17.575 17.52 PASS 2 17.576 17.54 PASS 6 1 17.562 17.07 PASS 2 17.560 17.52 PASS 11 1 17.554 17.52 PASS 2 17.560 17.51 PASS IEEE 802.11n_40 3 1 36.144 36.06 PASS 2 36.144 36.28 PASS 6 1 36.139 36.30 PASS 2 36.163 36.30 PASS 9 1 36.182 36.32 PASS 2 36.148 35.93 PASS Page 62 of 91 Report No.: CTC20231447E12 CTC Laboratories, Inc. 2/F., Building 1 and 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : http://yz.cnca.cn 99% Bandwidth: IEEE 802.11b_Channel 1_20MHz_Antenna 1 IEEE 802.11b_Channel 1_20MHz_Antenna 2 IEEE 802.11b_Channel 6_20MHz_Antenna 1 IEEE 802.11b_Channel 6_20MHz_Antenna 2 IEEE 802.11b_Channel 11_20MHz_Antenna 1 IEEE 802.11b_Channel 11_20MHz_Antenna 2 Page 63 of 91 Report No.: CTC20231447E12 CTC Laboratories, Inc. 2/F., Building 1 and 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : http://yz.cnca.cn IEEE 802.11g_Channel 1_20MHz_Antenna 1 IEEE 802.11g_Channel 1_20MHz_Antenna 2 IEEE 802.11g_Channel 6_20MHz_Antenna 1 IEEE 802.11g_Channel 6_20MHz_Antenna 2 IEEE 802.11g_Channel 11_20MHz_Antenna 1 IEEE 802.11g_Channel 11_20MHz_Antenna 2 Page 64 of 91 Report No.: CTC20231447E12 CTC Laboratories, …

Text truncated - open the document above for the full version.

Page 75 of 91 Report No.: CTC20231447E12 CTC Laboratories, Inc. 2/F., Building 1 and 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : http://yz.cnca.cn IEEE 802.11n_Channel 1_20MHz_Antenna 1 IEEE 802.11n_Channel 1_20MHz_Antenna 2 IEEE 802.11n_Channel 6_20MHz_Antenna 1 IEEE 802.11n_Channel 6_20MHz_Antenna 2 IEEE 802.11n_Channel 11_20MHz_Antenna 1 IEEE 802.11n_Channel 11_20MHz_Antenna 2 Page 76 of 91 Report No.: CTC20231447E12 CTC Laboratories, Inc. 2/F., Building 1 and 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : http://yz.cnca.cn IEEE 802.11n_Channel 3_40MHz_Antenna 1 IEEE 802.11n_Channel 3_40MHz_Antenna 2 IEEE 802.11n_Channel 6_40MHz_Antenna 1 IEEE 802.11n_Channel 6_40MHz_Antenna 2 IEEE 802.11n_Channel 9_40MHz_Antenna 1 IEEE 802.11n_Channel 9_40MHz_Antenna 2 Page 77 of 91 Report No.: CTC20231447E12 CTC Laboratories, Inc. 2/F., Building 1 and 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : http://yz.cnca.cn 3.8. Duty Cycle Limit None, for report purposes only. Test Configuration Test Procedure 1. The EUT was directly connected to the spectrum analyzer and antenna output port as show in the block diagram above. 2. The EUT was directly connected to the Spectrum Analyzer and antenna output port as show in the block diagram above. The measurement according to section 10.2 of KDB 558074 D01 DTS Meas Guidance v05r02. 3. Spectrum Setting: Set analyzer center frequency to test channel center frequency. Set the span to 0Hz. Set the RBW to 10MHz. Set the VBW to 10MHz. Detector: Peak. Sweep time: Auto. Allow trace to fully stabilize. Then use the peak marker function to determine the maximum amplitude level. Test Mode Please refer to the clause 2.4. Page 78 of 91 Report No.: CTC20231447E12 CTC Laboratories, Inc. 2/F., Building 1 and 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : http://yz.cnca.cn Test Result Mode Channel Antenna On Time (ms) Period (ms) Duty Cycle (%) 1/T Minimum VBW (kHz) Final Setting for VBW (kHz) IEEE 802.11b 1 1 8.096 8.103 99.91 0.12 1 2 8.097 8.102 99.93 0.12 1 6 1 8.097 8.103 99.92 0.12 1 2 8.096 8.103 99.91 0.12 1 11 1 8.096 8.103 99.91 0.12 1 2 8.097 8.103 99.92 0.12 1 IEEE 802.11g 1 1 1.361 1.368 99.52 0.73 1 2 1.361 1.368 99.52 0.73 1 6 1 1.361 1.368 99.50 0.73 1 2 1.361 1.368 99.52 0.73 1 11 1 1.361 1.368 99.52 0.73 1 2 1.361 1.368 99.51 0.73 1 IEEE 802.11n_20 1 1 1.273 1.280 99.49 0.79 1 2 1.273 1.280 99.47 0.79 1 6 1 1.273 1.280 99.47 0.79 1 2 1.273 1.280 99.49 0.79 1 11 1 1.273 1.280 99.45 0.79 1 2 1.273 1.280 99.47 0.79 1 IEEE 802.11n_40 3 1 0.633 0.640 98.92 1.58 3 2 0.633 0.640 98.92 1.58 3 6 1 0.633 0.640 98.92 1.58 3 2 0.633 0.640 98.92 1.58 3 9 1 0.633 0.640 98.91 1.58 3 2 0.633 0.640 98.92 1.58 3 Page 79 of 91 Report No.: CTC20231447E12 CTC Laboratories, Inc. 2/F., Building 1 and 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : http://yz.cnca.cn Test plot as follows: IEEE 802.11b_20MHz_Channel 1 IEEE 802.11b_20MHz_Channel 1 Page 80 of 91 Report No.: CTC20231447E12 CTC Laboratories, Inc. 2/F., Building 1 and 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : http://yz.cnca.cn IEEE 802.11b_20MHz_Channel 6 IEEE 802.11b_20MHz_Channel 6 Page 81 of 91 Report No.: CTC20231447E12 CTC Laboratories, Inc. 2/F., Building 1 and 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : http://yz.cnca.cn IEEE 802.11b_20MHz_Channel 11 IEEE 802.11b_20MHz_Channel 11 Page 82 of 91 Report No.: CTC20231447E12 CTC Laboratories, Inc. 2/F., Building 1 and 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-f…

Text truncated - open the document above for the full version.
