A5MBT500ALenovo Bluetooth In-ear Headphones

ISED STATMENT This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: This device may not cause interference. This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : L’appareil ne doit pas produire de brouillage; L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

Lenovo (Beijing) Limited Date: 10/20/2020 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signed by: Company Name: Lenovo (Beijing) Limited Contact Name: Yang Liu Title of Person: Compliance Engineer Address: 201-H2-6, Floor2, Building 2, No. 6 Shangdi West Road, Haidian District, Beijing,China

A5MBT500A Lenovo (Beijing) Limited Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Company Name: Lenovo (Beijing) Limited Contact Name: Yang Liu Title of Person: Compliance Engineer Address: 201-H2-6, Floor2, Building 2, No. 6 Shangdi West Road, Haidian District, Beijing,China Date: 10/20/2020

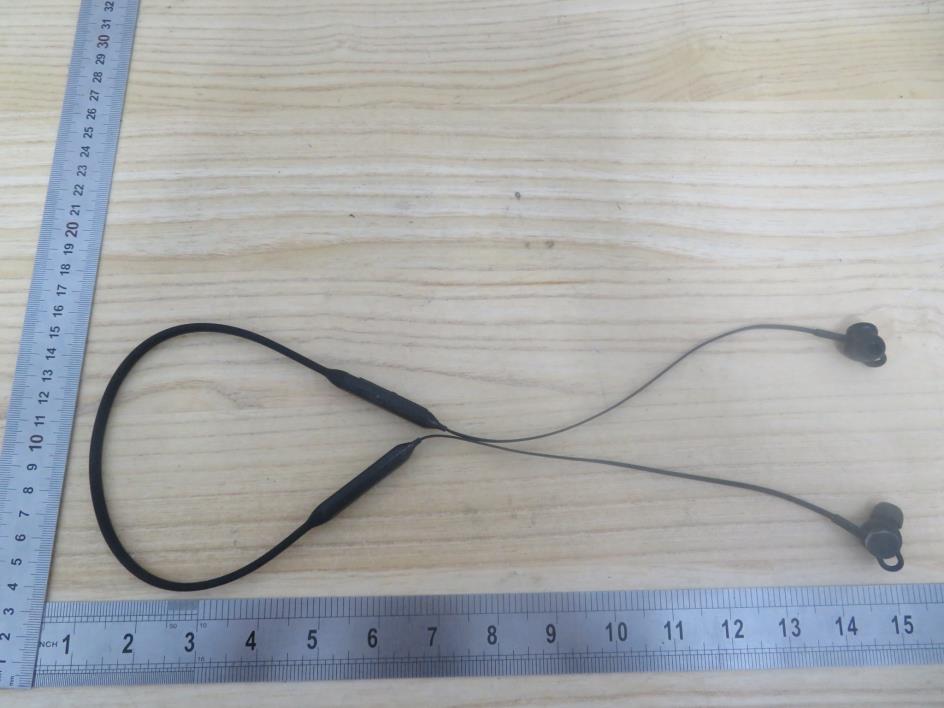

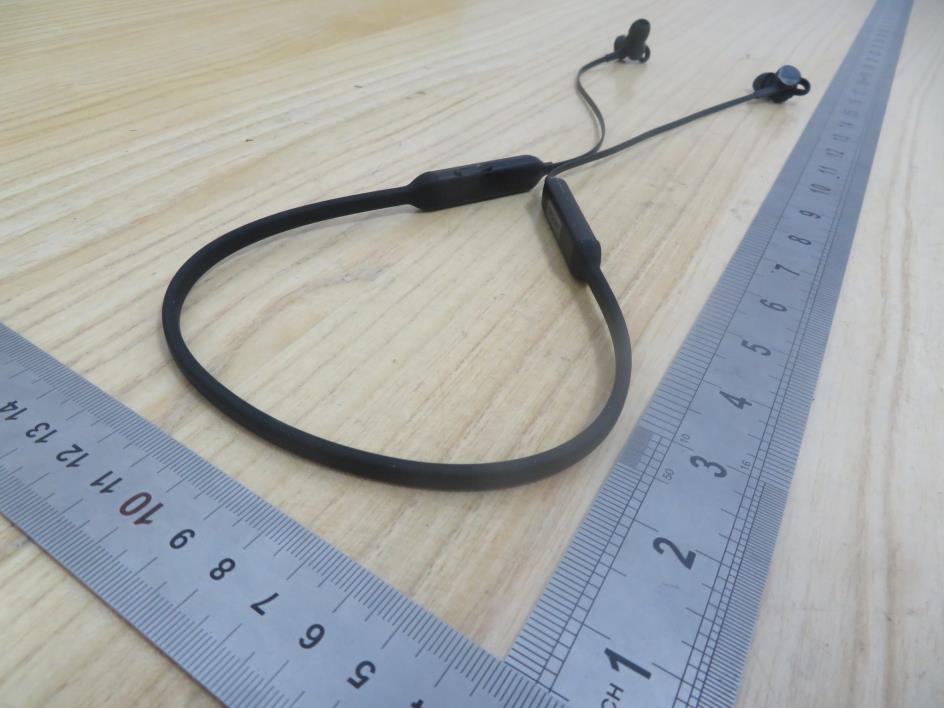

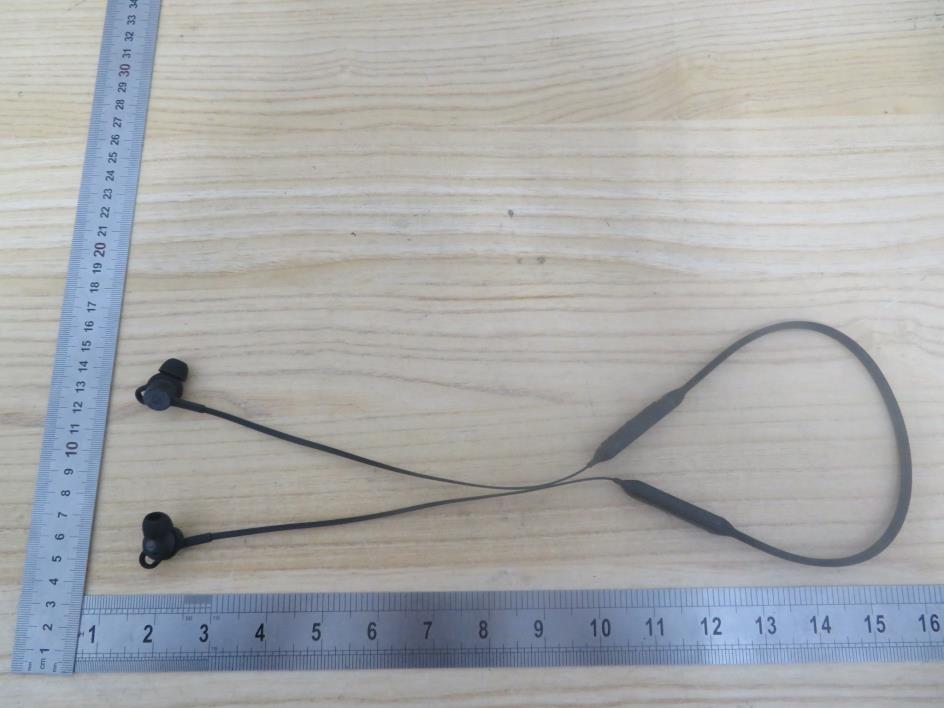

External Photographs Page 2 of 3 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . View of EUT-1 View of EUT-2 Page 3 of 3 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . View of EUT-3 View of EUT-4

2:1 XXXXXXXXXXXX R-C-LVK-BT500A NTC TYPE ACCEPTANCE No.ESD-XXXXXXXX XXXX/SDPPI/XXXX OPT : 4XD1B65028 ASM : SH31B64997 FRU : 5H31B64998 SN : 8SSH31B64997Z192SSSS 0A Input ：DC 5V 500mA Battery capacity : 100mAh Lenovo Bluetooth In-ear headphones 藍牙耳機 Model/型號 : BT500A FCC ID:A5MBT500A IC:5903G-BT500A 007-007-AJ0186 TA-XXXX/XXX Made in China 中國製造 Manufactured for Lenovo 2.4FH8 CIDF15000051 Lenovo(Slovakia), Landererova 12, 811 09 Bratislave, Slovakia

Internal Photographs Page 2 of 5 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . Internal View of EUT-1 Internal View of EUT-2 Page 3 of 5 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . Internal View of EUT-3 Internal View of EUT-4 BT Module BT ANT Page 4 of 5 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . Internal View of EUT-5 Internal View of EUT-6 Page 5 of 5 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . Internal View of EUT-7 Internal View of EUT-8

FCC ID: A5MBT500A According to KDB 447498 D01 General RF Exposure Guidance v06, section 4.3.1 At 100 MHz to 6 GHz and for test separation distances ≤ 50mm, the SAR test exclusion threshold is determined according to the following [(max. power of channel, including tune-up tolerance, ㎽) / (min. test separation distance, ㎜)] x [√f(㎓)] ≤ 3.0 1. SAR test exclusion threshold Frequency: 2 480 MHz (min. separation distances = 5 mm) SAR test exclusion thresholds (5 ㎜) = 3 x 5 / (√ 2.480 ) = 9.525 ㎽ Test mode Max. Tune-up Tolerance (mW) SAR Test Exclusion Thresholds (5mm) (mW) Classic BT 4.0 9.525 Calculation value: 4.00 (㎽) / 5 (㎜) x √ 2.480 = 1.260 So, Calculation value ≤ 3.0 Remark: -For Classic BT Max. conducted power is 3.02 (㎽), so 4.00 (㎽) was calculated. -When the minimum test separation distance is < 5 ㎜, a distance of 5 ㎜ is applied to determine SAR test exclusion. 2. Conclusion: No SAR is required.

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. CFR 47 FCC PART 15 SUBPART C ISED RSS-247 ISSUE 2 CERTIFICATION TEST REPORT For Lenovo Bluetooth In-ear Headphones MODEL NUMBER: BT500A FCC ID: A5MBT500A IC: 5903G-BT500A REPORT NUMBER: 4789675731-2 ISSUE DATE: October 30, 2020 Prepared for Lenovo (Beijing) limited (FCC) 201-H2-6, Floor 2, Building 2, No.6 Shangdi West Road, Haidian District, Beijing, China 100085 LENOVO CHINA (ISED) No.6 Chuang Ye Road, Shangdi Information Industry Haidan District Beijing 100085 China Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Building 10, Innovation Technology Park, No. 1, Li Bin Road, Song Shan Lake Hi- Tech Development Zone Dongguan, 523808, People’s Republic of China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT NO.: 4789675731-2 Page 2 of 91 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0086 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Revision History Rev. Issue Date Revisions Revised By V0 10/30/2020 Initial Issue REPORT NO.: 4789675731-2 Page 3 of 91 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0086 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Summary of Test Results Clause Test Items FCC/ISED Rules Test Results 1 20dB Bandwidth and 99% Occupied Bandwidth FCC 15.247 (a) (1) RSS-247 Clause 5.1 (a) RSS-Gen Clause 6.7 Pass 2 Conducted Output Power FCC 15.247 (b) (1) RSS-247 Clause 5.1 (b) Pass 3 Carrier Hopping Channel Separation FCC 15.247 (a) (1) RSS-247 Clause 5.1 (b) Pass 4 Number of Hopping Frequency 15.247 (a) (1) III RSS-247 Clause 5.1 (d) Pass 5 Time of Occupancy (Dwell Time) 15.247 (a) (1) III RSS-247 Clause 5.1 (d) Pass 6 Conducted Bandedge FCC 15.247 (d) RSS-247 Clause 5.5 Pass 7 Radiated Bandedge and Spurious FCC 15.247 (d) FCC 15.209 FCC 15.205 RSS-247 Clause 5.5 RSS-GEN Clause 8.9 RSS-GEN Clause 8.10 Pass 8 Conducted Emission Test for AC Power Port FCC 15.207 RSS-GEN Clause 8.8 Pass 9 Antenna Requirement FCC 15.203 RSS-GEN Clause 6.8 Pass Note: 1.This test report is only published to and used by the applicant, and it is not for evidence purpose in China. 2. The measurement result for the sample received is <Pass> according to < CFR 47 FCC PART 15 SUBPART C >< ISED RSS-247 > when <Accuracy Method> decision rule is applied. REPORT NO.: 4789675731-2 Page 4 of 91 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0086 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 6 2. TEST METHODOLOGY ..................................................................................................... 8 3. FACILITIES AND ACCREDITATION ................................................................................. 8 4. CALIBRATION AND UNCERTAINTY ................................................................................ 9 4.1. MEASURING INSTRUMENT CALIBRATION .............................................................. 9 4.2. MEASUREMENT UNCERTAINTY ............................................................................... 9 5. EQUIPMENT UNDER TEST ..............................................................................................10 5.1. DESCRIPTION OF EUT .............................................................................................10 5.2. MAXIMUM PEAK OUTPUT POWER ..........................................................................10 5.3. PACKET TYPE CONFIGURATION ............................................................................10 5.4. CHANNEL LIST ..........................................................................................................11 5.5. TEST CHANNEL CONFIGURATION ..........................................................................11 5.6. WORST-CASE CONFIGURATIONS...........................................................................11 5.7. THE WORSE CASE POWER SETTING PARAMETER ..............................................12 5.8. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................12 5.9. DESCRIPTION OF TEST SETUP ...............................................................................13 6. MEASURING INSTRUMENT AND SOFTWARE USED ....................................................14 7. ANTENNA PORT TEST RESULTS ...................................................................................16 7.1. ON TIME AND DUTY CYCLE .....................................................................................16 7.2. 20 dB BANDWIDTH AND 99 % OCCUPIED BANDWIDTH ........................................17 7.3. CONDUCTED OUTPUT POWER ...............................................................................19 7.4. CARRIER FREQUENCY SEPARATION .....................................................................20 7.5. NUMBER OF HOPPING FREQUENCIES ..................................................................22 7.6. TIME OF OCCUPANCY (DWELL TIME) .....................................................................24 7.7. CONDUCTED BANDEDGE AND SPURIOUS EMISSION ..........................................26 8. RADIATED TEST RESULTS ......................…

Text truncated - open the document above for the full version.

Appendix II Setup Photographs RADIATED RF MEASUREMENT SETUP (ABOVE 1 GHz) MEASUREMENT POSITION MEASUREMENT POSITION (X axis) MEASUREMENT POSITION (Y axis) MEASUREMENT POSITION (Z axis) RADIATED RF MEASUREMENT SETUP (30MHz~1GHz) RADIATED RF MEASUREMENT SETUP (Below 30MHz) AC POWER LINE CONDUCTED EMISSIONS MEASUREMENT SETUP
