A5MH600Lenovo Legion H600 Wireless Gaming Headset

Service, support, and warranty information for options and accessories https://support.lenovo.com Tenth Edition (September 2020) © Copyright Lenovo 2017, 2020. LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is d elivered pursuant to a General Services Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No. GS-35F-05925. SP40H13048 SP40H1 3048 (1P) PN: SP40H13048 Printed in China Reduce | Reuse | Recycle https://www.lenovo.com/safety Statement on USB transfer rate Depending on many factors such as the processing capability of the host and peripheral devices, file attributes, and other factors related to system configuration and operating environments, the actual transfer rate using the various USB connectors on this device will vary and will be slower than the data rate listed below for each corresponding device. USB device Data rate (Gbit/s) 3.2 Gen 1 / 3.1 Gen 1 5 3.2 Gen 2 / 3.1 Gen 2 10 3.2 Gen 2 x 2 20 Thunderbolt ® 3 connector (USB-C ® ) 40 Thunderbolt 4 connector (USB-C) 40 Note: The above statement applies to USB connectors that may be available on your device and mentioned in the device User Guide, Setup Guide, and other related documentation. Déclaration sur le taux de transfert USB En fonction de nombreux facteurs tels que la capacité de traitement de l'hôte et des périphériques, des attributs de fichier et d'autres facteurs relatifs à la configuration du système et de l'environnement d'exploitation, le taux de transfert réel des différents connecteurs USB sur ce périphérique peut varier et est inférieur à la vitesse de transfert listée ci-dessous pour chaque périphérique correspondant. Périphérique USB Vitesse de transfert (Gbits/s) 3.2 Gen 1 / 3.1 Gen 1 5 3.2 Gen 2 / 3.1 Gen 2 10 3.2 Gen 2 x 2 20 Connecteur Thunderbolt 3 (USB-C) 40 Connecteur Thunderbolt 4 (USB-C) 40 Remarque : La déclaration ci-dessus s'applique aux connecteurs USB qui peuvent être disponibles sur votre périphérique et qui sont mentionnés dans le Guide d'utilisation du périphérique, le Guide de configuration et les autres documentations associées. Declaración sobre la tasa de transferencia USB Según muchos factores, como la capacidad de procesamiento del host y dispositivos periféricos, atributos de archivos y otros factores relacionados con la configuración de sistema y entornos operativos, la velocidad de transferencia real usando los distintos conectores USB en este dispositivo variará y será menor que la velocidad de datos indicada continuación para cada dispositivo correspondiente. Dispositivo USB Velocidad de datos (GB/s) 3.2 Gen 1 / 3.1 Gen 1 5 3.2 Gen 2 / 3.1 Gen 2 10 3.2 Gen 2 x 2 20 Conector Thunderbolt 3 (USB-C) 40 Conector Thunderbolt 4 (USB-C) 40 Nota: La declaración anterior se aplica a los conectores USB que puedan estar disponibles en su dispositivo y que se mencionan en la Guía del usuario del dispositivo, la Guía de instalación y otra documentación relacionada. Service and Support The following information describes the technical support that is available for your product, during the warranty period or throughout the life of your product. Refer to the Lenovo Limited Warranty for a full explanation of Lenovo warranty terms. Online technical support Online technical support is available during the lifetime of a product at: https://support.lenovo.com Product replacement assistance or exchange of defective components also is available during the warranty period. A Lenovo technical support representative can help you determine the best alternative. Options installed in Lenovo computers If your Lenovo option is installed into a Lenovo computer, the option also is covered by the Warranty terms of the computer in which it is installed. Depending on your computer model and geographic location, this can entitle the Lenovo option to warranty service for up to three years and you might be entitled to service at your location. For details, see the warranty terms for your Lenovo computer. Telephone technical support Before contacting a Lenovo technical support representative, please have the following information available: option name and number, proof of purchase, computer manufacturer, model, serial number and manual, the exact wording of any error message, description of the problem, and the hardware and software configuration information for your system. Your technical support representative might want to walk you through the problem while you are at your computer during the call. Telephone numbers are subject to change without notice. The most up-to-date telephone list for Lenovo Support is always available at https://pcsupport.lenovo.com/supportphonelist. If the telephone number for your country or region is not listed, contact your Lenovo reseller or Lenovo marketing representative. Lenovo Limited Warranty L505-0010-02 08/2011 This Lenovo Limited Warranty consists of the following parts: Part 1 - General Terms Part 2 - Country-specific Terms Part 3 - Warranty Service Information The terms of Part 2 replace or modify terms of Part 1 as specified for a particular country. Part 1 - General Terms This Lenovo Limited Warranty applies only to Lenovo hardware products you purchased for your own use and not for resale. This Lenovo Limited Warranty is available in other languages at https://www.lenovo.com/warranty/llw_02. What this Warranty Covers Lenovo warrants that each Lenovo hardware product that you purchase is free from defects in materials and workmanship under normal use during the warranty period. The warranty period for the product starts on the original date of purchase as shown on your sales receipt or invoice or as may be otherwise specified by Lenovo. The warranty period and type of warranty service that apply to your product are as specified in “Part 3 - Warranty Service Information” below. This warranty only applies to products in the country or region of purchase. THIS WARRANTY IS YOUR EXCLUSIVE WARRANTY AND REPLACES…

Text truncated - open the document above for the full version.

Rev 11/20/07 Lenovo (Beijing) Limited Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: A5MH600 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram, Schematics, Operational Description, Block Diagram Operation Description schematic diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Yang Liu Lenovo (Beijing) Limited

Lenovo (Beijing) Limited Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2020-10-26 SUBJECT: FCC Application for FCC ID: A5MH600 To Whom It May Concern: We, the undersigned, hereby authorize Lisa Wang at EMTEK (SHENZHEN) CO., LTD. on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by EMTEK (SHENZHEN) CO., LTD. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Yang Liu Lenovo (Beijing) Limited

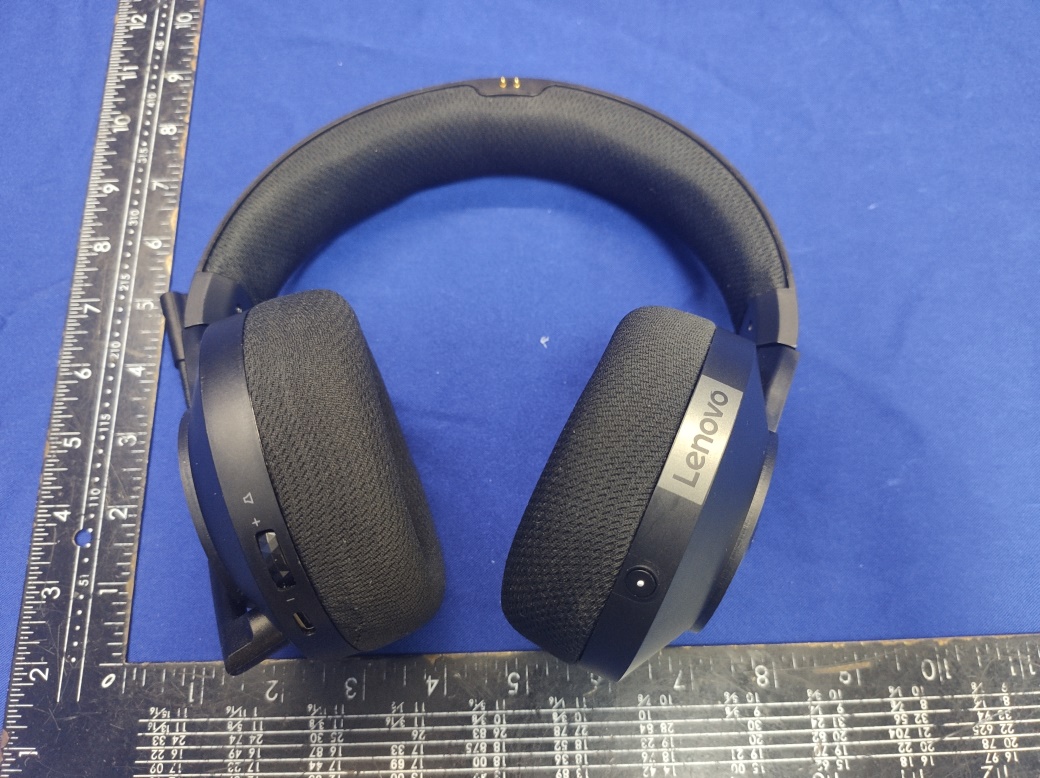

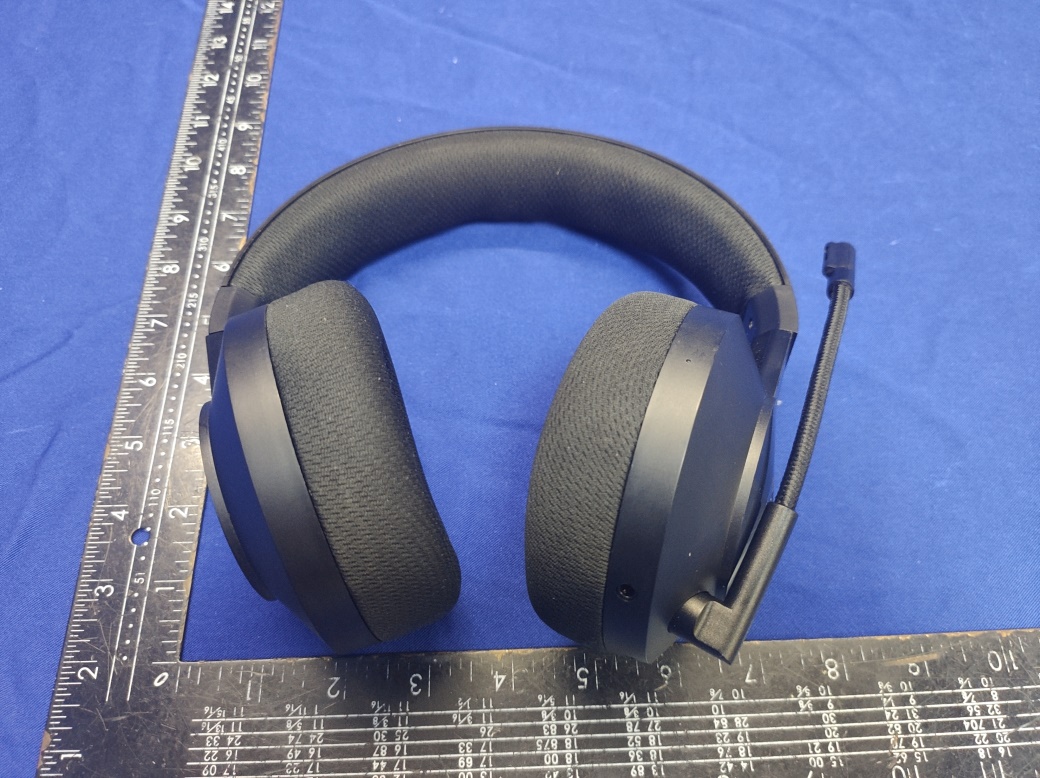

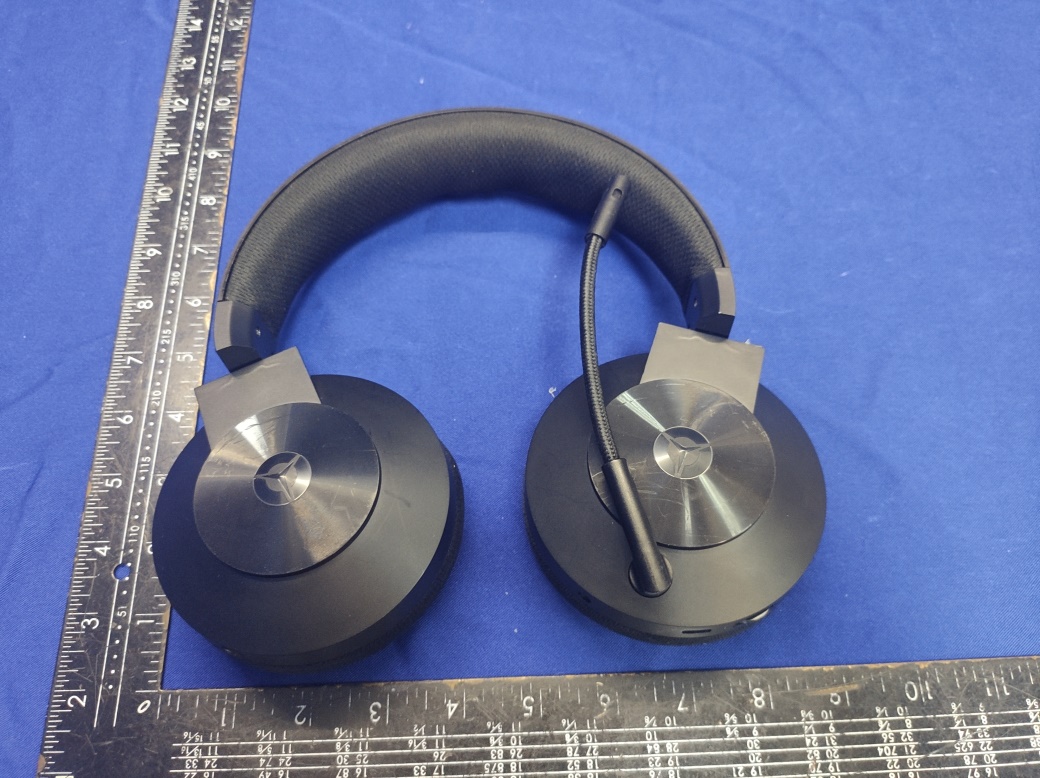

External Photos EUT View 1 EUT View 2 EUT View 3 EUT View 4 EUT View 5 EUT View 6 EUT View 7 EUT View 8 EUT View 9 ----------------The end----------------

Label and label location

Internal Photos EUT Housing and Board View 1 EUT Housing and Board View 2 EUT Housing and Board View 3 EUT Housing and Board View 4 EUT Housing and Board View 5 EUT Housing and Board View 6 Solder Board-Component View 1 Solder Board-Component View 2 ANT 2 ANT 1 Solder Board-Component View 3 Solder Board-Component View 4 Solder Board-Component View 5 Solder Board-Component View 6 Battery ---------------The end----------------

Report No. ES200828028W Page 1 of 36 Ver.1.0 TEST REPORT Product Name ： Lenovo Legion H600 Wireless Gaming Headset Model Number : H600 FCC ID : A5MH600 Prepared for : Lenovo (Beijing) limited Address : 201-H2-6, Floor 2, Building 2, No.6 Shangdi West Road, Haidian District, Beijing, China 100085 Prepared by : EMTEK (SHENZHEN) CO., LTD. Address : Building 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China Tel: (0755) 26954280 Fax: (0755) 26954282 Report Number : ES200828028W Date(s) of Te s t s : September 05, 2020 to September 30, 2020 Date of issue : October 14, 2020 $二维码$ Report No. ES200828028W Page 2 of 36 Ver.1.0 Table of Contents 1 TEST RESULT CERTIFICATION ...................................................................................................................... 3 2 EUT TECHNICAL DESCRIPTION .................................................................................................................... 5 3 SUMMARY OF TEST RESULT ........................................................................................................................... 6 4 TEST METHODOLOGY...................................................................................................................................... 7 4.1 GENERAL DESCRIPTION OF APPLIED STANDARDS .......................................................................... 7 4.2 MEASUREMENT EQUIPMENT USED ..................................................................................................... 7 4.3 DESCRIPTION OF TEST MODES ............................................................................................................. 8 5 FACILITIES AND ACCREDITATIONS ............................................................................................................. 9 5.1 FACILITIES ................................................................................................................................................. 9 5.2 LABORATORY ACCREDITATIONS AND LISTINGS .............................................................................. 9 6 TEST SYSTEM UNCERTAINTY ...................................................................................................................... 10 7 SETUP OF EQUIPMENT UNDER TEST ......................................................................................................... 11 7.1 RADIO FREQUENCY TEST SETUP 1 ..................................................................................................... 11 7.2 RADIO FREQUENCY TEST SETUP 2 ..................................................................................................... 11 7.3 CONDUCTED EMISSION TEST SETUP ................................................................................................. 13 7.4 SUPPORT EQUIPMENT ........................................................................................................................... 13 8 TEST REQUIREMENTS .................................................................................................................................... 14 8.1 BANDWIDTH TEST ................................................................................................................................. 14 8.2 RADIATED SPURIOUS EMISSION ........................................................................................................ 17 8.3 CONDUCTED EMISSIONS TEST ........................................................................................................... 34 8.4 ANTENNA APPLICATION ....................................................................................................................... 35 Report No. ES200828028W Page 3 of 36 Ver.1.0 1 TEST RESULT CERTIFICATION Applicant : Lenovo (Beijing) limited Address : 201-H2-6, Floor 2, Building 2, No.6 Shangdi West Road, Haidian District, Beijing, China 100085 Manufacturer : Lenovo (Beijing) limited Address : 201-H2-6, Floor 2, Building 2, No.6 Shangdi West Road, Haidian District, Beijing, China 100085 EUT : Lenovo Legion H600 Wireless Gaming Headset Model Name : H600 Trademark : Lenovo Measurement Procedure Used: APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C PASS The above equipment was tested by EMTEK (SHENZHEN) CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 2 and Part 15.249 The test results of this report relate only to the tested sample identified in this report Date of Test : September 05, 2020 to September 30, 2020 Prepared by : Sewen Guo /Editor Reviewer : Mill Chen /Supervisor Approve & Authorized Signer : Lisa Wang/Manager Report No. ES200828028W Page 4 of 36 Ver.1.0 Modified Information Version Report No. Revision Date Summary Ver.1.0 ES200828028W / Original Report Report No. ES200828028W Page 5 of 36 Ver.1.0 2 EUT TECHNICAL DESCRIPTION Product: Lenovo Legion H600 Wireless Gaming Headset Model Number: H600 Modulation: GFSK Frequency Range: 2403-2475MHz Number of Channels: 25 Channels Max Transmit Power: Antenna1: 99.08 dBuV/m Antenna2: 99.67 dBuV/m Antenna: PCB Antenna Antenna Gain: Antenna1: -0.25 dBi Antenna2: -0.25 dBi Test Voltage: Headset:DC3.7V form battery, DC5V form PC Battery: DC3.7V/1200mAh,4.44Wh Temperature Range: 0°C ~ +40°C Note: 1) For more details, please refer to the User’s manual of the EUT. 2) The product has 2 antennas, which cannot be transmitted at the same time, and can only be transmitted by automatically selecting one of the antennas; Report No. ES200828028W Page 6 of 36 Ver.1.0 3 SUMMARY OF TEST RESULT FCC Part Clause Test Parameter Verdict Remark 15.207 Conducted Emission N/A 15.209 Radiated Emission PA SS 15.249 Radiated Spurious Emission PA SS 15.249 Band edge test PA…

Text truncated - open the document above for the full version.

TRF NO. FCC15/A Page 1 of 1 Report No.: ES200828028W Ver.1.0 TEST SETUP PHOTOGRAPHS 1.1. Photos of Radiation Emission Measurement Spurious Emission Test Setup (Below 1GHz) Spurious Emission Test Setup (Above 1GHz) ----------------The end----------------
