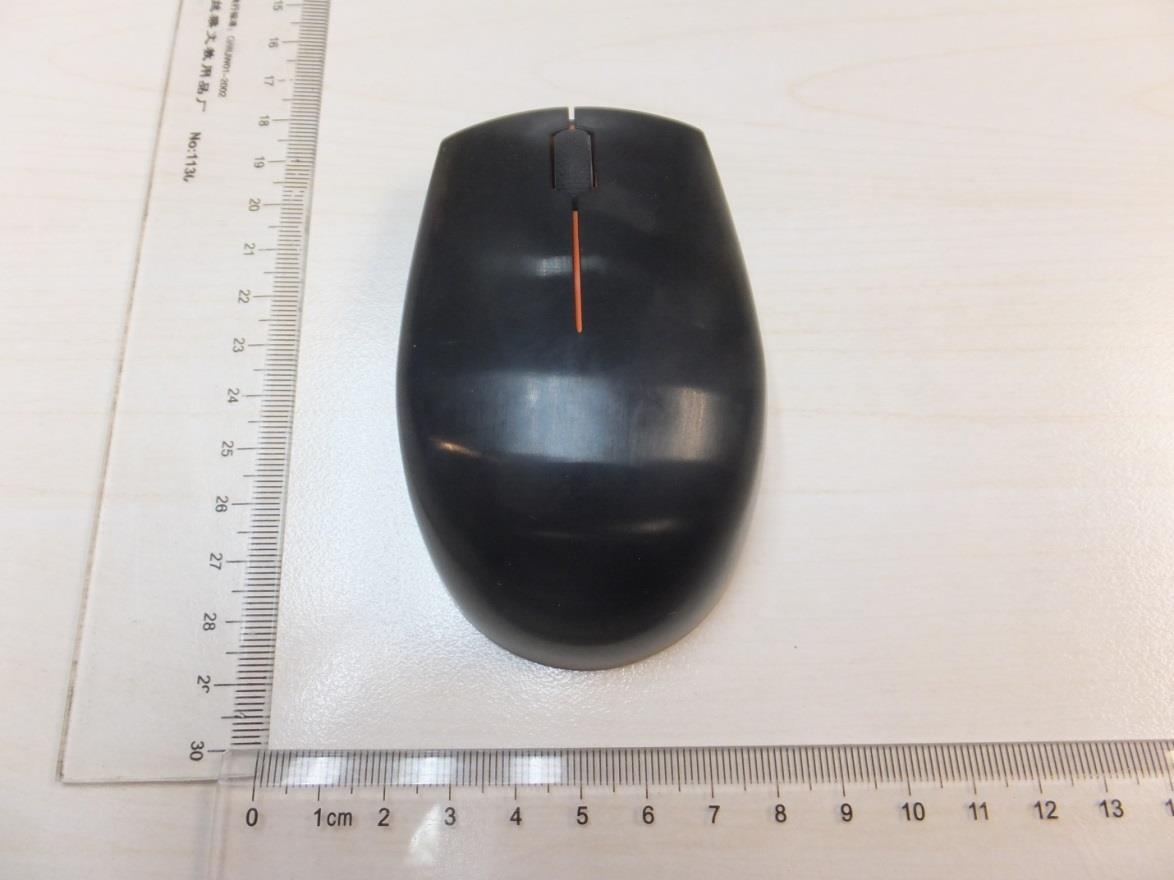

A5ML300Lenovo 300 Wireless Compact Mouse

Label Location

2.4G Antenna

Produkte Products Appendix B 17054571 001 Page 1 of 2 Appendix B Test Results of RF Exposure - 2.4 GHz Wireless Mode APPENDIX B.1: RF EXPOSURE COMPLIANCE .................................................................................. 2 Produkte Products Appendix B 17054571 001 Page 2 of 2 Appendix B.1: RF Exposure Compliance Radio Frequency Exposure Compliance RESULT: Pass Test standard : FCC 1.1310 RSS-102 Issue 5 KDB 447498 D01 General RF Exposure Guidance v06 This device is 2.4 GHz wireless device. Since the maximum peak output power of the transmitter is 0.60 mw, and the separation between body and antenna is 5 mm. The maximum peak output power is less than 10mW (FCC Limit) and 4mW (IC Limit), hence the EUT is exclueded from SAR evaluation according to FCC KDB 447498 D01: Mobile Portable RF Exposure and RSS-102 Issue 5.

Produkte Products Prüfbericht - Nr.: Test Report No. 17054571 001 Seite 2 von 21 Page 2 of 21 TEST SUMMARY 5.1.1 ANTENNA REQUIREMENT RESULT: Pass 5.1.2 FIELD STRENGTH OF FUNDAMENTAL AND HARMONICS RESULT: Pass 5.1.3 20DB BANDWIDTH AND 99% BANDWIDTH RESULT: Pass 5.1.4 OUT-OF-BAND EMISSIONS RESULT: Pass Produkte Products Prüfbericht - Nr.: Test Report No. 17054571 001 Seite 3 von 21 Page 3 of 21 CONTENTS 1. GENERAL REMARKS ......................................................................................................... 4 1.1 COMPLEMENTARY MATERIALS .......................................................................................... 4 2. TEST SITES ...................................................................................................................... 4 2.1 TEST FACILITIES ............................................................................................................... 4 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS ............................................................... 5 2.3 TRACEABILITY .................................................................................................................. 6 2.4 CALIBRATION ................................................................................................................... 6 2.5 MEASUREMENT UNCERTAINTY........................................................................................... 6 2.6 LOCATION OF ORIGINAL DATA ........................................................................................... 6 2.7 STATUS OF FACILITY USED FOR TESTING ........................................................................... 6 3. GENERAL PRODUCT INFORMATION .................................................................................... 7 3.1 PRODUCT FUNCTION AND INTENDED USE ........................................................................... 7 3.2 RATINGS AND SYSTEM DETAILS ........................................................................................ 7 3.3 INDEPENDENT OPERATION MODES .................................................................................... 8 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS ....................................................... 9 3.5 SUBMITTED DOCUMENTS .................................................................................................. 9 4. TEST SET-UP AND OPERATION MODES .............................................................................. 9 4.1 PRINCIPLE OF CONFIGURATION SELECTION ........................................................................ 9 4.2 TEST OPERATION AND TEST SOFTWARE ............................................................................ 9 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ........................................................ 10 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE ....................................................... 10 4.5 TEST SETUP DIAGRAM .................................................................................................... 11 5. TEST RESULTS ............................................................................................................... 13 5.1 TRANSMITTER REQUIREMENT & TEST SUITES .................................................................. 13 5.1.1 Antenna Requirement ................................................................................................................ 13 5.1.2 Field strength of fundamental and harmonics ............................................................................ 14 5.1.3 20dB Bandwidth and 99% Bandwidth ........................................................................................ 15 5.1.4 Out-of-band emissions ............................................................................................................... 18 6. PHOTOGRAPHS OF THE TEST SET-UP .............................................................................. 19 7. LIST OF TABLES ............................................................................................................. 21 8. LIST OF PHOTOGRAPHS .................................................................................................. 21 Produkte Products Prüfbericht - Nr.: Test Report No. 17054571 001 Seite 4 von 21 Page 4 of 21 1. General Remarks 1.1 Complementary Materials All attachments are integral parts of this test report. This applies especially to the following appendix: Appendix A: Test Results of 2.4 GHz Wireless mode Appendix B: Test Results of RF Exposure - 2.4 GHz Wireless mode 2. Test Sites 2.1 Test Facilities Accurate Technology Co., Ltd. (FCC Registration No.: 752051 & IC Registration Number: 5077A-2) F1, Bldg A, Changyuan New Material Port, Keyuan Rd., Science & Industry Park, Nanshan District, Shenzhen, 518057, P.R. China The tests at the test site have been conducted under the supervision of a TÜV engineer. Produkte Products Prüfbericht - Nr.: Test Report No. 17054571 001 Seite 5 von 21 Page 5 of 21 2.2 List of Test and Measurement Instruments Table 1: List of Test and Measurement Equipment Kind of Equipment Manufacturer Type S/N Calibrated until Radio Spectrum Test Spectrum Analyzer Rohde&Schwarz FSV40 101495 Jan.11, 2016 Test Receiver Rohde& Schwarz ESR 101817 Jul. 30, 2016 Spectrum Analyzer Rohde&Schwarz FSP30 100220 Jan.21, 2016 Radiated emissions Spectrum Analyzer Rohde&Schwarz FSV40 101495 Jan.11, 2016 Test Receiver Rohde& Schwarz ESR 101817 Jul. 30, 2016 Loop Antenna Schwarzbeck FMZB1516 1516131 Jan.15, 2016 Bilog Antenna Schwarzbeck VULB9163 9163-194 Jan.15, 2016 Horn Antenna Schwarzbeck BBHA9120D 9120D-655 Jan.15, 2016 Horn Antenna Schwarzbeck BBHA9170 9170-359 Jan.11, 2016 RF Switching Unit+PreAMP Compliance Direction RSU-M2 38322 Jan.11, 2016 Pre-Amplifier Agilent 8447D 294A10619 Jan.11, 2016 Pre-Amplifier Rohde&Schwarz CBLU1183540-01 3791 Jan.11, 2016 Produkte Products Prüfbericht - Nr.: Test Report No. 17054571 001 Seite 6 von 21 Page 6 of 21 2.3 Tra…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No. 17054571 001 Seite 19 von 21 Page 19 of 21 6. Photographs of the Test Set-Up Photograph 1: Set-up for Spurious Emissions (9kHz-30MHz) Photograph 2: Set-up for Spurious Emissions (30MHz-1GHz) Produkte Products Prüfbericht - Nr.: Test Report No. 17054571 001 Seite 20 von 21 Page 20 of 21 Photograph 3: Set-up for Spurious Emissions (1GHz-18GHz) Photograph 4: Set-up for Spurious Emissions (18GHz-26GHz)
