A5MM600ALenovo Legion M600 Wireless Gaming Mouse

Reduce | Reuse | Recycle First Edition (March 2020) © Copyright Lenovo 2020. LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant to a General Services Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No. GS-35F-05925. Lenovo Legion M600 Wireless Gaming Mouse https://support.lenovo.com SP40X87800 PN: SP40X87800 Printed in China ht tps: //www.lenovo.com/safety English Model: mouse:M600 dongle:RG202-F Scroll wheel and Logo LED status • Blinking red: Low battery power • Blinking blue: Pairing • Solid green for one second: Paring successful Safety information English The operating temperature range for the product is between 0°C (32°F) and 40°C (104°F). General battery notice DANGER Batteries supplied by Lenovo for use with your product have been tested for compatibility and should only be replaced with approved parts. Except the battery specified by Lenovo, a disassembled or modified battery is not covered by the warranty. Battery abuse or mishandling can cause overheat, liquid leakage, or an explosion. To avoid possible injury, do the following: •Do not open, disassemble, or service any battery. •Do not crush or puncture the battery. •Do not short-circuit the battery, or expose it to water or other liquids. •Keep the battery away from children. •Keep the battery away from fire. •Do not leave the battery in an extremely high-temperature environment or an extremely low air pressure environment. •Stop using the battery if it is damaged, or if you notice any discharge or the buildup of foreign materials on the battery leads. We recommend that the batteries be charged about once every three months to prevent overcharge. •Do not put the battery in trash that is disposed of in landfills. When disposing of the battery, comply with local laws or regulations. Built-in rechargeable battery notice DANGER •Do not attempt to replace the internal rechargeable lithium batteries. •Replacement of the battery must be done by a Lenovo-authorized repair facility or technician. •Only recharge the battery strictly according to instructions included in the product documentation. •Lenovo-authorized repair facilities or technicians recycle Lenovo batteries according to local laws and regulations. Arabic معلومات الأمان یتراوح نطاق درجھ حرارة التشغیل للمنتج بین 0 °مئویة )32 °فھرنھایت( و40 °مئویة )104 °فھرنھایت(. إشعار البطاریة العام خطر تم اختبار البطاریات المزوّدة من قبل شركة Lenovo للاستخدام مع منتجك للتأكد من توافقھا وینبغي استبدالھا بالقطع المعتمدة فقط. باستثناء البطاریة المحددة من قبل شركة Lenovo، لا یغطي الضمان أي بطاریة تم تفكیكھا أو تعدیلھا. قد یتسبب سوء استعمال البطاریة أو التعامل معھا بصورة خاطئة في ارتفاع درجة حرارتھا أو تسرب السوائل منھا أو حدوث انفجار. لتفادى الإصابة المحتملة، قم بما یلي: • لا تعمل على فتح أي بطاریة أو تفكیكھا أو صیانتھا. • لا تعمل على تحطیم البطاریة أو ثقبھا. • لا تقصر الدائرة الكھربائیة للبطاریة أو تعرّضھا للماء أو سوائل أخرى. • احتفظ بالبطاریة بعیدًا عن متناول الأطفال. • اعمل على إبعاد البطاریة عن النار. • لا تترك البطاریة في بیئة حیث درجات الحرارة عالیة جدًا أو بیئة یكون فیھا ضغط الھواء شدید الانخفاض. • توقف عن استخدام البطاریة إذا تعرضت للتلف، أو إذا لاحظت تسرب أي سوائل منھا أو تراكم مواد غریبة على موصلاتھا. نحن نوصي بشحن البطاریات بواقع مرة كل ثلاثة أشھر لمنع الشحن الزائد. • لا تلقِ البطاریة في القمامة التي یتم التخلص منھا في المكبات. عند التخلص من البطاریة، التزم بالقوانین أو اللوائح المحلیة. إشعار البطاریات المضمنة القابلة لإعادة الشحن خطر • لا تحاول استبدال بطاریات اللیثیوم الداخلیة القابلة لإعادة الشحن. • یجب أن یتم استبدال البطاریة في منشأة صیانة معتمدة أو فني معتمد من Lenovo. • لا تقم بإعادة شحن البطاریة إلا في ضوء الالتزام التام بالإرشادات المضمّنة في وثائق المنتج. •تقوم منشآت الصیانة المعتمدة أو الفنیون المعتمدون من شركة Lenovo بإعادة تدویر بطاریات Lenovo وفقًا للقوانین واللوائح التنظیمیة المحلیة. Brazilian Portuguese Informações sobre segurança A faixa de temperatura de operação do produto está entre 0 °C (32 °F) e 40 °C (104 °F). Aviso geral sobre baterias PERIGO Foi testada a compatibilidade das baterias fornecidas pela Lenovo para utilização com o produto, e elas devem ser substituídas somente por peças aprovadas. Exceto pela bateria especificada pela Lenovo, uma bateria desmontada ou modificada não é coberta pela garantia. O abuso ou uso incorreto da bateria podem causar superaquecimento, vazamento de líquidos ou explosão. Para evitar possíveis ferimentos, faça o seguinte: •Não abra, desmonte ou conserte qualquer bateria. •Não comprima nem perfure a bateria. •Não provoque curto-circuito na bateria nem a exponha à água ou outros líquidos. •Mantenha a bateria longe do alcance de crianças. •Mantenha a bateria longe do fogo. •Não deixe a bateria em um ambiente com temperatura extremamente alta ou em um ambiente com pressão de ar extremamente baixa. •Pare de usar a bateria se ela estiver danificada ou se você observar alguma descarga ou acúmulo de substâncias estranhas em seus condutores. Recomendamos que as baterias sejam carregadas pelo menos uma vez a cada três meses para evitar excesso de carga. •Não jogue a bateria em lixo que seja despejado em aterros sanitários. Ao descartar a bateria, siga as leis ou regulamentações locais. Aviso sobre baterias recarregáveis internas PERIGO •Não tente substituir as baterias de lítio recarregáveis internas. •A substituição da bateria deve ser feita por uma assistência técnica ou profissional autorizado Lenovo. •Somente recarregue a bateria estritamente de acordo com as instruções fornecidas com a documentação do produto. •As assistências técnicas ou os profissionais autorizados Lenovo reciclam as baterias Lenovo de acordo com as leis e regulamentações locais. Bulgarian Информация за безопасност Работната температура за този продукт е между 0°C (32°F) и 40°C (104°F). Обща забележка за батерията ОПАСНОСТ Батериите, доставени от Lenovo, за използване с вашия продукт, са тествани за съвместимост и трябва да бъдат подменяни само с одобрени части. Га…

Text truncated - open the document above for the full version.

RF_160, Issue 03 Declaration of Authorization We Name: Lenovo (Beijing) Limited Address: 201-H2-6, Floor 2, Building 2, No.6 Shangdi West Road, Haidian District, City: Beijing Country: China Declare that: Name Representative of agent: Lisa Wang (1) Agent Company name: EMTEK (SHENZHEN) CO., LTD. Address: Bldg 69, Majialong Industry Zone, Nanshan District, City: Shenzhen Country China is authorized to apply for Certification of the following product(s): Product description: Lenovo Legion M600 Wireless Gaming Mouse Type designation: M600A Trademark: Lenovo FCC ID: A5MM600A on our behalf. Date: 2020-3-19 Name: Yang Liu Function: Compliance Engineer Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1 Company Name: Lenovo (Beijing) Limited Address : 201-H2-6, Floor 2, Building 2, No.6 Shangdi West Road, Haidian District, City: Beijing Country: China To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: A5MM600A Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date: 2020-03-19 Name and signature of applicant: Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

LEGION-M600A-01-012020-02-18 MG690F 版本：1.0 LENOVO 第 1页 共1页 镭雕编号 GTWIPS&M 009-04-02 Lenovo 哑光处理 黑色底高光处理 联想(北京)有限公司/聯想(北京)有限公司 Made in China/中国制造/中國製造 https://support.lenovo.com/accessories/legion_m600 Lenovo Legion M600 Wireless Gaming Mouse/鼠标/滑鼠 Model/型号/型號: M600A Rating/额定/額定: 5V 500mA FRU PN: 5M50Y27424 FCC ID: A5MM600A IC: 5903G-M600A HVIN: M600A 尺寸：10.6*2.5mm 尺寸：8.1*1.1mm 尺寸：2.1*2.1mm LOGO上下居中此中线 1.4MM 2.9MM 2.8MM 底盖晒字

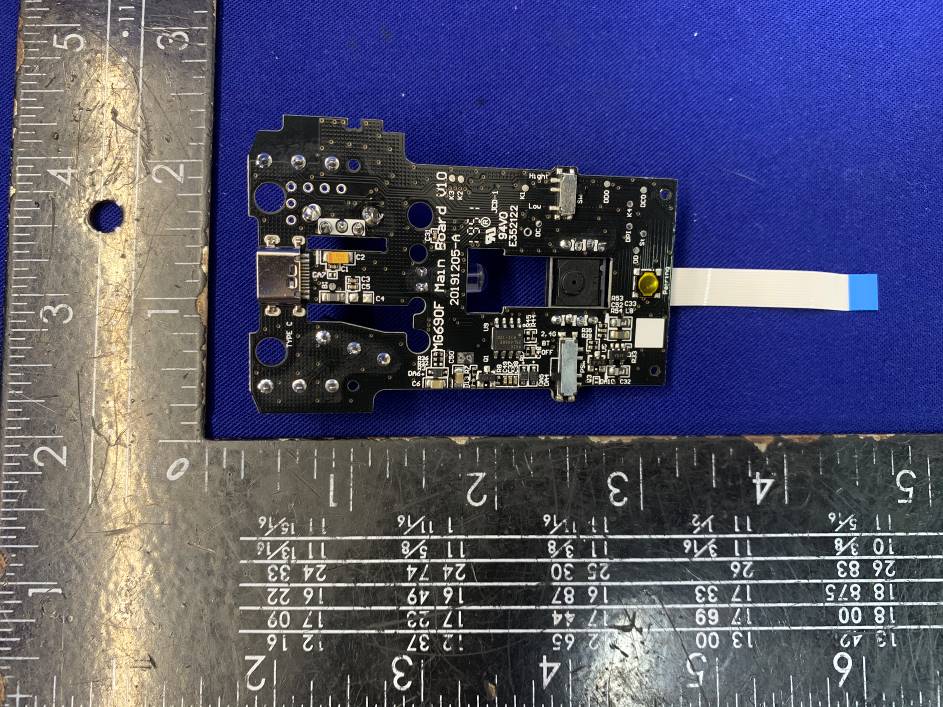

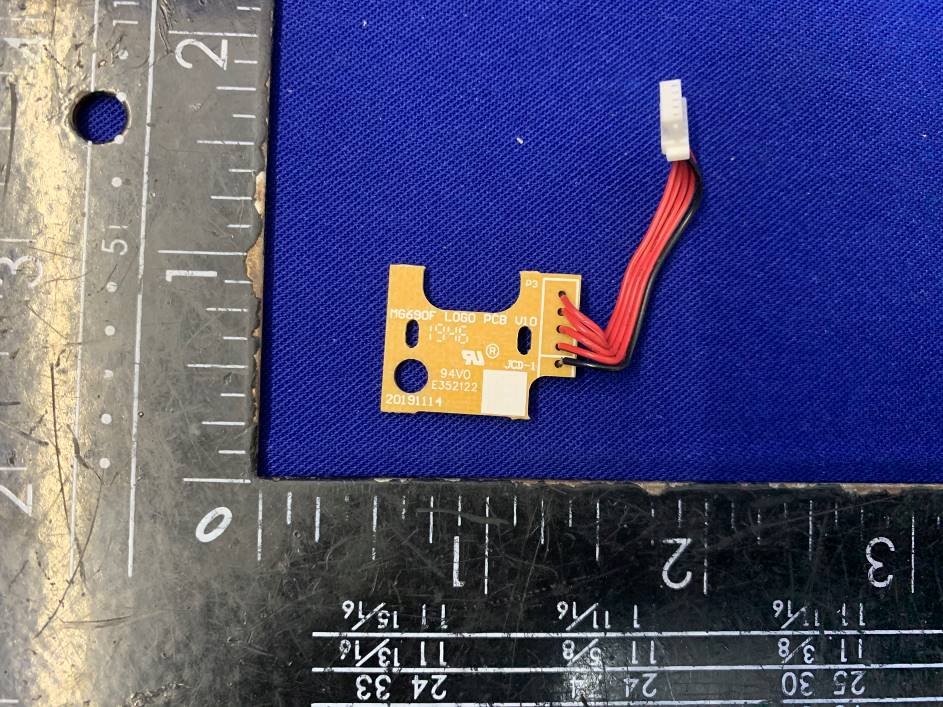

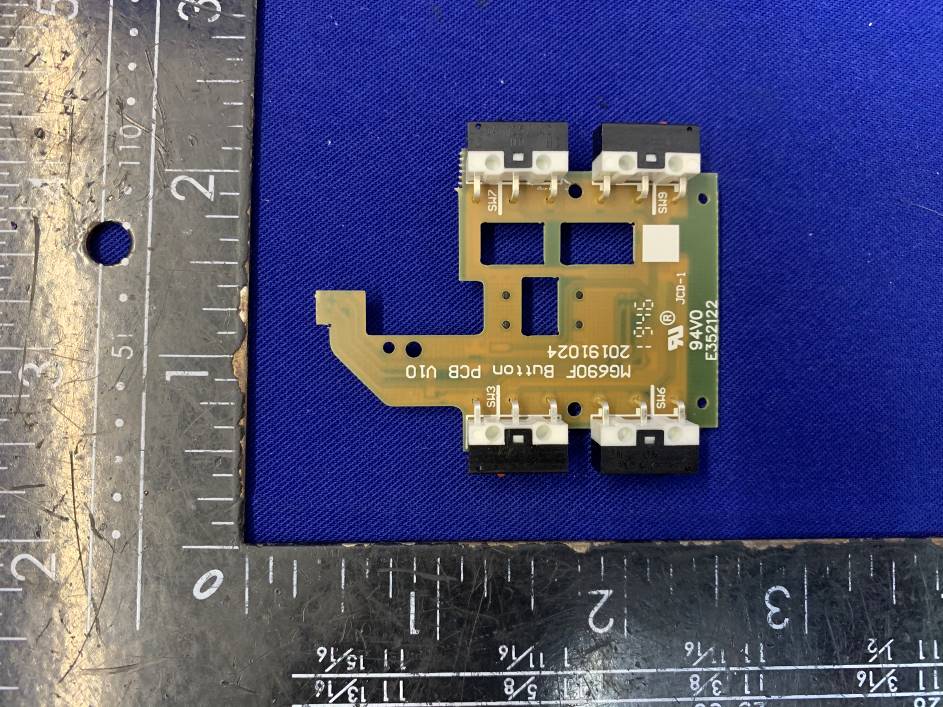

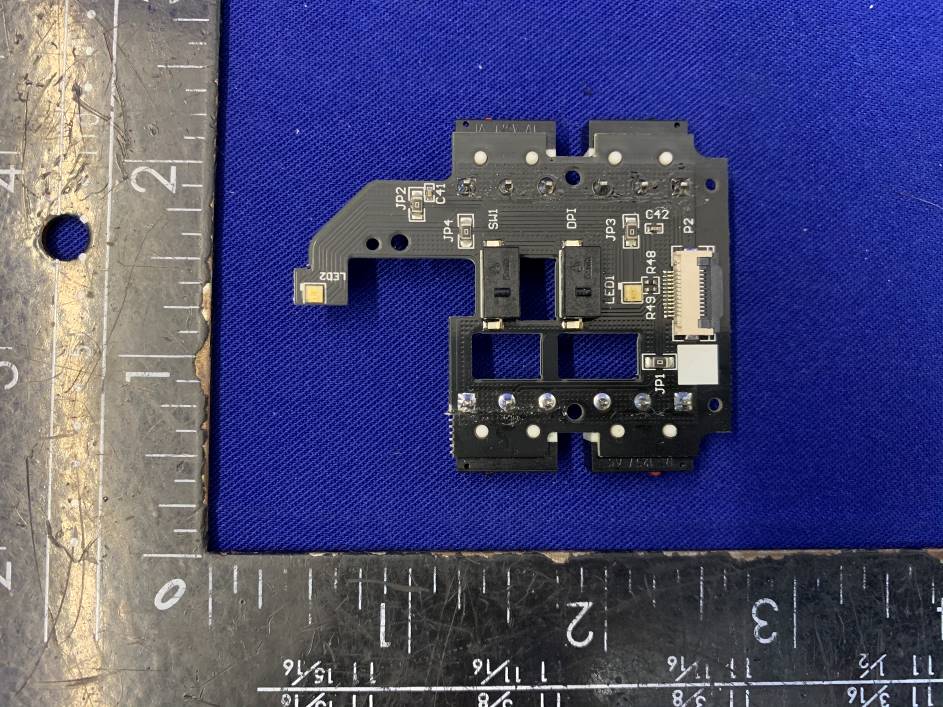

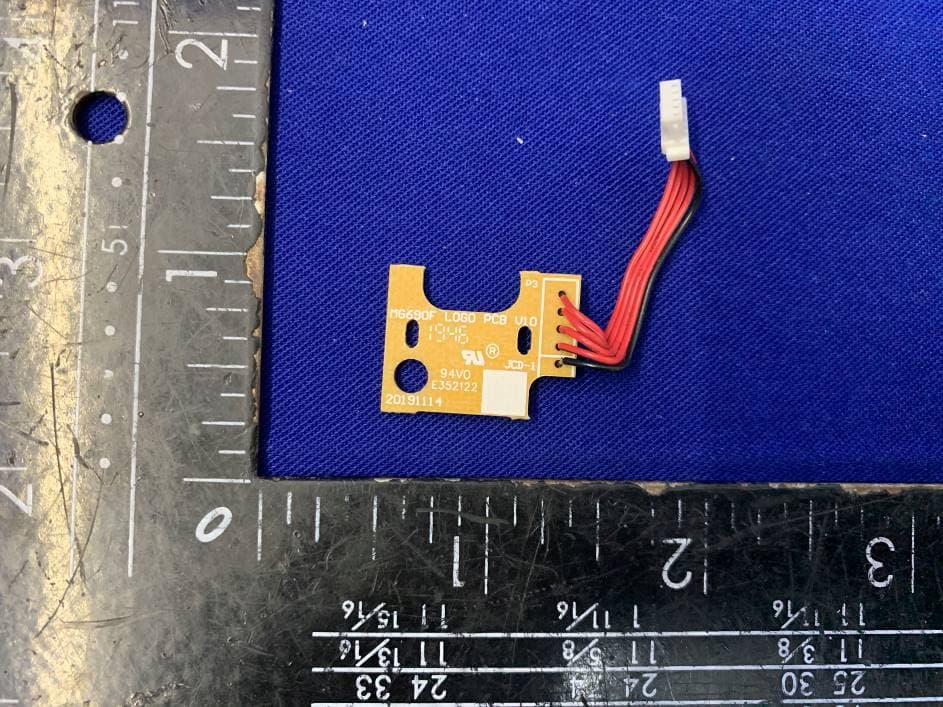

Internal Photos Internal view of EUT Internal view of EUT Internal view of EUT Internal view of EUT Internal view of EUT Internal view of EUT Internal view of EUT Internal battery

FCC ID: A5MM600A Portable device According to §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz； Power and distance are rounded to the nearest mW and mm before calculation； The result is rounded to one decimal place for comparison； The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. We use 5mm as separation distance to calculate. Maximum measured transmitter power: BLE: Transmit Frequency (GHz) Mode Max Conducted Power (dBm) tune up maximum power(dBm) Result calculation 1-g SAR 2.402 GFSK -9.951 -9 0.039 3 2.440 GFSK -8.666 -8 0.050 3 2.480 GFSK -8.269 -7 0.063 3 Conclusion: For the max result : 0.79≤ 3.0 for 1-g SAR extremity SAR, No SAR is required. Signature: Date: 2020.3.19 NAME AND TITLE (Please print or type): Lisa Wang/Manager COMPANY (Please print or type): Shenzhen EMTEK Co.,Ltd./Building 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China

Report No. ES200102045W01 Page 1 of 43 Ver.1.0 $印章$ TEST REPORT Product Name: Lenovo Legion M600 Wireless Gaming Mouse Model Number: M600A FCC ID: A5MM600A Prepared for : Lenovo (Beijing) limited Address : 201-H2-6, Floor 2, Building 2, No.6 Shangdi West Road, Haidian District, Beijing, China 100085 Prepared by : EMTEK (SHENZHEN) CO., LTD. Address : Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China Tel: (0755) 26954280 Fax: (0755) 26954282 Report Number : ES200102045W01 Date(s) of Tests : Jan. 6, 2020 to Mar. 3, 2020 Date of issue : Mar. 5, 2020 $二维码$ Report No. ES200102045W01 Page 2 of 43 Ver.1.0 Table of Contents 1 TEST RESULT CERTIFICATION ............................................................................................................. 3 2 EUT TECHNICAL DESCRIPTION ........................................................................................................... 5 3 SUMMARY OF TEST RESULT ................................................................................................................ 6 4 TEST METHODOLOGY ........................................................................................................................... 7 4.1 GENERAL DESCRIPTION OF APPLIED STANDARDS ................................................................ 7 4.2 MEASUREMENT EQUIPMENT USED .......................................................................................... 7 4.3 DESCRIPTION OF TEST MODES ................................................................................................. 8 5 FACILITIES AND ACCREDITATIONS ..................................................................................................... 9 5.1 FACILITIES..................................................................................................................................... 9 5.2 LABORATORY ACCREDITATIONS AND LISTINGS ...................................................................... 9 6 TEST SYSTEM UNCERTAINTY ............................................................................................................ 10 7 SETUP OF EQUIPMENT UNDER TEST ................................................................................................ 11 7.1 RADIO FREQUENCY TEST SETUP 1 ......................................................................................... 11 7.2 RADIO FREQUENCY TEST SETUP 2 ......................................................................................... 11 7.3 CONDUCTED EMISSION TEST SETUP ..................................................................................... 12 7.4 SUPPORT EQUIPMENT .............................................................................................................. 13 8 TEST REQUIREMENTS ......................................................................................................................... 14 8.1 DTS 6DB BANDWIDTH ................................................................................................................ 14 8.2 MAXIMUM PEAK CONDUCTED OUTPUT POWER .................................................................... 17 8.3 MAXIMUM POWER SPECTRAL DENSITY ................................................................................. 20 8.4 UNWANTED EMISSIONS IN NON-RESTRICTED FREQUENCY BANDS.................................. 23 8.5 RADIATED SPURIOUS EMISSION ............................................................................................. 28 8.6 CONDUCTED EMISSIONS TEST ................................................................................................ 40 8.7 ANTENNA APPLICATION ............................................................................................................ 43 Report No. ES200102045W01 Page 3 of 43 Ver.1.0 1 TEST RESULT CERTIFICATION Applicant: Lenovo (Beijing) limited 201-H2-6, Floor 2, Building 2, No.6 Shangdi West Road, Haidian District, Beijing, China 100085 Manufacture: Lenovo (Beijing) limited 201-H2-6, Floor 2, Building 2, No.6 Shangdi West Road, Haidian District, Beijing, China 100085 EUT Description: Lenovo Legion M600 Wireless Gaming Mouse Model Number: M600A Trade Mark: Lenovo Measurement Procedure Used: APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 2 , Subpart J FCC 47 CFR Part 15 , Subpart C PASS The above equipment was tested by EMTEK(SHENZHEN) CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 2 and Part 15.247. The test results of this report relate only to the tested sample identified in this report Date of Test : Jan. 6, 2020 to Mar. 3, 2020 Prepared by : Joe Xia/Editor Reviewer : Lisa Wang/Supervisor Approve & Authorized Signer : David Li/Manager Report No. ES200102045W01 Page 4 of 43 Ver.1.0 Modified Information Version Report No. Revision Date Summary Ver.1.0 ES200102045W01 / Original Report Report No. ES200102045W01 Page 5 of 43 Ver.1.0 2 EUT TECHNICAL DESCRIPTION Characteristics Description Modulation GFSK Operating Frequency Range 2402-2480MHz Number of Channels 40 channels Transmit Power Max -8.269 dBm Antenna Type Internal Antenna Antenna Gain 3.68 dBi Power supply DC 3.7V from battery DC 5.0V from external power Temperature Range -20°C ~ +55°C Note: for more details, please refer to the User’s manual of the EUT. Report No. ES200102045W01 Page 6 of 43 Ver.1.0 3 SUMMARY OF TEST RESULT FCC Part Clause Test Parameter Verdict Remark 15.247(a)(2) DTS (6dB) Bandwidth PASS 15.247(b)(3) Maximum Peak Conducted Output Power PASS 15.247(e) Maximum Power Spectral Density Level PASS 15.247(d) Unwanted Emission Into Non-Restricted Frequency Bands PASS 15.247(d) 15.209 Unwanted Emission Into Restricted Frequency Bands (conducted) PASS 15.247(d) 15.209 Radiated Spurious E…

Text truncated - open the document above for the full version.

Setup photos CONDUCTED EMISSION TEST RADIATED EMISSION TEST
