A5MMB230BBluetooth Mouse

Reduce | Reuse | Recycle First Edition (April 2020) © Copyright Lenovo 2020. LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant to a General Services Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No. GS-35F-05925. Bluetooth Silent Mouse https://support.lenovo.com SP40X88830 PN: ( 1P) SP40X88830 Printed in China https://www.lenovo.com/safety English LED indicator LED color LED status Description White Solid on for 2 seconds Powered on Blinking for 60 seconds Bluetooth pairing Solid on for 2 seconds Paired Amber Solid on for 2 seconds Pairing failure Blinking for 60 seconds Low battery power Operating system requirement This product only works with computers with Windows® 10 or Chrome operating system. Swift Pair With Swift Pair, you can pair Bluetooth devices with your computer more quickly by displaying a prompt in the Windows (Windows 10, version 1803 and later) notification area when an available Bluetooth device is detected. To enable Swift Pair: 1. Open the Start menu and click Settings ➙ Devices. 2. Enable Bluetooth and select Show notifications to connect using Swift Pair. Brazilian Portuguese Indicador LED Cor do LED Status do LED Descrição Branco Sólido por 2 segundos Ligado Piscando por 60 segundos Emparelhamento por Bluetooth Sólido por 2 segundos Emparelhado Âmbar Sólido por 2 segundos Falha no pareamento Piscando por 60 segundos Bateria fraca Requisitos do sistema operacional Este produto só funciona com computadores com sistema operacional Windows 10 ou Chrome. Emparelhamento Rápido Com o Emparelhamento Rápido, você pode emparelhar dispositivos Bluetooth com seu computador mais rapidamente, exibindo uma janela na área de notificação do Windows (Windows 10, versão 1803 e posterior) quando um dispositivo Bluetooth disponível é detectado. Para ativar o Emparelhamento Rápido: 1. Abra o menu Iniciar e clique em Configurações ➙ Dispositivos. 2. Ative o Bluetooth e selecione Exibir notificações para conectar-se usando o Emparelhamento Rápido. Czech Kontrolka LED Barva LED Stav LED Popis Bílá Svítí po dobu 2 sekund Zapnuto Bliká po dobu 60 sekund Párování zařízení Bluetooth Svítí po dobu 2 sekund Spárováno Oranžová Svítí po dobu 2 sekund Párování selhalo Bliká po dobu 60 sekund Slabá baterie Požadavky na operační systém Tento produkt funguje pouze s počítači s operačním systémem Windows 10 nebo Chrome. Rychle spárovat Pomocí funkce Rychle spárovat můžete zařízení Bluetooth spárovat s počítačem rychleji zobrazením výzvy v oznamovací oblasti systému Windows (Windows 10, verze 1803 a novější), když je detekováno dostupné zařízení Bluetooth. Aktivace funkce Rychlé párování: 1. Otevřete nabídku Start a klikněte na položku Nastavení ➙ Zařízení. 2. Povolte funkci Bluetooth a vyberte Zobrazovat upozornění k připojení pomocí funkce Rychle spárovat. Dutch LED-lampje Kleur van LED- lampje LED-status Omschrijving Wit Continu aan gedurende 2 seconden Ingeschakeld Knippert snel gedurende 60 seconden Bluetooth-koppeling Continu aan gedurende 2 seconden Gekoppeld Oranje Continu aan gedurende 2 seconden Koppelen mislukt Knippert snel gedurende 60 seconden Batterij bijna leeg Vereist besturingssysteem Dit product werkt alleen op computers met het besturingssysteem Windows 10 of Chrome. Snel koppelen Met een snelle koppeling kunt u Bluetooth-apparaten sneller met uw computer koppelen door in het systeemvak van Windows (Windows 10, versie 1803 en hoger) een prompt weer te geven wanneer er een beschikbaar Bluetooth-apparaat wordt gedetecteerd. Snel koppelen inschakelen: 1. Open het menu Start en klik op Instellingen ➙ Apparaten. 2. Schakel Bluetooth in en selecteer Meldingen tonen om verbinding te maken met behulp van Snel koppelen. French Voyant LED Couleur du voyant LED État du voyant Description Blanc Continu pendant 2 secondes Sous tension Clignotement rapide pendant 60 secondes Couplage Bluetooth Continu pendant 2 secondes Couplé Jaune Continu pendant 2 secondes Échec du couplage Clignotement rapide pendant 60 secondes Charge de la batterie faible Système d'exploitation requis Ce produit fonctionne uniquement avec des ordinateurs équipés du système d'exploitation Windows 10 ou Chrome. Couplage rapide Le couplage rapide vous permet de coupler plus rapidement les périphériques Bluetooth avec votre ordinateur en affichant une invite dans la zone de notification Windows (Windows 10, version 1803 et ultérieure) lorsqu'un périphérique Bluetooth disponible est détecté. Pour activer le couplage rapide : 1. Ouvrez le menu Démarrer et cliquez sur Paramètres ➙ Périphériques. 2. Activez le Bluetooth et sélectionnez Afficher les notifications pour se connecter à l'aide du couplage rapide. German LED-Anzeige LED- Farbe Statusanzeige-LED Beschreibung Weiß Leuchtet 2 Sekunden lang dauerhaft Eingeschaltet Blinkt schnell für 60 Sekunden Bluetooth- Kopplung Leuchtet 2 Sekunden lang dauerhaft Gekoppelt Gelb Leuchtet 2 Sekunden lang dauerhaft Pairing fehlgeschlagen Blinkt schnell für 60 Sekunden Akkuleistung niedrig Anforderungen an das Betriebssystem Dieses Produkt funktioniert nur mit Computern mit den Betriebssystemen Windows 10 oder Chrome. Schnelle Kopplung Mit der schnellen Kopplung können Sie Bluetooth-Geräte schneller mit Ihrem Computer koppeln, indem Sie im Windows-Infobereich (Windows 10, Version 1803 und höher) eine Eingabeaufforderung anzeigen, wenn ein verfügbares Bluetooth-Gerät erkannt wird. So aktivieren Sie die schnelle Kopplung: 1. Öffnen Sie das Startmenü und klicken Sie auf Einstellungen ➙ Geräte. 2. Aktivieren Sie dann Bluetooth und wählen Sie Benachrichtigungen anzeigen, um eine Verbindung über die schnelle Kopplung herzustellen aus. Italian Indicatore LED Colore LED Stato LED Descrizione Bianco Acceso fisso per 2 secondi Acceso Lampeggiante per 60 secondi Associazione Bluetooth Acceso fisso per 2 secondi Associato Giallo Acceso fisso per 2 secondi Associazione non riuscita Lampeggiante per 60 secondi L…

Text truncated - open the document above for the full version.

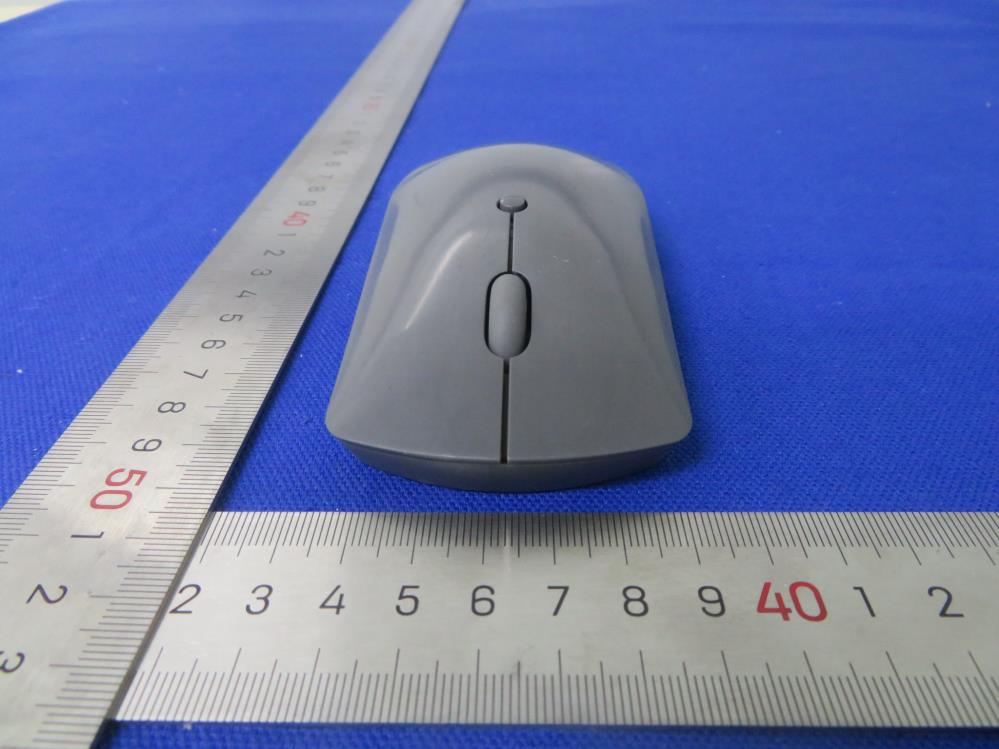

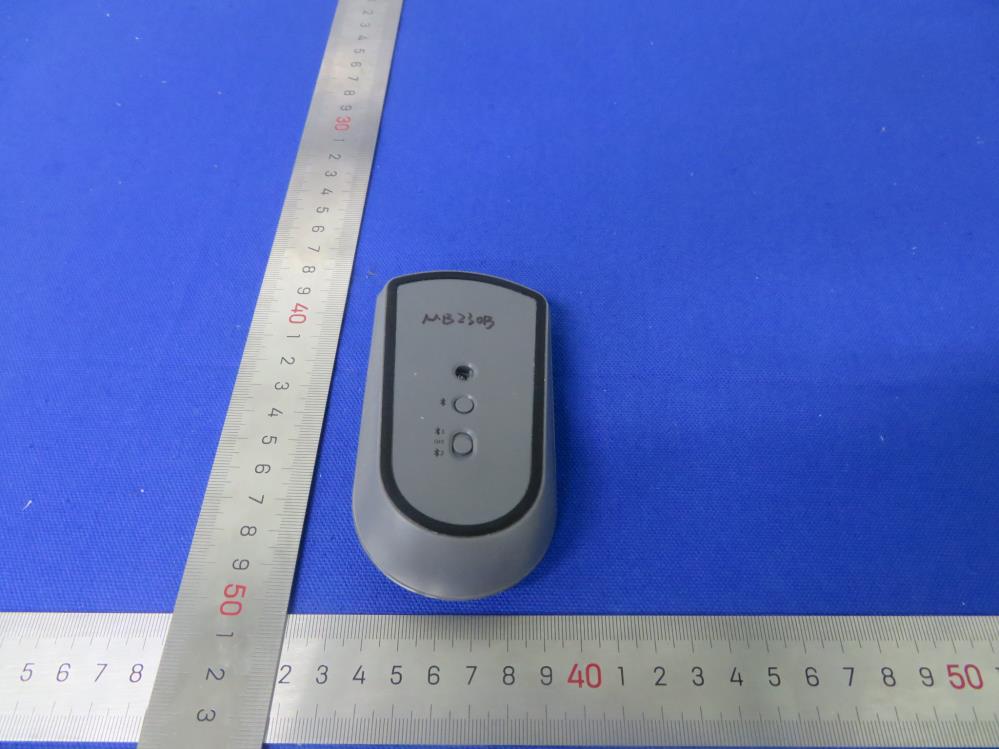

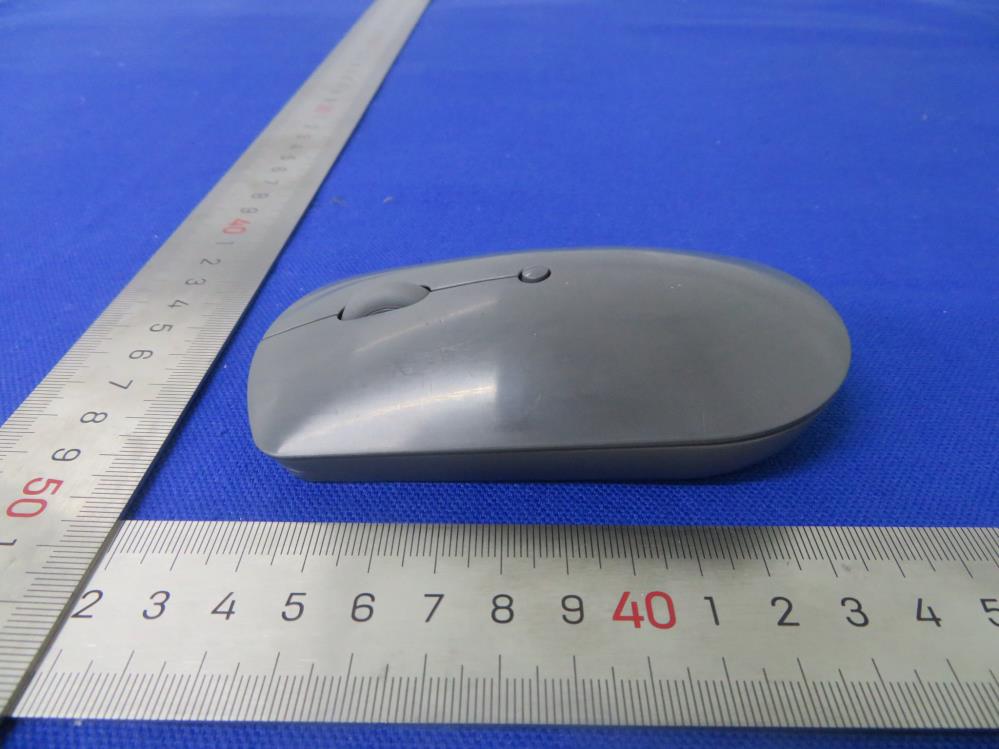

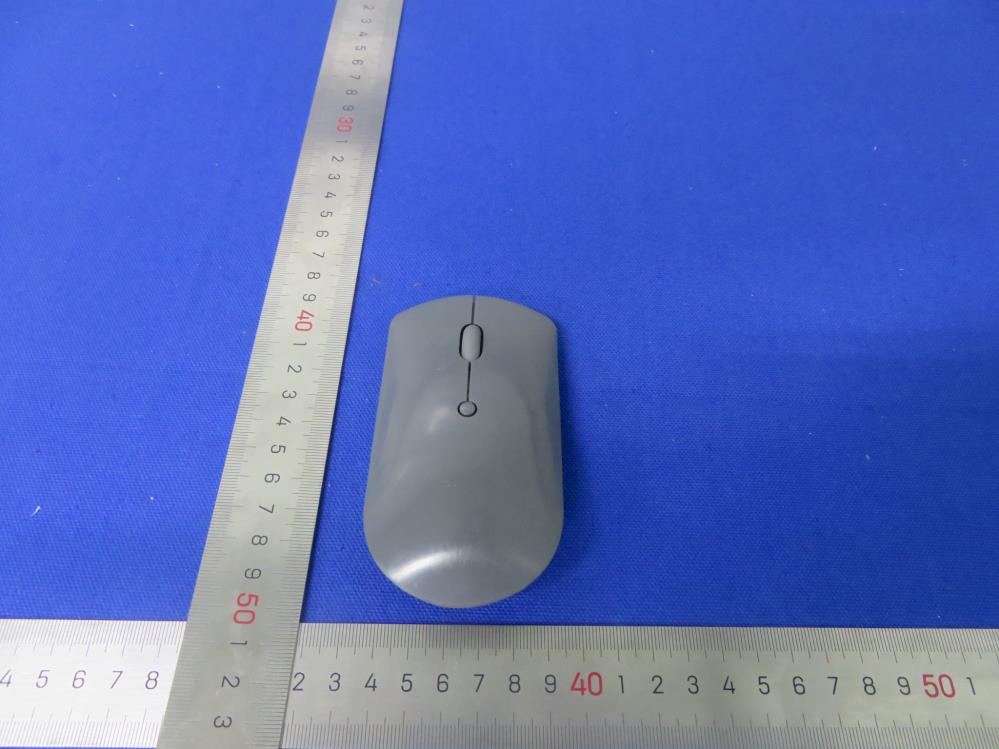

Lenovo ThinkPad Bluetooth Mouse http://support.Lenovo.cm Model/modèle: MB230B Windows® 7 / 8.1/10 Operational environment: Temperature:0 ~40°C Humidity: 40%~90% at 25°C Storage environment : Temperature: -40 ~55°C Humidity :< 93% at 40°C 2 A-1 A-2 A-3 Top view Iron grey Mineral Grey Black 3 Bottom view B-1 B-2 B-4 B-3 C-1 C-2 Left view Right view Side view 4 简体中文 A-1: 滚轮 A-2:DPI 按键 底下有LED指示灯 A-3: 上盖 B-1: 脚垫 B-2: 对码按钮 B-3:底盖 B-4: 蓝牙按钮 BT1&BT2: 可以切换两台蓝 牙设备 OFF：关闭 C-1: 侧盖 C-2: 商标 繁體中文 A-1: 滾輪 A-2:DPI 按鍵 底下有LED指示燈 A-3: 上蓋 B-1: 腳墊 B-2: 對碼按鈕 B-3:底蓋 B-4: 藍牙按鈕 BT1&BT2:可以切換兩台藍牙 設備 OFF：關閉 C-1: 側蓋 C-2: 商標 English A-1: Wheel A-2:DPI button There have a LED indicator Under the gap A-3: Top Case B-1: Feet B-2: Pairing button B-3:Bottom face B-4: Bluetooth button BT1&BT2: BT connection switchable OFF: Close C-1: Side cover C-2: Brand KoreanFrench A-1: ruedas A-2:DPI botón Hay UN indicador por debajo de la brecha A-3: La tapa superior B-1: pies B-2: códigosbotón B-3:abajo tapa B-4: BotónBluetooth BT1&BT2: Dos dispositivos pueden cambiar bluetooth OFF：cierre C-1: Tapa lateral C-2: marca Spanish A-1: roda A-2:DPI botão Há um indicador LED por baixo A-3: tampade cima B-1: pés B-2: Botãode código. B-3:A tampade baixo. B-4: BotãoBluetooth BT1&BT2: É possível trocar dois dispositivos bluetooth OFF: encerramento C-1: tampalaterais C-2: marca BazilianPortuguese Japanese A-1:롤러 A-2:DPI 버튼 틈아래LED 지시등이하나 있습니다. A-3:꼭대기 B-1:발 B-2:코드버튼 B-3:아래쪽커버 B-4:블루투스버튼 BT1&BT2:두대의 블루투스는전환할수있다. OFF:닫기 C-1:옆면의덮개 C-2:상표 A-1: roue A-2:DPI bouton Deux bluetooth peuvent être commutés A-3: ci-dessus couvercles B-1: pieds B-2: Bouton de codage B-3:ci-dessous couvercles B-4: Bluetooth bouton BT1&BT2: Deux appareils peuvent être commutés OFF: fermeture C-1: lateral couvercles C-2: marque A-1:휠 A-2:DPIボタン 下にLED表示灯がある A-3:上の蓋 B-1:フットパッド B-2: ペアリングボタン B-3:下の蓋 B-4: bluetoothボタン BT1&BT2: bluetooth機器を 2台切り替えることができ る OFF C-1:側面のカバー C-2:ブランド 5 European Union conformity Compliance with the Radio Equipment Directive Hereby, Lenovo (Singapore) Pte. Ltd., declares that the radio equipment type listed at the beginning of this section is in compliance with Directive 2014/53/EU. The full text of the product EU declaration of conformity is available at the following Internet address: https://www.lenovo.com/us/en/compliance/eu-doc This radio equipment operates with frequency bands and maximum radio-frequency power as listed at the beginning of this section. Compliance information The latest compliance information is available at: https://www.lenovo.com/us/en/compliance Electromagnetic emission notices 6 Lenovo is not responsible for any radio or television interference caused by using other than recommended cables and connectors or by unauthorized changes or modifications to this equipment. Unauthorized changes or modifications could voi d the user’s authority to operat e the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Responsible Party: Lenovo (United States) Incorporated 7001 Development Drive Morrisville, NC 27560 Email: [email protected] This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. This equipment complies with Industry Canada radiation exposure limits set forth for an uncontrolled environment. Cet équipement est conforme à l'exposition aux rayonnements Industry Canada limites établies pour un environnement non contrôlé. 7 Important battery and WEEE information Batteries and electrical and electronic equipment marked with the symbol of a crossed-out wheeled bin may not be disposed as unsorted municipal waste. Batteries and waste of electrical and electronic equipment (WEEE) shall be treated separately using the collection framework available to customers for the return, recycling, and treatment of batteries and WEEE. When possible, remove and isolate batteries from WEEE prior to placing WEEE in the waste collection stream. Batteries are to be collected separately using the framework available for the return, recycling, and treatment of batteries and accumulators. Country-specific information is available at: https://www.lenovo.com/recycling WEEE információk(Magyarországon) A magyartörvényekértelmében, a 197/2014 (VIII.1.) kormányrendelet12. szakaszának(1)-(5) cikkében foglaltakszerintLenovo mint gyártóálljaa keletkezőköltségeket. Restriction of Hazardous Substances (RoHS) Directive of countries and regions European Union RoHS This Lenovo product, with included parts (cables, cords, and so on) meetsthe requirements of Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment (“RoHSrecast” or “RoHS 2”). For more information about Lenovo worldwide compliance on RoHS, go to: https://www.lenovo.com/rohs-communication China RoHS 为满足中国电子电气产品有害物质限制相关的法律法规和其他要求，联想公司对本产品中有害物质，按部件分类，声明如下。 成品类产品：电源适配器，扩展坞，键盘，鼠标，硬盘，光驱，连接适配器等 8 Lenovo product service information for Taiwan 委製商/進口商名稱:荷蘭商聯想股份有限公司台灣分公司 進口商地址:台北市中山區北安路780 號7 樓 進口商電話: 0800-000-702 (代表號) NCC 根據低功率電波輻射性電機管理辦法規定: 第十二條經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。 第十四條低功率射頻電機之使用不得影響飛航安全及幹擾合法通信；經發現有幹擾現象時，應立即停用，並改善至無幹擾時方得繼續使用。 前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性…

Text truncated - open the document above for the full version.

Lenovo (Beijing) Limited QF094234 Page 1 of 1 Revision 0 Authority to Act as Agent Date: _2020-02-28_______ TUV Rheinland Group 762 Park Avenue Youngsville, NC 27596 To Whom It May Concern: I appoint TUV Rheinland (Shenzhen) Co., Ltd. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the FCC or Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by TUV Rheinland Group, still resides with ___ Lenovo (Beijing) Limited / 201-H2-6, Floor 2, Building 2, No.6 Shangdi West Road, Haidian District, Beijing, China 100085___. For TCB applications, We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: ____2021-02-27____ By: __________________________ ______Yang Liu________________ (Signature) (Print name) Title: __Standardization Manager___________Telephone:___ +86-10-58861975__________ On behalf of: _______Lenovo (Beijing) Limited ______ (Company Name)

Lenovo (Beijing) Limited Confidentiality Letter Date: 2020-02-25 Subject: Confidentiality Request for FCC ID: A5MMB230B Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC/IC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Part List/Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent anual Lenovo (Beijing) Limited has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify TUV Rheinland in the event information regarding the product or the product is made available to the public. TUV Rheinland will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04- 1705. Sincerely, By: Yang Liu (Signature/Title) (Print name)

Safety Human Exposure 1.1 Radio Frequency Exposure Compliance 1.1.1 Electromagnetic Fields RESULT: Pass Test Specification Test item : Bluetooth Mouse Identification / Type No. : MB230B FCC ID : A5MMB230B Test standard : CFR47 FCC Part 2: Section 2.1093 FCC KDB Publication 447498 v06 Measurement Record: The minimum distance for the EUT is less than 5mm. Since maximum peak output power of the transmitter is 0.32 dBm ≈ 1.08 mW < 3*d f = 9.52 mW. Hence the EUT is excluded from SAR evaluation according to FCC KDB Publication 447498 D01 General RF Exposure Guidance v06.

Produkte Products Prüfbericht-Nr.: Test report No.: 50343889 001 Auftrags-Nr.: Order No.: 168147482 Seite 1 von 20 Page 1 of 20 Kunden-Referenz-Nr.: Client reference No.: N/A Auftragsdatum: Order date.: 30.12.2019 Auftraggeber: Client: Lenovo (Beijing) Limited 201-H2-6, Floor 2, Building 2, No.6 Shangdi West Road, Haidian District, Beijing, China 100085 Prüfgegenstand: Test item: Bluetooth Mouse Bezeichnung / Typ-Nr.: Identification / Type No.: MB230B (Trademark: Lenovo) Auftrags-Inhalt: Order content: FCC approval Prüfgrundlage: Test specification: CFR47 FCC Part 15: Subpart C Section 15.247 CFR47 FCC Part 15: Subpart C Section 15.209 Wareneingangsdatum: Date of receipt: 07.01.2020 Please refer to photo documents Prüfmuster-Nr.: Test sample No.: A001050695-002 Prüfzeitraum: Testing period: 07.01.2020 - 11.01.2020 Ort der Prüfung: Place of testing: TÜV Rheinland (Shenzhen) Co., Ltd. Prüflaboratorium: Testing laboratory: TÜV Rheinland (Shenzhen) Co., Ltd. Prüfergebnis*: Test result*: Pass geprüft von / tested by: kontrolliert von / reviewed by: 14.02.2020 Lin Lin / Senior Project Manager 14.02.2020 Winnie Hou / Technical Certif ier Datum Date Name/Stellung Name/Position Unterschrift Signature Datum Date Name/Stellung Name/Position Unterschrift Signature Sonstiges / Other: FCC ID: A5MMB230B Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged: * Legende: 1 = sehr gut 2 = gut 3 = bef riedigend 4 = ausreichend 5 = mangelhalt P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet Legend: 1 = v ery good 2 = good 3 = satisfactory 4 = suf ficient 5 = poor P(ass) = passed a.m. test specifications(s) F(ail) = f ailed a.m. test specifications(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfm uster und darf ohne Genehm igung der Prüfstelle nicht auszugsw eise vervielfältigt w erden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be V04 duplicated in extracts. This test report does not entitle to carry any test mark. T ÜV Rheinland (Shenzhen) Co., Ltd., East of F/1, F/2 - F/4, Building 1, Cybio T echnology Building, No. 6 Langshan No. 2 Road, North Hi-tech Industry Park, Nanshan District, Shenzhen, P.R. China http://www.tuv.com Produkte Products Prüfbericht - Nr.: Test Report No. 50343889 001 Seite 2 von 20 Page 2 of 20 Test Summary 5.1.1 ANTENNA REQUIREMENT RESULT: Pass 5.1.2 MAXIMUM PEAK CONDUCTED OUTPUT POWER RESULT: Pass 5.1.3 CONDUCTED POWER SPECTRAL DENSITY RESULT: Pass 5.1.4 99% BANDWIDTH RESULT: Pass 5.1.5 CONDUCTED SPURIOUS EMISSIONS RESULT: Pass 5.1.6 RADIATED SPURIOUS EMISSION RESULT: Pass 5.1.7 6DB BANDWIDTH RESULT: Pass Produkte Products Prüfbericht - Nr.: Test Report No. 50343889 001 Seite 3 von 20 Page 3 of 20 Contents 1 GENERAL REMARKS .......................................................................................................... 4 1.1 COMPLEMENTARY MATERIALS ............................................................................................. 4 2 TEST SITES ..................................................................................................................... 5 2.1 TEST FACILITIES ............................................................................................................... 5 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS ..................................................................... 5 2.3 TRACEABILITY.................................................................................................................. 6 2.4 CALIBRATION................................................................................................................... 6 2.5 MEASUREMENT UNCERTAINTY ............................................................................................. 6 2.6 LOCATION OF ORIGINAL DATA ............................................................................................. 6 2.7 STATUS OF FACILITY USED FOR TESTING ............................................................................... 7 3 GENERAL PRODUCT INFORMATION........................................................................................ 8 3.1 PRODUCT FUNCTION AND INTENDED USE................................................................................ 8 3.2 RATINGS AND SYSTEM DETAILS ........................................................................................... 8 3.3 INDEPENDENT OPERATION MODES ........................................................................................ 8 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS............................................................... 8 3.5 SUBMITTED DOCUMENTS .................................................................................................... 9 4 TEST SET-UP AND OPERATION MODES................................................................................. 10 4.1 PRINCIPLE OF CONFIGURATION SELECTION ........................................................................... 10 4.2 TEST OPERATION AND TEST SOFTWARE............................................................................... 10 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ............................................................... 10 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE ............................................................. 10 4.5 TEST SETUP DIAGRAM ..................................................................................................... 11 5 TEST RESULTS ............................................................................................................... 13 5.1 TRANSMITTER REQUIREMENT & TEST SUITES .................................................................…

Text truncated - open the document above for the full version.

Produkte Products Appendix A 50343889 001 Page 1 of 24 Appendix A: Test Results of BLE APPENDIX A: TEST RESULTS OF BLE............................................................................................................................................ 1 APPENDIX A.1: TEST RESULTS OF CONDUCTED POWER SPECTRAL DENSITY ......................................................................................... 2 Low Channel.......................................................................................................................................................................... 2 Middle Channel ..................................................................................................................................................................... 2 High Channel ......................................................................................................................................................................... 3 APPENDIX A.2: TEST RESULTS OF 6DB BANDWIDTH ......................................................................................................................... 4 Low Channel.......................................................................................................................................................................... 4 Middle Channel ..................................................................................................................................................................... 4 High Channel ......................................................................................................................................................................... 5 APPENDIX A.3: TEST RESULTS OF 99% BANDWIDTH ........................................................................................................................ 6 Low Channel.......................................................................................................................................................................... 6 Middle Channel ..................................................................................................................................................................... 6 High Channel ......................................................................................................................................................................... 7 APPENDIX A.4: TEST RESULTS OF CONDUCTED SPURIOUS EMISSIONS................................................................................................. 8 Low Channel.......................................................................................................................................................................... 8 Middle Channel ..................................................................................................................................................................... 8 High Channel ......................................................................................................................................................................... 9 Band Edge, Low Channel ...................................................................................................................................................... 9 Band Edge, High Channel ................................................................................................................................................... 10 APPENDIX A.5: TEST RESULTS OF RADIATED SPURIOUS EMISSIONS .................................................................................................. 11 30 MHz to 1GHz .................................................................................................................................................................. 11 Above 1GHz ......................................................................................................................................................................... 15 APPENDIX A.6: TEST RESULTS OF RADIATED EMISSIONS IN RESTRICTED BANDS................................................................................. 21 Produkte Products Appendix A 50343889 001 Page 2 of 24 Appendix A.1: Test Results of Conducted Power Spectral Density Low Channel Middle Channel Produkte Products Appendix A 50343889 001 Page 3 of 24 High Channel Produkte Products Appendix A 50343889 001 Page 4 of 24 Appendix A.2: Test Results of 6dB Bandwidth Low Channel (RBW=100KHz, VBW=300KHz, 6dB Bandwidth: 713KHz) 15 Middle Channel (RBW=100KHz, VBW=300KHz, 6dB Bandwidth: 713KHz) Level in dBm Level in dBm Produkte Products Appendix A 50343889 001 Page 5 of 24 High Channel (RBW=100KHz, VBW=300KHz, 6dB Bandwidth: 713KHz) Level in dBm Produkte Products Appendix A 50343889 001 Page 6 of 24 Appendix A.3: Test Results of 99% Bandwidth Low Channel Middle Channel Produkte Products Appendix A 50343889 001 Page 7 of 24 High Channel Produkte Products Appendix A 50343889 001 Page 8 of 24 Appendix A.4: Test Results of Conducted Spurious Emissions Low Channel Middle Channel Produkte Products Appendix A 50343889 001 Page 9 of 24 High Channel Band Edge, Low Channel Produkte Products Appendix A 50343889 001 Page 10 of 24 Band Edge, High Channel Produkte Products Appendix A 50343889 001 Page 11 of 24 Appendix A.5: Test Results of Radiated Spurious Emissions 30 MHz to 1GHz Produkte Products Appendix A 50343889 001 Page 12 of 24 Produkte Products Appendix A 50343889 001 Page 13 of 24 Produkte Products Appendix A 50343889 001 Page 14 of 24 Produkte Products Appendix A 50343889 001 Page 15 of 24 Above 1GHz Produkte Products Appendix A 50343889 001 Page 16 of 24 Produkte Products Appendix A 50343889 001 Page 17 of 24 Produkte Products Appendix A 50343889 001 Page 18 of 24 Produkte Products Appendix A 50343889 001 Page 19 of 24 Produkte Products Appendix A 50343889 001 Page 20 of 24 Produkte Products Appendix A 50343889 001 Page 21 of 24 Appendix A.6: Test Results of Radiated Emissions in Res…

Text truncated - open the document above for the full version.

Produkte Products Appendix B 50343889 001 Page 1 of 2 Appendix B: Photographs of the Test Set-Up APPENDIX B: PHOTOGRAPHS OF THE TEST SET-UP .................................................................................................................. 1 PHOTOGRAPH 1: SET-UP FOR RADIATED SPURIOUS EMISSION, 30MHZ ~ 1GHZ ................................................................................... 2 PHOTOGRAPH 2: SET-UP FOR RADIATED SPURIOUS EMISSION, ABOVE 1GHZ........................................................................................ 2 Produkte Products Appendix B 50343889 001 Page 2 of 2 Photograph 1: Set-up for Radiated Spurious Emission, 30MHz ~ 1GHz Photograph 2: Set-up for Radiated Spurious Emission, Above 1GHz
