A5MMOBTJLLLenovo YOGA Mouse

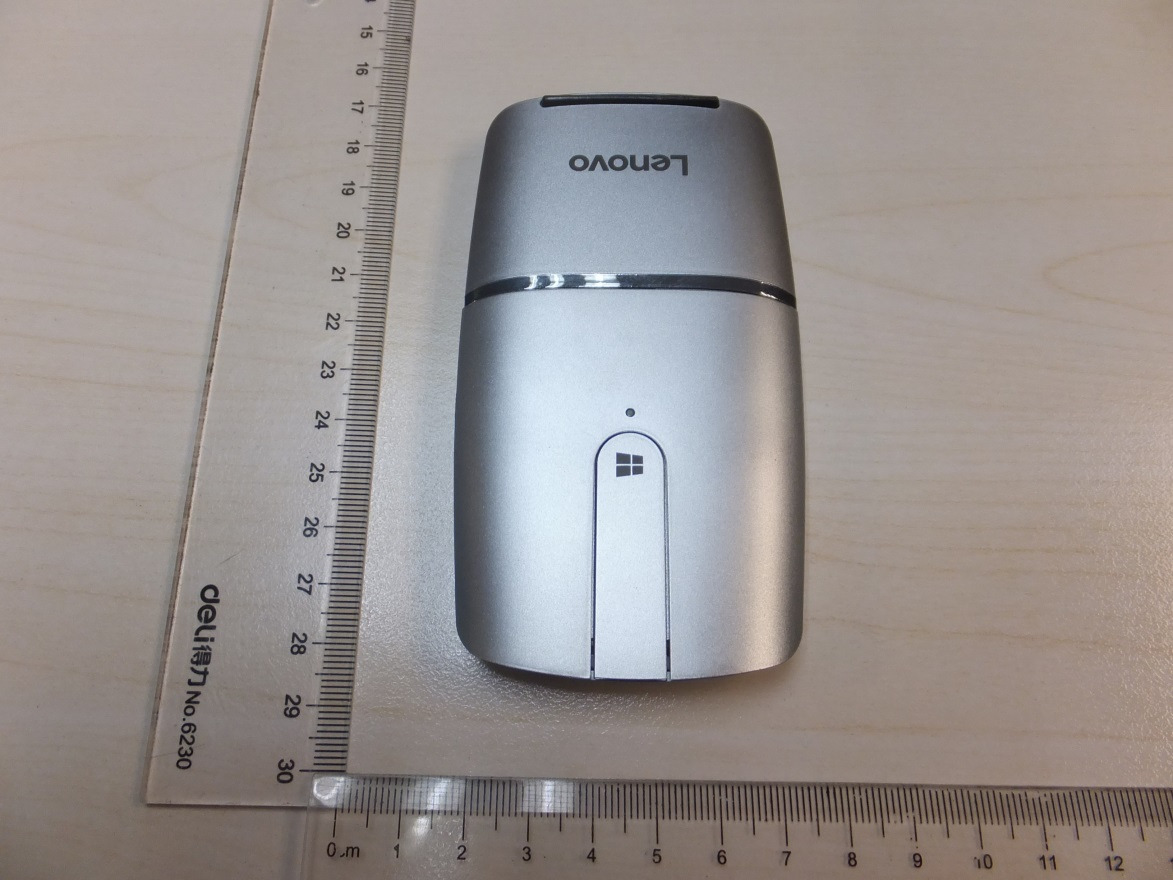

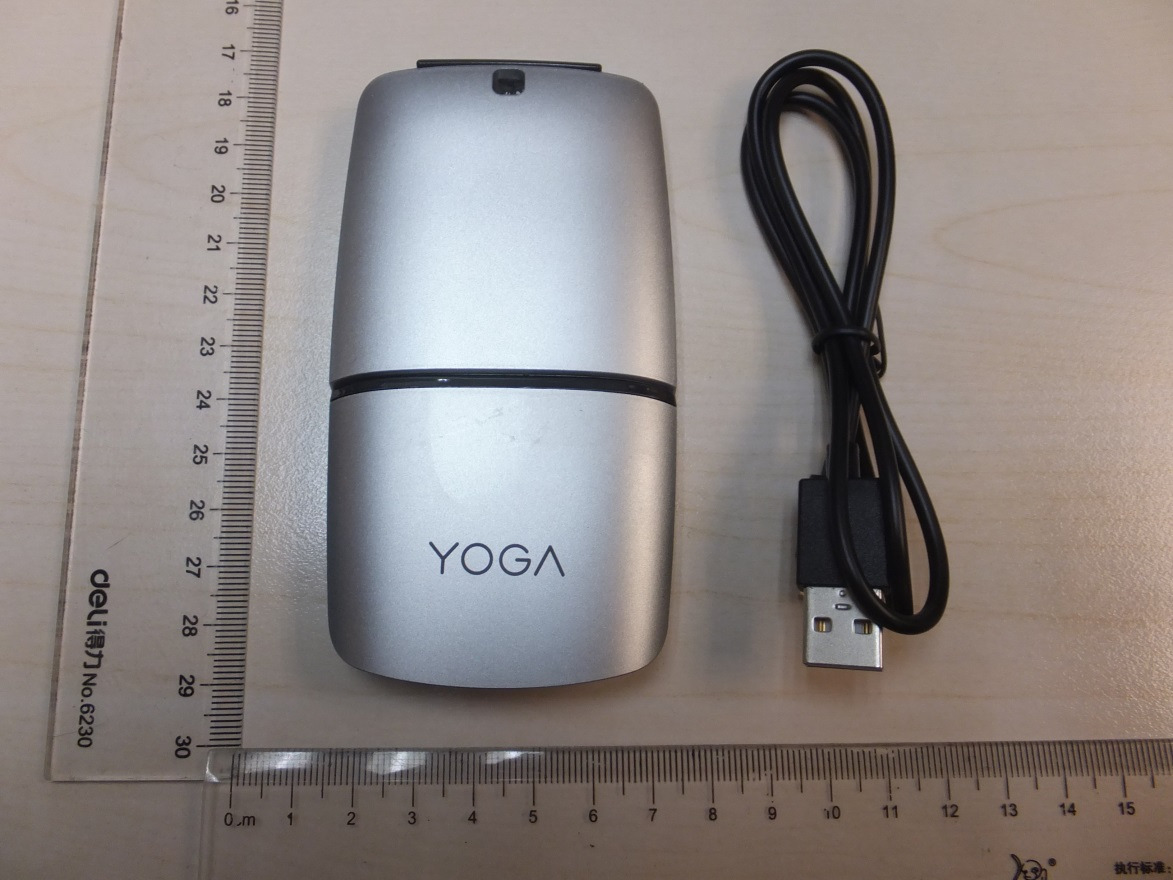

Lenovo YOGA Mouse Quick Start Guide Introduction Option package list:  Lenovo ® YOGA ™ Mouse (referred to as mouse)  Universal Serial Bus (USB) receiver  USB charging cable  Documentation Parts and locations Middle key Touch bar* Right key Windows ® key Power key USB charging connector Wireless mode switch Indicator* Left key Compartment cover *Touch bar: Swipe up and down: vertical scroll. *Indicator status: Indicator activity Working status Flashing in white Bluetooth paring Flashing in orange Battery low Illuminated in orange Charging Illuminated in white Fully charged Connecting the mouse Connect through the USB receiver Ensure that the wireless mode switch is on the right-side position . Then, the computer automatically identifies the mouse. Connect through the Bluetooth feature Software requirements:  Bluetooth 4.0 or later  Microsoft ® Windows 8 operating system or later To connect the mouse, do the following: 1. Enable the Bluetooth feature on your computer. 2. Slide the wireless mode switch on the mouse to the left-side position . Hold it there for three seconds until the indicator flashes in white. 3. Select Lenovo YOGA Mouse from the Bluetooth device list and starts pairing. 4. Disable Allow the computer to turn off this device to save power. For more information, refer to the Windows help information system. Using the mouse Turn on the mouse Press and hold the power key for two seconds until the indicator is illuminated in white for three seconds. Turn on the mouse Press and hold the power key for two seconds until the indicator is off. Switch between the mouse mode and the presenter mode After connecting the mouse, you can use it in either the mouse mode or the presenter mode.  Mouse mode Function: mouse How to enter: rotate clockwise  Presenter mode Function: media controller or presenter How to enter: rotate counterclockwise The media controls or presenter controls are illuminated. Media controls Presenter controls Volume down Presenting from first slide Volume up Presenting from current slide Play / Pause Black screen / Back to presentation Previous track Previous slide Next track Next slide Notes:  To switch between the two functions, press the middle key.  The mouse hibernates if it is not used for over three minutes as a media controller or over 10 minutes as a presenter.  To wake the mouse, press the middle key or the Windows key. Troubleshooting Problem: The mouse is not working. Solution:  Ensure that the wireless mode switch is in the correct position.  Ensure that the mouse is fully charged and turned on.  Use the mouse on a different surface.  For connection through the USB receiver: - Ensure that the USB receiver is securely connected. - Connect the USB receiver to another USB connector.  For connection through the Bluetooth 4.0 feature: - Ensure that the mouse has been disconnected from other devices before pairing. - If the Bluetooth connection is lost, re-pair the mouse first. If the problem persists, try restarting the computer and then re-pairing.  In the presenter mode, if the controls are not illuminated, ensure that the mouse is connected to the computer.  In the presenter function, if the black-screen control is not working, ensure that the current input language is English.  If the indicator does not respond anyway, reset the mouse. To reset the mouse, press and hold the power key, charge the mouse using the USB charging cable, and then release the power key.  If the battery power consumes fast, always turn off the mouse to save power when you finish using the mouse. First Edition (December 2015) © Copyright Lenovo 2015. Lenovo, the Lenovo logo, and YOGA are trademarks of Lenovo in the United States, other countries, or both. Microsoft and Windows are trademarks of the Microsoft group of companies. Other company, product, or service names may be trademarks or service marks of others. LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant a General Services Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No. GS-35F-05925.BBB LenovoRegulatoryNotice Aboutthisdocument ThisdocumentprovidesregulatoryinformationabouttheLenovo ® YOGA ™ Mouse andthedongle. FederalCommunicationsCommissionDeclarationof Conformity LenovoYOGAMouse–MOBTJLL(FCCID:A5MMOBTJLL) Dongle–DGRFG4(FCCID:EMJDDGRFG4) Note: TheLenovoYOGAMouse(Model:MOBTJLL)andthedongle(Model:DGRFG4) underwentcertificationprocessfortheFCCPart15SubpartBcomplianceunder itsFCCIDnumber. ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassB digitaldevice,pursuanttoPart15oftheFCCRules.Theselimitsaredesigned toprovidereasonableprotectionagainstharmfulinterferenceinaresidential installation.Thisequipmentgenerates,uses,andcanradiateradiofrequency energyand,ifnotinstalledandusedinaccordancewiththeinstructions,may causeharmfulinterferencetoradiocommunications.However,thereisno guaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthis equipmentdoescauseharmfulinterferencetoradioortelevisionreception,which canbedeterminedbyturningtheequipmentoffandon,theuserisencouragedto trytocorrecttheinterferencebyoneormoreofthefollowingmeasures: •Reorientorrelocatethereceivingantenna. •Increasetheseparationbetweentheequipmentandreceiver. •Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhich thereceiverisconnected. •Consultanauthorizeddealerorservicerepresentativeforhelp. Lenovoisnotresponsibleforanyradioortelevisioninterferencecausedby usingotherthanspecifiedorrecommendedcablesandconnectorsorby unauthorizedchangesormodificationstothisequipment.Unauthorizedchanges ormodificationscouldvoidtheuser'sauthoritytooperatetheequipment.This devicecomplieswithPart15oftheFCCRules.Operationissubjecttothe followingtwoconditions:(1)thisdevicemaynotcauseharmfulinterference,and (2)thisdevicemustacceptanyinterferencereceived,includinginterferencethat maycauseundesiredoperation. 1 ResponsibleParty: Lenovo(UnitedS…

Text truncated - open the document above for the full version.

刻字 Lenovo, Einsteinova 21, 851 01 Bratislava, Slovakia CMIIT ID: XXXXXXXXXX CAN ICES-3(B)/NMB-3(B) US & Canada onlly 001 斜頂活動區域 1:1 ETA No:XXXXXXXXXX Lenovo YOGA Mouse MODEL (型号/型號): MOBTJLL Rating (额定/額定): 5V Charging LC P/N: XXXXXXXXXX Made in China 中国制造/中國制造 TA-2013/488 联想(北京)有限公司 S/N: (1S)XXXXXXXXXXZ10HXXXX YM *30.5mm * 1 2 . 5 m m IC: 5903G-MOBTJLL FCC ID: A5MMOBTJLL *85mm 條碼類型：Code128 掃描內容：4LCN YYYY MM DD Month(01~12） Year (2015,2016,.....) Date(01~31） Date: LC PN: (1P)GX30K69572 Date:20151225 S/N:(1S)GX30K69572Z10HXXXX Manufactured for Lenovo Made in China Lenovo Yoga Mouse(Black)-WW 條碼類型：Code128 掃描內容：1PGX30K69572 條碼類型：Code128 掃描內容：1SGX30K69572Z10HXXXX * 2 5 m m 掃描內容：889955593009 條碼類型：EAN-13(UPC) 掃描內容：889955593009 條碼類型：UPC UPC: 8 59300 9 89955 EAN: 0593009889955 (4L) Origin:CN *90mm 條碼類型：Code128 掃描內容：1SGX30K69572Z10HXXXX S/N:(1S)GX30K69572Z10ＨXXXX * 9 7 m m S/N:(1S)GX30K69572Z10ＨXXXX S/N:(1S)GX30K69572Z10ＨXXXX S/N:(1S)GX30K69572Z10ＨXXXX S/N:(1S)GX30K69572ＨXXXX S/N:(1S)GX30K69572Z10ＨXXXX S/N:(1S)GX30K69572Z10ＨXXXX S/N:(1S)GX30K69572Z10ＨXXXX S/N:(1S)GX30K69572Z10ＨXXXX S/N:(1S)GX30K69572Z10ＨXXXX S/N:(1S)GX30K69572Z10ＨXXXX S/N:(1S)GX30K69572Z10ＨXXXX *100 mm * 5 0 m m 條碼類型:Code 128 掃描內容: 1PGX30K69572 (1P) GX30K69572 Quantity Shipped (Q) 25 Country of Origin (4L) CN 條碼類型:Code 128 條碼類型:Code 128 掃描內容 掃描內容 :Q25 :4LCN 實際生產日期: YYYY-MM-DD Day code (01,02,03........31) Month code01,02,03........12() Year code2013,2014,2015......() Part Number (LC) Lenovo Yoga Mouse(Black)-WW Made in China Date:20150515 UPC: 8 EAN: 0 掃描內容：889955593009 條碼類型：EAN-13(UPC) 掃描內容：889955593009 條碼類型：UPC S/N:(1S)GX30K69572Z10ＨXXXX S/N:(1S)GX30K69572Z10ＨXXXX S/N:(1S)GX30K69572Z10ＨXXXX S/N:(1S)GX30K69572Z10ＨXXXX S/N:(1S)GX30K69572ＨXXXX S/N:(1S)GX30K69572Z10ＨXXXX S/N:(1S)GX30K69572Z10ＨXXXX S/N:(1S)GX30K69572Z10ＨXXXX S/N:(1S)GX30K69572Z10ＨXXXX S/N:(1S)GX30K69572Z10ＨXXXX S/N:(1S)GX30K69572Z10ＨXXXX S/N:(1S)GX30K69572Z10ＨXXXX 59300 9 89955 593009889955 S/N:(1S)GX30K69572Z10ＨXXXX ETA No:XXXXXXXXXX Lenovo YOGA Mouse MODEL (型号/型號): MOBTJLL Rating (额定/額定): 5V Charging LC P/N: XXXXXXXXXX Made in China 中国制造/中國制造 TA-2013/488 联想(北京)有限公司 S/N: (1S)XXXXXXXXXXZ10HXXXX YM *30.5mm * 1 2 . 5 m m IC: 5903G-MOBTJLL FCC ID: A5MMOBTJLL

Bluetooth and 2.4GHz Antenna

Produkte Products Prüfbericht - Nr.: Test Report No. 17054535 001 Seite 2 von 43 Page 2 of 43 TEST SUMMARY 5.1.1 ANTENNA REQUIREMENT RESULT: Pass 5.1.2 PEAK OUTPUT POWER RESULT: Pass 5.1.3 6DB BANDWIDTH AND 99% BANDWIDTH RESULT: Pass 5.1.4 CONDUCTED SPURIOUS EMISSIONS MEASURED IN 100 KHZ BANDWIDTH RESULT: Pass 5.1.5 POWER SPECTRAL DENSITY RESULT: Pass 5.1.6 SPURIOUS EMISSIONS RESULT: Pass 5.2.1 ANTENNA REQUIREMENT RESULT: Pass 5.2.2 FIELD STRENGTH OF FUNDAMENTAL AND HARMONICS RESULT: Pass 5.2.3 20DB BANDWIDTH AND 99% BANDWIDTH RESULT: Pass 5.2.4 OUT-OF-BAND EMISSIONS RESULT: Pass 5.3.1 RADIATED EMISSIONS RESULT: Pass 5.3.2 CONDUCTED EMISSIONS RESULT: Pass Produkte Products Prüfbericht - Nr.: Test Report No. 17054535 001 Seite 3 von 43 Page 3 of 43 CONTENTS 1. GENERAL REMARKS ......................................................................................................... 5 1.1 COMPLEMENTARY MATERIALS .......................................................................................... 5 2. TEST SITES ...................................................................................................................... 5 2.1 TEST FACILITIES ............................................................................................................... 5 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS ............................................................... 6 2.3 TRACEABILITY .................................................................................................................. 7 2.4 CALIBRATION ................................................................................................................... 7 2.5 MEASUREMENT UNCERTAINTY........................................................................................... 7 2.6 LOCATION OF ORIGINAL DATA ........................................................................................... 7 2.7 STATUS OF FACILITY USED FOR TESTING ........................................................................... 7 3. GENERAL PRODUCT INFORMATION .................................................................................... 8 3.1 PRODUCT FUNCTION AND INTENDED USE ........................................................................... 8 3.2 RATINGS AND SYSTEM DETAILS ........................................................................................ 8 3.3 INDEPENDENT OPERATION MODES .................................................................................. 10 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS ..................................................... 10 3.5 SUBMITTED DOCUMENTS ................................................................................................ 10 4. TEST SET-UP AND OPERATION MODES ............................................................................ 11 4.1 PRINCIPLE OF CONFIGURATION SELECTION ...................................................................... 11 4.2 TEST OPERATION AND TEST SOFTWARE .......................................................................... 11 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ........................................................ 12 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE ....................................................... 12 4.5 TEST SETUP DIAGRAM .................................................................................................... 13 5. TEST RESULTS ............................................................................................................... 15 5.1 TRANSMITTER REQUIREMENT & TEST SUITES - PART 15 SUBPART C DTS EQUIPMENT ...... 15 5.1.1 Antenna Requirement ................................................................................................................ 15 5.1.2 Peak Output Power .................................................................................................................... 16 5.1.3 6dB Bandwidth and 99% Bandwidth .......................................................................................... 19 5.1.4 Conducted Spurious Emissions measured in 100 kHz Bandwidth ............................................ 23 5.1.5 Power spectral density ............................................................................................................... 27 5.1.6 Spurious Emissions .................................................................................................................... 30 5.2 TRANSMITTER REQUIREMENT & TEST SUITES - PART 15 SUBPART C DXX EQUIPMENT ...... 31 5.2.1 Antenna Requirement ................................................................................................................ 31 5.2.2 Field strength of fundamental and harmonics ............................................................................ 32 5.2.3 20dB Bandwidth and 99% Bandwidth ........................................................................................ 33 5.2.4 Out-of-band emissions ............................................................................................................... 36 5.3 TRANSMITTER REQUIREMENT & TEST SUITES - PART 15 SUBPART B ................................ 37 5.3.1 Radiated emissions .................................................................................................................... 37 Produkte Products Prüfbericht - Nr.: Test Report No. 17054535 001 Seite 4 von 43 Page 4 of 43 5.3.2 Conducted emissions ................................................................................................................. 38 6. PHOTOGRAPHS OF THE TEST SET-UP .............................................................................. 39 7. LIST OF TABLES ............................................................................................................. 43 8. LIST OF PHOTOGRAPHS .................................................................................................. 43 Produkte Products Prüfbericht - Nr.: Test Report No. 17054535 00…

Text truncated - open the document above for the full version.

Produkte Products Appendix A 17054535 001 Page 19 of 32 Produkte Products Appendix A 17054535 001 Page 20 of 32 High Channel Produkte Products Appendix A 17054535 001 Page 21 of 32 Produkte Products Appendix A 17054535 001 Page 22 of 32 Produkte Products Appendix A 17054535 001 Page 23 of 32 Produkte Products Appendix A 17054535 001 Page 24 of 32 Produkte Products Appendix A 17054535 001 Page 25 of 32 Produkte Products Appendix A 17054535 001 Page 26 of 32 Produkte Products Appendix A 17054535 001 Page 27 of 32 Produkte Products Appendix A 17054535 001 Page 28 of 32 Produkte Products Appendix A 17054535 001 Page 29 of 32 Appendix A.2: Radiated Emissions in Restricted Bands Low Channel Produkte Products Appendix A 17054535 001 Page 30 of 32 Produkte Products Appendix A 17054535 001 Page 31 of 32 High Channel Produkte Products Appendix A 17054535 001 Page 32 of 32 Produkte Products Appendix B 17054535 001 Page 1 of 2 Appendix B Test Results of RF Exposure - Bluetooth 4.0 Low Energy Mode APPENDIX B.1: RF EXPOSURE COMPLIANCE .................................................................................. 2 Produkte Products Appendix B 17054535 001 Page 2 of 2 Appendix B.1: RF Exposure Compliance Radio Frequency Exposure Compliance RESULT: Pass Test standard : FCC 1.1310 RSS-102 Issue 5 KDB 447498 D01 General RF Exposure Guidance v06 This device is Bluetooth 4.0 Low Energy and 2.4 GHz wireless device. The EUT has only one antenna, Bluetooth 4.0 Low Energy and 2.4 GHz wireless cannot transmit simultaneously. This RF exposure evaluation is only for Bluetooth 4.0 Low Energy operation. Since the maximum peak output power of the transmitter is 0.61 mw, and the separation between body and antenna is 5 mm. The maximum peak output power is less than 10mW (FCC Limit) and 4mW (IC Limit), hence the EUT is exclueded from SAR evaluation according to FCC KDB 447498 D01: Mobile Portable RF Exposure and RSS-102 Issue 5. Produkte Products Appendix C 17054535 001 Page 1 of 32 Appendix C Test Results of 2.4 GHz Wireless Mode APPENDIX C.1: SPURIOUS EMISSIONS OF 2.4 GHZ WIRELESS OPERATION ....................................... 2 Low Channel ................................................................................................................................ 2 Middle Channel .......................................................................................................................... 11 High Channel ............................................................................................................................. 20 APPENDIX C.2: RADIATED EMISSIONS IN RESTRICTED BANDS - 2.4 GHZ WIRELESS OPERATION ..... 29 Low Channel .............................................................................................................................. 29 High Channel ............................................................................................................................. 31 Produkte Products Appendix C 17054535 001 Page 2 of 32 Appendix C.1: Spurious Emissions of 2.4 GHz Wireless operation Low Channel Produkte Products Appendix C 17054535 001 Page 3 of 32 Produkte Products Appendix C 17054535 001 Page 4 of 32 Produkte Products Appendix C 17054535 001 Page 5 of 32 Produkte Products Appendix C 17054535 001 Page 6 of 32 Produkte Products Appendix C 17054535 001 Page 7 of 32 Produkte Products Appendix C 17054535 001 Page 8 of 32 Produkte Products Appendix C 17054535 001 Page 9 of 32 Produkte Products Appendix C 17054535 001 Page 10 of 32 Produkte Products Appendix C 17054535 001 Page 11 of 32 Middle Channel Produkte Products Appendix C 17054535 001 Page 12 of 32 Produkte Products Appendix C 17054535 001 Page 13 of 32 Produkte Products Appendix C 17054535 001 Page 14 of 32 Produkte Products Appendix C 17054535 001 Page 15 of 32 Produkte Products Appendix C 17054535 001 Page 16 of 32 Produkte Products Appendix C 17054535 001 Page 17 of 32 Produkte Products Appendix C 17054535 001 Page 18 of 32 Produkte Products Appendix C 17054535 001 Page 19 of 32 Produkte Products Appendix C 17054535 001 Page 20 of 32 High Channel Produkte Products Appendix C 17054535 001 Page 21 of 32 Produkte Products Appendix C 17054535 001 Page 22 of 32 Produkte Products Appendix C 17054535 001 Page 23 of 32 Produkte Products Appendix C 17054535 001 Page 24 of 32 Produkte Products Appendix C 17054535 001 Page 25 of 32 Produkte Products Appendix C 17054535 001 Page 26 of 32 Produkte Products Appendix C 17054535 001 Page 27 of 32 Produkte Products Appendix C 17054535 001 Page 28 of 32 Produkte Products Appendix C 17054535 001 Page 29 of 32 Appendix C.2: Radiated Emissions in Restricted Bands - 2.4 GHz Wireless operation Low Channel Produkte Products Appendix C 17054535 001 Page 30 of 32 Produkte Products Appendix C 17054535 001 Page 31 of 32 High Channel Produkte Products Appendix C 17054535 001 Page 32 of 32 Produkte Products Appendix D 17054535 001 Page 1 of 2 Appendix D Test Results of RF Exposure - 2.4 GHz Wireless Mode APPENDIX D.1: RF EXPOSURE COMPLIANCE .................................................................................. 2 Produkte Products Appendix D 17054535 001 Page 2 of 2 Appendix D.1: RF Exposure Compliance Radio Frequency Exposure Compliance RESULT: Pass Test standard : FCC 1.1310 RSS-102 Issue 5 KDB 447498 D01 General RF Exposure Guidance v06 This device is Bluetooth 4.0 Low Energy and 2.4 GHz wireless device. The EUT has only one antenna, Bluetooth 4.0 Low Energy and 2.4 GHz wireless cannot transmit simultaneously. This RF exposure evaluation is only for 2.4 GHz wireless operation. Since the maximum peak output power of the transmitter is 0.61 mw, and the separation between body and antenna is 5 mm. The maximum peak output power is less than 10mW (FCC Limit) and 4mW (IC Limit), hence the EUT is exclueded from SAR evaluation according to FCC KDB 447498 D01: Mobile Portable RF Exposure and RSS-102 Issue 5.

Produkte Products Prüfbericht - Nr.: Test Report No. 17054535 001 Seite 39 von 43 Page 39 of 43 6. Photographs of the Test Set-Up Photograph 1: Set-up for Spurious Emissions (9kHz-30MHz) Photograph 2: Set-up for Spurious Emissions (30MHz-1GHz) Produkte Products Prüfbericht - Nr.: Test Report No. 17054535 001 Seite 40 von 43 Page 40 of 43 Photograph 3: Set-up for Spurious Emissions (1GHz-18GHz) Photograph 4: Set-up for Spurious Emissions (18GHz-26GHz) Produkte Products Prüfbericht - Nr.: Test Report No. 17054535 001 Seite 41 von 43 Page 41 of 43 Photograph 5: Set-up for Radiated emissions below 1GHz, Battery Charging with PC Photograph 6: Set-up for Radiated emissions above 1GHz, Battery Charging with PC Produkte Products Prüfbericht - Nr.: Test Report No. 17054535 001 Seite 42 von 43 Page 42 of 43 Photograph 7: Set-up for Conducted emissions, Battery Charging with PC
