Regulatory Notices for Wireless Modules Seventeenth Edition (January 2019) © Copyright Lenovo 2013, 2019. LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant a General Services Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No. GS-35F-05925. &RQWHQWV Chapter 1. Identifying the wireless modules . . . . . . . . . . . . . . . . . 1 Chapter 2. Read first — regulatory information . . . . . . . . . . . . . . . . 3 Chapter 3. Regulatory information about wireless modules . . . . . . . . . 5 USA — Federal Communications Commission (FCC) . . . . . . . . . . . . . . . . . . . . 5 Approved wireless devices. . . . . . . . . . 5 Preinstalled wireless LAN modules . . . . . . 6 Simultaneous use of RF transmitters . . . . . . 7 Canada — Industry Canada (IC) . . . . . . . . . 7 IC Certification number . . . . . . . . . . . 7 Numéro d'homologation IC . . . . . . . . 11 Electronic emission notices . . . . . . . . 13 Europe — EU Declaration of Conformity . . . . . 14 EU declaration of conformity (multi-language translations) . . . . . . . . . . . . . . 14 Notice for users in India . . . . . . . . . . . . 18 Notice for users in Japan . . . . . . . . . . . 18 㡴㦻⦌␔ቊ䎰偩LAN ቿኝኴኜዙርቫቖBluetooth ቿ ኝኴኜዙትሷ∎䞷቎ቍቮ⫃⚗ቑ㽷㎞. . . . . 18 䎰偩LAN 完❐ሷ∎䞷㣑቎ርሴቮኘኊዂ዇ኣኀ ቎栱ሼቮሷ㽷㎞. . . . . . . . . . . . . 20 ∎䞷䜿⬒ርቫቖ㉺拸቎∎䞷ሼቮቂቤ቎. . . . 20 Notice for users in Argentina (Nota para Uso en Argentina) . . . . . . . . . . . . . . . . . 21 Notice for users in Brazil (Aviso para os utilizadores no Brasil) . . . . . . . . . . . . 22 Notice for users in Korea . . . . . . . . . . . 23 Notice for users in Mexico (Nota para uso en Mexico) . . . . . . . . . . . . . . . . . . 23 Notice for users in Morocco . . . . . . . . . . 24 Notice for users in Nigeria . . . . . . . . . . . 24 Notice for users in Pakistan . . . . . . . . . . 24 Notice for users in Saudi Arabia . . . . . . . . 25 Notice for users in Serbia . . . . . . . . . . . 37 Notice for users in South Africa . . . . . . . . . 37 Notice for users in Taiwan . . . . . . . . . . . 38 Notice for users in Thailand . . . . . . . . . . 38 Notice for users in the UAE . . . . . . . . . . 39 Appendix A. Trademarks . . . . . . . 41 © Copyright Lenovo 2013, 2019i iiRegulatory Notices for Wireless Modules Chapter 1. Identifying the wireless modules This document provides regulatory information about the wireless modules used in a number of Lenovo brand computers. To identify the wireless modules used in your computer, refer to the following tables: ideacentre computers Lenovo computerWireless modules ideacentre AIO 910-27ISH3165NGW, QCNFA435 ideacentre AIO 510S-23ISU3165NGW, QCNFA435 ideacentre 510S-08ISH3165NGW, QCNFA435 Lenovo Legion T530-28ICB3165NGW, RTL8821CE, 8265NGW, RTL8822BE, QCNFA435 Lenovo Legion T730-28ICO8265NGW, RTL8822BE Lenovo Legion T530-28APR RTL8821CE, RTL8822BE, QCNFA435 Lenovo Legion C530-19ICB3165NGW, RTL8821CE, 8265NGW, RTL8822BE, QCNFA435 Lenovo Legion C730-19ICO8265NGW, RTL8822BE ideacentre 510S-07ICB3165NGW, RTL8821CE ideacentre A340-24ICB3165NGW, RTL8821CE, QCNFA435 ideacentre A340-24IGM3165NGW, RTL8821CE, QCNFA435 ideacentre A340-24IWL3165NGW, RTL8821CE, QCNFA435 ideacentre A340-22ICB3165NGW, RTL8821CE, QCNFA435 ideacentre A340-22IGM3165NGW, RTL8821CE, QCNFA435 ideacentre A340-22IWL 3165NGW, RTL8821CE, QCNFA435 Yoga A940-27ICB8265NGW, RTL8822BE, BM23SPKXY IdeaCentre T540- 15ICB G 8265NGW, 3165NGW, RTL8821CE, RTL8822BE ideacentre A340-22ASTQCNFA435, RTL8821CE IdeaCentre A540-27ICBRTL8822CE, 9462NGW, LPS-15WP B IdeaCentre A540-24ICBRTL8822CE, 9462NGW, LPS-15WP B IdeaCentre A540-24APIRTL8822CE, QCNFA435, LPS-15WP B ideacentre 510S-07ICK3165NGW, RTL8821CE ideacentre 510-15ICK3165NGW, 8265NGW, RTL8821CE, RTL8822BE ideacentre 510A-15ICK3165NGW, 8265NGW, RTL8821CE, RTL8822BE ideacentre A340-24ICK3165NGW, RTL8821CE, QCNFA435 ideacentre A340-22ICK3165NGW, RTL8821CE, QCNFA435 IdeaCentre T540-15ICK G3165NGW, 8265NGW, RTL8821CE, RTL8822BE © Copyright Lenovo 2013, 20191 Lenovo computerWireless modules IdeaCentre T540–15AMA GQCNFA344A, QCNFA435, RTL8822CE IdeaCentre 3 07ADA05RTL8822CE, QCNFA344A IdeaCentre 3 07IMB059260NGW, RTL882CE IdeaCentre G5 14IMB059260NGW, AX200NGW, RTL8822CE IdeaCentre 5 14IMB059260NGW, AX200NGW, RTL8822CE Lenovo Legion T5 28ICB059260NGW, AX200NGW, RTL8822CE Lenovo Legion R5 28IMB059260NGW, AX200NGW, RTL8822CE Ideacentre AIO 3 22IMB059260NGW, RTL8822CE IdeaCentre AIO 3 22ADA05QCNFA344A, RTL8822CE IdeaCentre AIO 3 24IMB059260NGW, RTL8822CE IdeaCentre AIO 3 24ARE05QCNFA344A, RTL8822CE IdeaCentre AIO 3 27IMB059260NGW, RTL8822CE IdeaCentre C5 14IMB059260NGW, AX200NGW, RTL8822CE IdeaCentre 5 14ARE05AX200NGW, RTL8822CE, QCNFA344A IdeaCentre G5 14AMR05AX200NGW, RTL8822CE IdeaCentre AIO 5 24IMB05 9260NGW, AX200NGW, RTL8822CE, LPS-15WP B IdeaCentre AIO 5 27IMB05 9260NGW, AX200NGW, RTL8822CE, LPS-15WP B IdeaCentre C5 14IMB059260NGW, AX200NGW, RTL8822CE IdeaCentre Mini 5 01IMH05 9560NGW, AX200NGW, RTL8822CE IdeaCentre G5 14AMR05 QCNFA344A, AX200NGW, RTL8822CE IdeaCentre G5 14AMR05 QCNFA344A, AX200NGW, RTL8822CE Lenovo Legion T7 34IMZ5 AX201NGW Lenovo Legion CT7 34IMZ5 AX201NGW Lenovo Legion T5 26AMR5 AX200NGW Yoga AIO 7 27ARH6AX200NGW, EWN-8821CUN1AA IdeaCentre 5 14IOB69260NGW, AX200NGW, RTL8822CE IdeaCentre Gaming5 14IOB69260NGW, AX200NGW, RTL8822CE IC Creator 5 14IOB69260NGW, AX200NGW, RTL8822CE Legion T5 26IOB6 AX201NGW 2Regulatory Notices for Wireless Modules Chapter 2. Read first — regulatory information Read this document before using your computer. The Lenovo and ideacentre computers listed in Chapter 1 of this document comply with the radio frequency and safety standards of any country or region in which it has been approved for wireless use. Install and use these computers according to the instructions and precautions provided in this document. The latest Regulatory Notice has been uploaded on the Web site. To refer to it, go to http://www.lenovo.com/ UserManuals . Veuillez lire le …

Text truncated - open the document above for the full version.

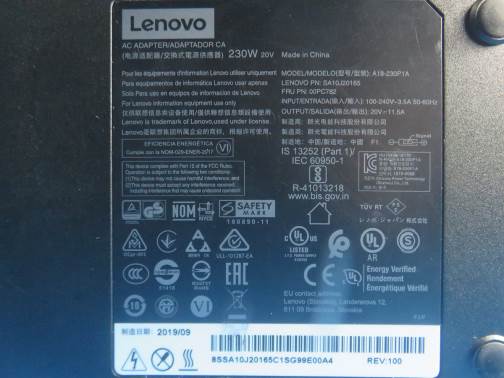

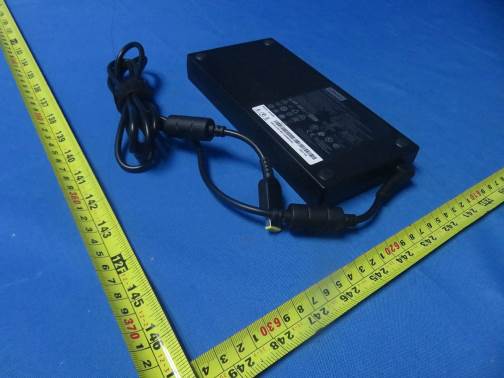

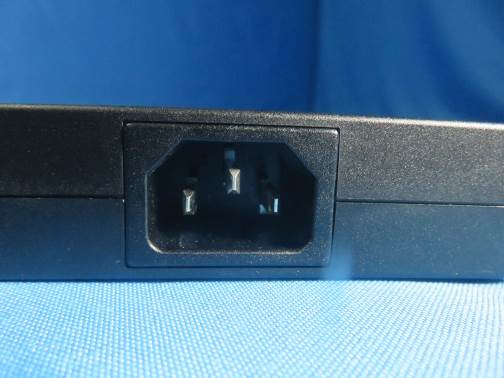

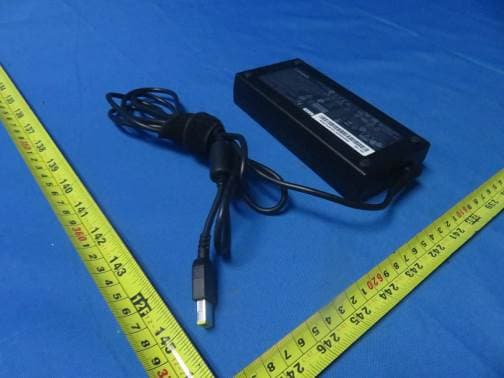

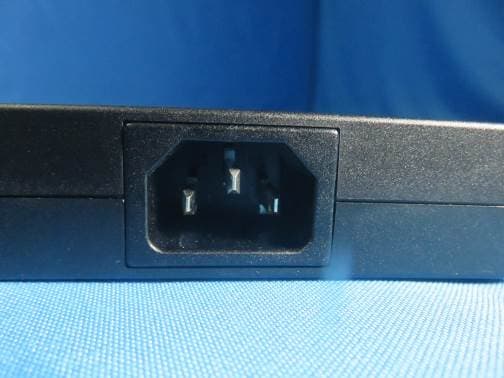

Report No.: 2103C103 Page 2 of 31 Report No.: 2103C103 Page 3 of 31 Report No.: 2103C103 Page 4 of 31 Report No.: 2103C103 Page 5 of 31 Adapter: A18-230P1A Report No.: 2103C103 Page 6 of 31 Report No.: 2103C103 Page 7 of 31 Adapter: PA-1151-72 Report No.: 2103C103 Page 8 of 31

Report No.: 2103C103 Page 9 of 31 Report No.: 2103C103 Page 10 of 31 Report No.: 2103C103 Page 11 of 31 Report No.: 2103C103 Page 12 of 31 Report No.: 2103C103 Page 13 of 31 Report No.: 2103C103 Page 14 of 31 Report No.: 2103C103 Page 15 of 31 Report No.: 2103C103 Page 16 of 31 Report No.: 2103C103 Page 17 of 31 Report No.: 2103C103 Page 18 of 31 Report No.: 2103C103 Page 19 of 31 Report No.: 2103C103 Page 20 of 31 Report No.: 2103C103 Page 21 of 31 Report No.: 2103C103 Page 22 of 31 Module: EWN-8821CUN1AA Report No.: 2103C103 Page 23 of 31 Report No.: 2103C103 Page 24 of 31 Report No.: 2103C103 Page 25 of 31 Report No.: 2103C103 Page 26 of 31 Report No.: 2103C103 Page 27 of 31 Report No.: 2103C103 Page 28 of 31 Report No.: 2103C103 Page 29 of 31 Report No.: 2103C103 Page 30 of 31 Main ANT Projector ANT Report No.: 2103C103 Page 31 of 31 AUX ANT

Report No.: BTL-FCCP-6-2103C103 Page 1 of 5 FCC RF EXPOSURE REPORT FCC ID: A5MYOGA27ACH6 Project No. : 2103C103 Equipment : Personal Computer Brand Name : Lenovo Product Name / Model Name : Yoga AIO 7 27ACH6 Series Model : N/A Applicant : Lenovo (Beijing) Limited Address : 201-H2-6,Floor 2,Building 2,No.6 Shangdi West Road,Haidian District,Beijing ,China 100085 Manufacturer : Lenovo (Beijing) Limited Address : 201-H2-6,Floor 2,Building 2,No.6 Shangdi West Road,Haidian District,Beijing ,China 100085 Date of Receipt : Mar. 12, 2021 Date of Test : Mar. 15, 2021 ~ Apr. 24, 2021 Issued Date : Apr. 28, 2021 Report Version : R00 Test Sample : Engineering Sample No.: DG20210315120 Standard(s) : FCC Guidelines for Human Exposure IEEE C95.1 & FCC Part 2.1091 FCC Title 47 Part 2.1091, OET Bulletin 65 Supplement C The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Tel: +86-769-8318-3000 Web: www.newbtl.com Prepared by : Nick Chen Approved by : Ethan Ma Report No.: BTL-FCCP-6-2103C103 Page 2 of 5 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue Apr. 28, 2021 Report No.: BTL-FCCP-6-2103C103 Page 3 of 5 1. TEST FACILITY The test facilities used to collect the test data in this report is at the location of No.3,Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, Guangdong, China. BTL's Test Firm Registration Number for FCC: 357015 BTL's Designation Number for FCC: CN1240 2. MPE CALCULATION METHOD Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna: Ant. Brand Model Name Antenna Type Connector Gain (dBi) Note 1 Luxshare-ICT Corporation L20RF035- YT-H PIFA N/A -0.48 BT&BLE& 2.4G 1 Luxshare-ICT Corporation L20RF035- YT-H PIFA N/A -2.66 Band 1-2 1 Luxshare-ICT Corporation L20RF035- YT-H PIFA N/A -1.33 Band 3 1 Luxshare-ICT Corporation L20RF035- YT-H PIFA N/A -1.02 Band 4 Note: 1) The antenna gain is provided by the manufacturer. Report No.: BTL-FCCP-6-2103C103 Page 4 of 5 3. TEST RESULTS For BT: Antenna Gain (dBi) Antenna Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm2) Limit of Power Density (S) (mW/cm2) Test Result -0.48 0.8954 7.1 5.1286 0.00091 1 Complies For BT_LE: Antenna Gain (dBi) Antenna Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm2) Limit of Power Density (S) (mW/cm2) Test Result -0.48 0.8954 5.93 3.9174 0.00070 1 Complies For 2.4GHz: Antenna Gain (dBi) Antenna Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm2) Limit of Power Density (S) (mW/cm2) Test Result -0.48 0.8954 17.49 56.1048 0.01000 1 Complies For 5GHz UNII-1: Antenna Gain (dBi) Antenna Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm2) Limit of Power Density (S) (mW/cm2) Test Result -2.66 0.5420 16.15 41.2098 0.00445 1 Complies For 5GHz UNII-2A: Antenna Gain (dBi) Antenna Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm2) Limit of Power Density (S) (mW/cm2) Test Result -2.66 0.5420 16.49 44.5656 0.00481 1 Complies For 5GHz UNII-2C: Antenna Gain (dBi) Antenna Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm2) Limit of Power Density (S) (mW/cm2) Test Result -1.33 0.7362 17.62 57.8096 0.00847 1 Complies For 5GHz UNII-3: Antenna Gain (dBi) Antenna Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm2) Limit of Power Density (S) (mW/cm2) Test Result -1.02 0.7907 14.39 27.4789 0.00432 1 Complies Report No.: BTL-FCCP-6-2103C103 Page 5 of 5 For the max simultaneous transmission MPE: BT+5G Power Density (S) (mW/cm2) Power Density (S) (mW/cm2) Total Limit of Power Density (S) (mW/cm2) Test Result BT 5GHz 0.00091 0.00847 0.00938 1 Complies Note: The calculated distance is 20 cm. End of Test Report

Report No.: BTL-FCCP-1-2103C103 Page 1 of 91 FCC Radio Test Report FCC ID: A5MYOGA27ACH6 This report concerns: Original Grant Project No. : 2103C103 Equipment : Personal Computer Brand Name : Lenovo Product Name / Model Name : Yoga AIO 7 27ACH6 Series Model : N/A Applicant : Lenovo (Beijing) Limited Address : 201-H2-6,Floor 2,Building 2,No.6 Shangdi West Road,Haidian District,Beijing ,China 100085 Manufacturer : Lenovo (Beijing) Limited Address : 201-H2-6,Floor 2,Building 2,No.6 Shangdi West Road,Haidian District,Beijing ,China 100085 Date of Receipt : Mar. 12, 2021 Date of Test : Mar. 15, 2021 ~ Apr. 12, 2021 Issued Date : Apr. 28, 2021 Report Version : R00 Test Sample : Engineering Sample No.: DG20210315120 Standard(s) : FCC CFR Title 47, Part 15, Subpart C FCC KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.10-2013 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Nick Chen Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Tel: +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-1-2103C103 Page 2 of 91 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/o r national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-1-2103C103 Page 3 of 91 Table of Contents Page REPORT ISSUED HISTORY 6 1 . SUMMARY OF TEST RESULTS 7 1.1 TEST FACILITY 8 1.2 MEASUREMENT UNCERTAINTY 8 1.3 TEST ENVIRONMENT CONDITIONS 9 2 . GENERAL INFORMATION 10 2.1 GENERAL DESCRIPTION OF EUT 10 2.2 DESCRIPTION OF TEST MODES 12 2.3 PARAMETERS OF TEST SOFTWARE 13 2.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 14 2.5 SUPPORT UNITS 14 3 . AC POWER LINE CONDUCTED EMISSIONS 15 3.1 LIMIT 15 3.2 TEST PROCEDURE 15 3.3 DEVIATION FROM TEST STANDARD 15 3.4 TEST SETUP 16 3.5 EUT OPERATING CONDITIONS 16 3.6 TEST RESULTS 16 4 . RADIATED EMISSIONS 17 4.1 LIMIT 17 4.2 TEST PROCEDURE 18 4.3 DEVIATION FROM TEST STANDARD 19 4.4 TEST SETUP 19 4.5 EUT OPERATING CONDITIONS 20 4.6 TEST RESULTS - 9 KHZ TO 30 MHZ 20 4.7 TEST RESULTS - 30 MHZ TO 1000 MHZ 20 4.8 TEST RESULTS - ABOVE 1000 MHZ 20 5 . NUMBER OF HOPPING FREQUENCY 21 5.1 LIMIT 21 5.2 TEST PROCEDURE 21 5.3 DEVIATION FROM STANDARD 21 5.4 TEST SETUP 21 5.5 EUT OPERATION CONDITIONS 21 Report No.: BTL-FCCP-1-2103C103 Page 4 of 91 Table of Contents Page 5.6 TEST RESULTS 21 6 . AVERAGE TIME OF OCCUPANCY 22 6.1 LIMIT 22 6.2 TEST PROCEDURE 22 6.3 DEVIATION FROM STANDARD 22 6.4 TEST SETUP 22 6.5 EUT OPERATION CONDITIONS 22 6.6 TEST RESULTS 22 7 . HOPPING CHANNEL SEPARATION 23 7.1 LIMIT 23 7.2 TEST PROCEDURE 23 7.3 DEVIATION FROM STANDARD 23 7.4 TEST SETUP 23 7.5 EUT OPERATION CONDITIONS 23 7.6 TEST RESULTS 23 8 . BANDWIDTH 24 8.1 LIMIT 24 8.2 TEST PROCEDURE 24 8.3 DEVIATION FROM STANDARD 24 8.4 TEST SETUP 24 8.5 EUT OPERATION CONDITIONS 24 8.6 TEST RESULTS 24 9 . MAXIMUM OUTPUT POWER 25 9.1 LIMIT 25 9.2 TEST PROCEDURE 25 9.3 DEVIATION FROM STANDARD 25 9.4 TEST SETUP 25 9.5 EUT OPERATION CONDITIONS 25 9.6 TEST RESULTS 25 10 . CONDUCTED SPURIOUS EMISSION 26 10.1 LIMIT 26 10.2 TEST PROCEDURE 26 10.3 DEVIATION FROM STANDARD 26 10.4 TEST SETUP 26 Report No.: BTL-FCCP-1-2103C103 Page 5 of 91 Table of Contents Page 10.5 EUT OPERATION CONDITIONS 26 10.6 TEST RESULTS 26 11 . MEASUREMENT INSTRUMENTS LIST 27 12 . EUT TEST PHOTO 29 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 34 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ 39 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1000 MHZ 44 APPENDIX D - RADIATED EMISSION - ABOVE 1000 MHZ 47 APPENDIX E - NUMBER OF HOPPING FREQUENCY 72 APPENDIX F - AVERAGE TIME OF OCCUPANCY 74 APPENDIX G - HOPPING CHANNEL SEPARATION 77 APPENDIX H - BANDWIDTH 79 APPENDIX I - MAXIMUM OUTPUT POWER 81 APPENDIX J - CONDUCTED SPURIOUS EMISSION 84 APPENDIX K - DECLARATION FOR BLUETOOTH DEVICE 89 Report No.: BTL-FCCP-1-2103C103 Page 6 of 91 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Apr. 28, 2021 Report No.: BTL-FCCP-1-2103C103 Page 7 of 91 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC CFR Title 47, Part 15, Subpart C Standard(s) Section Test Item …

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-3-2103C103 Page 28 of 109 10. EUT TEST PHOTO AC Power Line Conducted Emissions Test Photos Report No.: BTL-FCCP-3-2103C103 Page 29 of 109 Radiated Emissions Test Photos 9 kHz to 30 MHz Report No.: BTL-FCCP-3-2103C103 Page 30 of 109 Radiated Emissions Test Photos 30 MHz to 1000 MHz Report No.: BTL-FCCP-3-2103C103 Page 31 of 109 Radiated Emissions Test Photos Above 1 GHz Report No.: BTL-FCCP-3-2103C103 Page 32 of 109 Conducted Test Photos
