A6JD40Wireless Speaker

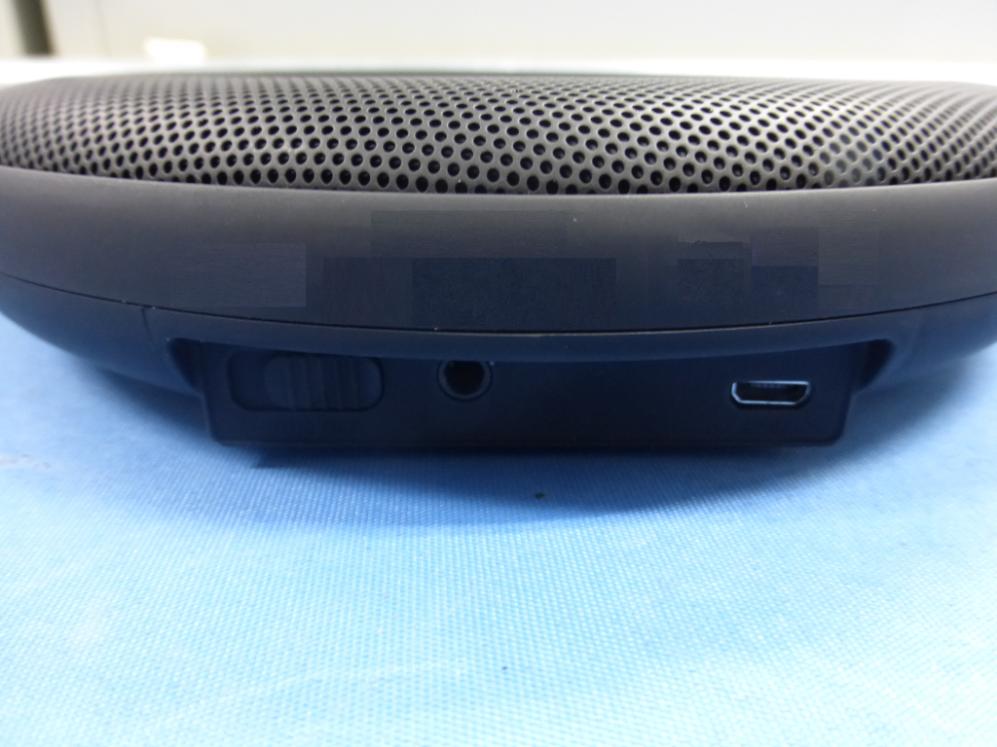

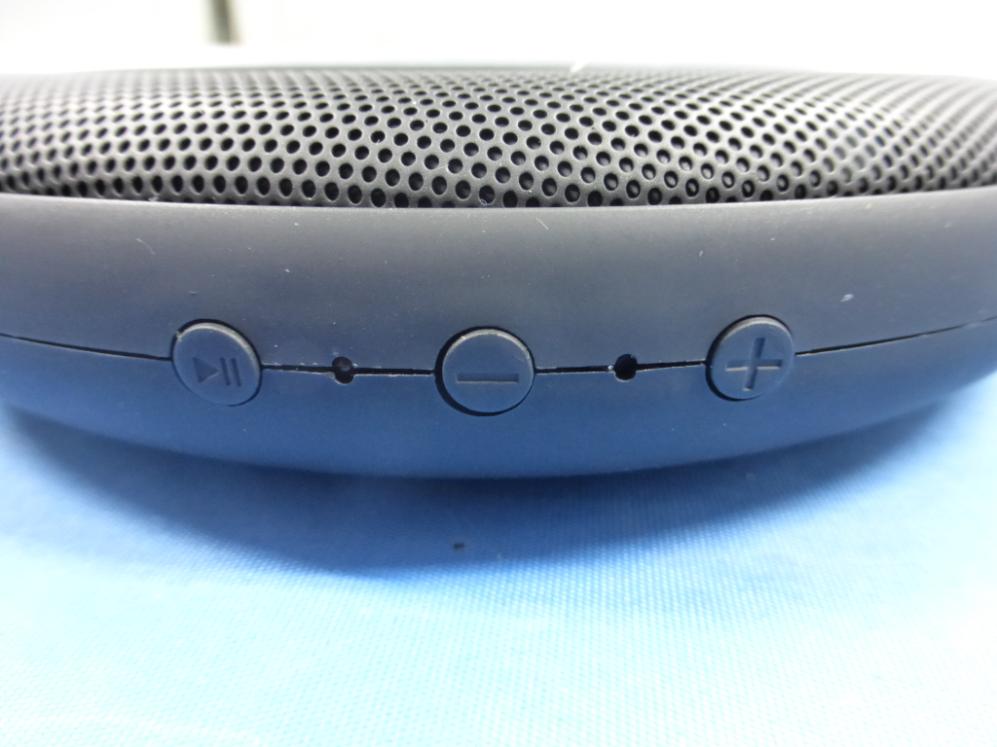

User’s Guide – Wireless Speaker At a glance ( features) ①Play/Pause ②VOL-/PRE ③VOL+/NEXT ④ON/OFF Switch ⑤AUX IN ⑥Micro USB Getting Started To avoid damage to the rechargeable battery, it is only half charged when supplied. Charge the battery fully before using the speaker for the first time Charging the rechargeable battery You can charge the speaker’s rechargeable battery via a PC or via the USB mains adapter. We have enclosed a charging cable with a micro USB plug and USB connector for this purpose. 1. Insert the micro USB plug into the “MICRO USB” mains connection socket on the speaker. 2. Insert the USB connector into a USB port on your computer or into the mains adapter. The battery charge indicator lights up red while the battery is charging. Once the battery is fully charged the light will go off. Battery charge indicator Status Red stays lit Charging Red goes off Fully charged 3. Each charging cycle takes approximately 3 hours. The playback time via Bluetooth (depending on volume, environment conditions, ets.) is approximately 6 hours. You can use the speaker while it is charging. However, this will increase the charging time NOTE: When the remaining capacity of the rechargeable battery is down to 20% or less, 3x warning beeps every 10 seconds will alert you to charge the battery at this point. NOTE: If you are not using the speaker for a prolonged period, please switch it off to protect the rechargeable battery. For this reason the speaker automatically switches to a battery-saving mode after 50 days without use. To preserve the rechargeable battery’s fully capacity for as long as possible, you should discharge and recharge the battery every 3 months, even if you do not use the speaker. Canceling battery-saving mode 1. To exit the speaker from battery-saving mode, switch it off and then back to on. 2. Then connect the speaker to a USB port on your computer or to the mains adapter using the enclosed USB cable。 Connect with Bluetooth device The speaker will automatically search available Bluetooth devices or pair with the last used device after being switched on. If you have connected a device by means of the connection socket AUX on the speaker, you only need to switch on speaker and playback device and start playback NOTE: These instructions for use cannot explain the connecting procedure for every device available on the market. The iPhone is therefore used here as an example of how to connect the speaker. To establish a new Bluetooth connection the speaker must first be in search mode and there must not be a cable plugged into the AUX connection socket. The speaker will be forced into new Bluetooth pairing mode after press the Play/Pause button briefly twice. 1. Switch on the speaker. Indicator light flashes blue. The speaker is in search mode with double beep. 2. Switch on the iPhone. 3. Activate the Bluetooth function on the iPhone as follows: ·Open Settings. ·Select General>Bluetooth ·Set Bluetooth to On. The iPhone immediately begins to search for available Bluetooth devices. As soon as any are found, they are displayed. The speaker is displayed under Devices as XXX and Not Paired or Not Connected. 4. To connect the two devices, tap Not Paired or Not Connected. The speaker is then displayed on the iPhone screen as Connected. The indicator light lights up blue. You can now begin to play music, for example, using the relevant function on your iPhone and this will be transmitted to the speaker. NOTE: ·If no device connected and no Bluetooth connection within 10 minutes, the speaker will automatically switch to standby mode. To exit the speaker from standby mode, push the On/Off switch to OFF and then back to ON. ·If you switch the speaker off, after switching it on again you will need to re-establish the Bluetooth connection as described. ·If you connect a device to the AUX connection socket, it will be given priority for playback. Transmission from the Bluetooth device will be completely interrupted, and will not resume until you remove the plug from the AUX socket. ·The speaker will automatically connect to the Bluetooth device within 3 seconds after remove the AUX connection – provided that the device is nearby and switched on and Bluetooth is also activated. The indicator light will briefly go off, then blue as soon as it has found the Bluetooth device. ·AUX connection will always take precedence over incoming calls and Bluetooth playback. Connection priority: AUX > Incoming calls >Bluetooth （iPhone is a trademark register by Apple Computer Inc.) Bluetooth：Playing music & making a phone call Playing music The speaker can play music in all current file formats supported by your playback device. The speaker also supports the new A2DP transmission standard. This standard, which is supported by most current smartphones, has been specially developed for the wireless transmission of stereo audio signals via Bluetooth NOTE: You might need to activate this type of transmission via A2DP manually on your smartphone. Refer to your smartphone’s operation instructions for more information about this. Depending on the smartphone, the speaker might not be able to initiate the start of music playback. In this case, you should start music playback manually. You will then be able to pause and resume music playback on each device. To start music playback Open the relevant function on your smartphones and start playback. Briefly press the Play/Pause button on the speaker. To pause playback part way through, briefly press the Play/Pause button on the speaker To then resume playback, briefly press the Play/Pause button on the speaker again. Adjusting the Volume Hold and press + to increase the volume Hold and press – to decrease the volume NOTE: In Bluetooth mode, 1X warning beep to be emitted at full volume. DO NOT press + button repeatedly which would lead to shortening the button’s life. Song Change Briefly press + to select next track Briefly press – to select previous track Making a phone…

Text truncated - open the document above for the full version.

Date: (09/01/2015) BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TDKT12 2TD Dear Sir or Madam, We, WINLITE INTERNATIONAL (HK) LTD., Room 1401, Tower A, Tian An Cyber Times, Shennan Avenue, Futian District Shenzhen, China hereby authorize TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Calvin Weng Phone: +86-755-33323658 e-mail: [email protected] to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters.documents relating to these matters. We also hereby certify that neither we nor any party to this application are subject to denial of U.S Federal benefits,which include FCC benefits, pursuant to section 5301 of Anti-Drug Abuse Act of 1988, U.S.C 862 because of conviction for possession or distribution of controlled substance. This authorization is application to product: Type of equipment: Wireless Speaker Model name: WIP-D40, ISOUND-6710Model name: WIP-D40, ISOUND-6710 FCC ID: A6JD40 This authorization expires one year from the current date. Sincerely, Signature: Job title: GM Telephone Number: 86-755-83476622 Fax: 86-755-83475111 Fax: 86-755-83475111

Date (09/01/2015) TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RLPO15 5RL Confidentiality Request FCC ID: A6JD40 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, WINLITE INTERNATIONAL (HK) LTD., hereby requests permanent confidential treatment of information accompanying this application as outlined below: [Common exhibits for which confidentiality is requested are: SchematicsSchematics Bill of Materials/Parts List Block Diagrams Theory of Operation] WINLITE INTERNATIONAL (HK) LTD., also hereby requests short-term confidential treatment of information accompanying this application as outlined below for a period of 180 days: [Common exhibits for which short-term confidentiality is requested are: Internal PhotosInternal Photos External Photos User Manual Test Set-up Photographs The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: Lawman, Luo Telephone Number: 86-755-83476622 Email: [email protected]

BT antenna

TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 MPE Calculation Applicant: WINLITE INTERNATIONAL ( HK ) LTD Address: Room 1401, Tower A, Tian An Cyber Times, Shennan Avenue, Futian District Shenzhen, China Product: Wireless Speaker Model No.: WIP-D40 According to subpart 15.247(i)and subpart §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1500 / / f/1500 30 1500–100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. Calculated Formulary: Predication of MPE limit at a given distance S = PG/4R² = power density (in appropriate units, e.g. mW/cm2); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); Calculated Data: Maximum peak output power at antenna input terminal (dBm): 0.81 Maximum peak output power at antenna input terminal (mW): 1.21 Prediction distance (cm): 20 Antenna Gain, typical (dBi): 0 Maximum Antenna Gain (numeric): 1 The worst case is power density at predication frequency at 20 cm (mW/cm2): 0.00024 MPE limit for general population exposure at prediction frequency (mW/cm2): 1.0 0.00024 (mW/cm2) < 1 (mW/cm2) Result: Compliant TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Reviewed by: Prepared By: Phoebe Hu/EMC Project Manager Calvin Weng/EMC Project Engineer Date: 2015-01-26 Date: 2015-01-26

Report Number: 68.950.15.003.01 EMC_SZ_FR_21.00 FCC Release 2014-03-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 1 of 42 FCC - TEST REPORT Report Number : 68.950.15.003.01 Date of Issue: Jan 22, 2015 Model : WIP-D40, ISOUND-6710 Product Type : Wireless Speaker Applicant : WINLITE INTERNATIONAL ( HK ) LTD Address : Room 1401, Tower A, Tian An Cyber Times, Shennan Avenue, Futian District Shenzhen, China Production Facility : WINLITE INTERNATIONAL ( HK ) LTD Address : Room 1401, Tower A, Tian An Cyber Times, Shennan Avenue, Futian District Shenzhen, China Test Result :  Positive  Negative Total pages including Appendices : 42 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch is a subcontractor to TÜV SÜD Product Service GmbH according to the principles outlined in ISO 17025. TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch reports apply only to the specific samples tested under stated test conditions. Construction of the actual test samples has been documented. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. The manufacturer/importer is responsible to the Competent Authorities in Europe for any modifications made to the production units which result in non-compliance to the relevant regulations. TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval Report Number: 68.950.15.003.01 EMC_SZ_FR_21.00 FCC Release 2014-03-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 2 of 42 1 Table of Contents 1 Table of Contents ................................................................................................................................... 2 2 Details about the Test Laboratory .......................................................................................................... 3 3 Description of the Equipment Under Test ............................................................................................. 4 4 Summary of Test Standards ................................................................................................................... 5 5 Summary of Test Results ....................................................................................................................... 6 6 General Remarks .................................................................................................................................... 7 7 Test Setups ............................................................................................................................................. 8 8 Systems test configuration ..................................................................................................................... 9 9 Technical Requirement ........................................................................................................................ 10 9.1 Conducted Emission ..................................................................................................................... 10 9.2 Conducted peak output power ...................................................................................................... 13 9.3 20 dB bandwidth and 99% Occupied Bandwidth ......................................................................... 14 9.4 Carrier Frequency Separation ....................................................................................................... 21 9.5 Number of hopping frequencies ................................................................................................... 24 9.6 Dwell Time ................................................................................................................................... 26 9.7 Spurious RF conducted emissions ................................................................................................ 29 9.8 Band edge testing .......................................................................................................................... 32 9.9 Spurious radiated emissions for transmitter ................................................................................. 38 10 Test Equipment List ............................................................................................................................. 41 11 System Measurement Uncertainty ....................................................................................................... 42 Report Number: 68.950.15.003.01 EMC_SZ_FR_21.00 FCC Release 2014-03-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 3 of 42 2 Details about the Test Laboratory Details about the Test Laboratory Test Site 1 Company name: TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Telephone: 86 755 8828 6998 Fax: 86 755 8828 5299 Report Number: 68.950.15.003.01 EMC_SZ_FR_…
