A6JSH2000Wireless Stereo Sport Headset

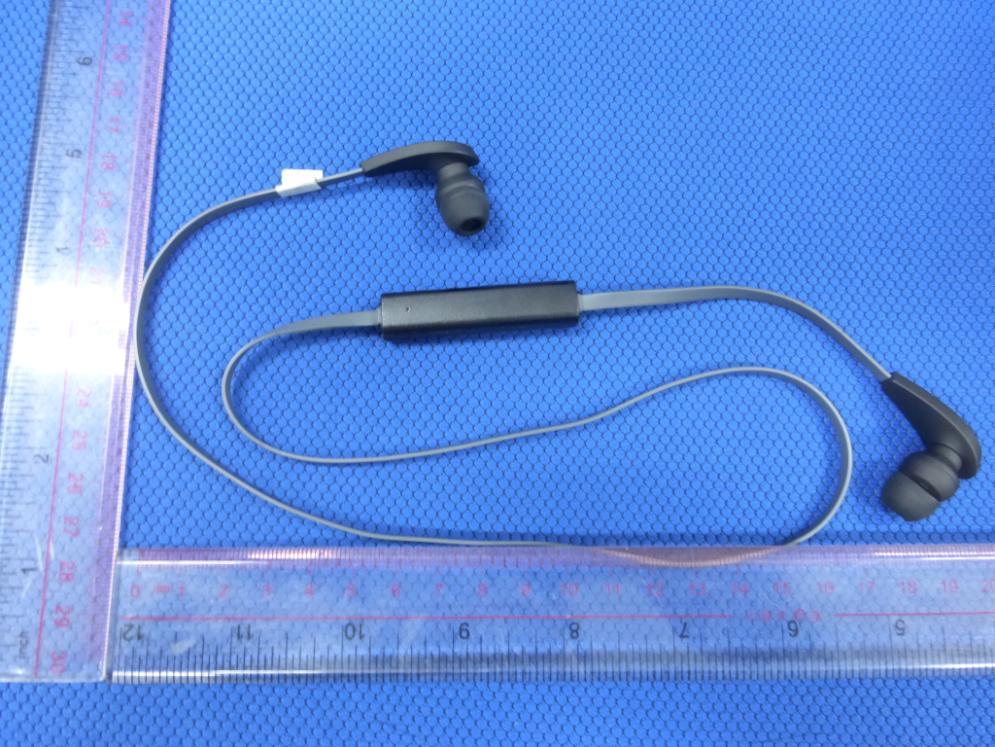

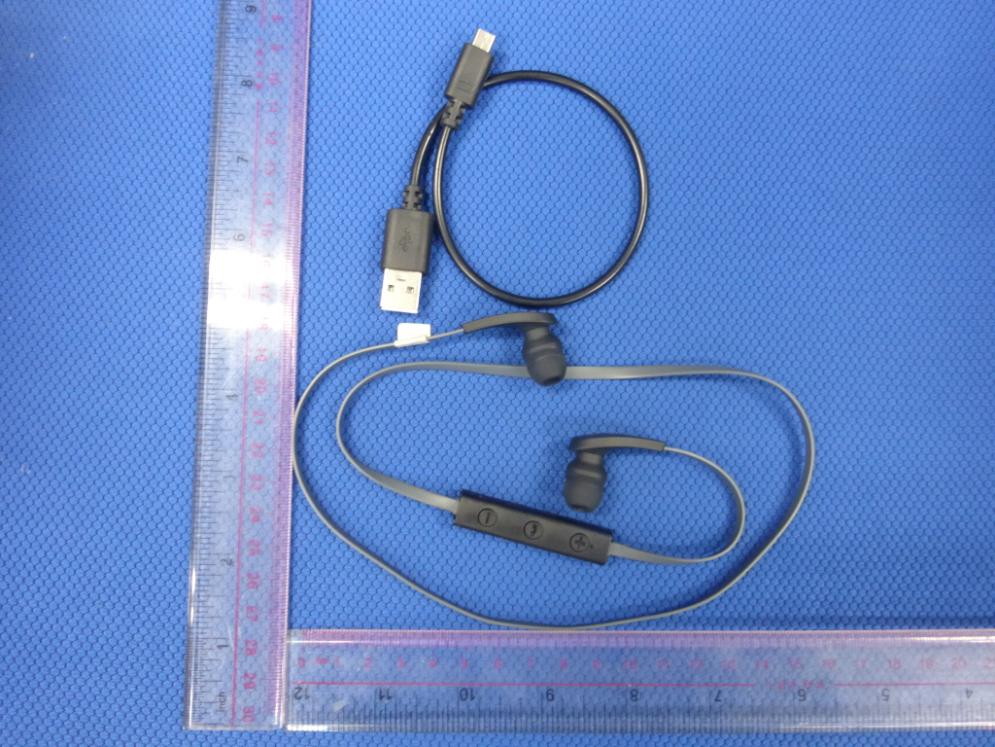

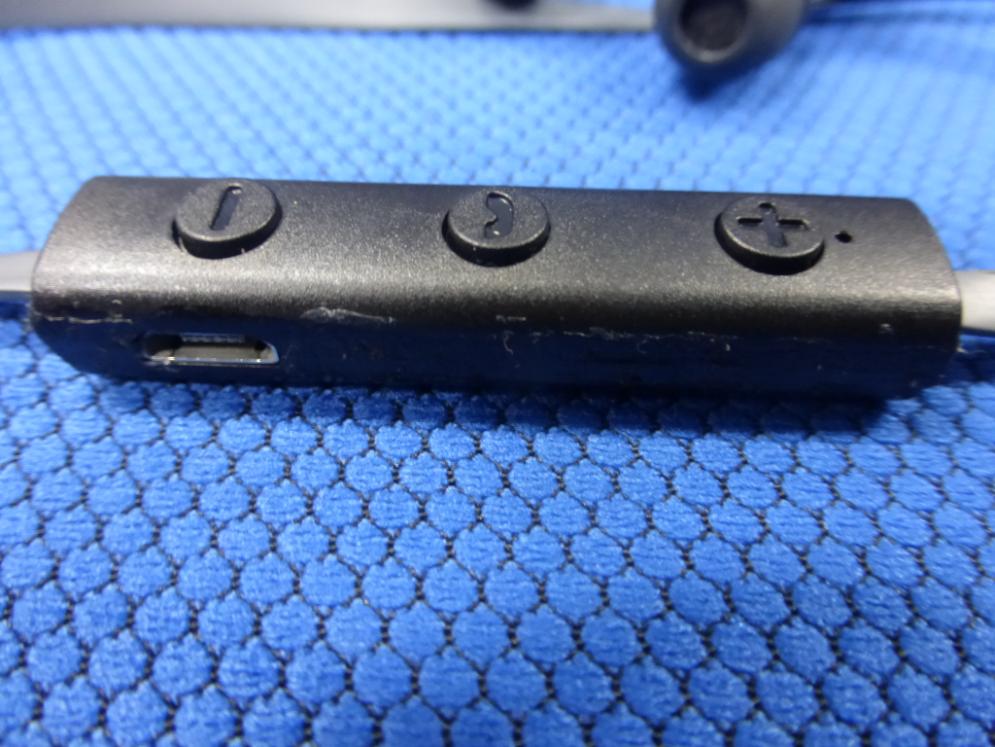

Sport Headset--User Guide Includes: Headset, charge cable, 2 removable ear clips, 2 sets of silicone tips (S/L), and user guide Specifications: Frequency response: 20 Hz – 20 kHz Driver size: 10mm Impedance: 16Ω Sensitivity: 110±5dB Bluetooth v4.1 + EDR, up to a 30 foot transmission range Battery capacity: 70mAh Play time: Up to 4.5 hours at 70% volume Charge time: 2 hours (volume up/track forward button, power/phone button, volume down/track back button), the power LED indicator light next to the plus button and the microphone under the control box] Please read and follow this user guide thoroughly before using the SH2000. Button functions Power/phone button  Press and hold for at least 7 seconds to power on the SH2000; press and hold for at least 7 seconds to power off the SH2000.  When playing music, press and release to play music; press and release again to pause music.  When receiving an incoming call, press and release to answer; press and release again to end the call; press and hold for 4 seconds then release to reject the call.  Press twice quickly to call last number dialed. Device’s results may vary. NOTES:  During the first time set-up, you must hold the power/phone button down until you hear “Ready to pair” in order to sync your device to Bluetooth. After the initial pairing, you can let go of the power/phone button after you hear a voice say “Power on”.  When playing music and a call comes in, the music will pause and you will hear a ringtone. The music will resume when the call is ended. Device’s ringtone may vary.  If you reject a phone call you will hear a voice say “Phone call rejected” and your music will resume playing. Volume up/track forward button  Press and release to raise the volume.  Press and hold to go to the next track. NOTES:  Continuous hold of the button will skip to the next tracks faster. Device’s results may vary.  The volume up/down buttons may control the volume on your device. Device’s results may vary. Volume down/track back button  Press and release to lower the volume.  Press and hold to go to the beginning of the current track. NOTES:  Continuous hold of the button will go to the previous tracks faster. Device’s results may vary.  The volume up/down buttons may control the volume on your device. Device’s results may vary. Charging your SH2000: NOTE: Make sure the SH2000 is fully charged before using it for the first time. 1. Gently plug the Micro-USB end of the included charge cable into the charge port of the control box. 2. Plug the USB A end of the cable into a powered USB port, such as a computer, laptop, or USB AC adapter (not included). 3. The LED power indicator light located next to the volume up/track forward button will light up solid red. Once the headset is fully charged, the power LED indicator light will turn solid blue. NOTES:  When the battery level is below 10%, you will hear a voice saying “Battery level low”. Charge your SH2000 with the included charge cable. This feature only works while the SH2000 is on.  The LED power indicator light will light up red while charging even if the SH2000 is off.  You cannot charge your SH2000 while listening to music. Connecting via Bluetooth (First time set-up): 1. Press and hold the power/phone button for at least 7 seconds to turn the headset on. You will hear a voice say “Power on”, then continue to hold the button until you hear “Ready for pairing” and the LED power indicator light will rapidly flash blue and red. NOTE: During the first time set-up, you must hold the power/phone button down until you hear a voice say “Ready for pairing” in order to sync your device to Bluetooth. After the initial pairing, you can let go of the power/phone button after you hear “Power on”. 2. Open the settings on your Bluetooth device. (Bluetooth must be enabled) 3. Select “SH2000” from the list of Bluetooth devices. 4. Once paired, you will hear a beep then a voice say “Device connected”. The LED power indicator light will blink blue. 5. To turn off the SH2000, press and hold the power/phone button for at least 7 seconds. You will hear a voice say “Power off” before the headset turns off. NOTES:  Your device will automatically find and pair with the SH2000 Sport Headset after the initial pairing. If your device does not automatically pair, the SH2000 will say “Pairing not completed”. Turn off the headset and repeat steps 1-4.  The SH2000 will automatically pair to the last device connected.  The volume up/down buttons on the SH2000 may control the volume on your device. Device’s results may vary. Troubleshooting Issue: My SH2000 doesn’t turn on. Solution: Try the following: • Make sure the SH2000 is charged. • Make sure the volume is turned up on your device and the SH2000. • Make sure you press and hold the power/phone button for at least 7 seconds. Issue: My SH2000 is not charging. Solution: Try the following:  Make sure that the charge port on the headset is free from dust and debris.  Make sure that you are using the charge cable that came with your SH2000.  Make sure there is power coming from the power source. Issue: My SH2000 isn’t syncing to Bluetooth. Solution: Try the following: • Make sure you hold the power/phone button down until you hear a voice say “Ready for pairing” after it says “Power on”. • Make sure that the Bluetooth setting is turned “ON” on your device. • Check to see if another user is connected to the SH2000. • Refer to the user guide of your device for Bluetooth syncing instructions. Issue: My SH2000 volume is turned all the way up, but the volume is still very low. Solution: Try the following: • Make sure your SH2000 and audio device are charged.  Make sure the volume is turned up on your device and the SH2000. Issue: The person on the other line cannot hear me very well. Solution: Try the following:  Make sure your SH2000 and phone are charged.  Make sure there is nothing covering the microphone on the control box.  Make sure you have service with …

Text truncated - open the document above for the full version.

Date: (14/05/2015) BABT TCB Balfour House,Churchfield Road, Walton-on-Thames,Surrey,KT12 2TD Dear Sir or Madam, We, WINLITE INTERNATIONAL (HK) LTD.,WINLITE INTERNATIONAL (HK) LTD., Room 1401, Tower A, Tian An Cyber Times, Shennan Avenue, Futian District Shenzhen, China hereby authorize TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Calvin WengCalvin Weng Phone: +86-755-33323658 e-mail: [email protected] to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that neither we nor any party to this application are subject to denial of U.S Federal benefits, which include FCC benefits, pursuant to section 5301 of Anti-Drug Abuse Act of 1988, U.S.C 862 because of conviction for possession or distribution of controlled substance.conviction for possession or distribution of controlled substance. This authorization is application to product: Type of equipment: Model name: WIP-SH2000; DGHP-5606 FCC ID: A6JSH2000 This authorization expires one year from the current date. Sincerely, Signature:Signature: Job title: GM Telephone Number: 86-755-83476622 Fax: 86-755-83475111 BT-200 ; ; S100 ; DGHP-5606S

Date (14/05/2015) TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham,Hampshire, PO15 5RL Confidentiality RequestConfidentiality Request FCC ID: A6JSH2000 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, WINLITE INTERNATIONAL (HK) LTD.,hereby requests permanent confidential treatment of information accompanying this application as outlined below: [Common exhibits for which confidentiality is requested are: Schematics Bill of Materials/Parts ListBill of Materials/Parts List Block Diagrams Theory of Operation] WINLITE INTERNATIONAL (HK) LTD., also hereby requests short-term confidential treatment of information accompanying this application as outlined below for a period of (up to 180) days: [Common exhibits for which short-term confidentiality is requested are: Internal Photos External PhotosExternal Photos User Manual Test Set-up Photographs The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application.and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer:(signed by FCC listed Grantee contact) Telephone Number: 86-755-83476622 Email:[email protected]

WINLITE INTERNATIONAL (HK) LTD Room 1401,Tower A, Tian An Cyber Times, Shennan Avenue, Futian District Shenzhen City, P.R. China To: TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Attention: Mr. Calvin Weng From: Ms.Yamma Zhang Date: June 17, 2015 Fax No.: 86 755 83475111 Total Page(Cover included): 1 Subject: Declaration Letter We: WINLITE INTERNATIONAL ( HK ) LTD Address: Room 1401, Tower A, Tian An Cyber Times, Shennan Avenue, Futian District Shenzhen, China Officially notify TÜV SÜD Certification and Testing (China) Co.,Ltd. Shenzhen Branch that the (WIP-SH2000; DGHP-5606; BT-200; DGHP-5606S; S100) have the same technical construction including circuit diagram, PCB Layout, components and component layout. The difference only lies in the model name. <<Model A>>: WIP-SH2000 <<Model B>>: DGHP-5606 <<Model C>>: BT-200 <<Model D>>: DGHP-5606S <<Model E>>:S100 <<Product>>: WIRELESS STEREO SPORT HEADSET Applicant: WINLITE INTERNATIONAL ( HK ) LTD June 17, 2015__ ____ ____________________________________ (Date) (Applicant’s authorized signature and company Chop)

BT antenna

TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 RF exposure Estimation for WIP-SH2000 1. Introduction WIP-SH2000 is a WIRELESS STEREO SPORT HEADSET, which contain Bluetooth function inside. WIP-SH2000, DGHP-5606, BT-200, S100, DGHP-5606S have the same technical construction including circuit diagram, PCB Layout, components and component layout. The difference only lies in the model name. Therefore, full test was applied on WIP-SH2000, another model deemed to fulfill the EMC requirement without further testing. 2. Limit and Guidelines on Exposure to Electromagnetic Fields According to§15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB 447498 D01 Mobile Portable RF Exposure v05r02, no SAR required if power is lower than the flowing threshold: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation25 • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 3. Calculation method [(max. power of` channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 Conducted Power + tune up tolerance = 2.17mW Distance = 5 mm f = 2.480 GHz [2.17/5] * SQRT(2.480) =0.68 0.68 ≤ 3.0 Therefore, excluded from SAR testing. TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 TUV SUD China, Shenzhen Branch Reviewed by: Prepared By: Phoebe Hu/ EMC Project Manager Felix Li/EMC Project Engineer Date: 2015-06-11 Date: 2015-06-11

Report Number: 68.950.15.078.01 EMC_SZ_FR_21.00 FCC Release 2014-03-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 1 of 38 FCC - TEST REPORT Report Number : 68.950.15.078.01 Date of Issue: Jun 11, 2015 Model : WIP-SH2000, DGHP-5606, BT-200, S100, DGHP-5606S Product Type : WIRELESS STEREO SPORT HEADSET Applicant : WINLITE INTERNATIONAL ( HK ) LTD Address : Room 1401, Tower A, Tian An Cyber Times, Shennan Avenue, Futian District Shenzhen, China Production Facility : WINLITE INTERNATIONAL ( HK ) LTD Address : Room 1401, Tower A, Tian An Cyber Times, Shennan Avenue, Futian District Shenzhen, China Test Result :  Positive  Negative Total pages including Appendices : 38 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch is a subcontractor to TÜV SÜD Product Service GmbH according to the principles outlined in ISO 17025. TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch reports apply only to the specific samples tested under stated test conditions. Construction of the actual test samples has been documented. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. The manufacturer/importer is responsible to the Competent Authorities in Europe for any modifications made to the production units which result in non-compliance to the relevant regulations. TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval Report Number: 68.950.15.078.01 EMC_SZ_FR_21.00 FCC Release 2014-03-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 2 of 38 1 Table of Contents 1 Table of Contents ..................................................................................................................................................2 2 Details about the Test Laboratory .........................................................................................................................3 3 Description of the Equipment Under Test .............................................................................................................4 4 Summary of Test Standards .................................................................................................................................5 5 Summary of Test Results ......................................................................................................................................6 6 General Remarks ..................................................................................................................................................7 7 Test Setups ...........................................................................................................................................................8 8 Systems test configuration ....................................................................................................................................9 9 Technical Requirement ...................................................................................................................................... 10 9.1 Conducted peak output power ................................................................................................................... 10 9.2 20 dB bandwidth and 99% Occupied Bandwidth ....................................................................................... 11 9.3 Carrier Frequency Separation .................................................................................................................... 18 9.4 Number of hopping frequencies ................................................................................................................. 21 9.5 Dwell Time .................................................................................................................................................. 23 9.6 Spurious RF conducted emissions ............................................................................................................. 26 9.7 Band edge testing ...................................................................................................................................... 30 9.8 Spurious radiated emissions for transmitter ............................................................................................... 35 10 Test Equipment List ............................................................................................................................................ 37 11 System Measurement Uncertainty ..................................................................................................................... 38 Report Number: 68.950.15.078.01 EMC_SZ_FR_21.00 FCC Release 2014-03-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 3 of 38 2 Details about the Test Laboratory Details about the Test Laboratory Test Site 1 Company name: TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpo…

Text truncated - open the document above for the full version.

Conducted Emission Radiated Emission
