A6JDIN1001Portable Multi-functional Speaker

User Guide (D-IN Bluetooth Speaker) Technical Spec.: Input Voltage: 5-5.5V, Built-in Lithium battery: 3.7V, 1000MA Power: 3W*2 How to Use Six Buttons: PLAY PREV NEXT VOL- VOL+ MODE 4 working modes, the sequence of playing mode by default is listed as below: BLUETOOTH AUX USB/SDcard （ switch between these four modes with “M” button ） ）） ） ** Charging the Battery 1. To charge the D-IN BT Speaker, connect the DC plug on the included USB Power Cable to the Power input located on the back of the speaker. 2.Connect the USB end to a powered USB port. CAUTIION Please be noted that the input voltage can’t be over 5.5V or below 5V. The speaker can’t be charged if the input voltage is too low; the speaker will be damaged if the input voltage is too high. Remark: the LED on the bottom will turn red while the speaker is being charged, and the LED light will be off after full charge. ** POWER ON/OFF Turn on the D-IN BT Speaker by pressing the ON/OFF button located on the top of the speaker. D IN is automatically in Bluetooth mode when it’s an ON mode, and the Blue LED for Bluetooth will flash first and later keep on. Then the Bluetooth module start working.. **Playing music via Bluetooth mode 1.Connect the speaker with the Bluetooth-enabled devices in the 1 st time, the Blue LED light will keep flashing for searching the BT signal. If it’s not the 1 st time for the speaker to work with Bluetooth-enabled devices, when it’s on BT mode, the blue LED light will keep on in a few seconds after flashing, at this moment the D-IN BT speaker is trying to connect the memorial Bluetooth-enabled device. Once it’s done, the LED will flash slowly, but if it’s failed, after 5 seconds the BT indicator will flash, waiting for the connection with new device, then follow the steps as below 2. Ensure Bluetooth-enabled devices has Bluetooth switched on and begin searching for devices, select the “ bluSound ” device and if a password is required enter “0000”.When the blue LED flashes slowly, the pairing with Bluetooth-enabled devices has been completed 3.Press the play button on the top of speaker or click the play button on the Bluetooth-enabled device, then you can enjoy the music via BT. Remark: 1.We can control the Bluetooth-enabled devices through PLAY,PAUSE,TRACK Buttons on the top of speaker, but it needs the related software of Bluetooth-enabled devices to support, currently it can work with most of mobiles with Android system and the computer with TT player, Kugoo. 2.When we turn off the D-IN speaker and restart, the speaker will search the device connected last time automatically. But it also need the related software of Bluetooth-enabled devices to support. If connect it with new device, power on the speaker and wait 20 seconds. The blue LED will flash，then research the new device **Play music Via AUX mode 1. Connect the D-IN BT Speaker to the audio device using audio cable 2. Press MODE button and adjust to LINE(AUX), green LED will turn on. 3. Use the volume control on the top of speaker and adjust to your desired volume. 4. USE the PLAY button to adjust to mute. 5. Other buttons have no function on AUX mode. ** Play the music via USB Flash Disk or SD Card mode 1. Insert the USB Flash Disk or SD Card into the USB port on the D-IN speaker , press MODE button and adjust to USB/SD mode, yellow LED will turn on 2. The yellow LED will keep flashing when play music, if pause, the yellow LED will keep on. 3.Use the play button to pause the music, use the PREV and NEXT button to play the desired music, if you need a fast backward search, please press the PREV button continuely if you need a fast forward search, please have one continual press on the NEXT button. 3.Use the volume control on the top of speaker and adjust to your desired volume. **Play music Via AUX OUT mode Insert the 3.5mm audio cable into the AUX-OUT jack on the D-IN speaker, the speaker will stop voice export, and change to AUX OUT mode automatically. Then you can connect with high power equipment and enjoy the music with different format via D-IN . LED Indicator ** Working indicator on the top of speaker 3- color LED: blue, green, yellow Blue LED: Bluetooth mode Green LED: AUX mode Yellow LED: SD/USB mode ** Charging indicator on the bottom of speaker Single color LED: Red The red LED will be on when the speaker is being charged; The red LED will be off when the speaker is fully charged FCC Conformity: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.

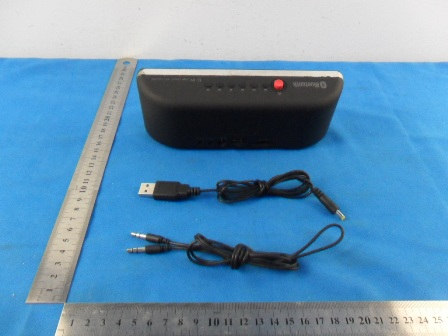

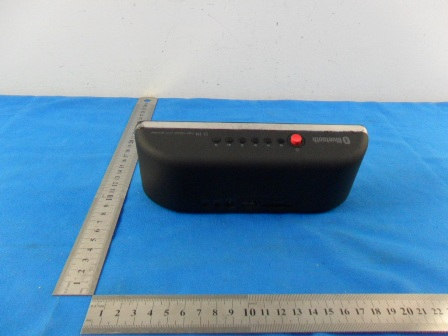

1 Photographs - EUT Constructional Details Test Model No.: DIN1001

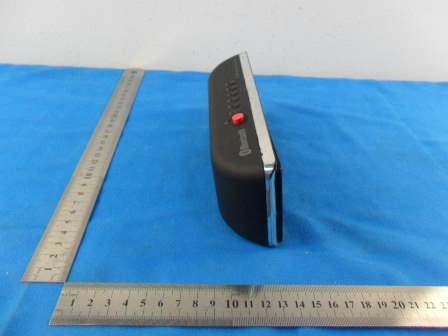

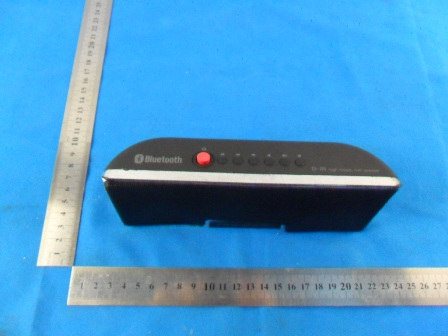

1 Photographs - EUT Constructional Details Test Model No.: DIN1001

SGS-CSTC Standards Technical Services Co., Ltd. No. 1 Workshop, M-10, Middle Section, Science & Technology Park, Nanshan District, Shenzhen, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Page: 1 of 1 FCC ID: A6JDIN1001 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1.1 RF Exposure Compliance Requirement 1.1.1 Standard requirement 15.247(b)(4) requirement: (4) The conducted output power limit specified in paragraph (b) of this section is based on the use of antennas with directional gains that do not exceed 6 dBi. Except as shown in paragraph (c) of this section. if transmitting antennas of directional gain greater than 6 dBi are used. the conducted output power from the intentional radiator shall be reduced below the stated values in paragraphs (b)(1). (b)(2). and (b)(3) of this section. as appropriate. by the amount in dB that the directional gain of the antenna exceeds 6 dBi. 1.1.2 EUT RF Exposure The Max Conducted Peak Output Power is 7.01dBm(5.0234mW) in Middle channel; The best case gain of the antenna is 2dBi. 2dB logarithmic terms convert to numeric result is nearly 1.58 According to the formula. calculate the EIRP test result: EIRP= P x G = 5.0234mW x 1.58= 7.9370mW ① SAR requirement: S= 60 / f(GHz) = 60/2.441 = 24.58mW ② ; ① < ②. So the SAR report is not required.

SGS-CSTC Standards Technical Services Ltd. No. 1 Workshop, M-10, Middle section, Science & Technology Park, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM111200538001 Page : 1 of 71 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover Page FCC REPORT Application No: SZEM1112005380RF Applicant: WINLITE INTERNATIONAL ( HK ) LTD Product Name: Portable Multi-functional Speaker Operation Frequency: 2402MHz to 2480MHz FCC ID: A6JDIN1001 Standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247:2010 Date of Receipt: 2011-12-14 Date of Test: 2011-12-16 to 2012-01-11 Date of Issue: 2012-01-30 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Ltd. Report No.: SZEM111200538001 Page : 2 of 71 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Contents Page 1 COVER PAGE.........................................................................................................................................................1 2 CONTENTS.............................................................................................................................................................. 2 3 TEST SUMMARY.................................................................................................................................................... 3 4 GENERAL INFORMATION................................................................................................................................... 4 4.1 CLIENT INFORMATION.......................................................................................................................................... 4 4.2 GENERAL DESCRIPTION OF E.U.T. ....................................................................................................................... 4 4.3 E.U.T OPERATION MODE...................................................................................................................................... 6 4.4 DESCRIPTION OF SUPPORT UNITS......................................................................................................................... 6 4.5 TEST FACILITY..................................................................................................................................................... 7 4.6 TEST LOCATION................................................................................................................................................... 7 4.7 OTHER INFORMATION REQUESTED BY THE CUSTOMER........................................................................................ 7 4.8 TEST INSTRUMEN…
