A7AG3100-R1GNSS

TI Asahi Co., Ltd.

Click to zoom

Application Details

Equipment Class: JBP - Part 15 Class B Computing Device Peripheral
Date of Grant: Jul 08, 2012
Application Purpose: Original Equipment
Date of Application: Jul 06, 2012
Equipment Note: GNSS
Company: TI Asahi Co., Ltd.
Country: Japan

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Page | 1 GNSS G3100-R1 INSTRUCTION MANUAL TI Asahi Co.,Ltd. International Sales Department 4-3-4,Ueno,Iwatsuki-ku,Saitama-shi Saitama 339-0073 Japan Tel, +81－48－793－0118 Fax, +81-48-793-0128 E-mail : [email protected] Page | 2 Before using this product, be sure that you have thoroughly read and understood this instruction manual to ensure proper operation. After reading this manual, be sure to keep in a convenient place for easy reference. Exemption clause 1) TI Asahi Co.,Ltd. (TIA) shall not be liable for damage caused by Acts of God, fire, alteration or servicing by unauthorized parties, accident, negligence, misuse, abnormal operating conditions. 2) TIA shall not be liable for changes or disappearance of data, loss of company profit or interruption of company operation incurred by the use of this product or malfunction of it. 3) TIA shall not be liable for damage caused by usage not explained in the instruction manual. 4) TIA shall not be liable for damage to this product caused by other equipment connected to this product. Copyright © 2010 TI Asahi Co.,Ltd. Page | 3 Table of Contents 1. Introduction..........................................................................................................5 1.1. User Notice.............................................................................................................................5 1.1.1. CE Mark..................................................................................................................5 1.1.2. Warranty..................................................................................................................5 1.1.3. Customer Service and Support..............................................................................6 1.2. Foreword................................................................................................................................6 1.2.1. Related Software.....................................................................................................6 1.2.2. Revision History.....................................................................................................6 2. G3100 Overview...................................................................................................7 2.1. G3100 Key Features.............................................................................................................7 2.1.1. Navigation Accuracy..............................................................................................7 2.1.2. G3100 Ease of Use.................................................................................................7 2.1.3. Shipping Case Contents.........................................................................................9 2.1.4. Using the G3100...................................................................................................10 2.1.5. G3100 Front Panel................................................................................................10 2.1.6. Front Panel Description........................................................................................10 2.1.7. Power Button........................................................................................................10 2.1.8. Ports.......................................................................................................................11 2.1.9. Power Input...........................................................................................................12 2.1.10. SIM Card...............................................................................................................12 2.1.10.1. Purchasing a SIM Card w/ plan...........................................................12 2.1.10.2. Installing SIM Card..............................................................................13 2.1.11. SD Card.................................................................................................................13 2.1.11.1. Removing SD Card...............................................................................13 2.1.11.2. Installing SD Card................................................................................13 2.1.11.3. Formatting SD Card.............................................................................14 2.1.11.4. Known Compatible SD Cards..............................................................15 3. G3100 Device & Specifications........................................................................16 3.1. Bluetooth .............................................................................................................................16 3.2. Internal UHF Radio...........................................................................................................16 3.3. GSM Modem.......................................................................................................................16 3.3.1. Communication Protocol.....................................................................................16 3.4. Battery & Charger..............................................................................................................17 3.4.1. Battery Charger.....................................................................................................17 3.4.2. Charging Battery...................................................................................................17 3.4.3. G3100 Battery Installation and Replacement.....................................................18 3.5. GNSS Antenna Offsets.......................................................................................................19 3.5.1. NGS Calibration...................................................................................................19 3.5.2. Slant Height Dimensions......................................................................................20 Page | 4 4. Factory AsteRx2/AsteRx2e receiver Settings.......................…

Text truncated - open the document above for the full version.

Block Diagram

GSM Module UHF Module BT Module Data Converter PC

Cover Letter(s)

TI Asahi Co., Ltd. FCC Authorization Letter Number: CF304 Version: V03 Date: 01-08-2011 We, (the approval holder) Company name TI Asahi Co., Ltd. Address 4-3-4, Ueno, Iwatsuki-ku, City Saitama-shi, Country Japan declare that the following representative (agent): Name (person) Philo Zhong Company name Waltek Services (Shenzhen) Co., Ltd. Address 1/F, Fukangtai Building, West Baima Rd., Songgang Street, Baoan District, City Shenzhen Country China is hereby authorized to apply the following equipment for certification on our behalf: Product Description GNSS Type or Model(s) SMT888-3G, G3100-R1 Tradename or Brand(s) We also authorize Teleconformity (Mr. M. Koop, Manager Certification, Address: Rietven 31, 7534NH Enschede, the Netherlands) to apply and sign this application for certification, registration or filing on our behalf (as representative agent or certifier). Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Saitama,Japan 2012-5-14 Horie Mikio manager

External Photos

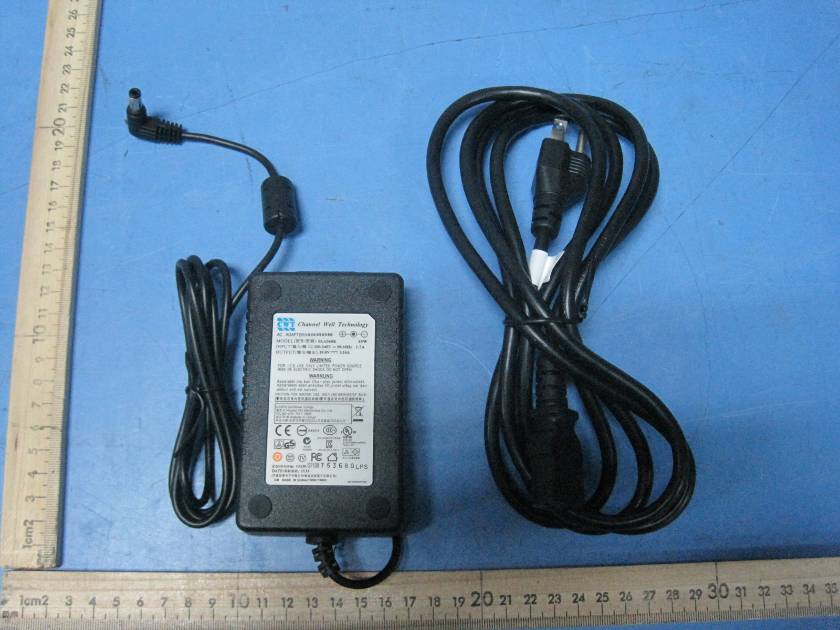

2.1 Product View G3100-R1 SMT888-3G 2.2 G3100-R1 - Appearance View 2.3 SMT888-3G - Appearance Front View 2.4 Appearance Back View 2.5 Charger – Appearance Front View 2.6 Charger – Appearance Back View 2.7 Adapter – Appearance View

ID Label/Location Info

Page: TI Asahi Co., Ltd. The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES 9 FCC Label This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference,and (2) this device must accept any interference received, including interference that may cause undesired operation The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT EUT Top View/proposed FCC Label Location FCC ID: A7AG3100-R1 This device contains transmitter modules with the following FCC ID's: POOWML-C40,IHDT56HQ1, WJ4LMR400 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation .

ID Label/Location Info

FCC ID Label Sample for Model: SMT888-3G, G3100-R1 FCC ID : A7AG3100-R1 This device contains transmitter modules with the following FCC ID's: POOWML-C40, IHDT56HQ1, WJ4LMR400 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photos

2.1 G3100-R1 – Open View(1) 2.2 G3100-R1 – Open View(2) 2.3 G3100-R1 – Open View(3) 2.4 SMT888-3G – Open View(1) 2.5 SMT888-3G – Open View(2) Module 2 Module 1 2.6 SMT888-3G – Open View(3) 2.7 PCB 1 – Front View 2.8 PCB 1 – Back View 2.9 Module 1 – PCB Front View 2.10 Module 1 – PCB Back View 2.11 Module 2 – Appearance View 2.12 Module 2 – PCB Front View 2.13 Module 2 – PCB Back View 2.14 Module 3 – Appearance Front View 2.15 Module 3 – Appearance Back View 2.16 Module 3 – PCB Front View 2.17 Module 3 – PCB Back View 2.18 Bottom – PCB View 2.19 Charger – PCB View PCB2 PCB1 2.20 Charger – PCB1 Front View 2.21 Charger – PCB1 Back View 2.22 Charger – PCB2 Front View 2.23 Charger – PCB2 Back View 2.24 Adapter – PCB Front View 2.25 Adapter – PCB Back View

Operational Description

Circuit Description The EUT was used the PC to control the Bluetooth module to choose the GSM module or the UHF module. When the comments was used to PC by the software, we known that the product have three RF transmitter modules for Bluetooth, GSM and UHF Radio modem for Licensed Non-Broadcast Station. The module for Bluetooth seeks the other device or keep the connection with at any time. The other two modules for GSM and UHF Radio modem will operate exclusively because these modules are used for the same purpose. The GSM module receives the reference data from RTK network on the Rover mode of the product. The UHF Radio modem transmits RTK corrections on the Base mode of the product and receives it on the Rover mode. Also the UHF Radio modem only receives the radio on the Rover mode. The operation mode (Base or Rover) of this product is selected by the software exclusively. In Rover mode, GSM or UHF modem is selected by the software exclusively. Therefore the modules for GSM and UHF Radio modem do not operate at the same time.

Schematics

! " " " " " " " # $ $ % & $ $ ' ( & # " # % ) $ * $ $ # + " , $ - & # . & # " " ! " " " " " " " # $ $ % & $ $ ' ( & # " # % ) $ * $ $ # + " , $ - & # . & # " " ! " " " " " " " # $ $ % & $ $ ' ( & # " # % ) $ * $ $ # + " , $ - & # . & # " " ' " / 0 ' " / 0 " / 0 " / 0 " / 0 " / 0 " / 0 " / 0 , " / 0 , " / 0 ! # ' ! # ' , " " " ( 0 , " " " ( 0 " / 0 " / 0 " " " " ( 0 " " " " ( 0 , " " " ( 0 , " " " ( 0 " / 0 " / 0 " / 0 " / 0 " / 0 " / 0 " / 0 " / 0 , " " " ( 0 , " " " ( 0 " " / 0 " " / 0 1 " / 0 1 " / 0 + " / 0 + " / 0 " " " ( 0 " " " ( 0 2 3 4 5 64 63 7 89 : 2 ; < = 4 >? 4 > @ ! " " # $ $ $ % $ $ & $ $ ' ( ) * + , * +- . / 0 1 ) 0 + ) 2 , ) . * 3 , 3 ! , 4 3 +3 5 , , 4 , . 2 , * , 2 , ! , 6 3 , 3 3 2 , , , 7 8 0 * 3 4 2 , 9 * 4 , 2 , ( ) * + , * +- . / 0 1 ) 0 + ) 2 , ) . * 3 , 3 ! , 4 3 +3 5 , , 4 , . 2 , * , 2 , ! , 6 3 , 3 3 2 , , , 7 8 0 * 3 4 2 , 9 * 4 , 2 , ( ) * + , * +- . / 0 1 ) 0 + ) 2 , ) . * 3 , 3 ! , 4 3 +3 5 , , 4 , . 2 , * , 2 , ! , 6 3 , 3 3 2 , , , 7 8 0 * 3 4 2 , 9 * 4 , 2 , :: 55 :: % % 8 5 ; * < 8 5 ; * < 88 :: 77 88 55 8 < 8 < 77 9 9 - ) 1 5 ! 8 0 : 7 = + 5 > 8 : 3 7 * . ? " 4 ( 5 - 8 - - : - ) 7 - - - 1 - ! - 0 - - = 5 - 8 - : - + 7 - - - - > - - 3 - 5 - * 8 - . : - ? 7 - " - 4 - ( ) ) - ) ) ) 5 ) 8 ) 1 : ) ! 7 ) 0 5 @ A , B C DB DA , E FG H @ I , J K B LM B L N ! " # $ % % % % % % % " & ! ' ( ' ) ' ' * + " ) ! & % & , ' ' " ' & - % . ' / " ) & 0 " " ) & % % ! " # $ % % % % % % % " & ! ' ( ' ) ' ' * + " ) ! & % & , ' ' " ' & - % . ' / " ) & 0 " " ) & % % ! " # $ % % % % % % % " & ! ' ( ' ) ' ' * + " ) ! & % & , ' ' " ' & - % . ' / " ) & 0 " " ) & % % 1 1 * % % (( 2 % % % + $ 2 % % % + $ (.(. (*(* 1 1 (-(- 1 1 (( % 3 4 % 3 4 (( % % (*(* % % (( % % (( * % % % + $ * % % % + $ % % % + $ % % % + $ (( 1 1 - 2 % (( (2(2 - % % % + $ - % % % + $ % % % + $ % % % + $ (%(% * % * % 5 6 7 8 97 96 : ;< = 5 > ? @ 7 AB 7 A C ! " # $ % & ' & ( $ # ) * ) + , ) ) - . , # $ ( ( + / ) ) ) ( 0 1 …

Text truncated - open the document above for the full version.

Test Report

Page: 1 of 43 FCC TEST REPORT The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12064021-S-S-F FCC ID : A7AG3100-R1 Applicant : TI Asahi Co., Ltd. Address : 4-3-4, Ueno, Iwatsuki-ku, Saitama-shi, Saitama 339-0073 Japan Equipment Under Test (EUT) : Product Name : GNSS Model No. : SMT888-3G, G3100-R1 Standards : FCC Part 15 Section 15.109:2010 Date of Test : February 14 ~ February 17, 2012 Date of Issue : June 16, 2012 Test Engineer : Hunk yan / Engineer Reviewed By : Philo zhong / Manager Test Result : PASS Prepared By: Waltek Services (Shenzhen) Co., Ltd. 1/F, Fukangtai Building, West Baima Rd., Songgang Street, Baoan District, Shenzhen 518105, China Tel :+86-755-27553488 Fax:+86-755-27553868 The sample detailed above has been tested to the requirements of Council Directives ANSI C63.4:2003. The test results have been reviewed against the Directives above and found to meet their essential requirements. Page:2 of 43 TI Asahi Co., Ltd. FCC ID:A7AG3100-R1 The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12064021-S-S-F 2 Test Summary Test Test Requirement Test Method Result Radiated Emission for GNSS (30MHz to 2GHz) FCC Part 15.109:2010 ANSI C63.4: 2003 PASS Radiated Emission for Charger (30MHz to 1GHz) FCC Part 15.109:2010 ANSI C63.4: 2003 PASS Conducted Emission (150KHz to 30MHz) FCC Part 15.107:2010 ANSI C63.4: 2003 PASS Page:3 of 43 TI Asahi Co., Ltd. FCC ID:A7AG3100-R1 The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12064021-S-S-F 3 Contents Page 1 COVER PAGE ........................................................................................................................................................ 1 2 TEST SUMMARY .................................................................................................................................................. 2 3 CONTENTS............................................................................................................................................................. 3 4 GENERAL INFORMATION ................................................................................................................................ 5 4.1 CLIENT INFORMATION........................................................................................................................................... 5 4.2 GENERAL DESCRIPTION OF E.U.T. ........................................................................................................................ 5 4.3 DETAILS OF E.U.T................................................................................................................................................. 5 4.4 DESCRIPTION OF SUPPORT UNITS.......................................................................................................................... 5 4.5 STANDARDS APPLICABLE FOR TESTING................................................................................................................ 5 4.6 TEST FACILITY...................................................................................................................................................... 6 4.7 TEST LOCATION.................................................................................................................................................... 6 5 EQUIPMENT USED DURING TEST .................................................................................................................. 7 6 CONDUCTED EMISSION DATA........................................................................................................................ 8 6.1 E.U.T. OPERATION................................................................................................................................................ 8 6.2 EUT SETUP........................................................................................................................................................... 9 6.3 CONDUCTED EMISSION TEST RESULT................................................................................................................... 9 6.4 PHOTOGRAPH – CONDUCTED EMISSION TEST SETUP.......................................................................................... 12 7 RADIATION EMISSION DATA ........................................................................................................................ 13 7.1 E.U.T OPERATION:.............................................................................................................................................. 13 7.2 MEASUREMENT UNCERTAINTY........................................................................................................................... 13 7.3 EUT SETUP......................................................................................................................................................... 13 7.4 SPECTRUM ANALYZER SETUP............................................................................................................................. 14 7.5 TEST PROCEDURE................................................................................................................................................ 15 7.6 CORRECTED AMPLITUDE & MARGIN CALCULATION........................................................................................... 15 7.7 SUMMARY OF TEST RESULTS.............................................................................................................................. 15 7.8 PHOTOGRAPH – RADIATION EMISSION TEST SETUP...................…

Text truncated - open the document above for the full version.

Test Setup Photos

2.1 Photograph – Radiation Emission Test Setup Test Setup for GNSS Below 1GHz Front View Back View Above 1GHz Front View Back View Test Setup for Charger 2.2 Photograph – Conducted Emission Test Setup
