深圳瑞福来智能科技股份有限公司 ShenzhenReflyingElectronicCo.,Ltd MyTagInstruction 1.ProductPicture 2.AddMyTagtoFindMy(Addotheritem) 2.1AddMyTagwithfactorysettingsstate 1 ) UpdatetothelatestversionofiOSoriPadOS.TurnonBluetoothofyourphone,thenpulloutthemylarofMyTag. 2)OpentheFindMyapp,selecttheItems,AddOtherItem,searchforMyTag,andfollowtheonscreeninstructionsto completetheaddingoperation. 深圳瑞福来智能科技股份有限公司 ShenzhenReflyingElectronicCo.,Ltd 2.2AddMyTaginotherstate 1 ) IfMyTagisnotaddedtotheAppleIDafterbeingresetfor10minutes,Bluetoothwillstoptransmittingsignalstosave power.Youneedtopoweroff/onthebatteryfivetimestoresetitagain.Resetissuccessfulifhearadifferentpower-on sound.Thenyoucanstartaddingdevicesagain.Themethodisthesameas2.1. 2)IfresettheaddedMyTagimproperly,firstyouneedtodeleteMyTagfromFindMyappandreleasethebindingtoApple IDandthenitcanbeaddedtoanyiOSdeviceagain.Theaddingmethodisthesameas2.1. 3.OperationInstructions MyTagcanhelpyoueasilytrackallkindsofitems.Aslongasyouhangoneonyourkeychainandputoneinyourbag,you canseewhereyourkeysandbagareinFindMyapp. 3.1Finditemsatcloserange-playsoundfunction JustaddingonepieceMyTag,findingthingswillbeabreeze.Youcanclick“PlayaSound”intheFindMyapp,orsay"Hey 深圳瑞福来智能科技股份有限公司 Shenzhen Reflyi ng Electron ic Co.,Ltd Si ri, Fi nd my keys" to play a sound to indicate the location. If it's hiding nearby, such as under a cupboard or in the next room, you can easily followthe sound to find it. 3.2 Automatical ly restore connection af ter disconnection If the distance between the paired MyTag and the iOS device exceeds the Bluetooth connection distance (In the closed barrier-free space is 50m), when you click "Pl ay Sound" in the Fi nd My app, it will prompt that the connection cannot be made; If MyTag and the iOS device are in Bluetooth connection distance, click "Pl ay a Sound" in the Fi nd My app, it will play consecutive sounds, and you can find the items just following the sound. 3.3 Fi nd items with help fromhundreds of millions of friends. Fi nd My Network will help you find your belongi ngswhen they are left far behind, like at the beach or gym. As long as iOS device users allowFi nd My network access, MyTag will send out a secure Bluetooth signal that can be detected by nearby iOS devices in Fi nd My network, these devices send the location of your MyTag device to iCloud, then you can goto the Fi nd My app and see it on the map. The whole process is anonymous and encrypted to protect your privacy. And it’s efficient, so there is no need to worry about the battery life and data usage. 3.4 Lost Mode - Fi nd things eas ier Just like other Apple devices, MyTag can be put into Lost Mode. You'll automatically get a notification when it’s detected by other devices in the Fi nd My network. You can activate Lost Mode in Fi nd My app by following the onscreen instructions, adding your phone number or email account. Soif others pick up your MyTag,they c an knowmore info about it and know howto contact you by following the learning more pageinstruction in Fi nd My app . 3.5 Prevent unwanted trac king To prevent unwanted tracking,when someone else's MyTag device is mixed into your belongi ngs, your Apple device will find it and send you an alert notification. If you haven't found this device after a while, it will play a sound so you can find it. But don't worry, if someone next to you wearing a MyTag device, as long as the device does not leave the owner, you will not receive a notification. 3.6 Privac y protection Only you can see where your MyTag is. No location data or location history is physically stored inside MyTag. Communication with the Fi nd My network is end-to-end encrypted so that only the owner of a device has access to its location data, and no one, including Apple, knows the identity or location of any device that helped find it. 深圳瑞福来智能科技股份有限公司 Shenzhen Reflyi ng Electron ic Co.,Ltd FCC Cau tion This de vi ce compl ies with pa rt 15oftheFCCRul es.Ope rationis su bj ect to the fol lowingtwo conditions:(1)This de vi ce may notcauseha rmfulint erference, and(2) thi s de vi ce mustacceptany int erferenc e received,inc ludingint erference tha t may cause undesi red operation. Any Changes ormodificationsnotexpr essly appr oved by the party responsibl e for compl ianc e could void the user's aut hority to operate theequipment . Not e:This equipmenthas be en test ed andfoundto compl y with thelimits fora Class B di gital d evi ce, pursuantto pa rt 15oftheFCC Rul es. Theselimits are de si gne d to pr ovidereasonabl e pr ot ectionagainstha rmfulint erferenc e in a resi de nt ial installation. This equipmentgene rates uses andcan radi ate radi o frequenc y energy and,if not installed andused in accor da nc e with theinstruc tions,may causeha rmfulint erferenc e to radi o communications.Howeve r, the re is nogua rant ee tha t int erference willnot oc curin a pa rticul ar installation.If thi s equipment does causeha rmfulint erferenc e to radi o ortelevi si onre ception,whi ch can bedetermine d by turni ngtheequi pmentof f andon,theuser is encouraged to try to cor rect the int erferenc e by oneormor e ofthe fol lowingmeasu res: -Reor ient orreloc ate the receivi ng ant enna. -Inc reasethe sepa rationbe tween theequipmentandreceiver. -Connect theequipmentint o an outlet ona circui t di fferentfromtha t to whi ch the receiver is connected. -Consult the dealer oran expe rienc ed radi o/ TVtechnician for help. The devi ce has been eva lua ted to meet general RF exposure require ment . The devi ce can be used in portabl e exposure conditionwithout rest riction. ICCau�on: This device complies withIndustry Canadas licence-exemptRSSs.Opera�onis subjec�othe followingtwo condi�ons: (1) This device may not cause interference; a nd (2) This device must accept any interference, including interference that may cause undesired opera�ono�he device. Lepr sent appareil est conforme aux C NR d'Industrie Canada applicables aux appareils radio exemptsde licence. L' exploita�onest autoris e a ux deux…
Text truncated - open the document above for the full version.
Shenzhen Reflying Electronic Co., Ltd. 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – Equipment Type Company name: Shenzhen Reflying Electronic Co., Ltd. Address: 6 Bldg., Gaoxinjian Industrial Zone, Heping Villag, Fuyong Town, Bao'an District, Shenzhen City, Guangdong, China Product Name: M y Ta g FCC ID:A7M-0 355474 Model(s): RHK35B, 0355474, 0355475 2.911(d)(5)(i) Equipment Type We, [Shenzhen Reflying Electronic Co., Ltd.] (“the applicant”) certify that the equipment for which authorization is sought through certification is not: • Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules. • Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Date: 2023.06.28 Title and Company name: Wen Luo/ Manager NOTE 1 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the
Shenzhen Reflying Electronic Co., Ltd. 2.911 (d)(5)(ii) Applicant Attestation v1.2 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: Shenzhen Reflying Electronic Co., Ltd. Address: 6 Bldg., Gaoxinjian Industrial Zone, Heping Villag, Fuyong Town, Bao'an District, Shenzhen City, Guangdong, China Product Name: M y Ta g FCC ID:A7M-0 355474 Model(s): RHK35B, 0355474, 0355475 2.911(d)(5)(ii) Applicant filing We, [Shenzhen Reflying Electronic Co., Ltd.] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 , established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Date: 2023.06.28 Title and Company name: Wen Luo/ Manager NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the
Shenzhen Reflying Electronic Co., Ltd Agent Authorization Company: Shenzhen Reflying Electronic Co., Ltd Address: 6 Bldg, GaoXinJian Industrial zone, HePing village,Fuyong Town,Bao’an District, Shenzhen City, Guangdong, China. 518103 Product Name: My Tag Model Number(s): RHK35B, 0355474, 0355475 Product Description: My Tag We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2023/06/28 Name: Wen Luo Title: Manager Company: Shenzhen Reflying Electronic Co., Ltd
Shenzhen Reflying Electronic Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2023/06/28 Subject; Request for Confidentiality FCC ID:A7M-0 355474 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Wen Luo Title: Manager
Shenzhen Reflying Electronic Co., Ltd. Model Difference 2023.06.28 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA RE: LETTER OF MODEL DIFFERENCE EUT NAME: My Tag Trademark: N/A MODEL: RHK35B, 0355474, 0355475 FCC ID:A7M-0 355474 All the model are the same circuit and RF module, except model names. Sincerely Client’s signature: Client’s name / title : Wen Luo/ Manager Contact information / address: 6 Bldg., Gaoxinjian Industrial Zone, Heping Villag, Fuyong Town, Bao'an District, Shenzhen City, Guangdong, China

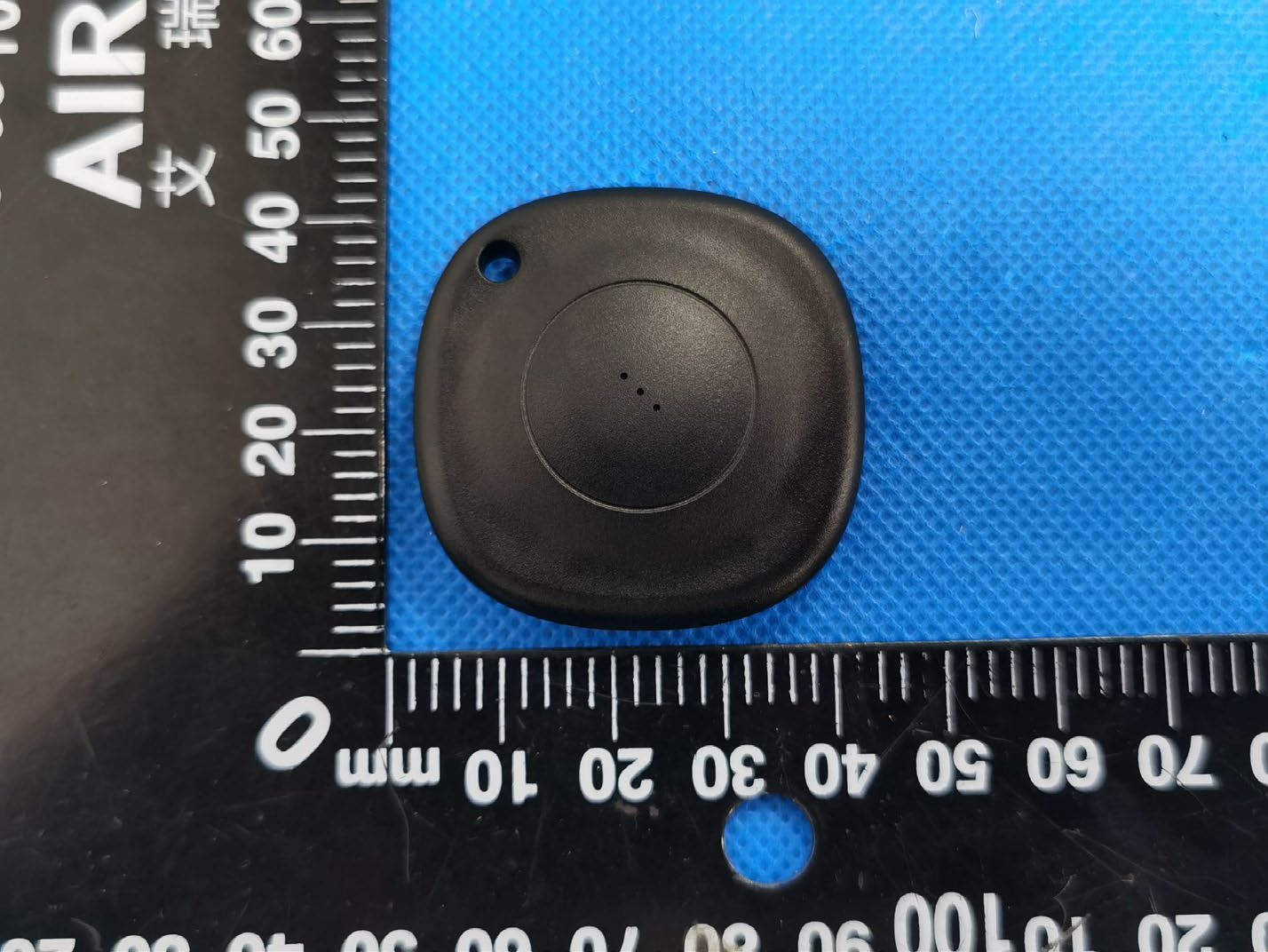

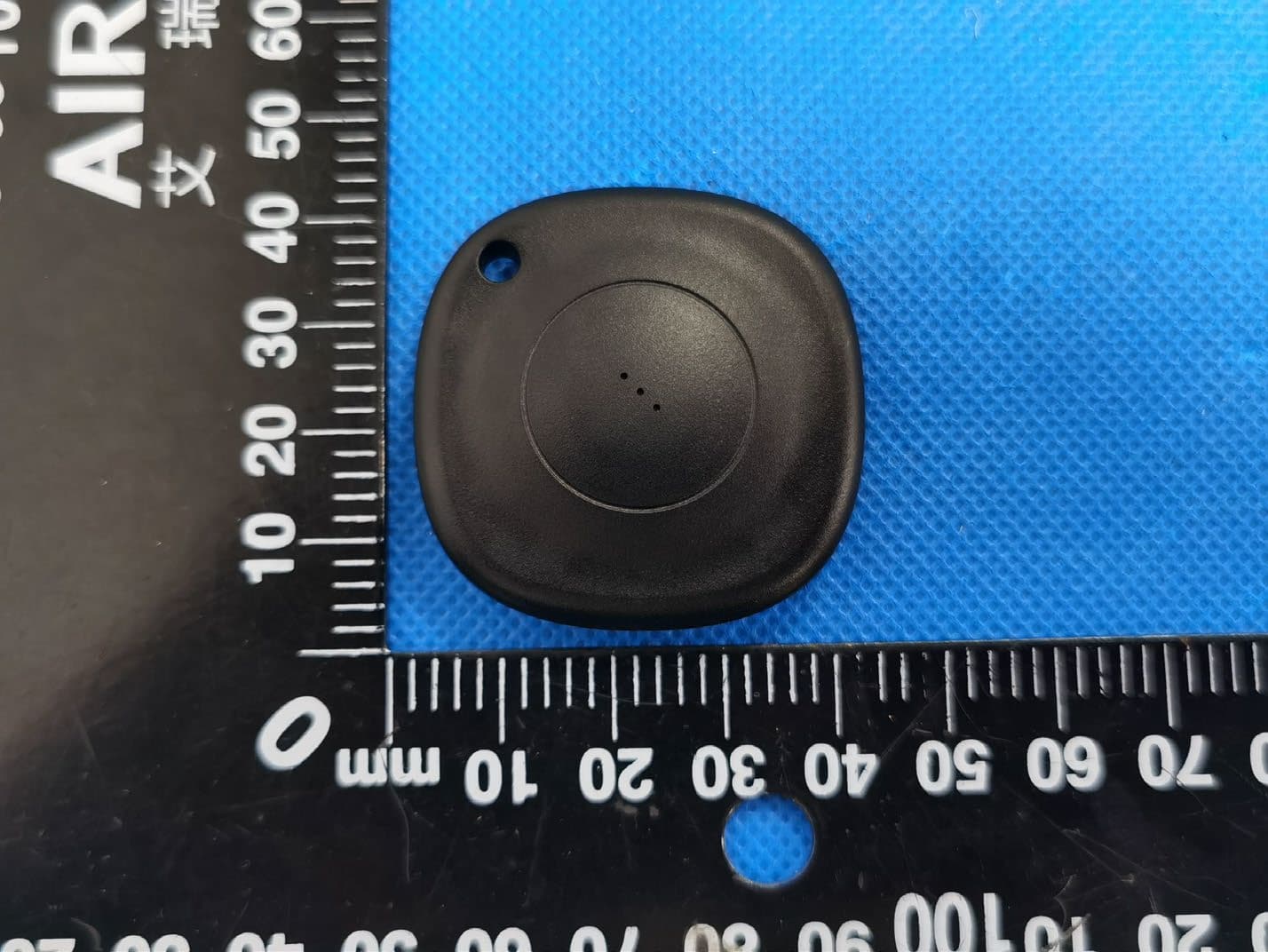

External Photos
Label & label location 10mm*5mm FCC ID:A7M-0355474 Label location
Internal Photos Antenna
RF EXPOSURE EVALUATION METHOD FCC ID:A7M-0355474 Applicable standard: In accordance with FCC 47 CFR part 2 (2.1093) this device has been defined as a portable device which is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable devices must be evaluated using the specified in FCC 47 CFR part 2 (2.1093) and ANSI/IEEEC95.1-1992. and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528-2003. Per FCC KDB 447498 D01 v06, the 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances s 50 mm are determined by: SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BLE Modulation Test Channel Output Power (dBm) Limit (dBm) GFSK 1Mbps Low 3.96 30 GFSK 1Mbps Middle 3.57 30 GFSK 1Mbps High 3.21 30 GFSK 2Mbps Low 3.90 30 GFSK 2Mbps Middle 3.47 30 GFSK 2Mbps High 3.12 30 max possible output power (PK,conducted):4±1dBm -6.02dBi logarithmic terms convert to numeric result is nearly 0.250 5dBm=3.16mW 2402MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]=3.16/5*√2.402 =0. 98≤3.0 2440MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]=3.16/5*√2.440=0.99≤3.0 2480MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]=3.16/5*√2.48=1.00≤3.0 Conclusion: 1. [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] < 3.0. 2. SAR Test Exclusion Thresholds is 3.0 for separation distance 5mm. Therefore, SAR test is not required.
Report No.: BL-SZ2290602-901 Tel: +86-755-66850100 E-mail: [email protected] Page No. 1 / 13 Web: www.titcgroup.com Template No.: TRP-Passive-EN (2022-09-07) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China TEST REPORT Applicant: Shenzhen Reflying Electronic Co., Ltd. Address: 2F, Bldg. 4, 201-501, Bldg. B6, Gaoxinjian Industrial Area, Fuyuan 1 Rd., Heping Shequ, Fuhai St., Baoan Dist., Shenzhen City, China. Equipment Type: MyTag Model Name: KJ-187 Brand Name: Kashimura Test Standard: ANSI/IEEE Std 149-1979 Test Date: Sep. 19, 2022 Date of Issue: Sep. 21, 2022 ISSUED BY: Shenzhen BALUN Technology Co., Ltd. Tested by: Mai Jintian Checked by: Tolan Tu Approved by: Wei Yanquan (Chief Engineer) _______________ _______________ _______________ Report No.: BL-SZ2290602-901 Tel: +86-755-66850100 E-mail: [email protected] Page No. 2 / 13 Web: www.titcgroup.com Template No.: TRP-Passive-EN (2022-09-07) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Revision History Version Issue Date Revisions Rev. 01 Sep. 21, 2022 Initial Issue TABLE OF CONTENTS 1 GENERAL INFORMATION ......................................................................................................... 3 1.1 Test Laboratory ..................................................................................................................... 3 1.2 Test Location ......................................................................................................................... 3 2 PRODUCT INFORMATION ......................................................................................................... 4 2.1 Applicant Information ............................................................................................................ 4 2.2 Manufacturer Information ...................................................................................................... 4 2.3 General Description for Equipment under Test (EUT) .......................................................... 4 2.4 Ancillary Equipment .............................................................................................................. 4 2.5 Technical Information ............................................................................................................ 4 3 SUMMARY OF TEST RESULTS ................................................................................................. 5 3.1 Test Standards ...................................................................................................................... 5 3.2 Test Verdict ........................................................................................................................... 5 3.3 Test Uncertainty .................................................................................................................... 5 4 GENERAL TEST CONFIGURATIONS ........................................................................................ 6 4.1 Test Condition ....................................................................................................................... 6 4.2 Test Equipment List .............................................................................................................. 6 4.3 Test Setup ............................................................................................................................. 7 ANNEX A TEST RESULTS ............................................................................................................. 8 A.1 Gain and Efficiency ............................................................................................................... 8 ANNEX B RADIATION PATTERN .................................................................................................. 9 ANNEX C TEST SETUP PHOTOS ............................................................................................... 12 ANNEX D EUT PHOTO ................................................................................................................ 12 Report No.: BL-SZ2290602-901 Tel: +86-755-66850100 E-mail: [email protected] Page No. 3 / 13 Web: www.titcgroup.com Template No.: TRP-Passive-EN (2022-09-07) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 1 GENERAL INFORMATION 1.1 Test Laboratory Name Shenzhen BALUN Technology Co., Ltd. Address Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Phone Number +86 755 6685 0100 1.2 Test Location Name Shenzhen BALUN Technology Co., Ltd. Location Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 1/F, Building B, Ganghongji High-tech Intelligent Industrial Park, No. 1008, Songbai Road, Yangguang Community, Xili Sub-district, Nanshan District, Shenzhen, Guangdong Province, P. R. China Report No.: BL-SZ2290602-901 Tel: +86-755-66850100 E-mail: [email protected] Page No. 4 / 13 Web: www.titcgroup.com Template No.: TRP-Passive-EN (2022-09-07) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 2 PRODUCT INFORMATION 2.1 Applicant Information Applicant Shenzhen Reflying Electronic Co., Ltd. Address 2F, Bldg. 4, 201-501, Bldg. B6, Gaoxinjian Industrial Area, Fuyuan 1 Rd., Heping Shequ, Fuhai St., Baoan Dist., Shenzhen City, China. 2.2 Manufacturer Information Manufacturer Shenzhen Xunsiwei Circuit Co., Ltd Address Floor 3, Building B, No. 57, Houting Second Industrial Zone, Shajing Street, Bao'an District, Shenzhen City, China. 2.3 General Description for Equipment under Test (EUT) EUT Name MyTag Model Name Under Test KJ-187 Antenna Type PCB Antenna Dimensions 10.5*2.6 mm 2.4 Ancillary Equipment Note: Not applicable. …
Text truncated - open the document above for the full version.
No.:BCTC/RF-EMC-00 5 Page: 1 of 55 Edition:B.0 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2305217775E Applicant: Shenzhen Reflying Electronic Co., Ltd. Product Name: My Tag Model/Type Ref.: RHK35B Tested Date: 2023-05-30 to 2023-06-06 Issued Date: 2023-06-07 Report No.: BCTC2305217775E No.:BCTC/RF-EMC-00 5 Page: 2 of 55 Edition:B.0 FCC ID:A7M-0355474 The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: My Tag Trademark: N/A Model/Type Ref.: RHK35B 0355474, 0355475 Prepared For: Shenzhen Reflying Electronic Co., Ltd. Address: 6 Bldg., Gaoxinjian Industrial Zone, Heping Villag, Fuyong Town, Bao'an District, Shenzhen City, Guangdong, China Manufacturer: Shenzhen Reflying Electronic Co., Ltd. Address: 6 Bldg., Gaoxinjian Industrial Zone, Heping Villag, Fuyong Town, Bao'an District, Shenzhen City, Guangdong, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2023-05-30 Sample tested Date: 2023-05-30 to 2023-06-06 Issue Date: 2023-06-07 Report No.: BCTC2305217775E Test Standards: FCC Part15.247 ANSI C63.10-2013 Test Results: PASS Remark: This is Bluetooth BLE radio test report. Tested by: Approved by: Jeff.Fu/Project Handler Zero Zhou/Reviewer Report No.: BCTC2305217775E No.:BCTC/RF-EMC-00 5 Page: 3 of 55 Edition:B.0 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 8 4.4 Channel List .......................................................................................................... 9 4.5 Test Mode ............................................................................................................. 9 4.6 Table Of Parameters Of Text Software Setting ................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test Procedure ................................................................................................... 13 6.4 EUT Operating Conditions .................................................................................. 14 6.5 Test Result .......................................................................................................... 14 7. Radiated Emissions ............................................................................................. 15 7.1 Block Diagram Of Test Setup .............................................................................. 15 7.2 Limit .................................................................................................................... 16 7.3 Test Procedure ................................................................................................... 17 7.4 EUT Operating Conditions .................................................................................. 18 7.5 Test Result .......................................................................................................... 18 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 23 8.1 Block Diagram Of Test Setup .............................................................................. 23 8.2 Limit .................................................................................................................... 23 8.3 Test Procedure ................................................................................................... 24 8.4 EUT operating Conditions ................................................................................... 24 8.5 Test Result .......................................................................................................... 25 9. Power Spectral Density Test ............................................................................... 26 9.1 Block Diagram Of Test Setup .............................................................................. 26 9.2 Limit .................................................................................................................... 26 9.3 Test Procedure ................................................................................................... 26 9.4 EUT Operating Conditions .................................................................................. 26 9.5 Test Result ............................................................…
