A7M-RST17425W 2N1 Wireless Charger

Place your smartphone on the Qi2.2 magnetic wireless module (1); charging will begin automatically once properly aligned. For earbuds that support the DPP protocol, place the charging case on wireless output (2), and charging will start automatically. To achieve fast charging, ensure you are using a charger that is capable of fast charging. Some cases may interfere with wireless charging if they contain metallic material or are overly thick. 5.Caution Please read all warnings for your safety and optimal user experience. Please r ead and follow these instructions carefully and retain for your records. 1 . Always disconnect the device when not in use. 2 . Do not use if broken or damaged, or if exposed to liquid. 3 . Not to be used where the ambient temperature exceeds 40°C/105°F. 4 . Do not use with damaged or faulty cables/accessories. 5 . Do not place near any sources of heat, open flame, liquid. 6 . Do not use with power extension cords, use only in wall socket. 7 . Designed for indoor use only. 8 . Use a dry cloth to clean the product. 9 . There should be clear space around the product, not touching other material to avoid overheating. Smartphones Compatible with iPhone 17, iPhone 17 Pro, iPhone 17 Pro Max, iPhone 17 Air, iPhone 16, iPhone 16 Pro, iPhone 16 Pro Max, iPhone 16 Plus iPhone 15, iPhone 15 Pro, iPhone 15 Pro Max, iPhone 15 Plus
iPhone 14, iPhone 14 Pro, iPhone 14 Pro Max, iPhone 14 Plus, iPhone 13, iPhone 13 Pro, iPhone 13 Pro Max, iPhone 13 mini, iPhone 12, iPhone 12 Pro, iPhone 12 Pro Max, iPhone 12 mini
iPhone SE (2nd generation) (Note: Magnetic charging is only available on the iPhone 12/13/14/15/16/ 17 series; other models require a magnetic ring for magnetic charging) Earphones Compatible with AirPods 2 (with wireless charging case)/AirPods 3/ AirPods 4/AirPods Pro/AirPods Pro 2 (compatible with AirPods cases A3059, A2968, A2700, A2566, A2190 and A1938); Not compatible with AirPods charging cases: A3058, A2897, A1602); Soundcore Liberty Air 2, Air 2 Pro, Air 2 Pro (compatible with all wireless charging earbuds) 2. Product Specifications Item Name: 25W 2 in 1 wireless charger Item Number: RST174 Size: 125.65*75.33*89.80mm Weight: 349 g Input: 15V-3.0A Output 1: Qi2.2 Module 25.0W Max Output 2: Airpods 5.0W Max Operating Frequency: 110K-205KHz 360KHZ Material: PC+ABS PD Input: 100-240V~,50/60Hz 1.0A PD MaxOutput: 5.0V/3.0A, 9.0V/3.0A, 12.0/3.0A, 15.0V/2.66A, 20.0V/2.0A PD Total Output: 40W Max Cable：60w 3f 3.Production Introduction This Qi2.2 2-in-1 wireless charger is designed to power your daily essentials with ease and efficiency. It delivers fast, stable charging for both your smartphone and earbuds simultaneously, with precise magnetic alignment for a secure connection. Featuring advanced safety protection and broad compatibility, it offers a reliable and clutter-free charging experience at home, in the office, or on the go. 4.Charge Your Device Wirelessly Connect the charging port (3) to a power source using the included cable and adapter, then plug it into a wall outlet or power strip. 1.
Compatible devices Q1: Why is my phone not charging? Alignment: Ensure the phone is centered on the charging induction area. Phone Case: Remove heavy cases (>3mm) or those containing metal/magnets. Power Supply: Ensure the charger is connected to a live power source. Q2: Is it normal for the charger to get warm? Yes, it is a normal physical phenomenon for the induction coils to generate heat during energy transfer. Our product features built-in over-temperature protection for your safety. Q3: Why is the charging intermittent? Adapter Power: Please use a QC3.0 or PD fast charger (18W+). Insufficient power from a standard 5V/1A adapter may cause instability. Positioning: Poor electromagnetic induction due to off-center placement can cause disconnects. Please realign the device. Q4: Why is the charging speed slow? Device Limitation: Charging speed varies depending on the maximum wireless input supported by your smartphone. Background Usage: If the phone is running high-power apps or GPS during charging, the speed will be significantly reduced. 6.
Q&A After-sales service: Please scan this QR code with your mobile phone camera to activate your warranty service. RFYRST174 2 in 1 25W 2 IN 1 Wireless Charger Instruction Manual The Qi2 logo is a trademark of the Wireless Power Consortium. 1 . iPhone wireless charge module（wireless output-1） 2 . AirPods wireless charge Spot （wireless output-2） 3 . DC Input Port 1 2 3 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician fo…

Text truncated - open the document above for the full version.

1/1 USAgentforServiceofProcessLETTEROFATTESTATION TO: OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USAgentforServiceofProcess: CompanyName:HOPEKCORPORATIONINC Address:16755CoyoteBushDrUnit84,SanDiego,CA92127UnitedStates FRN:0034562900 ContactName:YangyangXu TelephoneNo:(561)875-9826 E-mail:[email protected] ThisletteristoconfirmthattheUSAgentforServiceofProcessacceptsresponsibilitytoactas alocalrepresentativeonbehalfofShenzhenReflyingElectronicCo.,Ltd. TheUSAgentforServiceofProcessisawareofandagreestocomplywiththerequirements outlinedintheFCCEquipmentAuthorizationProgram,ReportandOrderFCC22-84,andclause §2.911. Applicant: CompanyName:ShenzhenReflyingElectronicCo.,Ltd. ProductDescription:25W2N1WirelessCharger FRN:0021357322 GranteeCode:A7M FCCID:A7M-RST174 ContactName:WenLuo Address:6Bldg.,GaoxinjianIndustrialZone,HepingVillag,FuyongTown,Bao’anDistrict, Shenzhen,Guangdong,China TelephoneNo:(86)755-26718925 E-mail:[email protected] TheApplicantisawareofandagreestocomplywiththerequirementsoutlinedintheFCC EquipmentAuthorizationProgram,ReportandOrderFCC22-84,andclause§2.911. ThisAgreementisvaliduntil(Permanentlyvalid). Date:2026/5/29 Applicant’sName: ShenzhenReflyingElectronicCo.,Ltd. USAgentforServiceofProcess’sName: HOPEKCORPORATIONINC Title:ManagerTitle:Manager SignatureSignature

Rev 1/26/2023 Shenzhen Reflying Electronic Co., Ltd. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: May 26, 2026 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: A7M-RST174 [Shenzhen Reflying Electronic Co., Ltd.] certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. [Shenzhen Reflying Electronic Co., Ltd.] certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Device is inherently compliant based on hardware limitations or software controls. or A Software Bill of Materials (SBOM) is provided to the TCB for review, and The end-user or third parties cannot install additional software on this device. Sincerely, (Applicant signature) (Applicant printed name) Wen Luo Rev 1/26/2023 Shenzhen Reflying Electronic Co., Ltd. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: May 26, 2026 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: A7M-RST174 [Shenzhen Reflying Electronic Co., Ltd.] certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Wen Luo

Shenzhen Reflying Electronic Co., Ltd. Family models declaration letter May 26, 2026 We Shenzhen Reflying Electronic Co., Ltd. Of 6 Bldg., Gaoxinjian Industrial Zone, Heping Villag, Fuyong Town, Bao’an District, Shenzhen, Guangdong, China Declare under our sole responsibility that the product FCC ID: A7M-RST174 Product: 25W 2N1 Wireless Charger Model Number: RST174, RFYRST174 All the models are the same circuit and module, except the model No.. Wen Luo/ Manager E-mail : [email protected] Phone : (86) 755-26718925 Fax : (86) 755-26718815 Address : 6 Bldg., Gaoxinjian Industrial Zone, Heping Villag, Fuyong Town, Bao’an District, Shenzhen, Guangdong, China

Shenzhen Reflying Electronic Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: May 29, 2026 Subject; Request for Confidentiality FCC ID: A7M-RST174 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirements for UNII devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Wen Luo Title: Manager

Effective Date: April 2, 2020 QSF 7.6.4-8 – Agent Authorization Letter Template Page 1 of 1 Revision Date: Revision: 0 Shenzhen Reflying Electronic Co., Ltd. Date: May 26, 2026 Product Model Number: RST174, RFYRST174 FCC ID: A7M-RST174 To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following:  Testing  Approval applications and procedures We declare that QAI Laboratories Ltd. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by QAI Laboratories Ltd. on our behalf shall have the same effect as acts of our own. By: Contact Listed on FCC Wesbite Title: Manager Email: [email protected] Telephone: (86) 755-26718925 On behalf of: Shenzhen Reflying Electronic Co., Ltd.

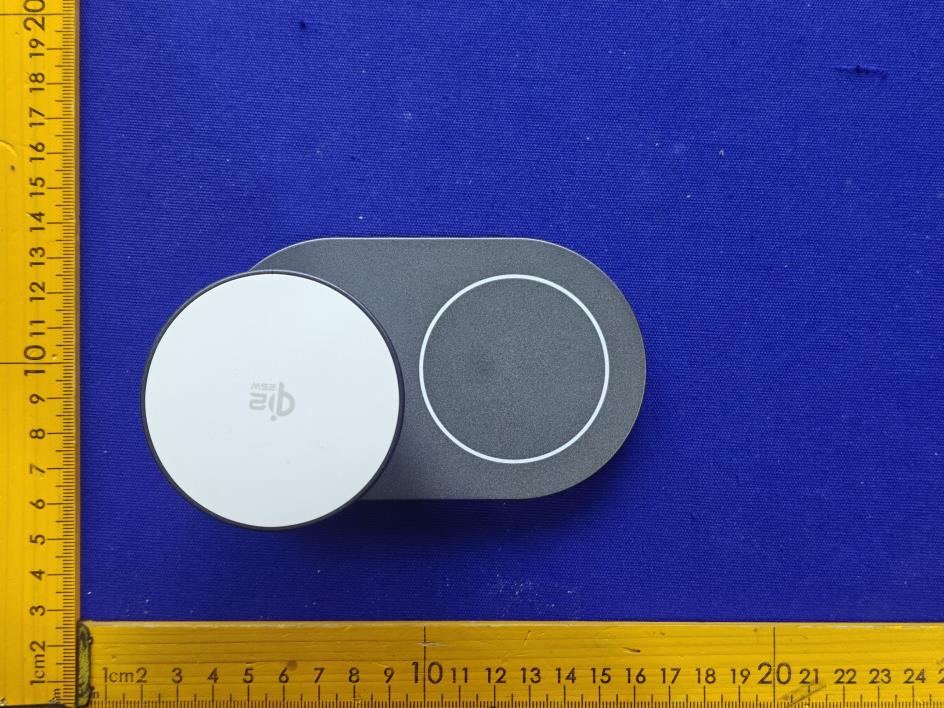

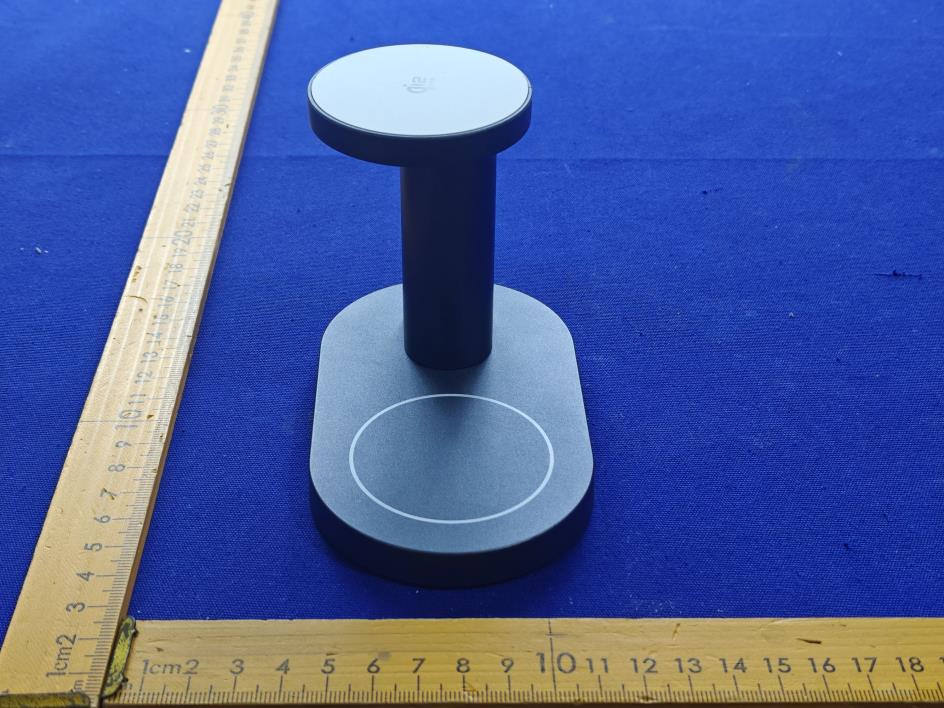

Ext Photos Model: RST174 Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7

DATE:2025.9.25 RST174 (Gun Gray) Screen printing position: concentric circles aligned Screen printing dimensions: Outer diameter: 54.00mm, Inner diameter: 52.00mm Process Grey color code: White ：silk-screen 54.0052.00 Screen printing position: Align top, bottom, left and right within the circle. Screen printing position: aligned top, bottom, left and right Screen printing size: 31.25 x 16.00 mm Process Grey color code: White ：silk-screen 16.00 31.25 Screen printing size: 10.22 x 9.00 mm Process Grey color code: Cold Grey 2C ：silk-screen 9.00 10.22 89.80 127.00 76.00

Int Photos Model: RST174 Photo 1 Photo 2 AirPods ANT Photo 3 Photo 4 Phone ANT Photo 5 Photo 6

- Page 1 of 12 - Report No.: HB20260506001E-02 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com RF EXPOSURE Test Report Product: 25W 2N1 Wireless Charger Trade Mark: Reflying, Mangotek Model Number: RST174 FCC ID: A7M-RST174 Prepared for Shenzhen Reflying Electronic Co., Ltd. 6 Bldg., Gaoxinjian Industrial Zone, Heping Villag, Fuyong Town, Bao’an District, Shenzhen, Guangdong, China Prepared by Shenzhen HongBiao Certification& Testing Co., Ltd Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen, China Tel.: +86-755-2998 9321 Fax.: +86-755-2998 5110 Website: http://www.sz-hongbiao.com - Page 2 of 12 - Report No.: HB20260506001E-02 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Table of Contents 1 GENERAL DESCRIPTION ..................................................................................................................................... 5 1.1 DESCRIPTION OF EUT ................................................................................................................................................ 5 1.2 TEST MODE .............................................................................................................................................................. 5 1.3 TEST SETUP .............................................................................................................................................................. 5 1.4 ANCILLARY EQUIPMENT .............................................................................................................................................. 6 2 TEST FACILITIES AND ACCREDITATIONS .............................................................................................................. 7 2.1 TEST LABORATORY ..................................................................................................................................................... 7 2.2 ENVIRONMENTAL CONDITIONS ..................................................................................................................................... 7 2.3 MEASUREMENT UNCERTAINTY ..................................................................................................................................... 7 2.4 TEST SOFTWARE ........................................................................................................................................................ 7 3 LIST OF TEST EQUIPMENT .................................................................................................................................. 8 4 RF EXPOSURE..................................................................................................................................................... 9 4.1 MAXIMUM PERMISSIBLE EXPOSURE .............................................................................................................................. 9 4.1.1. Limit ............................................................................................................................................................ 9 4.1.2. Test Procedures ........................................................................................................................................... 9 4.1.3. Test Setup .................................................................................................................................................... 9 4.1.4. Test Result ................................................................................................................................................... 9 5 PHOTOGRAPHS OF THE TEST SETUP ..................................................................................................................12 - Page 3 of 12 - Report No.: HB20260506001E-02 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com TEST RESULT CERTIFICATION Applicant’s Name ................. : Shenzhen Reflying Electronic Co., Ltd. Address ................................. : 6 Bldg., Gaoxinjian Industrial Zone, Heping Villag, Fuyong Town, Bao’an District, Shenzhen, Guangdong, China Manufacturer's Name .......... : Shenzhen Reflying Electronic Co., Ltd. Address ................................. : 6 Bldg., Gaoxinjian Industrial Zone, Heping Villag, Fuyong Town, Bao’an District, Shenzhen, Guangdong, China Product description Product name ........................ : 25W 2N1 Wireless Charger Model Number ....................... : RST174 Standards ............................. : FCC CFR 47 PART 1 , 1.1310 Test procedure ....................... : KDB 680106 D01 Wireless Power Transfer v04 This device described above has been tested by Shenzhen HongBiao Certification& Testing Co., Ltd and the test results show that the equipment under test (EUT) is in compliance with the EMC requirements. And it is applicable only to the tested sample identified in the report. Date of Test ........................................... : Date (s) of performance of tests ............. : May 13, 2026~May 26, 2026 Test Result .............................................. : Pass Testing Engineer : ( Z o e Su) Technical Manager : (M i n g L i u) Authorized Signatory : (L e o S u) - Page 4 of 12 - Report No.: HB20260506001E-02 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Revision Hist…

Text truncated - open the document above for the full version.

Page1 of 4 Dongguan FANYA Electronics Co., LTD 东莞市泛亚电子有限公司 TEL：0769-22490287 FAX：0769-22499451FY-GZ001 承認書 SPECIFICATION FOR APPROVAL 客戶： CUSTOMER: 706 客戶料號： CUST P/N: 泛亞料號： FINE P/N: FYD706046 産品型號： DESC: FYD7062025031301 日期： DATE: 2025/03/13 版本： Version: CUSTOMER AUTHORIZED SIGNATURE/客户承认签核 擬制 PREPARED BY 審核 CHECKED BY 批准 APPROVED BY P eng Tingyi W ei Bingfu H u Wei 东莞市泛亚电子有限公司 Dongguan FANYA Electronics Co., LTD Address: No. 194, Science and Technology East Road, Liuwu Town, Shijie District, Dongguan City TEL：0769-22490287 / 22452492 FAX：0769-22499451 E-mail ： [email protected] Page3 of 4 Dongguan FANYA Electronics Co., LTD 东莞市泛亚电子有限公司 TEL：0769-22490287 FAX：0769-22499451FY-GZ001 SPECIFICATION 産品型號： DESC FYD7062025031301 版本 Rev：A.0 客戶CUST: 706 泛亚料号Fine P/N： FYD706046 客户料号CUST P/N: 一、尺寸DIMENSION:(mm) 二、原理图SCHEMATIC DIAGRAM: A21.46±0.5 B39.3±0.5 C41.5±0.4 D30±1 E0.8±0.2 F 1.9±0.2 G 2 .5Max Note ： 1 . The leads do not cross the outlets a nd do not need to be bent. 2 . The coil is placed with the opposite side facing the magnetic sheet. The size of the magnetic sheet i s Φ41.5 * 5 * 1.0 mm. It has an opening with L double-line slots, and a φ 20mm * 0.75 small magnetic sheet is attached in the middle. 3. On one side of the magnetic sheet, t here is a φ40 * 0.08mm ordinary double-sided adhesive tape with a t ear-off position. On one side of the small magnetic sheet, there is a φ15 * 0.08mm ordinary adhesive tape with a t ear-off position. 三、绕线参数Winding Specification: 序号 NO. 端子 TERMINAL 线径 WIRE 圈数 Turns 绕线方向 Winding Direction 1SF Litz0.08*65p 11TsCW 四、电气特性ELECTRICAL CHARACTERISTICS: 温度TEMPERATURE:25±10°C,湿度RELATIVE HUMIDITY:65±20% 序号 NO. 项目 ITEM 端子 TERMINAL 标准 SPECIFICATION 测试条件 TEST FREQUENCY 测试仪器 TEST EQUIPMENTS 1IND.S-F8.4 u H ±5%100KHz/1.0VTH2810 2DCR S-F≤70mΩ 25°C TH2810 3 operating temperature S-F80°Cmax 4Q值S-F 65 min 100KHz/1.0VTH2810 擬制 / 日期 PREPARED BY/DATE 審核 / 日期 CHECKED BY/DATE Peng Tingyi 2025/03/13 Page4 of 4 Dongguan FANYA Electronics Co., LTD 东莞市泛亚电子有限公司 TEL：0769-22490287 FAX：0769-22499451FY-GZ001 SPECIFICATION 産品型號： DESC FYD7062025031301 版本 Rev：A.0 客戶CUST: 706 泛亚料号Fine P/N： FYD706046 客户料号CUST P/N: 五、包装PACKONG: 5.1包装图片Packing pictures: 5.2包装数量及规格Packing Quantity: 5.3包装以现有包装盘为参照标准，以实际出货包装为准,如有特需要求可以定制。 The packaging shall be based on the existing packing plate and the actual delivery package shall prevail. If there is any requirement, we can customize it. 六、材料清单Material list: 序号 number 材料名称 Material name 品名描述 Description 制造商 Manufacturer 1 Litz0.08*65pLitz0.08*65p 2 L ead-free tin rod L ead-free tin rod 3 m agnetic sheet Φ 41.5 * 5 * 1.0mm opening, length of L, double-line slot 4 S mall magnetic disk Φ20mm*0.75 5 g um φ 40*0.08mm with detachable adhesive on both sides, ordinary double-sided adhesive backing 6 C ommon adhesive tape φ 15*0.08 with ordinary adhesive backing 7 g lue 8536 项目Item数量Quantity材料规格Material 盒Box 224Pcs 380*270*45mm 112格 箱Big Carton 1120 Pcs420*280*310mm 擬制 / 日期 PREPARED BY/DATE 審核 / 日期 CHECKED BY/DATE Peng Tingyi 2025/03/13 Hu Wei 2025/03/13

- Page 1 of 32 - Report No.: HB20260506001E-01 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Test Report Product: 25W 2N1 Wireless Charger Trade Mark: Reflying, Mangotek Model Number: RST174 FCC ID: A7M-RST174 Prepared for Shenzhen Reflying Electronic Co., Ltd. 6 Bldg., Gaoxinjian Industrial Zone, Heping Villag, Fuyong Town, Bao'an District, Shenzhen, Guangdong, China Prepared by Shenzhen HongBiao Certification& Testing Co., Ltd Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen, China Tel.: +86-755-2998 9321 Fax.: +86-755-2998 5110 Website: http://www.sz-hongbiao.com - Page 2 of 32 - Report No.: HB20260506001E-01 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Table of Contents 1 GENERAL DESCRIPTION ..................................................................................................................................... 5 1.1 DESCRIPTION OF EUT ................................................................................................................................................ 5 1.2 TEST MODE .............................................................................................................................................................. 5 1.3 TEST SETUP .............................................................................................................................................................. 6 1.4 POWER SETTING CONFIGURATION PARAMETERS ............................................................................................................... 6 1.5 ANCILLARY EQUIPMENT .............................................................................................................................................. 6 2 SUMMARY OF TEST RESULT ............................................................................................................................... 7 3 TEST FACILITIES AND ACCREDITATIONS .............................................................................................................. 8 3.1 TEST LABORATORY ..................................................................................................................................................... 8 3.2 ENVIRONMENTAL CONDITIONS ..................................................................................................................................... 8 3.3 MEASUREMENT UNCERTAINTY ..................................................................................................................................... 8 3.4 TEST SOFTWARE ........................................................................................................................................................ 8 4 LIST OF TEST EQUIPMENT .................................................................................................................................10 5 TEST ITEM AND RESULTS ...................................................................................................................................12 5.1 ANTENNA REQUIREMENT .......................................................................................................................................... 12 5.2 CONDUCTED EMISSION ............................................................................................................................................. 13 5.3 RADIATED EMISSION ................................................................................................................................................ 17 5.4 OCCUPIED BANDWIDTH ............................................................................................................................................ 22 6 PHOTOGRAPHS OF THE TEST SETUP ..................................................................................................................24 7 PHOTOGRAPHS OF THE EUT..............................................................................................................................26 - Page 3 of 32 - Report No.: HB20260506001E-01 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com TEST RESULT CERTIFICATION Applicant’s Name ................. : Shenzhen Reflying Electronic Co., Ltd. Address ................................. : 6 Bldg., Gaoxinjian Industrial Zone, Heping Villag, Fuyong Town, Bao'an District, Shenzhen, Guangdong, China Manufacturer's Name .......... : Shenzhen Reflying Electronic Co., Ltd. Address ................................. : 6 Bldg., Gaoxinjian Industrial Zone, Heping Villag, Fuyong Town, Bao'an District, Shenzhen, Guangdong, China Product description Product name ........................ : 25W 2N1 Wireless Charger Model Number ....................... : RST174 Standards ............................. : FCC Part 15C Test procedure ....................... : IEEE/ANSI C63.10-2020 This device described above has been tested by Shenzhen HongBiao Certification& Testing Co., Ltd and the test results show that the equipment under test (EUT) is in compliance with the EMC requirements. And it is applicable only to the tested sample identified in the report. Date of Test ........................................... : Date (s) of performance of tests ............. : May 13, 2026~May 26, 2026 Test Result .............................................. : Pass Testing Engineer : ( Z o e Su) Technical Manager : (M i n g Liu) Authorized Signatory : (L e o S u) - Page 4 of 32 - Report No.: HB202605…

Text truncated - open the document above for the full version.

Page1 of 5 Dongguan FANYA Electronics Co., LTD 东莞市泛亚电子有限公司TEL：0769-22490287 FAX：0769-22499451 FY-GZ001 承認書 SPECIFICATION FOR APPROVAL 客 戶： CUSTOMER: 客 戶 料 號： CUST P/N: HAJXQ00002 泛 亞 料 號： FINE P/N: 産 品 型 號： DESC: FYS314003 日 期： DATE: 2024/12/20 版 本： Version: A.1 擬制 PREPARED BY 審核 CHECKED BY 批准 APPROVED BY 客戶承認 CUSTOMER APPROVE Peng Tingyi Wei Bingfu Hu Wei 东莞市泛亚电子有限公司 Dongguan FANYA Electronics Co., LTD Company Address: No. 194, Science and Technology East Road, Liuwu Town, Shijie District, Dongguan CityTEL：0769-22490287 / 22452492 FAX：0769-22499451 E-mail：[email protected] Page3 of 5 Dongguan FANYA Electronics Co., LTD 东莞市泛亚电子有限公司 TEL：0769-22490287 FAX：0769-22499451FY-GZ001 SPECIFICATION 産 品 型 號： DESC FYS314003 版本 Rev：A.1 客戶CUST: Romoss 泛亚料号Fine P/N： 客户料号CUST P/N: HAJXQ00002 一、尺寸DIMENSION:(mm) 二、原理图SCHEMATIC DIAGRAM: A 40.0±1.0 B 20.5±0.5 C 0.5±0.1 D 45±2 E 1-4 F 43.5±0.5 G 5±0.5 H 2.0 Max Note： 1. The coils cross and exit the line; 2. The exit position of the coils is covered with 8mm wide and high hot glue; 3. 3. The coils are reversedly attached to the hard magnetic sheet, with the sheet size of φ43.5*5*0.7mm, and double-line slots are opened; 4. 4. The front side of the magnetic sheet is covered with black film, and the back side is attached with φ42*6*0.05mm green 3M55256 self-stick backing tape; 5. 5. The sleeve, black φ1.0mm, length 43±1; 三、绕线参数Winding Specification: 序号 NO. 端子 TERMINAL 线径 WIRE 圈数 Turns 绕线方向 Winding Direction 1SFLitz 0.08*24*2P10TsCCW 四、电气特性ELECTRICAL CHARACTERISTICS:…
