A7M-RWC37Wireless Charging Stand

90x180mm

128G哑粉纸
三折页
双面印刷 www.mangotek.com RWC37 Instruction Manual Mainly for iPhone, Apple Watch, AirPods, USB-C devices and some TWS 3 IN 1 Multi-Function Wireless Charger Station 1 2 3 4 5 6 7 1. Apple Watch Charger Module Pop up Button 2. Airpods 2 pro Wireless Charging Spot 3. Apple Watch Charge Module 4. LED Indicator 5. iPhone Wireless Charging Spot 6. USB-C Output Port 7. DC Input Port Note: There are 2 different kinds of surface treatment for this wireless charger unit, which includes: Black leather with space gray shell Black woven finish with black shell Mangotek Charging station is a 3 in 1 charger solution for your Apple watch, iPhone 11/ 11 Pro or all the other Qi enabled devices, it can charge 3 devices simultaneously, support 7.5W fast charge for iPhone, 10W for Samsung mobile phones, 5W for other Qi enabled devices without wireless fast charger. There is another USB-C port which allows you to wired charge your mobile devices by plugging in a usb c to lightning charging cable or usb c to c charging cable(cable not included in the package) The Apple Watch charging station support night stand mode for your Watch Firstly, Connect the charger station with power electricity by using the included DC adaptor, Plug it in a wall outlet or power strip Secondly, Press the side button, the Apple watch charger module will pop up, place your Apple Watch onto the top of the integrated magnetic charge module, and there you go, it starts charging your Apple watch. Thirdly, Place your mobile devices such as iPhone 11, Samsung Galaxy S10 or AirPods onto the surface of wireless charging area, please remember there is always a best wireless charging spot, if there is no reaction, just adjust the your devices until they are being wireless charged successfully. Fourthly, There is another USB-C port at the back of the charger which allows you to use a USB C to lightning cable or USB C to USB C cable to FAST charge your mobile devices.(cable not included and a certified charging cable is highly recommended) Includes a DC 15 V/3.5A Power Adapter Input: DC 15/ 3.5A Output of USB C PD Charging Port: 5V 3A9V 2A, 12V 1.5A Apple Watch Charger Module: 5V 1A Qi Wireless Fast Charge 10W for Samsung, 7.5W for iPhone Product Size: 178 x 138 x 22mm Operating temperature: 0°C to +25°C Storage temperature: -20°C to +70°C Short Circuit Protection, Open Circuit Protection and Overcurrent protection Charger station's status Power connected/ Waiting for charging Charging Fully charged FOD Color of LED indicator RED light long bright BLUE light breathing RED light long bright RED and BLUE light Flashing Note: There are two cases of FOD: (1). One case is when powered on: This is an error of the Apple Watch Charger module's self-checking, which may be because power supply voltage is too high, the temperature is abnormal, etc. (2). The other case is the error of the working process: it is mainly to detect foreign objects or the temperature is too high 7.5W fast wireless charging: iPhone 11 Pro Max, iPhone 11 Pro, iPhone 11, iPhone XS Max, iPhone XS, iPhone XR, iPhone X, iPhone 8 Plus, iPhone 8 10W fast wireless charging: Samsung Galaxy Note 10/ Note 10 Plus/ S10 /S10 Plus/S10E, Samsung Galaxy S9/ S9 Plus/ S8/S8 Plus, Note 9, Note8, Samsung Galaxy S7/ S7 Edge/ S6 Edge Plus/ Note 5 5W standard wireless charging: Samsung Galaxy S9,S9 Plus, Note8, S8, Samsung S6, S6 Edge, Google Nexus 6 / 4 / 5/ 7(2013), AirPods 2, AirPods Pro Mobile devices wired PD fast chargingOutput 5V 3A9V 2A, 12V 1.5A, cable is not included: iPhone XR/XS/XS Max, iPhone 8/8 Plus, iPhone 7 Plus, iPhone 7, iPhone SE, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPhone 5s, iPad Pro 10.5-inch, iPad Pro 12.9-inch(2nd Generation), iPad Pro 9.7-inch, iPad Pro 12.9-inch(1st Generation), iPad Air(3rd generation), iPad Air 2, iPad Air, iPad mini(5th generation), iPad mini 4, iPad mini 3, iPad mini 2, Pad (7th generation), iPad (6th generation), iPad (5th generation), iPod touch (7th generation), iPod touch (6th generation), AirPods1/2 Apple watch: Apple Watch Series 5, Apple Watch Series 4, Apple Watch Series 3, Apple Watch Series 2, Apple Watch Series 1, Apple Watch (1st generation). Wireless charge station x 1 15V 3.5A DC adaptor x 1 Instruction book x 1 Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could avoid the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the inter…

Text truncated - open the document above for the full version.

Shenzhen Reflying Electronic Co., Ltd. Statement Product Name:WirelessChargingStand Model No.: We( company: Shenzhen Reflying Electronic Co., Ltd., address:6 Bldg., Gaoxinjian Industrial Zone, Heping Villag Fuyong Town, Bao'an District, Shenzhen, Guangdong, China) hereby state that all models above are identical in interior structure, electrical circuits and components, All the model are the same circuit and RF module, except the brand and model No Signature: Name / title: Wen Luo / Manager Tel:(86)755-26718925 Email: [email protected] Date:/2020 RWC37, MWC37 28/6

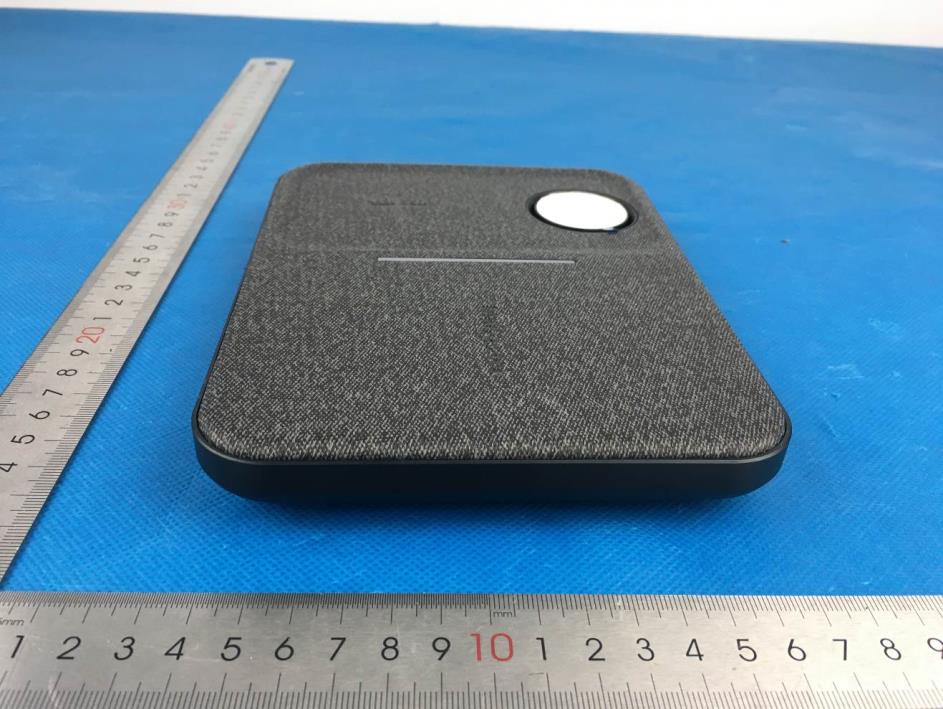

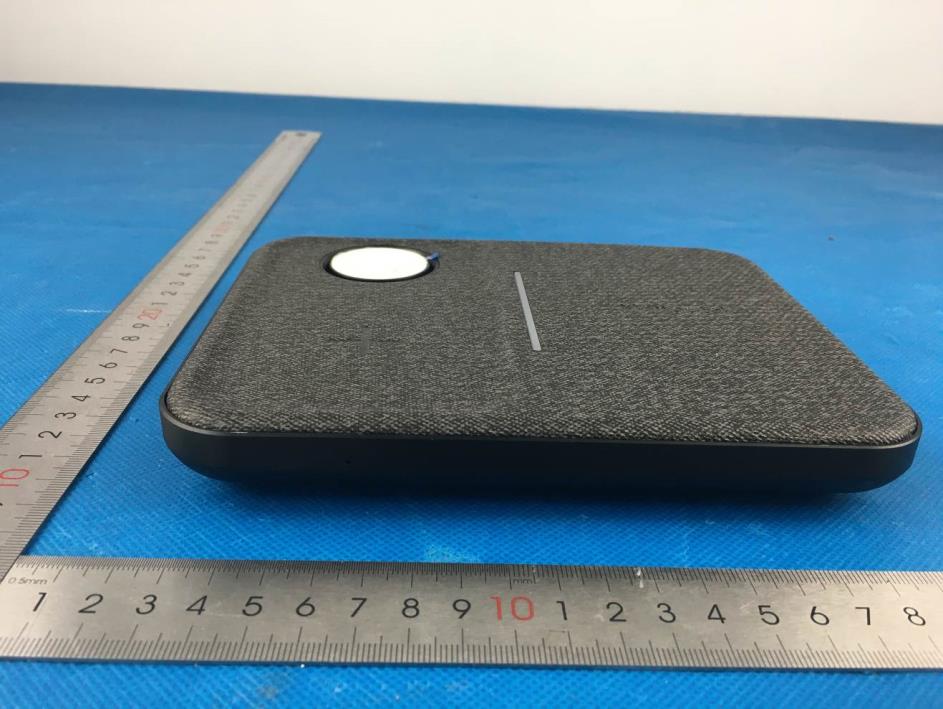

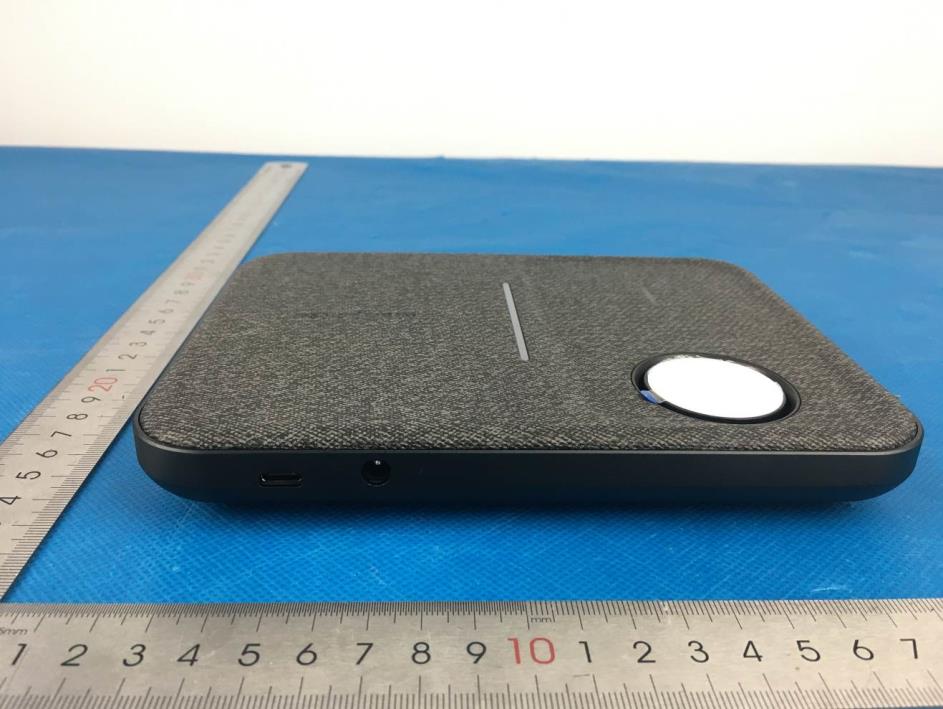

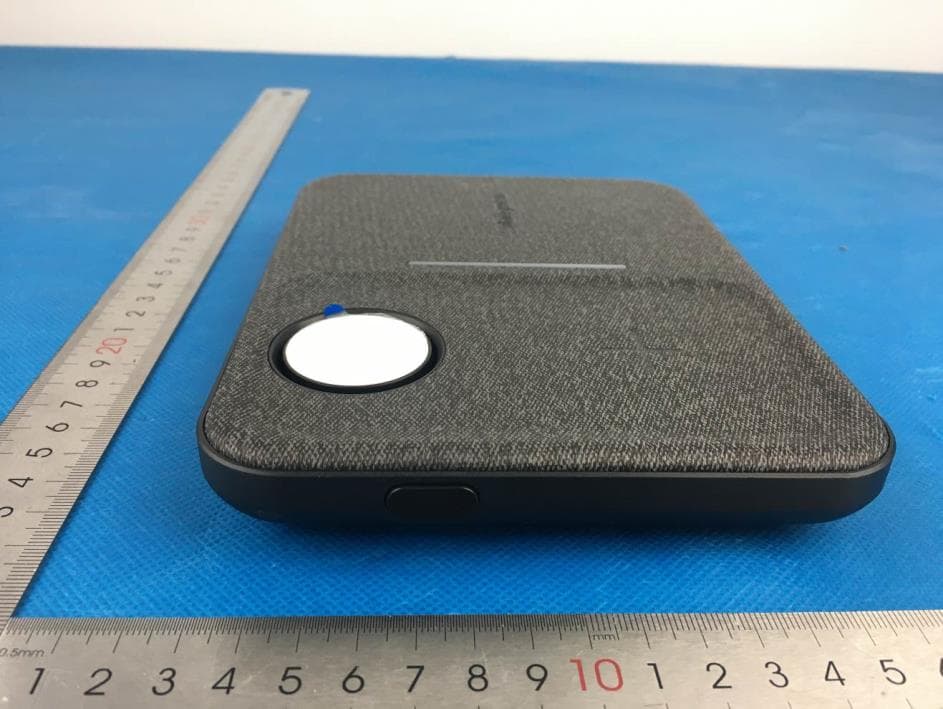

- Page 1 of 3 - Report No.: MTi19112909-9E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: No.102A & 302A, East Block, Hengfang Industrial Park, Xingye Road, Xixiang, Bao'an District, Shenzhen, Guangdong, China APPENDIX 1: EUT PHOTO Photo 1 (For model RWC37) Photo 2 - Page 2 of 3 - Report No.: MTi19112909-9E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: No.102A & 302A, East Block, Hengfang Industrial Park, Xingye Road, Xixiang, Bao'an District, Shenzhen, Guangdong, China Photo 3 Photo 4 - Page 3 of 3 - Report No.: MTi19112909-9E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: No.102A & 302A, East Block, Hengfang Industrial Park, Xingye Road, Xixiang, Bao'an District, Shenzhen, Guangdong, China Photo 5 Photo 6 ----END OF REPORT----

Size:40*25mm

This test report is valid for the tested samples only. It cannot be reproduced except in full without prior written consent of Shenzhen Microtest Co., Ltd. Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: No.102A & 302A, East Block, Hengfang Industrial Park, Xingye Road, Xixiang, Bao'an District, Shenzhen, Guangdong, China EXPOSURE REPORT FCC ID:A7M-RWC37 Date of issue: June 24, 2020 Report Number: MTi19112909-9E2 Sample Description: Wireless Charging Stand Mo d e l( s ) : RWC37, MWC37 Applicant: Shenzhen Reflying Electronic Co., Ltd. Address: 6 Bldg., Gaoxinjian Industrial Zone, Heping Villag Fuyong Town, Bao'an District, Shenzhen, Guangdong, China Date of Test: June 02, 2020 – June 19, 2020 Shenzhen Microtest Co., Ltd. http://www.mtitest.com - Page 2 of 9 - Report No.: MTi20011306-1E2 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: No.102A & 302A, East Block, Hengfang Industrial Park, Xingye Road, Xixiang, Bao'an District, Shenzhen, Guangdong, China Test Result Certification Applicant’s name: Shenzhen Reflying Electronic Co., Ltd. Address: 6 Bldg., Gaoxinjian Industrial Zone, Heping Villag Fuyong Town, Bao'an District, Shenzhen, Guangdong, China Manufacture's name: Shenzhen Reflying Electronic Co., Ltd. Address: 6 Bldg., Gaoxinjian Industrial Zone, Heping Villag Fuyong Town, Bao'an District, Shenzhen, Guangdong, China Product name: Wireless Charging Stand Trademark: Reflying, Mangotek Model name: RWC37, MWC37 Standard: FCC CFR 47 PART 1 , 1.1310 RF Exposure Procedures: KDB 680106 D01 RF Exposure Wireless Charging App v03 This device described above has been tested by Shenzhen Microtest Co., Ltd. and the test results show that the equipment under test (EUT) compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. Tested by: Demi Mu June 19, 2020 Reviewed by: Leo Su June 24, 2020 Approved by: Tom Xue June 24, 2020 - Page 3 of 9 - Report No.: MTi20011306-1E2 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: No.102A & 302A, East Block, Hengfang Industrial Park, Xingye Road, Xixiang, Bao'an District, Shenzhen, Guangdong, China 1 General Information 1.1 Description of EUT Product name: Wireless Charging Stand Brand name: Reflying, Mangotek Model name: RWC37 Series model: MWC37 Deference in serial model: All the model are the same circuit and RF module, except the brand and model No.. Operation frequency: 115–205 kHz Operational mode: Wireless charging Modulation type: ASK Antenna type: Coil Antenna Power source: DC 15V from adapter AC 120V/60Hz Battery: N/A Adapter information: N/A 1.2 Ancillary equipment list Equipment Model S/N Manufacturer Adapter A653-1503500I / ShenZhen Xinspower Technology Co., Ltd Mobile phone S9+ / SAMSUNG AirPods / / APPLE Apple Watch / / APPLE 1.3 Measurement uncertainty Measurement Uncertainty for a Level of Confidence of 95 %, U=2xUc(y) Radiated emission(150kHz~30MHz) ± 2.5 dB Radiated emission(30MHz~1GHz) ± 4.2 dB Radiated emission (above 1GHz) ± 4.3 dB Temperature ±1 degree Humidity ± 5 % - Page 4 of 9 - Report No.: MTi20011306-1E2 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: No.102A & 302A, East Block, Hengfang Industrial Park, Xingye Road, Xixiang, Bao'an District, Shenzhen, Guangdong, China 2 Testing site Test Site Shenzhen Microtest Co., Ltd Test Site Location No.102A & 302A, East Block, Hengfang Industrial Park, Xingye Road, Xixiang, Bao'an District, Shenzhen, Guangdong, China FCC Registration No.: 448573 - Page 5 of 9 - Report No.: MTi20011306-1E2 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: No.102A & 302A, East Block, Hengfang Industrial Park, Xingye Road, Xixiang, Bao'an District, Shenzhen, Guangdong, China 3 List of test equipment Equipment No. Equipment Name Manufacturer Model Serial No. Calibration date Due date MTI-E068 Broadband Field Meter Narda Safety Test Solutions GmbH NBM- 520 D-1699 2019/07/13 2020/07/12 MTI-E069 Probe E-Field Narda Safety Test Solutions EF0691 H-0571 2019/07/13 2020/07/12 - Page 6 of 9 - Report No.: MTi20011306-1E2 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: No.102A & 302A, East Block, Hengfang Industrial Park, Xingye Road, Xixiang, Bao'an District, Shenzhen, Guangdong, China 4 Test Results 4.4 Maximum permissible exposure 4.4.1 Limit Frequency range(MHz) Electric field strength(V/m) Magnetic field strength(A/m) Power density(mW/cm2) Averaging time(minutes) (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 *100 6 3.0-30 1842/f 4.89/f *900/f 2 6 30-300 61.4 0.163 1.0 6 6 300-1500 f/300 6 1500-100000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *100 30 1.34-30 824/f 2.19/f *180/f 2 30 30-300 27.5 0.073 0.2 30 300-1500 f/1500 30 1500-100000 1 30 f = frequency in MHz * = Plane-wave equivalent power density 4.4.2 Test Procedures E and H-field measurements should be made with the center of the probe at a distance of 15 cm surrounding the device and 20 cm above the top surface of the primary/client pair. These measurements should be repeated for three different client battery levels, 1%, 50%, and 99%. Record the test results. KDB 680106 D01 RF Exposure Wireless Charging App v03: (1) Power transfer frequency is less than 1MHz. (2) Output power from each primary coil is less than or equal to 15 watts. (3) The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils. (4) Client device is placed directly in contact with the transmitter. (5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). …
