A7MRIP2-18BLUETOOTH KEYBOARD

Micro USB female 4054 reducevoltage lithiumbattery power on/off power stabilivolt trigger gate memory device keyboardmatrix antenna crystal frequency 24MHZ bluetooth mode charging LED indication Modular Diagram

Shenzhen Reflying Electronic Co., Ltd. FCC ID: A7MRIP2-18 POWER OF ATTORNEY December 29, 2011 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf shall have the same effect as acts of our own. This authorization expires on December 28, 2012. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Shenzhen Reflying Electronic Co., Ltd., are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Shenzhen Reflying Electronic Co., Ltd. ------------------------- Wen Luo / Manager

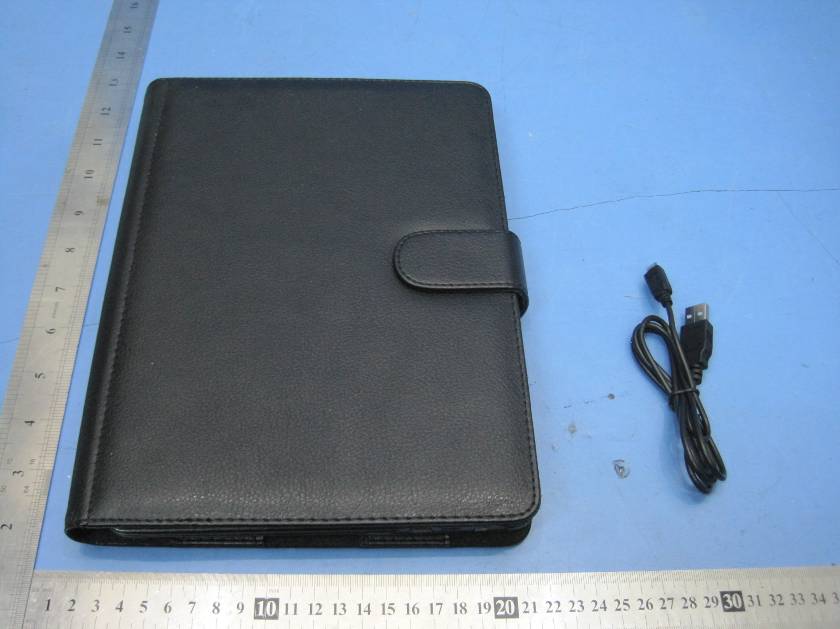

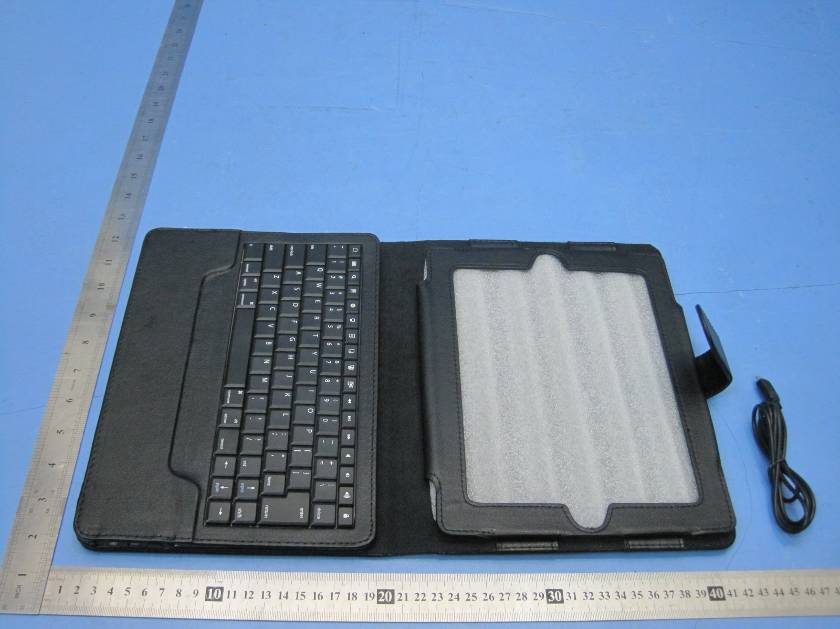

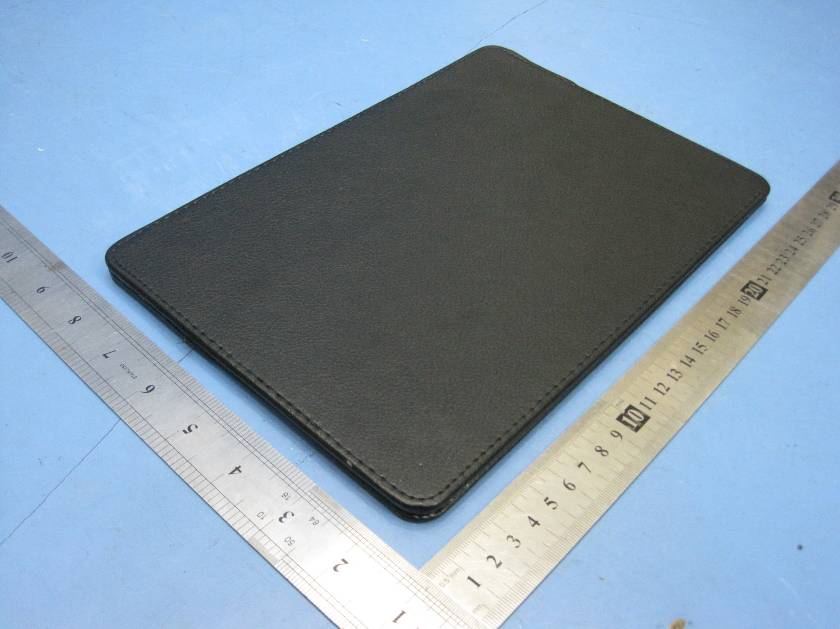

2.1 Product View 2.2 EUT – Appearance View

Shenzhen Reflying Electronic Co., Ltd. FCC ID: A7MRIP2-18 FCC Label This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT EUT Back View/ proposed FCC Label Location FCC ID: A7MRIP2-18 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID Label Sample for Model: RIP2-18, KB-6119 FCC ID: A7MRIP2-18 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

2.1 EUT – Open View 2.2 EUT – PCB View

Circuit Description Bluetooth Keyboard Pairing 1. Power charge battery inside keyboard will by connecti ng USB (for charging only) to 5V voltage output which will be reduced to 4.2V by 4054. 2. Power Bluetooth IC via stab ilivolt 2.8V when powered on. 3. Press the Connect button. The two Power LED will light, indicating that the keyboard is ready to be connected to the iPad. 4. Turn on and unlock the iPad, then click on the Settings icon on the screen to display the Settings menu. 5. On the Settings menu, select General to display the Bluetooth options, then click “B luetooth” to activate the connection. The iPad will automatically search for a Bluet ooth-enabled device and display a Bluetooth screen. 6. When “Bluetooth Keyboard” displays in the De vices field, click on it to connect. 7. On the Bluetooth Keyboar d, enter the passkey that displays (sampl e shown), then press <E nter> or <Return>. 8. “Connected” should now display in the Devices fiel d, and the Power LED should remain lit until the keyboard is turned off.

123456 A B C D 654321 D C B A Title NumberRevisionSize B Date:9-Dec-2011 Sheet of File:F:\新资料\PCB\蓝牙接收板\BLUE-02.DDBDrawn By: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 1819202122232425 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 434445464748 U1 Blue_Model A0 1 A1 2 A2 3 GND 4 SDA 5 SCL 6 WP 7 VCC 8 U4 FM24C64 C1 10nF Q1 3356 R11 75K R12 100K C9 NC C6 10uF C7 10uF ANT1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 CN1 CON26 C0 C1 C2 C3 C4 C5 C6 C7 S0 S1 S2 S3 S4 S5 S6 S7 S8 S9 S10 S11 S12 S13 S14 S15 C0 C1C2C3C4C5 C6 C7 S0 S1 S2 S3 S4 S5 S6 S7S8S9 S10 S11 S12 S13 S14 S15 SW2 connect SCL SDA D+ D- LED WP SCL SDA WP R16 10K R15 10K R14 10K V18 V18 V18 D? LED LED2 LED 1 2 3 4 5 J? USB CHRG 1 GND 2 BAT 3 VCC 4 PROG 5 U2 TP4055 R4 2K R3 10K D+ D- CHARG BAT1 3.7V C2 NC SW2 POWER C3 100nF VIN 1 GND 2 MODE 3 VOUT 4 LX 5 U3 CE8509 L1 2.2uH C4 10uF V18 C8 100nF R10 2K R9 10K LED VBAT VBAT VBAT R8 2K Q5 3357 R6 10K R5 10K CHARG VCC VCC R17 0R R17 0R R21 0R 24MHZ PDF created with pdfFactory Pro trial version www.pdffactory.com

Page: 1 of 51 FCC TEST REPORT The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT11126956-E-E-F FCC ID : A7MRIP2-18 Applicant : Shenzhen Reflying Electronic Co., Ltd. Address : 6 Bldg, GaoXinJian Industrial zone, HeAn industrial district, HePing village, Fuyong town, Shenzhen, Guangdong, China Equipment Under Test (EUT) : Product Name : Bluetooth Keyboard Model No. : RIP2-18, KB-6119 Standards : FCC CFR47 Part 15 Section 15.247:2009 Date of Test : December 22 ~ December 27, 2011 Date of Issue : December 29, 2011 Test Engineer : Hunk yan / Engineer Reviewed By : Philo zhong / Manager Test Result : PASS Prepared By: Waltek Services (Shenzhen) Co., Ltd. 1/F, Fukangtai Building, West Baima Rd., Songgang Street, Baoan District, Shenzhen 518105, China Tel :+86-755-27553488 Fax:+86-755-27553868 Page: 2 of 51 Shenzhen Reflying Electronic Co., Ltd. FCC ID: A7MRIP2-18 The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT11126956-E-E-F 2 Test Summary Test Items Test Requirement Result Radiated Spurious Emissions (9kHz to 25GHz) 15.205(a) 15.209 15.247(d) PASS Conduct Emission 15.207 PASS 20dB Bandwidth 15.247(a)(1) PASS Maximum Peak Output Power 15.247(b)(1) PASS Frequency Separation 15.247(a)(1) PASS Number of Hopping Frequency 15.247(a)(1)(iii) PASS Dwell time 15.247(a)(1)(iii) PASS Maximum Permissible Exposure (Exposure of Humans to RF Fields) 1.1307(b)(1) PASS Page: 3 of 51 Shenzhen Reflying Electronic Co., Ltd. FCC ID: A7MRIP2-18 The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT11126956-E-E-F 3 Contents Page 1 COVER PAGE ........................................................................................................................................................ 1 2 TEST SUMMARY .................................................................................................................................................. 2 3 CONTENTS............................................................................................................................................................. 3 4 GENERAL INFORMATION ................................................................................................................................ 5 4.1 CLIENT INFORMATION........................................................................................................................................... 5 4.2 GENERAL DESCRIPTION OF E.U.T. ........................................................................................................................ 5 4.3 DETAILS OF E.U.T................................................................................................................................................. 5 4.4 DESCRIPTION OF SUPPORT UNITS.......................................................................................................................... 5 4.5 STANDARDS APPLICABLE FOR TESTING................................................................................................................ 5 4.6 TEST FACILITY...................................................................................................................................................... 6 4.7 TEST LOCATION.................................................................................................................................................... 6 5 EQUIPMENT USED DURING TEST .................................................................................................................. 7 6 CONDUCTED EMISSION .................................................................................................................................... 9 6.1 E.U.T. OPERATION................................................................................................................................................ 9 6.2 EUT SETUP......................................................................................................................................................... 10 6.3 CONDUCTED EMISSION TEST RESULT................................................................................................................. 10 6.4 PHOTOGRAPH – CONDUCTED EMISSION TEST SETUP.......................................................................................... 13 7 RADIATED SPURIOUS EMISSIONS ............................................................................................................... 14 7.1 EUT OPERATION :............................................................................................................................................... 14 7.2 MEASUREMENT UNCERTAINTY........................................................................................................................... 14 7.3 TEST SETUP......................................................................................................................................................... 15 7.4 SPECTRUM ANALYZER SETUP............................................................................................................................. 16 7.5 TEST PROCEDURE................................................................................................................................................ 17 7.6 CORRECTED AMPLITUDE & MARGIN CALCULATION........................................................................................... 17 7.7 SUMMARY OF TEST RESULTS.............................................................................................................................. 18 7.8 PHOTOGRAPH …

Text truncated - open the document above for the full version.

2.1 Photograph – Radiation Spurious Emission Test Setup Below 1GHz Above 1GHz 2.2 Photograph – Conducted Emission Test Setup
