A98-AOX4655Cellular/ PCS GSM and Cellular WCDMA Phone with WLAN, Bluetooth and RFID

Calling Learn calling basics, including handling incoming calls, and in-call operations. Ð Placing Calls Ð Answering Calls Placing Calls In Home Screen, Onscreen dialpad appears. Use onscreen dialpad to enter number. „ Enter city code for landlines. Ringback tone sounds. Wait for receiver to accept call. To end the call Call ends. Answering Calls When call connects Drag right Ta l k . To end the call Call ends. Emergency Location Report Using SoftBank 3G handset for emergency calls (110, 119 or 118) automatically reports handset location to corresponding agency (police, etc.) „ Location Report does not incur registration/transmission fees. „ Location/signal conditions affect positioning accuracy. Always provide location and call purpose. „ Hiding Caller ID (using 184, etc.) cancels Location Report. However, corresponding agency may obtain location information in life threatening situations. „ Location Report is not sent for calls made while outside Japan. Emergency Location Report Cautions Emergency Location Report is not sent in Airplane Mode. Calling Outside Japan Ð International Calling Ð Global Roaming International Calling In Home Screen, Onscreen dialpad appears. Touch & Hold ＋ appears. Omit first 0 from phone numbers when placing international calls „ Do not omit first 0 from phone numbers when dialing Italy (39). Ringback tone sounds. Wait for receiver to accept call to talk. Global Roaming Place calls the same way you would within Japan. „ Do not enter country code or omit first 0 from phone numbers. In Home Screen, Onscreen dialpad appears. Use onscreen dialpad to enter phone number Ringback tone sounds. Wait for receiver to accept call to talk.

2 FCC Regulations This mobile phone complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This mobile phone has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation; if this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

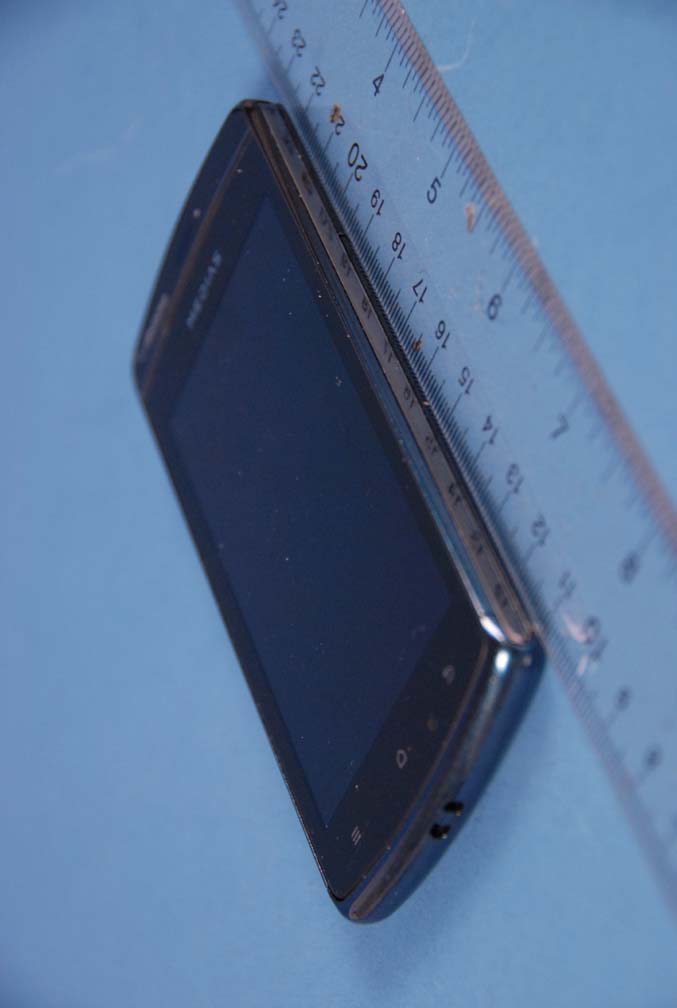

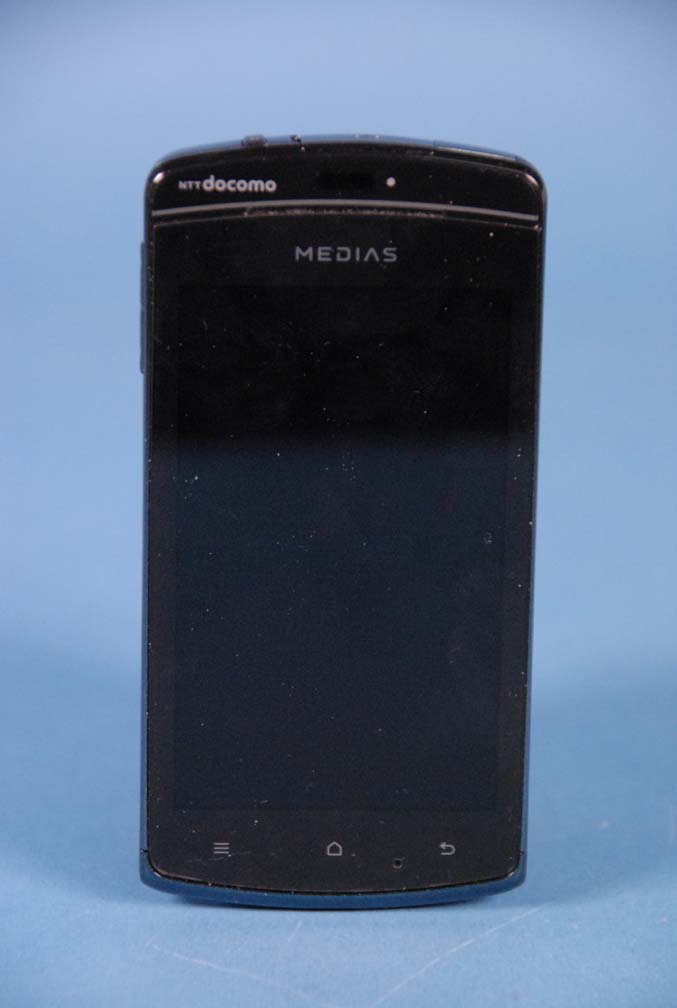

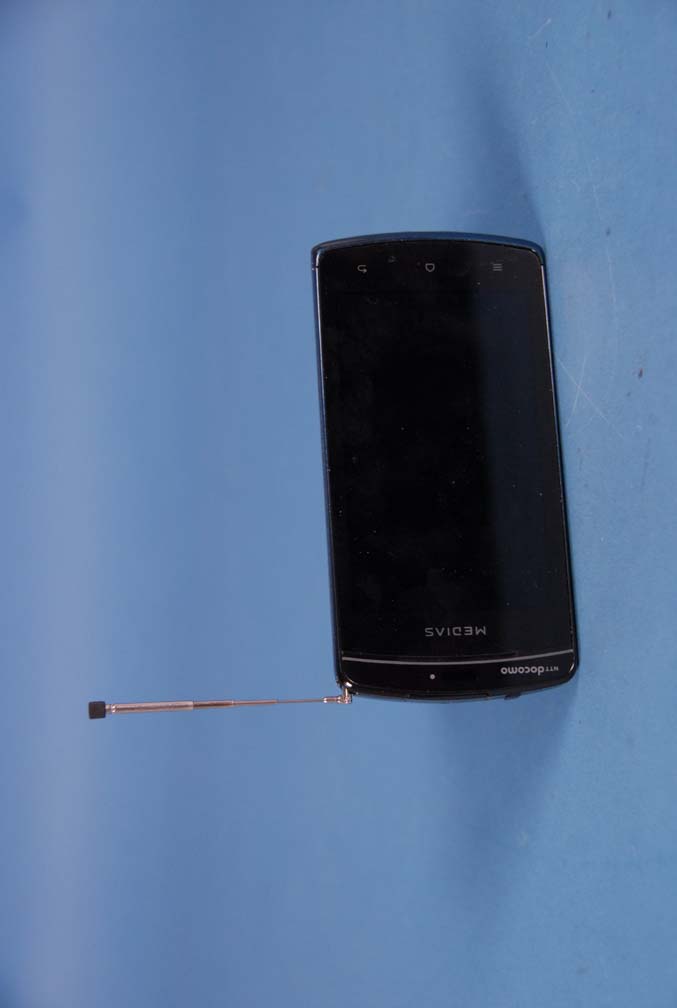

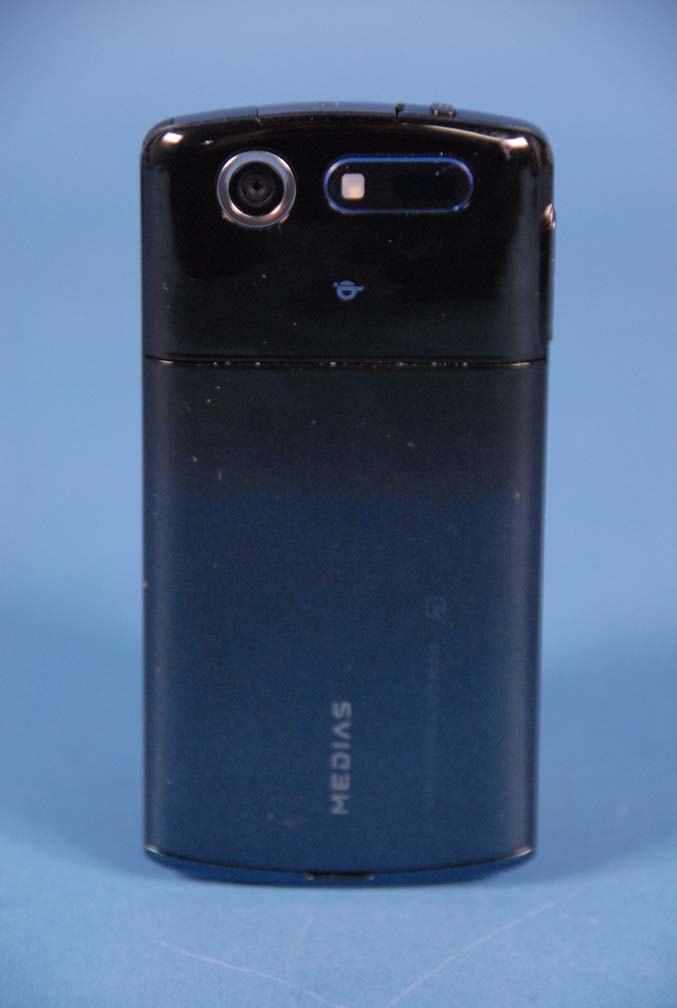

NEC Corporation of America FCC ID: A98-AOX4655 Model: KMP7N4AC1-2A External Photos EUT Type: Portable Handset Page 1 of 5 © 2011 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS NEC Corporation of America FCC ID: A98-AOX4655 Model: KMP7N4AC1-2A External Photos EUT Type: Portable Handset Page 2 of 5 © 2011 PCTEST Engineering Laboratory Inc. NEC Corporation of America FCC ID: A98-AOX4655 Model: KMP7N4AC1-2A External Photos EUT Type: Portable Handset Page 3 of 5 © 2011 PCTEST Engineering Laboratory Inc. NEC Corporation of America FCC ID: A98-AOX4655 Model: KMP7N4AC1-2A External Photos EUT Type: Portable Handset Page 4 of 5 © 2011 PCTEST Engineering Laboratory Inc. NEC Corporation of America FCC ID: A98-AOX4655 Model: KMP7N4AC1-2A External Photos EUT Type: Portable Handset Page 5 of 5 © 2011 PCTEST Engineering Laboratory Inc.

FCC ID Label Placement Label placement Place for battery Rear View of the phoneRear View of the phone IMEI Label Layout Model Name NEC CASIO MOBILE COMMUNICATIONS Confidential Color WLAN Mark Year / Month of Manufactu r Market Name Model Name Product Code Serial Number Barcod e Serial Number Japanese Accreditation Mark Vendor Name MAC Address TELEC Certification NumberJATE Certification Number Applicant / Manufacturer Warning:Please switch off this mobile phone on the airplane.Please do not remove this sticker.

FCC ID: A98-AOX4655 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 1 of 37 0Y1111081937.A98 10/05/11 - 10/10/11 Portable Handset © 2011 PCTEST Engineering Laboratory, Inc. REV 9.4M 09/08/2011 Applicant Name: Date of Testing: NEC Corporation of America 10/05/11 - 10/10/11 Radio Communications Systems Division Test Site/Location: 6535 N. State Highway 161 PCTEST Lab, Columbia, MD, USA Irving, TX 75039-2402 USA Test Report Serial No.: 0Y1111081937.A98 FCC ID: A98-AOX4655 APPLICANT: NEC Corporation of America EUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): Model(s): CFR §2.1093; FCC/OET Bulletin 65 Supplement C [June 2001] KMP7N4AC1- 2A Test Device Serial No.: Pre-Production [S/N: IMEI 004401200650402] 1 gm Head (W/kg) 1 gm Body-Worn (W/kg) 1 gm Hotspot (W/kg) GSM/GPRS 850824.20 - 848.80 MHz33.83 0.570.770.77 WCDMA/HSPA 850826.40 - 846.60 MHz24.610.51 0.790.79 GSM/GPRS 19001850.20 - 1909.80 MHz30.640.19 0.220.23 2.4 GHz WLAN2412 - 2462 MHz13.79 Bluetooth2402 - 2480 MHz2.08 N/A Tx Frequency Conducted Power [dBm] N/A 0.79 W/kg Simultaneous SAR per KDB 690783 DR01: SAR Band & Mode Note: Powers in the above table represent output powers for the SAR test configurations applicable and may not represent the highest output powers for all capabilities. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR COMPLIANCE EVALUATION REPORT FCC ID: A98-AOX4655 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 2 of 37 0Y1111081937.A98 10/05/11 - 10/10/11 Portable Handset © 2011 PCTEST Engineering Laboratory, Inc. REV 9.4M 09/08/2011 TABLE OF CONTENTS 1 INTRODUCTION ............................................................................................................................. 3 2 TEST SITE LOCATION ................................................................................................................... 4 3 SAR MEASUREMENT SETUP ....................................................................................................... 5 4 DASY E-FIELD PROBE SYSTEM .................................................................................................. 7 5 PROBE CALIBRATION PROCESS ................................................................................................ 8 6 PHANTOM AND EQUIVALENT TISSUES ...................................................................................... 9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................... 10 8 DEFINITION OF REFERENCE POINTS ...................................................................................... 11 9 TEST CONFIGURATION POSITIONS ......................................................................................... 12 10 FCC RF EXPOSURE LIMITS ........................................................................................................ 15 11 FCC 3G MEASUREMENT PROCEDURES .................................................................................. 16 12 SAR TESTING WITH IEEE 802.11 TRANSMITTERS .................................................................. 20 13 FCC PERSONAL WIRELESS ROUTER CONFIGURATIONS ..................................................... 22 14 SYSTEM VERIFICATION .............................................................................................................. 24 15 SAR DATA SUMMARY ................................................................................................................. 26 16 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 32 17 EQUIPMENT LIST ......................................................................................................................... 33 18 MEASUREMENT UNCERTAINTIES ............................................................................................ 34 19 CONCLUSION ............................................................................................................................... 35 20 REFERENCES .............................................................................................................................. 36 FCC ID: A98-AOX4655 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 3 of 37 0Y1111081937.A98 10/05/11 - 10/10/11 Portable Handset © 2011 PCTEST Engineering Laboratory, Inc. REV 9.4M 09/08/2011 1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices. [1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American Natio…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A98-AOX4655 FCC Pt. 22/24 GSM/WCDMA MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1111081931.A98 10/04/11-10/05/11 Portable Handset Page 1 of 45 © 2011 PCTEST Engineering Laboratory, Inc. REV 1.4GWCFI 09/15/2011 Applicant Name: Date of Testing: NEC Corporation of America 10/04/11-10/05/11 Radio Communications Systems Division Test Site/Location: 6535 N. State Highway 161 PCTEST Lab., Columbia, MD, USA Irving, TX 75039-2402 USA Test Report Serial No.: 0Y1111081931.A98 FCC ID: A98-AOX4655 APPLICANT: NEC Corporation of America Application Type: Certification FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2; §22(H), §24(E) IC Specification(s): RSS-132 Issue 2; RSS-133 Issue 5 EUT Type: Portable Handset Model(s): KMP7N4AC1-2A IMEI No.: identical prototype [IMEI: 004401200760326] Max. Power (W) Max. Power (dBm) GSM850824.2 - 848.8248KGXW2.03233.08 GSM19001850.2 - 1909.8244KGXW1.19830.79 WCDMA850826.4 - 846.64M15F9W0.11420.55 ERP/EIRP Mode Tx Frequency (MHz) Emission Designator This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22 & 24 / IC RSS-132/RSS-133 Reviewed by: FCC ID: A98-AOX4655 FCC Pt. 22/24 GSM/WCDMA MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1111081931.A98 10/04/11-10/05/11 Portable Handset Page 2 of 45 © 2011 PCTEST Engineering Laboratory, Inc. REV 1.4GWCFI 09/15/2011 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT............................................................................3 1.0 INTRODUCTION ..............................................................................................................................4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY............................................................................................................................. 4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 DEVICE CAPABILITIES....................................................................................................................... 5 2.3 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 2.4 LABELING REQUIREMENTS.............................................................................................................. 5 3.0 DESCRIPTION OF TESTS ..............................................................................................................6 3.1 MEASUREMENT PROCEDURE......................................................................................................... 6 3.2 OCCUPIED BANDWIDTH ................................................................................................................... 6 3.3 CELLULAR - BASE FREQUENCY BLOCKS....................................................................................... 6 3.4 CELLULAR - MOBILE FREQUENCY BLOCKS ................................................................................... 7 3.5 PCS - BASE FREQUENCY BLOCKS .................................................................................................. 7 3.6 PCS - MOBILE FREQUENCY BLOCKS .............................................................................................. 7 3.7 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL.............................................. 7 3.8 RADIATED POWER AND RADIATED SPURIOUS EMISSIONS ........................................................ 8 3.9 PEAK-AVERAGE RATIO ..................................................................................................................... 8 3.10 FREQUENCY STABILITY / TEMPERATURE VARIATION ................................................................. 8 4.0 TEST EQUIPMENT CALIBRATION DATA ......................................................................................9 5.0 SAMPLE CALCULATIONS ............................................................................................................10 6.0 TEST RESULTS .............................................................................................................................11 6.1 SUMMARY......................................................................................................................................... 11 6.2 EFFECTIVE RADIATED POWER OUTPUT DATA ........................................................................... 12 6.3 EQUIVALENT ISOTROPIC RADIATED POWER OUTPUT DATA .................................................... 13 6.4 CELLULAR GSM RADIATED MEASUREMENTS ............................................................................. 14 6.5 CELLULAR WCDMA RADIATED MEASUREMENTS..................................…

Text truncated - open the document above for the full version.

NEC Corporation of America FCC ID: A98-AOX4655 Model: KMP7N4AC1-2A Test Set-Up Photos EUT Type: Portable Handset Page 1 of 2 © 2011 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS NEC Corporation of America FCC ID: A98-AOX4655 Model: KMP7N4AC1-2A Test Set-Up Photos EUT Type: Portable Handset Page 2 of 2 © 2011 PCTEST Engineering Laboratory Inc.

FCC ID: A98-AOX4655 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page i of vi 10/05/11 - 10/10/11 Portable Handset © 2011 PCTEST Engineering Laboratory, Inc. REV 9.4M 09/08/2011 APPENDIX D: SAR TEST SETUP PHOTOGRAPHS FCC ID: A98-AOX4655 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page ii of vi 10/05/11 - 10/10/11 Portable Handset © 2011 PCTEST Engineering Laboratory, Inc. REV 9.4M 09/08/2011 SAR Test Setup Photo 1: Right Touch SAR Test Setup Photo 2: Right Tilt FCC ID: A98-AOX4655 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page iii of vi 10/05/11 - 10/10/11 Portable Handset © 2011 PCTEST Engineering Laboratory, Inc. REV 9.4M 09/08/2011 SAR Test Setup Photo 3: Left Touch SAR Test Setup Photo 4: Left Tilt FCC ID: A98-AOX4655 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page iv of vi 10/05/11 - 10/10/11 Portable Handset © 2011 PCTEST Engineering Laboratory, Inc. REV 9.4M 09/08/2011 SAR Test Setup Photo 5: Back at 1.0 cm SAR Test Setup Photo 6: Front at 1.0 cm FCC ID: A98-AOX4655 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page v of vi 10/05/11 - 10/10/11 Portable Handset © 2011 PCTEST Engineering Laboratory, Inc. REV 9.4M 09/08/2011 SAR Test Setup Photo 7: Bottom at 1.0cm SAR Test Setup Photo 8: Right at 1.0 cm FCC ID: A98-AOX4655 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page vi of vi 10/05/11 - 10/10/11 Portable Handset © 2011 PCTEST Engineering Laboratory, Inc. REV 9.4M 09/08/2011 SAR Test Setup Photo 9: Left at 1.0 cm SAR Test Setup Photo 10: Body-Worn at 1.0 cm Note: Headset Cable is connected to the device during body-worn SAR assessment, as seen above.
