A98-CUL7580Cellular/ PCS GSM and Cellular WCDMA Tablet with WLAN, Bluetooth and RFID

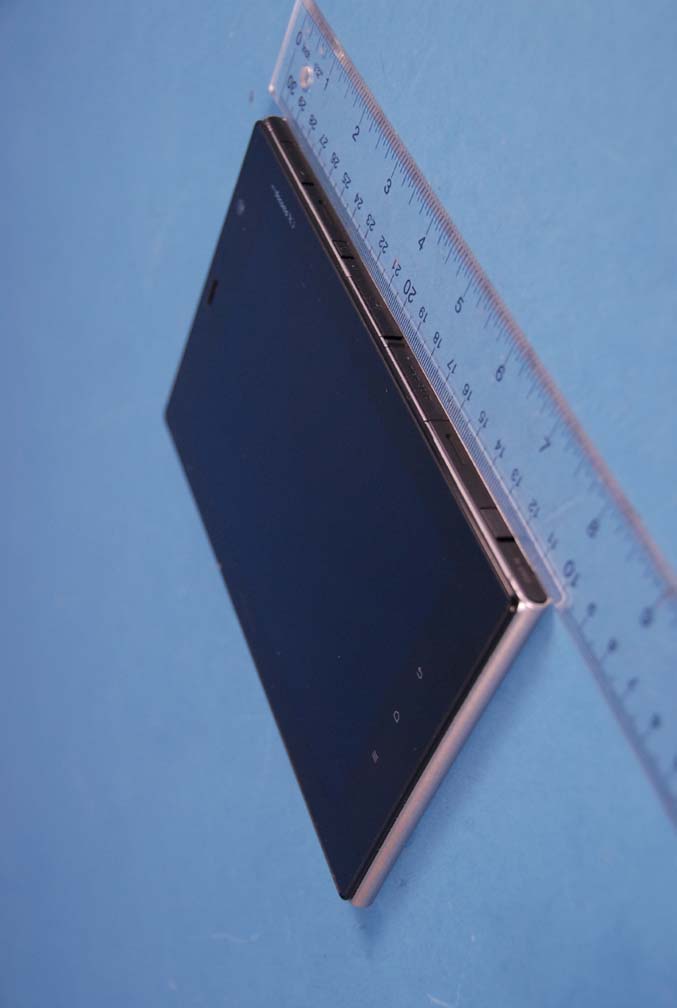

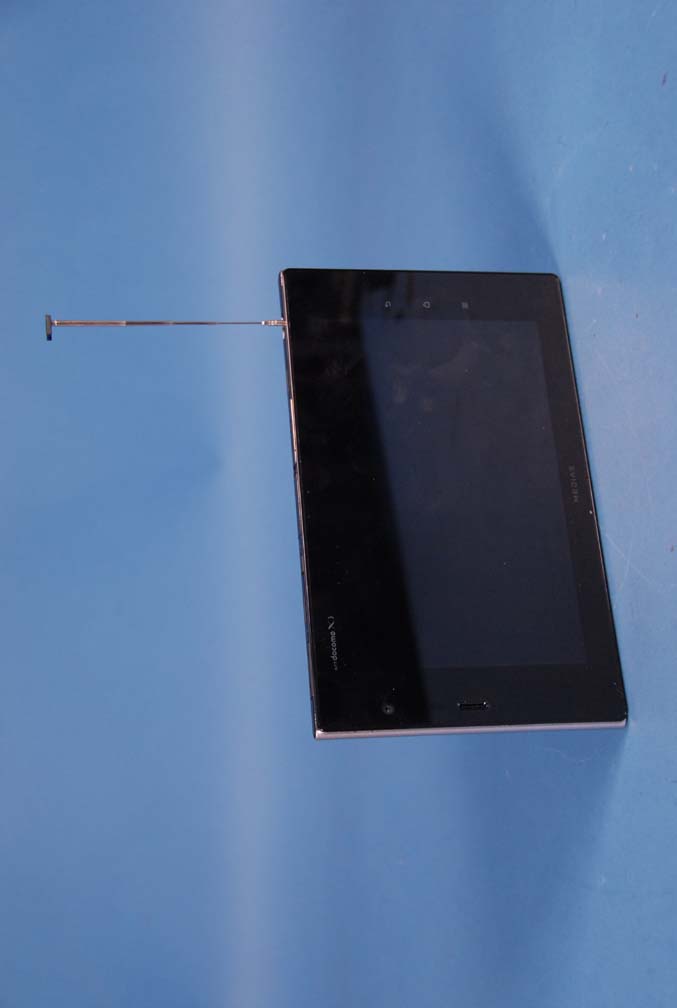

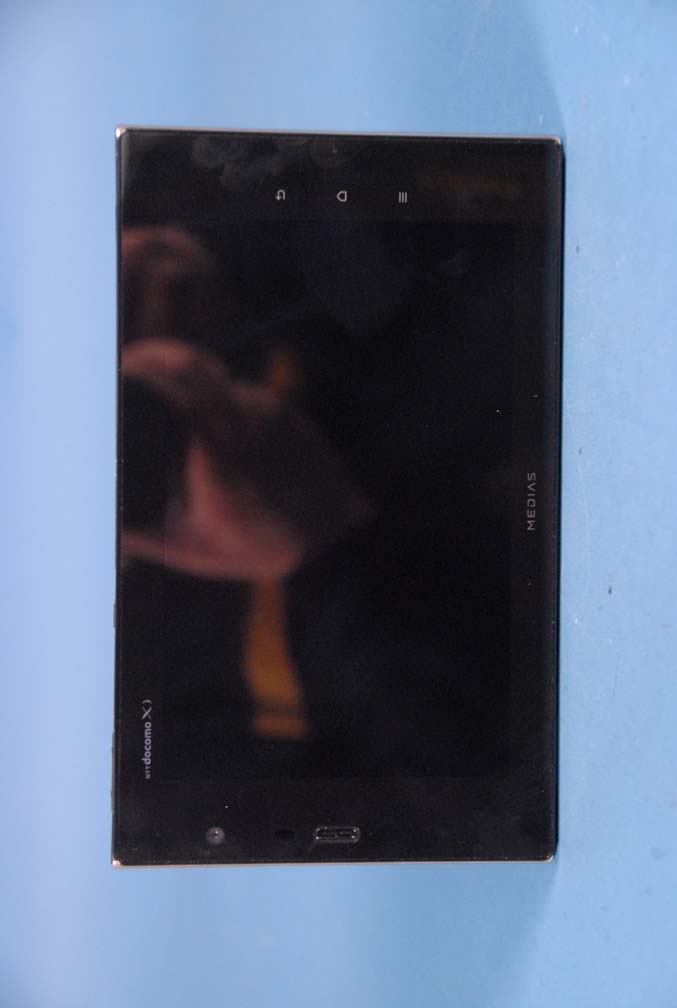

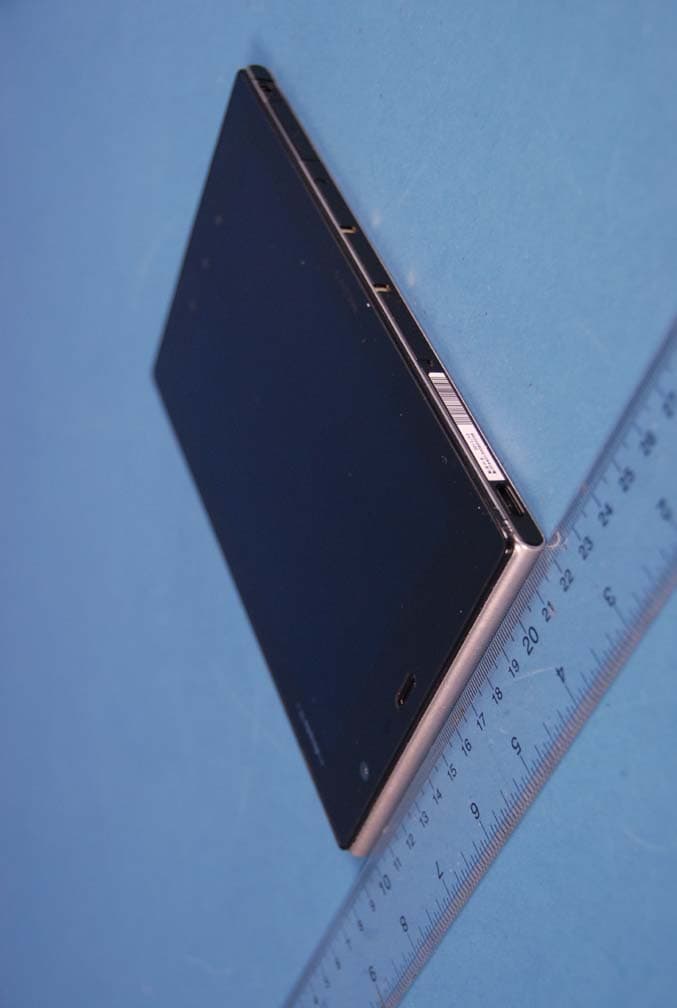

NEC FCC ID: A98-CUL7580 Model: KMP7R4C1-1A External Photos EUT Type: Portable Tablet Computer Page 1 of 5 © 2012 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS NEC FCC ID: A98-CUL7580 Model: KMP7R4C1-1A External Photos EUT Type: Portable Tablet Computer Page 2 of 5 © 2012 PCTEST Engineering Laboratory Inc. NEC FCC ID: A98-CUL7580 Model: KMP7R4C1-1A External Photos EUT Type: Portable Tablet Computer Page 3 of 5 © 2012 PCTEST Engineering Laboratory Inc. NEC FCC ID: A98-CUL7580 Model: KMP7R4C1-1A External Photos EUT Type: Portable Tablet Computer Page 4 of 5 © 2012 PCTEST Engineering Laboratory Inc. NEC FCC ID: A98-CUL7580 Model: KMP7R4C1-1A External Photos EUT Type: Portable Tablet Computer Page 5 of 5 © 2012 PCTEST Engineering Laboratory Inc.

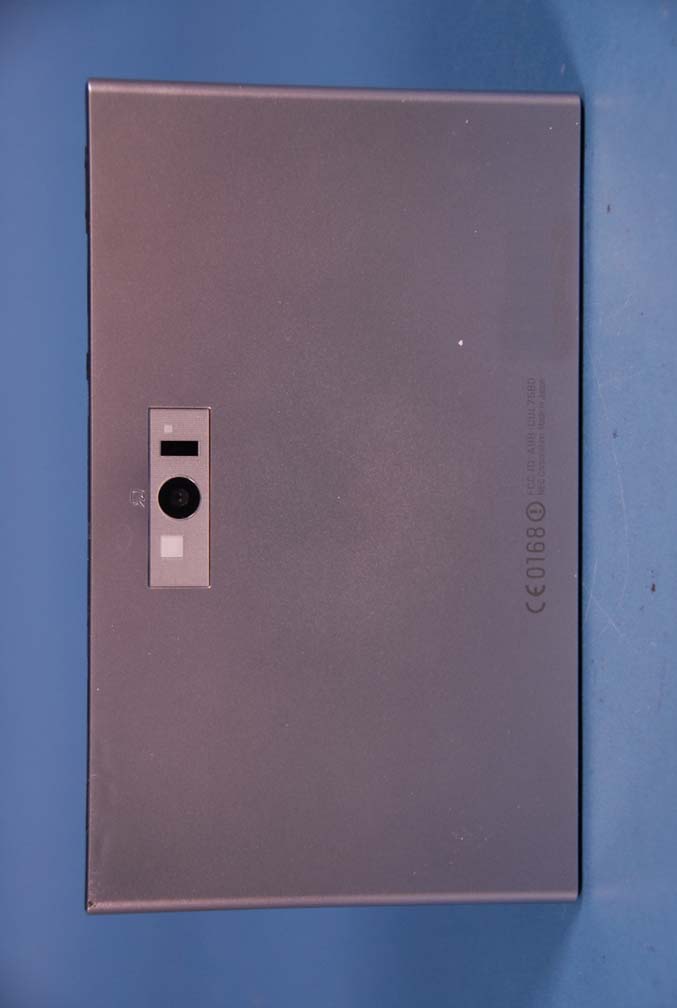

Rear side FCC ID Location

NEC FCC ID: A98-CUL7580 Model: KMP7R4C1-1A Internal Photos EUT Type: Portable Tablet Computer Page 1 of 6 © 2012 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS NEC FCC ID: A98-CUL7580 Model: KMP7R4C1-1A Internal Photos EUT Type: Portable Tablet Computer Page 2 of 6 © 2012 PCTEST Engineering Laboratory Inc. NEC FCC ID: A98-CUL7580 Model: KMP7R4C1-1A Internal Photos EUT Type: Portable Tablet Computer Page 3 of 6 © 2012 PCTEST Engineering Laboratory Inc. NEC FCC ID: A98-CUL7580 Model: KMP7R4C1-1A Internal Photos EUT Type: Portable Tablet Computer Page 4 of 6 © 2012 PCTEST Engineering Laboratory Inc. NEC FCC ID: A98-CUL7580 Model: KMP7R4C1-1A Internal Photos EUT Type: Portable Tablet Computer Page 5 of 6 © 2012 PCTEST Engineering Laboratory Inc. NEC FCC ID: A98-CUL7580 Model: KMP7R4C1-1A Internal Photos EUT Type: Portable Tablet Computer Page 6 of 6 © 2012 PCTEST Engineering Laboratory Inc.

FCC ID: A98-CUL7580 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 1 of 35 0Y1201110054.A98 01/17/12 - 01/23/12 Portable Tablet © 2012 PCTEST Engineering Laboratory, Inc. REV 10M 01/09/2012 Applicant Name: Date of Testing: NEC Corporation of America 01/17/12 - 01/23/12 Radio Communications Systems Division Test Site/Location: 6535 N. State Highway 161 PCTEST Lab, Columbia, MD, USA Irving, TX 75039-2402 USA Test Report Serial No.: 0Y1201110054.A98 FCC ID: A98- CUL7580 APPLICANT: NEC Corporation of America EUT Type: Portable Tablet Application Type: Certification FCC Rule Part(s): Model(s): CFR §2.1093 KMP7R4C1-1A Test Device Serial No.: Pre-Production [S/N: IMEI 004401200800361] 1 gm Head (W/kg) 1 gm Body (W/kg) GSM/GPRS 850824.20 - 848.80 MHz27.38 0.030.69 WCDMA/HSPA 850826.40 - 846.60 MHz18.990.04 0.92 GSM/GPRS 19001850.20 - 1909.80 MHz23.550.01 0.64 2.4 GHz WLAN2412 - 2462 MHz13.210.01 0.65 Bluetooth2402 - 2480 MHz1.81 0.041.57 N/A SAR Band & ModeTx Frequency Conducted Power [dBm] Simultaneous SAR per KDB 690783 D01: Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all capabilities. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR COMPLIANCE EVALUATION REPORT FCC ID: A98-CUL7580 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 2 of 35 0Y1201110054.A98 01/17/12 - 01/23/12 Portable Tablet © 2012 PCTEST Engineering Laboratory, Inc. REV 10M 01/09/2012 TABLE OF CONTENTS 1 DEVICE UNDER TEST ....................................................................................................................3 2 INTRODUCTION ..............................................................................................................................6 3 TEST SITE LOCATION ....................................................................................................................7 4 SAR MEASUREMENT SETUP ........................................................................................................8 5 DASY E-FIELD PROBE SYSTEM ................................................................................................ 10 6 PHANTOM AND EQUIVALENT TISSUES .................................................................................... 11 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................... 12 8 TEST CONFIGURATION POSITIONS ......................................................................................... 13 9 DEFINITION OF REFERENCE POINTS ...................................................................................... 15 10 FCC RF EXPOSURE LIMITS ........................................................................................................ 16 11 FCC MEASUREMENT PROCEDURES ........................................................................................ 17 12 RF CONDUCTED POWERS ......................................................................................................... 20 13 SYSTEM VERIFICATION .............................................................................................................. 23 14 SAR DATA SUMMARY ................................................................................................................. 25 15 FCC MULTI-TX ANTENNA SAR CONSIDERATIONS ................................................................. 29 16 EQUIPMENT LIST ......................................................................................................................... 31 17 MEASUREMENT UNCERTAINTIES ............................................................................................ 32 18 CONCLUSION ............................................................................................................................... 33 19 REFERENCES .............................................................................................................................. 34 FCC ID: A98-CUL7580 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 3 of 35 0Y1201110054.A98 01/17/12 - 01/23/12 Portable Tablet © 2012 PCTEST Engineering Laboratory, Inc. REV 10M 01/09/2012 1 DEVICE UNDER TEST 1.1 Device Overview GSM/GPRS 850824.20 - 848.80 MHz WCDMA/HSPA 850826.40 - 846.60 MHz GSM/GPRS 19001850.20 - 1909.80 MHz 2.4 GHz WLAN2412 - 2462 MHz Bluetooth2402 - 2480 MHz NFC13.56 MHz Band & ModeTx Frequency 1.2 Near Field Communications (NFC) Antenna This DUT has NFC operations. The NFC antenna is on a non-removable part of the device. The NFC mode was not active for all SAR measurements. 1.3 DUT Antenna Locations Figure 1-1 Front View of the Device Head SAR testing was required for this tablet because it has a speaker/receiver and a microphone positioned in a way that allows for a held-to-ear configuration usage. Body-worn accessories are not applicable for this device. Per KDB Publication 447498 4)c)i), head SAR was tested according to the hand…

Text truncated - open the document above for the full version.

PCTEST ENGINEERING LABORATORY, INC. DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 502 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: 1900 Head Medium parameters used (interpolated): f = 1900 MHz; σ = 1.41 mho/m; ε r = 39.6; ρ = 1000 kg/m 3 Pha ntom section: Flat Section; Space: 1.0 cm Test Date: 01-19-2012; Ambient Temp: 22.6 ° C ; Tissue Temp: 20.7 ° C Probe: ES3DV3 - SN3209; ConvF(5.11, 5.11, 5.11); Calibrated: 4/18/2011 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn859; Calibrated: 5/19/2011 Phantom: SAM with CRP; Type: SAM 4.0; Serial: TP1375 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 1900MHz System Verification Area Scan (5x7x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Power= 20.0 dBm (100 mW) SAR(1 g) = 4.08 mW/g; SAR(10 g) = 2.07 mW/g Deviation=1.49% 0 dB = 4.52mW/g B3 PCTEST ENGINEERING LABORATORY, INC. DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 502 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: 1900 Head Medium parameters used (interpolated): f = 1900 MHz; σ = 1.41 mho/m; ε r = 39.6; ρ = 1000 kg/m 3 Pha ntom section: Flat Section; Space: 1.0 cm Test Date: 01-19-2012; Ambient Temp: 22.6 ° C ; Tissue Temp: 20.7 ° C Probe: ES3DV3 - SN3209; ConvF(5.11, 5.11, 5.11); Calibrated: 4/18/2011 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn859; Calibrated: 5/19/2011 Phantom: SAM with CRP; Type: SAM 4.0; Serial: TP1375 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 1900MHz System Verification Area Scan (5x7x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Power= 20.0 dBm (100 mW) SAR(1 g) = 4.08 mW/g; SAR(10 g) = 2.07 mW/g Deviation= 1.49% B4 DUT: SAR Dipole 2450 MHz; Type: D2450V2; Serial: 719 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: 2450 Head Medium parameters used: f = 2450 MHz; σ = 1.84 mho/m; ε r = 39.9; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 1.0 cm Test Date: 01-19-2012; Ambient Temp: 22.3°C; Tissue Temp: 21.0°C Probe: EX3DV4 - SN3561; ConvF(6.42, 6.42, 6.42); Calibrated: 7/27/2011 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 4/20/2011 Phantom: SAM Main; Type: SAM 4.0; Serial: TP-1114 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 2450MHz System Verification Area Scan (5x7x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Power= 16.0 dBm (40 mW) SAR(1 g) = 2.08 mW/g; SAR(10 g) = 0.926 mW/g Deviation= -3.35% 0 dB = 2.73mW/g B5 DUT: SAR Dipole 2450 MHz; Type: D2450V2; Serial: 719 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: 2450 Head Medium parameters used: f = 2450 MHz; σ = 1.84 mho/m; ε r = 39.9; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 1.0 cm Test Date: 01-19-2012; Ambient Temp: 22.3°C; Tissue Temp: 21.0°C Probe: EX3DV4 - SN3561; ConvF(6.42, 6.42, 6.42); Calibrated: 7/27/2011 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 4/20/2011 Phantom: SAM Main; Type: SAM 4.0; Serial: TP-1114 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 2450MHz System Verification Area Scan (5x7x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Power= 16.0 dBm (40 mW) SAR(1 g) = 2.08 mW/g; SAR(10 g) = 0.926 mW/g Deviation= -3.35% B6 PCTEST ENGINEERING LABORATORY, INC. DUT: Dipole 835 MHz; Type: D835V2; Serial: 4d119 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: 835 Body Medium parameters used: f = 835 MHz; σ = 0.981 mho/m; ε r = 54.2; ρ = 1000 kg/m 3 Ph antom section: Flat Section; Space: 1.5 cm Test Date: 01-19-2012; Ambient Temp: 21.6 ° C ; Tissue Temp: 19.9 ° C Probe: ES3DV3 - SN3258; ConvF(6.12, 6.12, 6.12); Calibrated: 4/8/2011 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 2/21/2011 Phantom: SAM Main; Type: SAM 4.0; Serial: TP-1406 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 835MHz System Verification Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm In put Power = 20.0 dBm (100 mW) SAR(1 g) = 0.973 mW/g; SAR(10 g) = 0.636 mW/g Deviation = 1.99 % 0 dB = 1.05mW/g B7 PCTEST ENGINEERING LABORATORY, INC. DUT: Dipole 835 MHz; Type: D835V2; Serial: 4d119 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: 835 Body Medium parameters used: f = 835 MHz; σ = 0.981 mho/m; ε r = 54.2; ρ = 1000 kg/m 3 Ph antom section: Flat Section; Space: 1.5 cm Test Date: 01-19-2012; Ambient Temp: 21.6 ° C ; Tissue Temp: 19.9 ° C Probe: ES3DV3 - SN3258; ConvF(6.12, 6.12, 6.12); Calibrated: 4/8/2011 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 2/21/2011 Phantom: SAM Main; Type: SAM 4.0; Serial: TP-1406 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 835MHz System Verification Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm In put Power = 20.0 dBm (100 mW) SAR(1 g) = 0.973 mW/g; SAR(10 g) = 0.636 mW/g Deviation = 1.99 % B8 DUT: Dipole 835 MHz; Type: D835V2; Serial: 4d119 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: 835 Body Medium parameters used: f = 835 MHz; σ = 0.958 mho/m; ε r = 52.9; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space; 1.5 cm Test Date: 01-23-2012; Ambient Temp: 22.3°C; Tissue Temp: 20.4°C Probe: ES3DV3 - SN3258; ConvF(6.12, 6.12, 6.12); Calibrated: 4/8/2011 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 2/21/2011 Phantom: SAM Main; Type: SAM 4.0; Serial: TP-1406 Measurement …

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A98-CUL7580 FCC Pt. 22/24 GSM/WCDMA MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1201110055.A98 January 16 -23, 2012 Portable Tablet Computer Page 1 of 45 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.4GWCFI 09/15/2011 Applicant Name: Date of Testing: NEC Corporation of America January 16 -23, 2012 Radio Communications Systems Division Test Site/Location: 6535 N. State Highway 161 PCTEST Lab., Columbia, MD, USA Irving, TX 75039-2402 USA Test Report Serial No.: 0Y1201110055.A98 FCC ID: A98-CUL7580 A P P L I C A N T : NEC Corporation of America Application Type: Certification FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2; §22(H), §24(E) IC Specification(s): RSS-132 Issue 2; RSS-133 Issue 5 EUT Type: Portable Tablet Computer Model(s): KMP7R4C1-1A Test Device Serial No.: identical prototype [S/N: IMEI# 004401200800338, IMEI# 004401200800304] Max. Power (W) Max. Power (dBm) GSM850824.2 - 848.8242KGXW0.28924.60 GSM19001850.2 - 1909.8244KGXW0.27724.42 WCDMA850826.4 - 846.64M13F9W0.04416.48 ERP/EIRP Mode Tx Frequency (MHz) Emission Designator This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22 & 24 / IC RSS-132/RSS-133 Reviewed by: FCC ID: A98-CUL7580 FCC Pt. 22/24 GSM/WCDMA MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1201110055.A98 January 16 -23, 2012 Portable Tablet Computer Page 2 of 45 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.4GWCFI 09/15/2011 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT............................................................................3 1.0 INTRODUCTION ..............................................................................................................................4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY............................................................................................................................. 4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 DEVICE CAPABILITIES....................................................................................................................... 5 2.3 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 2.4 LABELING REQUIREMENTS.............................................................................................................. 5 3.0 DESCRIPTION OF TESTS ..............................................................................................................6 3.1 MEASUREMENT PROCEDURE......................................................................................................... 6 3.2 OCCUPIED BANDWIDTH ................................................................................................................... 6 3.3 CELLULAR - BASE FREQUENCY BLOCKS....................................................................................... 6 3.4 CELLULAR - MOBILE FREQUENCY BLOCKS ................................................................................... 7 3.5 PCS - BASE FREQUENCY BLOCKS .................................................................................................. 7 3.6 PCS - MOBILE FREQUENCY BLOCKS .............................................................................................. 7 3.7 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL.............................................. 7 3.8 RADIATED POWER AND RADIATED SPURIOUS EMISSIONS ........................................................ 8 3.9 PEAK-AVERAGE RATIO ..................................................................................................................... 8 3.10 FREQUENCY STABILITY / TEMPERATURE VARIATION ................................................................. 8 4.0 TEST EQUIPMENT CALIBRATION DATA ......................................................................................9 5.0 SAMPLE CALCULATIONS ............................................................................................................10 6.0 TEST RESULTS .............................................................................................................................11 6.1 SUMMARY......................................................................................................................................... 11 6.2 EFFECTIVE RADIATED POWER OUTPUT DATA ........................................................................... 12 6.3 EQUIVALENT ISOTROPIC RADIATED POWER OUTPUT DATA .................................................... 13 6.4 CELLULAR GSM RADIATED MEASUREMENTS ........................................................................…

Text truncated - open the document above for the full version.

NEC FCC ID: A98-CUL7580 Model: KMP7R4C1-1A Test Set-Up Photos EUT Type: Portable Tablet Computer Page 1 of 2 © 2012 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS NEC FCC ID: A98-CUL7580 Model: KMP7R4C1-1A Test Set-Up Photos EUT Type: Portable Tablet Computer Page 2 of 2 © 2012 PCTEST Engineering Laboratory Inc.

Reviewed by: FCC ID: A98-CUL7580 SAR COMPLIANCE REPORT Quality Manager Test Dates: EUT Type: 01/17/12 - 01/23/12 Portable Tablet Page D1 of D5 © 2012 PCTEST Engineering Laboratory, Inc. REV 10M 01/09/2012 APPENDIX D: SAR TEST SETUP PHOTOGRAPHS Reviewed by: FCC ID: A98-CUL7580 SAR COMPLIANCE REPORT Quality Manager Test Dates: EUT Type: 01/17/12 - 01/23/12 Portable Tablet Page D2 of D5 © 2012 PCTEST Engineering Laboratory, Inc. REV 10M 01/09/2012 SAR Test Setup Photo 1: Right Touch SAR Test Setup Photo 2: Right Tilt Reviewed by: FCC ID: A98-CUL7580 SAR COMPLIANCE REPORT Quality Manager Test Dates: EUT Type: 01/17/12 - 01/23/12 Portable Tablet Page D3 of D5 © 2012 PCTEST Engineering Laboratory, Inc. REV 10M 01/09/2012 SAR Test Setup Photo 3: Left Touch SAR Test Setup Photo 4: Left Tilt Reviewed by: FCC ID: A98-CUL7580 SAR COMPLIANCE REPORT Quality Manager Test Dates: EUT Type: 01/17/12 - 01/23/12 Portable Tablet Page D4 of D5 © 2012 PCTEST Engineering Laboratory, Inc. REV 10M 01/09/2012 SAR Test Setup Photo 5: Back Side at 0.0 cm SAR Test Setup Photo 6: Top Edge at 0.0 cm Reviewed by: FCC ID: A98-CUL7580 SAR COMPLIANCE REPORT Quality Manager Test Dates: EUT Type: 01/17/12 - 01/23/12 Portable Tablet Page D5 of D5 © 2012 PCTEST Engineering Laboratory, Inc. REV 10M 01/09/2012 SAR Test Setup Photo 7: Right Edge at 0.0 cm
