A98-FWP7935GSM/WCDMA MOBILE PHONE

1 2 This Product Back cover Battery Cradle Quick Start Guide(this manual) Earphone Conversion Cablewith Antenna (Sample) Battery Pack Strap (Sample) microSDHC card* (Sample)*This has been attached when purchased. 3 4 1. Notification LED2. Proximity/Illuminance sensor3. Earpiece (receiver)4. Front camera5. Display (Touch panel)6. Front key (→P38)7. Hands-free headset Connector8. Power switch (→P37)9. microUSB connector10. Rear camera11. Light12. Infrared communication port13. GPS/Wi-Fi/Bluetooth Antenna14. symble15. Speaker16. Back cover17. Xi Antenna18. External connector19. + volume key20. -volume key21. DTV/MM antenna22. Mouthpiece/microphone23. Strap slot Securely push the areas illustra ted by the dots and make sure that there is no space betw een the back cover and this product To attach the back cover, insert the tabs on top of the back cover into the slots, slide it i n direction and push it down securely in direction. 6 5 SIM (Docomo mini UIM card) is an IC card that stores your phonenumber and other information. Some functions are not availableif the SIM card is not inserted. 1. Hold the tab to slide the tray.2. Place the SIM card on the tray, setting the IC surface down.3. Slide the tray to the end. Card slot SIM Card(Docomo mini UIM card) Setting the IC gold surface down. Insert the microSD card into the microSD slot until it is locke d. 7 8 9 10 11 12 13 14 16 15 17 18 19 20 21 22 23 24 25 26

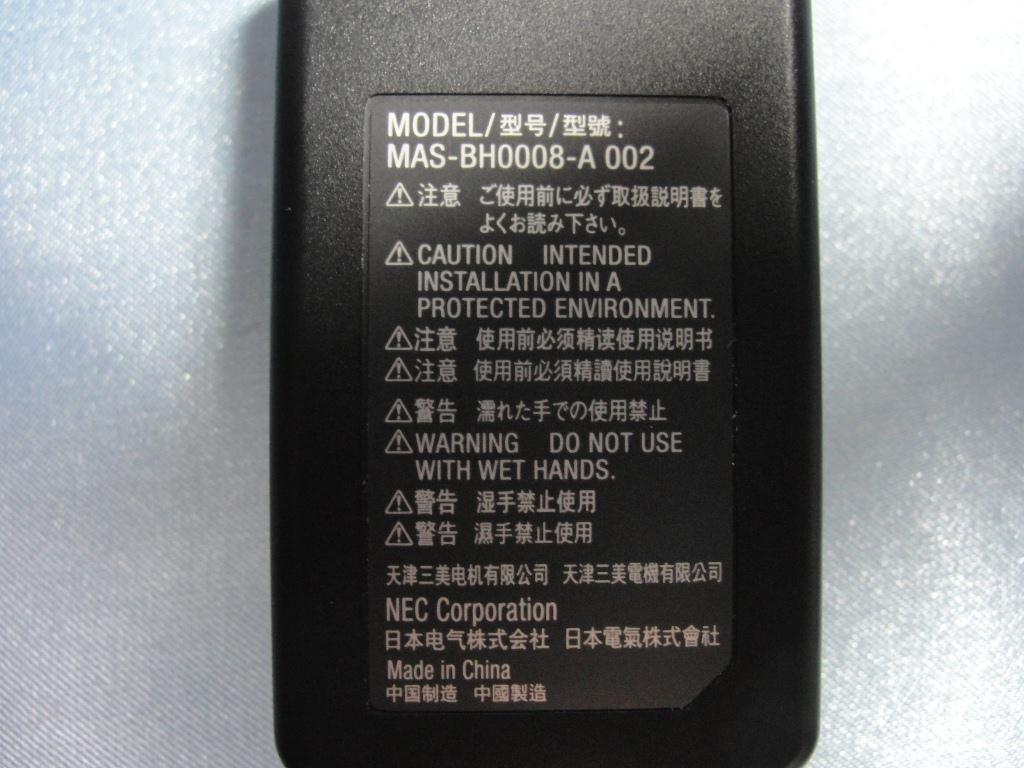

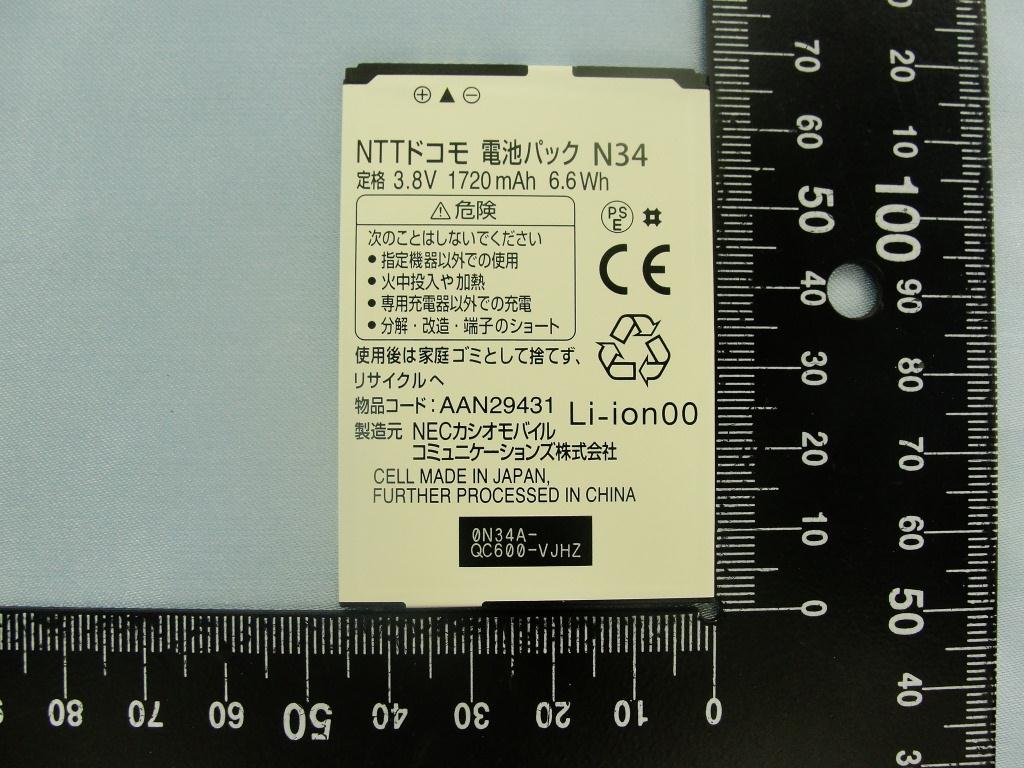

Photographs of EUT Report No.: EP282414-02 Brand Name: NEC CASIO Mobile Communications, Ltd. / Model Name: KMP7R4H1-1A SPORTON INTERNATIONAL INC. Page Number : 1 of 24 TEL : 886-3-327-3456 Report Issued Date : Nov. 07, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: A98-FWP7935 1. External Photograph of EUT Sample 1 Photographs of EUT Report No.: EP282414-02 Brand Name: NEC CASIO Mobile Communications, Ltd. / Model Name: KMP7R4H1-1A SPORTON INTERNATIONAL INC. Page Number : 2 of 24 TEL : 886-3-327-3456 Report Issued Date : Nov. 07, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: A98-FWP7935 Photographs of EUT Report No.: EP282414-02 Brand Name: NEC CASIO Mobile Communications, Ltd. / Model Name: KMP7R4H1-1A SPORTON INTERNATIONAL INC. Page Number : 3 of 24 TEL : 886-3-327-3456 Report Issued Date : Nov. 07, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: A98-FWP7935 Sample 2 Photographs of EUT Report No.: EP282414-02 Brand Name: NEC CASIO Mobile Communications, Ltd. / Model Name: KMP7R4H1-1A SPORTON INTERNATIONAL INC. Page Number : 4 of 24 TEL : 886-3-327-3456 Report Issued Date : Nov. 07, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: A98-FWP7935 Photographs of EUT Report No.: EP282414-02 Brand Name: NEC CASIO Mobile Communications, Ltd. / Model Name: KMP7R4H1-1A SPORTON INTERNATIONAL INC. Page Number : 5 of 24 TEL : 886-3-327-3456 Report Issued Date : Nov. 07, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: A98-FWP7935 Sample 3 Photographs of EUT Report No.: EP282414-02 Brand Name: NEC CASIO Mobile Communications, Ltd. / Model Name: KMP7R4H1-1A SPORTON INTERNATIONAL INC. Page Number : 6 of 24 TEL : 886-3-327-3456 Report Issued Date : Nov. 07, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: A98-FWP7935 720510 Photographs of EUT Report No.: EP282414-02 Brand Name: NEC CASIO Mobile Communications, Ltd. / Model Name: KMP7R4H1-1A SPORTON INTERNATIONAL INC. Page Number : 7 of 24 TEL : 886-3-327-3456 Report Issued Date : Nov. 07, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: A98-FWP7935 List of Accessory: Specification of Accessory AC Adapter Brand Name Mitsumi Model Name MAS-BH0008-A002 Battery Brand Name Model Name AAN29431 Charging Cable Brand Name N/A Model Name N/A Signal Line Type 0.03 meter non-shielded cable without ferrite core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP282414-02 Brand Name: NEC CASIO Mobile Communications, Ltd. / Model Name: KMP7R4H1-1A SPORTON INTERNATIONAL INC. Page Number : 8 of 24 TEL : 886-3-327-3456 Report Issued Date : Nov. 07, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: A98-FWP7935 Photographs of EUT Report No.: EP282414-02 Brand Name: NEC CASIO Mobile Communications, Ltd. / Model Name: KMP7R4H1-1A SPORTON INTERNATIONAL INC. Page Number : 9 of 24 TEL : 886-3-327-3456 Report Issued Date : Nov. 07, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: A98-FWP7935 AC Adapter Photographs of EUT Report No.: EP282414-02 Brand Name: NEC CASIO Mobile Communications, Ltd. / Model Name: KMP7R4H1-1A SPORTON INTERNATIONAL INC. Page Number : 10 of 24 TEL : 886-3-327-3456 Report Issued Date : Nov. 07, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: A98-FWP7935 Photographs of EUT Report No.: EP282414-02 Brand Name: NEC CASIO Mobile Communications, Ltd. / Model Name: KMP7R4H1-1A SPORTON INTERNATIONAL INC. Page Number : 11 of 24 TEL : 886-3-327-3456 Report Issued Date : Nov. 07, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: A98-FWP7935 720510 Battery

FCC ID Label Placement Label placement Rear View of the phone Place for battery

FCC ID Label Layout NEC CASIO MOBILE COMMUNICATIONS Confidential Serial Number Barcode Serial Number TELEC Certification Number JATE Certification Number Japanese Accreditation Mark Year / Month of Manufacture Color Model Name Warning: Please switch off this mobile phone on the airplane. Please do not remove this sticker. Applicant / Manufacturer Bluetooth Mark WLAN Mark MAC Address Vendor Name

Photographs of EUT Report No.: EP282414-02 Brand Name: NEC CASIO Mobile Communications, Ltd. / Model Name: KMP7R4H1-1A SPORTON INTERNATIONAL INC. Page Number : 12 of 24 TEL : 886-3-327-3456 Report Issued Date : Nov. 13, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID: A98-FWP7935 3. Internal Photograph of EUT Photographs of EUT Report No.: EP282414-02 Brand Name: NEC CASIO Mobile Communications, Ltd. / Model Name: KMP7R4H1-1A SPORTON INTERNATIONAL INC. Page Number : 13 of 24 TEL : 886-3-327-3456 Report Issued Date : Nov. 13, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID: A98-FWP7935 Photographs of EUT Report No.: EP282414-02 Brand Name: NEC CASIO Mobile Communications, Ltd. / Model Name: KMP7R4H1-1A SPORTON INTERNATIONAL INC. Page Number : 14 of 24 TEL : 886-3-327-3456 Report Issued Date : Nov. 13, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID: A98-FWP7935 Photographs of EUT Report No.: EP282414-02 Brand Name: NEC CASIO Mobile Communications, Ltd. / Model Name: KMP7R4H1-1A SPORTON INTERNATIONAL INC. Page Number : 15 of 24 TEL : 886-3-327-3456 Report Issued Date : Nov. 13, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID: A98-FWP7935 Photographs of EUT Report No.: EP282414-02 Brand Name: NEC CASIO Mobile Communications, Ltd. / Model Name: KMP7R4H1-1A SPORTON INTERNATIONAL INC. Page Number : 16 of 24 TEL : 886-3-327-3456 Report Issued Date : Nov. 13, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID: A98-FWP7935 WWAN Antenna <Tx / Rx> Photographs of EUT Report No.: EP282414-02 Brand Name: NEC CASIO Mobile Communications, Ltd. / Model Name: KMP7R4H1-1A SPORTON INTERNATIONAL INC. Page Number : 17 of 24 TEL : 886-3-327-3456 Report Issued Date : Nov. 13, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID: A98-FWP7935 Photographs of EUT Report No.: EP282414-02 Brand Name: NEC CASIO Mobile Communications, Ltd. / Model Name: KMP7R4H1-1A SPORTON INTERNATIONAL INC. Page Number : 18 of 24 TEL : 886-3-327-3456 Report Issued Date : Nov. 13, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID: A98-FWP7935 WLAN & Bluetooth Antenna <Tx / Rx> GPS Antenna <Rx> Photographs of EUT Report No.: EP282414-02 Brand Name: NEC CASIO Mobile Communications, Ltd. / Model Name: KMP7R4H1-1A SPORTON INTERNATIONAL INC. Page Number : 19 of 24 TEL : 886-3-327-3456 Report Issued Date : Nov. 13, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID: A98-FWP7935 Photographs of EUT Report No.: EP282414-02 Brand Name: NEC CASIO Mobile Communications, Ltd. / Model Name: KMP7R4H1-1A SPORTON INTERNATIONAL INC. Page Number : 20 of 24 TEL : 886-3-327-3456 Report Issued Date : Nov. 13, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID: A98-FWP7935 Felica Antenna <Tx / Rx> Photographs of EUT Report No.: EP282414-02 Brand Name: NEC CASIO Mobile Communications, Ltd. / Model Name: KMP7R4H1-1A SPORTON INTERNATIONAL INC. Page Number : 21 of 24 TEL : 886-3-327-3456 Report Issued Date : Nov. 13, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID: A98-FWP7935 DTV Antenna <Rx> Photographs of EUT Report No.: EP282414-02 Brand Name: NEC CASIO Mobile Communications, Ltd. / Model Name: KMP7R4H1-1A SPORTON INTERNATIONAL INC. Page Number : 22 of 24 TEL : 886-3-327-3456 Report Issued Date : Nov. 13, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID: A98-FWP7935 Photographs of EUT Report No.: EP282414-02 Brand Name: NEC CASIO Mobile Communications, Ltd. / Model Name: KMP7R4H1-1A SPORTON INTERNATIONAL INC. Page Number : 23 of 24 TEL : 886-3-327-3456 Report Issued Date : Nov. 13, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID: A98-FWP7935 SUB Antenna <Rx> (auxiliary antenna for LTE Band 21) Photographs of EUT Report No.: EP282414-02 Brand Name: NEC CASIO Mobile Communications, Ltd. / Model Name: KMP7R4H1-1A SPORTON INTERNATIONAL INC. Page Number : 24 of 24 TEL : 886-3-327-3456 Report Issued Date : Nov. 13, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID: A98-FWP7935 720510

Photographs of EUT Report No.: 282414-02 Brand Name: NEC CASIO Mobile Communications, Ltd. / Model Name: KMP7R4H1-1A SPORTON INTERNATIONAL INC. Page Number : 1 of 1 TEL : 886-3-327-3456 Issued Date : Nov. 13, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID: A98-FWP7935 DUT Length: 12.4 cm DUT Width: 6.4 cm Antenna Length Width WLAN & Bluetooth Antenna<Tx / Rx> GPS Antenna <Rx> 1.4 cm 0.7 cm WWAN Antenna <Tx / Rx> 4.7 cm 1.1 cm Felica Antenna <Tx / Rx> 4.0 cm 3.3 cm DTV Antenna <Rx> 5.9 cm 1.4 cm SUB Antenna <Rx> (auxiliary antenna for LTE Band 21) 2.7 cm 1.2 cm The shortest distance between the Tx antennas WLAN & Bluetooth Antenna<Tx / Rx> & GPS Antenna <Rx> to WWAN Antenna <Tx / Rx> 9.2 cm WLAN & Bluetooth Antenna<Tx / Rx> & GPS Antenna <Rx> to Felica Antenna <Tx / Rx> 0.1 cm WWAN Antenna <Tx / Rx> to Felica Antenna <Tx / Rx> 7.3 cm WLAN & Bluetooth <Tx / Rx> GPS Antenna <Rx> 1.7 cm 5.0 cm WWAN Antenna <Tx / Rx> DTV Antenna <Rx> 10.5 cm Felica Antenna <Tx / Rx> 8.6 cm 11.3 cm SUB Antenna <Rx> 1.2 cm 1.2 cm

SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 D835V2, serial no. 499 Extended Dipole Calibrations Referring to KDB 450824, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification of the extended calibration> D835V2 – serial no. 499 835 Head 835 Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) Return-Los s (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 3.22.2010 -28.352 52.17 -3.2461 -24.664 50.066 -5.8652 3.22.2011 -28.323 0.102 51.095 1.075 -3.5773 0.331 -24.665 -0.004 50.685 -0.619 -1.477 -4.388 Therefore the verification result should support extended calibration. SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 <Dipole Verification Data> - D835 V2, serial no. 499 (Date of Measurement : 3.22.2011) 835 MHz - Head SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 835 MHz – Body SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 D835V2, serial no. 499 Extended Dipole Calibrations Referring to KDB 450824, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification of the extended calibration> D835V2 – serial no. 499 835 Head 835 Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) Return-Los s (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 3.22.2010 -28.352 52.17 -3.2461 -24.664 50.066 -5.8652 3.22.2011 -28.323 0.102 51.095 1.075 -3.5773 0.331 -24.665 -0.004 50.685 -0.619 -1.477 -4.388 3.22.2012 -28.265 0.307 50.685 1.485 -3.2627 0.0166 -23.821 3.42 50.977 -0.911 -3.2487 -2.6165 Therefore the verification result should support extended calibration. SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 <Dipole Verification Data> - D835 V2, serial no. 499 (Date of Measurement : 3.22.2012) 835 MHz - Head SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 835 MHz – Body SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 D1900V2, serial no. 5D041 Extended Dipole Calibrations Referring to KDB 450824, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification of the extended calibration> D1900V2 – serial no. 5D041 1900 Head 1900 Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedanc e (ohm) Delta (ohm) Return-Los s (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginar y Impedan ce (ohm) Delta (ohm) 3.23.2010 -24.549 50.896 5.9141 -23.108 46.342 5.669 3.23.2011 -24.489 0.244 50.921 -0.025 5.9588 -0.045 -23.022 0.372 48.808 -2.466 6.991 -1.322 Therefore the verification result should support extended calibration. SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 <Dipole Verification Data> - D1900 V2, serial no. 5D041 (Date of Measurement : 3.23.2011) 1900 MHz - Head SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 1900 MHz – Body SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 D1900V2, serial no. 5D041 Extended Dipole Calibrations Referring to KDB 450824, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification of the extended calibration> D1900V2 – serial no. 5D041 1900 Head 1900 Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedanc e (ohm) Delta (ohm) Return-Los s (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginar y Impedan ce (ohm) Delta (ohm) 3.23.2010 -24.549 50.896 5.9141 -23.108 46.342 5.669 3.23.2011 -24.489 0.244 50.921 -0.025 5.9588 -0.045 -23.022 0.372 48.808 -2.466 6.991 -1.322 3.23.2012 -26.159 6.56 50.159 0.737 5.7824 0.1317 -24.341 5.33 47.059 -0.707 4.8668 0.8022 SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 <Dipole Verification Data> - D1900 V2, serial no. 5D041 (Date of Measurement : 3.23.2012) 1900 MHz - Head SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 1900 MHz - Body SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 D2450V2, serial no. 736 Extended Dipole Calibrations Referring to KDB 450824, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification of the extended calibration> D2450V2 – serial no. 736 2450 Head 2450 Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 7.25.2011 -27.042 54.398 1.4805 -30.696 50.812 2.8262 7.25.2012 -27.950 -3.365 52.541 1.857 0.77343 0.707 -31.781 -3.535 50.572 0.24 1.5953 1.2309 The return loss is < -20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 <Dipole Verification Data> - D2450 V2, serial no. 736 (Date of Measurement : 7.25.2012) 2450 MHz - Head SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 2450 MHz – Body

SPORTON INTERNATIONAL INC. Page Number : 1 of 42 TEL : 886-3-327-3456 Report Issued Date : Nov. 16, 2012 FAX : 886-3-328-4978 Report Version : Rev. 04 FCC ID : A98-FWP7935 FCC SAR Test Report Report No. : FA282414-02 FCC SAR Test Report APPLICANT : NEC Corp. of America EQUIPMENT : GSM / WCDMA Mobile Phone BRAND NAME : NEC CASIO Mobile Communications, Ltd. MODEL NAME : KMP7R4H1-1A FCC ID : A98-FWP7935 STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was completely tested on Nov. 14, 2012. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 42 TEL : 886-3-327-3456 Report Issued Date : Nov. 16, 2012 FAX : 886-3-328-4978 Report Version : Rev. 04 FCC ID : A98-FWP7935 FCC SAR Test Report Report No. : FA282414-02 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 5 2.1 Testing Laboratory .................................................................................................................................................. 5 2.2 Applicant ................................................................................................................................................................ 5 2.3 Manufacturer .......................................................................................................................................................... 5 2.4 Application Details .................................................................................................................................................. 5 3. General Information ...................................................................................................................................................... 6 3.1 Description of Equipment Under Test (EUT) .......................................................................................................... 6 3.2 Product Photos....................................................................................................................................................... 8 3.3 Applied Standard .................................................................................................................................................... 8 3.4 Device Category and SAR Limits ........................................................................................................................... 8 3.5 Test Conditions ....................................................................................................................................................... 8 4. Specific Absorption Rate (SAR) ................................................................................................................................... 9 4.1 Introduction ............................................................................................................................................................ 9 4.2 SAR Definition ........................................................................................................................................................ 9 5. SAR Measurement System ..........................................................................................................................................10 5.1 E-Field Probe ........................................................................................................................................................ 11 5.2 Data Acquisition Electronics (DAE) .......................................................................................................................12 5.3 Robot ....................................................................................................................................................................12 5.4 Measurement Server .............................................................................................................................................12 5.5 Phantom ................................................................................................................................................................13 5.6 Device Holder........................................................................................................................................................14 5.7 Data Storage and Evaluation ................................................................................................................................15 5.8 Test Equipment List ...............................................................................................................................................17 6. Tissue Simulating Liquids ...........................................................................................................................................18 7. SAR Measurement Evaluation ....................................................................................................................................20 7.1 Purpose of System Performance check ................................................................................................................20 7.2 System Setup ..................................…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : 1 of 69 TEL : 886-3-327-3456 Report Issued Date : Nov. 07, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : A98-FWP7935 FCC RF Test Report Report No. : FR282414-02C FCC RF Test Report APPLICANT : NEC Corp. of America EQUIPMENT : GSM / WCDMA Mobile Phone BRAND NAME : NEC CASIO Mobile Communications, Ltd. MODEL NAME : KMP7R4H1-1A FCC ID : A98-FWP7935 STANDARD : FCC Part 15 Subpart C §15.247 CLASSIFICATION : (DTS) Digital Transmission System The product was received on Sep. 05, 2012 and completely tested on Oct. 28, 2012. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 69 TEL : 886-3-327-3456 Report Issued Date : Nov. 07, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : A98-FWP7935 FCC RF Test Report Report No. : FR282414-02C TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ...................................................................................................................................... 5 1.3 Feature of Equipment Under Test ..................................................................................................... 5 1.4 Testing Site ........................................................................................................................................ 6 1.5 Applied Standards ............................................................................................................................. 6 1.6 Ancillary Equipment List .................................................................................................................... 6 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 7 2.1 Carrier Frequency Channel ............................................................................................................... 7 2.2 Pre-Scanned RF Power ..................................................................................................................... 8 2.3 Test Mode .......................................................................................................................................... 9 2.4 Connection Diagram of Test System ............................................................................................... 10 2.5 RF Utility .......................................................................................................................................... 10 3 TEST RESULT ........................................................................................................................................... 11 3.1 6dB Bandwidth Measurement ......................................................................................................... 11 3.2 Output Power Measurement ............................................................................................................ 18 3.3 Power Spectral Density Measurement ............................................................................................ 21 3.4 Conducted Band Edges and Spurious Emission Measurement ..................................................... 28 3.5 Radiated Emission Measurement .................................................................................................... 41 3.6 AC Conducted Emission Measurement........................................................................................... 63 3.7 Antenna Requirements .................................................................................................................... 67 4 LIST OF MEASURING EQUIPMENT ........................................................................................................ 68 5 UNCERTAINTY OF EVALUATION ........................................................................................................... 69 APPENDIX A. PHOTOGRAPHS OF EUT SPORTON INTERNATIONAL INC. Page Number : 3 of 69 TEL : 886-3-327-3456 Report Issued Date : Nov. 07, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : A98-FWP7935 FCC RF Test Report Report No. : FR282414-02C REVISION HISTORY REPORT NO. VERSION DESCRIPTION ISSUED DATE FR282414-02C Rev. 01 Initial issue of report Nov. 07, 2012 SPORTON INTERNATIONAL INC. Page Number : 4 of 69 TEL : 886-3-327-3456 Report Issued Date : Nov. 07, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : A98-FWP7935 FCC RF Test Report Report No. : FR282414-02C SUMMARY OF TEST RESULT Report Section FCC Rule IC Rule Description Limit Result Remark 3.1 15.247(a)(2) A8.2(a) 6dB Bandwidth ≥ 0.5MHz Pass - 3.2 15.247(b) A8.4 Power Output Measurement ≤ 30dBm Pass - 3.3 15.247(e) A8.2(b) Power Spectral Density ≤ 8dBm/3kHz Pass - 3.4 15.247(d) A8.5 Conducted Band Edges ≤ 20dBc Pass - Conducted Spurious Emission Pass - 3.5 15.247(d) A8.5 Radiated Band Edges 15.209(a) & 15.247(d) Pass - Radiated Spurious Emission Pass Under l…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : 1 of 60 TEL : 886-3-327-3456 Report Issued Date : Nov. 07, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : A98-FWP7935 FCC RF Test Report Report No. : FR282414-02B FCC RF Test Report APPLICANT : NEC Corp. of America EQUIPMENT : GSM / WCDMA Mobile Phone BRAND NAME : NEC CASIO Mobile Communications, Ltd. MODEL NAME : KMP7R4H1-1A FCC ID : A98-FWP7935 STANDARD : FCC Part 15 Subpart C §15.247 CLASSIFICATION : (DTS) Digital Transmission System The product was received on Sep. 05, 2012 and completely tested on Nov. 03, 2012. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 60 TEL : 886-3-327-3456 Report Issued Date : Nov. 07, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : A98-FWP7935 FCC RF Test Report Report No. : FR282414-02B TABLE OF CONTENTS REVISION HISTORY ................................................................…

Text truncated - open the document above for the full version.
