A98-IQF1504KMP7N4AB-1A

NEC Corporation of America

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Oct 27, 2011
Application Purpose: Original Equipment
Date of Application: Oct 27, 2011
Equipment Note: KMP7N4AB-1A
Frequency Range: 1852.40000000 - 1907.60000000
Company: NEC Corporation of America
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Quick Start Guide ’ 11.12 234561 9 1011121378 Thank you for your purchasing of this product. Before using the this product, read this manual. For more information about this product, please refer to the User's Manual which is shown on your PC. http://www.XXXXXXXXXXXXXXX Supplied AccessoriesGetting Started Parts Names and Functions 1Power switch 2microUSB connector 3Proximity/Illuminance sensor 4Notification LED 5Earpiece (receiver) 6Display (Touch panel) 7Mouthpiece/microphone 8 (menu) key 9 (home) key 10 (back) key 11 (search) key 12Speaker 13Camera 14Light 15+/- (volume) keys 16Sub microphone 17microSD card slot 18Back cover 19SIM slot 20Strap slot Removing/Attaching the Back Cover To remove the back cover, hook your finger on the slot and remove in direction without too much force. To attach the back cover, insert the tabs on top of the back cover into the slots, slide it in direction and push it down securely in direction. Securely push the areas illustrated by the dots and make sure that there is no space between the back cover and this product. Inserting the SIM Card SIM is an IC card that stores your phone number and other information. Some functions are not available if the SIM card is not inserted. 1Hold the tab to slide the tray. 2Place the SIM card on the tray, setting the IC surface on the upside. 3Slide the tray to the end. Inserting the microSD Card Insert the microSD card into the microSD slot until it is locked. For removing the microSD card, push it. Attaching the Battery Insert in the direction by hooking the tabs on the battery pack in the slots. • This Product• Quick Start Guide (this manual) • AC Charger• Battery Pack • microSD* (sample) * This has been attached when purchased. • microUSB Cable (sample) • microUSB to 3.5 mm Headset Cable (sample) • Battery Cradle (sample) Quick Start Guide 1 2 3456 7891011 13 1214 1516 171 8 19 20 Charging with the AC Charger 1Open the microUSB connector cap. 2Connect the microUSB plug of the supplied microUSB cable with engraved side facing down with the microUSB connector. 3Connect the USB plug of the cable with the supplied AC charger. 4Insert the AC charger plug into the power outlet. Charging with the PC Connection 1Open the microUSB connector cap. 2Connect the microUSB plug of the supplied microUSB cable with engraved side facing down with the microUSB connector. 3Connect the USB plug of the cable with your PC. ■About the notification LED Notification LED turns red while charging. Notification LED turns green when the battery level is over 90%, and off when charging is complete. When charging starts, such as when the battery is depleted, the notification LED may not immediately light. However, charging has started. Using the battery cradle You can also charge the battery pack using the battery cradle. 1After removing the battery pack, set it into the battery cradle. 2Connect the microUSB jack of the microUSB cable with the battery cradle. 3Connect the USB jack of the microUSB cable with the AC charger. 4Connect the AC charger plug with the power outlet. Charging starts and the Charge LED lights on red. When finishing the charging, the Charge LED lights on green. Turning Power On and Off Turning Power On Press and hold the power switch for two seconds or longer. Turning Power Off 1Press and hold the power switch for one second or longer. 2Touch "Power off". 3Touch "OK". ■Sleep mode When the power switch is pressed, the display turns off and this product enters sleep mode. Pressing the power switch quits sleep mode. ■Screen lock When you turn the power on or quit sleep mode, the touch panel is locked. Drag to to unlock the screen. Initial Settings When the power is first turned on, the initial setting screen appears. 1Tap "Change language" if you need. 2Tap a language to set. 3Tap the Android icon. 4Tap "Skip" for undo the Wi-Fi setting. For setting Wi-Fi, tap "Connect to Wi-Fi", and select the Wi-Fi network. Then tap "Connect" to complete the Wi-Fi setting. 5Check the displayed content, and tap "Next". 6Set each setting. 7Tap "N ext". 8Tap "Home" or "Launcher" to complete initial settings. Basic Operation Using the Keys • displays the menu available for the current screen. • displays the Home screen. • goes back to the previous screen. • opens "Google Search" when pressing on the Home screen. Using the Touch Panel ■Tap With touching and releasing your finger, the item is selected or run. ■Touch and hold In some screens, continuing to touch the touch panel displays a menu. ■Slide With sliding your finger, the screen scrolls up/down/left/right in direction. ■Drag Quickly slide your finger while touching an item (icon, etc.) to move. ■Flick With quickly sliding and releasing your finger, the screen quickly scrolls in direction. ■Pinch with two fingers For zoom in or zoom out, touch the touch panel with two fingers, and then slide them apart or together. Text Entry Tap a text box on the screen to display the on screen keyboard. ■QWERTY keyboard This keyboard uses a PC keyboard layout. ■10-key keyboard This is an ordinary keyboard of mobile phones. Home Screen 1Widgets 2Application shortcuts 3Dock 4Launch "Phone", "Call log", and "Contacts". 5Open the applications list screen 6Launch browser Reading the Status Bar Notification icons for new information are displayed on the left, and status icons are displayed on the right side of the status bar. 1 2 3 4 1 2 3 1 2 3 4 1 2 3 456 161718191415 232425262122 20 Applications List Screen Tap on the Home screen to display the applications list screen. Calling Making a Call 1Tap on the Home screen. 2Enter the phone number. 3Tap to start the call. 4To finish the call, tap . ■Entering a push tone (pause) Before step 3, tap and then "Add 2-sec pause"/"Add wait". ■Adjusting the call volume Press the +/- (volume) keys. ■Putting the other party on the speaker Tap "Speaker". ■Muting your voice to the other party Tap "Mute". ■Using the Bluetooth function Tap "Bluetooth" when connected to a Bluetooth d…

Text truncated - open the document above for the full version.

Cover Letter(s)

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 October 25, 2011 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 Sporton International Inc. October 25, 2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _Sporton International Inc._hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product description: Digital Portable Cellular Telephone Model name: KMP7N4AB-1A We affirm that between SIEMIC and __Sporton Internationl Inc.___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature: Client’s name / title: Jones Tsai / Director Contact information / address: No.52, HwaYa 1st Rd., Kwei-Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C.

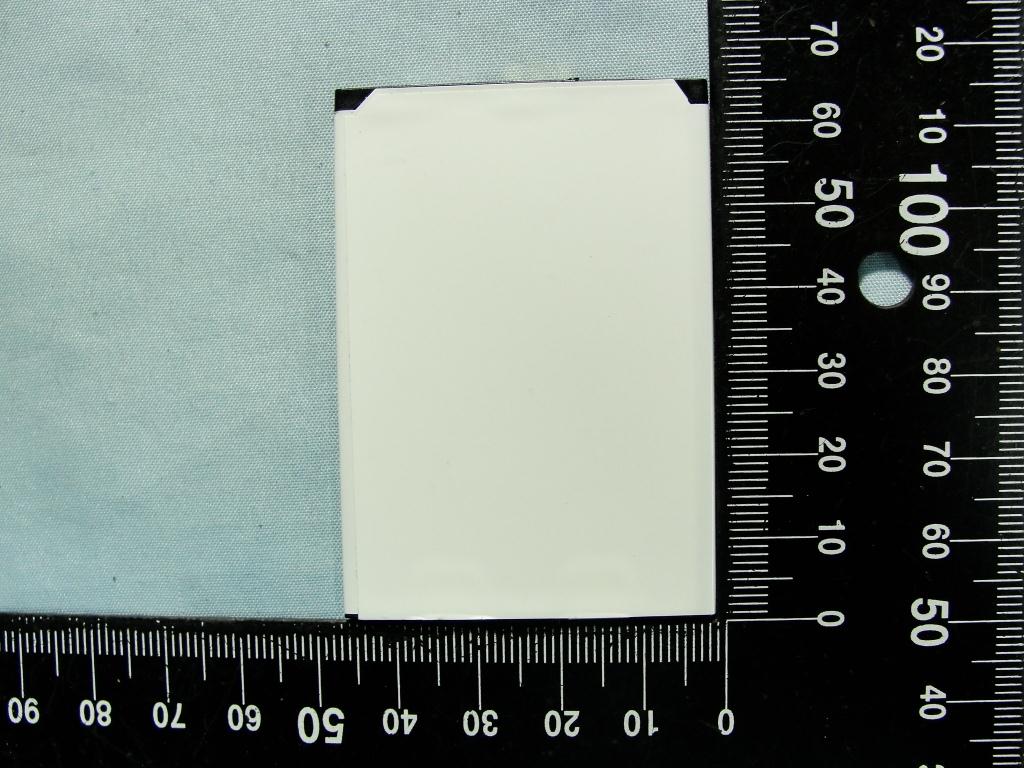

External Photos

Photographs of EUT Report No.: EP192229 Brand Name: NEC CASIO Mobile Communications / Model Name: KMP7N4AB-1A / Marketing Name: KMP7N4AB-1A SPORTON INTERNATIONAL INC. Page Number : 1 of 10 TEL : 886-3-327-3456 Report Issued Date : Oct. 25, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : A98-IQF1504 720510 1. External Photograph of EUT Photographs of EUT Report No.: EP192229 Brand Name: NEC CASIO Mobile Communications / Model Name: KMP7N4AB-1A / Marketing Name: KMP7N4AB-1A SPORTON INTERNATIONAL INC. Page Number : 2 of 10 TEL : 886-3-327-3456 Report Issued Date : Oct. 25, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : A98-IQF1504 720510 Photographs of EUT Report No.: EP192229 Brand Name: NEC CASIO Mobile Communications / Model Name: KMP7N4AB-1A / Marketing Name: KMP7N4AB-1A SPORTON INTERNATIONAL INC. Page Number : 3 of 10 TEL : 886-3-327-3456 Report Issued Date : Oct. 25, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : A98-IQF1504 List of Accessory: Specification of Accessory AC Adapter Brand Name DVE Model Name DSC-5CU-05 Battery Brand Name NEC Model Name N1101WB Earphone Brand Name OBO Model Name EH-HG05D-01 Earphone Cable Brand Name Justconn Model Name AJ002-35670A01 USB Cable Brand Name Jess-Link Signal Line 1.2 meter, shielded cable, with w/o ferrite core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP192229 Brand Name: NEC CASIO Mobile Communications / Model Name: KMP7N4AB-1A / Marketing Name: KMP7N4AB-1A SPORTON INTERNATIONAL INC. Page Number : 4 of 10 TEL : 886-3-327-3456 Report Issued Date : Oct. 25, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : A98-IQF1504 720510 Photographs of EUT Report No.: EP192229 Brand Name: NEC CASIO Mobile Communications / Model Name: KMP7N4AB-1A / Marketing Name: KMP7N4AB-1A SPORTON INTERNATIONAL INC. Page Number : 5 of 10 TEL : 886-3-327-3456 Report Issued Date : Oct. 25, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : A98-IQF1504 720510 Photographs of EUT Report No.: EP192229 Brand Name: NEC CASIO Mobile Communications / Model Name: KMP7N4AB-1A / Marketing Name: KMP7N4AB-1A SPORTON INTERNATIONAL INC. Page Number : 6 of 10 TEL : 886-3-327-3456 Report Issued Date : Oct. 25, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : A98-IQF1504 720510

External Photos

ID Label/Location Info

FCC ID Label Placement Label placement Rear View of the phone Place for battery

Internal Photos

RF Exposure Info

SPORTON INTERNATIONAL INC. Page Number : 1 of 43 TEL : 886-3-327-3456 Report Issued Date : Oct. 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : A98-IQF1504 FCC SAR Test Report Report No. : FA192229 FCC SAR Test Report APPLICANT : NEC Corporation of America EQUIPMENT : Digital Portable Cellular Telephone BRAND NAME : NEC CASIO Mobile Communications MODEL NAME : KMP7N4AB-1A MARKETING NAME : KMP7N4AB-1A FCC ID : A98-IQF1504 STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1991 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Sep. 28, 2011 and completely tested on Oct. 05, 2011. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 43 TEL : 886-3-327-3456 Report Issued Date : Oct. 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : A98-IQF1504 FCC SAR Test Report Report No. : FA192229 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 5 2.1 Testing Laboratory .................................................................................................................................................. 5 2.2 Applicant ................................................................................................................................................................ 5 2.3 Manufacturer .......................................................................................................................................................... 5 2.4 Application Details .................................................................................................................................................. 5 3. General Information ...................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ................................................................................................................ 6 3.2 Product Photos....................................................................................................................................................... 8 3.3 Applied Standards .................................................................................................................................................. 8 3.4 Device Category and SAR Limits ........................................................................................................................... 8 3.5 Test Conditions ....................................................................................................................................................... 8 4. Specific Absorption Rate (SAR) ................................................................................................................................... 9 4.1 Introduction ............................................................................................................................................................ 9 4.2 SAR Definition ........................................................................................................................................................ 9 5. SAR Measurement System ..........................................................................................................................................10 5.1 E-Field Probe ........................................................................................................................................................ 11 5.2 Data Acquisition Electronics (DAE) .......................................................................................................................12 5.3 Robot ....................................................................................................................................................................12 5.4 Measurement Server .............................................................................................................................................13 5.5 Phantom ................................................................................................................................................................13 5.6 Device Holder........................................................................................................................................................14 5.7 Data Storage and Evaluation ................................................................................................................................16 5.8 Test Equipment List ...............................................................................................................................................18 6. Tissue Simulating Liquids ...........................................................................................................................................19 7. Uncertainty Assessment .............................................................................................................................................21 8. SAR Measurement Evaluation ..............................................................................................................…

Text truncated - open the document above for the full version.

RF Exposure Info

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/9/29 System Check_Head_835MHz_110929 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_110929 Medium parameters used: f = 835 MHz; σ = 0.894 mho/m; ε r = 41.665; ρ = 1000 kg/m 3 Ambient Temperature：22.2 °C; Liquid Temperature：21.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3792; ConvF(8.93, 8.93, 8.93); Calibrated: 2011/6/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2011/6/17 - Phantom: SAM Left; Type: QD000P40CD; Serial: TP:1542 - Measurement SW: DASY52, Version 52.6 (2); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.640 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 54.250 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 3.755 W/kg SAR(1 g) = 2.47 mW/g; SAR(10 g) = 1.61 mW/g Maximum value of SAR (measured) = 2.675 mW/g 0 dB = 2.680mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-10-05 System Check_Head_835MHz_111005 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_111005 Medium parameters used: f = 835 MHz; σ = 0.898 mho/m; ε r = 41.3; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.6 °C DASY4 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.45, 8.45, 8.45); Calibrated: 2011-09-02 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn905; Calibrated: 2011-06-24 - Phantom: SAM_Left; Type: SAM; Serial: TP-1150 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.53 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 53.2 V/m; Power Drift = -0.025 dB Peak SAR (extrapolated) = 3.53 W/kg SAR(1 g) = 2.35 mW/g; SAR(10 g) = 1.55 mW/g Maximum value of SAR (measured) = 2.54 mW/g 0 dB = 2.54mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/9/29 System Check_Head_1900MHz_110929 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_110929 Medium parameters used: f = 1900 MHz; σ = 1.428 mho/m; ε r = 39.197; ρ = 1000 kg/m 3 Ambient Temperature：22.3 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3792; ConvF(7.76, 7.76, 7.76); Calibrated: 2011/6/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2011/6/17 - Phantom: SAM Right; Type: QD000P40CD; Serial: TP:1644 - Measurement SW: DASY52, Version 52.6 (2); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 10.820 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 84.418 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 17.959 W/kg SAR(1 g) = 9.78 mW/g; SAR(10 g) = 5.39 mW/g Maximum value of SAR (measured) = 10.769 mW/g 0 dB = 10.770mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/9/30 System Check_Head_2450MHz_110930 DUT: Dipole 2450 MHz Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450_110930 Medium parameters used: f = 2450 MHz; σ = 1.851 mho/m; ε r = 39.252; ρ = 1000 kg/m 3 Ambient Temperature：22.3 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(6.67, 6.67, 6.67); Calibrated: 2011/9/2 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn905; Calibrated: 2011/6/24 - Phantom: SAM Left; Type: QD000P40CD; Serial: TP:1542 - Measurement SW: DASY52, Version 52.6 (2); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 15.649 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 91.983 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 29.409 W/kg SAR(1 g) = 13.7 mW/g; SAR(10 g) = 6.23 mW/g Maximum value of SAR (measured) = 15.597 mW/g 0 dB = 15.600mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/9/28 System Check_Body_835MHz_110928 DUT: Dipole 835 MHz D835V2 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_110928 Medium parameters used: f = 835 MHz; σ = 0.964 mho/m; ε r = 54.532; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3792; ConvF(9.02, 9.02, 9.02); Calibrated: 2011/6/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2011/6/17 - Phantom: SAM Right; Type: QD000P40CD; Serial: TP:1644 - Measurement SW: DASY52, Version 52.6 (2); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.792 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 53.734 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 4.115 W/kg SAR(1 g) = 2.58 mW/g; SAR(10 g) = 1.64 mW/g Maximum value of SAR (measured) = 2.805 mW/g 0 dB = 2.800mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/9/29 System Check_Body_1900MHz_110929 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_110929 Medium parameters used: f = 1900 MHz; σ = 1.51 mho/m; ε r = 51.935; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3792; ConvF(7.17, 7.17, 7.17); Calibrated: 2011/6/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2011/6/17 - Phantom: SAM Left; Type: QD000P40CD; Serial: TP:1542 - Measurement S…

Text truncated - open the document above for the full version.

RF Exposure Info

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-10-05 #44 GSM850_DTM5_Right Cheek_Ch128 DUT: 192229 Communication System: GSM850; Frequency: 824.2 MHz;Duty Cycle: 1:4 Medium: HSL_850_111005 Medium parameters used : f = 824.2 MHz; σ = 0.888 mho/m; ε r = 41.4; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.6 °C DASY4 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.45, 8.45, 8.45); Calibrated: 2011-09-02 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn905; Calibrated: 2011-06-24 - Phantom: SAM_Left; Type: SAM; Serial: TP-1150 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch128/Area Scan (41x71x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 1.08 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.4 V/m; Power Drift = 0.123 dB Peak SAR (extrapolated) = 1.33 W/kg SAR(1 g) = 1.03 mW/g; SAR(10 g) = 0.738 mW/g Maximum value of SAR (measured) = 1.09 mW/g 0 dB = 1.09mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-10-05 #45 GSM850_DTM5_Right Tilted_Ch128 DUT: 192229 Communication System: GSM850; Frequency: 824.2 MHz;Duty Cycle: 1:4 Medium: HSL_850_111005 Medium parameters used : f = 824.2 MHz; σ = 0.888 mho/m; ε r = 41.4; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.6 °C DASY4 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.45, 8.45, 8.45); Calibrated: 2011-09-02 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn905; Calibrated: 2011-06-24 - Phantom: SAM_Left; Type: SAM; Serial: TP-1150 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch128/Area Scan (41x71x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.808 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 20.1 V/m; Power Drift = 0.091 dB Peak SAR (extrapolated) = 1.04 W/kg SAR(1 g) = 0.785 mW/g; SAR(10 g) = 0.573 mW/g Maximum value of SAR (measured) = 0.814 mW/g 0 dB = 0.814mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-10-05 #46 GSM850_DTM5_Left Cheek_Ch128 DUT: 192229 Communication System: GSM850; Frequency: 824.2 MHz;Duty Cycle: 1:4 Medium: HSL_850_111005 Medium parameters used : f = 824.2 MHz; σ = 0.888 mho/m; ε r = 41.4; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.6 °C DASY4 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.45, 8.45, 8.45); Calibrated: 2011-09-02 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn905; Calibrated: 2011-06-24 - Phantom: SAM_Left; Type: SAM; Serial: TP-1150 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch128/Area Scan (41x71x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 1.04 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.0 V/m; Power Drift = 0.066 dB Peak SAR (extrapolated) = 1.29 W/kg SAR(1 g) = 0.980 mW/g; SAR(10 g) = 0.699 mW/g Maximum value of SAR (measured) = 1.04 mW/g 0 dB = 1.04mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-10-05 #47 GSM850_DTM5_Left Tilted_Ch128 DUT: 192229 Communication System: GSM850; Frequency: 824.2 MHz;Duty Cycle: 1:4 Medium: HSL_850_111005 Medium parameters used : f = 824.2 MHz; σ = 0.888 mho/m; ε r = 41.4; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.6 °C DASY4 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.45, 8.45, 8.45); Calibrated: 2011-09-02 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn905; Calibrated: 2011-06-24 - Phantom: SAM_Left; Type: SAM; Serial: TP-1150 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch128/Area Scan (41x71x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.738 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 19.5 V/m; Power Drift = -0.072 dB Peak SAR (extrapolated) = 0.933 W/kg SAR(1 g) = 0.707 mW/g; SAR(10 g) = 0.515 mW/g Maximum value of SAR (measured) = 0.743 mW/g 0 dB = 0.743mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-10-05 #59 GSM850_DTM5_Right Cheek_Ch189 DUT: 192229 Communication System: GSM850; Frequency: 836.4 MHz;Duty Cycle: 1:4 Medium: HSL_850_111005 Medium parameters used : f = 836.4 MHz; σ = 0.899 mho/m; ε r = 41.2; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.6°C DASY4 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.45, 8.45, 8.45); Calibrated: 2011-09-02 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn905; Calibrated: 2011-06-24 - Phantom: SAM_Left; Type: SAM; Serial: TP-1150 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch189/Area Scan (41x71x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 1.11 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.0 V/m; Power Drift = 0.093 dB Peak SAR (extrapolated) = 1.39 W/kg SAR(1 g) = 1.05 mW/g; SAR(10 g) = 0.737 mW/g Maximum value of SAR (measured) = 1.10 mW/g 0 dB = 1.10mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-10-05 #60 GSM850_DTM5_Right Cheek_Ch251 DUT: 192229 Communication System: GSM850; Frequency: 848.8 MHz;Duty Cycle: 1:4 Medium: HSL_850_111005 Medium parameters used: f = 849 MHz; σ = 0.912 mho/m; ε r = 41.1; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.6 °C DASY4 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.45, 8.45, 8.45); Calibrated: 2011-09-02 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn905; Calibrated: 2011-06-24 - Phantom: SAM_Left; Type: SAM; Serial: TP-1150 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch…

Text truncated - open the document above for the full version.

RF Exposure Info

SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Cer…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Sanjay Wadhwa(Senior Manager)

[email protected]214-262-4241Fax: 214-262-4225

Test Firm

Sporton International IncKathy Lin

[email protected]886-2-26962468Fax: 886-2-26962255

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
6	24E	1.85 GHz - 1.91 GHz	70.00 mW	4M12F9W	0.03 ppm

Confidentiality

Long Term

Grant Notes

Output power is ERP/EIRP. This device contains functions that are not operational in U.S. Territories. This filing is only applicable for U.S. operations. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 1.5 cm separation between the device and the user body. The highest reported SAR values for head , Body-Worn Accessory , and mobile hotspot device are : 1.14W/kg, 1.21W/kg , 1.39W/kg respectively.
