A98-KMP6J1F1-1ADual-Band GSM/GPRS Phone

Radio Frequency (RF) Signals THIS MODEL PHONE MEETS THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. Your wireless phone contains a radio transmitter and receiver. Your NEC phone is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate (SAR). The SAR limit set by the FCC is 1.6W/kg.* Tests for SAR are conducted using standard operating positions accepted by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the output. Before a phone model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the government-adopted requirement for safe exposure. The tests are performed on position and locations (for example, at the ear and worn on the body) as required by FCC for each model. The highest SAR value for this model phone as reported to the FCC when tested for use at the ear is (TBD)W/kg, and when worn on the body, is (TBD)W/kg. (Body-worn measurements differ among phone models, depending upon available accessories and FCC requirements). While there may be differences between the SAR levels of various phones and at various positions, they all meet the government requirement. Body-worn Operation The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model phone is on file with the FCC and can be found under the Display Grant section at http://www.fcc.gov/oet/fcid after search on FCC ID A98-KM P6J 1F1-1A. For body worn operation, this phone has been tested and meets the FCC RF exposure guidelines when used with a NEC accessory designated for this product or when used with an accessory that contains no metal and that positions the handset a minimum of 1.5 cm from the body. *In the United States, the SAR limit for wireless mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. SAR values may vary depending upon national reporting requirements and the network band.

September 11, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: NEC America Inc. FCC ID: A98-KMP6J1F1-1A Gentlemen: Transmitted herewith, on behalf of NEC America Inc. is an application for Part 22/24 certification of the Dual-Band GSM Phone. Attached is the applicant’s Letter of Authorization, Confidentiality Request, measurement report (test data and test plots), FCC ID label and location, test setup photographs, internal and external photographs, parts list, tune-up procedure, block diagram (confidential), schematics (confidential), operational description (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Jim Helm, Assistant General Manager

October 16, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Martin Perrine SUBJECT: NEC America Inc. FCC ID: A98-MP6J1F1-1A 731 Confirmation No.: TC543027 Correspondence Reference No.: 5398 Request for Tech. Info.: 10/09/2002 Dear Martin: Transmitted herewith, on behalf of NEC America Inc., is an amendment provided in response to the request for technical information dated October 9, 2002. 1. We confirm that the GPRS mode can use a maximum on 1 time slot of a 8 slot TDMA frame. 2. Please find attached the revised RF Warning page of the User’s Manual. We trust this information is sufficient to issue the grant as soon as possible. If you have any further questions, please do not hesitate to contact us. Cc: NEC America Inc.

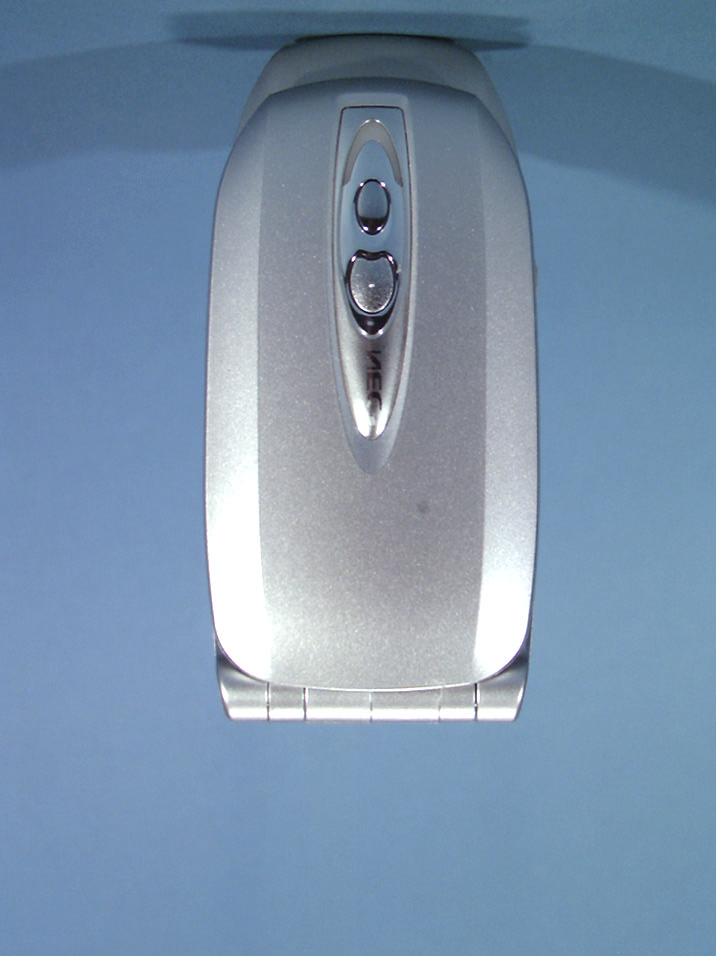

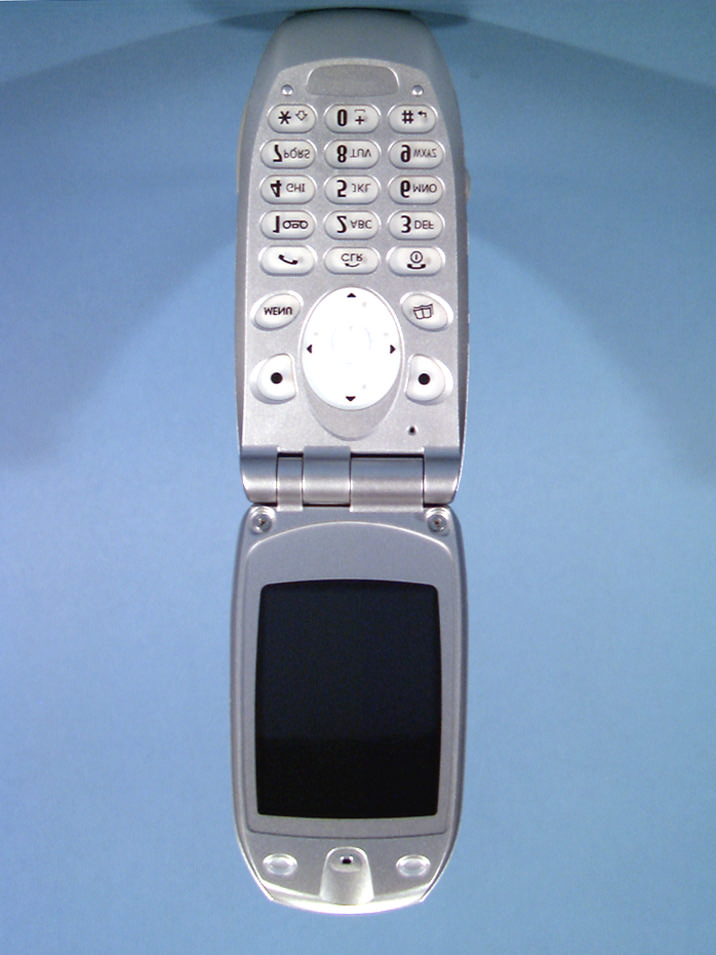

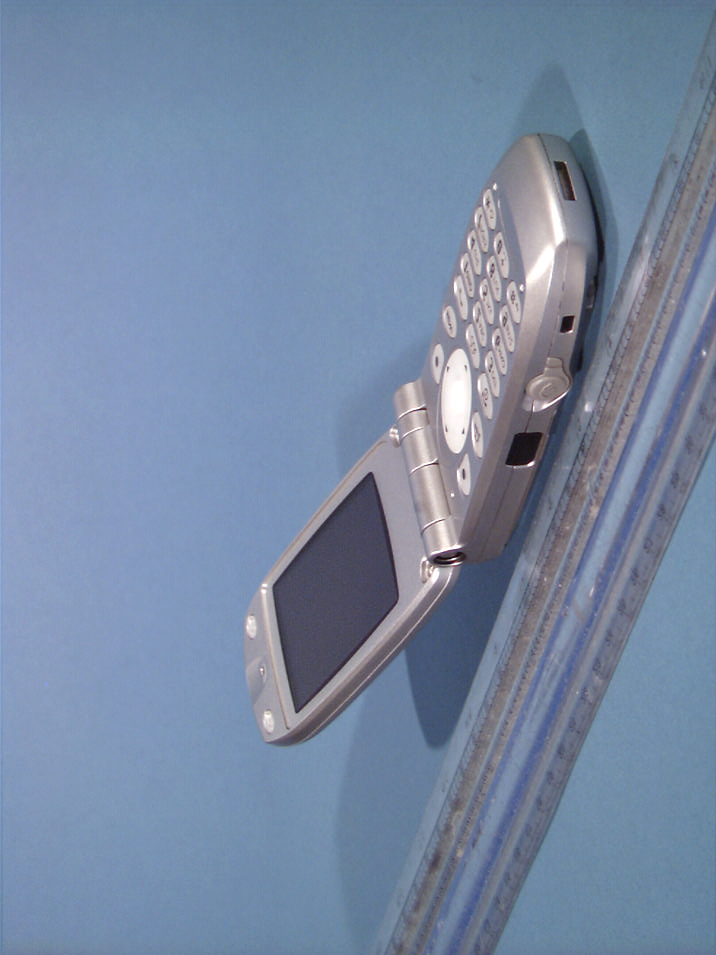

© 2002 PCTEST Lab NEC FCC ID: A98-KMP6J1F1-1A Dual-Band GSM Phone (Model: KMP6J1F1) © 2002 PCTEST Lab NEC FCC ID: A98-KMP6J1F1-1A Dual-Band GSM Phone (Model: KMP6J1F1) © 2002 PCTEST Lab NEC FCC ID: A98-KMP6J1F1-1A Dual-Band GSM Phone (Model: KMP6J1F1) © 2002 PCTEST Lab NEC FCC ID: A98-KMP6J1F1-1A Dual-Band GSM Phone (Model: KMP6J1F1) © 2002 PCTEST Lab NEC FCC ID: A98-KMP6J1F1-1A Dual-Band GSM Phone (Model: KMP6J1F1) © 2002 PCTEST Lab NEC FCC ID: A98-KMP6J1F1-1A Dual-Band GSM Phone (Model: KMP6J1F1) © 2002 PCTEST Lab NEC FCC ID: A98-KMP6J1F1-1A Dual-Band GSM Phone (Model: KMP6J1F1)

© 2002 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) A98-KMP6 J 1 F 1 - 1 A Sample FCC ID Label

© 2002 PCTEST Lab NEC FCC ID: A98-KMP6J1F1-1A Dual-Band GSM Phone (Model: KMP6J1F1) © 2002 PCTEST Lab NEC FCC ID: A98-KMP6J1F1-1A Dual-Band GSM Phone (Model: KMP6J1F1) © 2002 PCTEST Lab NEC FCC ID: A98-KMP6J1F1-1A Dual-Band GSM Phone (Model: KMP6J1F1) © 2002 PCTEST Lab NEC FCC ID: A98-KMP6J1F1-1A Dual-Band GSM Phone (Model: KMP6J1F1) © 2002 PCTEST Lab NEC FCC ID: A98-KMP6J1F1-1A Dual-Band GSM Phone (Model: KMP6J1F1) © 2002 PCTEST Lab NEC FCC ID: A98-KMP6J1F1-1A Dual-Band GSM Phone (Model: KMP6J1F1) © 2002 PCTEST Lab NEC FCC ID: A98-KMP6J1F1-1A Dual-Band GSM Phone (Model: KMP6J1F1) © 2002 PCTEST Lab NEC FCC ID: A98-KMP6J1F1-1A Dual-Band GSM Phone (Model: KMP6J1F1) © 2002 PCTEST Lab NEC FCC ID: A98-KMP6J1F1-1A Dual-Band GSM Phone (Model: KMP6J1F1) © 2002 PCTEST Lab NEC FCC ID: A98-KMP6J1F1-1A Dual-Band GSM Phone (Model: KMP6J1F1) © 2002 PCTEST Lab NEC FCC ID: A98-KMP6J1F1-1A Dual-Band GSM Phone (Model: KMP6J1F1) © 2002 PCTEST Lab NEC FCC ID: A98-KMP6J1F1-1A Dual-Band GSM Phone (Model: KMP6J1F1) © 2002 PCTEST Lab NEC FCC ID: A98-KMP6J1F1-1A Dual-Band GSM Phone (Model: KMP6J1F1)

PCTEST ENGINEERING LABORATORY, INC. 6660 — B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-220819436.A98 Test Dates: Aug. 30 - Sept. 5, 2002 Phone Type: Dual-Band GSM/GPRS Phone FCC ID: A98-KMP6J1F1-1A Page 1 of 30 © 2002 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: NEC AMERICA INC. Dates of Tests: Aug. 30 - Sept. 5, 2002 6535 N. State Hwy. 161 Test Report S/N: SAR.220819436.A98 Irving, TX 75039-2402 Test Site: PCTEST Lab, Columbia MD Attn: Johnny Pham FCC ID: A98-KMP6J1F1-1A APPLICANT: NEC AMERICA INC. EUT Type: Dual-Band GSM/GPRS Phone Tx Frequency: 824.20MHz — 848.80MHz (GSM) / 1850.20MHz — 1909.80MHz (PCS GSM) Rx Frequency Range: 869.20MHz — 893.80MHz (GSM) / 1930.20MHz — 1989.80MHz (PCS GSM) Max. RF Output Power: 1.24 W ERP GSM (30.933 dBm) / 31.0 dBm Conducted 1.68 W EIRP PCS GSM (32.251 dBm) / 31.0 dBm Conducted Max. SAR Measurement: 0.524W/kg GSM Head SAR; 0.493W/kg GSM Body SAR; 1.200W/kg PCS GSM Head SAR; 0.561W/kg PCS GSM Body SAR Trade Name/Model(s): KMP6J1F1 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: identical prototype This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.4, July 2001). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 220819436.A98 PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-220819436.A98 Test Dates: Aug. 30 - Sept. 5, 2002 Phone Type: Dual-Band GSM/GPRS Phone FCC ID: A98-KMP6J1F1-1A Page 2 of 30 © 2002 PCTEST Engineering Laboratory, Inc TABLE OF CONTENTS 1. INTRODUCTION .................................................................................................. 3 SAR DEFINITION ................................................................................................. 3 2. SAR MEASUREMENT SETUP .................................................................................. 4 Robotic System ....................................................................................................... 4 System Hardware ................................................................................................... 4 System Electronics .................................................................................................. 4 3. DASY3 E-FIELD PROBE SYSTEM ............................................................................ 5 Probe Measurement System.................................................................................... 5 Probe Specifications ............................................................................................... 5 4. Probe Calibration Process....................................................................................... 6 Dosimetric Assessment Procedure .......................................................................... 6 Free Space Assessment ........................................................................................... 6 Temperature Assessment ........................................................................................ 6 5. PHANTOM & EQUIVALENT TISSUES .................................................................... 7 SAM Phantom ........................................................................................................ 7 Brain & Muscle Simulating Mixture Characterization ............................................. 7 Device Holder for Transmitters............................................................................... 7 6. TEST SYSTEM SPECIFICATIONS ............................................................................. 8 Automated Test System Specifications .................................................................... 8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................. 9 Measurement Procedure......................................................................................... 9 Specific Anthropomorphic Mannequin (SAM) Specifications.................................. 9 8. DEFINITION OF REFERENCE POINTS ................................................................. 10 EAR Reference Point............................................................................................. 10 Handset Reference Points ..................................................................................... 10 9. TEST CONFIGURATION POSITIONS .................................................................. 11 Positioning for Cheek/Touch ................................................................................ 11 Positioning for Ear / 15° Tilt .................................................................................. 12 Body Holster /Belt Clip Configurations ................................................................. 13 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS ................................................... 14 Uncontrolled Environment ......................................................…

Text truncated - open the document above for the full version.

NEC FCC ID: A98-KMP6J1F1-1A -- 850MHz. GSM Head SAR SAM Phantom; Right Hand Section; Probe:ET3DV6 - SN1677; ConvF(6.70,6.70,6.70) Med. Parameters 835 MHz Brain: σ = 0.91 mho/m ε r = 40.0 ρ = 1.00 g/cm 3 ; Antenna Position -- Fixed; Crest Factor 8.0 SAR (1g): 0.524 mW/g, SAR (10g): 0.378 mW/g NEC DualBand GSM Phone Model: KMP6J1F1 850MHz GSM Mode, Ch.251[848.8MHz]; Standard Battery; Ambient Temp. = 22.3°C / Meas.Tissue Temp. = 22.2°C Conducted Power = 31.0dBm; Right Head Phantom; Flip = open; Cheek/Touch position Test Date -- 09/03/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 4.95E-2 1.59E-1 2.56E-1 3.92E-1 4.63E-1 PCTEST Engineering Laboratory, Inc. NEC FCC ID: A98-KMP6J1F1-1A -- 850MHz. GSM Head SAR SAM Phantom; Right Hand Section; Probe:ET3DV6 - SN1677; ConvF(6.70,6.70,6.70) Med. Parameters 835 MHz Brain: σ = 0.91 mho/m ε r = 40.0 ρ = 1.00 g/cm 3 ; Antenna Position -- Fixed; Crest Factor 8.0 SAR (1g): 0.0788 mW/g, SAR (10g): 0.0543 mW/g NEC DualBand GSM Phone Model: KMP6J1F1 850MHz GSM Mode, Ch.251 [848.8MHz]; Standard Battery; Ambient Temp. = 22.3°C / Meas.Tissue Temp. = 22.2° Conducted Power = 31.0dBm; Right Head Phantom; Flip = open; EAR/15 Degree Tilt position Test Date -- 09/03/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 4.50E-3 1.35E-2 2.25E-2 3.15E-2 4.05E-2 PCTEST Engineering Laboratory, Inc. NEC FCC ID: A98-KMP6J1F1-1A -- 850MHz. GSM Head SAR SAM Phantom; Left Hand Section; Probe:ET3DV6 - SN1677; ConvF(6.70,6.70,6.70) Med. Parameters 835 MHz Brain: σ = 0.91 mho/m ε r = 40.0 ρ = 1.00 g/cm 3 ; Antenna Position -- Fixed; Crest Factor 8.0 SAR (1g): 0.518 mW/g, SAR (10g): 0.354 mW/g NEC DualBand GSM Phone Model: KMP6J1F1 850MHz GSM Mode, Ch.251 [848.8MHz]; Standard Battery; Ambient Temp. = 22.3°C / Meas.Tissue Temp. = 22.2°C Conducted Power = 31.0dBm; Left Head Phantom; Flip = open; Cheek/Touch position Test Date -- 09/03/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 4.97E-2 1.53E-1 2.51E-1 3.49E-1 4.57E-1 PCTEST Engineering Laboratory, Inc. NEC FCC ID: A98-KMP6J1F1-1A -- 850MHz. GSM Head SAR SAM Phantom; Left Hand Section; Probe:ET3DV6 - SN1677; ConvF(6.70,6.70,6.70) Med. Parameters 835 MHz Brain: σ = 0.91 mho/m ε r = 40.0 ρ = 1.00 g/cm 3 ; Antenna Position -- Fixed; Crest Factor 8.0 SAR (1g): 0.0790 mW/g, SAR (10g): 0.0549 mW/g NEC DualBand GSM Phone Model: KMP6J1F1 850MHz GSM Mode, Ch.251 [848.8MHz]; Standard Battery; Ambient Temp. = 22.3°C / Meas.Tissue Temp. = 22.2° Conducted Power = 31.0dBm; Left Head Phantom; Flip = open; EAR/15 Degree Tilt position Test Date -- 09/03/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 4.60E-3 1.38E-2 2.30E-2 3.22E-2 4.14E-2 PCTEST Engineering Laboratory, Inc. NEC FCC ID: A98-KMP6J1F1-1A -- 1900 GSM Head SAR SAM Phantom; Right Hand Section; Probe:ET3DV6 - SN1677; ConvF(5.30,5.30,5.30) Med. Parameters 1900 MHz Brain: σ = 1.42 mho/m ε r = 40.7 ρ = 1.00 g/cm 3 ; Antenna Position -- Fixed; Crest Factor 8.0 SAR (1g): 1.20 mW/g, SAR (10g): 0.789 mW/g NEC DualBand GSM Phone Model: KMP6J1F1 1900MHz GSM Mode, Ch.810 [1909.8MHz]; Standard Battery; Ambient Temp.= 22.3°C / Meas.Tissue Temp. = 22.2°C Conducted Power = 31.0dBm; Right Head Phantom; Flip = open; Cheek/Touch position Test Date -- 08/30/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 1.58E-1 3.74E-1 5.90E-1 8.32E-0 1.08E+0 PCTEST Engineering Laboratory, Inc. NEC FCC ID: A98-KMP6J1F1-1A -- 1900 GSM Head SAR SAM Phantom; Right Hand Section; Probe:ET3DV6 - SN1677; ConvF(5.30,5.30,5.30) Med. Parameters 1900 MHz Brain: σ = 1.42 mho/m ε r = 40.7 ρ = 1.00 g/cm 3 ; Antenna Position -- Fixed; Crest Factor 8.0 SAR (1g): 0.131 mW/g, SAR (10g): 0.0836 mW/g NEC DualBand GSM Phone Model: KMP6J1F1 1900MHz GSM Mode, Ch.810 [1909.8MHz]; Standard Battery; Ambient Temp.= 22.3° Meas.Tissue Temp. = 22.2° Conducted Power = 31.0dBm; Right Head Phantom; Flip = open; EAR/15 Degree Tilt position Test Date -- 08/30/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 1.30E-2 3.90E-2 6.50E-2 9.10E-2 1.17E-1 PCTEST Engineering Laboratory, Inc. NEC FCC ID: A98-KMP6J1F1-1A -- 1900 GSM Head SAR SAM Phantom; Left Hand Section; Probe:ET3DV6 - SN1677; ConvF(5.30,5.30,5.30) Med. Parameters 1900 MHz Brain: σ = 1.42 mho/m ε r = 40.7 ρ = 1.00 g/cm 3 ; Antenna Position -- Fixed; Crest Factor 8.0 SAR (1g): 1.18 mW/g, SAR (10g): 0.754 mW/g NEC DualBand GSM Phone Model: KMP6J1F1 1900MHz GSM Mode, Ch.810 [1909.8MHz]; Standard Battery; Ambient Temp.= 22.3°C / Meas.Tissue Temp. = 22.2°C Conducted Power = 31.0dBm; Left Head Phantom; Flip = open; Cheek/Touchposition Test Date -- 08/30/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 1.30E-1 3.68E-1 6.15E-1 8.49E-1 1.12E+0 PCTEST Engineering Laboratory, Inc. NEC FCC ID: A98-KMP6J1F1-1A -- 1900 GSM Head SAR SAM Phantom; Left Hand Section; Probe:ET3DV6 - SN1677; ConvF(5.30,5.30,5.30) Med. Parameters 1900 MHz Brain: σ = 1.42 mho/m ε r = 40.7 ρ = 1.00 g/cm 3 ; Antenna Position -- Fixed; Crest Factor 8.0 SAR (1g): 0.155 mW/g, SAR (10g): 0.0908 mW/g NEC Dual Band GSM Phone Model: KMP6J1F1 1900MHz GSM Mode, Ch.810 [1909.8MHz]; Standard Battery; Ambient Temp.= 22.3° Meas.Tissue Temp. = 22.2° Conducted Power = 31.0dBm; Left Head Phantom; Flip = open; EAR/15 Degree Tiltposition Test Date -- 08/30/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 1.60E-2 4.80E-2 8.00E-2 1.12E-1 1.44E-1 PCTEST Engineering Laboratory, Inc. NEC FCC ID: A98-KMP6J1F1-1A -- 850 GSM Body SAR SAM Phantom; Flat Section; Probe:ET3DV6 - SN1677; ConvF(6.40,6.40,6.40) Med. Parameters 835 MHz Muscle: σ = 0.98 mho/m ε r = 55.6 ρ = 1.00 g/cm 3 ; Antenna Position -- Fixed; Crest Factor 8.0 SAR (1g): 0.493 mW/g, SAR (10g): 0.369 mW/g NEC DualBand GSM Phone Model: KMP6J1F1 850 GSM Mode, Ch.251 [848.8MHz]; Standard Battery; Flip = closed; Ambient Temp. = 22.3°C / Meas. Tissue Temp. = 22.2°C Conducted Power = 31.0dBm; Spacing = 1.5cm from back of EUT to flat phantom, No BeltClip/No Ho…

Text truncated - open the document above for the full version.

© 2002 PCTEST Lab NEC FCC ID: A98-KMP6J1F1-1A Dual-Band GSM Phone (Model: KMP6J1F1) © 2002 PCTEST Lab NEC FCC ID: A98-KMP6J1F1-1A Dual-Band GSM Phone (Model: KMP6J1F1) © 2002 PCTEST Lab NEC FCC ID: A98-KMP6J1F1-1A Dual-Band GSM Phone (Model: KMP6J1F1) © 2002 PCTEST Lab NEC FCC ID: A98-KMP6J1F1-1A Dual-Band GSM Phone (Model: KMP6J1F1) © 2002 PCTEST Lab NEC FCC ID: A98-KMP6J1F1-1A Dual-Band GSM Phone (Model: KMP6J1F1) © 2002 PCTEST Lab NEC FCC ID: A98-KMP6J1F1-1A Dual-Band GSM Phone (Model: KMP6J1F1) © 2002 PCTEST Lab NEC FCC ID: A98-KMP6J1F1-1A Dual-Band GSM Phone (Model: KMP6J1F1) © 2002 PCTEST Lab NEC FCC ID: A98-KMP6J1F1-1A Dual-Band GSM Phone (Model: KMP6J1F1) © 2002 PCTEST Lab NEC FCC ID: A98-KMP6J1F1-1A Dual-Band GSM Phone (Model: KMP6J1F1) © 2002 PCTEST Lab NEC FCC ID: A98-KMP6J1F1-1A Dual-Band GSM Phone (Model: KMP6J1F1) © 2002 PCTEST Lab NEC FCC ID: A98-KMP6J1F1-1A Dual-Band GSM Phone (Model: KMP6J1F1) © 2002 PCTEST Lab NEC FCC ID: A98-KMP6J1F1-1A Dual-Band GSM Phone (Model: KMP6J1F1) © 2002 PCTEST Lab NEC FCC ID: A98-KMP6J1F1-1A Dual-Band GSM Phone (Model: KMP6J1F1) © 2002 PCTEST Lab NEC FCC ID: A98-KMP6J1F1-1A Dual-Band GSM Phone (Model: KMP6J1F1) © 2002 PCTEST Lab NEC FCC ID: A98-KMP6J1F1-1A Dual-Band GSM Phone (Model: KMP6J1F1)

835MHz Brain Dipole Validation SAM Phantom; Flat Section; Probe:ET3DV6 - SN1677; ConvF(6.70,6.70,6.70) Med. Parameters 835 MHz Brain: σ = 0.91 mho/m ε r = 40.0 ρ = 1.00 g/cm 3 ; Antenna Position -- Fixed; Crest Factor 1.0 SAR (1g): 2.47 mW/g, SAR (10g): 1.60 mW/g 835MHz Brain Dipole Validation (D835V2 S/N: 406) Frequency: 835 MHz; Antenna Input Power: 250 [mW]; Ambient Temp. = 22.3°C / Meas. Tissue Temp. = 22.2°C PCTEST Brain Tissue Simulating Liquid [09/30/2002] SAR Tot [mW/g] 2.49E-1 7.68E-1 1.22E+0 1.69E+0 2.26E+0 PCTEST Engineering Laboratory, Inc. 1900MHz Brain Dipole Validation SAM Phantom; Flat Section; Probe:ET3DV6 - SN1677; ConvF(5.30,5.30,5.30) Med. Parameters 1900 MHz Brain: σ = 1.42 mho/m ε r = 40.7 ρ = 1.00 g/cm 3 ; Antenna Position -- Fixed; Crest Factor 1.0 SAR (1g): 9.64 mW/g, SAR (10g): 4.91 mW/g 1900MHz Brain Dipole Validation (D1900V2 S/N: 502) Frequency: 1900 MHz; Antenna Input Power: 250 [mW]; Ambient Temp. = 22.3°C / Meas. Tissue Temp. = 22.2°C PCTEST Brain Tissue Simulating Liquid [08/30/2002] SAR Tot [mW/g] 9.63E-1 2.87E+0 4.67E+0 6.75E+0 8.67E+0 PCTEST Engineering Laboratory, Inc.

PCTEST PT. 22/24 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22/24.220819435.A98 Test Dates: A ug. 30 - Sept. 5, 2002 Phone Type: Dual-Band GSM/GPRS Phone FCC ID: A98-KMP6J1F1-1A Page 1 of 23 © 2002 PCTEST ENGINEERING LABORATORY, INC. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 22 & 24 Certification NEC AMERICA INC. Dates of Tests: Aug. 30 - Sept. 5, 2002 6535 N. State Hwy. 161 Test Report S/N: 22/24.220819435.A98 Irving, TX 75039-2402 Test Site: PCTEST Lab, Columbia MD Attn: Johnny Pham FCC ID A98-KMP6J1F1-1A APPLICANT NEC AMERICA INC. Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §24(E), §22.901(d); §2 EUT Type: Dual-Band GSM/GPRS Phone Model: KMP6J1F1 Tx Frequency Range: 824.20MHz — 848.80MHz (GSM) / 1850.20MHz — 1909.80MHz (PCS GSM) Rx Frequency Range: 869.20MHz — 893.80MHz (GSM) / 1930.20MHz — 1989.80MHz (PCS GSM) Max. RF Output Power: 1.24 W ERP GSM (30.933 dBm) / 1.68 W EIRP PCS GSM (32.251 dBm) Max. SAR Measurement: 0.524W/kg GSM Head SAR; 0.493W/kg GSM Body SAR; 1.200W/kg PCS GSM Head SAR; 0.561W/kg PCS GSM Body SAR Emission Designator(s): 300KG7W This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 220819435.A98 PCTEST PT. 22/24 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22/24.220819435.A98 Test Dates: A ug. 30 - Sept. 5, 2002 Phone Type: Dual-Band GSM/GPRS Phone FCC ID: A98-KMP6J1F1-1A Page 2 of 23 © 2002 PCTEST ENGINEERING LABORATORY, INC. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 3 2.1 INTRODUCTION 4 3.1 INSERTS 5 4.1 DESCRIPTION OF TESTS 6-7 5.1 EFFECTIVE RADIATED POWER OUTPUT 8 6.1 EQUIVALENT ISOTROPIC RADIATED POWER 9 7.1 RADIATED MEASUREMENTS 10-15 8.1 FREQUENCY STABILITY 16-19 9.1 PLOTS OF EMISSIONS 20 10.1 LIST OF TEST EQUIPMENT 21 11.1 SAMPLE CALCULATIONS 22 12.1 CONCLUSION 23 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: OPERATIONAL / CIRCUIT DESCRIPTION ATTACHMENT L: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS ATTACHMENT Q: DIPOLE VALIDATION ATTACHMENT R: PROBE CALIBRATION PCTEST PT. 22/24 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22/24.220819435.A98 Test Dates: A ug. 30 - Sept. 5, 2002 Phone Type: Dual-Band GSM/GPRS Phone FCC ID: A98-KMP6J1F1-1A Page 3 of 23 © 2002 PCTEST ENGINEERING LABORATORY, INC. MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information Applicant Name: NEC AMERICA INC. Address: 6535 N. State HWY 161 Irving, TX 75039-2402 Attention: Johnny Pham • FCC ID: A98-KMP6J1F1-1A • Quantity: Quantity production is planned • Emission Designators: 300KG7W • Tx Freq. Range: 824.20MHz — 848.80MHz (GSM) 1850.20MHz — 1909.80MHz (PCS GSM) • Rx Freq. Range: 869.20MHz — 893.80MHz (GSM) 1930.20MHz — 1989.80MHz (PCS GSM) • Max. Power Rating: 1.24 W ERP GSM (30.933 dBm) 1.68 W EIRP PCS GSM (32.251 dBm) • FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type: Dual-Band GSM/GPRS Phone • Modulation(s): GSM • Frequency Tolerance: ± 0.00025% (2.5 ppm) • FCC Rule Part(s): § 24(E), §22.901(d) • Dates of Tests: Aug. 30 - Sept. 5, 2002 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 22/24.220819435.A98 PCTEST PT. 22/24 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22/24.220819435.A98 Test Dates: A ug. 30 - Sept. 5, 2002 Phone Type: Dual-Band GSM/GPRS Phone FCC ID: A98-KMP6J1F1-1A Page 4 of 23 © 2002 PCTEST ENGINEERING LABORATORY, INC. 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. Measurement Procedure The radiated and spurious measurements were made outdoors at a 3-meter test range (see Figure2). The equipment under test is placed on a wooden turntable 3-meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer. A half- wave dipol…

Text truncated - open the document above for the full version.

© 2002 PCTEST Lab NEC FCC ID: A98-KMP6J1F1-1A Dual-Band GSM Phone (Model: KMP6J1F1) © 2002 PCTEST Lab NEC FCC ID: A98-KMP6J1F1-1A Dual-Band GSM Phone (Model: KMP6J1F1) © 2002 PCTEST Lab NEC FCC ID: A98-KMP6J1F1-1A Dual-Band GSM Phone (Model: KMP6J1F1) © 2002 PCTEST Lab NEC FCC ID: A98-KMP6J1F1-1A Dual-Band GSM Phone (Model: KMP6J1F1)
