A98-KMP6J1J1Single-Band PCS GSM Phone

i Emergency Services and Safety Precautions Emergency ServicesTo make an emergency call in any country☛ Press 1 1 2 . Ask the operator for t he service which you require: Polic e, Ambulance, Fire Brigade, Coastguard or Mountain Rescue Services. Give your positi on and, if possible, remain stationary to maintain phone contact.The 112 emergency number service is availabl e on every digital network service. The number 999 is an alternative emergency num ber for the UK only, and can only be used with a valid SIM card. 2 Due to the nature of the ce llular system, the success of emergency calls cannot be guaranteed. General CareA cellphone contains delicate electronic circ uitry, magnets, and battery systems. You should treat it with care and give par ticular attention to the following points. • Do not allow the phone or its ac cessories to come into cont act with liquid or moisture at any time. • Do not place anythi ng in the folded phone. • Do not expose your phone to ex treme high or low temperatures. • Do not expose your phone to na ked flame, ciga rs or cigarettes. • Do not paint your phone. • Do not drop or subject y our phone to ro ugh treatment. • Do not place the phone alongside computer disk s, credit cards, travel cards and other magnetic media. The informat ion contained on disks or ca rds may be affected by the phone. • Do not leave the phone or th e battery in places where the temperature could exceed 60; e.g. on a car dashboard or on a window sill, behind gl ass in direct sunlight, etc. • Do not remove the phone ’s battery while the phone is switched on. • Take care not to allow metal objects, such as coins or key rings, to contact or short- circuit the battery terminals. • Do not dispose of battery pa cks in a fire. Your phone's Li -ion batteries may be safely disposed of at Li-ion recycl ing points. For more specific battery and power supply information, see page 4. • Do not put your phone's battery in your mouth as battery electrolytes may be toxic if swallowed. • Do not attempt to dismantle the phone or any of its accessories. • This equipment is fitted with an internal battery that can only be replaced by a qualified service engineer. There is a risk of explosion if the battery is repl aced by an incorrect type. Dispose of the used batt ery in accordance with the manufacturer's instructions. • Using any battery pack, AC adapter, Vehicle power adapter (option) or Desktop charger (option) not specified by the manu facturer for use with this phone creates a potential safety hazard. • The earpiece may become warm during normal use and the unit itself may become warm during charging. • Use a damp or anti-static cl oth to clean the phone. Do NOT use a dry cloth or electrostatically charged cloth. Do not use chemical or abrasive clea ners as these could damage the case. • Remember to recycle: the cardboard packag ing supplied with this phone is ideal for recycling. • Do not leave the battery pack empty or di sconnected for a long time, otherwise some data may be initialized. • Your phone contains metal which may cause you an itch, a rash or eczema depending on your constitution or physical condition. • Take care not to put your phone in the ba ck pocket of your trousers or skirt and then sit on it. Also, do not put yo ur phone at the botto m of bag where it may subject to excessive weight or pressure.Doing so may damage the LCD and camera lens and cause t hem malfunction. • Take care not to hold the Light too close to your or other people’ s eyes when the Light is lit. Aircraft Safety• Switch off your phone and remove its battery when inside or near aircraft. The use of cellphones in aircraft is ill egal. It may be dangerous to the operation of the aircraft and it may disrupt the cellular network. Failure to observe this instruction may lead to suspension or denial of cellphone service to the offender, or legal action, or both. • Do not use your phone on the ground without the per mission of the ground crew. Hospital Safety• Switch off your phone in areas where the use of cellphones is prohibited. Follow the instructions given by the re spective medical facility rega rding the use of cellphones on their premises. General Safety• Observe ‘Turn off 2-way radio’ signs, such as th ose near stores of fuel, chemicals or explosives. • Do not allow children to play wi th the phone, charger or batteries. • Small parts are included in your phone. Keep t hem out of reach of small children, for whom it could be a choking hazard. • The operation of some m edical electronic devices, such as hearing aids and pacemakers, may be affe cted if a cellphone is used next to them. Observe any warning signs and manufacturer 's recommendations. • If you have a weak heart, y ou should take extra precauti ons when setting functions such as the Vibrator and Ringer volume functi ons for incoming calls. • If you set the Vibrator setting to anything other than OFF, be care ful that the phone is not near a source of heat (e.g . a heater) and that it does not fall from a desk due to the vibration. Road Safety• You MUST exercise proper cont rol of your vehicle at all ti mes. Give full attention to driving. • Observe all the recommendations contained in your local traffic safety documentation. • Pull off the road and park before making or answering a call if driving conditions so require. • You MUST NOT stop on the hard shoulder of a motorway to answer or make a call, except in an emergency. ii • Switch off your phone at a refu elling point, such as a petrol station, even if you are not refuelling your own car. • Do not store or carry flamm able or explosive materials in the same compartment where a radio transmitter, such as a cellphone, is placed. • Electronic vehicle systems, su ch as anti-lock brakes, spee d control and fuel injection systems are not normally affe cted by radio transmissions. The manufacturer of such equipment can advise if it is adequately shielded from radio transmissions. If you suspect vehi…

Text truncated - open the document above for the full version.

November 6, 2003 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: NEC America, Inc. FCC ID: A98-KMP6J1J1 Part 24 Certification Gentlemen: Submitted herewith, on behalf of NEC America, Inc., is an application for Part 24 Certification of the Single-Band PCS GSM Phone. Attached is the applicant’s Letter of Authorization, Confidentiality Request, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), parts list & tune-up procedure, and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: NEC America, Inc.

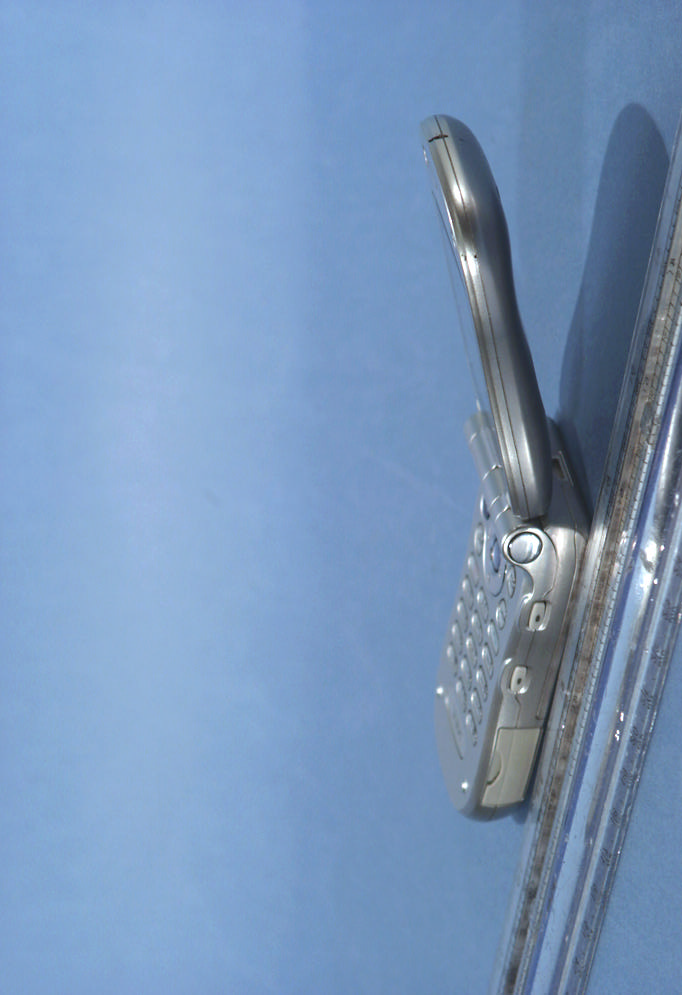

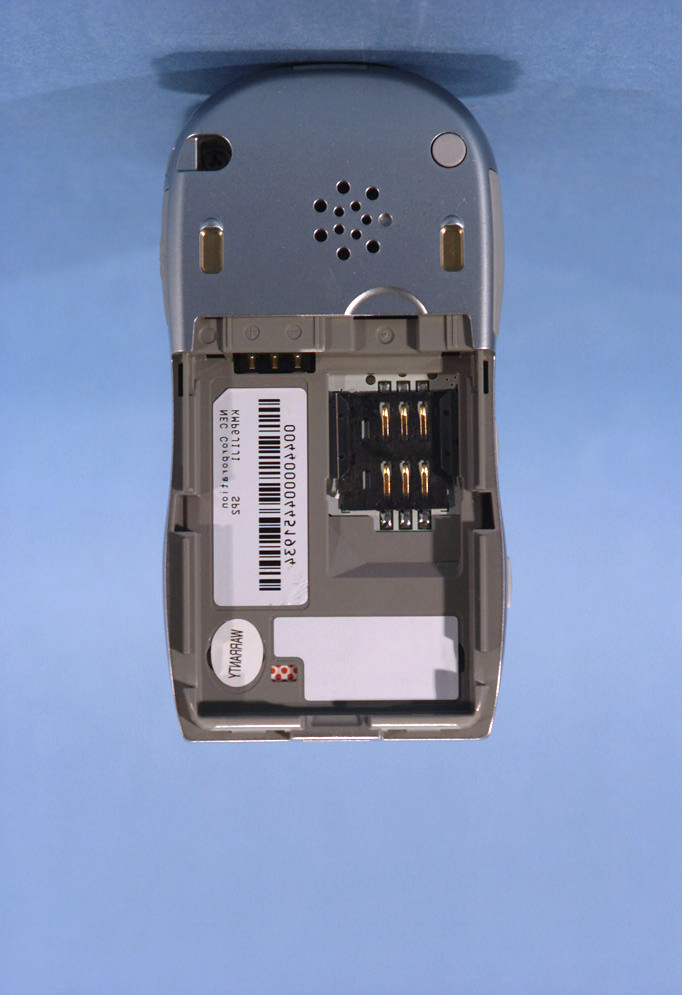

NEC FCC ID: A98-KMP6J1J1 EUT Photographs © 2003 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1J1-2 NEC FCC ID: A98-KMP6J1J1 EUT Photographs © 2003 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1J1-2 NEC FCC ID: A98-KMP6J1J1 EUT Photographs © 2003 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1J1-2 NEC FCC ID: A98-KMP6J1J1 EUT Photographs © 2003 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1J1-2 NEC FCC ID: A98-KMP6J1J1 EUT Photographs © 2003 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1J1-2 NEC FCC ID: A98-KMP6J1J1 EUT Photographs © 2003 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1J1-2 NEC FCC ID: A98-KMP6J1J1 EUT Photographs © 2003 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1J1-2

© 2003 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) FCC ID# A98-KMP6J1J1 Label Sample – model # KMP6J1J1 – 2 (e232)

NEC FCC ID: A98-KMP6J1J1 EUT Photographs © 2003 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1J1-2 NEC FCC ID: A98-KMP6J1J1 EUT Photographs © 2003 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1J1-2 NEC FCC ID: A98-KMP6J1J1 EUT Photographs © 2003 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1J1-2 NEC FCC ID: A98-KMP6J1J1 EUT Photographs © 2003 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1J1-2 NEC FCC ID: A98-KMP6J1J1 EUT Photographs © 2003 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1J1-2 NEC FCC ID: A98-KMP6J1J1 EUT Photographs © 2003 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1J1-2 NEC FCC ID: A98-KMP6J1J1 EUT Photographs © 2003 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1J1-2 NEC FCC ID: A98-KMP6J1J1 EUT Photographs © 2003 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1J1-2 NEC FCC ID: A98-KMP6J1J1 EUT Photographs © 2003 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1J1-2 NEC FCC ID: A98-KMP6J1J1 EUT Photographs © 2003 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1J1-2

FCC ID# A98-KMP6J1J1 Parts List – model # KMP6J1J1 – 2 (e232) 1 Upper Board: Part Number Product Name Designation Quantity 14Y-400123-00 UPPER BOARD ASSY 14Y-400123-00 1 14Y-400129-00 M-R FPC ASSY 14Y-400129-00 1 MAY-PM0012-A001 NYF-05A-4 LED MODULE MAY-PM0012-A001 1 MAY-PE0010-M001 LTS-180S3-HF6-0 LCD MODULE MAY-PE0010-M001 1 MAY-PE0010-M001 LTS-180S3-HF6-0 LCD MODULE MAY-PE0010-M001 1 MAY-PE0010-M001 LTS-180S3-HF6-0 LCD MODULE MAY-PE0010-M001 1 MAY-PE0010-M001 LTS-180S3-HF6-0 LCD MODULE MAY-PE0010-M001 1 MAY-PE0010-M001 LTS-180S3-HF6-0 LCD MODULE MAY-PE0010-M001 1 MAY-PE0010-M001 LTS-180S3-HF6-0 LCD MODULE MAY-PE0010-M001 1 MAY-PE0011-M001 LTM018A18A LCD MODULE MAY-PE0011-M001 1 MAY-PE0011-M001 LTM018A18A LCD MODULE MAY-PE0011-M001 1 MAY-PE0011-M001 LTM018A18A LCD MODULE MAY-PE0011-M001 1 MAY-PE0011-M001 LTM018A18A LCD MODULE MAY-PE0011-M001 1 MAY-PE0011-M001 LTM018A18A LCD MODULE MAY-PE0011-M001 1 MAY-PE0012-M001 RB259 LCD MODULE MAY-PE0012-M001 1 15Y-001355 TAPE(ACF) 15Y-001355 1 1.1 Upper Board Assembly: Part Number Product Name Designation Quantity MAS-CA0004-B040 GRM36B104K10NT CAPACITOR,CERAMIC MAS-CA0004-B040 1 MAT-CA0008-T001 CK1608B105K16 CAPACITOR, CERAMIC MAT-CA0008-T001 1 MAT-CA0008-T001 CK1608B105K16 CAPACITOR, CERAMIC MAT-CA0008-T001 1 MAS-CA0004-B040 GRM36B104K10NT CAPACITOR,CERAMIC MAS-CA0004-B040 1 MAT-CA0008-T001 CK1608B105K16 CAPACITOR, CERAMIC MAT-CA0008-T001 1 MAT-CA0008-T001 CK1608B105K16 CAPACITOR, CERAMIC MAT-CA0008-T001 1 MAS-CA0004-B040 GRM36B104K10NT CAPACITOR,CERAMIC MAS-CA0004-B040 1 FCC ID# A98-KMP6J1J1 Part Number Product Name Designation Quantity MAS-CA0004-B040 GRM36B104K10NT CAPACITOR,CERAMIC MAS-CA0004-B040 1 MAS-CA0004-B040 GRM36B104K10NT CAPACITOR,CERAMIC MAS-CA0004-B040 1 MAS-CA0004-B040 GRM36B104K10NT CAPACITOR,CERAMIC MAS-CA0004-B040 1 MAS-CA0004-B040 GRM36B104K10NT CAPACITOR,CERAMIC MAS-CA0004-B040 1 MAS-CA0004-B040 GRM36B104K10NT CAPACITOR,CERAMIC MAS-CA0004-B040 1 MAS-CA0004-B040 GRM36B104K10NT CAPACITOR,CERAMIC MAS-CA0004-B040 1 MAS-CA0004-B040 GRM36B104K10NT CAPACITOR,CERAMIC MAS-CA0004-B040 1 MAS-CA0004-B040 GRM36B104K10NT CAPACITOR,CERAMIC MAS-CA0004-B040 1 MAS-CA0004-B040 GRM36B104K10NT CAPACITOR,CERAMIC MAS-CA0004-B040 1 PSC-KT39B0B105K GRM39B105K6.3NT CAPACITOR,CERAMIC MPS-C-1068 1 MAS-CA0010-T028 GRM36CH330J50T CAPACITOR, CERAMIC MAS-CA0010-T028 1 MAT-CA0008-T001 CK1608B105K16 CAPACITOR, CERAMIC MAT-CA0008-T001 1 MAS-CA0010-T028 GRM36CH330J50T CAPACITOR, CERAMIC MAS-CA0010-T028 1 PSZ-99999-993ZZ NOT ASSIGNED PSZ-99999-993ZZ NOT ASSIGNED ENT-C00017-0001 TEESVJ0J475M8R NEC 1 ENT-C00017-0001 TEESVJ0J475M8R NEC 1 PSZ-99999-993ZZ NOT ASSIGNED PSZ-99999-993ZZ NOT ASSIGNED PSZ-99999-993ZZ NOT ASSIGNED MAY-FY0002-T003 EXC24CB221U NOISE REJECTION FILTER MAY-FY0002-T003 1 MAY-LB0002-T003 BLA2ABB220SN4D CHIP FERRITE BEAD ARRAY MAY-LB0002-T003 1 MAY-LB0002-T003 BLA2ABB220SN4D CHIP FERRITE BEAD ARRAY MAY-LB0002-T003 1 MAY-LB0002-T003 BLA2ABB220SN4D CHIP FERRITE BEAD ARRAY MAY-LB0002-T003 1 MAY-YC0069-A001 YYC0069 MAY-YC0069-A001 1 MAY-YD0060-T001 LTC3205EUF#TR MAY-YD0060-T001 1 15Y-001323 EARTH CONTACT(RL) 15Y-001323 1 15Y-001322 EARTH CONTACT(RR) 15Y-001322 1 15Y-001324 SHIELD COVER(MAN) 15Y-001324 1 PLL-18001-016ZZ LL1005-FH18NJ COIL, LEADLESS MPS-L-4058-A16 1 PLL-18001-016ZZ LL1005-FH18NJ COIL, LEADLESS MPS-L-4058-A16 1 MAS-LY0002-TD07 BLM15BB221SN1D FERRITE, BEAD MAS-LY0002-TD07 1 MAS-LY0002-TD03 BLM15BB220SN1D FERRITE, BEAD MAS-LY0002-TD03 1 MAS-LY0002-TD03 BLM15BB220SN1D FERRITE, BEAD MAS-LY0002-TD03 1 FCC ID# A98-KMP6J1J1 Part Number Product Name Designation Quantity MAS-LY0002-TD03 BLM15BB220SN1D FERRITE, BEAD MAS-LY0002-TD03 1 MAS-LY0002-TD03 BLM15BB220SN1D FERRITE, BEAD MAS-LY0002-TD03 1 MAS-RA0001-T085 CR16SB333D RESISTOR, THICK FILM CHIP MAS-RA0001-T085 1 PSR-NT16B0A105J CR16SB105J RESISTOR, FIXED MPS-R-1023 1 PSR-NT16B0A560J CR16SB560J RESISTOR, FIXED MPS-R-1023 1 PSR-NT16B0A560J CR16SB560J RESISTOR, FIXED MPS-R-1023 PSR-NT16B0A560J CR16SB560J RESISTOR, FIXED MPS-R-1023 1 PSR-NT16B0A331J CR16SB331J RESISTOR, FIXED MPS-R-1023 1 PSR-NT16B0A331J CR16SB331J RESISTOR, FIXED MPS-R-1023 1 PSR-NT16B0A331J CR16SB331J RESISTOR, FIXED MPS-R-1023 PSR-NT16B0A000J CR16SB000J RESISTOR, FIXED MPS-R-1023 1 MAS-RA0001-T095 CR16SB823D RESISTOR, THICK FILM CHIP MAS-RA0001-T095 1 PSZ-99999-993ZZ NOT ASSIGNED PSZ-99999-993ZZ NOT ASSIGNED PSZ-99999-993ZZ NOT ASSIGNED PSR-NT16B0A5R6J CR16SB5R6J RESISTOR, METAL MPS-R-1023 1 PSR-NT16B0A104J CR16SB104J RESISTOR, FIXED MPS-R-1023 1 PSR-NT16B0A000J CR16SB000J RESISTOR, FIXED MPS-R-1023 1 PSZ-99999-993ZZ NOT ASSIGNED PSZ-99999-993ZZ NOT ASSIGNED MAT-RA0001-T037 CR16S04B331J RESISTOR MAT-RA0001-T037 1 MAT-RA0001-T037 CR16S04B331J RESISTOR MAT-RA0001-T037 1 ENY-V00004-0001 UPA621TT-E1 FET, MOS N NEC 1 PSZ-99999-993ZZ NOT ASSIGNED MAS-VD0009-0001 VDZ8.2B MAS-VD0009-0001 1 MAY-VK0013-T002 CL-470S-3WD-DS-T LED MAY-VK0013-T002 1 MAY-VY0005-0002 AVR-M1005C270MTAABG•DIODE MAY-VY0005-0002 1 MAY-VY0005-0002 AVR-M1005C270MTAABG•DIODE MAY-VY0005-0002 1 MAY-VY0005-0002 AVR-M1005C270MTAABG•DIODE MAY-VY0005-0002 1 MAY-QB0001-T101 CSTCE9M09G35-T CERAMIC RESONATOR MAY-QB0001-T101 1 MAY-JN0005-T001 XF2B-2345-31A FPC CONNECTOR MAY-JN0005-T001 1 15Y-800175 PRINT BOARD UPPER 15Y-800175 0.5 1.2 M-R FPC Assembly FCC ID# A98-KMP6J1J1 Part Number Product Name Designation Quantity MAY-JJ0017-T001 WA5P050VA1E3000 PLUG MAY-JJ0017-T001 1 15Y-800177 MR FPC 15Y-800177 0.1 15Y-001391 TAPE(RM-FPC) 15Y-001391 1 2 Lower Board Part Number Product Name Designation Quantity 14Y-400124-00 LOWER BOARD ASSY 14Y-400124-00 1 MAY-BD0014-0001 ML414 BATTERY,LITHIUM SECONDARY MAY-BD0014-0001 1 15Y-001382 SHIELD(FM2) 15Y-001382 1 2.1 Lower Board Assembly Part Number Product Name Designation Quantity MAY-FE0029-T001 1960MHZ FILTER, SAW MAY-FE0029-T001 1 MAY-FE0028-T001 1842.5MHZ FILTER, SAW MAY-FE0028-T001 1 MAY-FE0025-0001 SAFSD942MFM0T07R05 FILTER, SAW MAY-FE0025-0001 1 MAS-CA0010-T022 GRM36CH180J50T CAPACITOR, CERAMIC MAS-CA0010-T022 1 MAS-CA0010-T022 GRM36CH1…

Text truncated - open the document above for the full version.

NEC FCC ID: A98-KMP6J1J1 EUT Photographs © 2003 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1J1-2 NEC FCC ID: A98-KMP6J1J1 EUT Photographs © 2003 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1J1-2 NEC FCC ID: A98-KMP6J1J1 EUT Photographs © 2003 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1J1-2 NEC FCC ID: A98-KMP6J1J1 EUT Photographs © 2003 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1J1-2 NEC FCC ID: A98-KMP6J1J1 EUT Photographs © 2003 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1J1-2 NEC FCC ID: A98-KMP6J1J1 EUT Photographs © 2003 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1J1-2 NEC FCC ID: A98-KMP6J1J1 EUT Photographs © 2003 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1J1-2 NEC FCC ID: A98-KMP6J1J1 EUT Photographs © 2003 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1J1-2 NEC FCC ID: A98-KMP6J1J1 EUT Photographs © 2003 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1J1-2 NEC FCC ID: A98-KMP6J1J1 EUT Photographs © 2003 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1J1-2 NEC FCC ID: A98-KMP6J1J1 EUT Photographs © 2003 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1J1-2 NEC FCC ID: A98-KMP6J1J1 EUT Photographs © 2003 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1J1-2 NEC FCC ID: A98-KMP6J1J1 EUT Photographs © 2003 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1J1-2 NEC FCC ID: A98-KMP6J1J1 EUT Photographs © 2003 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1J1-2 NEC FCC ID: A98-KMP6J1J1 EUT Photographs © 2003 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1J1-2

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-231024551-R1.A98 Test Dates: Oct 24 & 31, 2003 Phone Type: Single-Band PCS GSM FCC ID: A98-KMP6J1J1 Page 1 of 25 © 2003 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: NEC AMERICA INC. Dates of Tests: Oct. 24 & 31, 2003 6535 N. State Hwy. 161 Test Report S/N: SAR.231024551-R1.A98 Irving, TX 75039-2402 Test Site: PCTEST Lab, Columbia MD FCC ID: A98-KMP6J1J1 APPLICANT: NEC AMERICA INC. EUT Type: Single-Band PCS GSM Phone Tx Frequency: 1850.20MHz – 1909.80MHz (PCS GSM) Rx Frequency Range: 1930.20MHz – 1989.80MHz (PCS GSM) Max. RF Output Power: 1.189 W EIRP PCS GSM (30.751 dBm) / 31.0 dBm Conducted Max. SAR Measurement: 0.649W/kg PCS GSM Head SAR; 0.283W/kg PCS GSM Body SAR Trade Name/Model(s): KMP6J1J1-2 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: identical prototype [S/N: #2] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. P1528 D1.2 (April 2003). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is EIRP. SAR compliance for body-worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 231024551-R1.A98 PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-231024551-R1.A98 Test Dates: Oct 24 & 31, 2003 Phone Type: Single-Band PCS GSM FCC ID: A98-KMP6J1J1 Page 2 of 25 © 2003 PCTEST Engineering Laboratory, Inc TABLE OF CONTENTS 1. INTRODUCTION ..........................................................................................3 SAR DEFINITION .........................................................................................3 2. SAR MEASUREMENT SETUP...........................................................................4 Robotic System..............................................................................................4 System Hardware...........................................................................................4 System Electronics..........................................................................................4 3. DASY4 E-FIELD PROBE SYSTEM......................................................................5 Probe Measurement System.............................................................................5 Probe Specifications.......................................................................................5 4. Probe Calibration Process................................................................................6 Dosimetric Assessment Procedure....................................................................6 Free Space Assessment....................................................................................6 Temperature Assessment.................................................................................6 5. PHANTOM & EQUIVALENT TISSUES..............................................................7 SAM Phantom................................................................................................7 Brain & Muscle Simulating Mixture Characterization..........................................7 Device Holder for Transmitters........................................................................7 6. TEST SYSTEM SPECIFICATIONS.......................................................................8 Automated Test System Specifications...............................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS..............................................9 Measurement Procedure.................................................................................9 Specific Anthropomorphic Mannequin (SAM) Specifications...............................9 8. DEFINITION OF REFERENCE POINTS............................................................10 EAR Reference Point.....................................................................................10 Handset Reference Points..............................................................................10 9. TEST CONFIGURATION POSITIONS.............................................................11 Positioning for Cheek/Touch..........................................................................11 Positioning for Ear / 15° Tilt...........................................................................12 Body Holster /Belt Clip Configurations............................................................13 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS...............................................14 Uncontrolled Environment............................................................................14 Controlled Environment..........................…

Text truncated - open the document above for the full version.

PCTEST PT. 24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 24.231024550.A98 Test Dates: Oct. 24 & 31, 2003 Phone Type: Single-Band PCS GSM FCC ID: A98-KMP6J1J1 Page 1 of 17 © 2003 PCTEST ENGINEERING LABORATORY, INC. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 Certification NEC AMERICA INC. Dates of Tests: Oct. 24 & 31, 2003 6535 N. State Hwy. 161 Test Report S/N: 24.231024550.A98 Irving, TX 75039-2402 Test Site: PCTEST Lab, Columbia MD FCC ID A98-KMP6J1J1 APPLICANT NEC AMERICA INC. Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §24(E), §2 EUT Type: Single-Band PCS GSM Phone Model: KMP6J1J1-2 Tx Frequency Range: 1850.20MHz – 1909.80MHz (PCS GSM) Rx Frequency Range: 1930.20MHz – 1989.80MHz (PCS GSM) Max. RF Output Power: 1.189 W EIRP PCS GSM (30.751 dBm) Max. SAR Measurement: 0.649W/kg PCS GSM Head SAR; 0.283W/kg PCS GSM Body SAR Emission Designator(s): 300KGXW (GSM) Test Device Serial No. Identical Prototype [S/N: #2] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant conditions: Power output listed is EIRP. SAR compliance for body- worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 24.231024550.A98 PCTEST PT. 24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 24.231024550.A98 Test Dates: Oct. 24 & 31, 2003 Phone Type: Single-Band PCS GSM FCC ID: A98-KMP6J1J1 Page 2 of 17 © 2003 PCTEST ENGINEERING LABORATORY, INC. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 3 2.1 INTRODUCTION 4 3.1 INSERTS 5 4.1 DESCRIPTION OF TESTS 6-7 5.1 EQUIVALENT ISOTROPIC RADIATED POWER 8 6.1 RADIATED MEASUREMENTS 9-11 7.1 FREQUENCY STABILITY 12-13 8.1 PLOTS OF EMISSIONS 14 9.1 LIST OF TEST EQUIPMENT 15 10.1 SAMPLE CALCULATIONS 16 11.1 CONCLUSION 17 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: OPERATIONAL / CIRCUIT DESCRIPTION ATTACHMENT L: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS ATTACHMENT Q: DIPOLE VALIDATION ATTACHMENT R: PROBE CALIBRATION PCTEST PT. 24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 24.231024550.A98 Test Dates: Oct. 24 & 31, 2003 Phone Type: Single-Band PCS GSM FCC ID: A98-KMP6J1J1 Page 3 of 17 © 2003 PCTEST ENGINEERING LABORATORY, INC. MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information Applicant Name: NEC AMERICA INC. Address: 6535 N. State HWY 161 Irving, TX 75039-2402 • FCC ID: A98-KMP6J1J1 • Quantity: Quantity production is planned • Emission Designators: 300KGXW (GSM) • Tx Freq. Range: 1850.20 – 1909.80 MHz (PCS GSM) • Rx Freq. Range: 1930.20 – 1989.80 MHz (PCS GSM) • Max. Power Rating: 1.189 W EIRP PCS GSM (30.751 dBm) • FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type: Single-Band PCS GSM • Modulation(s): GSM • Frequency Tolerance: ± 0.00025% (2.5 ppm) • FCC Rule Part(s): § 24(E) • Dates of Tests: Oct. 24 & 31, 2003 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 24.231024550.A98 PCTEST PT. 24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 24.231024550.A98 Test Dates: Oct. 24 & 31, 2003 Phone Type: Single-Band PCS GSM FCC ID: A98-KMP6J1J1 Page 4 of 17 © 2003 PCTEST ENGINEERING LABORATORY, INC. 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. Measurement Procedure The radiated and spurious measurements were made outdoors at a 3-meter test range (see Figure2). The equipment under test is placed on a wooden turntable 3-meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer. A …

Text truncated - open the document above for the full version.

NEC FCC ID: A98-KMP6J1J1 EUT Photographs © 2003 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1J1-2 NEC FCC ID: A98-KMP6J1J1 EUT Photographs © 2003 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1J1-2 NEC FCC ID: A98-KMP6J1J1 EUT Photographs © 2003 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1J1-2 NEC FCC ID: A98-KMP6J1J1 EUT Photographs © 2003 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1J1-2
