A98-KMP6J1L1Single-Band PCS GSM Phone

i Emergency Services and Safety Precautions Emergency ServicesTo make an emergency call in any country☛ Press 1 1 2 . Ask the operator for the service which you require: Police, Ambulance, Fire Brigade, Coastguard or Mountain Rescue Services. Give your position and, if possible, remain stationary to maintain phone contact.The 112 emergency number service is available on every digital network service. The number 999 is an alternative emergency number for the UK only, and can only be used with a valid SIM card.2 Due to the nature of the cellular system , the success of emergency calls cannot be guaranteed. General CareA cellphone contains delicate electronic circuitry, magnets, and battery systems. You should treat it with care and give particular attention to the following points.• Do not allow the phone or its accessories to come into contact with liquid or moisture at any time. • Do not place anything in the folded phone. • Do not expose your phone to extreme high or low temperatures. • Do not expose your phone to naked flame, cigars or cigarettes. • Do not paint your phone. • Do not drop or subject your phone to rough treatment. • Do not place the phone alongside computer disks, credit cards, travel cards and other magnetic media. The information contained on disks or cards may be affected by the phone. • Do not leave the phone or the battery in places where the temperature could exceed 60°C; e.g. on a car dashboard or on a window sill, behind glass in direct sunlight, etc. • Do not remove the phone’s battery while the phone is switched on. • Take care not to allow metal objects, such as coins or key rings, to contact or short-circuit the battery terminals. • Do not dispose of battery packs in a fire. Your phone's Li-ion batteries may be safely disposed of at Li-ion recycling points. For more specific battery and power supply information, see page 4. • Do not put your phone's battery in your mouth as battery electrolytes may be toxic if swallowed. • Do not attempt to dismantle the phone or any of its accessories. • This equipment is fitted with an internal battery that can only be replaced by a qualified service engineer. There is a risk of explosion if the battery is replaced by an incorrect type. Dispose of the used battery in accordance with the manufacturer's instructions. • Using any battery pack, AC adapter, Vehicle power adapter (option) or Desktop charger (option) not specified by the manufacturer for use with this phone creates a potential safety hazard. • The earpiece may become warm during normal use and the unit itself may become warm during charging. • Use a damp or anti-static cloth to clean the phone. Do NOT use a dry cloth or electrostatically charged cloth. Do not use chemical or abrasive cleaners as these could damage the case. • Remember to recycle: the cardboard packaging supplied with this phone is ideal for recycling. • Do not leave the battery pack empty or disconnected for a long time, otherwise some data may be initialized. • Your phone contains metal which may cause you an itch, a rash or eczema depending on your constitution or physical condition. • Take care not to put your phone in the back pocket of your trousers or skirt and then sit on it. Also, do not put your phone at the bottom of bag where it may subject to excessive weight or pressure.Doing so may damage the LCD and camera lens and cause them malfunction. • Take care not to hold the Light too close to your or other people’s eyes when the Light is lit. • Do not aim or direct the InfraRed (IR) data port towards your or other people’s eyes when using the IR data exchange. • The foam covers the earpiece of the headset. Do not put any other part of the headset in your ears. Aircraft Safety• Switch off your phone and remove its battery when inside or near aircraft. The use of cellphones in aircraft is illegal. It may be dangerous to the operation of the aircraft and it may disrupt the cellular network. Failure to observe this instruction may lead to suspension or denial of cellphone service to the offender, or legal action, or both. • Do not use your phone on the ground without the permission of the ground crew. Hospital Safety• Switch off your phone in areas where the use of cellphones is prohibited. Follow the instructions given by the respective medical facility regarding the use of cellphones on their premises. General Safety• Observe ‘Turn off 2-way radio’ signs, such as those near stores of fuel, chemicals or explosives. • Do not allow children to play with the phone, charger or batteries. • Small parts are included in your phone. Keep them out of reach of small children, for whom it could be a choking hazard. • The operation of some medical electronic devices, such as hearing aids and pacemakers, may be affected if a cellphone is used next to them. Observe any warning signs and manufacturer's recommendations. • If you have a weak heart, you should take extra precautions when setting functions such as the Vibrator and Ringer volume functions for incoming calls. • If you set the Vibrator setting to anything other than OFF, be careful that the phone is not near a source of heat (e.g. a heater) and that it does not fall from a desk due to the vibration. Road Safety• You MUST exercise proper control of your vehicle at all times. Give full attention to driving. • Observe all the recommendations contained in your local traffic safety documentation. ii • Pull off the road and park before making or answering a call if driving conditions so require. • You MUST NOT stop on the hard shoulder of a motorway to answer or make a call, except in an emergency. • Switch off your phone at a refuelling point, such as a petrol station, even if you are not refuelling your own car. • Do not store or carry flammable or explosive materials in the same compartment where a radio transmitter, such as a cellphone, is placed. • Electronic vehicle systems, such as anti-lock brakes, speed control and fuel injection systems are not…

Text truncated - open the document above for the full version.

March 1, 2004 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: NEC America, Inc. FCC ID: A98-KMP6J1L1 Part 24 Certification Gentlemen: Submitted herewith, on behalf of NEC America, Inc., is an application for Part 24 Certification of the Single-Band PCS GSM Phone. Attached is the applicant’s Letter of Authorization, Confidentiality Request, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), parts list & tune-up procedure, and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: NEC America, Inc.

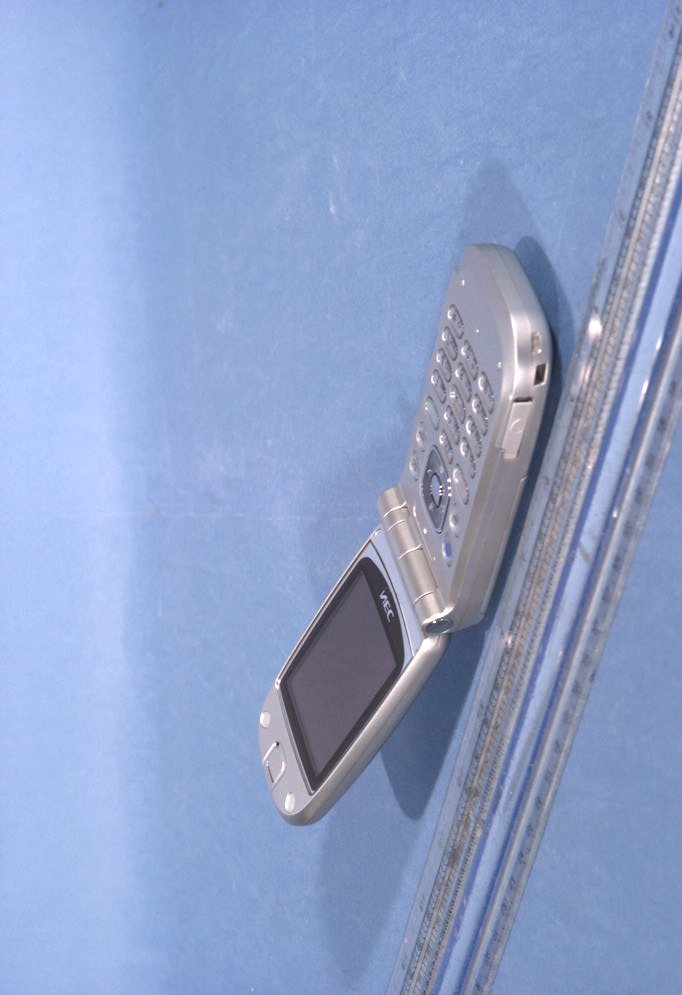

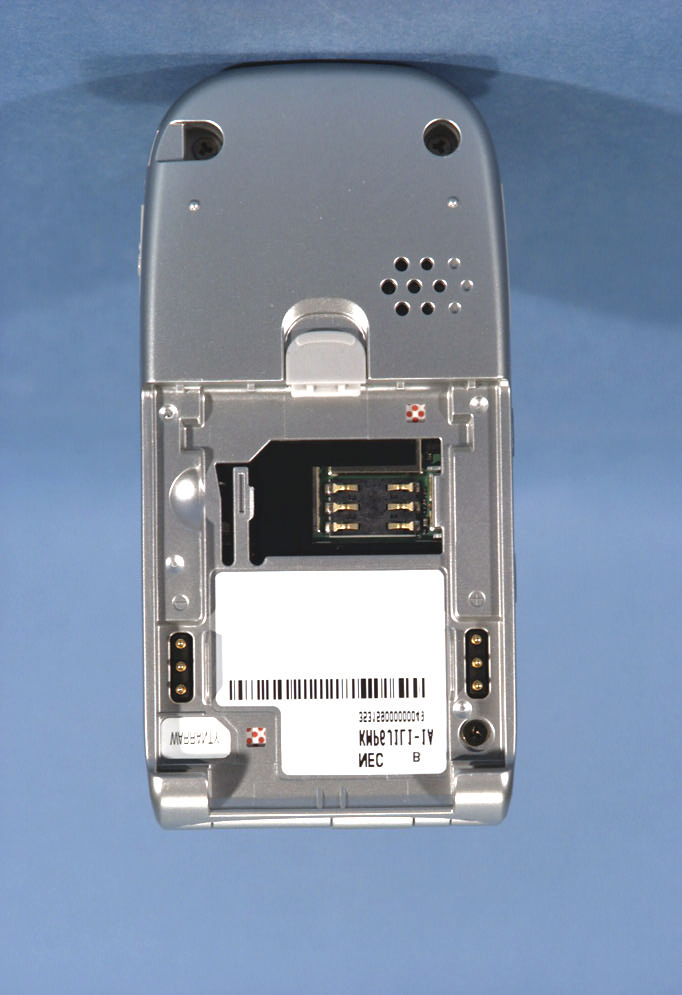

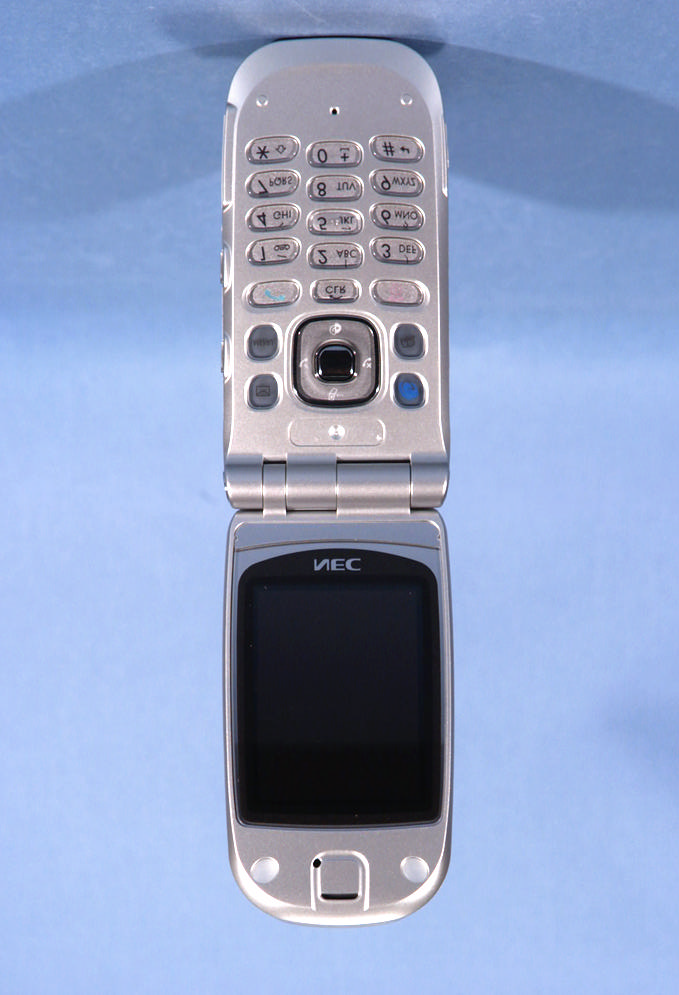

NEC FCC ID: A98-KMP6J1L1 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1L1-1A NEC FCC ID: A98-KMP6J1L1 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1L1-1A NEC FCC ID: A98-KMP6J1L1 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1L1-1A NEC FCC ID: A98-KMP6J1L1 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1L1-1A NEC FCC ID: A98-KMP6J1L1 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1L1-1A NEC FCC ID: A98-KMP6J1L1 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1L1-1A NEC FCC ID: A98-KMP6J1L1 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1L1-1A

© 2004 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) CCC FCC ID:A98-KMP6J1L1CANADA:140K-KMP6J1L1KMP6J1L1-1A GSM/GPRSAA A4 Label Sample

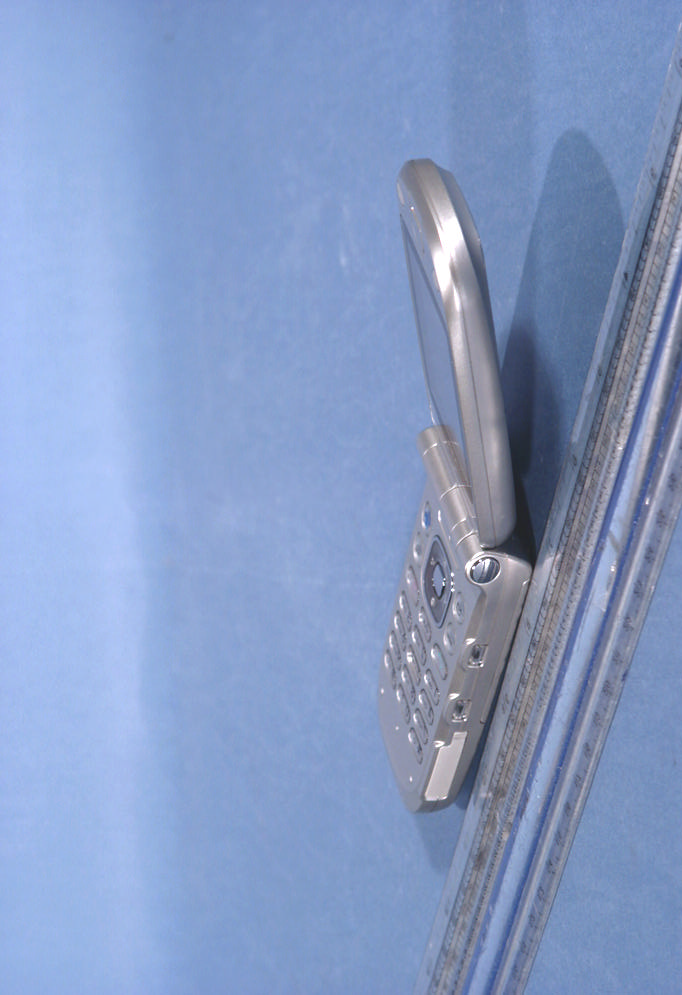

NEC FCC ID: A98-KMP6J1L1 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1L1-1A NEC FCC ID: A98-KMP6J1L1 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1L1-1A NEC FCC ID: A98-KMP6J1L1 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1L1-1A NEC FCC ID: A98-KMP6J1L1 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1L1-1A NEC FCC ID: A98-KMP6J1L1 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1L1-1A NEC FCC ID: A98-KMP6J1L1 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1L1-1A NEC FCC ID: A98-KMP6J1L1 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1L1-1A NEC FCC ID: A98-KMP6J1L1 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1L1-1A

FCC ID# A98-KMP6J1L1FCC ID# A98-KMP6J1L1 Model # KMP6J1L1-1AModel # KMP6J1L1-1A Parts List 1 Upper Board: Part NumberProduct NameDesignationQuantity 14Y-400127-00UPPER BOARD ASSY14Y-400127-001 MAY-DB0005-A001HDR2113-010020 RECEIVERMAY-DB0005-A0011 14Y-400130-00M-R FPC ASSY14Y-400130-001 MAY-PM0015-A001NYY-06A-6 LED MODULEMAY-PM0015-A0011 MAY-PE0015-M001LS022Q8DD07 LCD MODULEMAY-PE0015-M0011 MAY-PE0016-M001RB263 LCD MODULEMAY-PE0016-M0011 MAY-PP0010-A001MCB511-N VGA CAMERA MODULEMAY-PP0010-A0011 15Y-001435SHIELD SHEET(R)15Y-0014351 15Y-001431CUSHION(R5)15Y-0014311 15Y-001474SHIELD SHEET(C1)15Y-0014741 15Y-001459DOUBLE FACE(R2)15Y-0014591 15Y-001475SHIELD SHEET(C2)15Y-0014751 15Y-001627SHIELD SHEET(G)15Y-0016271 1.1 Upper Board Assembly: Part NumberProduct NameDesignationQuantity MAS-CA0004-B040GRM36B104K10NT CAPACITOR,CERAMICMAS-CA0004-B0401 MAS-CA0004-B040GRM36B104K10NT CAPACITOR,CERAMIC MAS-CA0004-B0401 MAS-CA0004-B040GRM36B104K10NT CAPACITOR,CERAMIC MAS-CA0004-B0401 MAY-CA0013-T001CK1005B105K63 CAPACITOR, CERAMIC MAY-CA0013-T0011 MAY-CA0013-T001CK1005B105K63 CAPACITOR, CERAMIC MAY-CA0013-T0011 MAS-CA0004-B040GRM36B104K10NT CAPACITOR,CERAMIC MAS-CA0004-B0401 MAS-CA0004-B040GRM36B104K10NT CAPACITOR,CERAMIC MAS-CA0004-B0401 MAS-CA0004-B040GRM36B104K10NT CAPACITOR,CERAMIC MAS-CA0004-B0401 MAS-CA0004-B040GRM36B104K10NT CAPACITOR,CERAMIC MAS-CA0004-B0401 MAS-CA0004-B040GRM36B104K10NT CAPACITOR,CERAMIC MAS-CA0004-B0401 MAS-CA0004-B040GRM36B104K10NT CAPACITOR,CERAMIC MAS-CA0004-B0401 MAS-CA0004-B040GRM36B104K10NT CAPACITOR,CERAMIC MAS-CA0004-B0401 MAT-CA0006-T015CC0603CH180J25 CAPACITOR, CERAMIC MAT-CA0006-T0151 MAS-CA0004-B040GRM36B104K10NT CAPACITOR,CERAMIC MAS-CA0004-B0401 FCC ID# A98-KMP6J1L1FCC ID# A98-KMP6J1L1 Model # KMP6J1L1-1AModel # KMP6J1L1-1A Part NumberProduct NameDesignationQuantity PSZ-99999-993ZZNOT ASSIGNED MAT-CA0006-T010CC0603CH8R0D25 CAPACITOR, CERAMIC MAT-CA0006-T0101 MAT-CA0006-T010CC0603CH8R0D25 CAPACITOR, CERAMIC MAT-CA0006-T0101 MAS-CA0004-B040GRM36B104K10NT CAPACITOR,CERAMIC MAS-CA0004-B0401 MAS-CA0004-B040GRM36B104K10NT CAPACITOR,CERAMIC MAS-CA0004-B0401 MAS-CA0004-B040GRM36B104K10NT CAPACITOR,CERAMIC MAS-CA0004-B0401 MAS-CA0004-B040GRM36B104K10NT CAPACITOR,CERAMIC MAS-CA0004-B0401 MAS-CA0004-B040GRM36B104K10NT CAPACITOR,CERAMIC MAS-CA0004-B0401 MAS-CA0004-B040GRM36B104K10NT CAPACITOR,CERAMIC MAS-CA0004-B0401 MAS-CA0004-B040GRM36B104K10NT CAPACITOR,CERAMIC MAS-CA0004-B0401 MAS-CA0004-B040GRM36B104K10NT CAPACITOR,CERAMIC MAS-CA0004-B0401 MAS-CA0004-B040GRM36B104K10NT CAPACITOR,CERAMIC MAS-CA0004-B0401 MAS-CA0004-B040GRM36B104K10NT CAPACITOR,CERAMIC MAS-CA0004-B0401 MAS-CA0004-B040GRM36B104K10NT CAPACITOR,CERAMIC MAS-CA0004-B0401 MAS-CA0004-B040GRM36B104K10NT CAPACITOR,CERAMIC MAS-CA0004-B0401 MAS-CA0004-B040GRM36B104K10NT CAPACITOR,CERAMIC MAS-CA0004-B0401 MAT-CA0006-T018CC0603CH330J25 CAPACITOR, CERAMIC MAT-CA0006-T0181 MAT-CA0006-T018CC0603CH330J25 CAPACITOR, CERAMIC MAT-CA0006-T0181 ENT-C00014-0001TEPSLP0J106M8RSNNEC1 ENT-C00013-0001TEPSLJ0J475M8RSNNEC1 MAS-CA0004-B040GRM36B104K10NT CAPACITOR,CERAMIC MAS-CA0004-B0401 MAS-CA0004-B040GRM36B104K10NT CAPACITOR,CERAMIC MAS-CA0004-B0401 ENT-C00014-0001TEPSLP0J106M8RSNNEC1 MAT-CA0001-T008CK2012B106K6.3L CAPACITOR, CERAMIC MAT-CA0001-T0081 PSZ-99999-993ZZNOT ASSIGNED ENT-C00013-0001TEPSLJ0J475M8RSNNEC1 ENT-C00014-0001TEPSLP0J106M8RSNNEC1 MAY-CC0010-T005TEESVJ1A475M8R CAPASITOR, TANTALUM MAY-CC0010-T0051 ENT-C00013-0001TEPSLJ0J475M8RSNNEC1 MAY-CC0011-T008TEESVP0J226M8R CAPASITOR, TANTALUM MAY-CC0011-T0081 MAY-CC0011-T008TEESVP0J226M8R CAPASITOR, TANTALUM MAY-CC0011-T0081 PSZ-99999-993ZZNOT ASSIGNED MAS-CA0004-B040GRM36B104K10NT CAPACITOR,CERAMIC MAS-CA0004-B0401 ENT-C00013-0001TEPSLJ0J475M8RSNNEC1 MAS-CA0004-B040GRM36B104K10NT CAPACITOR,CERAMIC MAS-CA0004-B0401 MAT-CA0001-T008CK2012B106K6.3L CAPACITOR, CERAMIC MAT-CA0001-T0081 MAT-CA0008-T001CK1608B105K16 CAPACITOR, CERAMIC MAT-CA0008-T0011 MAT-CA0008-T001CK1608B105K16 CAPACITOR, CERAMIC MAT-CA0008-T0011 FCC ID# A98-KMP6J1L1FCC ID# A98-KMP6J1L1 Model # KMP6J1L1-1AModel # KMP6J1L1-1A Part NumberProduct NameDesignationQuantity MAT-CA0008-T001CK1608B105K16 CAPACITOR, CERAMIC MAT-CA0008-T0011 MAT-CA0008-T001CK1608B105K16 CAPACITOR, CERAMIC MAT-CA0008-T0011 MAS-CA0004-B040GRM36B104K10NT CAPACITOR,CERAMIC MAS-CA0004-B0401 PSZ-99999-993ZZNOT ASSIGNED MAS-CA0004-B040GRM36B104K10NT CAPACITOR,CERAMIC MAS-CA0004-B0401 MAT-CA0006-T018CC0603CH330J25 CAPACITOR, CERAMIC MAT-CA0006-T0181 MAS-CA0004-B040GRM36B104K10NT CAPACITOR,CERAMIC MAS-CA0004-B0401 MAS-CA0004-B040GRM36B104K10NT CAPACITOR,CERAMIC MAS-CA0004-B0401 PSZ-99999-993ZZNOT ASSIGNED PSZ-99999-993ZZNOT ASSIGNED PSZ-99999-993ZZNOT ASSIGNED MAS-CA0010-T022GRM36CH180J50T CAPACITOR, CERAMIC MAS-CA0010-T0221 MAS-CA0010-T022GRM36CH180J50T CAPACITOR, CERAMIC MAS-CA0010-T0221 PSZ-99999-993ZZNOT ASSIGNED MAT-CA0008-T001CK1608B105K16 CAPACITOR, CERAMIC MAT-CA0008-T0011 MAY-CC0010-T005TEESVJ1A475M8R CAPASITOR, TANTALUM MAY-CC0010-T0051 PSC-KT39B0C474KGRM39B474K10NT CAPACITOR, CERAMIC MPS-C-10681 MAS-CA0004-B040GRM36B104K10NT CAPACITOR,CERAMIC MAS-CA0004-B0401 MAS-CA0004-B040GRM36B104K10NT CAPACITOR,CERAMIC MAS-CA0004-B0401 MAT-CA0006-T018CC0603CH330J25 CAPACITOR, CERAMIC MAT-CA0006-T0181 PSZ-99999-993ZZNOT ASSIGNED PSZ-99999-993ZZNOT ASSIGNED MAT-CA0006-T018CC0603CH330J25 CAPACITOR, CERAMIC MAT-CA0006-T0181 MAT-CA0006-T018CC0603CH330J25 CAPACITOR, CERAMIC MAT-CA0006-T0181 PSZ-99999-993ZZNOT ASSIGNED MAS-CA0004-B040GRM36B104K10NT CAPACITOR,CERAMIC MAS-CA0004-B0401 MAS-CA0004-B040GRM36B104K10NT CAPACITOR,CERAMIC MAS-CA0004-B0401 MAY-CA0013-T001CK1005B105K63 CAPACITOR, CERAMIC MAY-CA0013-T0011 MAT-CA0006-T018CC0603CH330J25 CAPACITOR, CERAMIC MAT-CA0006-T0181 PSZ-99999-993ZZNOT ASSIGNED MAS-CA0004-B040GRM36B104K10NT CAPACITOR,CERAMIC MAS-CA0004-B0401 PSC-ST29Z0B106MTCFGP0J106M8R CAPACITOR, TANTALUM MPS-C-30091 MAT-CA0006-T018CC0603CH330J25 CAPACITOR, CERAMIC MAT-CA0006-T0181 PSZ-99999-993ZZNOT ASSIGNED MAS-CA0004-B040GRM36B104K10NT CAPACITOR,CER…

Text truncated - open the document above for the full version.

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR TEST REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240217139.A98 Test Dates: Feb. 18 & 23, 2004 EUT Type: Single-Band PCS GSM Phone FCC ID: A98-KMP6J1L1 Page 1 of 23 © 2003 PCTEST Engineering Laboratory, Inc. APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: NEC AMERICA INC. Dates of Tests: Feb. 18 & 23, 2004 6535 N. State Hwy. 161 Test Report S/N: SAR.240217139.A98 Irving, TX 75039-2402 Test Site: PCTEST Lab, Columbia MD FCC ID: A98-KMP6J1L1 APPLICANT NAME: NEC AMERICA INC. EUT Type: Single-Band PCS GSM Phone Tx Frequency: 1850.20 – 1909.80 MHz (GSM1900) Rx Frequency: 1930.20 – 1989.80 MHz (GSM1900) Max. RF Output Power: 1.286 W EIRP GSM1900 (31.081 dBm) Max. SAR Measurement: 0.73 W/kg GSM1900 Head SAR; 0.18 W/kg GSM1900 Body SAR Trade Name/Model(s): KMP6J1L1- (1A, 1B, 1C, 4A, 4B, 4C, 4D, 4E) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: Identical Prototype [S/N: #4] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. P1528 D1.2 (April 2002). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is EIRP. SAR compliance for body-worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. SAR.230801367.BEJ PCTEST SAR TEST REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240217139.A98 Test Dates: Feb. 18 & 23, 2004 EUT Type: Single-Band PCS GSM Phone FCC ID: A98-KMP6J1L1 Page 2 of 23 © 2003 PCTEST Engineering Laboratory, Inc. TABLE OF CONTENTS 1. INTRODUCTION / SAR DEFINITION.................................................................................3 2. SAR MEASUREMENT SETUP..............................................................................................4 3. ALIDX-500 E-FIELD PROBE SYSTEM..................................................................................5 4. PROBE CALIBRATION PROCESS.......................................................................................6 5. PHANTOM & EQUIVALENT TISSUES.................................................................................7 6. TEST SYSTEM SPECIFICATIONS.........................................................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................9 8. DEFINITION OF REFERENCE POINTS..............................................................................10 9. TEST CONFIGURATION POSITION.................................................................................11 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS.................................................................12 11. MEASUREMENT UNCERTAINTIES...................................................................................13 12. SAR TEST DATA SUMMARY............................................................................................14 13. SAR TEST EQUIPMENT...................................................................................................15 14. CONCLUSION...............................................................................................................16 15. REFERENCES..................................................................................................................17 EXHIBIT A. SYSTEM VERIFICATION.......................................................................................18 EXHIBIT A. SAR DATA SUMMARY....................................................................................19-23 PCTEST SAR TEST REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240217139.A98 Test Dates: Feb. 18 & 23, 2004 EUT Type: Single-Band PCS GSM Phone FCC ID: A98-KMP6J1L1 Page 3 of 23 © 2003 PCTEST Engineering Laboratory, Inc. 1. INTRODUCTION / SAR DEFINITION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These…

Text truncated - open the document above for the full version.

NEC FCC ID: A98-KMP6J1L1 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1L1-1A NEC FCC ID: A98-KMP6J1L1 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1L1-1A NEC FCC ID: A98-KMP6J1L1 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1L1-1A NEC FCC ID: A98-KMP6J1L1 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1L1-1A NEC FCC ID: A98-KMP6J1L1 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1L1-1A NEC FCC ID: A98-KMP6J1L1 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1L1-1A NEC FCC ID: A98-KMP6J1L1 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1L1-1A NEC FCC ID: A98-KMP6J1L1 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1L1-1A NEC FCC ID: A98-KMP6J1L1 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1L1-1A NEC FCC ID: A98-KMP6J1L1 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1L1-1A NEC FCC ID: A98-KMP6J1L1 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1L1-1A NEC FCC ID: A98-KMP6J1L1 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1L1-1A NEC FCC ID: A98-KMP6J1L1 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP6J1L1-1A

PCTEST PT. 24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 24.240217138.A98 Test Dates: Feb. 18 & 23, 2004 Phone Type: Single-Band PCS GSM FCC ID: A98-KMP6J1L1 Page 1 of 17 © 2004 PCTEST ENGINEERING LABORATORY, INC. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 Certification NEC AMERICA INC. Dates of Tests: Feb. 18 & 23, 2004 6535 N. State Hwy. 161 Test Report S/N: 24.240217138.A98 Irving, TX 75039-2402 Test Site: PCTEST Lab, Columbia MD FCC ID A98-KMP6J1L1 APPLICANT NEC AMERICA INC. Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §24(E), §2 EUT Type: Single-Band PCS GSM Phone Model: KMP6J1L1- (1A, 1B, 1C, 4A, 4B, 4C, 4D, 4E) Tx Frequency Range: 1850.20MHz – 1909.80MHz (PCS GSM) Rx Frequency Range: 1930.20MHz – 1989.80MHz (PCS GSM) Max. RF Output Power: 1.286 W EIRP GSM1900 (31.081 dBm) Max. SAR Measurement: 0.73 W/kg GSM1900 Head SAR; 0.18 W/kg GSM1900 Body SAR Emission Designator(s): 300KGXW (GSM) Test Device Serial No. Identical Prototype [S/N: #4] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant conditions: Power output listed is EIRP. SAR compliance for body- worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST PT. 24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 24.240217138.A98 Test Dates: Feb. 18 & 23, 2004 Phone Type: Single-Band PCS GSM FCC ID: A98-KMP6J1L1 Page 2 of 17 © 2004 PCTEST ENGINEERING LABORATORY, INC. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 3 2.1 INTRODUCTION 4 3.1 INSERTS 5 4.1 DESCRIPTION OF TESTS 6-7 5.1 EQUIVALENT ISOTROPIC RADIATED POWER 8 6.1 RADIATED MEASUREMENTS 9-11 7.1 FREQUENCY STABILITY 12-13 8.1 PLOTS OF EMISSIONS 14 9.1 LIST OF TEST EQUIPMENT 15 10.1 SAMPLE CALCULATIONS 16 11.1 CONCLUSION 17 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: OPERATIONAL / CIRCUIT DESCRIPTION ATTACHMENT L: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS ATTACHMENT Q: DIPOLE VALIDATION ATTACHMENT R: PROBE CALIBRATION PCTEST PT. 24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 24.240217138.A98 Test Dates: Feb. 18 & 23, 2004 Phone Type: Single-Band PCS GSM FCC ID: A98-KMP6J1L1 Page 3 of 17 © 2004 PCTEST ENGINEERING LABORATORY, INC. MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information Applicant Name: NEC AMERICA INC. Address: 6535 N. State HWY 161 Irving, TX 75039-2402 • FCC ID: A98-KMP6J1L1 • Quantity: Quantity production is planned • Emission Designators: 300KGXW (GSM) • Tx Freq. Range: 1850.20 – 1909.80 MHz (PCS GSM) • Rx Freq. Range: 1930.20 – 1989.80 MHz (PCS GSM) • Max. Power Rating: 1.286 W EIRP GSM1900 (31.081 dBm) • FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type: Single-Band PCS GSM • Modulation(s): GSM • Frequency Tolerance: ± 0.00025% (2.5 ppm) • FCC Rule Part(s): § 24(E) • Dates of Tests: Feb. 18 & 23, 2004 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 24.240217138.A98 PCTEST PT. 24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 24.240217138.A98 Test Dates: Feb. 18 & 23, 2004 Phone Type: Single-Band PCS GSM FCC ID: A98-KMP6J1L1 Page 4 of 17 © 2004 PCTEST ENGINEERING LABORATORY, INC. 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. Measurement Procedure The radiated and spurious measurements were made outdoors at a 3-meter test range (see Figure2). The equipment under test is placed on a wooden turntable 3-meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectr…
