A98-KMP6J1L1-9Dual-Band GSM Phone

NEC Corporation of America

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Jun 06, 2004
Application Purpose: Original Equipment
Date of Application: Jun 06, 2004
Equipment Note: Dual-Band GSM Phone
Frequency Range: 1850.20000000 - 1909.80000000
Company: NEC Corporation of America
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

CopyrightÓ2004 by NEC America, Inc. All rights reserved. NEC is a registered trademark of NEC Corporation. All other company or product names are the trademarks of their respective owners. Manual Part Number: 621-0353 Version 1** **This may include features not available in all NEC 535 phones, or may not include features available in updated or later version NEC 535 phones. Contact NEC Service Support with any questions. NEC America, Inc. (”NEC”) reserves the right to make changes or improvements to any of the products described in this guide without prior notice. All features, specifications, conditions, and actual colors are subject to change without notice. The availability of particular products may vary by region. Some operations and features are network and subscription dependent and are not available in all areas. Check with your wireless service provider for availability and description of features. Some of the mobile Internet services have been pre-configured by the service provider. Printed in U.S.A. THE CONTENTS OF THIS GUIDE ARE PROVIDED ON AN “AS IS” BASIS. EXCEPT AS REQUIRED BY APPLICABLE LAW, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO THE IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE MADE REGARDING THE ACCURACY, COMPLETENESS, OR CONTENTS OF THIS GUIDE. NEC RESERVES THE RIGHT TO REVISE OR RESCIND THIS GUIDE AT ANY TIME WITHOUT PRIOR NOTICE. NEC IS NOT RESPONSIBLE FOR ANY LOSS OR CORRUPTION OF DATA, LOSS OF INCOME OR BUSINESS, OR ANY CONSEQUENTIAL, INCIDENTAL, OR SPECIAL DAMAGE, HOWSOEVER CAUSED. WARNING!The power cords of this product contain lead, a chemical known to the State of California to cause birth defects or other reproductive harm.Wash hands after handling. i Contents NEC 5351 Wireless System Structure.......................1 User Guide Conventions........................1 User Guide Instructions.......................2 Keypad Phone Controls.......................2 Phone Controls............................3 Parts and Functions..........................4 Display Information..........................5 Check box and Radio Buttons...................5 LCD and Displayed Icons.......................6 Main Menu...............................8 Sub-Menus and Options Menu...................9 Menu Shortcut Selection......................9 Keypad Shortcuts...........................10 Main Phone Features.........................11 Safety and Performance12 User Caution.............................12 Emergency Services.........................12 Safety.................................13 General Care...........................13 ...................................13 General Safety...........................14 Radio Frequency (RF) Signals..................15 Aircraft Safety ................................16 Road Safety............................16 Vehicles Equipped with an Air Bag................16 Blasting Areas And Explosive Atmospheres............16 Electromagnetic Interference...................17 Battery Care and Disposal......................18 Performance.............................19 Third Party Equipment.......................19 Service...............................19 Efficient Use............................19 Battery...............................19 Antenna..............................19 Licenses..............................20 Getting Started (TBD)21 Service Activation...........................21 Voice Mail and Text Messaging...................21 PIN and Security Codes.......................21 SIM Card...............................22 Inserting a SIM Card........................22 Removing a SIM Card.......................23 Charging the Battery.........................24 Battery................................25 Checking the Battery.......................25 Low Battery Alarm.........................26 Changing the Battery.......................26 Powering-On the Phone.......................27 Turning the Phone On.......................27 Turning the Phone Off.......................27 Basic Calls and Phone Use (TBD)28 Dialing Calls.............................28 Correcting Mistakes........................28 Ending Calls.............................28 Receiving Calls............................29 Accepting a Call..........................29 Rejecting a Call..........................29 Receiving a Call While in an Application...............30 Using Features/Application During a Call..............30 Unsuccessful Calls/Auto Redial...................30 Call Features.............................31 Caller ID..............................31 Returning an Unanswered Phone Call..............31 Last Number Redial........................31 Dialing a Number in Message Text................31 Emergency Calls..........................32 ii Speed Dialing...........................32 Entering a Pause (for DTMF Dialing)...............32 International Dialing........................33 Volume Controls..........................33 Voice Mail.............................34 Forwarding Calls...........................34 Call Timer...............................34 Using Call Features During a Call..................34 Placing a Call On Hold.......................34 Call Waiting............................35 Mute A Call............................35 DTMF Tones............................35 Conference Calls...........................36 Receiving Second Call.......................36 Making a Second Call......................36 Putting Calls on Hold.......................37 Private Conversation.......................37 Disconnecting a Party.......................37 Roaming...............................38 Personalizing Settings (TBD)39 Phone Settings............................39 Text Entry (TBD)40 Messaging and Voice Mail (TBD)41 Accessing Messages.........................41 Web Browser (TBD)42 Phonebook (TBD)43 Camera Function (TBD)44 Camera View Finder Screen.....................44 Audio and Visual (TBD)45 Games and Apps…

Text truncated - open the document above for the full version.

Cover Letter(s)

May 30, 2004 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: NEC America, Inc. FCC ID: A98-KMP6J1L1-9 Part 22/24 Certification Gentlemen: Submitted herewith, on behalf of NEC America, Inc., is an application for Part 22/24 Certification of the Dual-Band GSM phone. Attached is the applicant’s Letter of Authorization, Confidentiality Request, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), parts list & tune-up procedure, and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: NEC America, Inc.

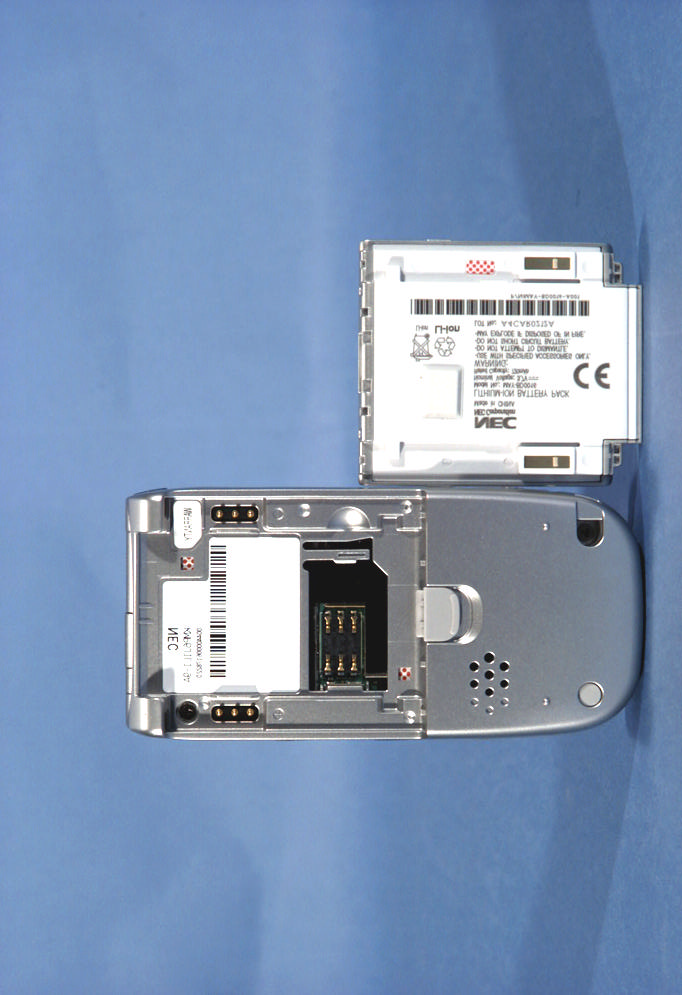

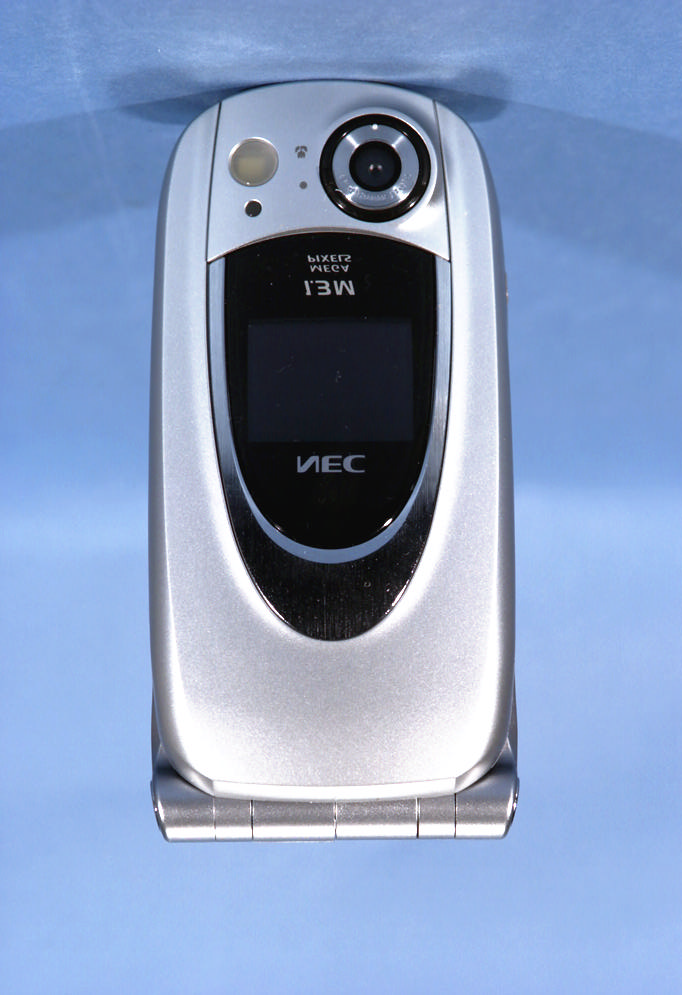

External Photos

ID Label/Location Info

© 2004 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) IMEI Label A535 FCC ID Label 6//2004 This is the DRAFT.

Internal Photos

NEC FCC ID: A98-KMP6J1L1-9 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: KMP6J1L1-9A NEC FCC ID: A98-KMP6J1L1-9 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: KMP6J1L1-9A NEC FCC ID: A98-KMP6J1L1-9 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: KMP6J1L1-9A NEC FCC ID: A98-KMP6J1L1-9 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: KMP6J1L1-9A NEC FCC ID: A98-KMP6J1L1-9 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: KMP6J1L1-9A NEC FCC ID: A98-KMP6J1L1-9 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: KMP6J1L1-9A NEC FCC ID: A98-KMP6J1L1-9 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: KMP6J1L1-9A NEC FCC ID: A98-KMP6J1L1-9 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: KMP6J1L1-9A NEC FCC ID: A98-KMP6J1L1-9 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: KMP6J1L1-9A NEC FCC ID: A98-KMP6J1L1-9 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: KMP6J1L1-9A NEC FCC ID: A98-KMP6J1L1-9 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: KMP6J1L1-9A

Parts List/Tune Up Info

Adjustment method of output power (Tune-Up / Alignment Procedure) - HHP and personal computer are connected using USB cable. - The software for adjustment is operated. - Press PWR to turn on the phone. - Command line of PC input' TestModeOn ' : testmode - Command line of PC input' ContTxon,661,5,0,2 ' and ‘ SetPower,0,2 ’ :Tx on at PCS1900 661ch power level 0 ' ContTxon,190,5,7,3 ' and ‘ SetPower,7,3 ’ :Tx on at GSM850 190ch power level 7 - Command line of PC input‘ SetRamp,745,115,115,115,115,115,115,115,115,217,351,497,626,714,745,745,745,745,745,714,626, 497,351,217,115,115,115,115,115,115,115,115,115,59656,625,59881,59882,59885,60146, 60921,62207,63744,65280,6152,750,6168,6167,6164,5902,5127,3585,1792,256 : Tx on at PCS1900 ‘ SetRamp,460,115,115,115,115,115,115,115,115,141,209,299,382,439,460,460,460,460,439,382,299, 209,141,115,115,115,115,115,115,115,115,115,115,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0 : Tx on at GSM850 - Command line of PC input' ContTxOff : Tx off - Command line of PC input' Storecaldata : Transfer ramp data from RAM to NVM and re calculate the checksum Appendix 1 command list 1) TestModeOn SyntaxTestModeOn ParametersNone ReturnsTestModeOn:DONE 2) ContTxOn SyntaxContTxOn, <UINT8 TxArfcn>, <UINT8 Trainingsequence>, <UINT8Powerlevel>, <UINT8 Band> ParametersTxArfcn, channel to transmit on valid inputs512 to 810 for PCS1900, 128 to 251 for GSM850 Training sequence valid inputs0 to 7 Powerlevel valid inputs0 to 15 for PCS1900, 7 to 19 for GSM850 Bandvalid inputs2 for PCS1900, 3 for GSM850 ReturnsContTxOn:DONE 3) SetRamp SyntaxSetRamp,< Array of 16-bit values > ParametersThe values of a powerramp (normally 53 values) ReturnsSetRamp:DONE 4) ContTxOff SyntaxContTxOff ParametersNone Returns ContTxOff:DONE 5) SetPower SyntaxSetPower, <UINT8 PowerLevel>, <UINT8 Band> ParametersPowerLevelvalid inputs0 to 15 for PCS1900, 7 to 19 for GSM850 Bandvalid inputs2 for PCS1900, 3 for GSM850 ReturnsSetPower/PowerLevel:DONE 6) StoreCalData SyntaxStoreCalData ParametersNone Returns StoreCaldata:DONE

RF Exposure Info

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR TEST REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240510337..A98 Test Dates: May 13-14, 2004 EUT Type: Dual-Band GSM Phone FCC ID: A98-KMP6J1L1-9 Page 1 of 28 © 2004 PCTEST Engineering Laboratory, Inc. APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: NEC AMERICA INC. Dates of Tests: May 13-14, 2004 6535 N. State Hwy. 161 Test Report S/N: SAR.240510337.A98 Irving, TX 75039-2402 Test Site: PCTEST Lab, Columbia, MD USA FCC ID: A98-KMP6J1L1-9 APPLICANT NAME: NEC AMERICA INC. EUT Type: Dual-Band GSM Phone Tx Frequency: 824.20 – 848.80MHz (GSM850) 1850.20MHz – 1909.80MHz (GSM1900) Rx Frequency: 869.20 – 893.80MHz (GSM850) 1930.20MHz – 1989.80MHz (GSM1900) Max. RF Output Power: 1.254 W ERP GSM850 (30.983 dBm) 1.189 W EIRP GSM1900 (30.741 dBm) Max. SAR Measurement: 0.56 W/kg GSM850 Head SAR; 0.26 W/kg GSM850 Body SAR; 0.26 W/kg GSM1900 Head SAR; 0.14 W/kg GSM1900 Body SAR Trade Name/Model(s): KMP6J1L1-9A FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: Identical Prototype [S/N: #1] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. P1528 D1.2 (April 2003). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is EIRP. SAR compliance for body-worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST SAR TEST REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240510337..A98 Test Dates: May 13-14, 2004 EUT Type: Dual-Band GSM Phone FCC ID: A98-KMP6J1L1-9 Page 2 of 28 © 2004 PCTEST Engineering Laboratory, Inc. TABLE OF CONTENTS 1. INTRODUCTION / SAR DEFINITION................................................................................3 2. SAR MEASUREMENT SETUP............................................................................................4 3. ALIDX-500 E-FIELD PROBE SYSTEM.................................................................................5 4. PROBE CALIBRATION PROCESS......................................................................................6 5. PHANTOM & EQUIVALENT TISSUES................................................................................7 6. TEST SYSTEM SPECIFICATIONS........................................................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS...............................................................9 8. DEFINITION OF REFERENCE POINTS.............................................................................10 9. TEST CONFIGURATION POSITION................................................................................11 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS................................................................12 11. MEASUREMENT UNCERTAINTIES..................................................................................13 12. SAR TEST DATA SUMMARY...........................................................................................14 13. SAR TEST EQUIPMENT..................................................................................................15 14. CONCLUSION..............................................................................................................16 15. REFERENCES.................................................................................................................17 EXHIBIT A. SYSTEM VERIFICATION......................................................................................18 EXHIBIT A. SAR DATA SUMMARY....................................................................................19-28 PCTEST SAR TEST REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240510337..A98 Test Dates: May 13-14, 2004 EUT Type: Dual-Band GSM Phone FCC ID: A98-KMP6J1L1-9 Page 3 of 28 © 2004 PCTEST Engineering Laboratory, Inc. 1. INTRODUCTION / SAR DEFINITION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF r…

Text truncated - open the document above for the full version.

RF Exposure Info

Test Report

PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 22/24. 240510336.A98 Test Dates: May 13-14, 2004 Phone Type: Dual-Band GSM FCC ID: A98-KMP6J1L1-9 Page 1 of 25 © 2004 PCTEST ENGINEERING LABORATORY, INC. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 & 22 Certification NEC AMERICA INC. Dates of Tests: May 13-14, 2004 6535 N. State Hwy. 161 Test Report S/N: 22/24.240510336.A98 Irving, TX 75039-2402 Test Site: PCTEST Lab, Columbia MD FCC ID A98-KMP6J1L1-9 APPLICANT NEC AMERICA INC. Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §24(E), §22H; §2 EUT Type: Dual-Band GSM Phone Model: KMP6J1L1-9A Tx Frequency Range: 824.20 – 848.80MHz (GSM850) / 1850.20MHz – 1909.80MHz (GSM1900) Rx Frequency Range: 869.20 – 893.80MHz (GSM850) / 1930.20MHz – 1989.80MHz (GSM1900) Max. RF Output Power: 1.254 W ERP GSM850 (30.983 dBm) / 1.189 W EIRP GSM1900 (30.741 dBm) Max. SAR Measurement: 0.56 W/kg GSM850 Head SAR; 0.26 W/kg GSM850 Body SAR; 0.26 W/kg GSM1900 Head SAR; 0.14 W/kg GSM1900 Body SAR Emission Designator(s): 250KGXW (GSM) Test Device Serial No. Identical Prototype [S/N: #1] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Output power listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body- worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating configurations for satisfying RF exposure compliance. Belt-clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 22/24. 240510336.A98 Test Dates: May 13-14, 2004 Phone Type: Dual-Band GSM FCC ID: A98-KMP6J1L1-9 Page 2 of 25 © 2004 PCTEST ENGINEERING LABORATORY, INC. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 3 2.1 INTRODUCTION 4 3.1 INSERTS 5 4.1 DESCRIPTION OF TESTS 6-9 5.1 EFFECTIVE RADIATED POWER OUTPUT 10 6.1 EQUIVALENT ISOTROPIC RADIATED POWER 11 7.1 RADIATED MEASUREMENTS 12-17 8.1 FREQUENCY STABILITY 18-21 9.1 PLOTS OF EMISSIONS 22 10.1 LIST OF TEST EQUIPMENT 23 11.1 SAMPLE CALCULATIONS 24 12.1 CONCLUSION 25 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: OPERATIONAL / CIRCUIT DESCRIPTION ATTACHMENT L: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS ATTACHMENT Q: DIPOLE VALIDATION PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 22/24. 240510336.A98 Test Dates: May 13-14, 2004 Phone Type: Dual-Band GSM FCC ID: A98-KMP6J1L1-9 Page 3 of 25 © 2004 PCTEST ENGINEERING LABORATORY, INC. ATTACHMENT R: PROBE CALIBRATION MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information Applicant Name: NEC AMERICA INC. Address: 6535 N. State HWY 161 Irving, TX 75039-2402 • FCC ID: A98-KMP6J1L1-9 • Quantity: Quantity production is planned • Emission Designators: 250KGXW (GSM) • Tx Freq. Range: 824.20 – 848.80 MHz (GSM850) 1850.20 – 1909.80 MHz (GSM1900) • Rx Freq. Range: 869.20 – 893.80 MHz (GSM850) 1930.20 – 1989.80 MHz (GSM1900) • Max. Power Rating: 1.254 W ERP GSM (30.983 dBm) 1.189 W EIRP PCS GSM (30.741 dBm) • FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type: Dual-Band GSM Phone • Modulation(s): GSM • Frequency Tolerance: ± 0.00025% (2.5 ppm) • FCC Rule Part(s): § 24(E), §22H • Dates of Tests: May 13-14, 2004 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 22/24.240510336.A98 PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 22/24. 240510336.A98 Test Dates: May 13-14, 2004 Phone Type: Dual-Band GSM FCC ID: A98-KMP6J1L1-9 Page 4 of 25 © 2004 PCTEST ENGINEERING LABORATORY, INC. 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. Measurement Procedure The …

Text truncated - open the document above for the full version.

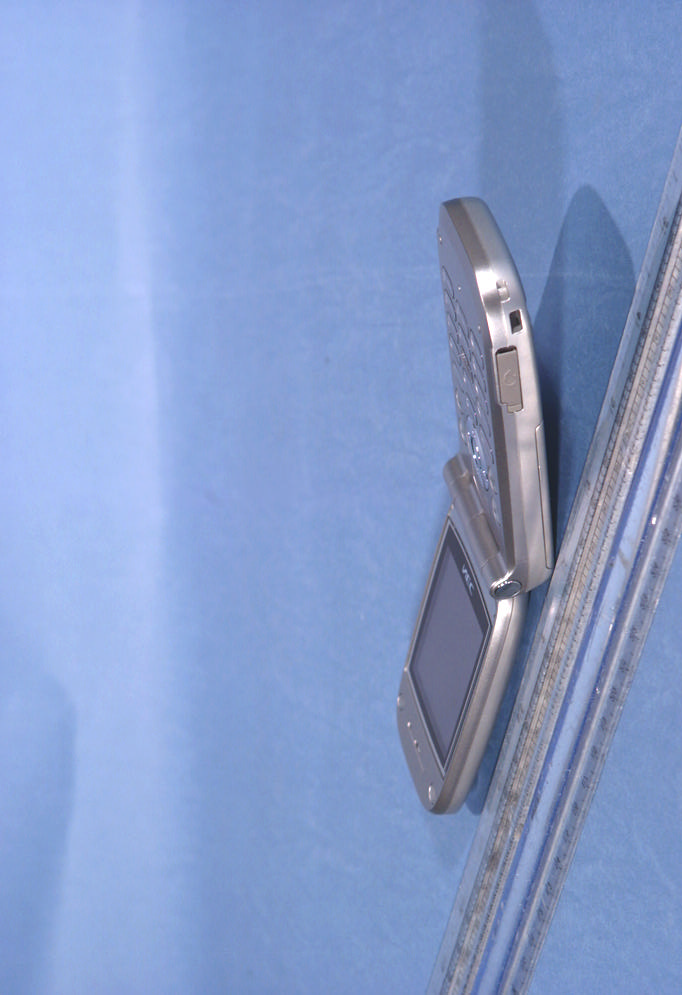

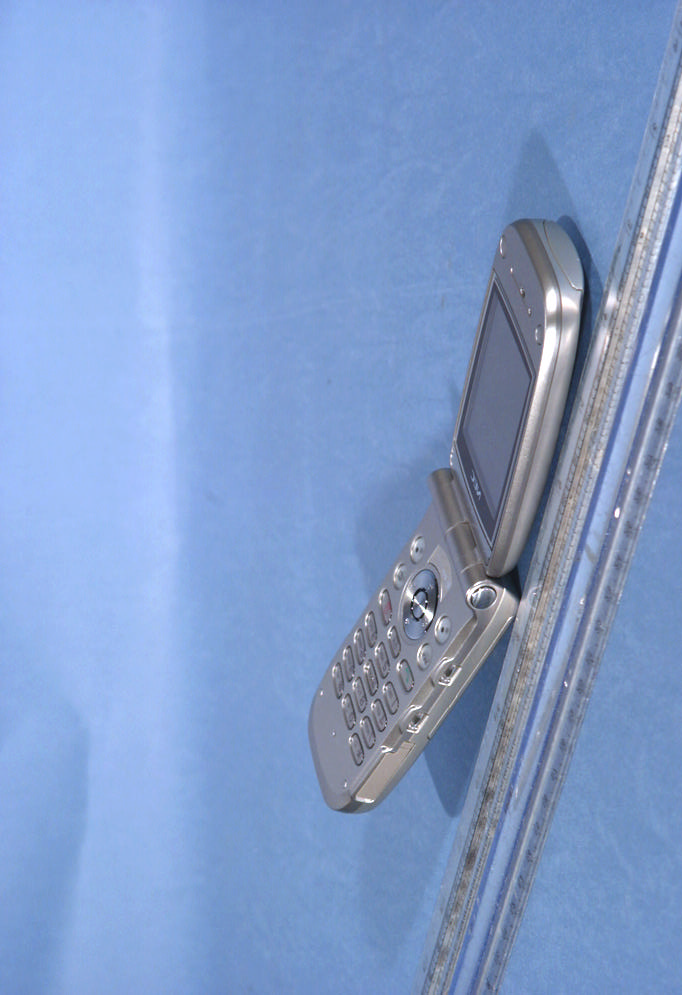

Test Setup Photos

Contact Information

Applicant

Sanjay Wadhwa(Senior Manager)

[email protected]214-262-4241Fax: 214-262-4225

Technical Contact

PCTEST Engineering Lab., Inc.Randy Ortanez

[email protected]410-290-6652

6660-B Dobbin Road · Columbia, Maryland · United States

Test Firm

PCTEST Engineering Laboratory, Inc.Randy Ortanez

[email protected]410-290-6652Fax: 410-290-6654

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
2	24E	1.85 GHz - 1.91 GHz	1.189 W	250KGXW	2.5 ppm

Confidentiality

Long Term

Grant Notes

Output power listed are ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configuration is based on a separation distance of 1.5 between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clip or holster may not contain metallic components. The highest report SAR values are: Part 22-Head: 0.56 W/kg; Body-worn: 0.26 W/kg; and Part 24 - Head: 0.26 W/kg; Body-worn: 0.14 W/kg.
