A98-KMP6J1N1Dual-Band GSM Phone

Copyright Ó 2004 by NEC America, Inc. All rights reserved. NEC is a registered trademark of NEC Corporation.All other company or product names are the trademarks of their respective owners.Manual Part Number: 621-0355Version 1****This may include features not available in all NEC 232 phones, or may not include features available in updated or later version 232 phones. Contact N EC Service Support with any questions. NEC America, Inc. (”NEC”) reserves the right to make changes or improvements to any of the products described in this guide without prior notice. All features, specifications, conditions, and actual colors are subject to change without notice.The availability of particular products may vary by region. 1, 2, 3, 4 This product contains the Internet browser, NetFront v3.0, of ACCESS Co. Ltd. Furthermore, this product carries the browser modules developed by ACC ESS Co. Ltd. and NTT DoCoMo, Inc.Printed in U.S.A.THE CONTENTS OF THIS GUIDE ARE PROVIDED ON AN “AS IS” BASIS. EXCEPT AS REQUIRED BY APPLICABLE LAW, NO WARRANTIES OF ANY KIND, EITHER EXPRESSED ORIMPLIED, INCLUDING, BUT NOT LIMITED TO THE IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE MADE REGARDING THEACCURACY, COMPLETENESS, OR CONTENTS OF THIS GUIDE. NEC RESERVES THE RIGHT TO REVISE OR RESCIND THIS GUIDE AT ANY TIME WITHOUT PRIOR NOTICE.NEC IS NOT RESPONSIBLE FOR ANY LOSS OR CORRUPTION OF DATA, LOSS OF INCOME OR BUSINESS, OR ANY CONSEQUENTIAL, INCIDENTAL, OR SPECIAL DAMAGE,HOWSOEVER CAUSED.WARNING! The power cords of this product contain lead, a chemical known to the State of California to cause birth defects or other reproductive harm. Wash hands after handling._________________1 Some operations and features are network and subscription dependent and are not available in all areas. Check with your wireless service provider fo r availability and description of features. 2 Some of the mobile Internet services have been pre-configured by the service provider.3 Languages may vary by region.4 XCPC capability requires purchase of an additional NEC Authorized Accessory USB cable. i 232 2 SAFETY AND PERFORMANCE 10 GETTING STARTED 17 BASIC CALLS AND PHONE USE 22 PERSONALIZING SETTINGS 30 TEXT ENTRY 57 MESSAGING AND VOICE MAIL 63 GAMES AND APPS 64 WEB BROWSER 65 PHONEBOOK 66 AUDIO AND VISUAL 88 CAMERA FUNCTIONS 89 CALL RECORDS 95 TOOLS 99 ACCESSORIES 119 FDA INFORMATION 122 WARRANTY 127 CTIA 133 ii Contents232 1 Wireless System Structure ..........................1 User Guide Conventions ...........................1 Phone Controls ................................2 Display Information ..............................3 Main LCD Display Area ..........................3 Second LCD Display Area .........................3 Status Bar Icons ..............................3 Softkey Area ................................3 Main Menu ..................................4 Sub-Menus, Check Boxes/Radio Buttons, and Options Menu ......5 Menu Shortcut Selection .........................5 Keypad Shortcuts ...............................5 Main Phone Features .............................6 Idle Mode Display of Main LCD .......................7 Main LCD Screen Icons ...........................8 Dial Screen Icons .............................8 Pop-up Screen Icons ...........................8 Alert Pop up Icons .............................8 Idle Mode Display of Second LCD ......................9 Other Second LCD Notifications .......................9 Safety and Performance 10 User Caution ................................10 Emergency Services ............................10 Safety ....................................11 General Care ...............................11 General Safety ..............................11 Radio Frequency (RF) Signals ......................12 Aircraft Safety .................................12 Road Safety ...............................12 Electromagnetic Interference ......................13 Blasting Areas ..............................14 Potentially Explosive Atmospheres ...................14 Vehicles Equipped with an Air Bag ...................14 Battery Care and Disposal ........................14 Performance .................................15 Third Party Equipment ..........................15 Service ..................................15 Efficient Use ...............................15 Battery ..................................15 Idle and Talk Times ...........................15 Antenna .................................15 Licenses .................................16 Getting Started (TBD) 17 Service Activation ..............................17 Voice Mail and Text Messaging .......................17 PIN and Security Codes ...........................17 SIM Card ..................................18 Inserting a SIM Card ...........................18 Removing a SIM Card ..........................18 Preparing the Battery ............................19 Charging the Battery the First Time ...................19 Checking the Battery ...........................19 Low Battery Indication ..........................19 Charging the Battery ...........................20 Changing the Battery ..........................20 Powering-On the Phone ...........................21 Turning the Phone On ..........................21 Turning the Phone Off ..........................21 Language Display ..............................21 Frequency Bands ..............................21 Basic Calls and Phone Use (TBD) 22 Dialing Calls .................................22 Correcting Mistakes ...........................22 Ending Calls .................................22 Receiving Calls ...............................22 Accepting a Call .............................23 Rejecting a Call .............................23 Receiving a Call While in an Application ..................23 Using Features/Application During a Call .................23 Unsuccessful Calls/Auto Redial .......................23 Call Features ................................24 Caller…

Text truncated - open the document above for the full version.

March 22, 2004 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: NEC America, Inc. FCC ID: A98-KMP6J1N1 Part 22/24 Certification Gentlemen: Submitted herewith, on behalf of NEC America, Inc., is an application for Part 22/24 Certification of the Dual-Band GSM phone. Attached is the applicant’s Letter of Authorization, Confidentiality Request, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), parts list & tune-up procedure, and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: NEC America, Inc.

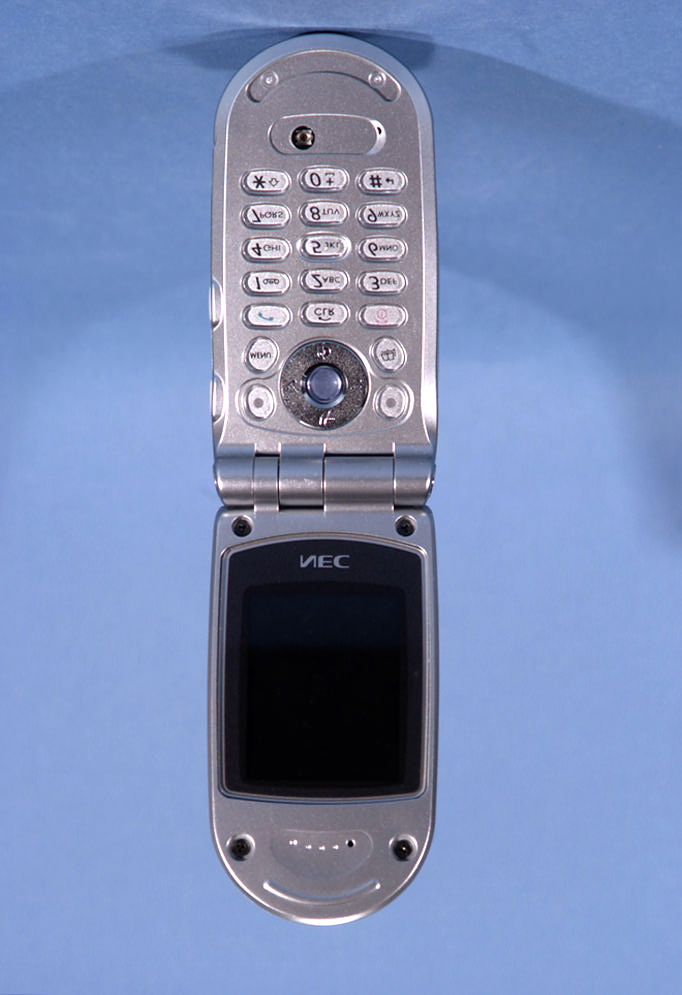

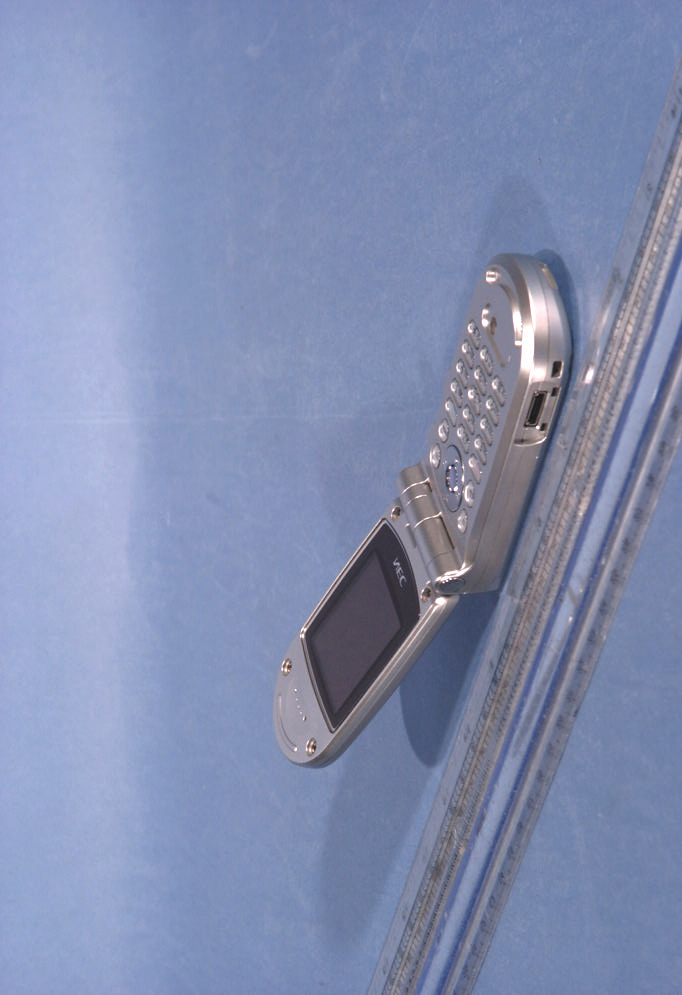

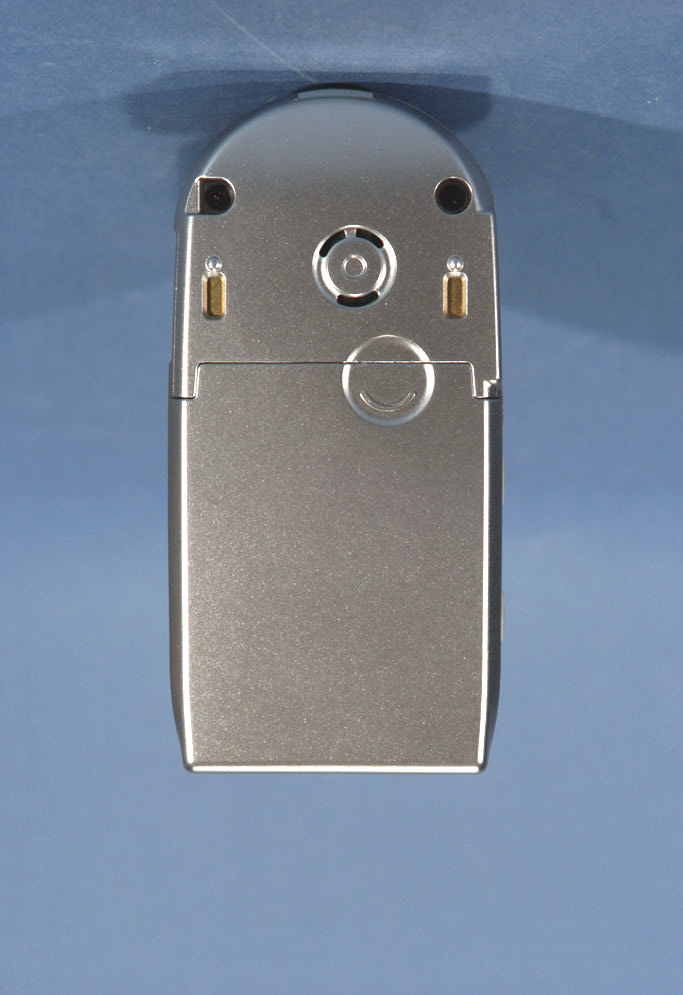

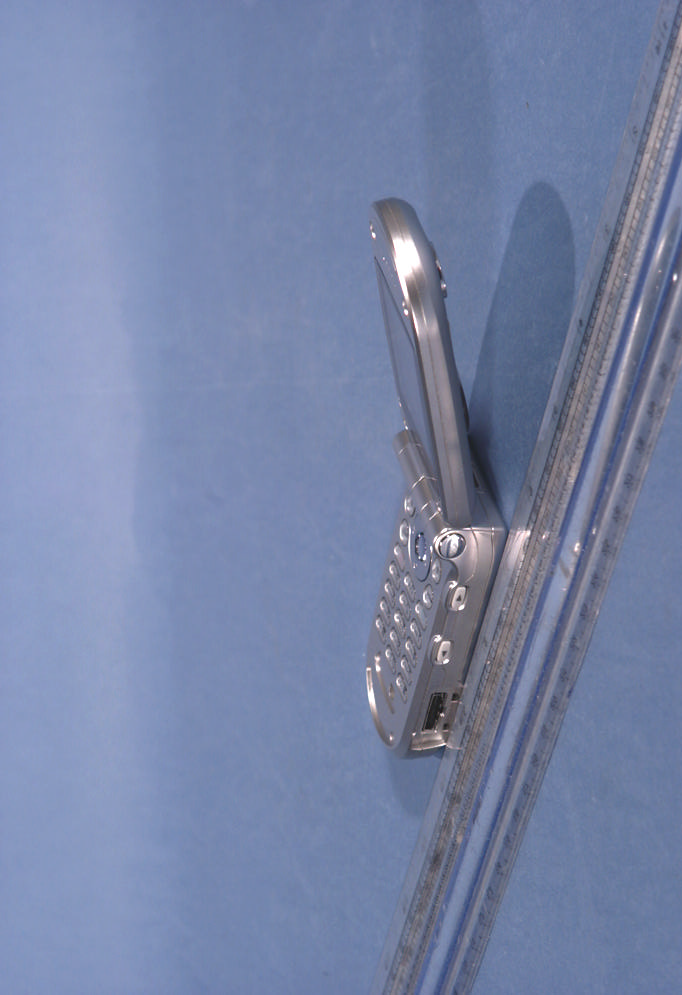

NEC FCC ID: A98-KMP6J1N1 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: KMP6J1N1-1A NEC FCC ID: A98-KMP6J1N1 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: KMP6J1N1-1A NEC FCC ID: A98-KMP6J1N1 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: KMP6J1N1-1A NEC FCC ID: A98-KMP6J1N1 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: KMP6J1N1-1A NEC FCC ID: A98-KMP6J1N1 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: KMP6J1N1-1A NEC FCC ID: A98-KMP6J1N1 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: KMP6J1N1-1A

© 2004 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) FCC ID# A98-KMP6J1N1FCC ID# A98-KMP6J1N1 Label Sample

NEC FCC ID: A98-KMP6J1N1 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: KMP6J1N1-1A NEC FCC ID: A98-KMP6J1N1 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: KMP6J1N1-1A NEC FCC ID: A98-KMP6J1N1 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: KMP6J1N1-1A NEC FCC ID: A98-KMP6J1N1 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: KMP6J1N1-1A NEC FCC ID: A98-KMP6J1N1 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: KMP6J1N1-1A NEC FCC ID: A98-KMP6J1N1 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: KMP6J1N1-1A NEC FCC ID: A98-KMP6J1N1 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: KMP6J1N1-1A NEC FCC ID: A98-KMP6J1N1 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: KMP6J1N1-1A NEC FCC ID: A98-KMP6J1N1 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: KMP6J1N1-1A NEC FCC ID: A98-KMP6J1N1 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: KMP6J1N1-1A

Analog Reference Revised: Monday, January 19, 200 4 BOM NEC KMP6J1N1 Main Board: Revision: EP 2.0CBill Of Materials January 19,2004 15:48:2 5 Item Quantit y Reference V alue Tol% Rating PCB Footprin t Description Part Number Manufacture r 1 1 BAT_J1 1301-SND10417 CONN-BATT-1717273-1 Battery Connector 1717273-1 AMP 2 1 BT1 3V Li Coin Cell ML414S/F9D ML414S/F9DE Panasonic 3 1 C1 0.033uF +80, -20% 25V 0402C Y5V MCH152F5333ZK Rohm 4 1 C2 0.033uF +80, -20% 25V 0402C Y5V MCH152F5333ZK Rohm 5 24 C3 0.1uF 10% 10V 0402C X5R GRP155R61A104KA01E Murata C12 0.1uF 10% 10V 0402C X5R GRP155R61A104KA01E Murata C13 0.1uF 10% 10V 0402C X5R GRP155R61A104KA01E Murata C16 0.1uF 10% 10V 0402C X5R GRP155R61A104KA01E Murata C17 0.1uF 10% 10V 0402C X5R GRP155R61A104KA01E Murata C18 0.1uF 10% 10V 0402C X5R GRP155R61A104KA01E Murata C19 0.1uF 10% 10V 0402C X5R GRP155R61A104KA01E Murata C20 0.1uF 10% 10V 0402C X5R GRP155R61A104KA01E Murata C27 0.1uF 10% 10V 0402C X5R GRP155R61A104KA01E Murata C49 0.1uF 10% 10V 0402C X5R GRP155R61A104KA01E Murata C63 0.1uF 10% 10V 0402C X5R GRP155R61A104KA01E Murata C66 0.1uF 10% 10V 0402C X5R GRP155R61A104KA01E Murata C71 0.1uF 10% 10V 0402C X5R GRP155R61A104KA01E Murata C93 0.1uF 10% 10V 0402C X5R GRP155R61A104KA01E Murata C94 0.1uF 10% 10V 0402C X5R GRP155R61A104KA01E Murata C95 0.1uF 10% 10V 0402C X5R GRP155R61A104KA01E Murata C123 0.1uF 10% 10V 0402C X5R GRP155R61A104KA01E Murata C127 0.1uF 10% 10V 0402C X5R GRP155R61A104KA01E Murata C153 0.1uF 10% 10V 0402C X5R GRP155R61A104KA01E Murata C173 0.1uF 10% 10V 0402C X5R GRP155R61A104KA01E Murata C174 0.1uF 10% 10V 0402C X5R GRP155R61A104KA01E Murata C175 0.1uF 10% 10V 0402C X5R GRP155R61A104KA01E Murata C177 0.1uF 10% 10V 0402C X5R GRP155R61A104KA01E Murata C178 0.1uF 10% 10V 0402C X5R GRP155R61A104KA01E Murata 6 8 C4 1000pF 10% 50V 0402C X7R GRP155R71H102KA01E Murata C5 1000pF 10% 50V 0402C X7R GRP155R71H102KA01E Murata C26 1000pF 10% 50V 0402C X7R GRP155R71H102KA01E Murata C50 1000pF 10% 50V 0402C X7R GRP155R71H102KA01E Murata C98 1000pF 10% 50V 0402C X7R GRP155R71H102KA01E Murata C102 1000pF 10% 50V 0402C X7R GRP155R71H102KA01E Murata C113 1000pF 10% 50V 0402C X7R GRP155R71H102KA01E Murata C114 1000pF 10% 50V 0402C X7R GRP155R71H102KA01E Murata 7 2 C7 1800pF 10% 50V 0402C X7R GRM155R71H182K PHIL C6 1800pF 10% 50V 0402C X7R GRM155R71H182K PHIL 8 20 C8 1uF +/-20% 6.3V 0402C X5R GRM155R60J105CE19D Murata C9 1uF +/-20% 6.3V 0402C X5R GRM155R60J105CE19D Murata C10 1uF +/-20% 6.3V 0402C X5R GRM155R60J105CE19D Murata C11 1uF +/-20% 6.3V 0402C X5R GRM155R60J105CE19D Murata C14 1uF +/-20% 6.3V 0402C X5R GRM155R60J105CE19D Murata C23 1uF +/-20% 6.3V 0402C X5R GRM155R60J105CE19D Murata C48 1uF +/-20% 6.3V 0402C X5R GRM155R60J105CE19D Murata C52 1uF +/-20% 6.3V 0402C X5R GRM155R60J105CE19D Murata C53 1uF +/-20% 6.3V 0402C X5R GRM155R60J105CE19D Murata C56 1uF +/-20% 6.3V 0402C X5R GRM155R60J105CE19D Murata C57 1uF +/-20% 6.3V 0402C X5R GRM155R60J105CE19D Murata C61 1uF +/-20% 6.3V 0402C X5R GRM155R60J105CE19D Murata C62 1uF +/-20% 6.3V 0402C X5R GRM155R60J105CE19D Murata C69 1uF +/-20% 6.3V 0402C X5R GRM155R60J105CE19D Murata C70 1uF +/-20% 6.3V 0402C X5R GRM155R60J105CE19D Murata C75 1uF +/-20% 6.3V 0402C X5R GRM155R60J105CE19D Murata C77 1uF +/-20% 6.3V 0402C X5R GRM155R60J105CE19D Murata C159 1uF +/-20% 6.3V 0402C X5R GRM155R60J105CE19D Murata C162 1uF +/-20% 6.3V 0402C X5R GRM155R60J105CE19D Murata C171 1uF +/-20% 6.3V 0402C X5R GRM155R60J105CE19D Murata 9 1 C15 1uF 10% 6.3V 0603C X5R GRM188R60J105KZ27E Murata 10 9 C21 0.01uF 10% 25V 0402C X7R GRP155R71E103KA01E Murata C33 0.01uF 10% 25V 0402C X7R GRP155R71E103KA01E Murata C34 0.01uF 10% 25V 0402C X7R GRP155R71E103KA01E Murata C40 0.01uF 10% 25V 0402C X7R GRP155R71E103KA01E Murata C42 0.01uF 10% 25V 0402C X7R GRP155R71E103KA01E Murata C101 0.01uF 10% 25V 0402C X7R GRP155R71E103KA01E Murata C118 0.01uF 10% 25V 0402C X7R GRP155R71E103KA01E Murata C144 0.01uF 10% 25V 0402C X7R GRP155R71E103KA01E Murata C145 0.01uF 10% 25V 0402C X7R GRP155R71E103KA01E Murata 11 9 C22 DNI 0402C DNI C24 DNI 0402C DNI C82 DNI 0402C DNI C90 DNI 0402C DNI C108 DNI 0402C DNI C134 DNI 0402C DNI C170 DNI 0402C DNI C183 DNI 0402C DNI C184 DNI 0402C DNI 12 9 C25 33pF 5% 50V 0402C NP0 MCH155A330JK T/R ROHM C30 33pF 5% 50V 0402C NP0 MCH155A330JK T/R ROHM C36 33pF 5% 50V 0402C NP0 MCH155A330JK T/R ROHM C38 33pF 5% 50V 0402C NP0 MCH155A330JK T/R ROHM C84 33pF 5% 50V 0402C NP0 MCH155A330JK T/R ROHM C87 33pF 5% 50V 0402C NP0 MCH155A330JK T/R ROHM C88 33pF 5% 50V 0402C NP0 MCH155A330JK T/R ROHM C185 33pF 5% 50V 0402C NP0 MCH155A330JK T/R ROHM C186 33pF 5% 50V 0402C NP0 MCH155A330JK T/R ROHM 13 10 C28 2.2uF 10% 6.3V 0603C X5R GRM188R60J225KE01D Murata C45 2.2uF 10% 6.3V 0603C X5R GRM188R60J225KE01D Murata C54 2.2uF 10% 6.3V 0603C X5R GRM188R60J225KE01D Murata C55 2.2uF 10% 6.3V 0603C X5R GRM188R60J225KE01D Murata C58 2.2uF 10% 6.3V 0603C X5R GRM188R60J225KE01D Murata C59 2.2uF 10% 6.3V 0603C X5R GRM188R60J225KE01D Murata C60 2.2uF 10% 6.3V 0603C X5R GRM188R60J225KE01D Murata C73 2.2uF 10% 6.3V 0603C X5R GRM188R60J225KE01D Murata C180 2.2uF 10% 6.3V 0603C X5R GRM188R60J225KE01D Murata C182 2.2uF 10% 6.3V 0603C X5R GRM188R60J225KE01D Murata 14 2 C121 270pF 10% 50V 0402C X7R GRM155R71H271K Murata C46 270pF 10% 50V 0402C X7R GRM155R71H271K Murata 15 1 C47 0.022uF +80, -20% 25V 0402C Y5V MCH152F5223ZK Rohm 16 1 C64 10uF 10% 10V CASEA 3216 tantalum TAJA106K010R AVX 17 3 C65 22pF 5% 50V 0402C COG GRP1555COG220JZ01E Murata C117 22pF 5% 50V 0402C COG GRP1555COG220JZ01E Murata C160 22pF 5% 50V 0402C COG GRP1555COG220JZ01E Murata 18 2 C67 10pF 5% 50V 0402C COG GRP1555COG100DZ01E Murata C179 10pF 5% 50V 0402C COG GRP1555COG100DZ01E Murata 19 1 C68 10pF 5% 50V 0402C COG GRP1555COG100DZ01E Murata 20 3 C76 470pF 10% 50V 0402C X7R GRP155R71H471KA01E Murata C92 470pF 10% 50V 0402C X7R GRP155R71H471KA01E Murata C181 470pF 10% 50V 0402C X7R GRP155R71H471KA01E Murata 21 10 C80 100pF 5% 50V 0402C COG GRP1555COG101JD01E Murata C129 100pF 5% 50V 04…

Text truncated - open the document above for the full version.

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR TEST REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240227148.A98 Test Dates: March 15-19, 2004 EUT Type: Dual-Band GSM Phone FCC ID: A98-KMP6J1N1 Page 1 of 28 © 2004 PCTEST Engineering Laboratory, Inc. APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: NEC AMERICA INC. Dates of Tests: March 15-19, 2004 6535 N. State Hwy. 161 Test Report S/N: SAR.240227148.A98 Irving, TX 75039-2402 Test Site: PCTEST Lab, Columbia, MD USA FCC ID: A98-KMP6J1N1 APPLICANT NAME: NEC AMERICA INC. EUT Type: Dual-Band GSM Phone Tx Frequency: 824.20 – 848.80MHz (GSM850) 1850.20MHz – 1909.80MHz (GSM1900) Rx Frequency: 869.20 – 893.80MHz (GSM850) 1930.20MHz – 1989.80MHz (GSM1900) Max. RF Output Power: 0.636 W ERP GSM850 (28.033 dBm) 0.925 W EIRP GSM1900 (29.651 dBm) Max. SAR Measurement: 0.23 W/kg GSM850 Head SAR; 0.18 W/kg GSM850 Body SAR; 0.33 W/kg GSM1900 Head SAR; 0.12 W/kg GSM1900 Body SAR Trade Name/Model(s): KMP6J1N1-1A FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: Identical Prototype [S/N: #102] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. P1528 D1.2 (April 2003). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is EIRP. SAR compliance for body-worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST SAR TEST REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240227148.A98 Test Dates: March 15-19, 2004 EUT Type: Dual-Band GSM Phone FCC ID: A98-KMP6J1N1 Page 2 of 28 © 2004 PCTEST Engineering Laboratory, Inc. TABLE OF CONTENTS 1. INTRODUCTION / SAR DEFINITION.................................................................................3 2. SAR MEASUREMENT SETUP.............................................................................................4 3. ALIDX-500 E-FIELD PROBE SYSTEM..................................................................................5 4. PROBE CALIBRATION PROCESS.......................................................................................6 5. PHANTOM & EQUIVALENT TISSUES................................................................................7 6. TEST SYSTEM SPECIFICATIONS.........................................................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS...............................................................9 8. DEFINITION OF REFERENCE POINTS..............................................................................10 9. TEST CONFIGURATION POSITION.................................................................................11 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS.................................................................12 11. MEASUREMENT UNCERTAINTIES...................................................................................13 12. SAR TEST DATA SUMMARY...........................................................................................14 13. SAR TEST EQUIPMENT...................................................................................................15 14. CONCLUSION...............................................................................................................16 15. REFERENCES..................................................................................................................17 EXHIBIT A. SYSTEM VERIFICATION.......................................................................................18 EXHIBIT A. SAR DATA SUMMARY.....................................................................................19-28 PCTEST SAR TEST REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240227148.A98 Test Dates: March 15-19, 2004 EUT Type: Dual-Band GSM Phone FCC ID: A98-KMP6J1N1 Page 3 of 28 © 2004 PCTEST Engineering Laboratory, Inc. 1. INTRODUCTION / SAR DEFINITION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR du…

Text truncated - open the document above for the full version.

NEC FCC ID: A98-KMP6J1N1 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: KMP6J1N1-1A NEC FCC ID: A98-KMP6J1N1 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: KMP6J1N1-1A NEC FCC ID: A98-KMP6J1N1 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: KMP6J1N1-1A NEC FCC ID: A98-KMP6J1N1 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: KMP6J1N1-1A NEC FCC ID: A98-KMP6J1N1 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: KMP6J1N1-1A NEC FCC ID: A98-KMP6J1N1 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: KMP6J1N1-1A NEC FCC ID: A98-KMP6J1N1 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: KMP6J1N1-1A NEC FCC ID: A98-KMP6J1N1 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: KMP6J1N1-1A NEC FCC ID: A98-KMP6J1N1 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: KMP6J1N1-1A NEC FCC ID: A98-KMP6J1N1 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: KMP6J1N1-1A NEC FCC ID: A98-KMP6J1N1 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: KMP6J1N1-1A NEC FCC ID: A98-KMP6J1N1 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: KMP6J1N1-1A NEC FCC ID: A98-KMP6J1N1 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: KMP6J1N1-1A

PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 22/24. 240227147.A98 Test Dates: March 15-19, 2004 Phone Type: Dual-Band GSM FCC ID: A98-KMP6J1N1 Page 1 of 25 © 2004 PCTEST ENGINEERING LABORATORY, INC. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 & 22 Certification NEC AMERICA INC. Dates of Tests: March 15-19, 2004 6535 N. State Hwy. 161 Test Report S/N: 22/24.240227147.A98 Irving, TX 75039-2402 Test Site: PCTEST Lab, Columbia MD FCC ID A98-KMP6J1N1 APPLICANT NEC AMERICA INC. Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §24(E), §22H; §2 EUT Type: Dual-Band GSM Phone Model: KMP6J1N1-1A Tx Frequency Range: 824.20 – 848.80MHz (GSM850) / 1850.20MHz – 1909.80MHz (GSM1900) Rx Frequency Range: 869.20 – 893.80MHz (GSM850) / 1930.20MHz – 1989.80MHz (GSM1900) Max. RF Output Power: 0.636 W ERP GSM850 (28.033 dBm) / 0.925 W EIRP GSM1900 (29.651 dBm) Max. SAR Measurement: 0.23 W/kg GSM850 Head SAR; 0.28 W/kg GSM850 Body SAR; 0.33 W/kg GSM1900 Head SAR; 0.22 W/kg GSM1900 Body SAR Emission Designator(s): 250KGXW (GSM), 250KG7W (EDGE) Test Device Serial No. Identical Prototype [S/N: #102] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Output power listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body- worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating configurations for satisfying RF exposure compliance. Belt-clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 22/24. 240227147.A98 Test Dates: March 15-19, 2004 Phone Type: Dual-Band GSM FCC ID: A98-KMP6J1N1 Page 2 of 25 © 2004 PCTEST ENGINEERING LABORATORY, INC. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 3 2.1 INTRODUCTION 4 3.1 INSERTS 5 4.1 DESCRIPTION OF TESTS 6-9 5.1 EFFECTIVE RADIATED POWER OUTPUT 10 6.1 EQUIVALENT ISOTROPIC RADIATED POWER 11 7.1 RADIATED MEASUREMENTS 12-17 8.1 FREQUENCY STABILITY 18-21 9.1 PLOTS OF EMISSIONS 22 10.1 LIST OF TEST EQUIPMENT 23 11.1 SAMPLE CALCULATIONS 24 12.1 CONCLUSION 25 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: OPERATIONAL / CIRCUIT DESCRIPTION ATTACHMENT L: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS ATTACHMENT Q: DIPOLE VALIDATION ATTACHMENT R: PROBE CALIBRATION PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 22/24. 240227147.A98 Test Dates: March 15-19, 2004 Phone Type: Dual-Band GSM FCC ID: A98-KMP6J1N1 Page 3 of 25 © 2004 PCTEST ENGINEERING LABORATORY, INC. MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information Applicant Name: NEC AMERICA INC. Address: 6535 N. State HWY 161 Irving, TX 75039-2402 • FCC ID: A98-KMP6J1N1 • Quantity: Quantity production is planned • Emission Designators: 250KGXW (GSM), 250KG7W (EDGE) • Tx Freq. Range: 824.20 – 848.80 MHz (GSM850) 1850.20 – 1909.80 MHz (GSM1900) • Rx Freq. Range: 869.20 – 893.80 MHz (GSM850) 1930.20 – 1989.80 MHz (GSM1900) • Max. Power Rating: 0.636 W ERP GSM (28.033 dBm) 0.925 W EIRP PCS GSM (29.651 dBm) • FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type: Dual-Band GSM Phone • Modulation(s): GSM, EDGE • Frequency Tolerance: ± 0.00025% (2.5 ppm) • FCC Rule Part(s): § 24(E), §22H • Dates of Tests: March 15-19, 2004 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 22/24.240227147.A98 PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 22/24. 240227147.A98 Test Dates: March 15-19, 2004 Phone Type: Dual-Band GSM FCC ID: A98-KMP6J1N1 Page 4 of 25 © 2004 PCTEST ENGINEERING LABORATORY, INC. 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on Octo…
