A98-KMP7N2E1Single-Band PCS GSM Phone w/ Bluetooth

NEC Corporation of America

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: May 23, 2005
Application Purpose: Original Equipment
Date of Application: May 23, 2005
Equipment Note: Single-Band PCS GSM Phone w/ Bluetooth
Frequency Range: 1850.20000000 - 1909.80000000
Company: NEC Corporation of America
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

1 Windows ® XP and Windows ® 2000 are registered trademarks of Microsoft Corporation in the United States and/or other countries. This product contains ACCESS Co., Ltd.’s NetFront TM V3.2 Internet browser software. NetFront V3.2 is the trademark or registered trademark of ACCESS Co., Ltd. in Japan and in other countries. A portion of this software includes software modules developed by the Independent JPEG Group. You may not alter or reproduce, or remove from this product the Internet browser software contained herein. Use of the GIF decoder module contained in this product is permitted only as a part of browser software, under a license from Unisys Corporation. For other use, you have to obtain a separate license from Unisys Corporation. Purchase and/or use of the browser software contained in this product does not authorise your use of any other product or performance of any other method or activity involving use of the LZW patents or GIF technology, unless you are separately licensed in writing by Unisys Corporation. Java and all Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. T9 ® Text Input is a registered trademark of Tegic Communications Inc. T9 Text Input is licensed under one or more of the following: U.S. Pat. Nos. 5,818,437, 5,953,541, 5,187,480, 5,945,928, 6,011,554, and 6,307,548; Australian Pat. No. 727539; Canadian Pat. No. 1,331,057; United Kingdom Pat. No. 2238414B; Hong Kong Standard Pat. No. HK0940329; Republic of Singapore Pat. No. 51383; Euro.Pat. No. 0 842 463 (96927260.8) DE/DK, FI, FR, IT,NL,PT.ES,SE,GB; Republic of Korea Pat. Nos. KR201211B1 and KR226206B1; and additional patents are pending worldwide. Licensed by QUALCOMM Incorporated under one or more of the following United States Patents and/or their counterparts in other nations: 4,901,307, 5,490,165, 5,056,109, 5,504,773, 5,101,501, 5,506,865, 5,109,390, 5,511,073, 5,228,054, 5,535,239, 5,267,261, 5,544,196, 5,267,262, 5,568,483, 5,337,338, 5,600,754, 5,414,796, 5,657,420, 5,416,797, 5,659,569, 5,710,784, and 5,778,338. The specifications and information in this manual are subject to change without notice. Some contents in this manual may not apply to your phone depending upon the software of the phone or your service provider. Copyright Notice 2 3 Emergency services To make an emergency call in any country • Ensure that your N600i is switched on and in service. • Press the Send key to return to the Home screen if needed. • Press 112 (or 999 within the UK or 000 in Australia) followed by the Send key. (When the USIM card is not inserted or when the dial lock function is on, press the SK2 (Emrgcy). When the dial lock function is on, press 112 and SK1 (Yes). Refer to Locking your N600i section on page 26 for further instructions on emergency calls when the key lock is on.) Follow the instructions and do not end the call until told to do so. 2Tell the operator which service you require: Police, Ambulance, Fire Brigade, Coastguard or Mountain Rescue Service. Give your location and, if possible, remain where you are to maintain contact. 2The 112 emergency number service is available on every digital network service. Alternatively, use 999 in the UK, or 000 in Australia. Note that these can only be used with a valid USIM. 2Due to the nature of the cellular system, connection to emergency calls cannot be guaranteed. General care A phone contains delicate electronic circuitry, magnets and battery systems. You should treat it with care and pay attention to the following: • This phone is fitted with an internal battery that can only be replaced by a qualified service engineer. There is a risk of explosion if the battery is replaced with an incorrect battery type. Dispose of the used battery in accordance with the manufacturer's instructions. • Do not allow the phone, battery or accessories to come into contact with liquids or moisture at any time. Do not immerse in liquid. • Do not paint the phone. • Do not drop, throw or subject the phone to rough treatment. • Do not place the phone alongside computer disks, credit cards, travel cards and other magnetic media. The information contained on disks or cards may be affected by the phone. • Do not leave the phone or the battery in places where the temperature could exceed 60 °C, e.g. on a car dashboard or a window sill, behind glass in direct sunlight, etc. • Do not remove the battery while the phone is switched on. • Take care not to allow metal objects, such as coins or key rings to contact or short-circuit the battery terminals. • Do not dispose of batteries in a fire. Dispose of Li-ION batteries at a Li-ION recycling point. For more specific battery and power supply information, see pages 6 and 7. • Do not put the battery in your mouth, as battery electrolytes may be toxic if swallowed. • Do not attempt to dismantle the phone or any of its accessories. • Do not put a battery into a microwave oven, dryer or high-pressure container. • Do not let the battery come into direct contact with an electric outlet or cigarette lighter charger. Use only authorised charger units. • Do not pierce the battery with a sharp object such as a needle. • When the battery is thrown away, be sure it is non- conducting by applying vinyl tape to the (+) and (-) terminals. • Do not disassemble or modify the battery. • Do not solder the battery directly. • Stop using the battery if you detect any abnormalities, such as odour, discolouration or heat during use, charge or storage. • Do not use the phone with a damaged or misshapen battery. Important Safety Information 4 • In the unlikely event of a battery leak, take care to keep the battery discharge away from your eyes or skin. If the leakage does come into contact with the eyes or skin, please flush thoroughly in clean water and consult a doctor. • Remove a worn out battery immediately. • The handset itself may become warm when the handset is used for an extended period of tim…

Text truncated - open the document above for the full version.

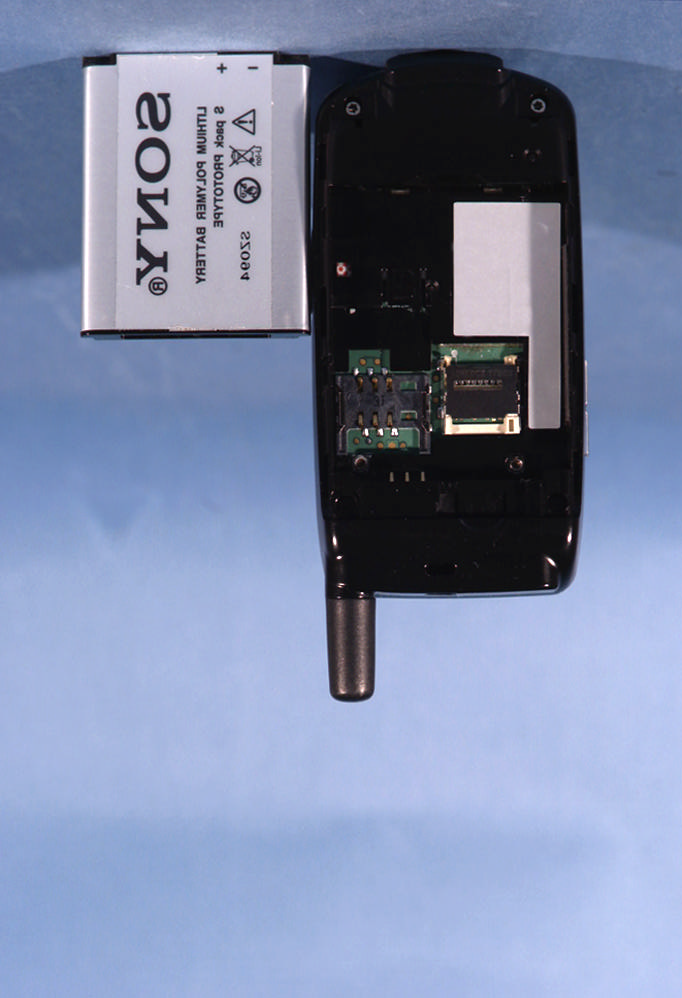

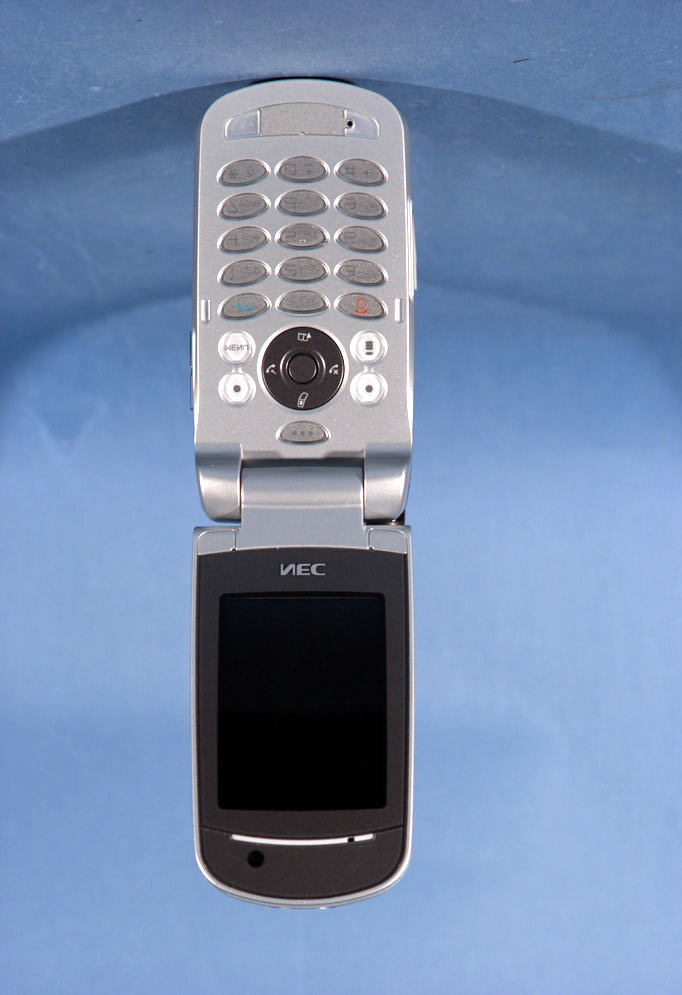

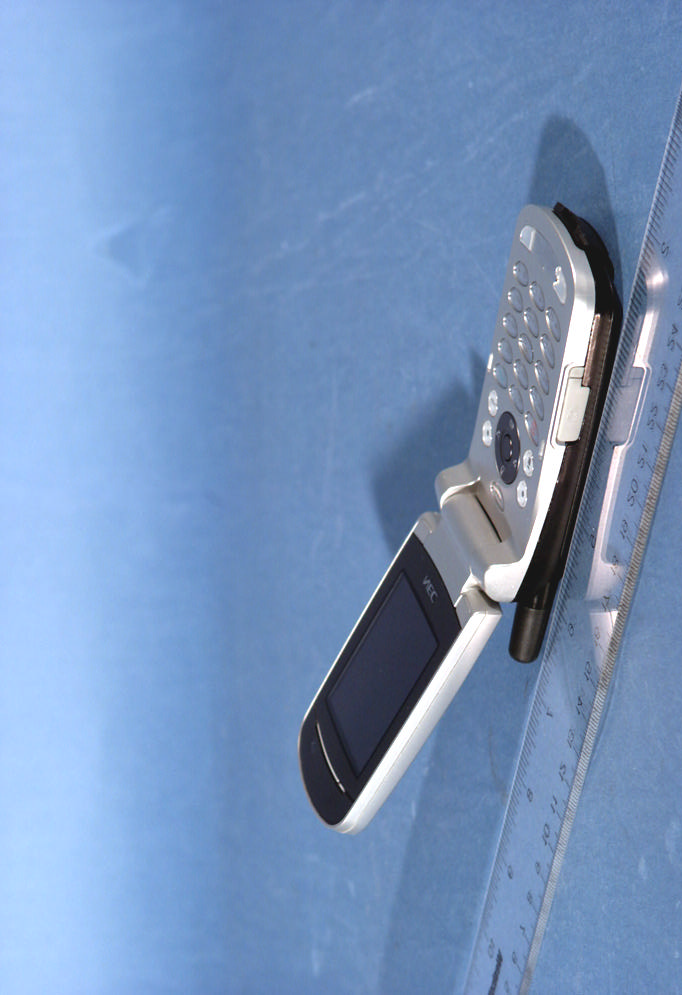

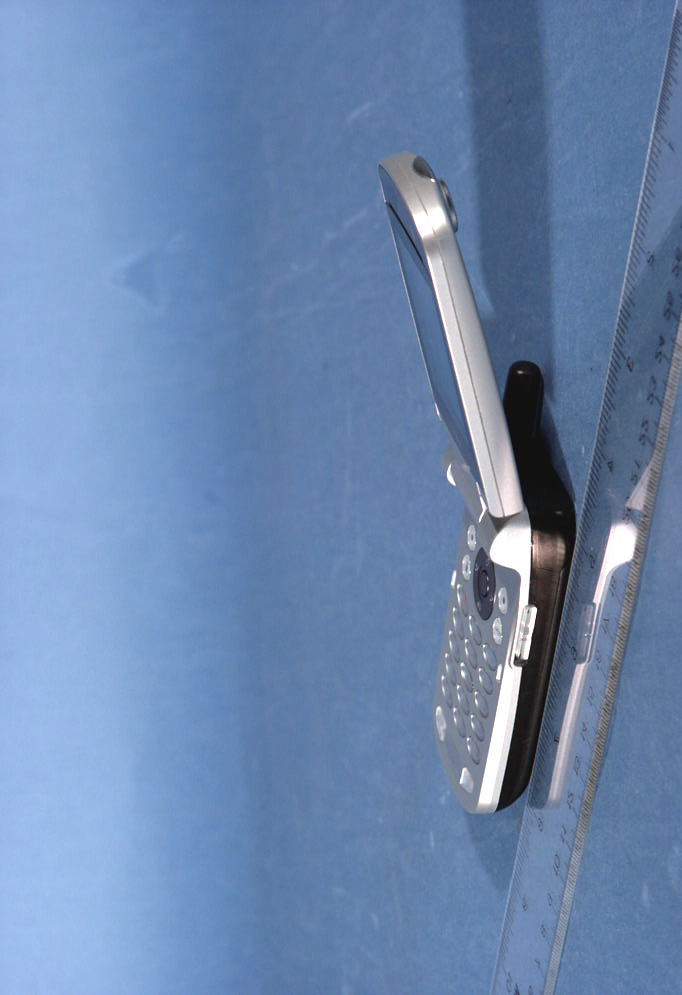

External Photos

ID Label/Location Info

© 2005 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) KMP7N2E1-4E IC:140K-KMP7N2E1 001026000021653 A Bar Code FCC ID:A98-KMP7N2E1

Internal Photos

NEC FCC ID: A98-KMP7N2E1 EUT Photographs © 2005 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP7N2E1 NEC FCC ID: A98-KMP7N2E1 EUT Photographs © 2005 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP7N2E1 NEC FCC ID: A98-KMP7N2E1 EUT Photographs © 2005 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP7N2E1 NEC FCC ID: A98-KMP7N2E1 EUT Photographs © 2005 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP7N2E1 NEC FCC ID: A98-KMP7N2E1 EUT Photographs © 2005 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP7N2E1 NEC FCC ID: A98-KMP7N2E1 EUT Photographs © 2005 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP7N2E1 NEC FCC ID: A98-KMP7N2E1 EUT Photographs © 2005 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP7N2E1 NEC FCC ID: A98-KMP7N2E1 EUT Photographs © 2005 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP7N2E1 NEC FCC ID: A98-KMP7N2E1 EUT Photographs © 2005 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP7N2E1 NEC FCC ID: A98-KMP7N2E1 EUT Photographs © 2005 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP7N2E1 NEC FCC ID: A98-KMP7N2E1 EUT Photographs © 2005 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP7N2E1 NEC FCC ID: A98-KMP7N2E1 EUT Photographs © 2005 PCTEST Lab. Single-Band PCS GSM Phone Model: KMP7N2E1

RF Exposure Info

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR TEST REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: 0504140284 Test Dates: May 19-20, 2005 Phone Type: Single-Band PCS GSM FCC ID: A98-KMP7N2E1 Page 1 of 23 © 2005 PCTEST Engineering Laboratory, Inc. APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: NEC AMERICA INC., INC. Dates of Tests: May 19-20, 2005 6535 N. State Hwy. 161 Test Report S/N: 0504140284 Irving, TX 75039-2402 Test Site: PCTEST Lab, Columbia MD FCC ID: A98-KMP7N2E1 APPLICANT NAME: NEC AMERICA INC., INC. EUT Type: Single-Band PCS GSM Phone with Bluetooth Tx Frequency: 1850.20MHz – 1909.80MHz (GSM1900) Rx Frequency: 1930.20MHz – 1989.80MHz (GSM1900) Max. RF Output Power: 1.300 W EIRP GSM1900 (31.128 dBm) / 30.0 dBm Conducted Max. SAR Measurement: 0.61 W/kg GSM1900 Head SAR; 0.85 W/kg GSM1900 Body SAR Trade Name/Model(s): KMP7N2E1-4E FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: Identical Prototype [IMEI: #00440000146895] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528 – 2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is EIRP. SAR compliance for body-worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST SAR TEST REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: 0504140284 Test Dates: May 19-20, 2005 Phone Type: Single-Band PCS GSM FCC ID: A98-KMP7N2E1 Page 2 of 23 © 2005 PCTEST Engineering Laboratory, Inc. TABLE OF CONTENTS 1. INTRODUCTION / SAR DEFINITION.................................................................................3 2. SAR MEASUREMENT SETUP..............................................................................................4 3. ALIDX-500 E-FIELD PROBE SYSTEM..................................................................................5 4. PROBE CALIBRATION PROCESS.......................................................................................6 5. PHANTOM & EQUIVALENT TISSUES.................................................................................7 6. TEST SYSTEM SPECIFICATIONS.........................................................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................9 8. DEFINITION OF REFERENCE POINTS..............................................................................10 9. TEST CONFIGURATION POSITION.................................................................................11 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS.................................................................12 11. MEASUREMENT UNCERTAINTIES...................................................................................13 12. SAR TEST DATA SUMMARY............................................................................................14 13. SAR TEST EQUIPMENT...................................................................................................15 14. CONCLUSION...............................................................................................................16 15. REFERENCES..................................................................................................................17 EXHIBIT A. SYSTEM VERIFICATION.......................................................................................18 EXHIBIT A. SAR DATA SUMMARY...................................................................................19-23 PCTEST SAR TEST REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: 0504140284 Test Dates: May 19-20, 2005 Phone Type: Single-Band PCS GSM FCC ID: A98-KMP7N2E1 Page 3 of 23 © 2005 PCTEST Engineering Laboratory, Inc. 1. INTRODUCTION / SAR DEFINITION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to thos…

Text truncated - open the document above for the full version.

Test Report

PCTEST PT. 24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 050414283 Test Dates: May 19-20, 2005 Phone Type: Single-Band PCS GSM w/ Bluetooth FCC ID: A98-KMP7N2E1 Page 1 of 18 © 2005 PCTEST ENGINEERING LABORATORY, INC. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 Certification NEC AMERICA INC. Dates of Tests: May 19-20, 2005 6535 N. State Hwy. 161 Test Report S/N: 050414283 Irving, TX 75039-2402 Test Site: PCTEST Lab, Columbia MD FCC ID A98-KMP7N2E1 APPLICANT NEC AMERICA INC. Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §24(E), §2 EUT Type: Single-Band PCS GSM Phone with Bluetooth Model(s): KMP7N2E1-1A Tx Frequency Range: 1850.20MHz – 1909.80MHz (GSM1900) Rx Frequency Range: 1930.20MHz – 1989.80MHz (GSM1900) Max. RF Output Power: 1.300 W EIRP GSM1900 (31.128 dBm) Max. SAR Measurement: 0.61 W/kg GSM1900 Head SAR; 0.85 W/kg GSM1900 Body SAR Emission Designator(s): 250KGXW Test Device Serial No. Identical Prototype [S/N: #00440000146895] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant conditions: Power output listed is EIRP. SAR compliance for body-worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST PT. 24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 050414283 Test Dates: May 19-20, 2005 Phone Type: Single-Band PCS GSM w/ Bluetooth FCC ID: A98-KMP7N2E1 Page 2 of 18 © 2005 PCTEST ENGINEERING LABORATORY, INC. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 3 2.1 INTRODUCTION 4 3.1 INSERTS 5 4.1 DESCRIPTION OF TESTS 6-8 5.1 EQUIVALENT ISOTROPIC RADIATED POWER 9 6.1 RADIATED MEASUREMENTS 10-12 7.1 FREQUENCY STABILITY 13-14 8.1 PLOTS OF EMISSIONS 15 9.1 LIST OF TEST EQUIPMENT 16 10.1 SAMPLE CALCULATIONS 17 11.1 CONCLUSION 18 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: OPERATIONAL / CIRCUIT DESCRIPTION ATTACHMENT L: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS ATTACHMENT Q: DIPOLE VALIDATION ATTACHMENT R: PROBE CALIBRATION PCTEST PT. 24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 050414283 Test Dates: May 19-20, 2005 Phone Type: Single-Band PCS GSM w/ Bluetooth FCC ID: A98-KMP7N2E1 Page 3 of 18 © 2005 PCTEST ENGINEERING LABORATORY, INC. MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information Applicant Name: NEC AMERICA INC. Address: 6535 N. State HWY 161 Irving, TX 75039-2402 • FCC ID: A98-KMP7N2E1 • Quantity: Quantity production is planned • Emission Designators: 250KGXW • Tx Freq. Range: 1850.20 – 1909.80 MHz (GSM1900) • Rx Freq. Range: 1930.20 – 1989.80 MHz (GSM1900) • Max. Power Rating: 1.300 W EIRP GSM1900 (31.128 dBm) • FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type: Single-Band PCS GSM Phone • Modulation(s): GSM • Frequency Tolerance: ± 0.00025% (2.5 ppm) • FCC Rule Part(s): § 24(E) • Dates of Tests: May 19-20, 2005 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 0504140283 • Deviation from measurement procedure - None PCTEST PT. 24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 050414283 Test Dates: May 19-20, 2005 Phone Type: Single-Band PCS GSM w/ Bluetooth FCC ID: A98-KMP7N2E1 Page 4 of 18 © 2005 PCTEST ENGINEERING LABORATORY, INC. 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. Measurement Procedure The radiated and spurious measurements were made outdoors at a 3-meter test range (see Figure2). The equipment under test is placed on a wooden turntable 3-meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the high…

Text truncated - open the document above for the full version.

Test Setup Photos

Contact Information

Applicant

Sanjay Wadhwa(Senior Manager)

[email protected]214-262-4241Fax: 214-262-4225

Technical Contact

PCTEST Engineering Lab., Inc.Randy Ortanez

[email protected]410-290-6652

6660-B Dobbin Road · Columbia, Maryland · United States

Test Firm

PCTEST Engineering Laboratory, Inc.Randy Ortanez

[email protected]4102906652Fax: 4102906654

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
1	24E	1.85 GHz - 1.91 GHz	1.3 W	250KGXW	2.5000000000 ppm

Confidentiality

Long Term

Grant Notes

Output is EIRP. SAR compliance for body- worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. SAR compliance was evaluated with the integral Bluetooth active. The highest reported SAR values are � Head: 0.61 W/kg: Body-worn: 0.85 W/kg.
