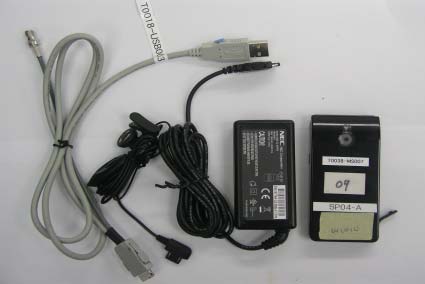

Report No.: EH/2006/30003 FCC ID: A98-KMP7N2K1 Issue Date: Apr. 11, 2006 Page: 55 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw All of EUT Adaptor Report No.: EH/2006/30003 FCC ID: A98-KMP7N2K1 Issue Date: Apr. 11, 2006 Page: 56 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Front View of EUT Back View of EUT Report No.: EH/2006/30003 FCC ID: A98-KMP7N2K1 Issue Date: Apr. 11, 2006 Page: 57 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Inside View of EUT Outside View of EUT Report No.: EH/2006/30003 FCC ID: A98-KMP7N2K1 Issue Date: Apr. 11, 2006 Page: 58 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Left View of EUT Right View of EUT Report No.: EH/2006/30003 FCC ID: A98-KMP7N2K1 Issue Date: Apr. 11, 2006 Page: 59 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Top View of EUT Bottom View of EUT

FCC ID LABEL FORMAT AND LOCATION Applicant: NEC America Inc FCC ID: A98-KMP7N2K1

Report No.: EH/2006/30003 FCC ID: A98-KMP7N2K1 Issue Date: Apr. 11, 2006 Page: 60 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Open View of EUT Open View of EUT – 1 Report No.: EH/2006/30003 FCC ID: A98-KMP7N2K1 Issue Date: Apr. 11, 2006 Page: 61 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Open View of EUT - 2 Internal of EUT --- 1 Report No.: EH/2006/30003 FCC ID: A98-KMP7N2K1 Issue Date: Apr. 11, 2006 Page: 62 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Internal of EUT --- 2 Internal of EUT --- 3 Report No.: EH/2006/30003 FCC ID: A98-KMP7N2K1 Issue Date: Apr. 11, 2006 Page: 63 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Internal of EUT --- 4 Internal of EUT --- 5 Report No.: EH/2006/30003 FCC ID: A98-KMP7N2K1 Issue Date: Apr. 11, 2006 Page: 64 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Internal of EUT --- 6 Internal of EUT --- 7 Report No.: EH/2006/30003 FCC ID: A98-KMP7N2K1 Issue Date: Apr. 11, 2006 Page: 65 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Internal of EUT --- 8 Internal of EUT --- 9 Report No.: EH/2006/30003 FCC ID: A98-KMP7N2K1 Issue Date: Apr. 11, 2006 Page: 66 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Internal of EUT --- 10

Report No. : ES/2006/30001 Page : 1 of 48 Report No. : ES/2006/30001 Page : 2 of 48 Contents 1. General Information 1.1 Testing Laboratory 4 1.2 Details of Applicant 4 1.3 Description of EUT(s) 4 1.4 Test Environment 5 1.5 Operation description 5 1.6 The SAR Measurement System 5 1.7 System Components 7 1.8 SAR System Verification 8 1.9 Tissue Simulate Fluid for the Frequency Band 9 1.10 Test Standards and Limits 10 2. Summary of Results 12 3. Instruments List 13 4. Measurements 14 GSM 1900MHz 4.1.1 Right-head, cheek, lowest channel 14 4.1.2 Right-head, cheek, middle channel 15 4.1.3 Right-head, cheek, highest channel 16 4.1.4 Left-head, cheek, lowest channel 17 4.1.5 Left-head, cheek, middle channel 18 4.1.6 Left-head, cheek, highest channel 19 4.1.7 Right-head, tilt 15°, lowest channel 20 4.1.8 Right-head, tilt 15°, middle channel 21 4.1.9 Right-head, tilt 15°, highest channel 22 4.1.10 Left-head, tilt 15°, lowest channel 23 4.1.11 Left-head, tilt 15°, middle channel 24 4.1.12 Left-head, tilt 15°, highest channel 25 <Worse-Case -Testing in GPRS Mode> 4.1.13 Body, lowest channel 26 4.1.14 Body, middle channel 27 4.1.15 Body, highest channel 28 System Verification 4.2.1 GSM 1900MHz Head 29 4.2.2 GSM 1900MHz Muscle 30 APPENDIX 1. Photographs of Test Setup 31 2. Photographs of EUT 34 3. Photographs of the Battery 36 4. Probe Calibration certificate 37 5. Uncertainty Analysis 45 Report No. : ES/2006/30001 Page : 3 of 48 6. Phantom description 46 7. System Validation from Original equipment supplier 47 Report No. : ES/2006/30001 Page : 4 of 48 1. General Information 1.1 Testing Laboratory SGS Taiwan Ltd. 5F, No. 134, Wukung Road, Wuku industrial zone Taipei county , Taiwan , R.O.C. Telephone : +886-2-2299-3279 Fax : +886-2-2298-0488 Internet : http://www.sgs.com.tw 1.2 Details of Applicant Name : NEC America Inc. Address : Radio Communications Systems Division 6535 N, State Highway 161, Irving, TX 75039 Telephone : 214-262-4241 Fax : 214-262-4225 1.3 Description of EUT(s) EUT Type SEKITO WAP1 Mode of Operation GSM/UMTS Dual Mode FCC ID A98-KMP7N2K1 IMEI 004401040160786 Modulation Mode GMSK Duty Cycle 1 / 8.3 on GSM/GPRS GPRS Class 8 ( 4 downlink & 1 uplink) TX Frequency range 1850.2-1909.8MHz Channel Number (AFRFCN) 512-810 Battery Type 3.8V Lithium-Ion Antenna Type PIFA Antenna Gain -4.5dBi Report No. : ES/2006/30001 Page : 5 of 48 HW Version SP SW Version W1000 Exposure environment Uncontrolled exposure Max. SAR Measured (1 g) 1.36 W/kg (At Left-Head Cheek810 Channel) 1.4 Test Environment Ambient temperature : 22.1° C Tissue Simulating Liquid : 21.6° C Relative Humidity : 58 % 1.5 Operation description The device was controlled by using a Universal Radio Communication Tester (CMU 200). Communication between the device and the tester was established by air link. Measurements were performed on the lowest, middle and highest channels of the operating band. The phone was set to maximum power level during all tests and at the beginning of each test the battery was fully charged. The DASY4 system measures power drift during SAR testing by comparing e-field in the same location at the beginning and at the end of measurement. 1.6 The SAR Measurement System A photograph of the SAR measurement System is given in Fig. a. This SAR Measurement System uses a Computer-controlled 3-D stepper motor system ( Speag Dasy 4 professional system ). A Model ET3DV6 1759 E-field probe is used to determine the internal electric fields. The SAR can be obtained from the equation SAR= σ (|Ei| 2 )/ ρ where σ and ρ are the conductivity and mass density of the tissue-simulant. The DASY4 system for performing compliance tests consists of the following items: • A standard high precision 6-axis robot (Stabile RX family) with controller, teach pendant and software. An arm extension for accommodating the data acquisition electronics (DAE). • A dosimetric probe, i.e., an isotropic E-field probe optimized and calibrated for usage in tissue simulating liquid. The probe is equipped with an optical surface detector system. Report No. : ES/2006/30001 Page : 6 of 48 • A data acquisition electronics (DAE) which performs the signal amplification, signal multiplexing, AD-conversion, offset measurements, mechanical surface detection, collision detection, etc. The unit is battery powered with standard or rechargeable batteries. The signal is optically transmitted to the EOC. Fig. a The microwave circuit arrangement used for SAR system verification • The Electro-optical converter (EOC) performs the conversion between optical and electrical of the signals for the digital communication to the DAE and for the analog signal from the optical surface detection. The EOC is connected to the measurement server. • The function of the measurement server is to perform the time critical tasks such as signal filtering, control of the robot operation and fast movement interrupts. • A probe alignment unit which improves the (absolute) accuracy of the probe positioning. • A computer operating Windows 2000 or Windows XP. • DASY4 software. • Remote control with teach pendant and additional circuitry for robot safety such as warning lamps, etc. • The SAM twin phantom enabling testing left-hand and right-hand usage. • The device holder for handheld mobile phones. Report No. : ES/2006/30001 Page : 7 of 48 • Tissue simulating liquid mixed according to the given recipes. • Validation dipole kits allowing to validate the proper functioning of the system. 1.7 System Components ET3DV6 E-Field Probe Construction: Symmetrical design with triangular core Built-in shielding against static charges PEEK enclosure material (resistant to organic solvents, e.g. glycol) Calibration: In air from 10 MHz to 2.5 GHz In brain simulating tissue at frequencies of 850 MHz & 1900 MHz (accuracy ± 8%) Frequency: 10 MHz to >6 GHz; Linearity: ±0.2 dB (30 MHz to 3 GHz) ET3DV6 E-Field Probe Directivity: ±0.2 dB in brain tissue (rotation around probe axis) ±0.4 dB in brain tissue (rotation no…

Text truncated - open the document above for the full version.

Report No.: EH/2006/30003 FCC ID: A98-KMP7N2K1 Issue Date: Apr. 11, 2006 Page: 1 of 66 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 24 SUBPART E REQUIREMENT OF Product Name: SEKITO-WAP1 Brand Name: NEC e373 Model Name: KMP7N2K1-1A FCC ID: A98-KMP7N2K1 Report No.: EH/2006/30003 Issue Date: Apr. 11, 2006 Rule Part: 2 & 24E Prepared for NEC America Inc Radio Communications Systems Division 6535 N. State Highway 161 Irving, TX 75039, United States Prepared by SGS Taiwan Ltd. No. 134, Wu Kun g Rd., Wuku Industrial Zone, Taipei County, Taiwan. Note: This report shall not be reproduced except in full, without the written approval of SGS Taiwan Ltd. This document may be altered or revised by SGS Taiwan Ltd. personnel only, and shall be noted in the revision section of the document. Report No.: EH/2006/30003 FCC ID: A98-KMP7N2K1 Issue Date: Apr. 11, 2006 Page: 2 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw VERIFICATION OF COMPLIANCE Applicant: NEC America Inc Radio Communications Systems Division 6535 N. State Highway 161 Irving, TX 75039, United States Equipment Under Test: SEKITO-WAP1 FCC ID Number: A98-KMP7N2K1 Brand Name: NEC e373 Model No.: KMP7N2K1-1A Model Difference: N/A File Number: EH/2006/30003 Date of test: Mar. 20, 2006 ~ Apr. 10, 2006 Date of EUT Received: Mar. 19, 2006 We hereby certify that: The above equipment was tested by SGS Taiwan Ltd. The test data, data evaluation, test proce- dures, and equipment configurations shown in this report were made in accordance with the procedures given in TIA/EIA-603-1-1998 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC PART 24 subpart E. The test results of this report relate only to the tested sample identified in this report. Test By: Date Apr. 11, 2006 Sky Wang Prepared By: Date Apr. 11, 2006 Elisa Chen Approved By Date Apr. 11, 2006 Vincent Su Report No.: EH/2006/30003 FCC ID: A98-KMP7N2K1 Issue Date: Apr. 11, 2006 Page: 3 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Version Version No. Date 00 Apr. 11, 2006 Report No.: EH/2006/30003 FCC ID: A98-KMP7N2K1 Issue Date: Apr. 11, 2006 Page: 4 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Table of Contents 1. GENERAL INFORMATION ...................................................................................................... 6 1.1 Product Description ......................................................................................................................... 6 1.2 Related Submittal(s) / Grant (s) ....................................................................................................... 6 1.3 Test Methodology ............................................................................................................................ 7 1.4 Test Facility...................................................................................................................................... 7 1.5 Special Accessories .......................................................................................................................... 7 1.6 Equipment Modifications................................................................................................................. 7 2. SYSTEM TEST CONFIGURATION ......................................................................................... 8 2.1 EUT Configuration .......................................................................................................................... 8 2.2 EUT Exercise ................................................................................................................................... 8 2.3 Test Procedure.................................................................................................................................. 8 2.4 Configuration of Tested System....................................................................................................... 9 3. SUMMARY OF TEST RESULTS ............................................................................................ 10 4. DESCRIPTION OF TEST MODES ......................................................................................... 10 5. RF POWER OUTPUT MEASUREMENT .............................................................................. 11 5.1 Standard Applicable ....................................................................................................................... 11 5.2 Test Set-up: .................................................................................................................................... 11 5.3 Measurement Procedure.......................................................…

Text truncated - open the document above for the full version.

Report No.: EH/2006/30003 FCC ID: A98-KMP7N2K1 Issue Date: Apr. 11, 2006 Page: 51 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 1 PHOTOGRPHS OF SET UP Report No.: EH/2006/30003 FCC ID: A98-KMP7N2K1 Issue Date: Apr. 11, 2006 Page: 52 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Radiated Emission Set up Photos Report No.: EH/2006/30003 FCC ID: A98-KMP7N2K1 Issue Date: Apr. 11, 2006 Page: 53 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Conducted Emission Set Up Photos(Normal Operating Mode)

Report No. : ES/2006/30001 Page : 31 of 48 Appendix Photographs of Test Setup Fig.1 Photograph of the SAR measurement System Fig.2 Photograph of the Tissue Simulant Fluid liquid depth 15cm for Right-head Side Fig.3 Photograph of the Tissue Simulant Fluid liquid depth 15cm for Flat (Body) 1900MHz 15 cm 1900MHz 15 cm Report No. : ES/2006/30001 Page : 32 of 48 Touch Fig.4 Right Head Section / Cheek-Touch Position 15° Tilt Fig.5 Right Head Section / Ear-Tilt Position(15°) Touch Fig.6 Left Head Section / Cheek-Touch Position Report No. : ES/2006/30001 Page : 33 of 48 15° Tilt Fig.7 Left Head Section / Ear-Tilt Position(15°) 1.5cm Fig.8 Body Section (Testing in GPRS Mode)
