A98-MP6J1E1-1ESingle-Mode PCS GSM Phone

N EC User’s Manual Model Number: A98 -MP6JlEl- 1E N EC America, Inc. Wireless Engineering Division 6535 N.State Highway 161 Irving, TX 75039-2402 Phone (214) 262 -2000 For more information about RF exposure, please visit the FCC website at www.fcc.gov FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept 1.0 cm. from the body. To maintain compliance with FCC RF exposure requirements, use only belt-clips, holsters or similar accessories that maintain a 1.0 cm. separation distance between the user’s body and the back of the phone, including the antenna, whether extended or retracted. The use of third-party belt-clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. WARNING! Read this information before using your phone

For more information about RF exposure, please visi t the FCC website at www.fcc.gov FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency el ectromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or resu lt in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept 1.0 cm. from the body. To maintain compliance with FCC RF exposure requirements, use only belt-clips, holsters or similar accessories that maintain a 1.0 cm. separation distance between the user’s body and the back of the phone, including the antenna, whether extended or retracted. The use of third-party belt- clips, holsters and similar a ccessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requi rements may not comply with FCC RF exposure requirem ents, and should be avoided. WARNING! Read this information before using your phone

NEC America, Inc. 6535 N. State Hwy.161 Irving, TX 75039-2402 Tel. 214-262-2000 February 26,2002 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: NEC America, Inc. FCC ID: A98-MP6JlEl-lE FCC Part 24 Certification Request for Confidentiality Gentlemen: In accordance with 0,459 of CFR 47, NEC America hereby requests confidentiality of the Block Diagrams, Circuit Diagrams, and the Circuit Descriptions attachments for the subject application. Those documents contain detailed system and equipment description and related information about the product which NEC America considers to be confidential proprietary, a custom design and, otherwise, not releasable to the general public. Since this design is a basis from which future technological products will evolve, NEC America considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Jim Helm Assistant General Manager Wireless Engineering Division

February 7, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: NEC America Inc. FCC ID: A98-MP6J1E1-1E Gentlemen: Transmitted herewith, on behalf of NEC America Inc. is an application for notification of the following Single-Mode PCS GSM Phone: FCC ID: A98-MP6J1E1-1E MODEL No.: MP6J1E1-1E TRADE NAME: NEC EUT TYPE: Single-Mode PCS GSM Phone Attached is the applicant’s Letter of Authorization, Confidentiality Request, measurement report (test data and test plots), FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), schematics (confidential), Operational Description (confidential), and the User's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Jim Helm, Assistant General Manager

April 18, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Ms. Diane Poole SUBJECT: NEC America Inc. FCC ID: A98-MP6J1E1-1E 731 Confirmation No.: EA779403 Correspondence Reference No.: 22340 Request for Tech. Info.: 3/18/2002 Dear Diane: Transmitted herewith, on behalf of NEC America Inc., is an amendment provided in response to the request for technical information dated March 18, 2002. 1. We would like to confirm that the correct FCC ID is FCC ID: A98-MP6J1E1-1E. We will be forwarding on a separate email to change the FCC ID on the 731 Form. We trust this information is sufficient to issue the grant as soon as possible. If you have any further questions, please do not hesitate to contact us. Cc: NEC America Inc.

May 3, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Steve Dayhoff SUBJECT: NEC America Inc. FCC ID: A98-MP6J1E1-1E 731 Confirmation No.: EA779403 Correspondence Reference No.: 22724 Request for Tech. Info.: 4/26/2002 Dear Steve: Transmitted herewith, on behalf of NEC America Inc., is an amendment provided in response to the request for technical information dated April 26, 2002. 1. Please find the attached revised user’s manual. 2. Please find the attached revised operational description page. 3. Please find the attached revised uncertainty budget. We trust this information is sufficient to issue the grant as soon as possible. If you have any further questions, please do not hesitate to contact us. Cc: NEC America Inc.

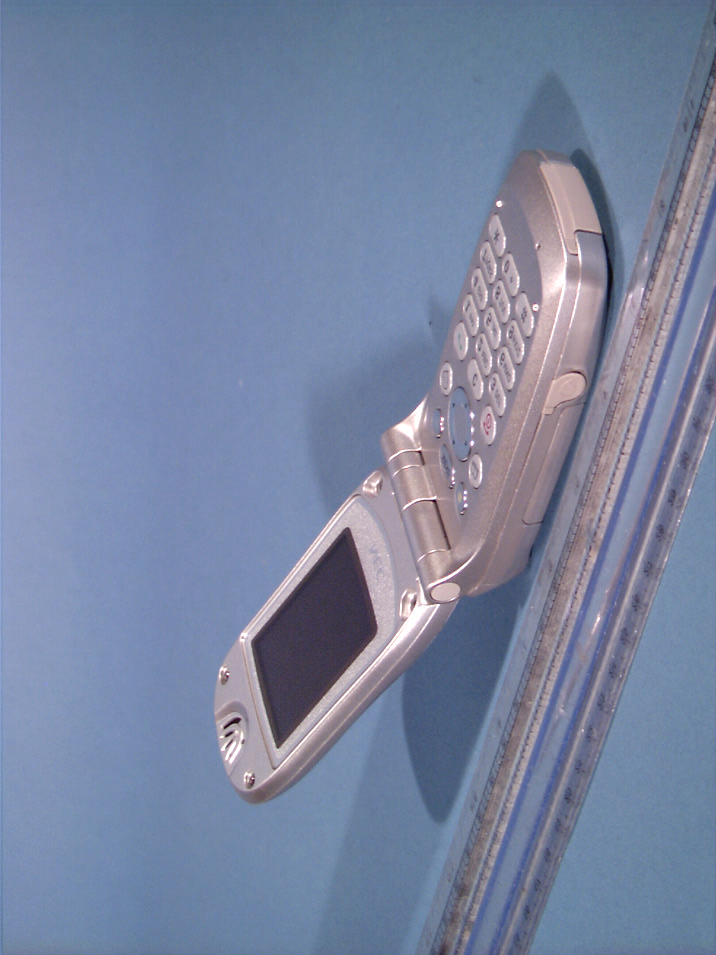

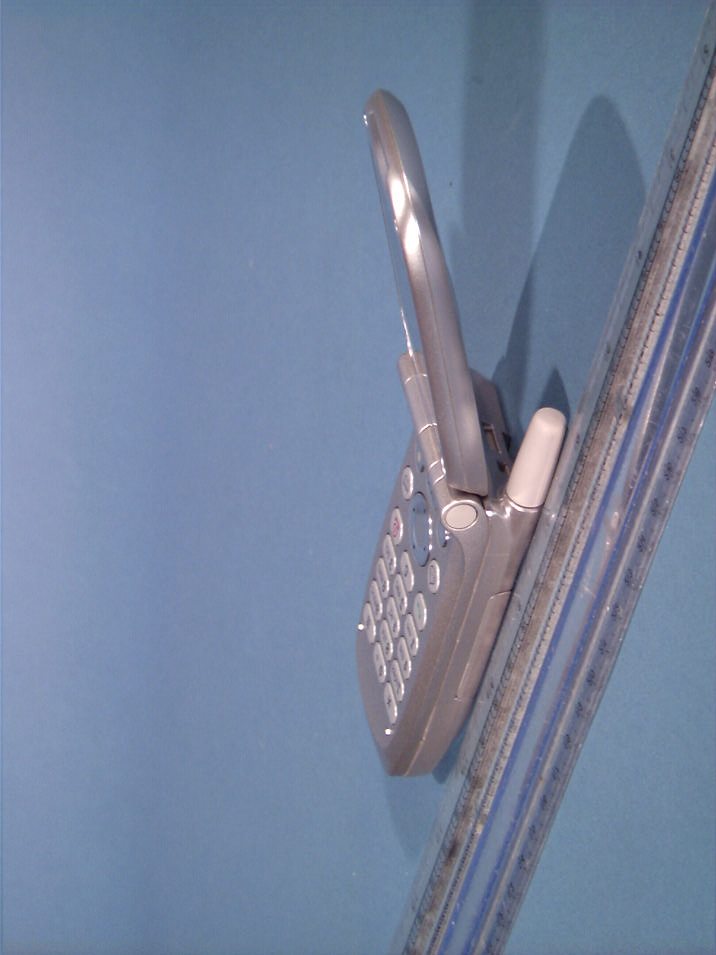

© 2002 PCTEST Lab FCC ID: A98-MP6J1E1-1E (Model: MP6J1E1-1E) NEC Single-Mode PCS GSM Phone © 2002 PCTEST Lab FCC ID: A98-MP6J1E1-1E (Model: MP6J1E1-1E) NEC Single-Mode PCS GSM Phone © 2002 PCTEST Lab FCC ID: A98-MP6J1E1-1E (Model: MP6J1E1-1E) NEC Single-Mode PCS GSM Phone © 2002 PCTEST Lab FCC ID: A98-MP6J1E1-1E (Model: MP6J1E1-1E) NEC Single-Mode PCS GSM Phone © 2002 PCTEST Lab FCC ID: A98-MP6J1E1-1E (Model: MP6J1E1-1E) NEC Single-Mode PCS GSM Phone © 2002 PCTEST Lab FCC ID: A98-MP6J1E1-1E (Model: MP6J1E1-1E) NEC Single-Mode PCS GSM Phone © 2002 PCTEST Lab FCC ID: A98-MP6J1E1-1E (Model: MP6J1E1-1E) NEC Single-Mode PCS GSM Phone

© 2002 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) © 2002 PCTEST Lab

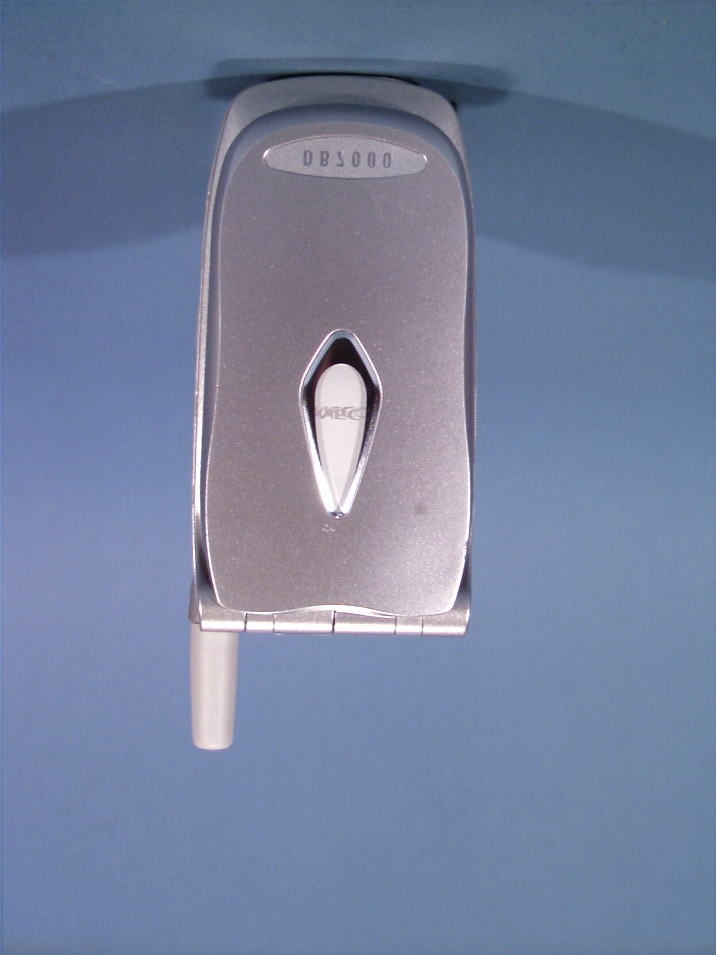

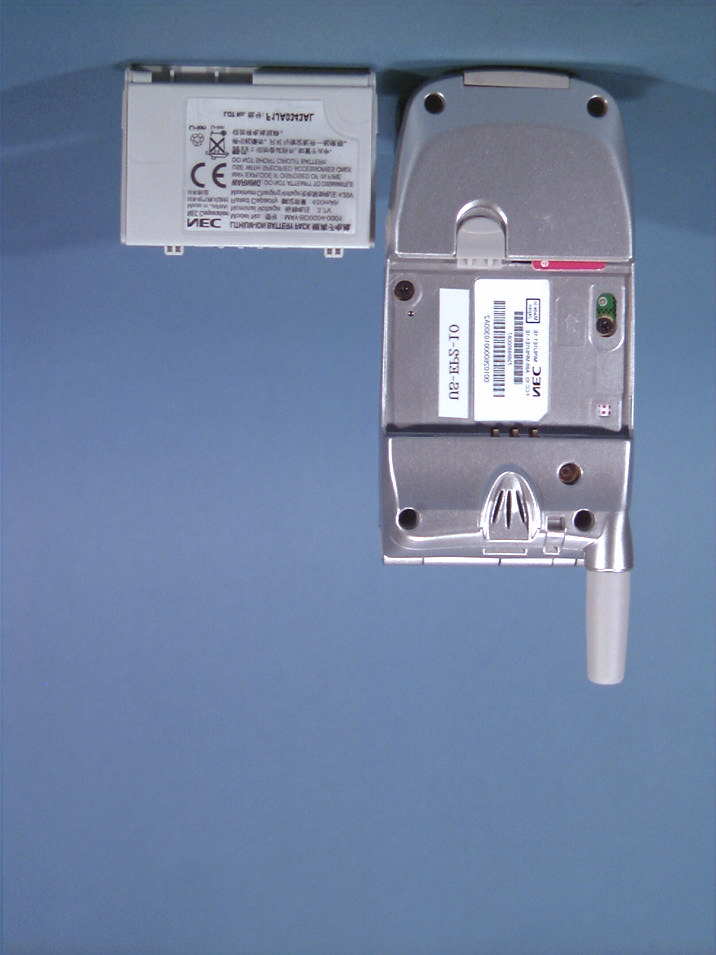

© 2002 PCTEST Lab FCC ID: A98-MP6J1E1-1E (Model: MP6J1E1-1E) NEC Single-Mode PCS GSM Phone © 2002 PCTEST Lab FCC ID: A98-MP6J1E1-1E (Model: MP6J1E1-1E) NEC Single-Mode PCS GSM Phone © 2002 PCTEST Lab FCC ID: A98-MP6J1E1-1E (Model: MP6J1E1-1E) NEC Single-Mode PCS GSM Phone © 2002 PCTEST Lab FCC ID: A98-MP6J1E1-1E (Model: MP6J1E1-1E) NEC Single-Mode PCS GSM Phone © 2002 PCTEST Lab FCC ID: A98-MP6J1E1-1E (Model: MP6J1E1-1E) NEC Single-Mode PCS GSM Phone © 2002 PCTEST Lab FCC ID: A98-MP6J1E1-1E (Model: MP6J1E1-1E) NEC Single-Mode PCS GSM Phone © 2002 PCTEST Lab FCC ID: A98-MP6J1E1-1E (Model: MP6J1E1-1E) NEC Single-Mode PCS GSM Phone © 2002 PCTEST Lab FCC ID: A98-MP6J1E1-1E (Model: MP6J1E1-1E) NEC Single-Mode PCS GSM Phone © 2002 PCTEST Lab FCC ID: A98-MP6J1E1-1E (Model: MP6J1E1-1E) NEC Single-Mode PCS GSM Phone © 2002 PCTEST Lab FCC ID: A98-MP6J1E1-1E (Model: MP6J1E1-1E) NEC Single-Mode PCS GSM Phone © 2002 PCTEST Lab FCC ID: A98-MP6J1E1-1E (Model: MP6J1E1-1E) NEC Single-Mode PCS GSM Phone © 2002 PCTEST Lab FCC ID: A98-MP6J1E1-1E (Model: MP6J1E1-1E) NEC Single-Mode PCS GSM Phone © 2002 PCTEST Lab FCC ID: A98-MP6J1E1-1E (Model: MP6J1E1-1E) NEC Single-Mode PCS GSM Phone

NEC FCC ID: A98-MP6J1E1-1E -- PCS GSM Head SAR SAM Phantom; Right Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01; ConvF(5.16,5.16,5.16) Med. Parameters 1900 MHz Brain: σ = 1.40 mho/m ε r = 40.0 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 8.0 SAR (1g): 0.409 mW/g, SAR (10g): 0.220 mW/g NEC PCS GSM Only Phone Model: MP6J1E1-1E PCS GSM Mode, Ch.512 [1850.2MHz]; Standard Battery; Flip = Open Conducted Power = 30.0dBm; Right Head SAM Phantom, Cheek/Touch Position Test Date -- 02/07/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 4.44E-2 1.33E-1 2.22E-1 3.11E-1 4.00E-1 PCTEST Engineering Laboratory, Inc. NEC FCC ID: A98-MP6J1E1-1E -- PCS GSM Head SAR SAM Phantom; Right Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01; ConvF(5.16,5.16,5.16) Med. Parameters 1900 MHz Brain: σ = 1.40 mho/m ε r = 40.0 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 8.0 SAR (1g): 0.509 mW/g, SAR (10g): 0.276 mW/g NEC PCS GSM Only Phone Model: MP6J1E1-1E PCS GSM Mode, Ch.649 [1877.6MHz]; Standard Battery; Flip = Open Conducted Power = 30.0dBm; Right Head SAM Phantom, Cheek/Touch Position Test Date -- 02/07/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 4.44E-2 1.33E-1 2.22E-1 3.11E-1 4.00E-1 PCTEST Engineering Laboratory, Inc. NEC FCC ID: A98-MP6J1E1-1E -- PCS GSM Head SAR SAM Phantom; Right Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01; ConvF(5.16,5.16,5.16) Med. Parameters 1900 MHz Brain: σ = 1.40 mho/m ε r = 40.0 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 8.0 SAR (1g): 0.611 mW/g, SAR (10g): 0.331 mW/g NEC PCS GSM Only Phone Model: MP6J1E1-1E PCS GSM Mode, Ch.810 [1909.8MHz]; Standard Battery; Flip = Open Conducted Power = 30.0dBm; Right Head SAM Phantom, Cheek/Touch Position Test Date -- 02/07/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 4.44E-2 1.33E-1 2.22E-1 3.11E-1 4.00E-1 PCTEST Engineering Laboratory, Inc. NEC FCC ID: A98-MP6J1E1-1E -- PCS GSM Head SAR SAM Phantom; Right Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01; ConvF(5.16,5.16,5.16) Med. Parameters 1900 MHz Brain: σ = 1.40 mho/m ε r = 40.0 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 8.0 SAR (1g): 0.0972 mW/g, SAR (10g): 0.0598 mW/g NEC PCS GSM Only Phone Model: MP6J1E1-1E PCS GSM Mode, Ch.512 [1850.2MHz]; Standard Battery; Flip = Open Conducted Power = 30.0dBm; Right Head SAM Phantom, Ear/15degree Tilt Position Test Date -- 02/07/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 8.80E-3 2.64E-2 4.40E-2 6.16E-2 7.92E-2 PCTEST Engineering Laboratory, Inc. NEC FCC ID: A98-MP6J1E1-1E -- PCS GSM Head SAR SAM Phantom; Right Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01; ConvF(5.16,5.16,5.16) Med. Parameters 1900 MHz Brain: σ = 1.40 mho/m ε r = 40.0 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 8.0 SAR (1g): 0.129 mW/g, SAR (10g): 0.0777 mW/g NEC PCS GSM Only Phone Model: MP6J1E1-1E PCS GSM Mode, Ch.649 [1877.6MHz]; Standard Battery; Flip = Open Conducted Power = 30.0dBm; Right Head SAM Phantom, Ear/15degree Tilt Position Test Date -- 02/07/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 8.80E-3 2.64E-2 4.40E-2 6.16E-2 7.92E-2 PCTEST Engineering Laboratory, Inc. NEC FCC ID: A98-MP6J1E1-1E -- PCS GSM Head SAR SAM Phantom; Right Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01; ConvF(5.16,5.16,5.16) Med. Parameters 1900 MHz Brain: σ = 1.40 mho/m ε r = 40.0 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 8.0 SAR (1g): 0.142 mW/g, SAR (10g): 0.0844 mW/g NEC PCS GSM Only Phone Model: MP6J1E1-1E PCS GSM Mode, Ch.810 [1909..8MHz]; Standard Battery; Flip = Open Conducted Power = 30.0dBm; Right Head SAM Phantom, Ear/15degree Tilt Position Test Date -- 02/07/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 8.80E-3 2.64E-2 4.40E-2 6.16E-2 7.92E-2 PCTEST Engineering Laboratory, Inc. NEC FCC ID: A98-MP6J1E1-1E -- PCS GSM Head SAR SAM Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01; ConvF(5.16,5.16,5.16) Med. Parameters 1900 MHz Brain: σ = 1.40 mho/m ε r = 40.0 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 8.0 SAR (1g): 0.410 mW/g, SAR (10g): 0.236 mW/g NEC PCS GSM Only Phone Model: MP6J1E1-1E PCS GSM Mode, Ch.512 [1850.2MHz]; Standard Battery; Flip = Open Conducted Power = 30.0dBm; Left Head SAM Phantom, Cheek/Touch Position Test Date -- 02/07/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 5.31E-2 1.59E-1 2.66E-1 3.72E-1 4.78E-1 PCTEST Engineering Laboratory, Inc. NEC FCC ID: A98-MP6J1E1-1E -- PCS GSM Head SAR SAM Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01; ConvF(5.16,5.16,5.16) Med. Parameters 1900 MHz Brain: σ = 1.40 mho/m ε r = 40.0 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 8.0 SAR (1g): 0.529 mW/g, SAR (10g): 0.305 mW/g NEC PCS GSM Only Phone Model: MP6J1E1-1E PCS GSM Mode, Ch.649 [1877.6MHz]; Standard Battery; Flip = Open Conducted Power = 30.0dBm; Left Head SAM Phantom, Cheek/Touch Position Test Date -- 02/07/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 5.31E-2 1.59E-1 2.66E-1 3.72E-1 4.78E-1 PCTEST Engineering Laboratory, Inc. NEC FCC ID: A98-MP6J1E1-1E -- PCS GSM Head SAR SAM Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01; ConvF(5.16,5.16,5.16) Med. Parameters 1900 MHz Brain: σ = 1.40 mho/m ε r = 40.0 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 8.0 SAR (1g): 0.664 mW/g, SAR (10g): 0.389 mW/g NEC PCS GSM Only Phone Model: MP6J1E1-1E PCS GSM Mode, Ch.810 [1909.8MHz]; Standard Battery; Flip = Open Conducted Power = 30.0dBm; Left Head SAM Phantom, Cheek/Touch Position Test Date -- 02/07/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 5.31E-2 1.59E-1 2.66E-1 3.72E-1 4.78E-1 PCTEST Engineering Laboratory, Inc. NEC FCC ID: A98-MP6J1E1-1E -- PCS GSM Head SAR SAM Phantom; Left Hand Section; Probe: ET…

Text truncated - open the document above for the full version.

© 2002 PCTEST Lab FCC ID: A01-MP6J1E1-1E (Model: MP6J1E1-1E) NVLAP Lab Code: 100431-0 NEC Single-Mode PCS GSM Phone © 2002 PCTEST Lab FCC ID: A01-MP6J1E1-1E (Model: MP6J1E1-1E) NVLAP Lab Code: 100431-0 NEC Single-Mode PCS GSM Phone © 2002 PCTEST Lab FCC ID: A01-MP6J1E1-1E (Model: MP6J1E1-1E) NVLAP Lab Code: 100431-0 NEC Single-Mode PCS GSM Phone © 2002 PCTEST Lab FCC ID: A01-MP6J1E1-1E (Model: MP6J1E1-1E) NVLAP Lab Code: 100431-0 NEC Single-Mode PCS GSM Phone © 2002 PCTEST Lab FCC ID: A01-MP6J1E1-1E (Model: MP6J1E1-1E) NVLAP Lab Code: 100431-0 NEC Single-Mode PCS GSM Phone © 2002 PCTEST Lab FCC ID: A01-MP6J1E1-1E (Model: MP6J1E1-1E) NVLAP Lab Code: 100431-0 NEC Single-Mode PCS GSM Phone © 2002 PCTEST Lab FCC ID: A01-MP6J1E1-1E (Model: MP6J1E1-1E) NVLAP Lab Code: 100431-0 NEC Single-Mode PCS GSM Phone © 2002 PCTEST Lab FCC ID: A01-MP6J1E1-1E (Model: MP6J1E1-1E) NVLAP Lab Code: 100431-0 NEC Single-Mode PCS GSM Phone © 2002 PCTEST Lab FCC ID: A01-MP6J1E1-1E (Model: MP6J1E1-1E) NVLAP Lab Code: 100431-0 NEC Single-Mode PCS GSM Phone © 2002 PCTEST Lab FCC ID: A01-MP6J1E1-1E (Model: MP6J1E1-1E) NVLAP Lab Code: 100431-0 NEC Single-Mode PCS GSM Phone © 2002 PCTEST Lab FCC ID: A01-MP6J1E1-1E (Model: MP6J1E1-1E) NVLAP Lab Code: 100431-0 NEC Single-Mode PCS GSM Phone © 2002 PCTEST Lab FCC ID: A01-MP6J1E1-1E (Model: MP6J1E1-1E) NVLAP Lab Code: 100431-0 NEC Single-Mode PCS GSM Phone © 2002 PCTEST Lab FCC ID: A01-MP6J1E1-1E (Model: MP6J1E1-1E) NVLAP Lab Code: 100431-0 NEC Single-Mode PCS GSM Phone © 2002 PCTEST Lab FCC ID: A01-MP6J1E1-1E (Model: MP6J1E1-1E) NVLAP Lab Code: 100431-0 NEC Single-Mode PCS GSM Phone © 2002 PCTEST Lab FCC ID: A01-MP6J1E1-1E (Model: MP6J1E1-1E) NVLAP Lab Code: 100431-0 NEC Single-Mode PCS GSM Phone

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road •• Columbia, MD 21045 •• USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR TEST REPORT SAR EVALUATION REPORT PCS GSM SINGLE-MODE PHONE Reviewed by: Quality Manager SAR Filename: SAR-220129023.A98 Test Dates: February 7-8, 2002 Phone Type: PCS GSM FCC ID: A98-MP6J1E1-1E Page 1 of 26 © 2002 PCTEST Engineering Laboratory, Inc. APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: NEC AMERICA INC. Dates of Tests: February 7-8, 2002 6535 N. State HWY 161 Test Report S/N: SAR.220129023.A98 Irving, TX 75039-2402 Test Site: PCTEST Lab, Columbia, MD USA Attn: Harris Ahn, Principal Engineer FCC ID: A98-MP6J1E1-1E APPLICANT: NEC AMERICA INC. EUT Type: Single-Mode PCS GSM Phone Tx Frequency: 1850.20 – 1909.80 MHz (PCS) Rx Frequency: 1931.25 – 1988.75 MHz (PCS) Max. RF Output Power: 1.00 W EIRP PCS (30.00 dBm); Max. SAR Measurement: 0.664mW/g PCS Head SAR; 0.388mW/g PCS Body SAR Trade Name/Model(s): NEC MP6J1E1-1E FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: identical prototype Antenna Dimensions: Length = 2.35 cm. [Helical / Whip] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.4, July 2001). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 220129023.A98 PCTEST SAR TEST REPORT SAR EVALUATION REPORT PCS GSM SINGLE-MODE PHONE Reviewed by: Quality Manager SAR Filename: SAR-220129023.A98 Test Dates: February 7-8, 2002 Phone Type: PCS GSM FCC ID: A98-MP6J1E1-1E Page 2 of 26 © 2002 PCTEST Engineering Laboratory, Inc. 1. INTRODUCTION...................................................................................................3 Scope......................................................................................................................3 Evaluation Guidelines.............................................................................................3 2. SAR DEFINITION....................................................................................................4 Definition................................................................................................................4 Overview................................................................................................................4 3. SAR MEASUREMENT SETUP..................................................................................5 Robotic System.......................................................................................................5 System Hardware....................................................................................................5 System Electronics...................................................................................................5 4. DASY3 E-FIELD PROBE SYSTEM.............................................................................6 Probe Measurement System....................................................................................6 Probe Specifications................................................................................................6 5. Probe Calibration Process.......................................................................................7 Dosimetric Assessment Procedure...........................................................................7 Free Space Assessment............................................................................................7 Temperature Assessment.........................................................................................7 6. PHANTOM & EQUIVALENT TISSUES....................................................................8 SAM Phantom.........................................................................................................8 Brain & Muscle Simulating Mixture Characterization..............................................8 Device Holder for Transmitters...............................................................................8 7. TEST SYSTEM SPECIFICATIONS.............................................................................9 Automated Test System Specifications.....................................................................9 8. DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................10 Measurement Procedure.......................................................................................10 Specific Anthropomorphic Mannequin (SAM) Specifications................................10 9. DEFINITION OF REFERENCE POINTS..................................................................11 EAR Reference Point.............................................................................................11 Handset Reference Points.....................................................................................11 10. TEST CONFIGURATION POSITIONS...................................................................12 Positioning for Cheek/Touch.................................................................................12 Positioning for Ear / 15° Tilt.................................…

Text truncated - open the document above for the full version.

Probe ET3DV6 SN:1560 Manufactured:December 1, 2000 Calibrated:February 20, 2001 Calibrated for System DASY3 Page 1 of 8 ET3DV6 SN:1560 DASY3 - Parameters of Probe: ET3DV6 SN:1560 Sensitivity in Free SpaceDiode Compression NormX1.48 μV/(V/m) 2 DCP X98mV NormY1.51 μV/(V/m) 2 DCP Y98mV NormZ1.43 μV/(V/m) 2 DCP Z98mV Sensitivity in Tissue Simulating Liquid Head450MHz ε r =43.5 ± 5% σ = 0.87 ± 10% mho/m ConvF X7.17 extrapolatedBoundary effect: ConvF Y7.17 extrapolatedAlpha0.25 ConvF Z7.17 extrapolatedDepth3.21 Head900MHz ε r =42 ± 5% σ = 0.97 ± 10% mho/m ConvF X6.59 ± 7% (k=2)Boundary effect: ConvF Y6.59 ± 7% (k=2)Alpha0.32 ConvF Z6.59 ± 7% (k=2)Depth2.93 Head1500MHz ε r =40.4 ± 5% σ = 1.23 ± 10% mho/m ConvF X5.82 interpolatedBoundary effect: ConvF Y5.82 interpolatedAlpha0.41 ConvF Z5.82 interpolatedDepth2.55 Head1800MHz ε r =40 ± 5% σ = 1.40 ± 10% mho/m ConvF X5.43 ± 7% (k=2)Boundary effect: ConvF Y5.43 ± 7% (k=2)Alpha0.46 ConvF Z5.43 ± 7% (k=2)Depth2.36 Sensor Offset Probe Tip to Sensor Center2.7mm Optical Surface Detection2.0 ± 0.2mm Page 2 of 8 ET3DV6 SN:1560 Receiving Pattern (φ), θ = 0° f = 30 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 100 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 300 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 900 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot Page 3 of 8 ET3DV6 SN:1560 Isotropy Error (φ), θ = 0° -1.00 -0.80 -0.60 -0.40 -0.20 0.00 0.20 0.40 0.60 0.80 1.00 060120180240300360 error[dB] 30 MHz 100 MHz 300 MHz 900 MHz 1800 MHz 2500 MHz f = 1800 MHz, WG R22 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 2500 MHz, WG R26 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot Page 4 of 8 ET3DV6 SN:1560 Frequency Response of E-Field ( TEM-Cell:ifi110, Waveguide R22) 0.50 0.60 0.70 0.80 0.90 1.00 1.10 1.20 1.30 1.40 1.50 050010001500200025003000 f [MHz] frequency response TEMR22 Page 5 of 8 ET3DV6 SN:1560 Dynamic Range f(SAR brain ) ( TEM-Cell:ifi110 ) ET3DV6 SN:1560 1.E+0 1.E+1 1.E+2 1.E+3 1.E+4 1.E+5 1.E+6 1.E+7 0.00010.0010.010.11.10.100. mW/cm 3 μ V not compensatedcompensated -2.0 -1.0 0.0 1.0 0.0010.010.1110100 mW/cm 3 errror[dB] Page 6 of 8 Conversion Factor Assessment Head900MHz ε r =42 ± 5% σ = 0.97 ± 10% mho/m ConvF X6.59 ± 7% (k=2)Boundary effect: ConvF Y6.59 ± 7% (k=2)Alpha0.32 ConvF Z6.59 ± 7% (k=2)Depth2.93 Head1800MHz ε r =40 ± 5% σ = 1.40 ± 10% mho/m ConvF X5.43 ± 7% (k=2)Boundary effect: ConvF Y5.43 ± 7% (k=2)Alpha0.46 ConvF Z5.43 ± 7% (k=2)Depth2.36 ET3DV6 SN:1560 f = 900 MHz, WG R9 (head) 0.00 0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 0204060 z[mm] SAR[mW/cm 3 ] / W AnalyticalMeasuremets f = 1800 MHz, WG R22 (head) 0.00 1.00 2.00 3.00 4.00 5.00 6.00 7.00 0204060 z[mm] SAR[mW/cm 3 ] / W AnalyticalMeasuremets Page 7 of 8 Deviation from Isotropy in HSL Error (θ,φ), f = 900 MHz 0 40 80 120 160 200 240 280 320 0 10 20 30 40 50 60 -1.00 -0.80 -0.60 -0.40 -0.20 0.00 0.20 0.40 0.60 0.80 1.00 Error [dB] θ φ -1.00--0.80-0.80--0.60-0.60--0.40-0.40--0.20-0.20-0.00 0.00-0.200.20-0.400.40-0.600.60-0.800.80-1.00 Page 8 of 8

1900MHz Brain Dipole Validation Generic Twin Phantom; Flat Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 1900 MHz Brain: σ = 1.40 mho/m ε r = 40.0 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 9.98 mW/g, SAR (10g): 5.13 mW/g 1900MHz Brain Dipole Validation (D1900V2 S/N: 502) Frequency: 1900 MHz; Antenna Input Power: 250 [mW] PCTEST Brain Tissue Simulating Liquid [02/07/2002] SAR Tot [mW/g] 9.89E-1 2.96E+0 4.94E+0 6.93E+0 8.90E+0 PCTEST Engineering Laboratory, Inc. 1900MHz Muscle Dipole Validation Generic Twin Phantom; Flat Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 1900 MHz Muscle: σ = 1.52 mho/m ε r = 53.3 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 9.94 mW/g, SAR (10g): 5.12 mW/g 1900MHz Brain Dipole Validation (D1900V2 S/N: 502) Frequency: 1900 MHz; Antenna Input Power: 250 [mW] PCTEST Brain Tissue Simulating Liquid Test Date -- 02/07/2002 SAR Tot [mW/g] 9.52E-1 2.85E+0 4.76E+0 6.67E+0 8.58E+0 PCTEST Engineering Laboratory, Inc.

PCTEST SAR TEST REPORT SAR EVALUATION REPORT PCS GSM SINGLE-MODE PHONE Reviewed by: Quality Manager SAR Filename: SAR-220129023.A98 Test Dates: February 7-8, 2002 Phone Type: PCS GSM FCC ID: A98-MP6J1E1-1E Page 16 of 26 © 2002 PCTEST Engineering Laboratory, Inc. 12. MEASUREMENT UNCERTAINTIES SAR Measurement Uncertainties Measurement uncertainties in SAR measurements are difficult to quantify due to several variables including biological, physiological, and environmental. However, we estimate the measurement uncertainties in SAR to be less than 15-25 % [18]. According to ANSI/IEEE C95.3, the overall uncertainties are difficult to assess and will vary with the type of meter and usage situation. However, accuracy’s of ± 1 to 3 dB can be expected in practice, with greater uncertainties in near-field situations and at higher frequencies (shorter wavelengths), or areas where large reflecting objects are present. Under optimum measurement conditions, SAR measurement uncertainties of at least ± 2dB can be expected.[3] According to CENELEC [19], typical worst-case uncertainty of field measurements is ± 5 dB. For well-defined modulation characteristics the uncertainty can be reduced to ± 3 dB. Figure 12.1. Breakdown of Errors [20] SAR MEASUREMENT UNCERTAINTIES [5] Error Distribution Weight Standard Deviation Offset Probe Uncertainty Axial isotropy ±0.2 dB U-Shaped 0.5 ±2.4 % Spherical isotropy ±0.4 dB U-Shaped 0.5 ±4.8 % Isotropy from gradient ±0.5 dB U-Shaped 0.0 ± Spatial resolution ±0.5 % Normal 1.0 ±0.5 % Linearity error ±0.2 dB Rectangle 1.0 ±2.7 % Calibration error ±10.0 % Normal 1.0 ±10.0 % SAR Evaluation Uncertainty Data acquisition error ±1.00 % Rectangle 1.0 ±0.6 % ELF and RF disturbances ±0.25 % Normal 1.0 ±0.25 % Conductivity assessment ±10.0 % Rectangle 1.0 ±5.8 % Spatial Peak SAR Evaluation Uncertainty Extrapolated boundary effect ±3.00 % Normal 1.0 ±3 % ±5 % Probe positioning error ±0.1 mm Normal 1.0 ±1 % Integrated and cube orientation ±3.00 % Normal 1.0 ±3 % Cube Shape inaccuracies ±2.00 % Rectangle 1.0 ±1.2 % Device positioning ±6.00 % Normal 1.0 ±6 % Combined Uncertainties ±18.4 % ±5 %

© 2002 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 66606660--B Dobbin Road B Dobbin Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290TEL (410) 290--6652 6652 •• FAX (410) 290 FAX (410) 290--66546654…

Text truncated - open the document above for the full version.
