A98-PRE-CRMCellular WCDMA / PCS GSM Phone with RFID

NEC Corporation of America

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Jan 20, 2008
Application Purpose: Original Equipment
Date of Application: Jan 20, 2008
Equipment Note: Cellular WCDMA / PCS GSM Phone with RFID
Frequency Range: 1850.20000000 - 1909.80000000
Company: NEC Corporation of America
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Radio Frequency (RF) Signals THIS MODEL PHONE MEETS THE U.S. GOVERNMENT'S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. Your wireless phone contains a radio transmitter and receiver. Your phone is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate (SAR). The SAR limit set by the FCC is 1.6W/kg.* Tests for SAR are conducted using standard operating positions accepted by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the output. Before a phone model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the U.S. government-adopted requirement for safe exposure. The tests are performed on position and locations (for example, at the ear and worn on the body) as required by FCC for each model. The highest SAR value for this model phone as reported to the FCC when tested for use at the ear is 0.780W/kg, and when worn on the body, is 0.468W/kg. (Body- worn measurements differ among phone models, depending upon available accessories and FCC requirements). While there may be differences between the SAR levels of various phones and at various positions, they all meet the U.S. government requirement. The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model phone is on file with the FCC and can be found under the Display Grant section at https:// gullfoss2.fcc.gov/oetcf/eas/reports/GenericSearch.cfm after search on FCC ID A98-PRE-CRM. For body worn operation, this phone has been tested and meets the FCC RF exposure guidelines when used with an accessory designated for this product or when used with an accessory that contains no metal and that positions the handset a minimum of 1.5 cm from the body. * In the United States, the SAR limit for wireless mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. SAR values may vary depending upon national reporting requirements and the network band. FCC Regulations This mobile phone complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This mobile phone has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation; if this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: eReorient or relocate the receiving antenna. eIncrease the separation between the equipment and receiver. eConnect the equipment into an outlet on a circuit different from that to which the receiver is connected. eConsult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 1 Making/Receiving Calls Making a Voice/Videophone Call 1 Dial the other party’s number, starting with the area code The “Phone number entry” screen appears. Always start with the area code, even for calls within the same area. A number of up to 80 digits can be entered for making a call although the numbers disappear from the display one by one from the beginning after the number exceeds 26 digits. 2 r The phone number disappears briefly and then reappears from the right as it is dialed. The “” icon flashes during dialing and remains lit during a call. The “FOMA voice in-call” screen appears. To switch to a videophone call during a voice call "Changing a call from voice to videophone"p.3 If you hear the busy tone The line is busy. Press y, and call again after a while. If you hear the message saying that the other party cannot be reached The other party's mobile phone or PHS phone is not switched on or is out of signal range. Press y , and call again after a while. If you hear the message requesting your caller ID The other party has set the Caller ID Request service to "Activate". Call again with your caller ID shown. If you set "2in1 setting" to "Dual mode" The outgoing number selection screen appears. Select a phone number. 3 To end the call, press y dMaking a videophone call 1 Phone number entry screen Xo () The "Videophone in-call" screen appears. You can talk hearing the other party's voice through the speaker. The "" icon flashes during dialing and remains li…

Text truncated - open the document above for the full version.

Cover Letter(s)

Page 1 of 2 1/21/2008 To: Mr. Johnny Pham/ NEC Corporation of America From: Mr. Gregory Czumak/ PCTEST TCB RE: FCC ID: A98-PRE-CRM Applicant: NEC Corporation of America Correspondence Reference Number: A988002 Confirmation Number: 801030002-04 Dat of Original Email: January 18, 2007 Subject: Request for additional information In regards to your recent TCB application referenced above, we kindly request that you provide the following additional information 1. Please describe the RFID antenna, and address Section 15.203. Answer: The antenna is a built-in antenna on the circuit board. 2. Please indicate precisely where, in the schematics exhibit, the RFID schematics are located. Answer: The RFID is also called FELICA in the schematic. Please see page 1 and 3 of the schematic. 3. Is the EUT capable of HSPA? Answer: The 850 WCDMA does not support HSDPA. 4. Please resubmit the user’s manual with the maximum SAR levels entered therein. Answer: Please see revised User Manual. 5. The internal photo of the pcb appears to have RF shields in place. If so, please resubmit that photo with the shields removed. Answer: Please see revised Internal photos showing the shields removed. 6. The WCDMA conducted power levels in the SAR report (p.17/24, and on data tables) are more than 0.5 dB higher than the corresponding levels reported in the EMC report for 2 of the 3 channels (and very close for the 3 rd ). This is prohibited by the FCC. Please address. Also, the power levels shown on p.1 of the SAR report should be corrected as well. Answer: The Part 22/24 Test Report has been updated to show the correct conducted power levels for the WCDMA.

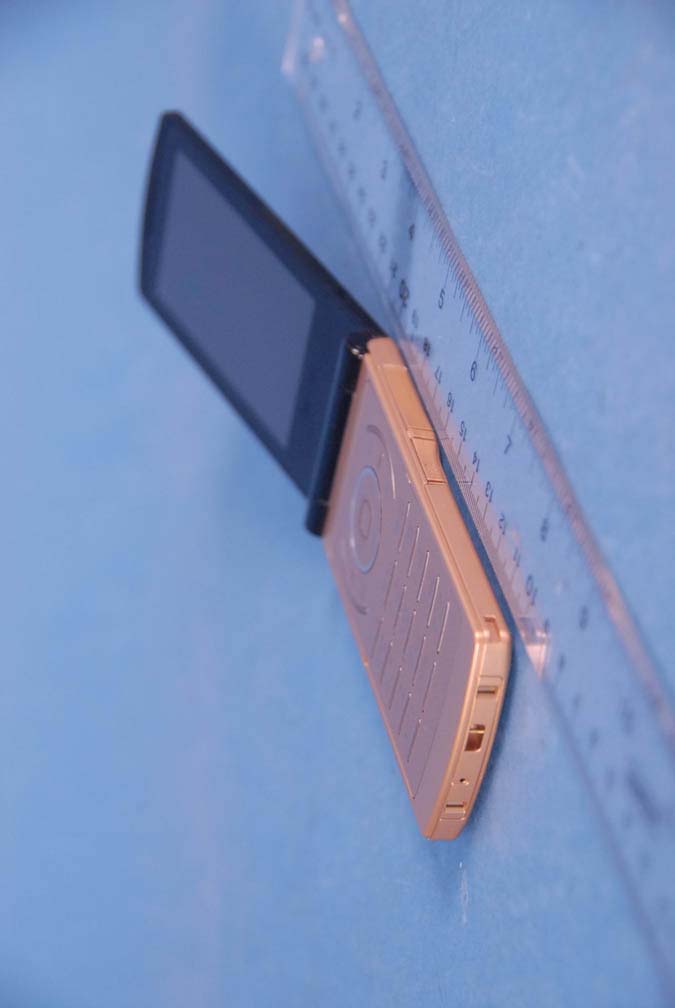

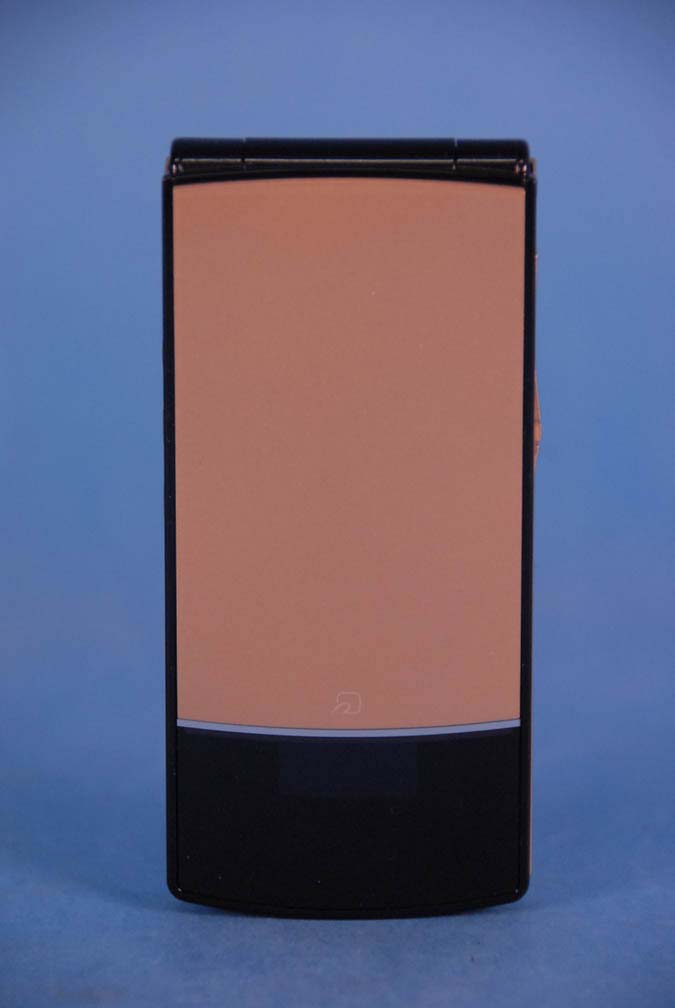

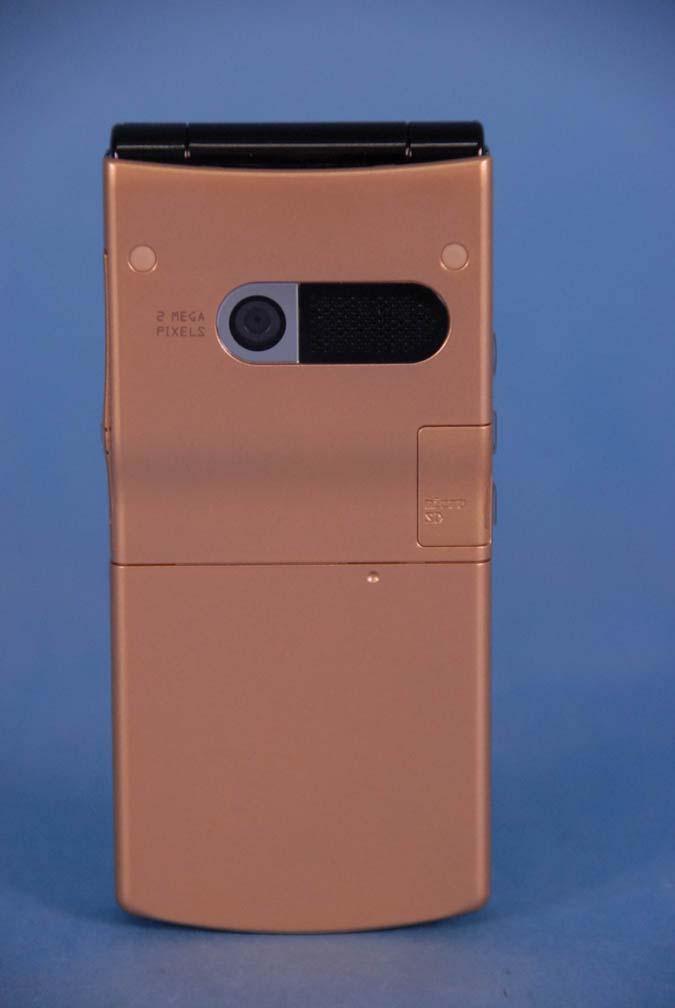

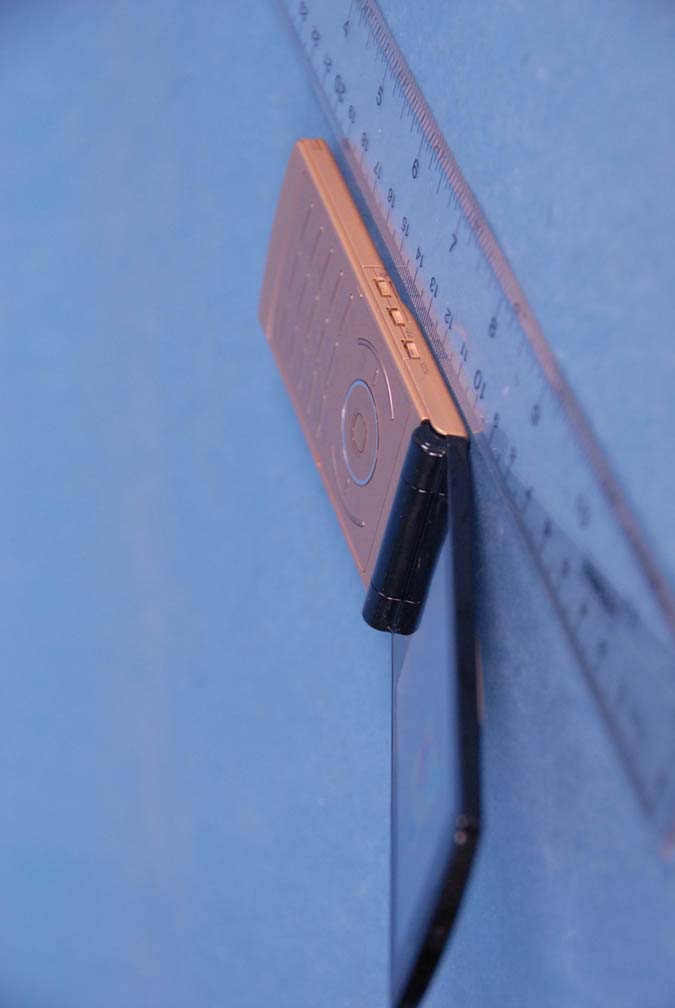

External Photos

ID Label/Location Info

FCCID Label Placement Rear View Without Battery Pack Please see a separate file for detailed drawing of a label KMP7N2N1-2C:IMEI Label Layout Applicant·Manufacturer: NEC Corporation Serial Number Barcode Year/month of manufacture Serial Number Color of UE Product name: KMP7N2N1-2C

Internal Photos

RF Exposure Info

APPENDIX A: SAR TEST DATA PCTEST ENGINEERING LABORATORY, INC. DUT: KMP7N2N1-2C; Type: WCDMA850/GSM1900 Phone; Serial: 004401200219026 Communication System: WCDMA850; Frequency: 836.6 MHz;Duty Cycle: 1:1 Medium: 835 Brain (σ = 0.86 mho/m, ε r = 41.50, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 01-09-2008; Ambient Temp: 23.2°C; Tissue Temp: 21.8°C Probe: EX3DV4 - SN3561; ConvF(8.38, 8.38, 8.38); Calibrated: 8/30/2007 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE3 Sn455; Calibrated: 11/13/2007 Phantom: SAM Main; Type: SAM 4.0; Serial: TP-1114 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: WCDMA850, Right Head, Touch, Mid.ch Area Scan (7x17x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.01 V/m Peak SAR (extrapolated) = 0.735 W/kg SAR(1 g) = 0.487 mW/g; SAR(10 g) = 0.317 mW/g 0 dB = 0.500mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: KMP7N2N1-2C; Type: WCDMA850/GSM1900 Phone; Serial: 004401200219026 Communication System: WCDMA850; Frequency: 836.6 MHz;Duty Cycle: 1:1 Medium: 835 Brain (σ = 0.86 mho/m, ε r = 41.50, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 01-09-2008; Ambient Temp: 23.2°C; Tissue Temp: 21.8°C Probe: EX3DV4 - SN3561; ConvF(8.38, 8.38, 8.38); Calibrated: 8/30/2007 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE3 Sn455; Calibrated: 11/13/2007 Phantom: SAM Main; Type: SAM 4.0; Serial: TP-1114 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: WCDMA850, Right Head, Tilt, Mid.ch Area Scan (7x17x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.38 V/m Peak SAR (extrapolated) = 0.214 W/kg SAR(1 g) = 0.169 mW/g; SAR(10 g) = 0.128 mW/g 0 dB = 0.200mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: KMP7N2N1-2C; Type: WCDMA850/GSM1900 Phone; Serial: 004401200219026 Communication System: WCDMA850; Frequency: 836.6 MHz;Duty Cycle: 1:1 Medium: 835 Brain (σ = 0.86 mho/m, ε r = 41.50, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 01-09-2008; Ambient Temp: 23.2°C; Tissue Temp: 21.8°C Probe: EX3DV4 - SN3561; ConvF(8.38, 8.38, 8.38); Calibrated: 8/30/2007 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE3 Sn455; Calibrated: 11/13/2007 Phantom: SAM Main; Type: SAM 4.0; Serial: TP-1114 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: WCDMA850, Left Head, Touch, Mid.ch Area Scan (7x17x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.51 V/m Peak SAR (extrapolated) = 0.593 W/kg SAR(1 g) = 0.420 mW/g; SAR(10 g) = 0.289 mW/g 0 dB = 0.500mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: KMP7N2N1-2C; Type: WCDMA850/GSM1900 Phone; Serial: 004401200219026 Communication System: WCDMA850; Frequency: 836.6 MHz;Duty Cycle: 1:1 Medium: 835 Brain (σ = 0.86 mho/m, ε r = 41.50, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 01-09-2008; Ambient Temp: 23.2°C; Tissue Temp: 21.8°C Probe: EX3DV4 - SN3561; ConvF(8.38, 8.38, 8.38); Calibrated: 8/30/2007 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE3 Sn455; Calibrated: 11/13/2007 Phantom: SAM Main; Type: SAM 4.0; Serial: TP-1114 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: WCDMA850, Left Head, Tilt, Mid.ch Area Scan (7x17x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.66 V/m Peak SAR (extrapolated) = 0.189 W/kg SAR(1 g) = 0.147 mW/g; SAR(10 g) = 0.112 mW/g 0 dB = 0.200mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: KMP7N2N1-2C; Type: WCDMA850/GSM1900 Phone; Serial: 004401.20.021456.00 Communication System: GSM1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: 1900 Brain ( σ = 1.44 mho/m, ε r = 41.58, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 8-23-2007; Ambient Temp: 23.4°C; Tissue Temp: 22.1°C Probe: EX3DV4 - SN3550; ConvF(6.74, 6.74, 6.74); Calibrated: 1/22/2007 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/23/2007 Phantom: SAM with CRP; Type: SAM; Serial: TP1375 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: GSM1900, Right Head, Touch, Mid.ch Area Scan (7x17x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.29 V/m Peak SAR (extrapolated) = 1.31 W/kg SAR(1 g) = 0.780 mW/g; SAR(10 g) = 0.433 mW/g 0 dB = 0.922mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: KMP7N2N1-2C; Type: WCDMA850/GSM1900 Phone; Serial: 004401.20.021456.00 Communication System: GSM1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: 1900 Brain ( σ = 1.44 mho/m, ε r = 41.58, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 8-23-2007; Ambient Temp: 23.4°C; Tissue Temp: 22.1°C Probe: EX3DV4 - SN3550; ConvF(6.74, 6.74, 6.74); Calibrated: 1/22/2007 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/23/2007 Phantom: SAM with CRP; Type: SAM; Serial: TP1375 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: GSM1900, Right Head, Tilt, Mid.ch Area Scan (7x17x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.1 V/m Peak SAR (extrapolated) = 0.513 W/kg SAR(1 g) = 0.343 mW/g; SAR(10 g) = 0.206 mW/g 0 dB = 0.400mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: KMP7N2N1-2C; Type: WCDMA850/GSM1900 Phone; Serial: 004401.20.021456.00 Communication System: GSM1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: 1900 Brain ( σ = 1.44 mho/m, ε r = 41.58, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 8-23-2007; Ambient Temp: 23.4°C; Tissue Temp: 22.1°C Probe: EX3DV4 - SN3550; ConvF(6.74, 6.74, 6.74); Calibr…

Text truncated - open the document above for the full version.

RF Exposure Info

Reviewed by: FCC ID: A98-PRE-CRM CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 0801030004.A98 01/09/2008, 08/23/2007 850/1900 GSM/W CDMA Phone Page 1 of 24 © 2008 PCTEST Engineering Laboratory, Inc. REV 4.7U 11/09/07 Applicant Name: Date of Testing: NEC Corporation of America 08/23/2007 & 01/09/2008 Radio Communications Systems Division Test Site/Location: 6535 N. State Highway 161 PCTEST Lab, Columbia, MD, USA Irving, TX 75039 USA Test Report Serial No.: 0801030004.A98 FCC ID: A98-PRE-CRM APPLICANT: NEC CORPORATION OF AMERICA EUT Type: 850/1900 GSM/WCDMA Phone Application Type: Certification FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] FCC Classification: Licensed Transmitter Held to Ear (PCE) Model(s): KMP7N2N1-2C Tx Frequency: 826.40 - 846.60 MHz (Cellular WCDMA) 1850.20 - 1909.80 MHz (GSM PCS) Conducted Power: 23.01 dBm Cellular WCDMA850 30.30 dBm GSM1900 Max. SAR Measurement: 0.487 W/kg WCDMA Head SAR 0.468 W/kg WCDMA Body SAR 0.780 W/kg GSM1900 Head SAR 0.288 W/kg GSM1900 Body SAR Test Device Serial No.: Pre-Production S/N: 004401200219026 (WCDMA850) S/N: 004401.20.021456.00 (GSM1900) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-2005 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters not specified in this filing may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Reviewed by: FCC ID: A98-PRE-CRM CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 0801030004.A98 01/09/2008, 08/23/2007 850/1900 GSM/W CDMA Phone Page 2 of 24 © 2008 PCTEST Engineering Laboratory, Inc. REV 4.7U 11/09/07 TABLE OF CONTENTS 1 INTRODUCTION ........................................................................................................................ 3 2 TEST SITE LOCATION............................................................................................................... 4 3 SAR MEASUREMENT SETUP ................................................................................................... 5 4 DASY E-FIELD PROBE SYSTEM............................................................................................... 7 5 PROBE CALIBRATION PROCESS............................................................................................. 8 6 PHANTOM AND EQUIVALENT TISSUES .................................................................................. 9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................ 10 8 DEFINITION OF REFERENCE POINTS ................................................................................... 11 9 TEST CONFIGURATION POSITIONS ...................................................................................... 12 10 ANSI/IEEE C95.1-2005 RF EXPOSURE LIMITS...................................................................... 14 11 MEASUREMENT UNCERTAINTIES......................................................................................... 15 12 SYSTEM VERIFICATION ......................................................................................................... 16 13 FCC 3G MEASUREMENT PROCEDURES – OCT 2007........................................................... 17 14 SAR DATA SUMMARY............................................................................................................. 18 15 EQUIPMENT LIST.................................................................................................................... 21 16 CONCLUSION.......................................................................................................................... 22 17 REFERENCES ......................................................................................................................... 23 Reviewed by: FCC ID: A98-PRE-CRM CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 0801030004.A98 01/09/2008, 08/23/2007 850/1900 GSM/W CDMA Phone Page 3 of 24 © 2008 PCTEST Engineering Laboratory, Inc. REV 4.7U 11/09/07 1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-2005 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz[2] and Health Canada RF Exposure Guidelines Safety Code 6 [26]. The measurement procedure described in IEEE/ANSI C95.3-2002 Recom…

Text truncated - open the document above for the full version.

Test Report

Reviewed by: FCC ID: A98-PRE-CRM FCC Pt. 22/24 GSM/WCDMA MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0801030003.A98 January 7 - 8, 2008 Cellular WCDMA/PCS GSM-GPRS Phone Page 1 of 35 © 2008 PCTEST Engineering Laboratory, Inc. REV 3.2GWC 01/03/2008 Applicant Name: Date of Testing: NEC Corporation of America January 7 - 8, 2008 Radio Communications Systems Division Test Site/Location: 6535 N. State Highway 161 PCTEST Lab., Columbia, MD, USA Irving, TX 75039 USA Test Report Serial No.: 0801030003.A98 FCC ID: A98-PRE-CRM APPLICANT: NEC CORPORATION OF AMERICA Application Type: Certification FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2; §22(H), §24(E) EUT Type: Cellular WCDMA/PCS GSM-GPRS Phone Model(s): KMP7N2N1-2C Tx Frequency Range: 826.40 - 846.60MHz (Cell. WCDMA) / 1850.20 - 1909.80MHz (PCS GSM) Max. RF Output Power: 0.147 W ERP Cell. WCDMA (21.66 dBm) / 1.914 W EIRP PCS GSM (32.82 dBm) Emission Designator(s): 4M21F9W (Cellular WCDMA) / 239KGXW (PCS GSM) Test Device Serial No.: identical prototype [S/N: 004401200219026] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 22 & 24 Certification Reviewed by: FCC ID: A98-PRE-CRM FCC Pt. 22/24 GSM/WCDMA MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0801030003.A98 January 7 - 8, 2008 Cellular WCDMA/PCS GSM-GPRS Phone Page 2 of 35 © 2008 PCTEST Engineering Laboratory, Inc. REV 3.2GWC 01/03/2008 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT............................................................................3 1.0 INTRODUCTION ..............................................................................................................................4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY............................................................................................................................. 4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 2.3 LABELING REQUIREMENTS.............................................................................................................. 5 3.0 DESCRIPTION OF TESTS ..............................................................................................................6 3.1 MEASUREMENT PROCEDURE......................................................................................................... 6 3.2 OCCUPIED BANDWIDTH EMISSION LIMITS .................................................................................... 6 3.3 CELLULAR - BASE FREQUENCY BLOCKS....................................................................................... 6 3.4 CELLULAR - MOBILE FREQUENCY BLOCKS ................................................................................... 7 3.5 PCS - BASE FREQUENCY BLOCKS .................................................................................................. 7 3.6 PCS - MOBILE FREQUENCY BLOCKS .............................................................................................. 7 3.7 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL.............................................. 7 3.8 RADIATED SPURIOUS AND HARMONIC EMISSIONS ..................................................................... 8 3.9 FREQUENCY STABILITY / TEMPERATURE VARIATION ................................................................. 8 4.0 TEST EQUIPMENT CALIBRATION DATA ......................................................................................9 5.0 SAMPLE CALCULATIONS ............................................................................................................10 6.0 TEST RESULTS .............................................................................................................................11 6.1 SUMMARY......................................................................................................................................... 11 6.2 CONDUCTED OUTPUT POWER ...................................................................................................... 12 6.3 EFFECTIVE RADIATED POWER OUTPUT DATA ........................................................................... 13 6.4 EQUIVALENT ISOTROPIC RADIATED POWER OUTPUT DATA .................................................... 14 6.5 CELLULAR WCDMA RADIATED MEASUREMENTS....................................................................... 15 6.6 PCS GSM RADIATED MEASUREMENTS ........................................................................................ 18 6.7 CELLULAR WCDMA FREQUENCY STABILITY MEASUREMENTS ..............................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Text truncated - open the document above for the full version.

Contact Information

Applicant

Sanjay Wadhwa(Senior Manager)

[email protected]214-262-4241Fax: 214-262-4225

Technical Contact

PCTEST Engineering Laboratory, Inc.Randy Ortanez

[email protected]410-290-6652

6660-B Dobbin Road · Columbia, Maryland · United States

Test Firm

PCTEST Engineering Laboratory, Inc.Randy Ortanez

[email protected]410-290-6652Fax: 410-290-6654

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
2	24E	1.85 GHz - 1.91 GHz	1.914 W	239KGXW	2.5 ppm

Confidentiality

Long Term

Grant Notes

Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operation is based on a separation distance of 1.5 cm between the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters not listed in this filing may not contain metallic components. The highest reported SAR values are: Part 22 - Head: 0.487 W/kg; Body-worn: 0.468 W/kg; Part 24 - Head: 0.78 W/kg; Body-worn: 0.288 W/kg. This device also contains functions that are not operational in U.S. Territories. This filing is only applicable for US operations.
