A98-QMK6441Cellular WCDMA/ PCS GSM Phone with WLAN, Bluetooth and RFID

1 Voice/Videophone Calls Making calls/videophone calls Making a FOMA Voice/Videophone Call.........................................................................2 Switching a FOMA Voice/Videophone Call During a Call ...............................................5 Making International Calls .........................................................................6 Using Handsfree During a Call ........................................................................7 Making a Call Using Redial/Dialed Calls/Received Calls .........................................................................................8 Using Chaku-moji ..........................................................................................10 Showing/Hiding Caller ID When Making a Call...............................................................12 Sending Touch-tone Signals ...........................................................................12 Using the Prefix Function................................................................................................13 Making a Call Specifying a Sub-Address...........................................13 Setting the Alarm for Reconnection .......................................................13 Making the Earpiece Sounds Clear ......................................................14 Reducing Surrounding Noise to Make Voice Clear..................................14 Talking Handsfree While Driving............................................................14 Receiving calls/videophone calls Receiving a FOMA Voice/Videophone Call ....................................................................15 When the Other Party Switches a FOMA Voice/Videophone Call ..................................16 Pressing a Dial Key to Answer a Call.........................................................16 Ending/Holding Call by Folding the FOMA Terminal...........................17 Adjusting Earpiece Volume ..................................................................................17 Adjusting Ring Volume..................................................................................17 When you can/could not answer a voice/videophone call Holding Incoming/Current Calls ...............................................................18 Using Public Mode ..........................................................................................................18 When You Cannot Answer an Incoming Call ..................................................20 Recording Voice/Video Messages When You Cannot Answer the Call ................................................................................................................21 Recording a Message When You Cannot Answer Incoming Call .............22 Playing/Deleting Record Messages/Voice Memos/Moving Picture Memos ....................22 Setting the Videophone Using Chara-den.............................................................................................................23 Setting Videophone Functions........................................................................................23 Using Videophone Call by Interfacing to External Device...............................................25 WORLD CALL Handsfree Redial/Dialed calls/Received calls Chaku-moji Pause dial Sub-address setting Reconnect signal Hyper Clear Voice Noise reduction In-car hands-free Answer setting Setting when folded Volum e Ring volume On hold/Holding Missed call Record message Quick message 2 Voice/Videophone Calls Making a FOMA Voice/ Videophone Call zYou cannot make a FOMA voice/videophone call in Single mode (WLAN). zIn DUAL mode (Prefer FOMA/Prefer WLAN), you can select a call type, FOMA voice/videophone call or WLAN voice call while entering a phone number. 1 Enter the phone number of the other party Always start with the area code, even for a call within the same area. You can enter up to 80 digits for the phone number. However, only the last 26 digits are displayed. If “” is displayed, press [ i ] to display “”. <When you enter a wrong number> To insert a number Press v to move the cursor to the number to the left of the position where you want to insert the number, then enter the number. To delete a number Press v to move the cursor to the number you want to delete, then press t. Hold down t for 1 second or longer to delete all the numbers to the left of the cursor and the number in the cursor position. 2 r (FOMA voice call), [C] (V.phone) To make a WLAN voice call XConfirm that “” is displayed and press r If “” is displayed, press [ i ] to display “” and then press r. <Videophone> To make a videophone call with Chara- den X[MENU] (Submenu)X“Select image” X“Chara-den”XSelect Chara-den Enter phone number Submenu ̈p.4 <FOMA voice call> “” flashes while dialing and lights up during the call. If you hear the busy tone The line is busy. Call again after a while. If you hear a message that the other party cannot be reached The other party’s mobile phone is not turned on or is out of signal range. Call again after a while. If you hear a message requesting your caller ID Call again with Caller ID Notification enabled. p.12 <Videophone> “” flashes while dialing a videophone call and lights up during the call. If a videophone call is not connectedp.5 To switch between camera image and substitute image X[MENU] (Submenu)X “Substitute image”“My side” To switch the main screen XXd (Change) “Change main disp.”p.4 To enlarge a camera image to be sent XUse Xv to adjust zoom To mute the voice to send XYa () (1 second or longer) “” appears. To cancel muting, press Ya () for 1 second or longer again. FOMA in-call Submenu ̈p.4 Videophone in-call Submenu ̈p.4 3 Continued on next page Voice/Videophone Calls To set Hyper Clear Voicep.14 Switching a FOMA Voice/Videophone Call During a Callp.5 To put the current FOMA voice/ videophone call on holdp.18 To switch between the FOMA terminal and Bluetooth device Xr (1 second or longer) When 2in1 is in Dual mod…

Text truncated - open the document above for the full version.

1 Radio Frequency (RF) Signals THIS MODEL PHONE MEETS THE U.S. GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. Your wireless phone contains a radio transmitter and receiver. Your phone is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate (SAR). The SAR limit set by the FCC is 1.6 W/kg.* Tests for SAR are conducted using standard operating positions accepted by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the output. Before a phone model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the U.S. government-adopted requirement for safe exposure. The tests are performed on position and locations (for example, at the ear and worn on the body) as required by FCC for each model. The highest SAR value for this model phone as reported to the FCC when tested for use at the ear is 0.42 W/ kg, and when worn on the body, is 0.49 W/kg. (Body-w orn measurements differ among phone models, depending upon available accessories and FCC requirements). While there may be differences between the SAR levels of various phones and at various positions, they all meet the U.S. government requirement. The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model phone is on file with the FCC and can be found under the Display Grant section at https:// gullfoss2.fcc.gov/oetcf/eas/reports/GenericSearch.cfm after search on FCC ID A98-QMK6441. For body worn operation, this phone has been tested and meets the FCC RF exposure guidelines when used with an accessory designated for this product or when used with an accessory that contains no metal and that positions the handset a minimum of 1.5 cm from the body. Non-compliance with the above restrictions may result in violation of FCC RF Exposure guidelines. * In the United States, the SAR limit for wireless mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. SAR values may vary depending upon national reporting requirements and the network band. ATS_RF_FCC.fm 1 ページ ２０１０年１月１２日 火曜日 午前１０時５９分 2 FCC Regulations This mobile phone complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This mobile phone has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation; if this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. ATS_RF_FCC.fm 2 ページ ２０１０年１月１２日 火曜日 午前１０時５９分

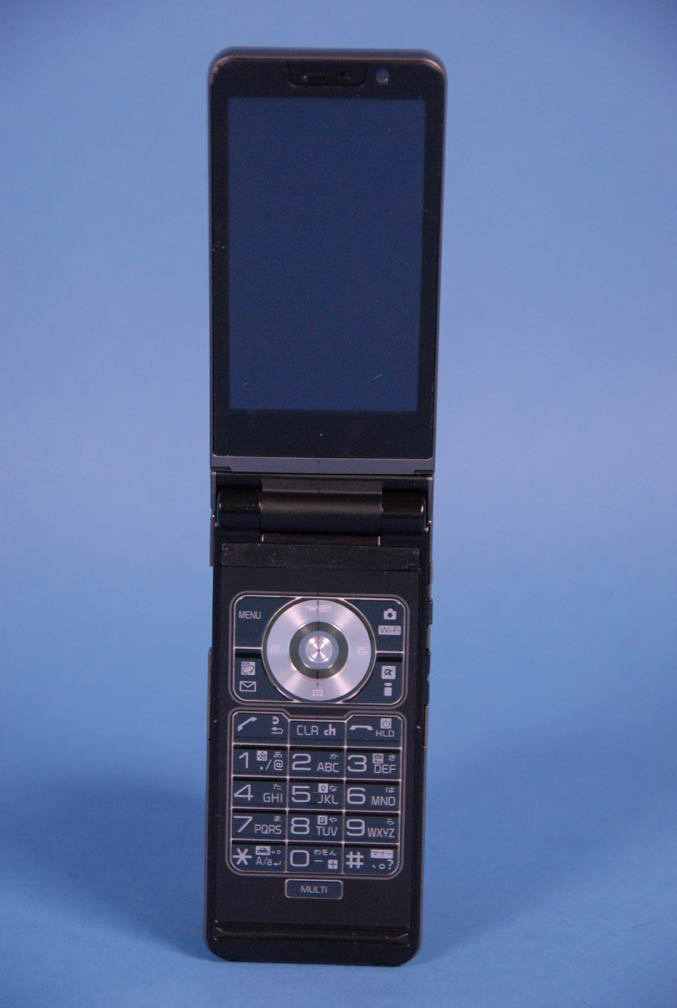

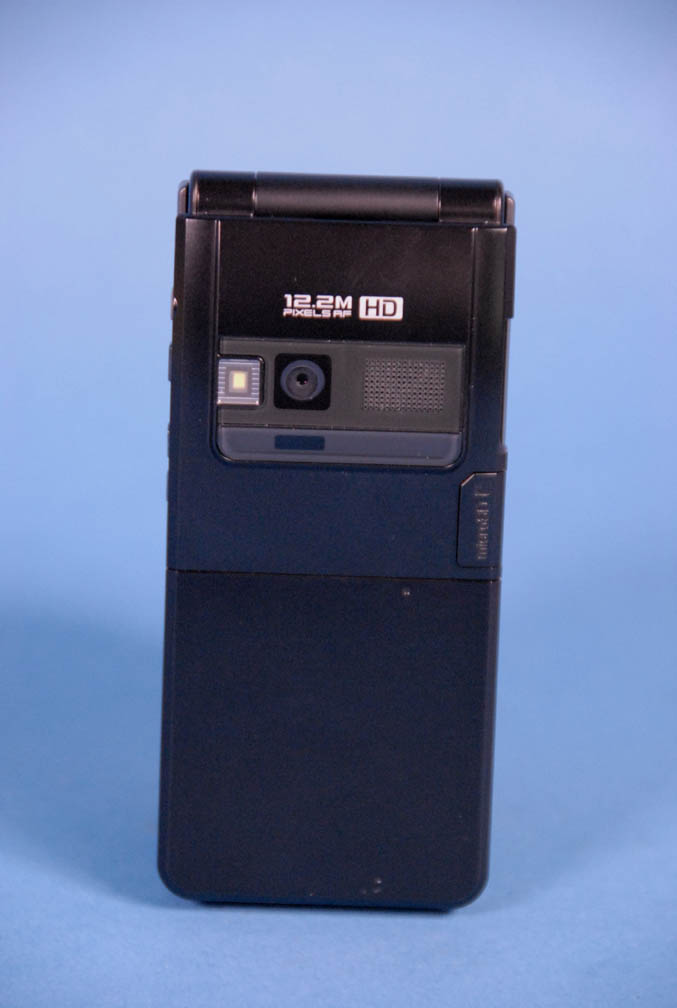

NEC Corporation of America FCC ID: A98-QMK6441 Model: KMP7N4U1-2A External Photos EUT Type: 1900 GSM/GPRS and 850 WCDMA Phone with Bluetooth WLAN and RFID Page 1 of 5 © 2010 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS NEC Corporation of America FCC ID: A98-QMK6441 Model: KMP7N4U1-2A External Photos EUT Type: 1900 GSM/GPRS and 850 WCDMA Phone with Bluetooth WLAN and RFID Page 2 of 5 © 2010 PCTEST Engineering Laboratory Inc. NEC Corporation of America FCC ID: A98-QMK6441 Model: KMP7N4U1-2A External Photos EUT Type: 1900 GSM/GPRS and 850 WCDMA Phone with Bluetooth WLAN and RFID Page 3 of 5 © 2010 PCTEST Engineering Laboratory Inc. NEC Corporation of America FCC ID: A98-QMK6441 Model: KMP7N4U1-2A External Photos EUT Type: 1900 GSM/GPRS and 850 WCDMA Phone with Bluetooth WLAN and RFID Page 4 of 5 © 2010 PCTEST Engineering Laboratory Inc. NEC Corporation of America FCC ID: A98-QMK6441 Model: KMP7N4U1-2A External Photos EUT Type: 1900 GSM/GPRS and 850 WCDMA Phone with Bluetooth WLAN and RFID Page 5 of 5 © 2010 PCTEST Engineering Laboratory Inc.

FCC ID Label Placement Label placement Rear View of the phone Place for battery Year/month of manufacture color of UE ID for TELEC (Japanese Accreditation) ID for JATE (Japanese Accreditation) Serial Number Barcode Japanese Accreditation MarkApplicant / Manufacturer: Warning: Please switch off this mobile phone on the airplane.Please do not remove this sticker. Serial code Vendor Name: IMEI Label Layout MAC Address

NEC Corporation of America FCC ID: A98-QMK6441 Model: KMP7N4U1-2A Internal Photos EUT Type: 1900 GSM/GPRS and 850 WCDMA Phone with Bluetooth WLAN and RFID Page 1 of 7 © 2010 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS NEC Corporation of America FCC ID: A98-QMK6441 Model: KMP7N4U1-2A Internal Photos EUT Type: 1900 GSM/GPRS and 850 WCDMA Phone with Bluetooth WLAN and RFID Page 2 of 7 © 2010 PCTEST Engineering Laboratory Inc. NEC Corporation of America FCC ID: A98-QMK6441 Model: KMP7N4U1-2A Internal Photos EUT Type: 1900 GSM/GPRS and 850 WCDMA Phone with Bluetooth WLAN and RFID Page 3 of 7 © 2010 PCTEST Engineering Laboratory Inc. NEC Corporation of America FCC ID: A98-QMK6441 Model: KMP7N4U1-2A Internal Photos EUT Type: 1900 GSM/GPRS and 850 WCDMA Phone with Bluetooth WLAN and RFID Page 4 of 7 © 2010 PCTEST Engineering Laboratory Inc. NEC Corporation of America FCC ID: A98-QMK6441 Model: KMP7N4U1-2A Internal Photos EUT Type: 1900 GSM/GPRS and 850 WCDMA Phone with Bluetooth WLAN and RFID Page 5 of 7 © 2010 PCTEST Engineering Laboratory Inc. NEC Corporation of America FCC ID: A98-QMK6441 Model: KMP7N4U1-2A Internal Photos EUT Type: 1900 GSM/GPRS and 850 WCDMA Phone with Bluetooth WLAN and RFID Page 6 of 7 © 2010 PCTEST Engineering Laboratory Inc. NEC Corporation of America FCC ID: A98-QMK6441 Model: KMP7N4U1-2A Internal Photos EUT Type: 1900 GSM/GPRS and 850 WCDMA Phone with Bluetooth WLAN and RFID Page 7 of 7 © 2010 PCTEST Engineering Laboratory Inc.

FCC ID: A98-QMK6441 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 1 of 33 0Y1002030195.A98 02/09/10 - 02/12/10 1900 GSM/GPRS and WCDMA/HSDPA and 850 Phone with Bluetooth, WLAN and RFID © 2010 PCTEST Engineering Laboratory, Inc. REV 7.7M 2/8/3010 Applicant Name: Date of Testing: NEC Corporation of America 02/09/10 - 02/12/10 Radio Communications Systems Division Test Site/Location: 6535 N. State Highway 161 PCTEST Lab, Columbia, MD, USA Irving, TX 75039-2402 USA Test Report Serial No.: 0Y1002030195.A98 FCC ID: A98-QMK6441 APPLICANT: NEC CORPORATION OF AMERICA EUT Type: 1900 GSM/GPRS and WCDMA/HSDPA and 850 Phone with Bluetooth, WLAN and RFID Application Type: Certification FCC Rule Part(s): CFR §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] FCC Classification: Licensed Transmitter Held to Ear (PCE) Model(s): KMP7N4U1-2A Tx Frequency: 826.40 - 846.60 MHz (UMTS V) 1850.20 - 1909.80 MHz (GSM 1900) 2412 - 2462 MHz (WLAN) Conducted Power: 22.89 dBm UMTS V 29.60 dBm GSM 1900 14.74 dBm 2.4 GHz WLAN Max. SAR Measurement: 0.42 W/kg UMTS V Head SAR 0.49 W/kg UMTS V Body SAR 0.38 W/kg GSM 1900 Head SAR 0.44 W/kg GSM 1900 Body SAR 0.04 W/kg 2.4 GHz WLAN Head SAR 0.03 W/kg 2.4 GHz WLAN Body SAR Test Device Serial No.: Pre-Production [S/N: MEID: 004401200490486] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com SAR COMPLIANCE EVALUATION REPORT FCC ID: A98-QMK6441 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 2 of 33 0Y1002030195.A98 02/09/10 - 02/12/10 1900 GSM/GPRS and WCDMA/HSDPA and 850 Phone with Bluetooth, WLAN and RFID © 2010 PCTEST Engineering Laboratory, Inc. REV 7.7M 2/8/3010 TABLE OF CONTENTS 1 INTRODUCTION ............................................................................................................................. 3 2 TEST SITE LOCATION ................................................................................................................... 4 3 SAR MEASUREMENT SETUP ....................................................................................................... 5 4 DASY E-FIELD PROBE SYSTEM .................................................................................................. 7 5 PROBE CALIBRATION PROCESS ................................................................................................ 8 6 PHANTOM AND EQUIVALENT TISSUES ...................................................................................... 9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................... 10 8 DEFINITION OF REFERENCE POINTS ...................................................................................... 11 9 TEST CONFIGURATION POSITIONS ......................................................................................... 12 10 RF EXPOSURE LIMITS ................................................................................................................ 16 11 MEASUREMENT UNCERTAINTIES ............................................................................................ 17 12 SYSTEM VERIFICATION .............................................................................................................. 18 13 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 20 14 FCC 3G MEASUREMENT PROCEDURES .................................................................................. 21 15 SAR DATA SUMMARY ................................................................................................................. 24 16 EQUIPMENT LIST ......................................................................................................................... 28 17 CONCLUSION ............................................................................................................................... 29 18 REFERENCES .............................................................................................................................. 30 19 SAR TEST SETUP PHOTOGRAPHS ........................................................................................... 32 FCC ID: A98-QMK6441 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 3 of 33 0Y1002030195.A98 02/09/10 - 02/12/10 1900 GSM/GPRS and WCDMA/HSDPA and 850 Phone with Bluetooth, WLAN and RFID © 2010 PCTEST Engineering Laboratory, Inc. REV 7.7M 2/8/3010 1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localize…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A98-QMK6441 FCC Pt. 22/24 GSM/WCDMA MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1002030196.A98 February 11, 2010 1900 GSM/GPRS and 850 WCDMA Phone with Bluetooth WLAN and RFID Page 1 of 35 © 2010 PCTEST Engineering Laboratory, Inc. REV 4.4GWC 12/09/2009 Applicant Name: Date of Testing: NEC Corporation of America February 11, 2010 Radio Communications Systems Division Test Site/Location: 6535 N. State Highway 161 PCTEST Lab., Columbia, MD, USA Irving, TX 75039-2402 USA Test Report Serial No.: 0Y1002030196.A98 FCC ID: A98-QMK6441 APPLICANT: NEC CORPORATION OF AMERICA Application Type: Certification FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2; §22(H), §24(E) EUT Type: 1900 GSM/GPRS and 850 WCDMA Phone with Bluetooth WLAN and RFID Model(s): KMP7N4U1-2A Tx Frequency Range: 826.40 - 846.60MHz (Cell. WCDMA) / 1850.20 - 1909.80MHz (PCS GSM) Max. RF Output Power: 0.238 W ERP Cell. WCDMA (23.76 dBm) / 1.991 W EIRP PCS GSM (32.99 dBm) Emission Designator(s): 4M28F9W (Cellular WCDMA) / 247KGXW (PCS GSM) Test Device Serial No.: identical prototype [S/N: 004401200490486] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my superv ision and are correct to the best of my know ledge and belief. I assume full re sponsibility for the com pleteness of the se measurements and vouch for the qu alifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 22 & 24 Certification Reviewed by: FCC ID: A98-QMK6441 FCC Pt. 22/24 GSM/WCDMA MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1002030196.A98 February 11, 2010 1900 GSM/GPRS and 850 WCDMA Phone with Bluetooth WLAN and RFID Page 2 of 35 © 2010 PCTEST Engineering Laboratory, Inc. REV 4.4GWC 12/09/2009 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT............................................................................3 1.0 INTRODUCTION..............................................................................................................................4 1.1 SCOPE ................................................................................................................................................4 1.2 TESTING FACILITY.............................................................................................................................4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION ..............................................................................................................5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ...........................................................................5 2.3 LABELING REQUIREMENTS..............................................................................................................5 3.0 DESCRIPTION OF TESTS ..............................................................................................................6 3.1 MEASUREMENT PROCEDURE.........................................................................................................6 3.2 OCCUPIED BANDWIDTH EMISSION LIMITS ....................................................................................6 3.3 CELLULAR - BASE FREQUENCY BLOCKS.......................................................................................6 3.4 CELLULAR - MOBILE FREQUENCY BLOCKS...................................................................................7 3.5 PCS - BASE FREQUENCY BLOCKS..................................................................................................7 3.6 PCS - MOBILE FREQUENCY BLOCKS..............................................................................................7 3.7 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL..............................................7 3.8 RADIATED POWER AND RADIATED SPURIOUS EMISSIONS ........................................................8 3.9 PEAK-AVERAGE RATIO.....................................................................................................................8 3.10 FREQUENCY STABILITY / TEMPERATURE VARIATION .................................................................8 4.0 TEST EQUIPMENT CALIBRATION DATA ......................................................................................9 5.0 SAMPLE CALCULATIONS ............................................................................................................10 6.0 TEST RESULTS.............................................................................................................................11 6.1 SUMMARY.........................................................................................................................................11 6.2 EFFECTIVE RADIATED POWER OUTPUT DATA ...........................................................................12 6.3 EQUIVALENT ISOTROPIC RADIATED POWER OUTPUT DATA....................................................13 6.4 CELLULAR WCDMA RADIATED MEASUREMENTS.......................................................................14 6.5 PCS GSM RADIATED MEASUREMENTS...................................................…

Text truncated - open the document above for the full version.

NEC Corporation of America FCC ID: A98-QMK6441 Model: KMP7N4U1-2A Test Set-Up Photos EUT Type: 1900 GSM/GPRS and 850 WCDMA Phone with Bluetooth WLAN and RFID Page 1 of 2 © 2010 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS NEC Corporation of America FCC ID: A98-QMK6441 Model: KMP7N4U1-2A Test Set-Up Photos EUT Type: 1900 GSM/GPRS and 850 WCDMA Phone with Bluetooth WLAN and RFID Page 2 of 2 © 2010 PCTEST Engineering Laboratory Inc.

Reviewed by: FCC ID: A98-QMK6441 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1002030195.A98 02/09/10 - 02/12/10 1900 GSM/GPRS and 850 WCDMA/HSDPA Phone with Bluetooth, WLAN and RFID Page 33 of 36 © 2010 PCTEST Engineering Laboratory, Inc. REV 7.0 11/02/09 Figure 19-1 SAR Test Setup Photo 1 Figure 19-2 SAR Test Setup Photo 2 Reviewed by: FCC ID: A98-QMK6441 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1002030195.A98 02/09/10 - 02/12/10 1900 GSM/GPRS and 850 WCDMA/HSDPA Phone with Bluetooth, WLAN and RFID Page 34 of 36 © 2010 PCTEST Engineering Laboratory, Inc. REV 7.0 11/02/09 Figure 19-3 SAR Test Setup Photo 3 Figure 19-4 SAR Test Setup Photo 4

Reviewed by: FCC ID: A98-QMK6441 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1002030195.A98 02/09/10 - 02/12/10 1900 GSM/GPRS and 850 WCDMA/HSDPA Phone with Bluetooth, WLAN and RFID Page 35 of 36 © 2010 PCTEST Engineering Laboratory, Inc. REV 7.0 11/02/09 Figure 19-5 SAR Test Setup Photo 5 Figure 19-6 SAR Test Setup Photo 6 Reviewed by: FCC ID: A98-QMK6441 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1002030195.A98 02/09/10 - 02/12/10 1900 GSM/GPRS and 850 WCDMA/HSDPA Phone with Bluetooth, WLAN and RFID Page 36 of 36 © 2010 PCTEST Engineering Laboratory, Inc. REV 7.0 11/02/09 Figure 19-7 SAR Test Setup Photo 7 Figure 19-8 SAR Test Setup Photo 8
