A98-TRM7762Cellular WCDMA/ PCS GSM Phone with RFID

1 Voice/Videophone Calls Making calls/videophone calls Making a FOMA Voice/Videophone Call.........................................................................2 Switching a FOMA Voice/Videophone Call During a Call ...............................................5 Making International Calls .........................................................................6 Using Handsfree During a Call ........................................................................7 Making a Call Using Redial/Dialed Calls/Received Calls .........................................................................................8 Using Chaku-moji ..........................................................................................10 Showing/Hiding Caller ID When Making a Call...............................................................12 Sending Touch-tone Signals ...........................................................................12 Using the Prefix Function................................................................................................13 Making a Call Specifying a Sub-Address...........................................13 Setting the Alarm for Reconnection .......................................................13 Making the Earpiece Sounds Clear ......................................................14 Reducing Surrounding Noise to Make Voice Clear..................................14 Talking Handsfree While Driving............................................................14 Receiving calls/videophone calls Receiving a FOMA Voice/Videophone Call ....................................................................15 When the Other Party Switches a FOMA Voice/Videophone Call ..................................16 Pressing a Dial Key to Answer a Call.........................................................16 Ending/Holding Call by Folding the FOMA Terminal...........................17 Adjusting Earpiece Volume ..................................................................................17 Adjusting Ring Volume..................................................................................17 When you can/could not answer a voice/videophone call Holding Incoming/Current Calls ...............................................................18 Using Public Mode ..........................................................................................................18 When You Cannot Answer an Incoming Call ..................................................20 Recording Voice/Video Messages When You Cannot Answer the Call ................................................................................................................21 Recording a Message When You Cannot Answer Incoming Call .............22 Playing/Deleting Record Messages/Voice Memos/Moving Picture Memos ....................22 Setting the Videophone Using Chara-den.............................................................................................................23 Setting Videophone Functions........................................................................................23 Using Videophone Call by Interfacing to External Device...............................................25 WORLD CALL Handsfree Redial/Dialed calls/Received calls Chaku-moji Pause dial Sub-address setting Reconnect signal Hyper Clear Voice Noise reduction In-car hands-free Answer setting Setting when folded Volum e Ring volume On hold/Holding Missed call Record message Quick message 2 Voice/Videophone Calls Making a FOMA Voice/ Videophone Call 1 Enter the phone number of the other party Always start with the area code, even for a call within the same area. You can enter up to 80 digits for the phone number. However, only the last 26 digits are displayed. <When you enter a wrong number> To insert a number Press v to move the cursor to the number to the left of the position where you want to insert the number, then enter the number. To delete a number Press v to move the cursor to the number you want to delete, then press t. Hold down t for 1 second or longer to delete all the numbers to the left of the cursor and the number in the cursor position. 2 r (FOMA voice call), [C] (V.phone) <Videophone> To make a videophone call with Chara- den X[MENU] (Submenu)X“Select image” X“Chara-den”XSelect Chara-den Enter phone number Submenu ̈p.4 <FOMA voice call> “” flashes while dialing and lights up during the call. If you hear the busy tone The line is busy. Call again after a while. If you hear a message that the other party cannot be reached The other party’s mobile phone is not turned on or is out of signal range. Call again after a while. If you hear a message requesting your caller ID Call again with Caller ID Notification enabled. p.12 <Videophone> “” flashes while dialing a videophone call and lights up during the call. If a videophone call is not connectedp.5 To switch between camera image and substitute image X[MENU] (Submenu)X “Substitute image”“My side” To switch the main screen XXd (Change) “Change main disp.”p.4 To enlarge a camera image to be sent XUse Xv to adjust zoom To mute the voice to send XYa () (1 second or longer) “” appears. To cancel muting, press Ya () for 1 second or longer again. FOMA in-call Videophone in-call Submenu ̈p.4 3 Continued on next page Voice/Videophone Calls To set Hyper Clear Voicep.14 Switching a FOMA Voice/Videophone Call During a Callp.5 To put the current FOMA voice/ videophone call on holdp.18 When 2in1 is in Dual mode The Outgoing number selection screen appears. Select a phone number. 3 To end the call, press y N zIf no keys are pressed for 15 seconds during a voice call, the Power saver mode activates. zIf you make an emergency videophone call (110, 119 or 118), the call automatically changes to a FOMA voice call. zYou cannot receive i-mode mail or MessageR/F during a videophone call (you can receive SMS). Received mail is stored at the i-mode center and can be retrieved using “Check new messa…

Text truncated - open the document above for the full version.

Pioneers in Wireless Testing and Certification 6660-B Dobbin Road Columbia, MD 21045 USA 1.410.290.6652 April 9, 2010 FCC ID: A98-TRM7762 Applicant: NEC Corporation of America Correspondence Reference Number: 83415 Form 731 Confirmation Number: TC427519 Date of Original E-mail: 04/07/2010 Please reverse your probe calibration measurement uncertainty to reflect the device frequency range and reverse SAR data accordingly Please find attached updated test report with updated uncertainty. The table is valid for frequencies 835 – 2450 MHz, per the probe calibration uncertainty component. Should you have any further questions about this application, please do not hesitate to contact us. Sincerely,

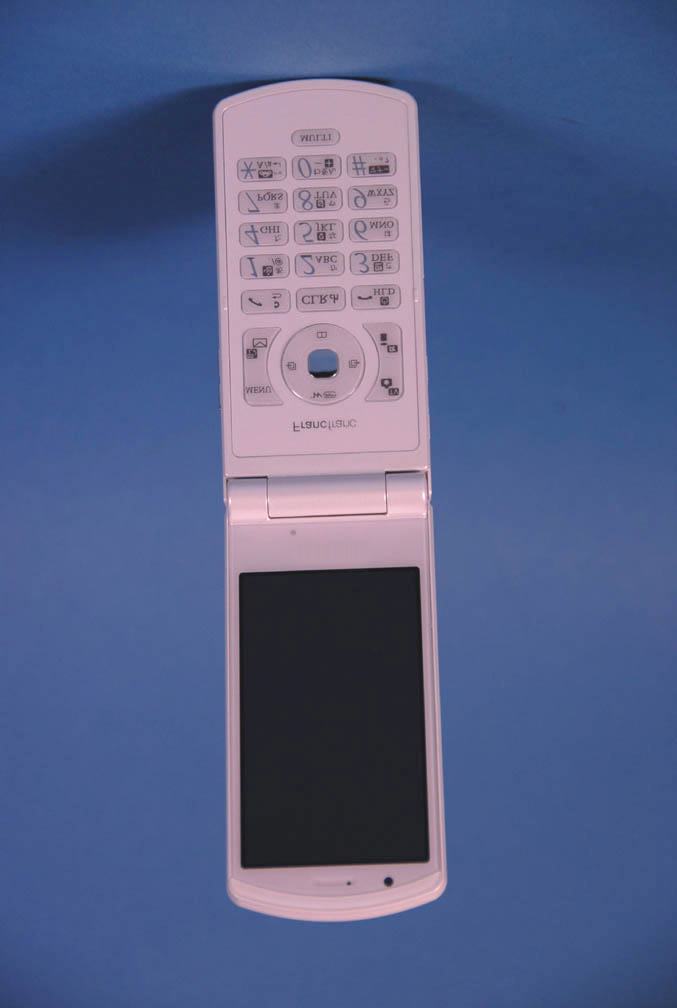

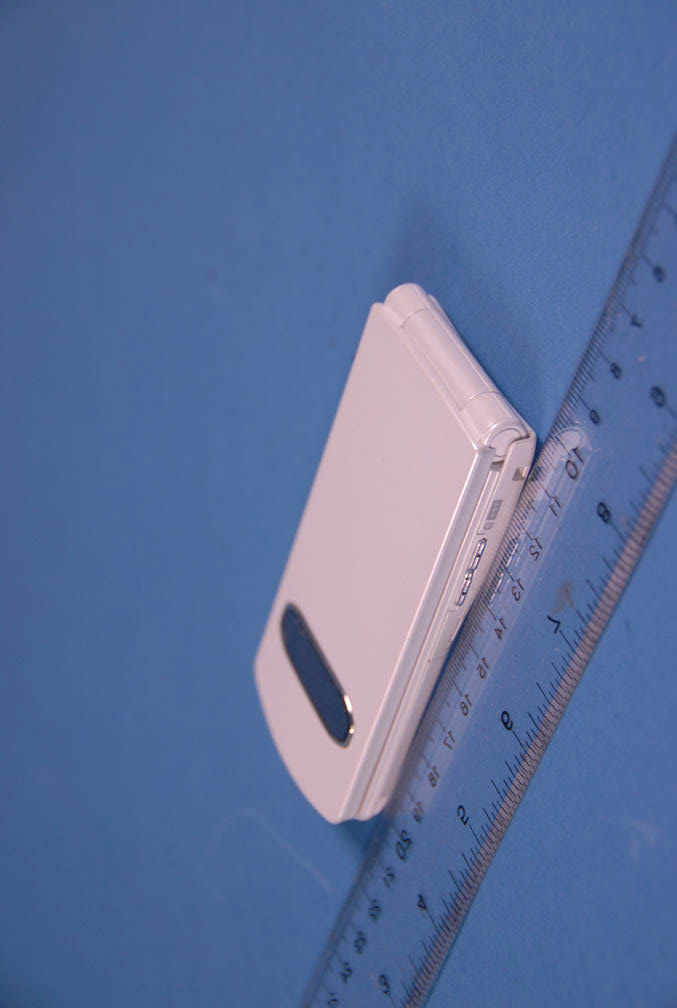

NEC FCC ID: A98-TRM7762 Model: KMP7N2U1-2A External Photos EUT Type: 1900 GSM/GPRS 850 WCDMA/HSDPA Phone with RFID Page 1 of 5 © 2009 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS NEC FCC ID: A98-TRM7762 Model: KMP7N2U1-2A External Photos EUT Type: 1900 GSM/GPRS 850 WCDMA/HSDPA Phone with RFID Page 2 of 5 © 2009 PCTEST Engineering Laboratory Inc. NEC FCC ID: A98-TRM7762 Model: KMP7N2U1-2A External Photos EUT Type: 1900 GSM/GPRS 850 WCDMA/HSDPA Phone with RFID Page 3 of 5 © 2009 PCTEST Engineering Laboratory Inc. NEC FCC ID: A98-TRM7762 Model: KMP7N2U1-2A External Photos EUT Type: 1900 GSM/GPRS 850 WCDMA/HSDPA Phone with RFID Page 4 of 5 © 2009 PCTEST Engineering Laboratory Inc. NEC FCC ID: A98-TRM7762 Model: KMP7N2U1-2A External Photos EUT Type: 1900 GSM/GPRS 850 WCDMA/HSDPA Phone with RFID Page 5 of 5 © 2009 PCTEST Engineering Laboratory Inc.

FCC ID Label Placement Label placement Rear View of the phone Place for battery Year/month of manufacture color of UE ID for TELEC (Japanese Accreditation) ID for JATE(Japanese Accreditation) Serial Number Barcode Japanese Accreditation Mark Applicant / Manufacturer: Model code: Warning: Please switch off this mobile phone on the airplane.Please do not remove this sticker. Serial code

NEC FCC ID: A98-TRM7762 Model: KMP7N2U1-2A Internal Photos EUT Type: 1900 GSM/GPRS 850 WCDMA/HSDPA Phone with RFID Page 1 of 7 © 2009 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS NEC FCC ID: A98-TRM7762 Model: KMP7N2U1-2A Internal Photos EUT Type: 1900 GSM/GPRS 850 WCDMA/HSDPA Phone with RFID Page 2 of 7 © 2009 PCTEST Engineering Laboratory Inc. NEC FCC ID: A98-TRM7762 Model: KMP7N2U1-2A Internal Photos EUT Type: 1900 GSM/GPRS 850 WCDMA/HSDPA Phone with RFID Page 3 of 7 © 2009 PCTEST Engineering Laboratory Inc. NEC FCC ID: A98-TRM7762 Model: KMP7N2U1-2A Internal Photos EUT Type: 1900 GSM/GPRS 850 WCDMA/HSDPA Phone with RFID Page 4 of 7 © 2009 PCTEST Engineering Laboratory Inc. NEC FCC ID: A98-TRM7762 Model: KMP7N2U1-2A Internal Photos EUT Type: 1900 GSM/GPRS 850 WCDMA/HSDPA Phone with RFID Page 5 of 7 © 2009 PCTEST Engineering Laboratory Inc. NEC FCC ID: A98-TRM7762 Model: KMP7N2U1-2A Internal Photos EUT Type: 1900 GSM/GPRS 850 WCDMA/HSDPA Phone with RFID Page 6 of 7 © 2009 PCTEST Engineering Laboratory Inc. NEC FCC ID: A98-TRM7762 Model: KMP7N2U1-2A Internal Photos EUT Type: 1900 GSM/GPRS 850 WCDMA/HSDPA Phone with RFID Page 7 of 7 © 2009 PCTEST Engineering Laboratory Inc.

FCC ID: A98-TRM7762 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 1 of 31 0Y1002030201.A98 02/08/10 - 02/16/10 1900 GSM/GPRS and 850 WCDMA/HSDPA Phone with RFID © 2010 PCTEST Engineering Laboratory, Inc. REV 7.7M 2/8/2010 Applicant Name: Date of Testing: NEC Corporation of America 02/08/10 - 02/16/10 Radio Communications Systems Division Test Site/Location: 6535 N. State Highway 161 PCTEST Lab, Columbia, MD, USA Irving, TX 75039-2402 USA Test Report Serial No.: 0Y1002030201.A98 FCC ID: A98-TRM7762 APPLICANT: NEC CORPORATION OF AMERICA EUT Type: 1900 GSM/GPRS and 850 WCDMA/HSDPA Phone with RFID Application Type: Certification FCC Rule Part(s): CFR §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] FCC Classification: Licensed Transmitter Held to Ear (PCE) Model(s): KMP7N2U1-2A Tx Frequency: 826.40 - 846.60 MHz (UMTS V) 1850.20 - 1909.80 MHz (GSM 1900) Conducted Power: 23.39 dBm UMTS V 30.19 dBm GSM 1900 Max. SAR Measurement: 0.85 W/kg UMTS V Head SAR 0.65 W/kg UMTS V Body SAR 0.60 W/kg GSM 1900 Head SAR 0.18 W/kg GSM 1900 Body SAR Test Device Serial No.: Pre-Production [S/N: 004401200510531] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com SAR COMPLIANCE EVALUATION REPORT FCC ID: A98-TRM7762 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 2 of 31 0Y1002030201.A98 02/08/10 - 02/16/10 1900 GSM/GPRS and 850 WCDMA/HSDPA Phone with RFID © 2010 PCTEST Engineering Laboratory, Inc. REV 7.7M 2/8/2010 TABLE OF CONTENTS 1 INTRODUCTION ............................................................................................................................. 3 2 TEST SITE LOCATION ................................................................................................................... 4 3 SAR MEASUREMENT SETUP ....................................................................................................... 5 4 DASY E-FIELD PROBE SYSTEM .................................................................................................. 7 5 PROBE CALIBRATION PROCESS ................................................................................................ 8 6 PHANTOM AND EQUIVALENT TISSUES ...................................................................................... 9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................... 10 8 DEFINITION OF REFERENCE POINTS ...................................................................................... 11 9 TEST CONFIGURATION POSITIONS ......................................................................................... 12 10 RF EXPOSURE LIMITS ................................................................................................................ 15 11 MEASUREMENT UNCERTAINTIES ............................................................................................ 16 12 SYSTEM VERIFICATION .............................................................................................................. 17 13 FCC 3G MEASUREMENT PROCEDURES .................................................................................. 19 14 SAR DATA SUMMARY ................................................................................................................. 21 15 EQUIPMENT LIST ......................................................................................................................... 24 16 CONCLUSION ............................................................................................................................... 25 17 REFERENCES .............................................................................................................................. 26 18 SAR TEST SETUP PHOTOGRAPHS ........................................................................................... 28 FCC ID: A98-TRM7762 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 3 of 31 0Y1002030201.A98 02/08/10 - 02/16/10 1900 GSM/GPRS and 850 WCDMA/HSDPA Phone with RFID © 2010 PCTEST Engineering Laboratory, Inc. REV 7.7M 2/8/2010 1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz[2] and Health Canada RF Exposure Guidelines Safety Code 6 [26]. The measurement procedure described in IEEE/ANSI C95.3-2002 Recommended Practice …

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A98-TRM7762 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1002030201-R1.A98 02/08/10 - 02/16/10 1900 GSM/GPRS and 850 WCDMA/HSDPA Phone with RFID Page 1 of 31 © 2010 PCTEST Engineering Laboratory, Inc. REV 7.7M 2/8/2010 Applicant Name: Date of Testing: NEC Corporation of America 02/08/10 - 02/16/10 Radio Communications Systems Division Test Site/Location: 6535 N. State Highway 161 PCTEST Lab, Columbia, MD, USA Irving, TX 75039-2402 USA Test Report Serial No.: 0Y1002030201-R1.A98 FCC ID: A98-TRM7762 APPLICANT: NEC CORPORATION OF AMERICA EUT Type: 1900 GSM/GPRS and 850 WCDMA/HSDPA Phone with RFID Application Type: Certification FCC Rule Part(s): CFR §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] FCC Classification: Licensed Transmitter Held to Ear (PCE) Model(s): KMP7N2U1-2A Tx Frequency: 826.40 - 846.60 MHz (UMTS V) 1850.20 - 1909.80 MHz (GSM 1900) Conducted Power: 23.39 dBm UMTS V 30.19 dBm GSM 1900 Max. SAR Measurement: 0.85 W/kg UMTS V Head SAR 0.65 W/kg UMTS V Body SAR 0.60 W/kg GSM 1900 Head SAR 0.18 W/kg GSM 1900 Body SAR Test Device Serial No.: Pre-Production [S/N: 004401200510531] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com SAR COMPLIANCE EVALUATION REPORT Reviewed by: FCC ID: A98-TRM7762 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1002030201-R1.A98 02/08/10 - 02/16/10 1900 GSM/GPRS and 850 WCDMA/HSDPA Phone with RFID Page 2 of 31 © 2010 PCTEST Engineering Laboratory, Inc. REV 7.7M 2/8/2010 TABLE OF CONTENTS 1 INTRODUCTION ............................................................................................................................. 3 2 TEST SITE LOCATION ................................................................................................................... 4 3 SAR MEASUREMENT SETUP ....................................................................................................... 5 4 DASY E-FIELD PROBE SYSTEM .................................................................................................. 7 5 PROBE CALIBRATION PROCESS ................................................................................................ 8 6 PHANTOM AND EQUIVALENT TISSUES...................................................................................... 9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................... 10 8 DEFINITION OF REFERENCE POINTS ...................................................................................... 11 9 TEST CONFIGURATION POSITIONS ......................................................................................... 12 10 RF EXPOSURE LIMITS ................................................................................................................ 15 11 MEASUREMENT UNCERTAINTIES ............................................................................................ 16 12 SYSTEM VERIFICATION.............................................................................................................. 17 13 FCC 3G MEASUREMENT PROCEDURES .................................................................................. 19 14 SAR DATA SUMMARY ................................................................................................................. 21 15 EQUIPMENT LIST......................................................................................................................... 24 16 CONCLUSION............................................................................................................................... 25 17 REFERENCES .............................................................................................................................. 26 18 SAR TEST SETUP PHOTOGRAPHS ........................................................................................... 28 Reviewed by: FCC ID: A98-TRM7762 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1002030201-R1.A98 02/08/10 - 02/16/10 1900 GSM/GPRS and 850 WCDMA/HSDPA Phone with RFID Page 3 of 31 © 2010 PCTEST Engineering Laboratory, Inc. REV 7.7M 2/8/2010 1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz[2] and Health Canada RF Exposure Guidelines Safety Code 6 [26]. The measurement procedure described in IEEE/ANSI C95.3-2002 Recommended P…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A98-TRM7762 FCC Pt. 22/24 GSM/WCDMA MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1002030202.A98 February 12, 2010 1900 GSM/GPRS 850 WCDMA/HSDPA Phone with RFID Page 1 of 35 © 2010 PCTEST Engineering Laboratory, Inc. REV 4.4GWC 12/09/2009 Applicant Name: Date of Testing: NEC Corporation of America February 12, 2010 Radio Communications Systems Division Test Site/Location: 6535 N. State Highway 161 PCTEST Lab., Columbia, MD, USA Irving, TX 75039-2402 USA Test Report Serial No.: 0Y1002030202.A98 FCC ID: A98-TRM7762 APPLICANT: NEC CORPORATION OF AMERICA Application Type: Certification FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2; §22(H), §24(E) EUT Type: 1900 GSM/GPRS 850 WCDMA/HSDPA Phone with RFID Model(s): KMP7N2U1-2A Tx Frequency Range: 826.40 - 846.60MHz (Cell. WCDMA) / 1850.20 - 1909.80MHz (PCS GSM) Max. RF Output Power: 0.257 W ERP Cell. WCDMA (24.1 dBm) / 1.445 W EIRP PCS GSM (31.6 dBm) Emission Designator(s): 4M31F9W (Cellular WCDMA) / 245KGXW (PCS GSM) Test Device Serial No.: identical prototype [S/N: 004401200510531] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 22 & 24 Certification Reviewed by: FCC ID: A98-TRM7762 FCC Pt. 22/24 GSM/WCDMA MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1002030202.A98 February 12, 2010 1900 GSM/GPRS 850 WCDMA/HSDPA Phone with RFID Page 2 of 35 © 2010 PCTEST Engineering Laboratory, Inc. REV 4.4GWC 12/09/2009 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT............................................................................3 1.0 INTRODUCTION....................................................................................................................4 1.1 SCOPE..................................................................................................................................................................4 1.2 TESTING FACILITY............................................................................................................................................4 2.0 PRODUCT INFORMATION.....................................................................................................5 2.1 EQUIPMENT DESCRIPTION ...........................................................................................................................5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS....................................................................................5 2.3 LABELING REQUIREMENTS...........................................................................................................................5 3.0 DESCRIPTION OF TESTS......................................................................................................6 3.1 MEASUREMENT PROCEDURE......................................................................................................................6 3.2 OCCUPIED BANDWIDTH EMISSION LIMITS...............................................................................................6 3.3 CELLULAR - B ASE FREQUENCY BLOCKS.................................................................................................6 3.4 CELLULAR - MOBILE FREQUENCY BLOCKS.............................................................................................7 3.5 PCS - BASE FREQUENCY BLOCKS..............................................................................................................7 3.6 PCS - MOBILE FREQUENCY BLOCKS.........................................................................................................7 3.7 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL...................................................7 3.8 RADIATED POWER AND RADIATED SPURIOUS EMISSIONS...............................................................8 3.9 PEAK-AVERAGE RATIO...................................................................................................................................8 3.10 FREQUENCY STABILITY / TEMPERATURE VARIATION.........................................................................8 4.0 TEST EQUIPMENT CALIBRATION DATA...............................................................................9 5.0 SAMPLE CALCULATIONS....................................................................................................10 6.0 TEST RESULTS...................................................................................................................11 6.1 SUMMARY.........................................................................................................................................................11 6.2 EFFECTIVE RADIATED POWER OUTPUT DATA.....................................................................................12 6.3 EQUIVALENT ISOTROPIC RADIATED POWER OUTPUT DATA..........................................................13 6.4 CELLULAR WCDMA RADIATED MEASUREMENTS............................................................................…

Text truncated - open the document above for the full version.

NEC FCC ID: A98-TRM7762 Model: KMP7N2U1-2A Test Set-Up Photos EUT Type: 1900 GSM/GPRS 850 WCDMA/HSDPA Phone with RFID Page 1 of 3 © 2009 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS NEC FCC ID: A98-TRM7762 Model: KMP7N2U1-2A Test Set-Up Photos EUT Type: 1900 GSM/GPRS 850 WCDMA/HSDPA Phone with RFID Page 2 of 3 © 2009 PCTEST Engineering Laboratory Inc. NEC FCC ID: A98-TRM7762 Model: KMP7N2U1-2A Test Set-Up Photos EUT Type: 1900 GSM/GPRS 850 WCDMA/HSDPA Phone with RFID Page 3 of 3 © 2009 PCTEST Engineering Laboratory Inc.

FCC ID: A98-TRM7762 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 28 of 31 0Y1002030201.A98 02/08/10 - 02/16/10 1900 GSM/GPRS and 850 WCDMA/HSDPA Phone with RFID © 2010 PCTEST Engineering Laboratory, Inc. REV 7.7M 2/8/2010 18 SAR TEST SETUP PHOTOGRAPHS FCC ID: A98-TRM7762 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 29 of 31 0Y1002030201.A98 02/08/10 - 02/16/10 1900 GSM/GPRS and 850 WCDMA/HSDPA Phone with RFID © 2010 PCTEST Engineering Laboratory, Inc. REV 7.7M 2/8/2010 Figure 18-1 SAR Test Setup Photo 1 Figure 18-2 SAR Test Setup Photo 2 FCC ID: A98-TRM7762 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 30 of 31 0Y1002030201.A98 02/08/10 - 02/16/10 1900 GSM/GPRS and 850 WCDMA/HSDPA Phone with RFID © 2010 PCTEST Engineering Laboratory, Inc. REV 7.7M 2/8/2010 Figure 18-3 SAR Test Setup Photo 3 Figure 18-4 SAR Test Setup Photo 4 FCC ID: A98-TRM7762 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 31 of 31 0Y1002030201.A98 02/08/10 - 02/16/10 1900 GSM/GPRS and 850 WCDMA/HSDPA Phone with RFID © 2010 PCTEST Engineering Laboratory, Inc. REV 7.7M 2/8/2010 Figure 18-5 SAR Test Setup Photo 5 Figure 18-6 SAR Test Setup Photo 6
