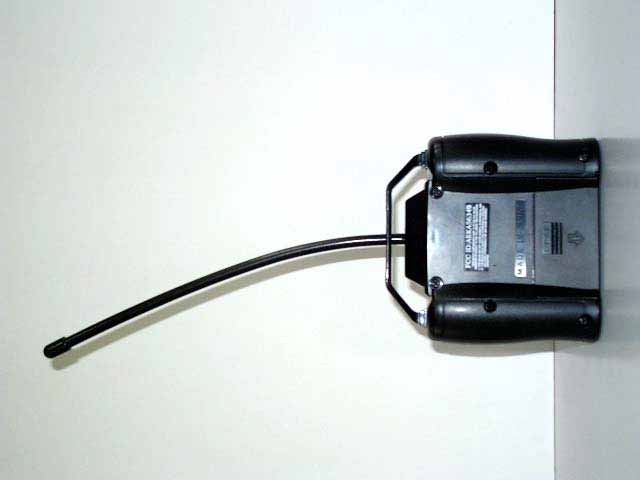

AEKA5634949MHz TRANSMITTER

60-156 RC 1:6 Vehicle ATV Water and Land you will need... One 9V battery (not included) for the transmitter. One 6V battery pack (not included) for your vehicle. in your transmitter Turn your transmitter off. Slide open the battery cover. Insert one 9V battery, matching the polarity symbols (+ and -) marked inside. Replace when completed. in your vehicle Fully charge the 6V battery pack before use. 1. Turn your vehicle off. 2. Turn the latches to unlock and open. 3. Insert the 6V battery pack into the battery compartment with correct polarity. 4. Close and lock the battery cover. installing batteries Thank you for purchasing your RC vehicle from RadioShack. 1. Slide ON/OFF on the vehicle to ON. 2. Use the transmitter’s controls to steer your vehicle in the directions shown below. 3. Slide ON/OFF on the vehicle to OFF when you finish driving . • To go straight, push both levers upwards�downwardsupwards�downwards simultaneously. • To turn right or left, push one lever upwards and the other one downwards. • To turn clockwise or counterclockwise, push either the right lever or left lever. driving your vehicle RC 1:6 Vehicle ATV Water and Land Transmitter User’s Guide what’s included This product is warranted by RadioShack against manufacturing defects in material and workmanship under normal use for ninety (90) days from the date of purchase from RadioShack company-owned stores and authorized RadioShack franchisees and dealers. For complete warranty details and exclusions, check with your local RadioShack store. RadioShack Customer Relations 300 RadioShack Circle, Fort Worth, TX 76102 04/04 limited 90-day warranty stop forward reverse ©2006. RadioShack Corporation. All rights reserved. RadioShack and RadioShack.com are trademarks used by RadioShack Corporation. 60-156 11A06 Printed in China • Do not use batteries of different types, capacities or chemistries. • Never leave dead or weak batteries in your transmitter or vehicle. • If you do not plan to use your vehicle or transmitter for several days, remove all batteries from them. Batteries can leak chemicals that may destroy electronic parts. • If your vehicle runs slowly or does not move at all, replace or recharge the batteries. • Dispose of old batteries promptly and properly. Do not burn or bury them. • Driving your vehicle for long periods of time can generate a high heat level, which causes wear and tear on the motor. To help keep heat levels down, when your vehicle’s battery power dies, let it cool for at least 10 minutes before installing new batteries. • Do not touch the motor or batteries immediately after using the vehicle, as they may become hot during use. • If your vehicle’s motor runs, but does not respond to the transmitter, move closer to the vehicle and try again. installing batteries This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult your local RadioShack store or an experienced radio/TV technician for help. If you cannot eliminate the interference, the FCC requires that you stop using your product. Changes or modifications not expressly approved by RadioShack may cause interference and void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. RF emissions information Please read this user’s guide before installing, setting up and using your new car www.radioshack.com • This toy is recommended for children 8 years of age and older. To ensure that the child’s play is both safe and fun, please review the operating instructions and these general safety rules with the child. • Adult supervision is recommended when the vehicle is being operated. • Keep fingers, hair and loose clothing away from the wheels while the vehicle is switched ON. • To avoid accidental operation, remove the removable battery when not in use. • If the vehicle and�or transmitter get wet, stop playing. Thoroughly wipe off all moisture and allow them to air-dry completely before use. • DO NOT drive in the street! Make sure you have plenty of open space in all directions. • Regularly inspect the antenna for cracks or breaks. Do NOT bend the transmitter antenna. DO NOT use the transmitter if the antenna is broken. • The vehicle wire antenna is fragile. Never pull or tug on the antenna, as it may loosen or detach from the vehicle. Never coil or knot the antenna. • Use and store your vehicle in room temperature environments only. Handle your vehicle carefully; do not drop it. Wipe your vehicle with a damp cloth occasionally to keep it looking new. Do not drive your vehicle through puddles or mud, in the rain, snow or sand. • Modifying or tampering with the vehicle’s internal components can cause a malfunction a…

Text truncated - open the document above for the full version.

Circuit description for AEKA56349 This device is a crystal controlled pulse position modulated transmitter. The oscillator consists of the combination of Q2 and X1. Q3 and it’s associated circuitry act as a buffer amplifier for the oscillator. The pi filter consisting of L3, C7, and C8, C9 act as a harmonic filter and antenna matching circuit. Modulation is provide by IC1(ATS302T). Energy to this device is supplied by a single 9Volt battery. The antenna is helical antenna.

NumberParts NameInsertParts NoQ'ty Parts List Date: 06/Nov/2006 Page: 1 TY-W1268-149.860MHzTYPE BNORMAL [PCB Name][Frequency][Type] [Buyer] No. 3712681-82 Temporary WW-54Helical Ant. Function :Spec : DRAWING No. T1301 R 1,R 2,R 3,R 4,R12RD 1/10WJ 10K TPC 1608C4111-131055 R 7RD 1/10WJ 140K TPC 1608C4111-141451 R 8RD 1/10WJ 330 TPC 1608C4111-113351 R 9RD 1/10WJ 560 TPC 1608C4111-115651 R10RD 1/10WJ 68K TPC 1608C4111-136851 R11RD 1/10WJ 220 TPC 1608C4111-112251 R13RD 1/10WJ 100 TPC 1608C4111-111051 R14RD 1/10WJ 470 TPC 1608C4111-114751 TP1,TP2,TP3,TP4TEST PIN 16TSH4151-401614 C 1,C 2,C 6CC 50VZ 103 TPC 1608C4112-131063 C 3CC 50VJ 15pF TPC 1608C4112-101551 C 4CC 50VD 8pF TPC 1608C4112-1R8051 C 5CC 50VJ 47pF TPC 1608C4112-104751 C 7CC 50VJ 33pF TPC 1608C4112-103351 C 8CC 50VJ 56pF TPC 1608C4112-105651 C 9CC 50VD 6pF TPC 1608C4112-1R6051 C10,C11CC 50VZ 223 TPC 1608C4112-132262 L 1,L 2CHOKE COIL K 1uHH4156-1R1012 L 3HF COIL 1.02uH (Mini) BS-134BH4156-210261 L 4CHOKE COIL K 0.68uHH4156-1N6811 X 1CRYSTAL 49.860MHz HC-49USH4159-449011 X 1CRYSTAL SPACER4644-980521 D 5,D 6,D 7,D 8DIODE 1SS133 or 1N4148MH4155-1D0014 D10ZENER MTZ J 3.3H4155-233121 D11ZENER MTZ J 5.1H4155-251121 D12L.E.D. TLR113AH4155-320011 D12L.E.D. HOLDER D (8910) (B 8.5)H2008910-011 Q 2,Q 3TR 2SC2412K-Q or 2SC2712-YC4113-C00522 IC1IC ATS302T (DIP 14pin)H4157-950301 CN1,CN2N.P. CONTACT M3H4624-C01412 PCBP.C.B TY-W1268-14162-126821 Not on PCB Items TAIYO KOGYO CO.,LTD. Parts : RD--Carbon Resistor , RS--Fixed Carbon Resistor CC--Ceramic Capacitor , EC--Electrolytic Capacitor MC--Myler Capacitor , XC--Semiconduct Capacitor or Myler Capacitor Insert Type : C--Chip , A--Axial , R--Radial , H--Hand

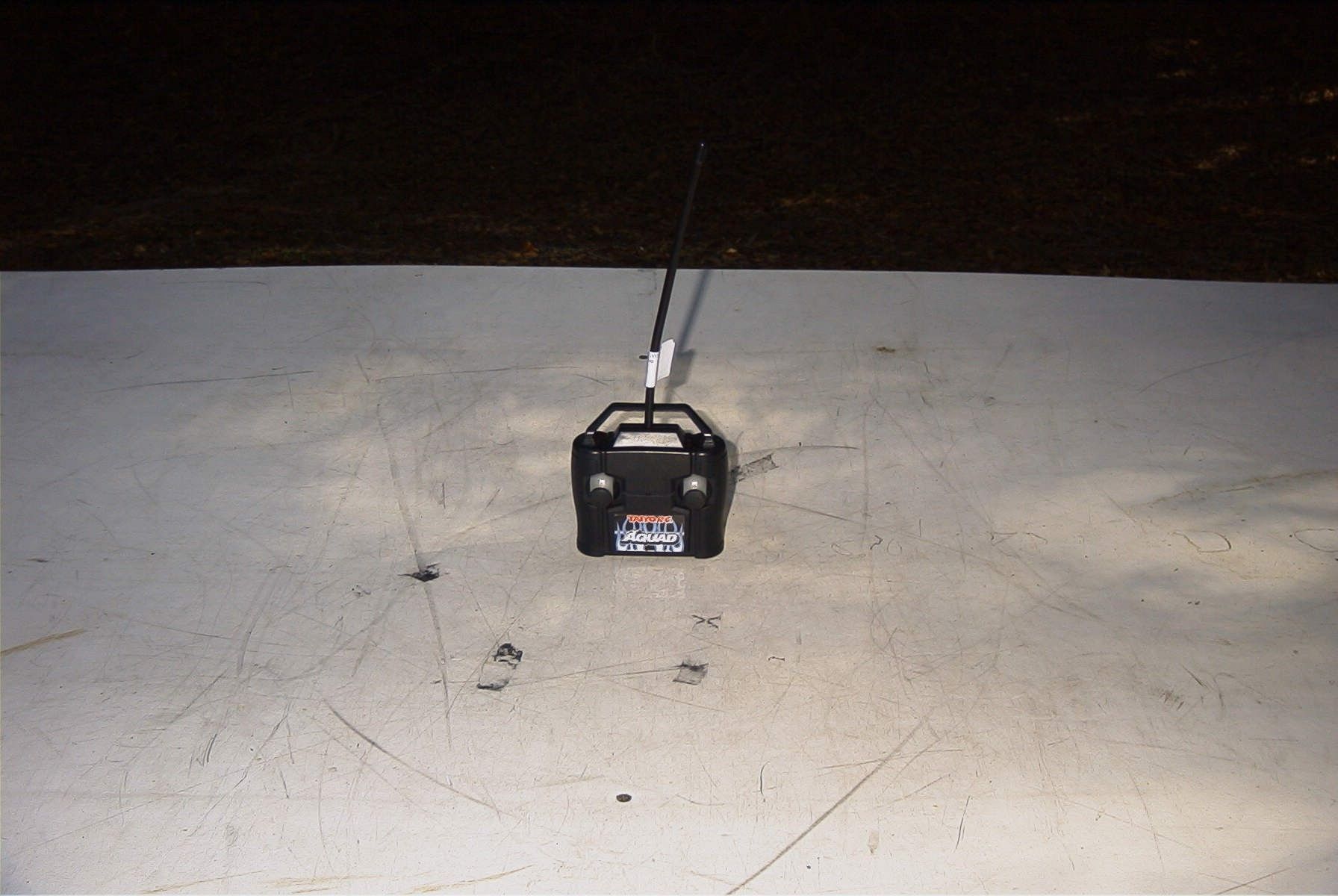

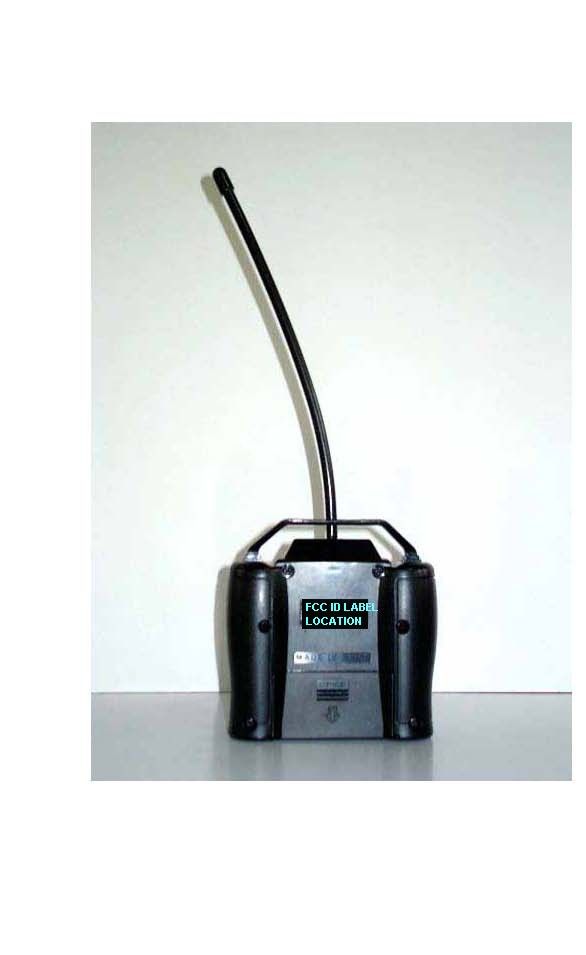

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: TAIYO KOGYO CO., LTD. FCC ID: AEKA56349 REPORT #: T\Taiyo_AEK\3124UT6\3124UT6TestReport.doc COVER SHEET Test Report Product Name: 49 MHz TRANSMITTER FCC ID: AEKA56349 Applicant: TAIYO KOGYO CO., LTD. FUKOKUSEIMEI BLDG. 6F, NO. 1-2-11 KAMINARIMON, TAITO-KU TOKYO 111-0034 JAPAN Date Receipt: 11/13/2006 Date Tested: 11/17/2006 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: TAIYO KOGYO CO., LTD. FCC ID: AEKA56349 REPORT #: T\Taiyo_AEK\3124UT6\3124UT6TestReport.doc TABLE OF CONTENTS TABLE OF CONTENTS LIST APPLICANT: TAIYO KOGYO CO., LTD. FCC ID: AEKA56349 TEST REPORT CONTAINING: PAGE 1.............TEST EQUIPMENT LIST PAGE 2.............TEST PROCEDURE PAGE 3.............RADIATION INTERFERENCE TEST DATA PAGE 4.............OCCUPIED BANDWIDTH PAGE 5.............OCCUPIED BANDWIDTH PLOT EXHIBITS INCLUDING: BLOCK DIAGRAM SCHEMATIC INSTRUCTION MANUAL LABEL SAMPLE LABEL LOCATION EXTERNAL PHOTOGRAPHS INTERNAL PHOTOGRAPHS CIRCUIT DESCRIPTION TEST SET UP PHOTOGRAPH TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: TAIYO KOGYO CO., LTD. FCC ID: AEKA56349 REPORT #: T\Taiyo_AEK\3124UT6\3124UT6TestReport.doc Page 1 of 5 Equipment List Device Manufacturer Model Serial Number Cal/Char Date Due Date 3/10-Meter OATS TEI N/A N/A Listed 3/27/04 3/26/07 3-Meter OATS TEI N/A N/A Listed 1/11/06 1/10/09 Antenna: Biconnical Eaton 94455-1 1057 CAL 12/12/05 12/12/07 Antenna: Biconnical Eaton 94455-1 1096 CAL 10/11/06 10/11/08 Antenna: Biconnical Electro-Metrics BIA-25 1171 CAL 4/29/05 4/29/07 Analyzer Blue Tower Quasi- Peak Adapter HP 85650A 2811A01279 CAL 4/13/05 4/13/07 Analyzer Blue Tower RF Preselector HP 85685A 2926A00983 CAL 9/5/05 9/5/07 Analyzer Blue Tower Spectrum Analyzer HP 8568B 2928A04729 2848A18049 CAL 4/13/05 4/13/07 LISN Electro-Metrics ANS-25/2 2604 CAL 10/5/06 10/5/08 LISN Electro-Metrics EM-7820 2682 CAL 4/28/05 4/28/07 Antenna: Log- Periodic Eaton 96005 1243 CAL 12/14/05 12/14/07 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: TAIYO KOGYO CO., LTD. FCC ID: AEKA56349 REPORT #: T\Taiyo_AEK\3124UT6\3124UT6TestReport.doc Page 2 of 5 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI standard C63.4-2003 using a spectrum analyzer with a pre-selector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz and the video bandwidth was 300 kHz. The ambient temperature of the UUT was 80ºC with a humidity of 76%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Pre- selector was accounted for in the Spectrum Analyzer Meter Reading. ANSI STANDARD C63.4-2003 10.1.7 MEASUREMENT PROCEDURES: The unit under test was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The table used for radiated measurements is capable of continuous rotation. TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: TAIYO KOGYO CO., LTD. FCC ID: AEKA56349 REPORT #: T\Taiyo_AEK\3124UT6\3124UT6TestReport.doc Page 3 of 5 APPLICANT: TAIYO KOGYO CO., LTD. FCC ID: AEKA56349 NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.235 REQUIREMENTS: CARRIER FREQUENCY WILL NOT EXCEEDS 80 dBuV/m AT 3M. OUT-OF-BAND EMISSIONS SHALL NOT EXCEED: 30 - 88 MHz 40.0 dBuV/M MEASURED AT 3 METERS 88 - 216 MHz 43.5 dBuV/M 216 - 960 MHz 46.0 dBuV/M ABOVE 960 MHz 54.0 dBuV/M TEST DATA: Emission Frequency MHz Meter Reading dBuV Ant. Pol Coax Loss dB Correction Factor dB Field Strength dBuV/m Margin dB 49.80 55.5 H 0.97 11.55 68.02 11.98 49.80 66.1 V 0.97 10.64 77.71 2.29 99.70 16.4 H 1.40 10.69 28.49 15.01 99.70 21.3 V 1.40 11.29 33.99 9.51 TEST PROCEDURE: The procedure used was ANSI standard C63.4-2003. The spectrum was scanned from 30 MHz to 1000 MHz. When an emission was found, the table was rotated to produce the maximum signal strength. The antenna was placed in both the horizontal and vertical planes and the worse case emissions were reported. Emissions attenuated more than 20 dB below the permissible value are not reported. The UUT was tested in 3 orthogonal planes. PERFORMED BY: JOSEPH SCOGLIO DATE: 11/17/2006 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: TAIYO KOGYO CO., LTD. FCC ID: AEKA56349 REPORT #: T\Taiyo_AEK\3124UT6\3124UT6TestReport.doc Page 4 of 5 APPLICANT: TAIYO KOGYO CO., LTD. FCC ID: AEKA56349 NAME OF TEST: Occupied Bandwidth RULES PART NO.: 15.235 REQUIREMENTS: The field strength of any emissions appearing between the band edges and up to 10 kHz above and below the band edges shall be attenuated at least 26 dB below the level of the un-modulated carrier or to the general limits of 15.209, whichever permits the higher emission levels. THE GRAPH ON THE NEXT PAGE REPRESENTS THE EMISSIONS TAKEN FOR THE DEVICE. METHOD OF MEASUREMENT: A small sample of the transmitter output was fed into the spectrum analyzer and the attached plot was taken. The vertical scale is set to 10 dB per division. PERFORMED BY: JOSEPH SGOGLIO …

Text truncated - open the document above for the full version.
