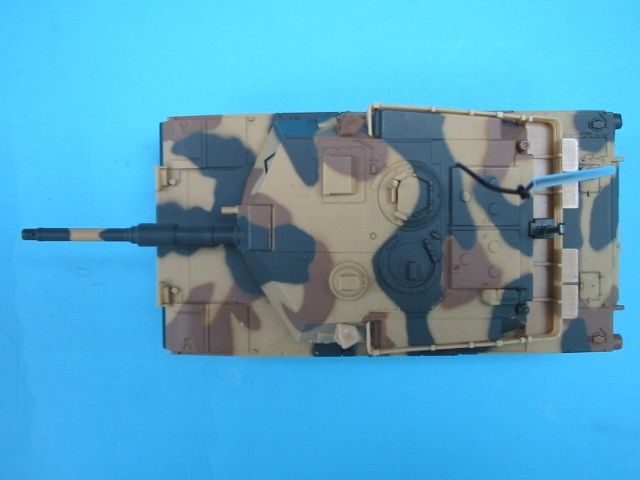

AEKA73049RBATTLE TANK

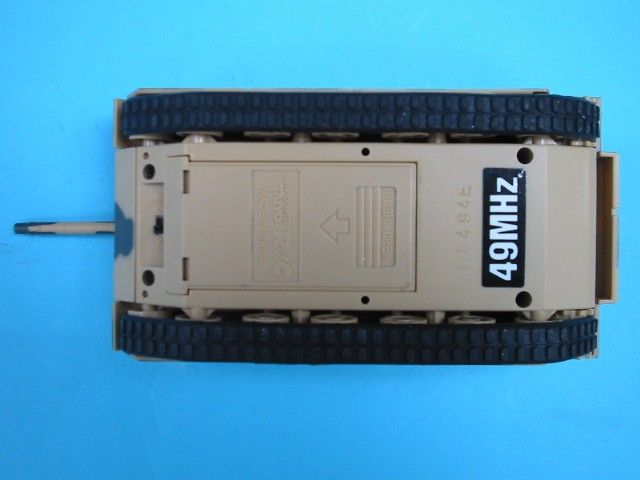

SIZE : 33MM X 12MM FCC Label Location

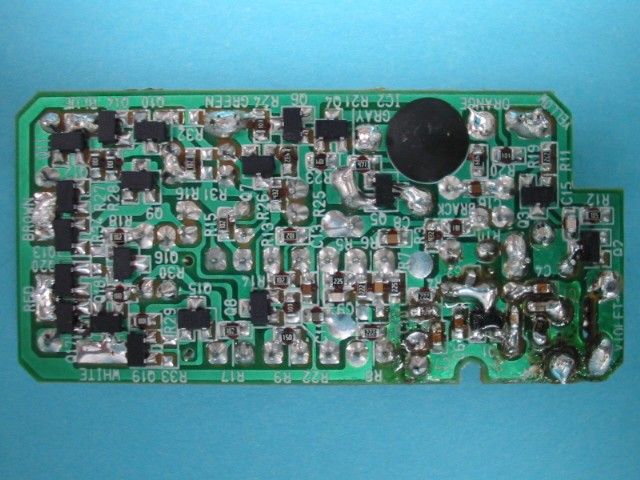

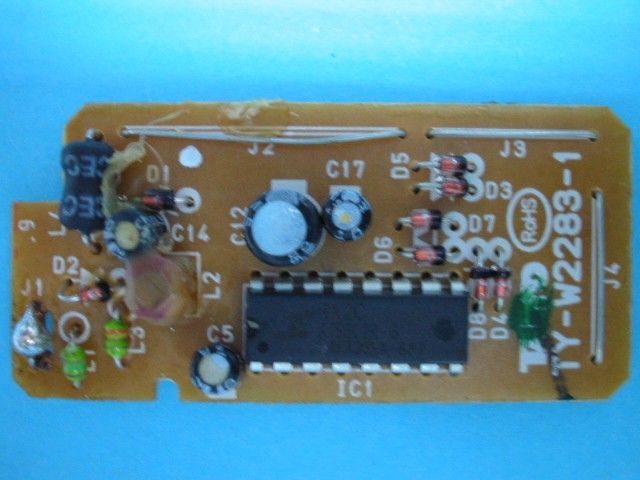

Operation Description for Battle Tank The Battle Tank is powered by 2 x 1.5V AA size batteries and the radio channel is 49.860MHz. The transmitter Q1 is radio receiver and Q2, Q3 is voltage controller. The IC1 is decoder and IC2 is a voice controller. The transmitter Q9 ~ Q12 is a motor controller for motor M1 and Q15 ~ Q20 is a motor controller for motor M2.

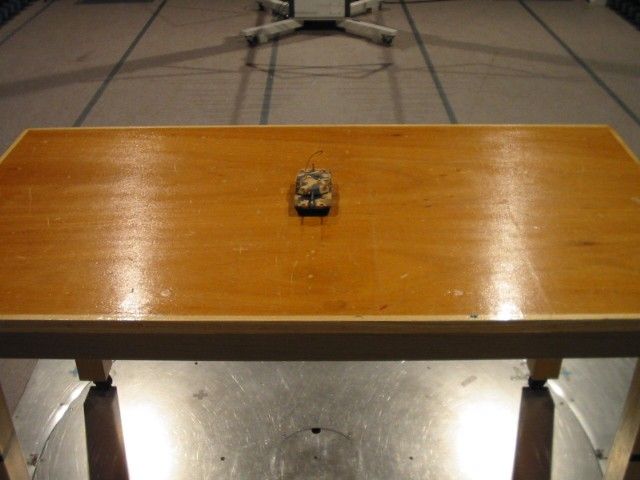

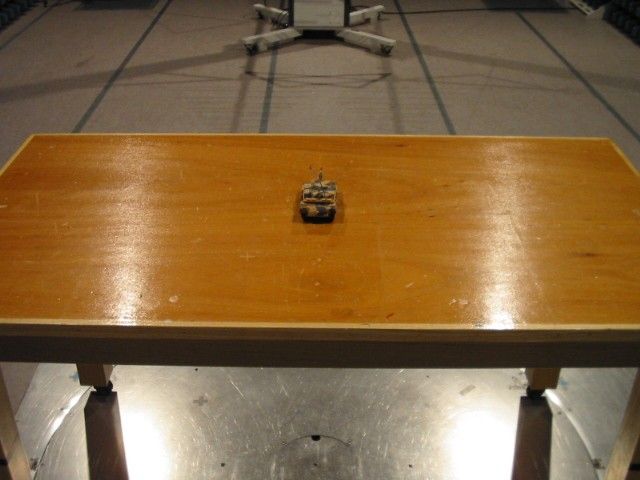

TEST REPORT Report No. : AJ022165-001 Date : 2007 August 31 Page 1 of 11 FCC ID: AEKA73049R This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Application No. : LJ217738(6) Client : Taiyo Co., Ltd. Fukokuseimei Bldg. 6F, No. 1-2-11, Kaminarimon, Taito-ku, Tokyo, 111-0034, Japan Sample Description : One(1) submitted sample(s) stated to be Battle Tank of Model No. A730 Radio Frequency : 49.860 MHz Receiver Rating : 2 x 1.5V AA size batteries No. of submitted sample : Two (2) set(s) *** Date Received : 2007 July 27 Test Period : 2007 July 27 ñ 2007 August 02 Test Requested : FCC Part 15 Certification. Test Method : 47 CFR Part 15 (10-1-05 Edition) ANSI C63.4 ñ 2003 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart B. For and on behalf of CMA Industrial Development Foundation Limited Authorized Signature : ____________________________________________________ Danny Chui Deputy Manager - EL. Division TEST REPORT Report No. : AJ022165-001 Date : 2007 August 31 Page 2 of 11 FCC ID: AEKA73049R This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Table of Contents 1 General Information .............................................................................................................................3 1.1 General Description .....................................................................................................................3 1.2 Location of the test site ................................................................................................................4 1.3 List of measuring equipment........................................................................................................5 2 Description of the radiated emission test .............................................................................................6 2.1 Test Procedure..............................................................................................................................6 2.2 Test Result....................................................................................................................................6 2.3 Radiated Emission Measurement Data ........................................................................................7 3 Description of the Line-conducted Test...............................................................................................8 3.1 Test Procedure..............................................................................................................................8 3.2 Test Result....................................................................................................................................8 3.3 Graph and Table of Conducted Emission Measurement Data .....................................................8 4 Photograph ...........................................................................................................................................9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission ......................9 4.2 Photographs of the External and Internal Configurations of the EUT.........................................9 5 Supplementary document ...................................................................................................................10 5.1 Bandwidth ..................................................................................................................................10 5.2 Duty cycle ..................................................................................................................................10 5.3 Transmission time ......................................................................................................................10 6 Appendices .........................................................................................................................................11 TEST REPORT Report No. : AJ022165-001 Date : 2007 August 31 Page 3 of 11 FCC ID: AEKA73049R This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com 1 General Information 1.1 General Description The equipment under test (EUT) is a receiver for Battle Tank. It operates at 49.860MHz and the oscillation of radio control is generated by a LRC circuit. The EUT is powered by 2 x 1.5V AA size batteries. When it switched on and received radio control signal, it will be running to corresponding direction. The brief circuit description is listed as follows: - Q1 and associated circuit act as RF receiver. - IC1, Q6~Q8 and associated circuit act as decoder. - Q15~Q20 and associated circuit act as M2 motor controller. - Q9~Q14 and associated circuit act as M1 motor controller. - IC2, Q4, Q5 and associated circuit act as voice controller. - Q2, Q3 and associated circuit act as voltage controller. TEST REPORT Report No. : AJ022165-001 Date : 2007 August 31 Page 4 of 11 FCC ID: AEKA73049R This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 F…
